Super-precision angular contact ball bearing, 75 x 115 x 20 mm, 15° contact angle, ABEC 7 / P4A. Universally matchable, extra light preload, 11,000 rpm grease.
List Price
$97.87
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7015-CDGA/P4DGA |
| Model | 7015 C P4 DGA |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 75 mm |
| OD | 115 mm |
| Width | 20 mm |
| Material | Bearing steel |
|---|---|
| Series | 70 |
| Lubricant | Grease or oil-air |
| Preload | Extra light |
| Base Number | 7015 |
| Mpn Variants | 7015-CDGA/P4DGA; 7015-C-P4-DGA; 7015CDGAP4; 7015 CD/P4A; 7015C; 7015 |
| Precision Class | ABEC 7 / P4A |
| Dynamic Load Rating | 52,700 N |
| Static Load Rating | 49,000 N |
| Precision Rating | ABEC 7 / P4A |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Cylindrical |
| Snap Ring Included | No |
| Limiting Speed | 11,000 rpm grease; 18,000 rpm oil-air |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Bearing Material | Bearing steel |
| Closure Type | Open |
| Cross Reference 1 | FAG B7015-C-T-P4S |
|---|---|
| Cross Reference 2 | NSK 7015C |
| Cross Reference 3 | RHP 7015 CT |
| Cross Reference 4 | SNFA EX75 7CE1 |
| Cross Reference 5 | SKF 7015 ACD/P4A (related, 25° contact angle) |

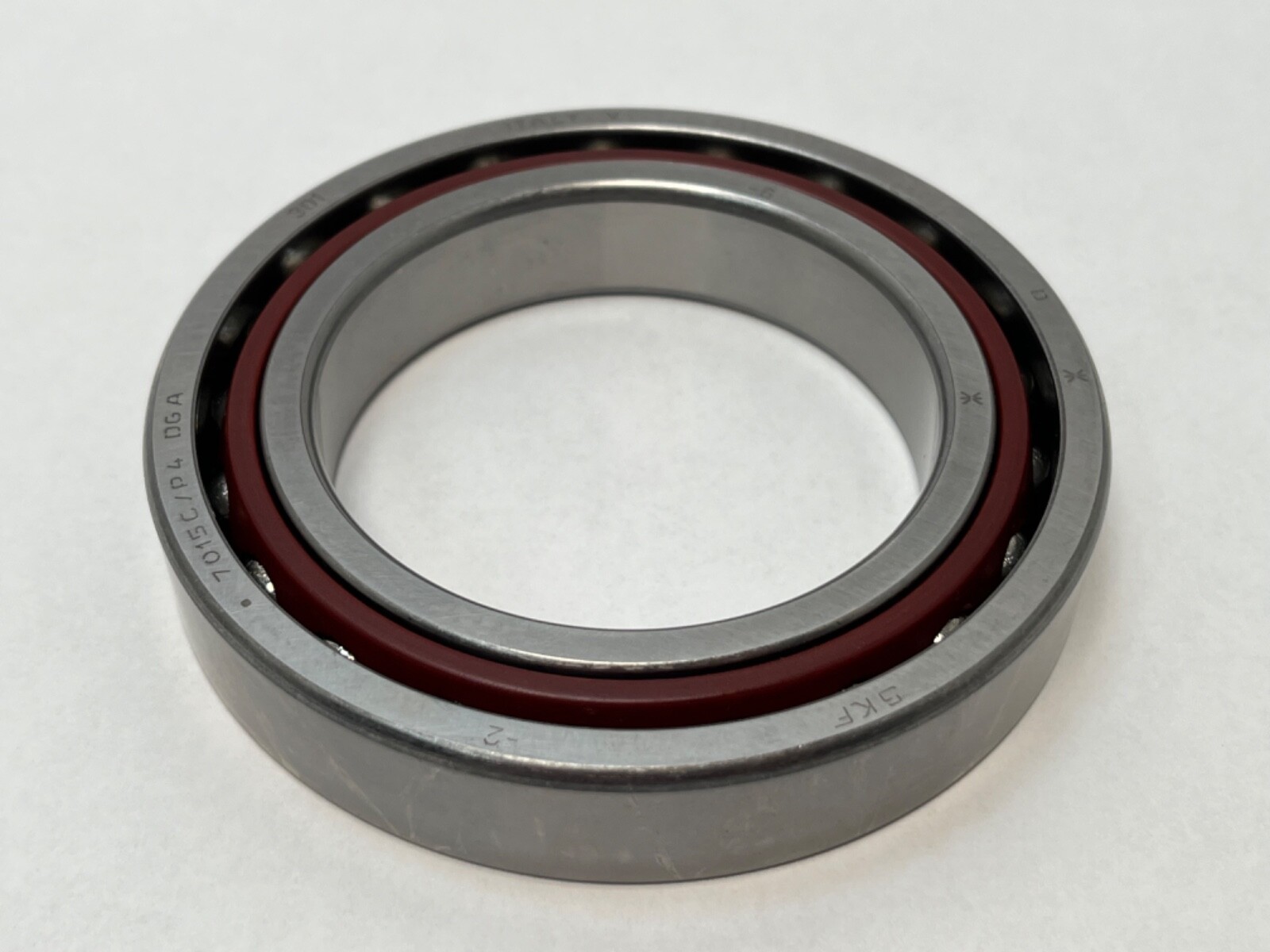

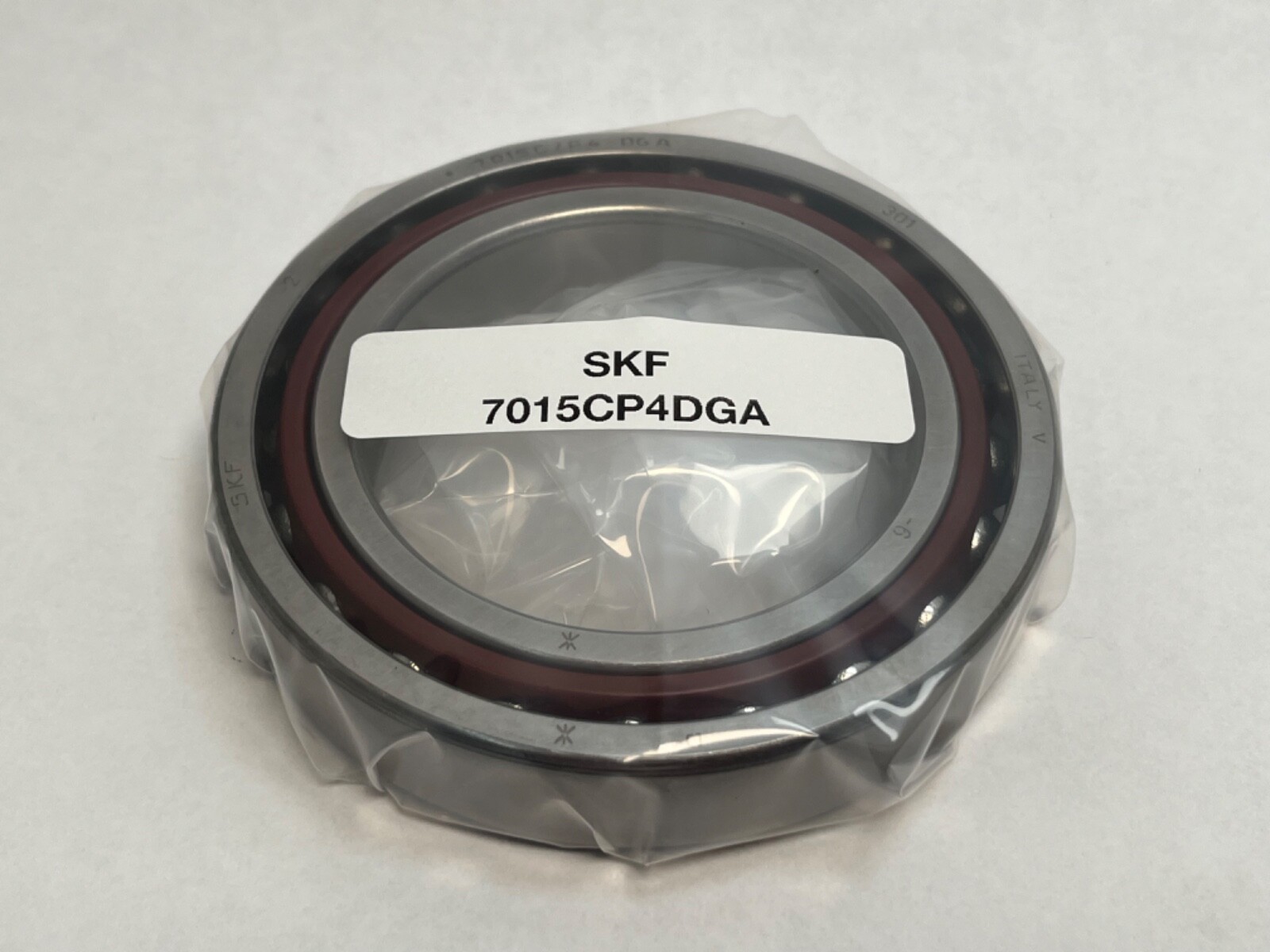

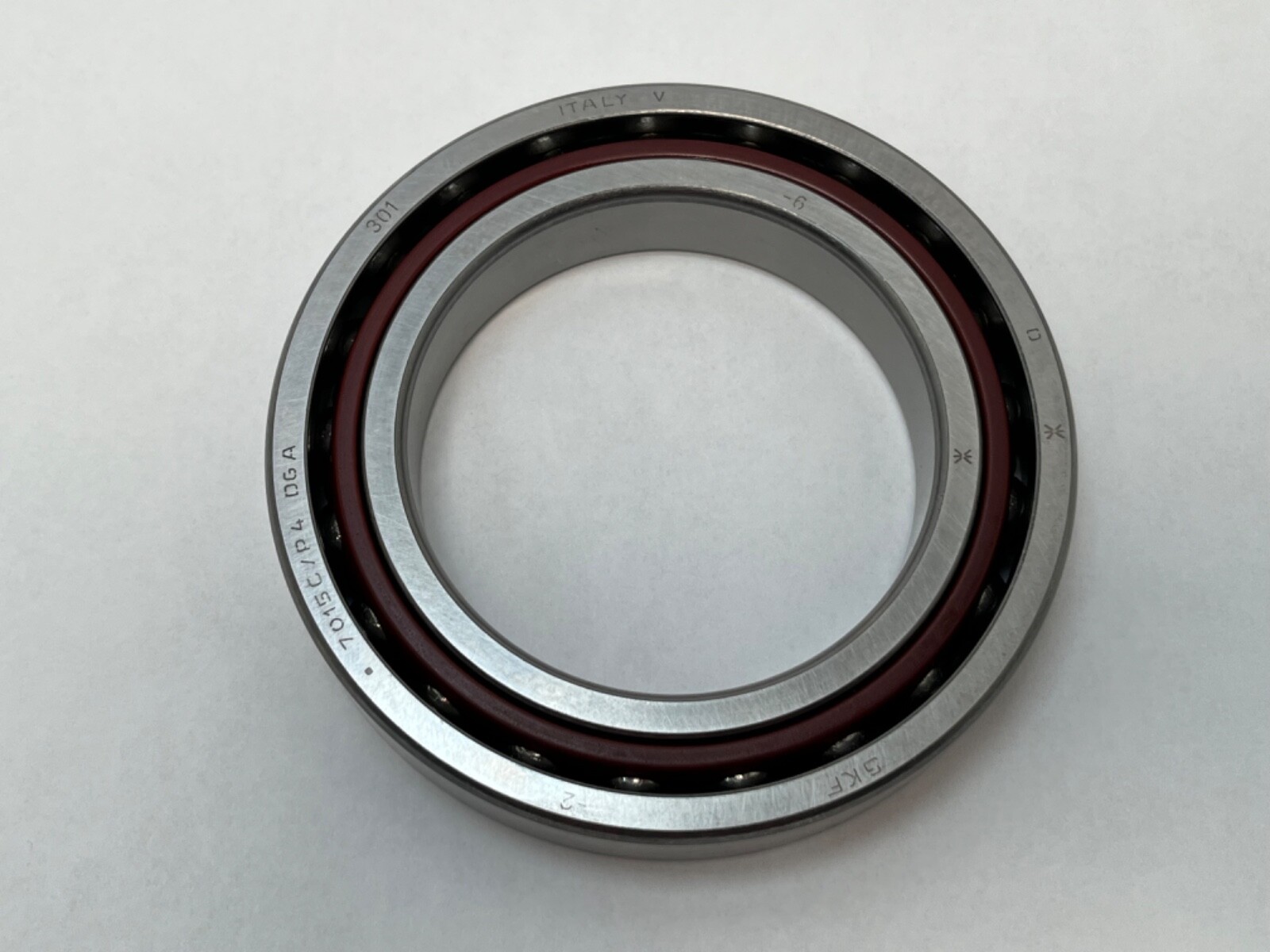

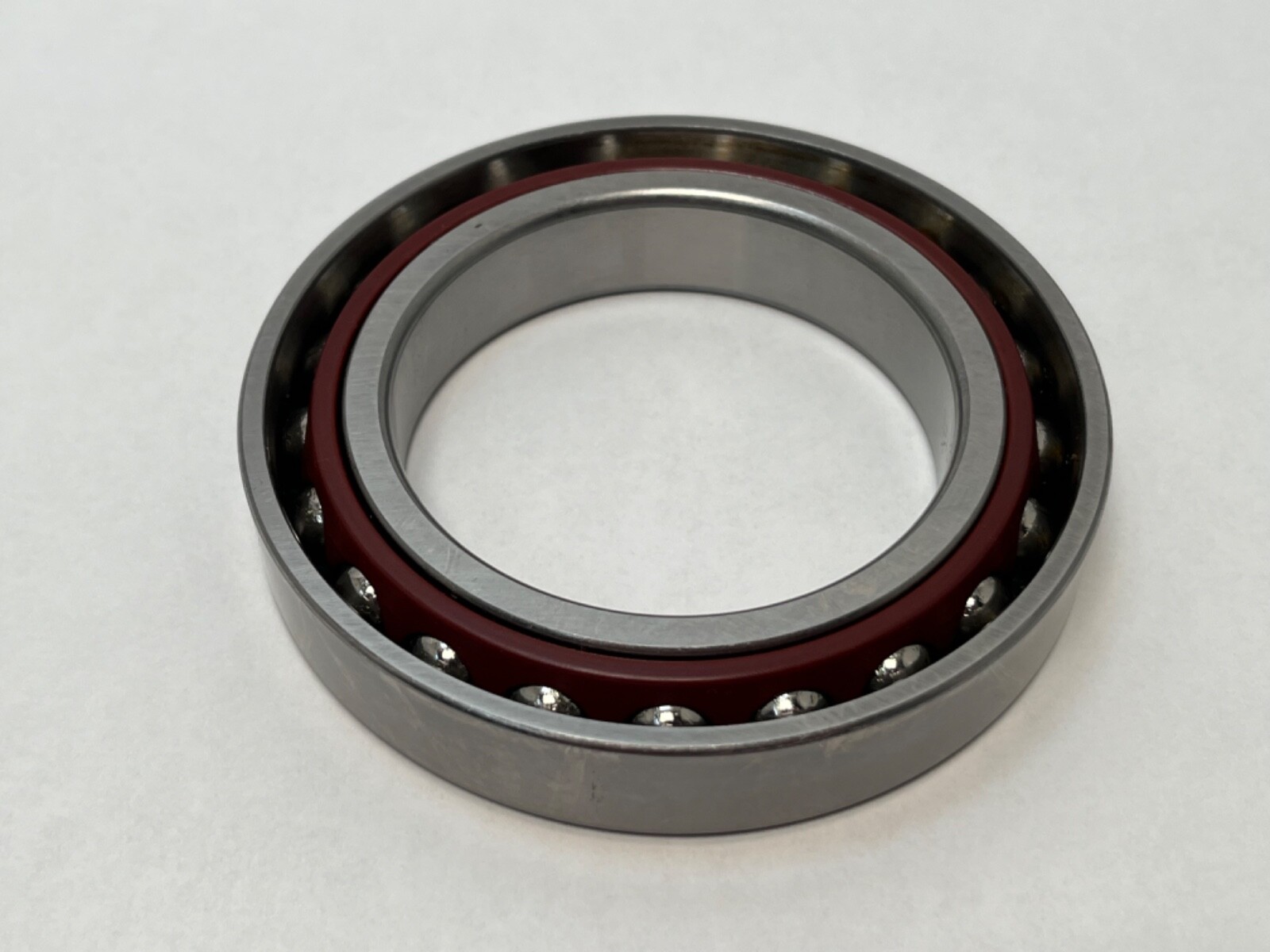

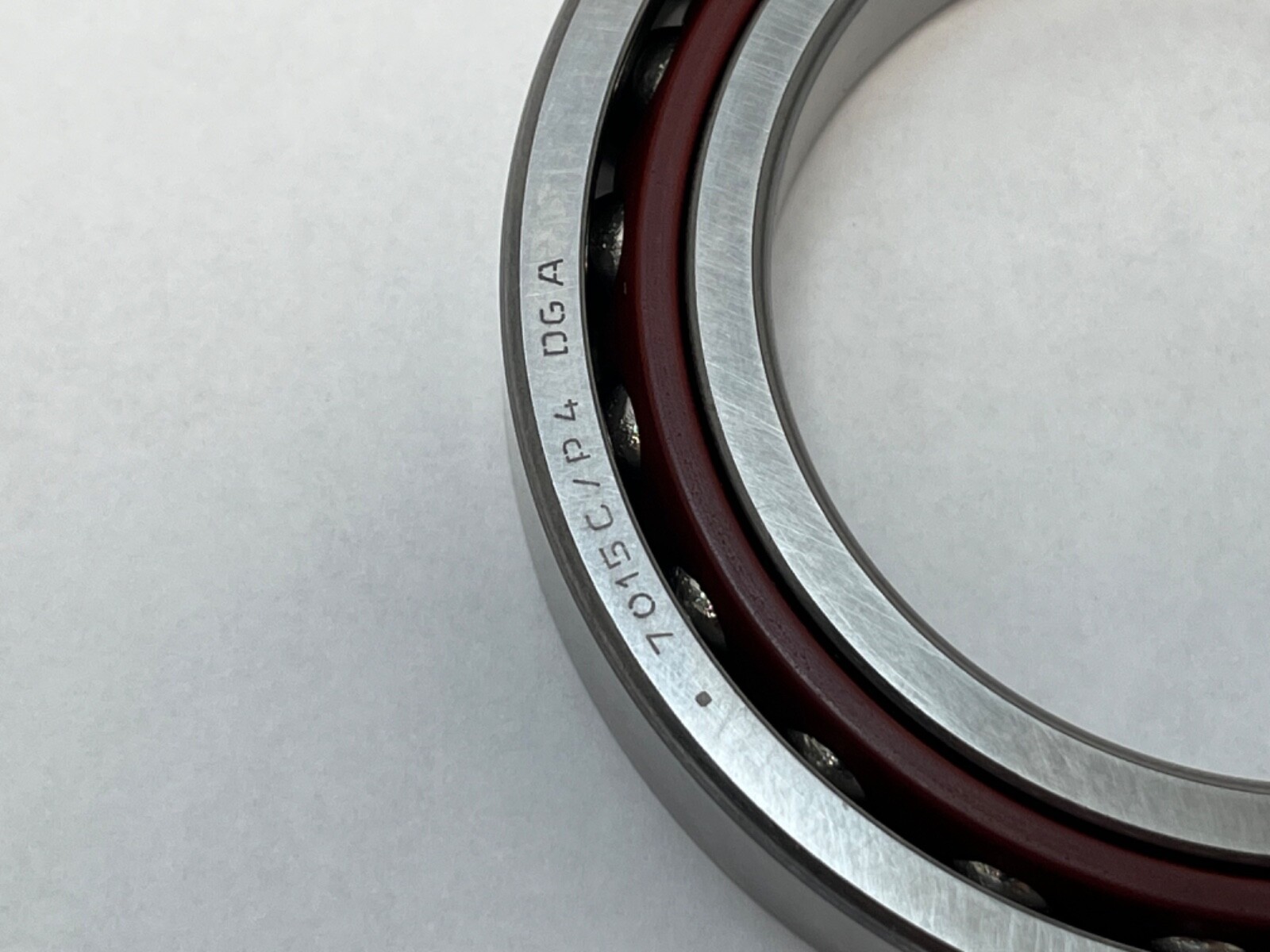

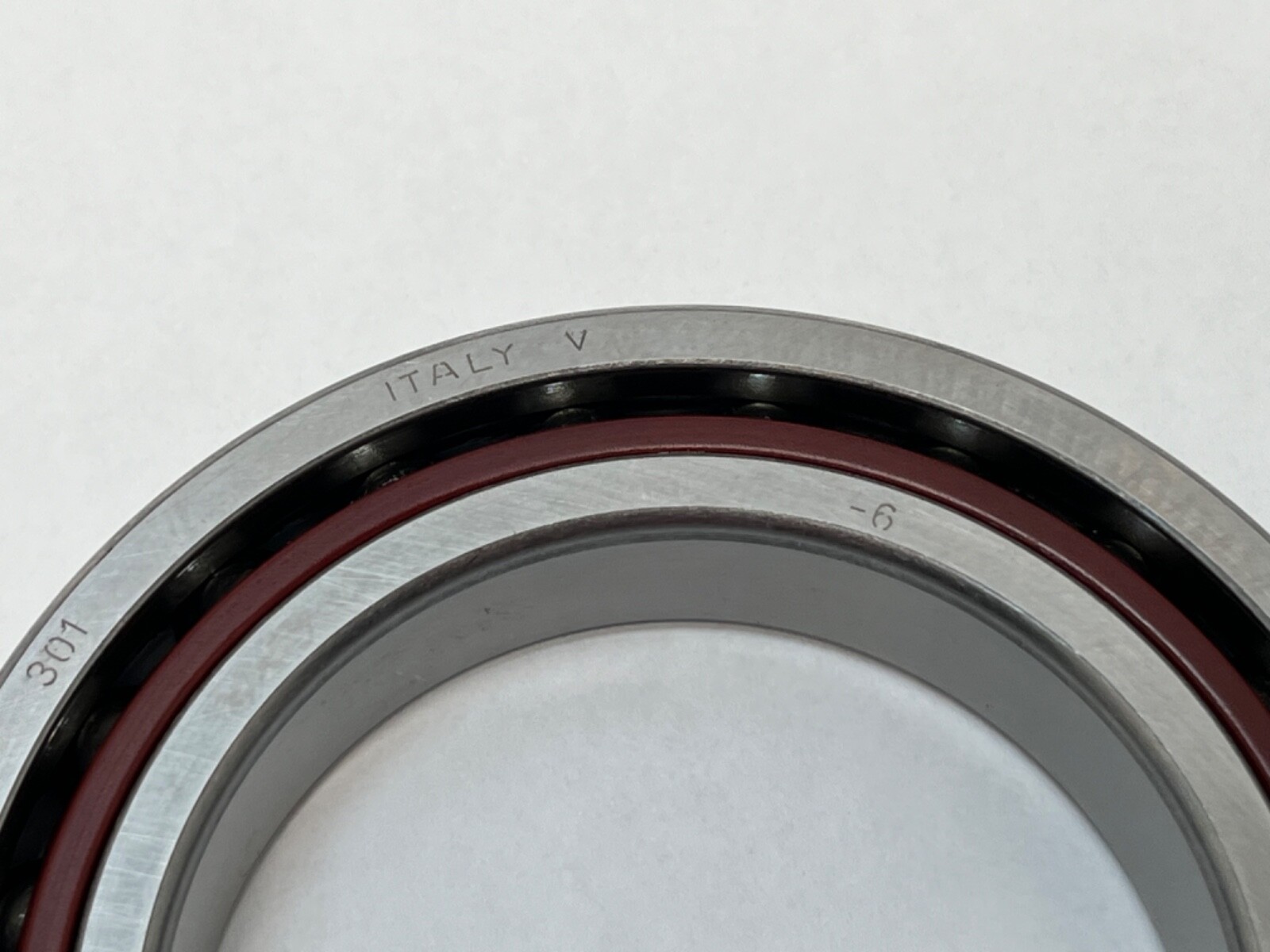

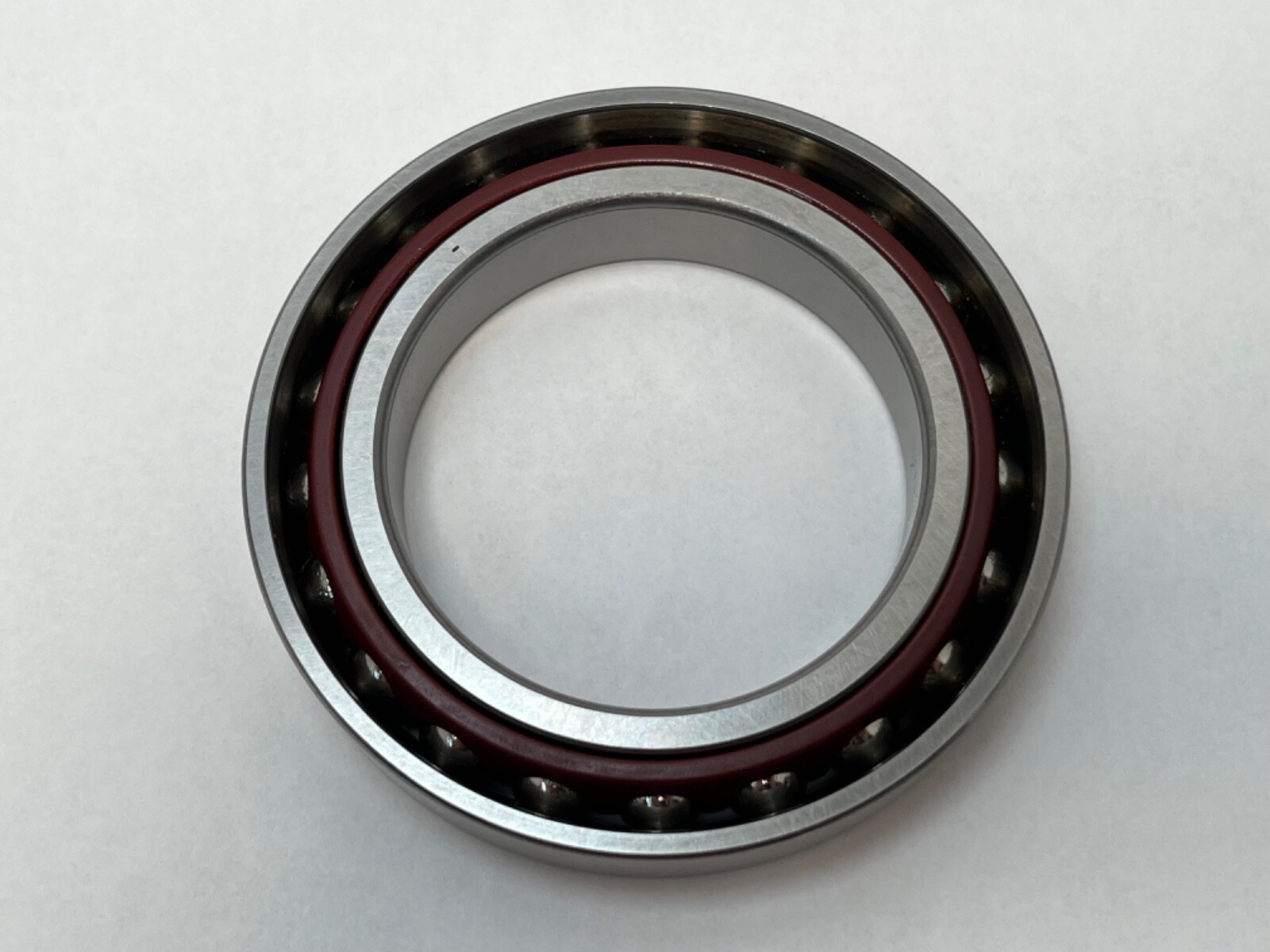

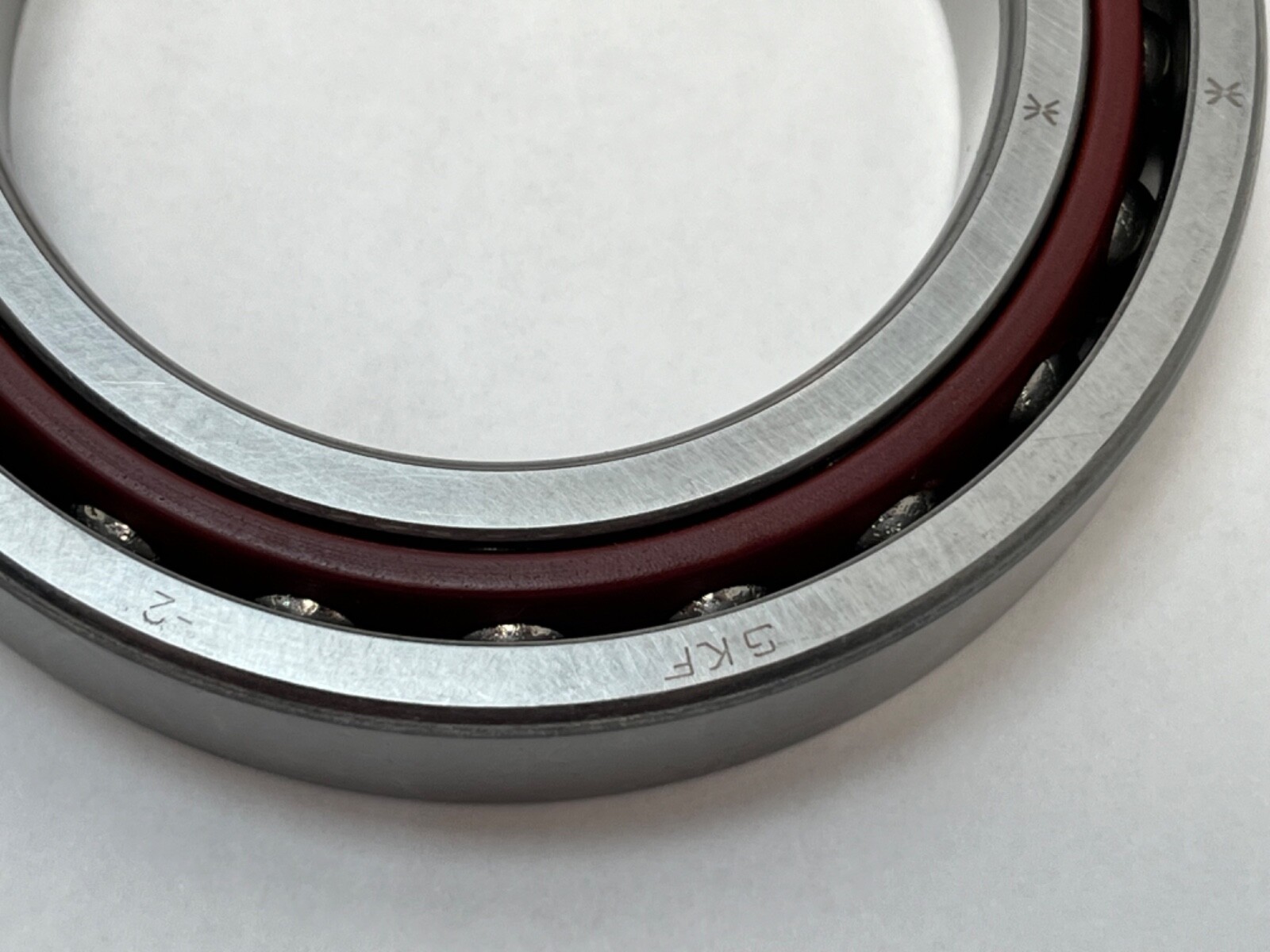

SKF 7015 CD/P4A super-precision single-row angular contact ball bearing, universally matchable, 75 x 115 x 20 mm, open. Contact Angle: 15°. Precision Class: ABEC 7 / P4A. Preload: extra light (DGA). Unit Quantity: 1 Pc.
7015 — ISO 70 light series at a 75 mm bore.
CD — SKF’s 15° super-precision design.
DGA — universally matchable, extra light preload.
P4A — super-precision tolerance class.
Bore Diameter: 75 mm. Outside Diameter: 115 mm. Overall Width: 20 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4A. Preload: Extra light. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Cylindrical. Closure Type: Open. Bearing Material: Bearing steel. Series: 70. Base Number: 7015. Dynamic Load Rating: 52,700 N. Static Load Rating: 49,000 N. Limiting Speed: 11,000 rpm grease; 18,000 rpm oil-air. Ball complement: 20 balls of 12.7 mm diameter.
Load-centre distance a: 22.8 mm from the side face. Shaft abutment diameter da and db: 81 mm minimum. Housing abutment diameter Da: 109 mm maximum. Housing abutment diameter Db: 111 mm maximum. Shaft fillet radius ra: 1 mm maximum. Housing fillet radius rb: 0.6 mm maximum. Bearing chamfers r1,2: 1.1 mm minimum and r3,4: 0.6 mm minimum. Oil nozzle position dn: 90 mm. Reference grease quantity: 8.4 cm³ per bearing.
Cross-Reference 1: FAG B7015-C-T-P4S, where the C on a B70 designation is the 15° angle. Cross-Reference 2: NSK 7015C. Cross-Reference 3: RHP 7015 CT. Cross-Reference 4: SNFA EX75 7CE1, where CE1 is 15°. Cross-Reference 5: SKF 7015 ACD/P4A, the same envelope and precision at a 25° contact angle. Searchable forms: 7015-CDGA/P4DGA, 7015-C-P4-DGA, 7015CDGAP4, 7015C, 7015.
Contact Angle: 15°. Preload: extra light (DGA), on a universally matchable bearing.
Dynamic Load Rating: 52,700 N. Static Load Rating: 49,000 N. Limiting speed is 11,000 rpm on grease and 18,000 rpm on oil-air.
P4A, ABEC 7.
