Super Precision Angular Contact Ball Bearing — 35 mm ID, 62 mm OD, 14 mm Width, 25° Contact Angle, Extra Light Preload, P4A$332.74
Angular Contact Ball Bearing - 35 mm ID, 62 mm OD, 14 mm Width, 15° Contact Angle, Light Preload, ABEC 7 / P4, Phenolic Cage, Open.$51.83
Super-Precision Angular Contact Ball Bearing - 35 mm Bore, 62 mm OD, 14 mm Width, 15° Contact Angle, ABEC 9$55.43
Super Precision Angular Contact Ball Bearing - Straight Bore, 35 mm ID, 62 mm OD, 14 mm Width, Open, 25° Contact Angle, Universal Light Preload$74.00| MFR / Brand | SKF |
|---|---|
| MPN | 7007ACDGAP4A |
| Model | 7007ACDGA/P4A ABEC7 7007-A |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 35 mm |
| OD | 62 mm |
| Width | 14 mm |
| Material | Chrome Steel |
|---|---|
| Series | 7000 |
| Lubricant | Oil |
| Preload | Light Preload |
| Min Temp | -30 °C |
| Cage Type | Window |
| Dynamic Load Rating | 14.8 kN / 3327 lbf |
| Static Load Rating | 9 kN / 2023 lbf |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.34 lbs |
| Cage Material | Polyamide |
| Limiting Speed | 32000 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Mounting Arrangement | Universal |
| Cross Reference 1 | FAG B7007-E-T-P4S-UL |
|---|

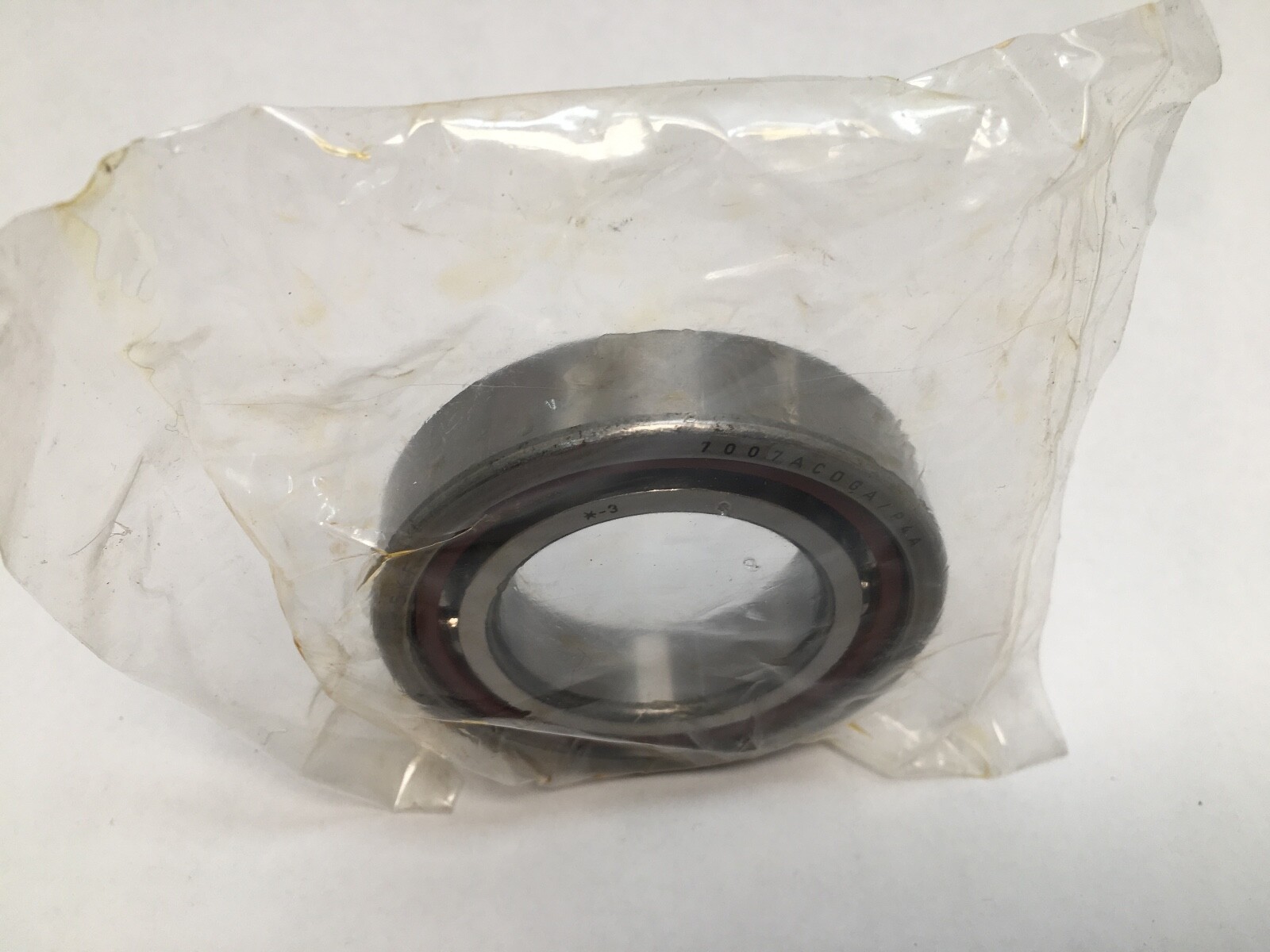

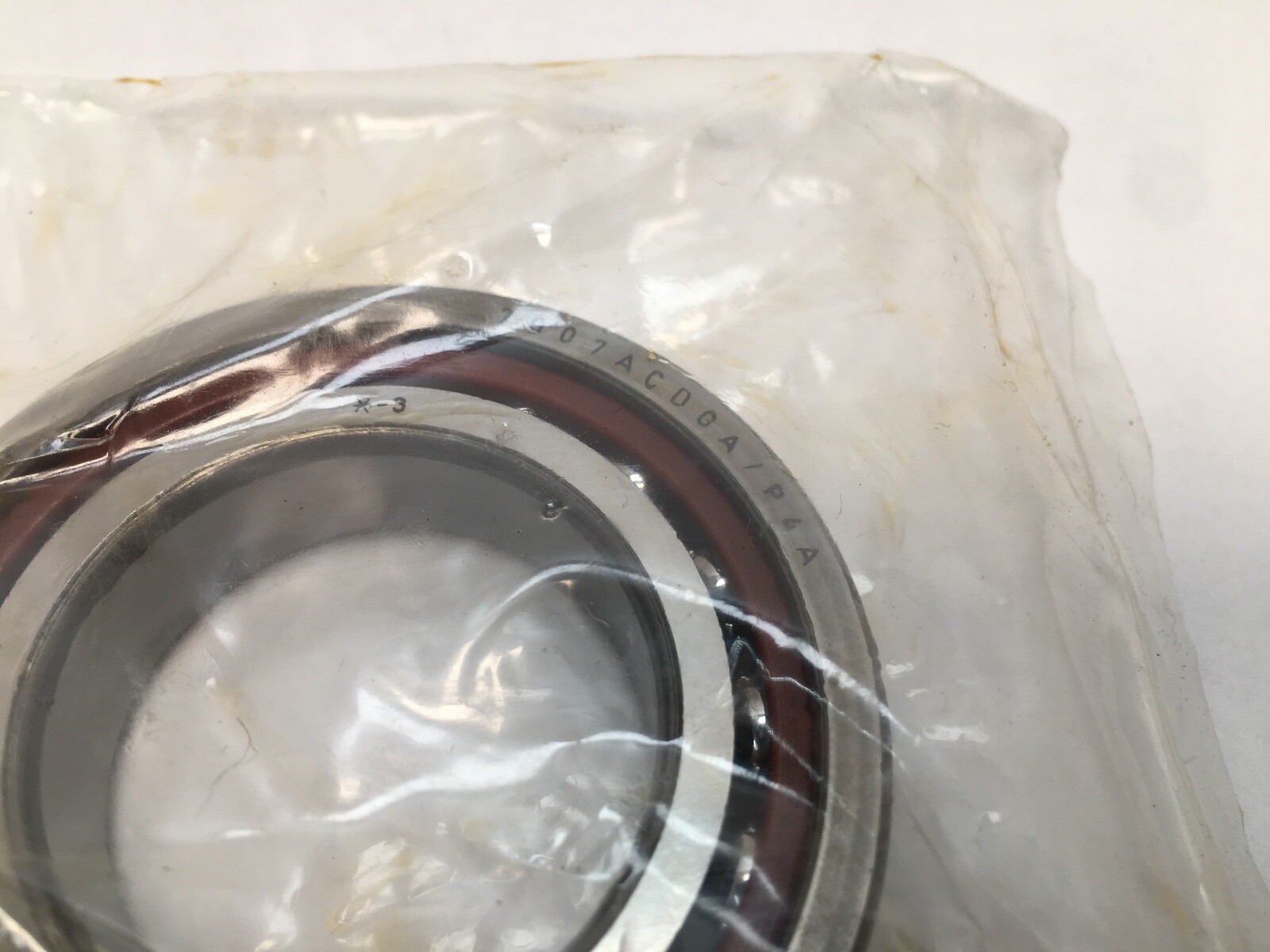

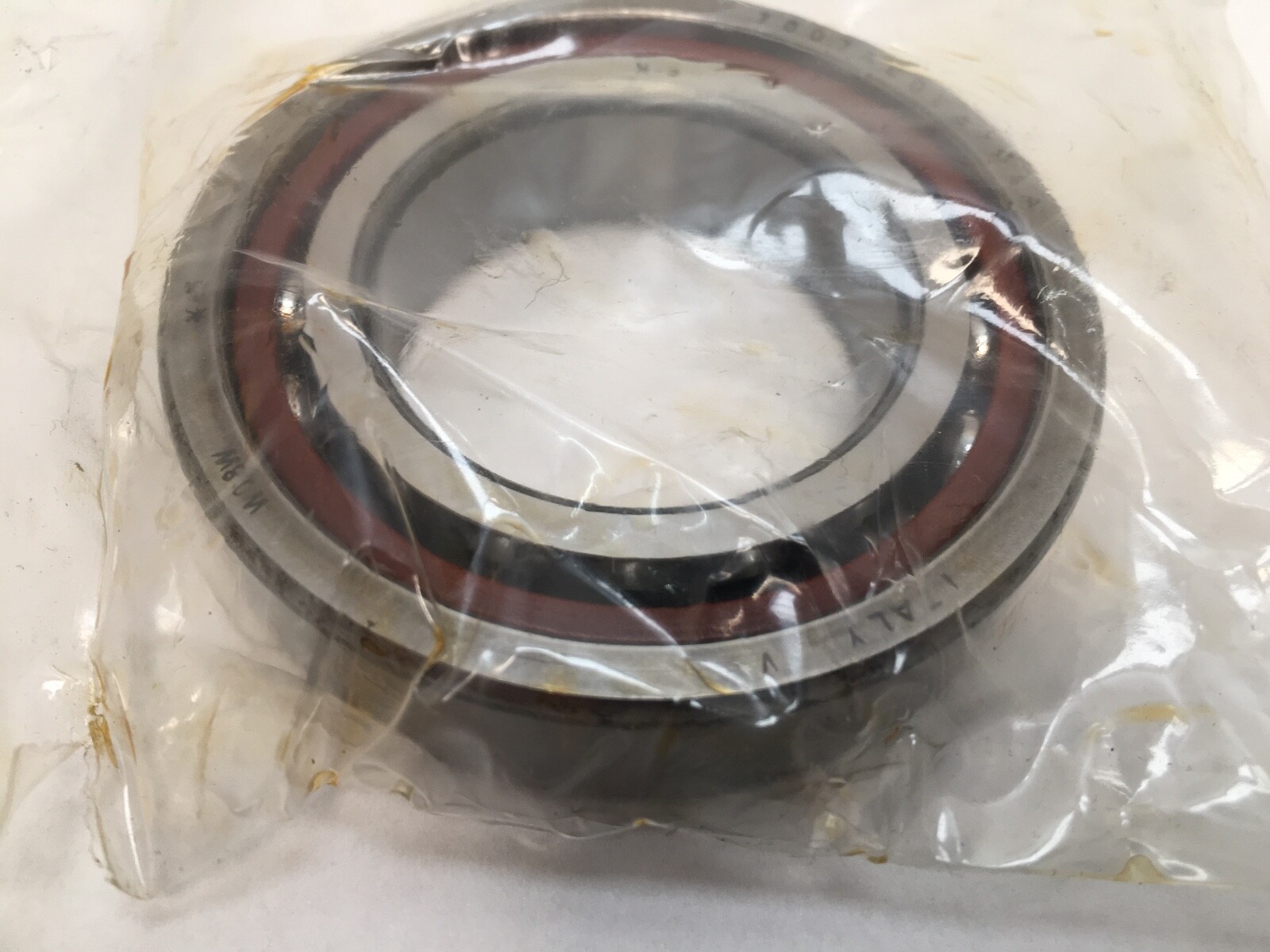

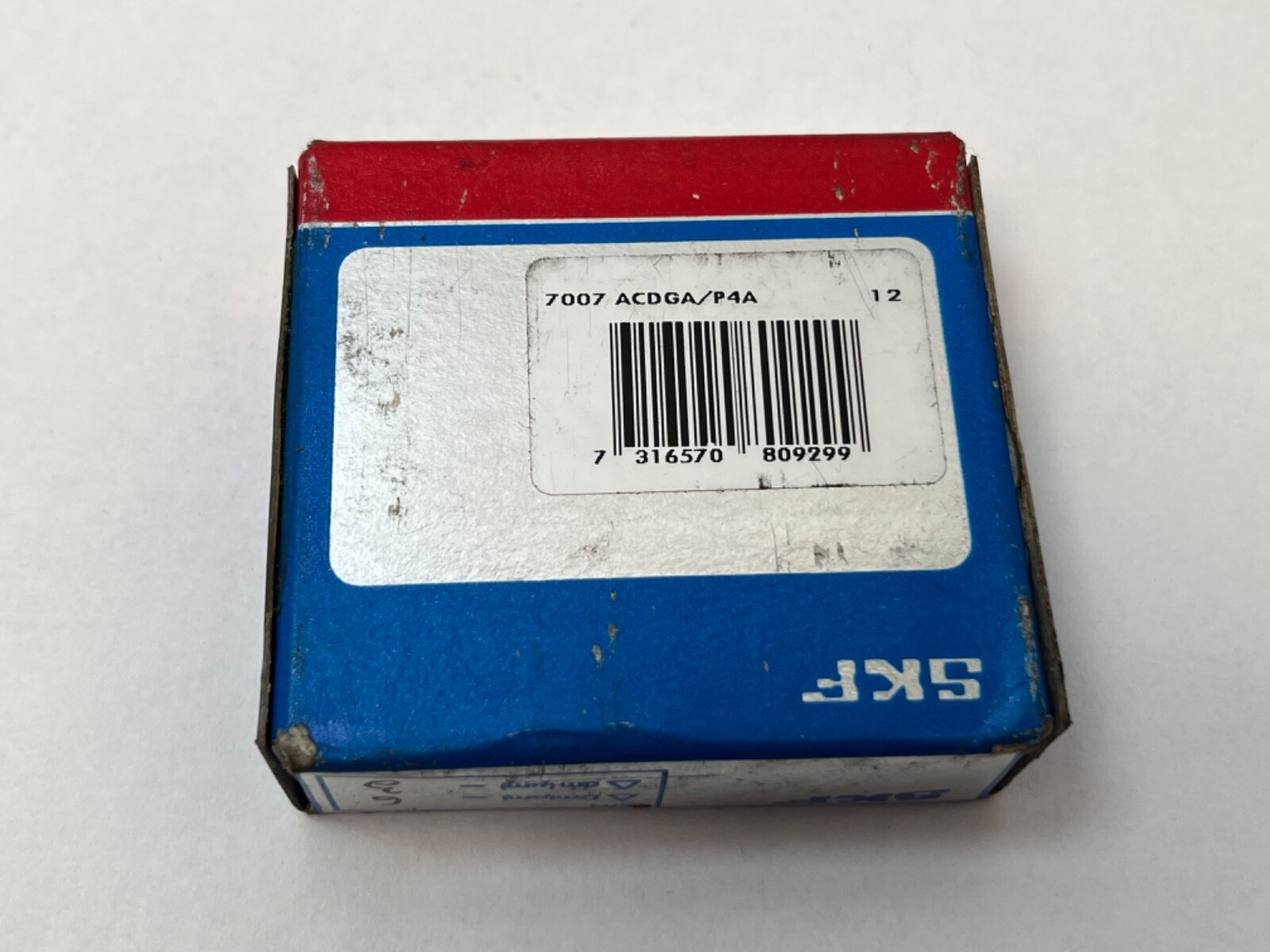

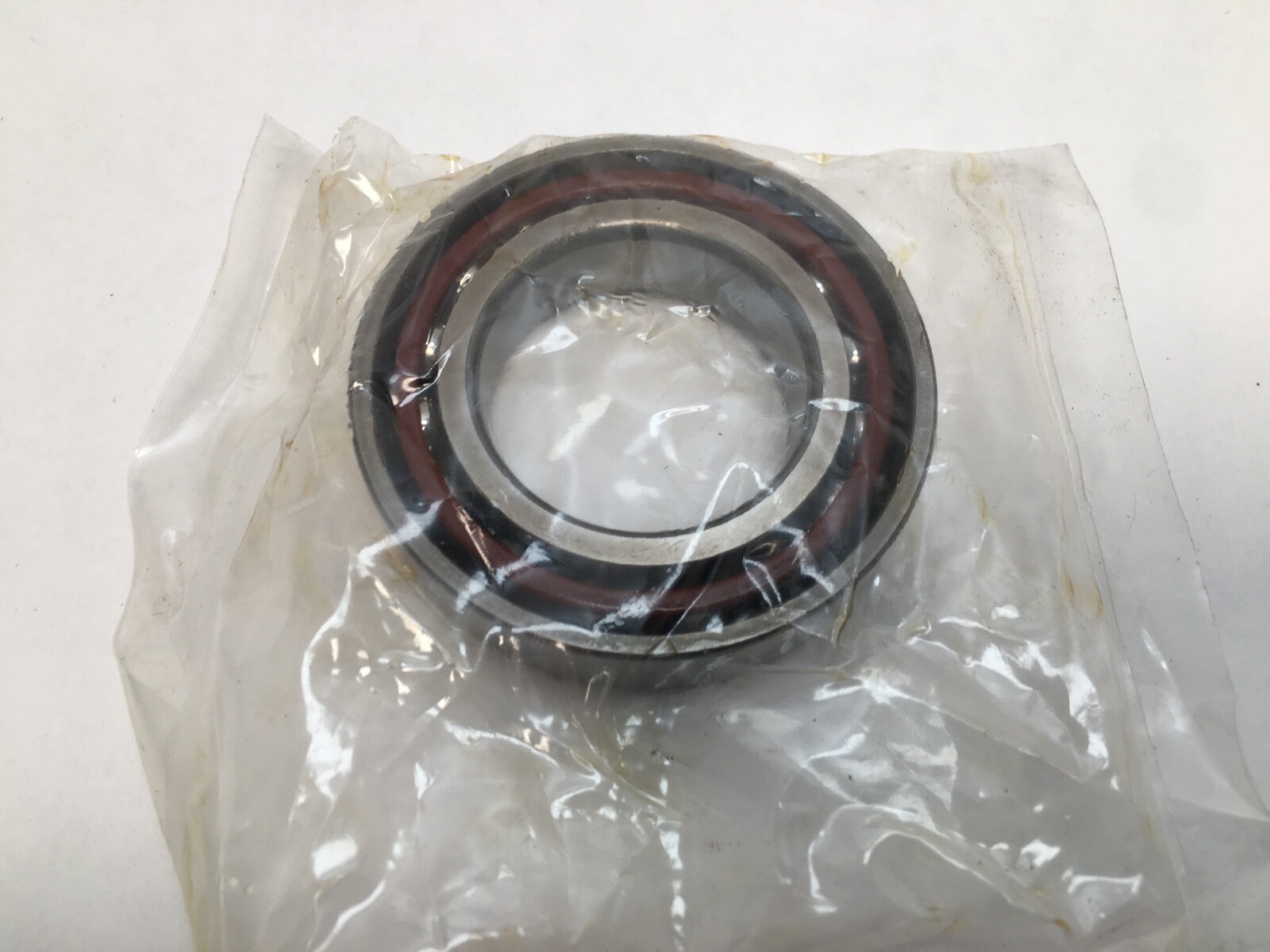

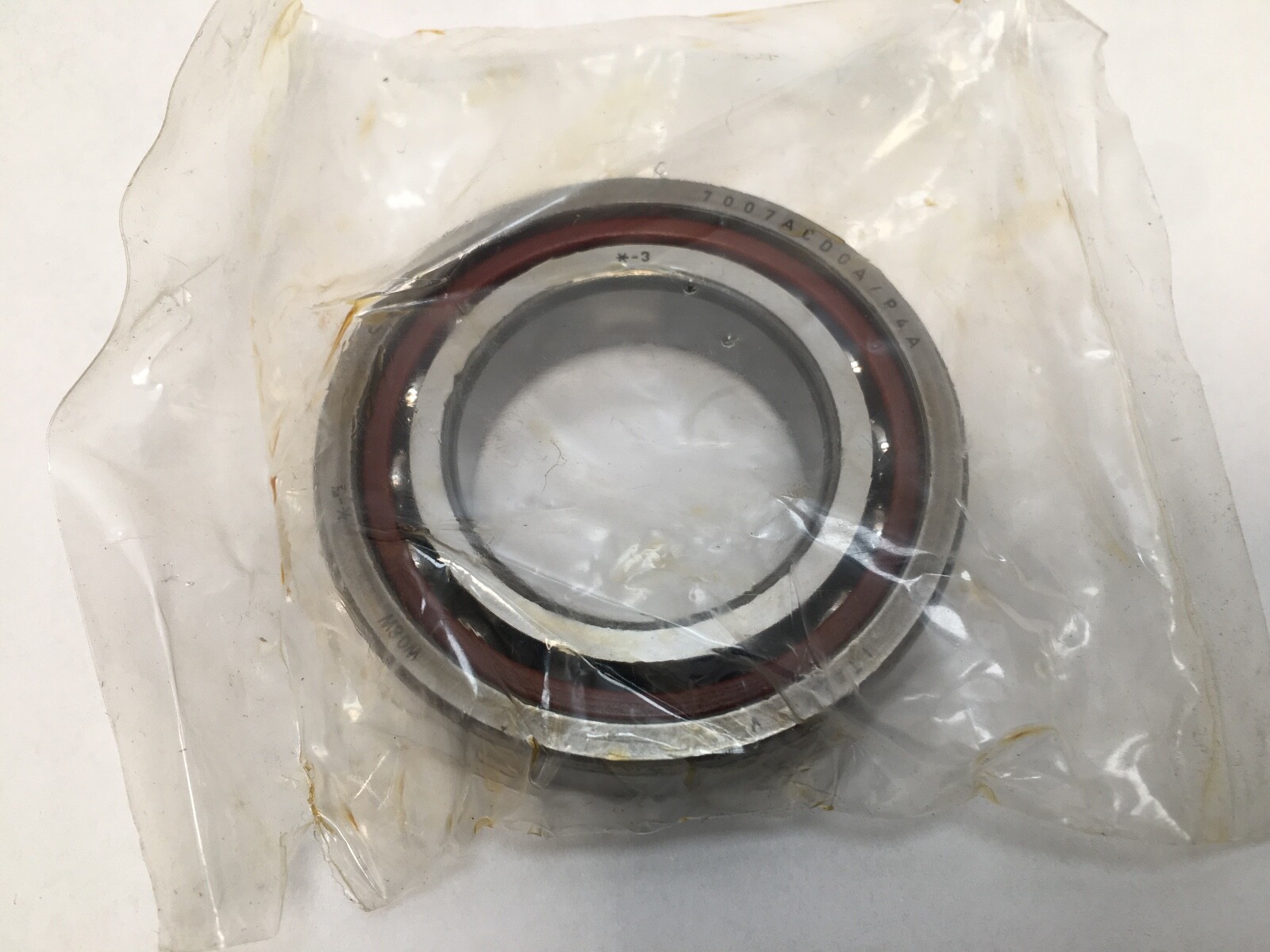

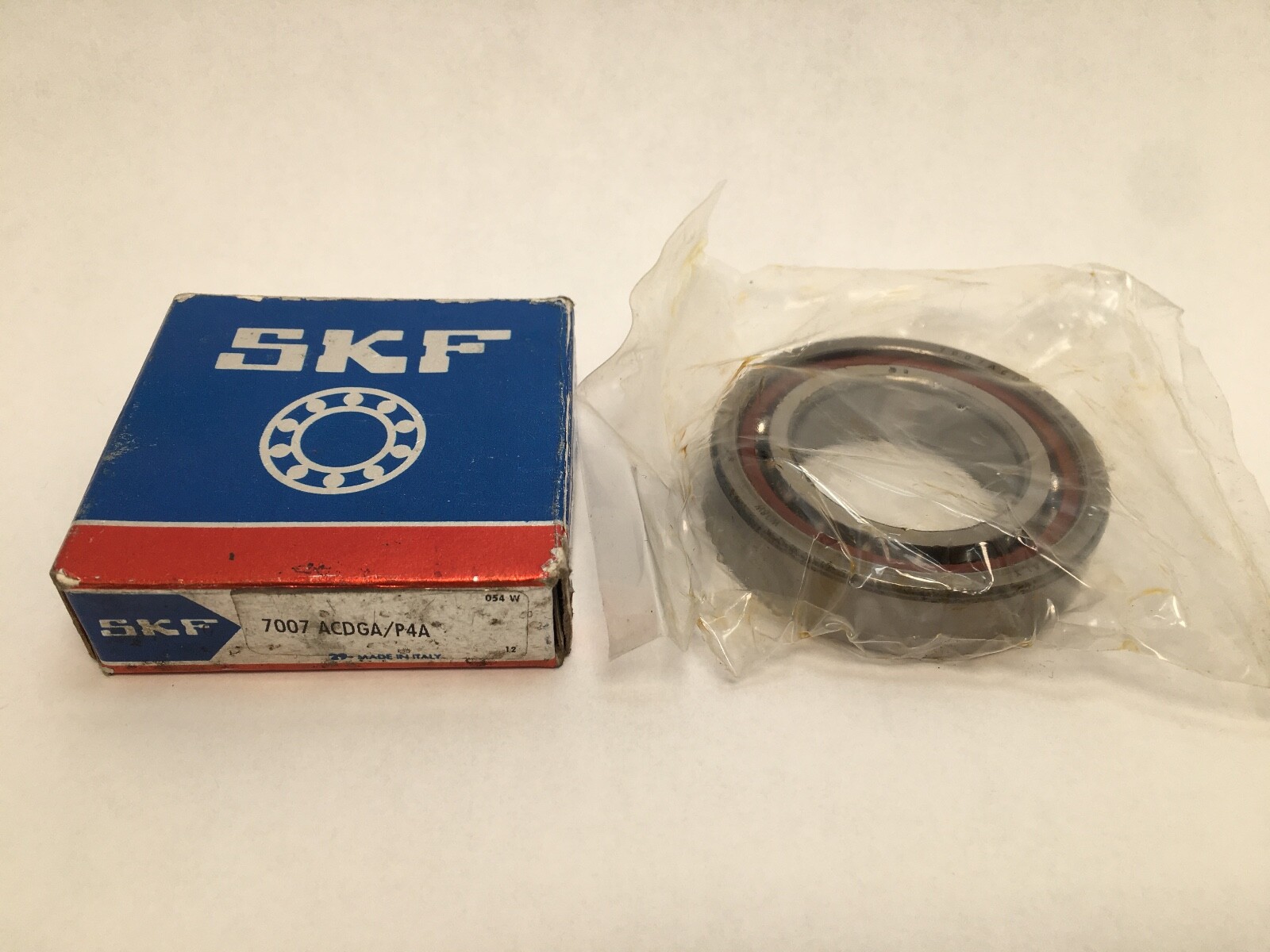

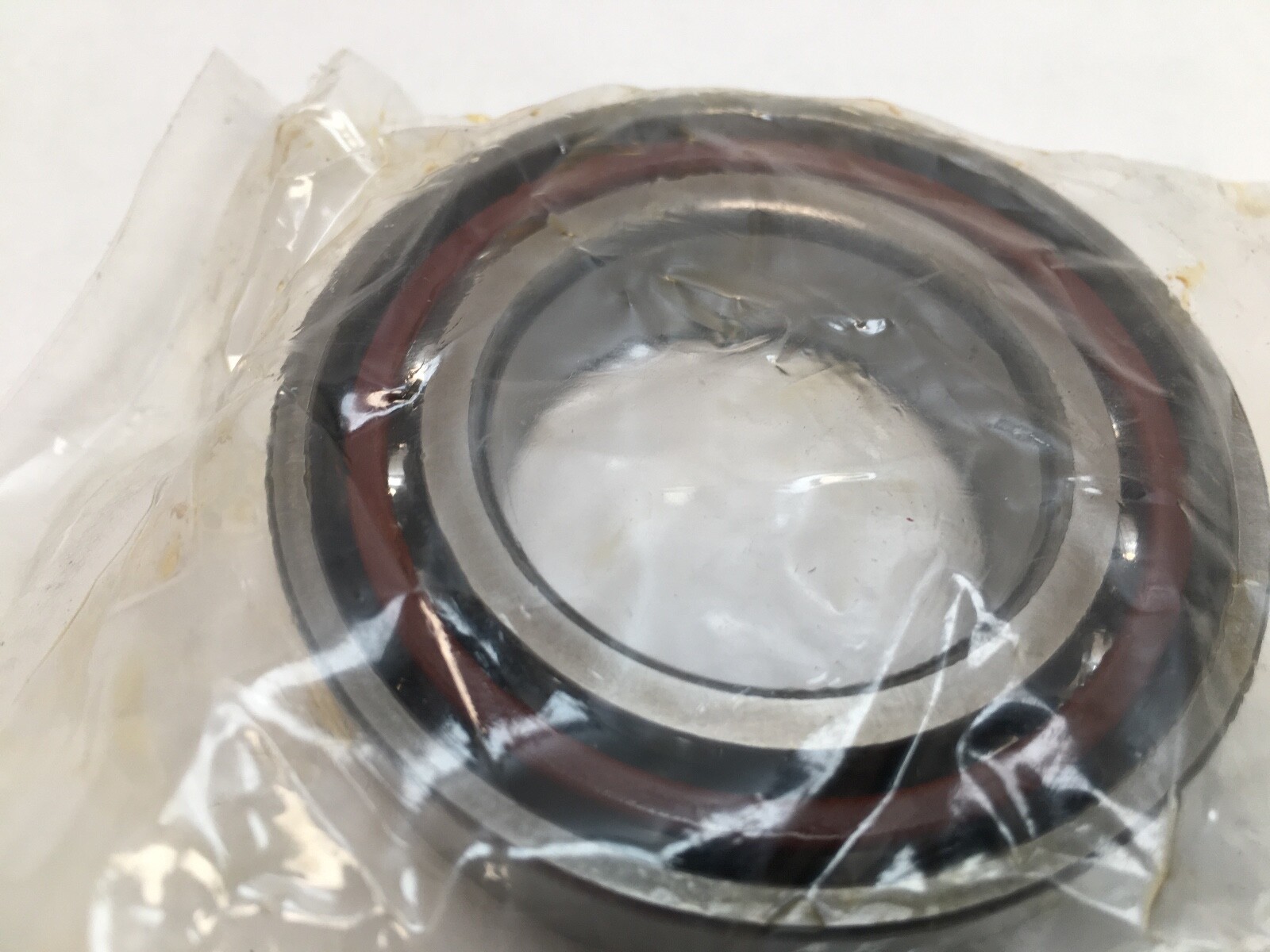

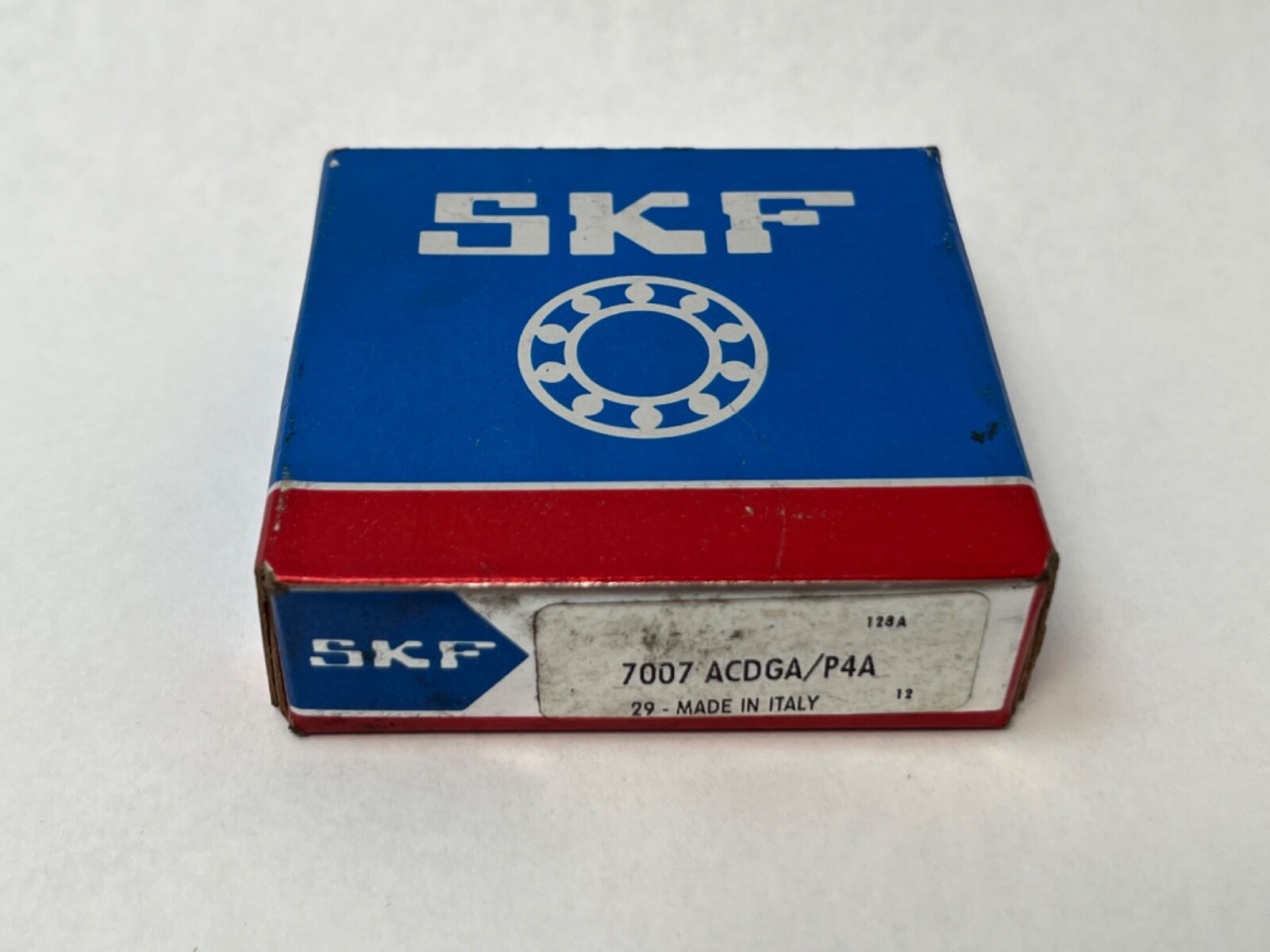

The SKF 7007-ACD/GAP4A Angular Bearing is a high-quality, precision ball bearing designed for industrial automation and motion control applications. With a dynamic load rating of 14.8 kN and a static load rating of 9 kN, this bearing can handle a wide range of loads and speeds, up to 32000 rpm. Made of chrome steel and featuring a 25° contact angle, this bearing provides reliable performance in a variety of environments, from -30°C to 120°C. The open seal design and window cage make it easy to lubricate and maintain, while the universal mounting arrangement ensures flexibility in installation. Made in Italy, this bearing meets the highest standards of quality and performance.
