SKF 5205 VAE double row angular contact ball bearing, 25 mm bore x 52 mm OD x 20.6 mm wide, 30 degree contact angle, open. VAE is a factory special-execution suffix on the 5205 / 3205 envelope.
List Price
$31.13
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Double Row Angular Contact Ball Bearing - 25 mm ID, 52 mm OD, 20.6 mm Width, Open, 30° contact angle.$41.13
Double Row Angular Contact Ball Bearing — 25 mm Bore, 52 mm OD, 20.6 mm Width, 30° Contact Angle, Polyamide Cage, P6$29.28
Double Row Angular Contact Ball Bearing - 25 mm ID, 52 mm OD, 20.6 mm Width, Shielded, 30° contact angle, C3.$27.51
Spindle Angular Contact Ball Bearing - 25 mm Bore, 52 mm OD, 15 mm Width, 15° Contact Angle, ABEC 7 / P4A, Extra Light Preload$180.51| MFR / Brand | SKF |
|---|---|
| MPN | 5205VAE |
| Model | 5205 VAE |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 52 mm |
| Width | 20.6 mm |
| Material | Bearing Steel |
|---|---|
| Series | 5200 |
| Lubricant | Oil |
| Rolling Elements | Ball |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 30° |
| Mounting Arrangement | Back-to-back (O) |
| Bearing Material | Bearing steel |
| Cross Reference 1 | SKF 3205 |
|---|

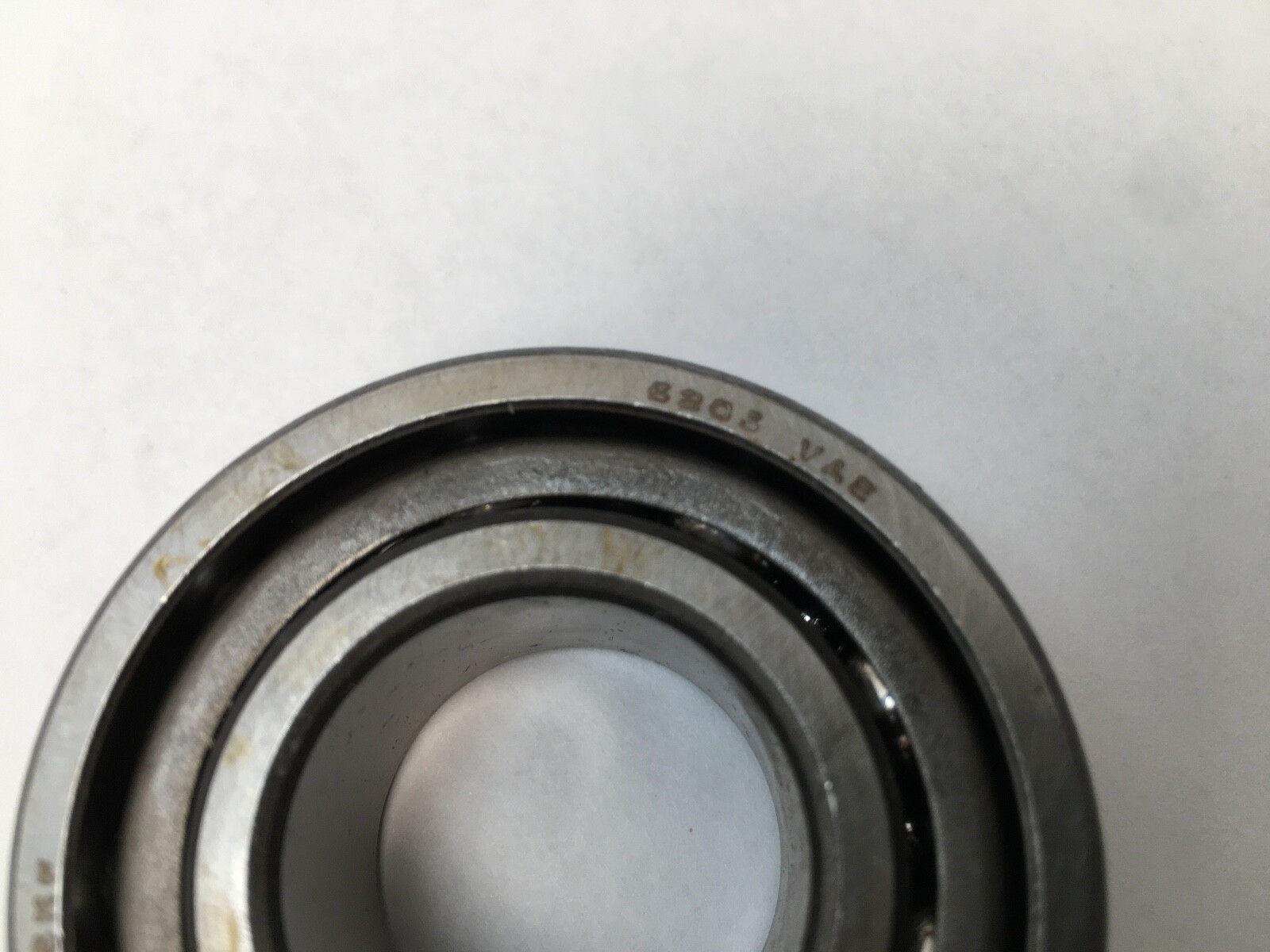

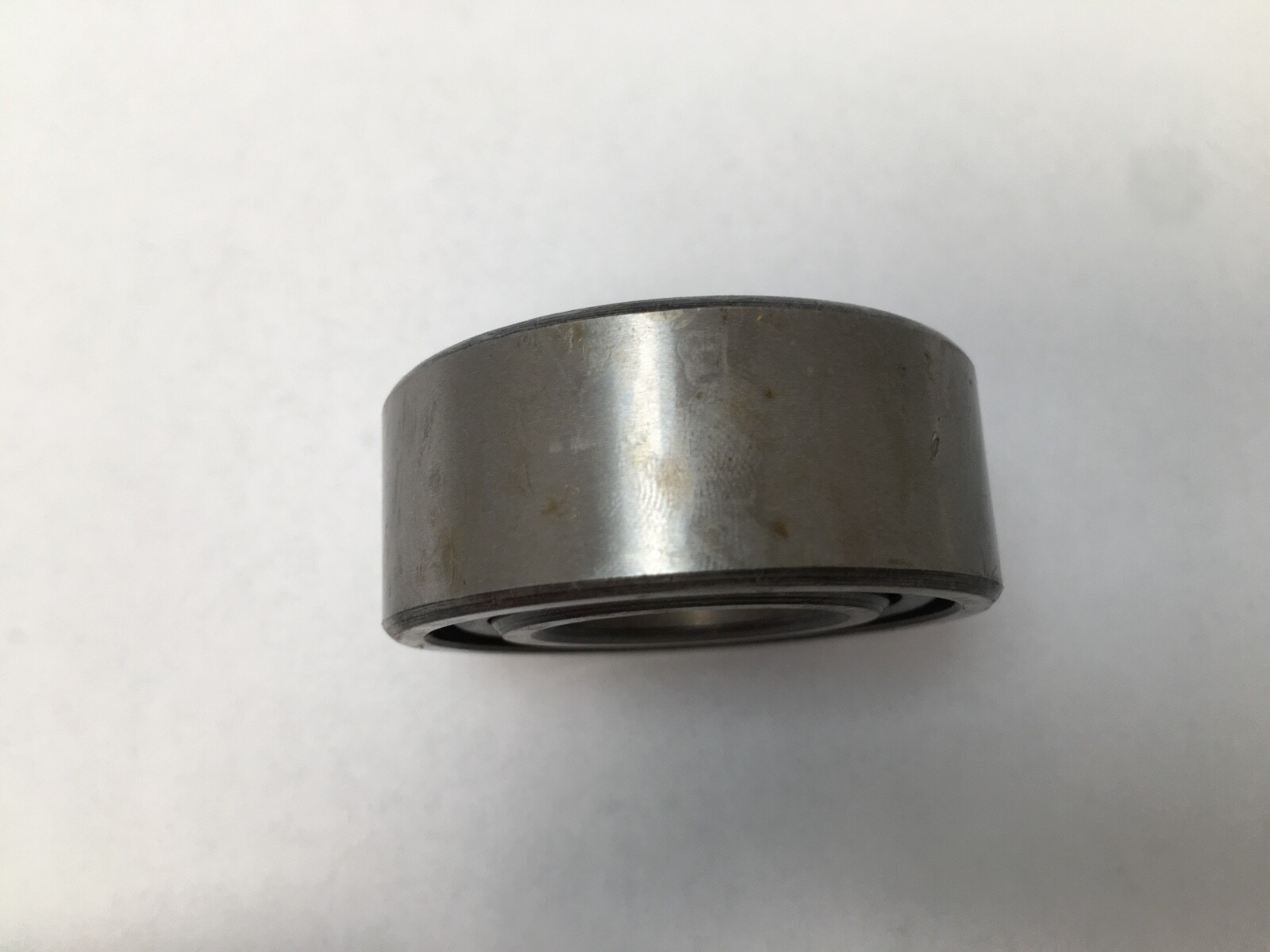

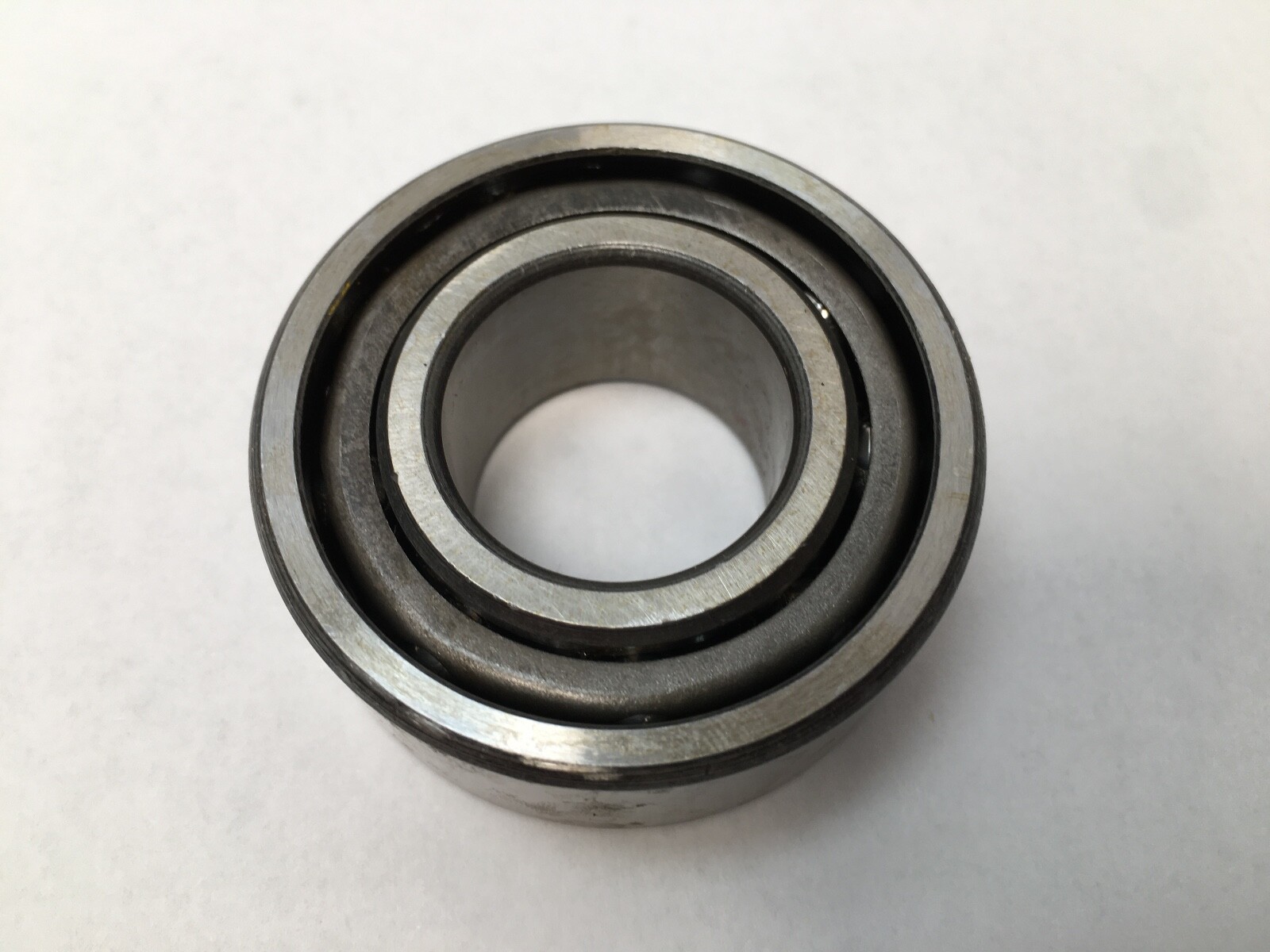

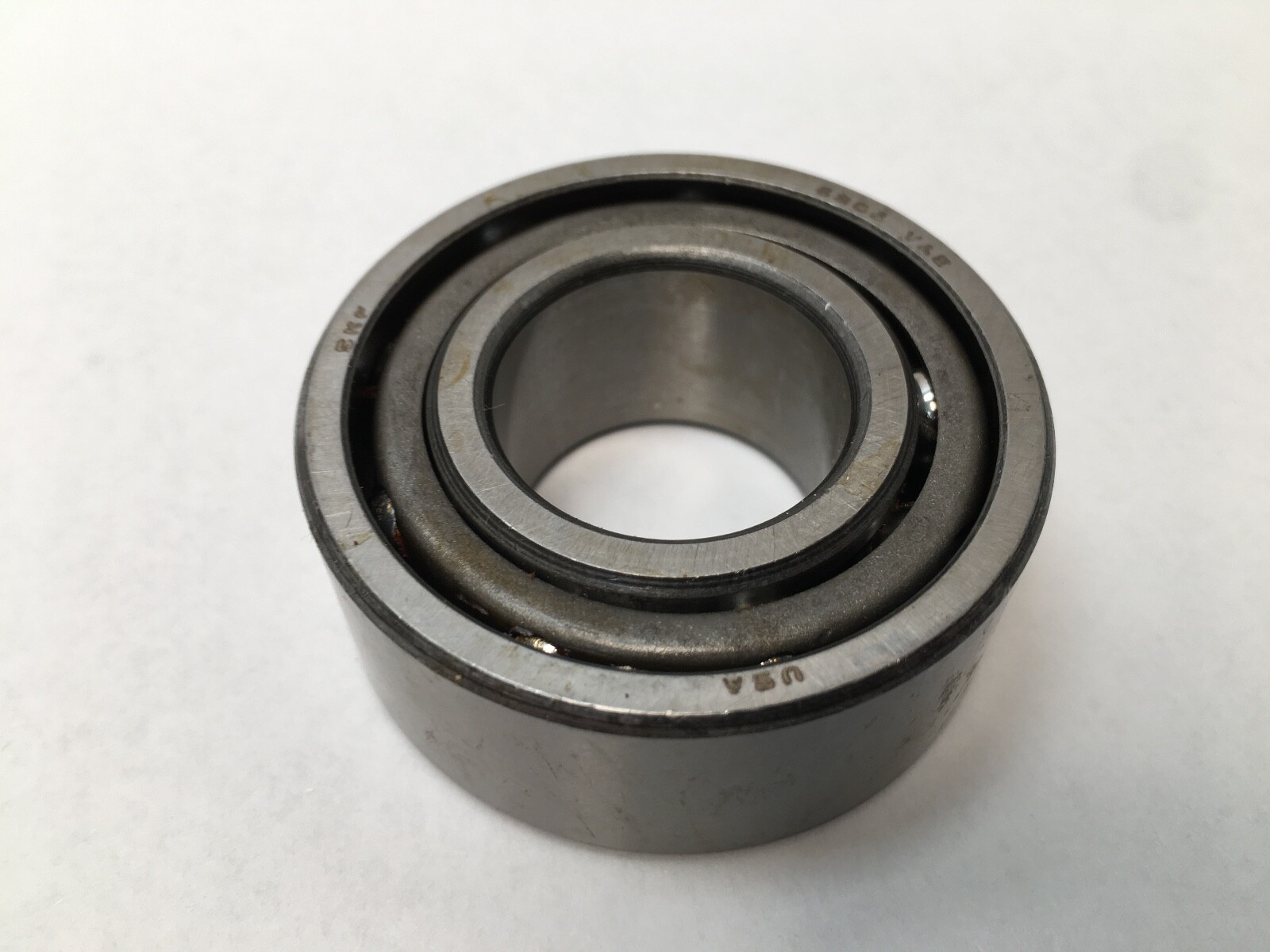

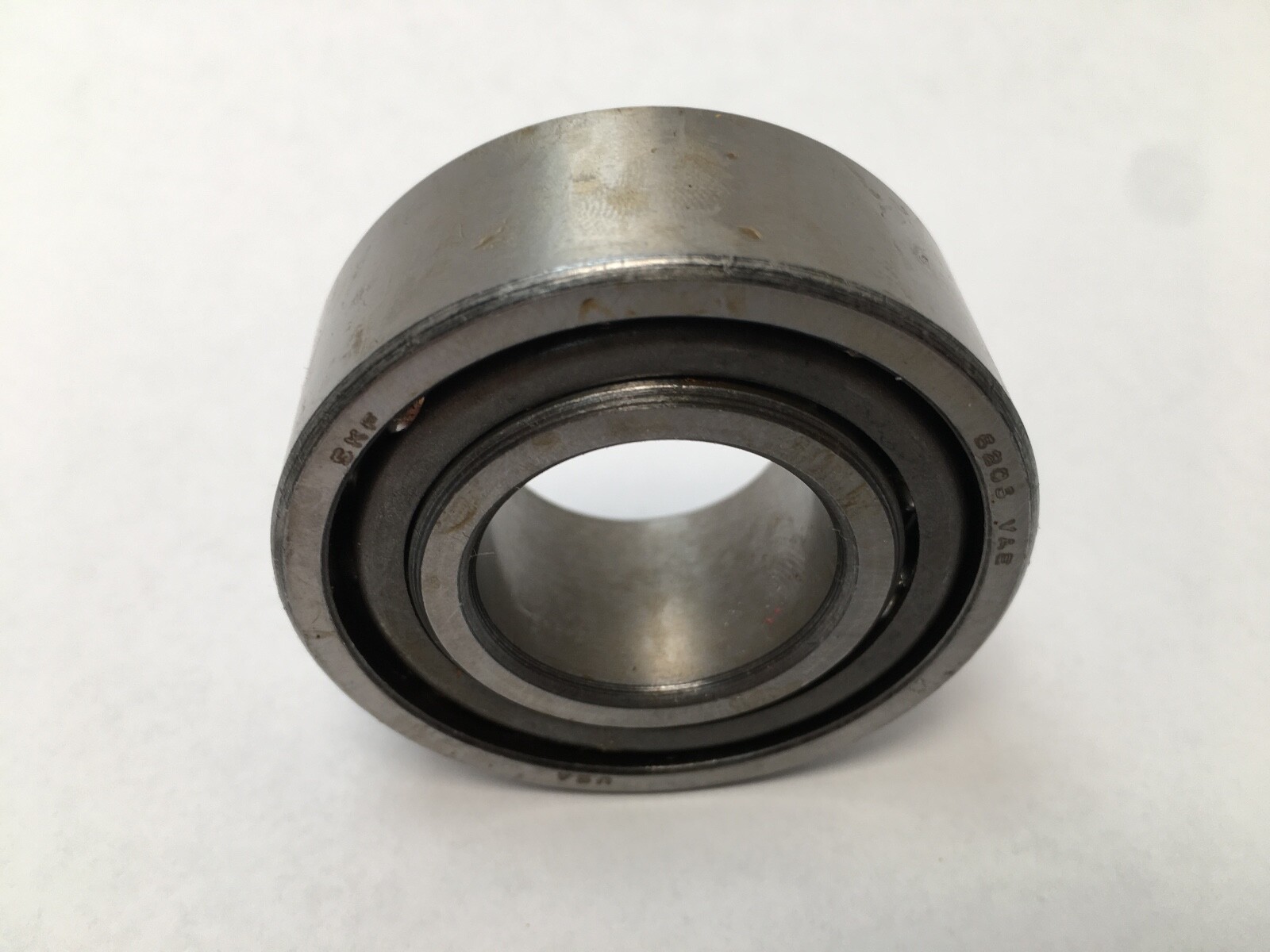

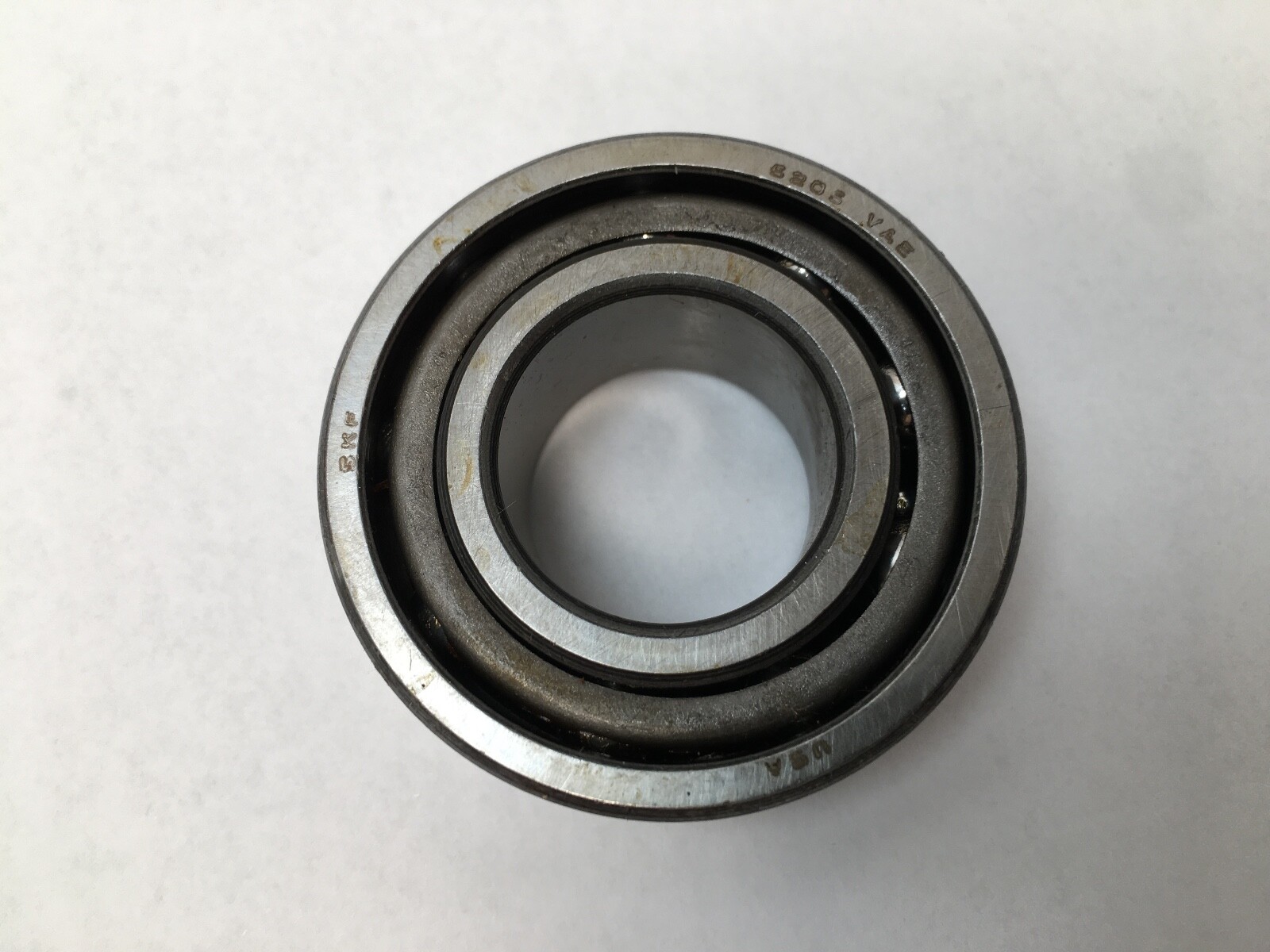

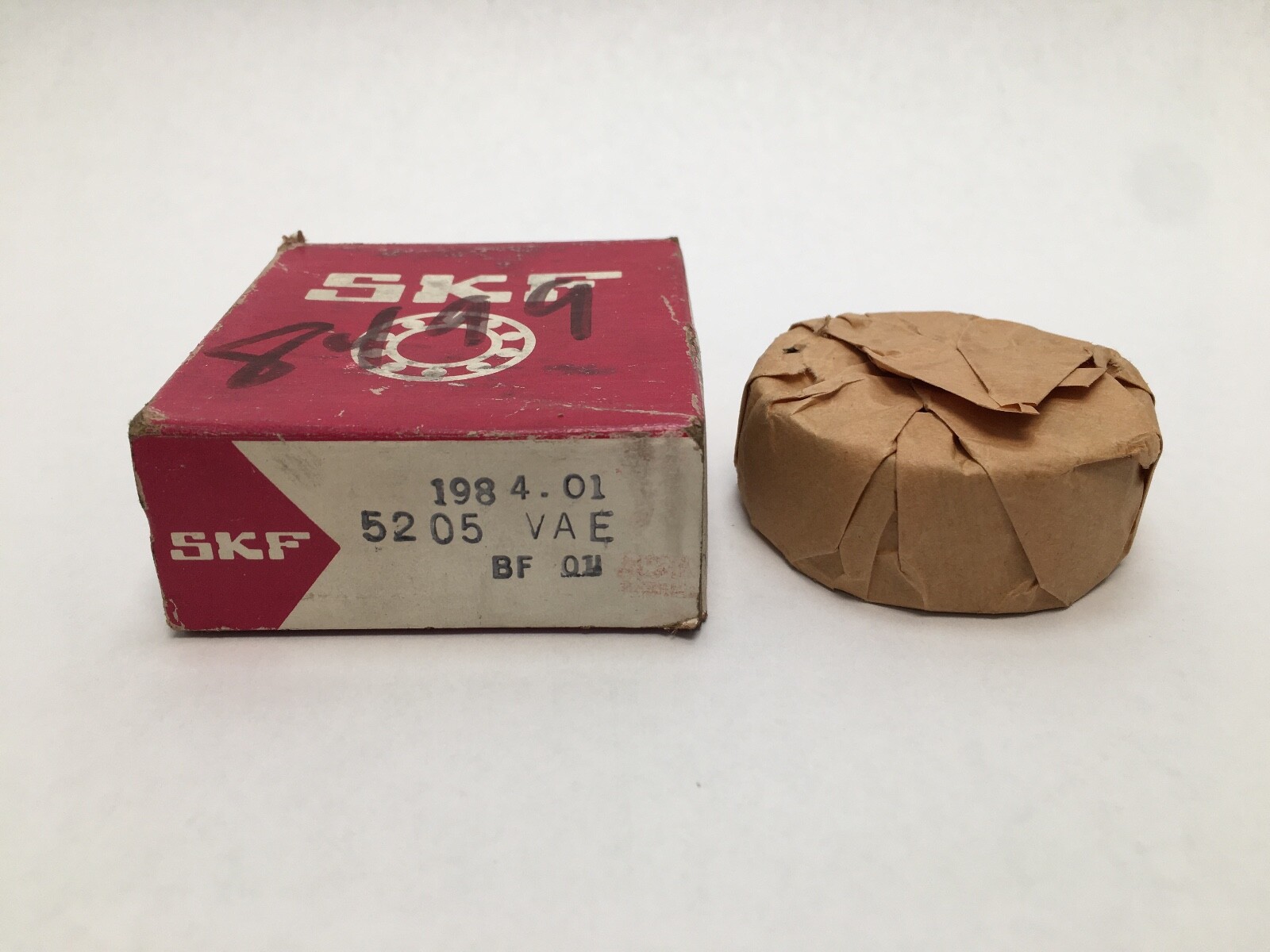

An SKF 5205 VAE double row angular contact ball bearing, new. Bore Diameter: 25 mm. Outside Diameter: 52 mm. Width: 20.6 mm (13/16 in). Contact Angle: 30°. Two rows of balls in a back-to-back (O) arrangement inside one-piece inner and outer rings, open on both sides. The 5200 series is SKF’s US numbering for the ISO 3200 double row angular contact series.
5205 — SKF/MRC US numbering for the ISO 3205 double row angular contact series, 25 mm bore, light (02) section.
VAE — a factory special-execution suffix. SKF does not publish a catalogue page for this execution, so its internal design details are not stated here rather than guessed at.
Dimensions and contact angle are those of the 5205 / 3205 envelope and are published above. Load ratings, speed ratings and cage details are deliberately not listed: because VAE is a special execution, the standard 3205 A figures cannot be assumed to apply to it. If you need the rated values for your application, contact us with the application and we will pursue them with SKF.
Arrangement of contact angle: back-to-back (O). Carries axial load in both directions plus radial load and tilting moment, in less axial space than a matched pair of single row bearings.
Sold as a single bearing. Not a matched set — this is a one-piece double row unit.
Same envelope as SKF 3205 / 5205. Common spellings: 5205 VAE, 5205-VAE, 5205VAE.
