SKF 5205 A double row angular contact ball bearing, 25 x 52 x 20.6 mm, 30° contact angle, open, sheet metal cage, CN axial clearance. Metric designation 3205 A.
List Price
$41.13
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 5205 A |
| Model | 3205-A 5205-A |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 52 mm |
| Width | 20.6 mm |
| Material | Bearing Steel |
|---|---|
| Series | 5200 |
| Lubricant | None (supplied unlubricated) |
| Additional Attributes | Sheet metal cage; axial internal clearance CN; back-to-back (O) contact arrangement; one-piece rings |
| Dynamic Load Rating | 22 kN |
| Static Load Rating | 15.3 kN |
| Rolling Elements | Ball |
| Item Weight | 0.172 kg |
| Cage Material | Sheet metal |
| Limiting Speed | 12000 |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN (normal axial) |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 30° |
| Mounting Arrangement | Back-to-back (O) |
| Bearing Material | Bearing steel |
| Closure Type | Open |
| Industry Terms | double row angular contact bearing; two-row angular contact ball bearing; 3205 A bearing; 5205 bearing; back-to-back double row bearing |
| Common Misspellings | SFK 5205A; SKF5205A; SKF 5025 A; SKF 3250 A; SKK 5205-A |
| Application Types | Pumps; gearboxes; electric motors; compressors; general industrial machinery |
| Mpn Variants | 5205A; 5205-A; 5205 A; 3205A; 3205-A; 3205 A |
| Cross Reference 1 | SKF 3205 A - SKF metric designation |
|---|

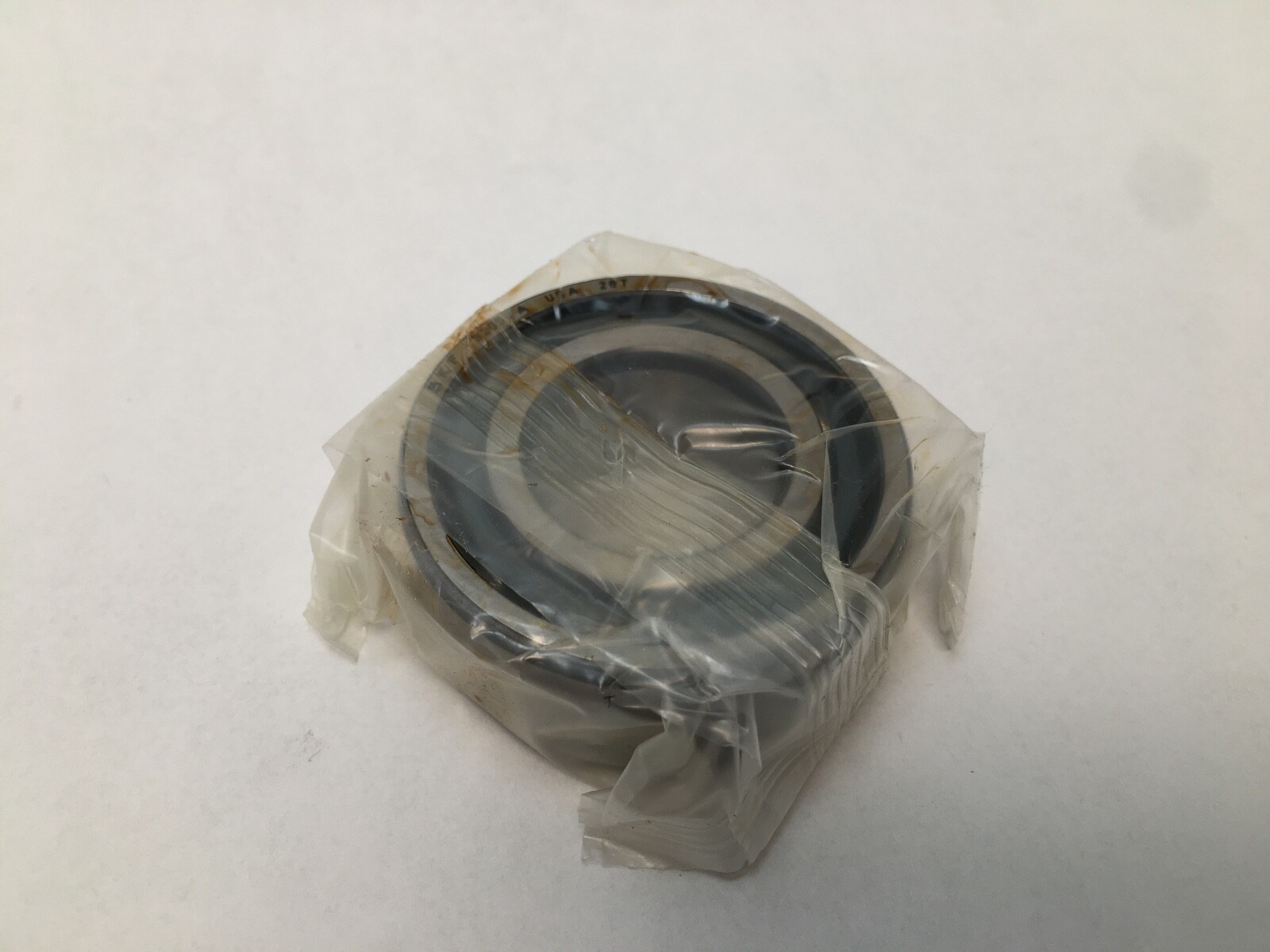

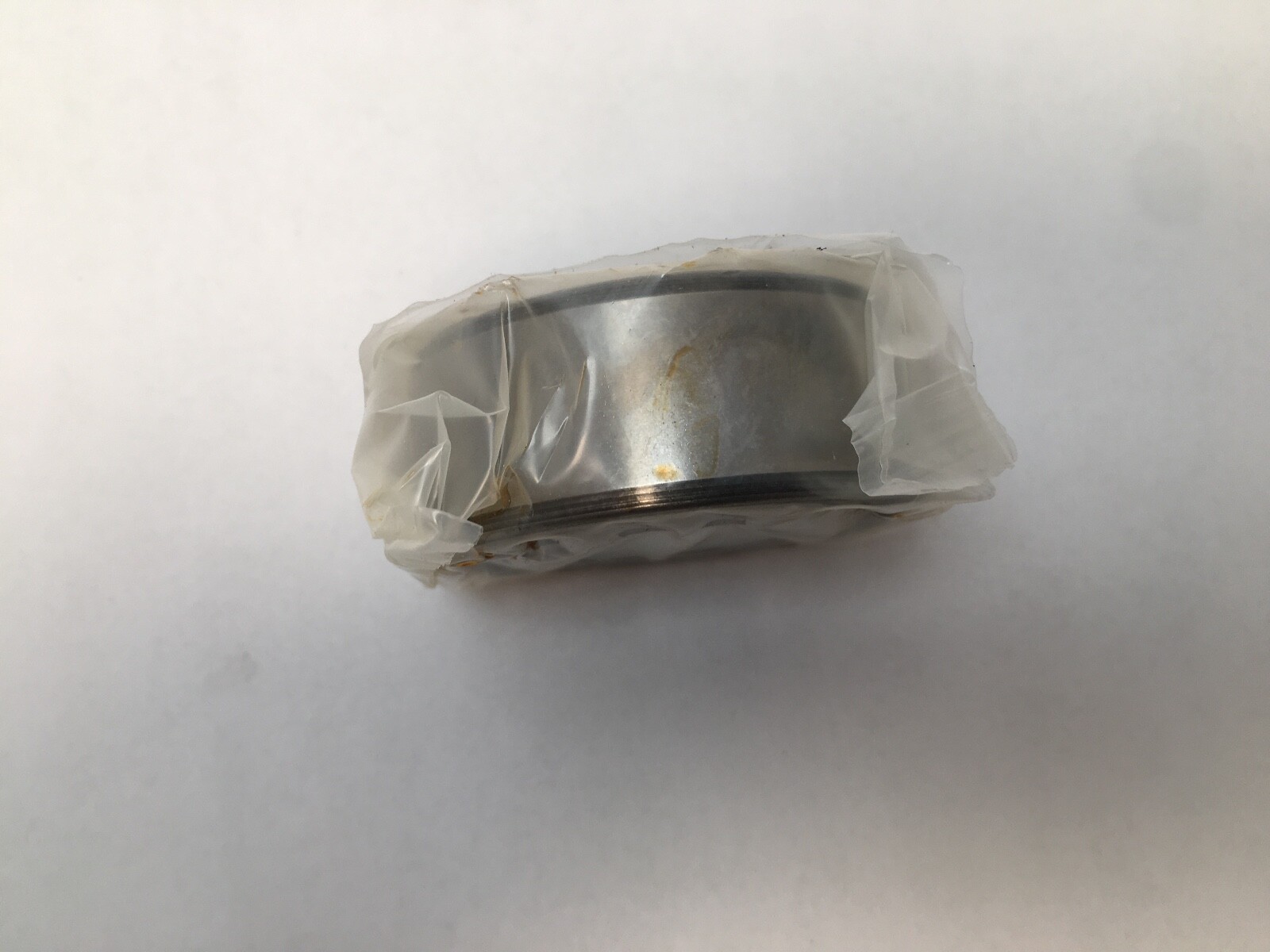

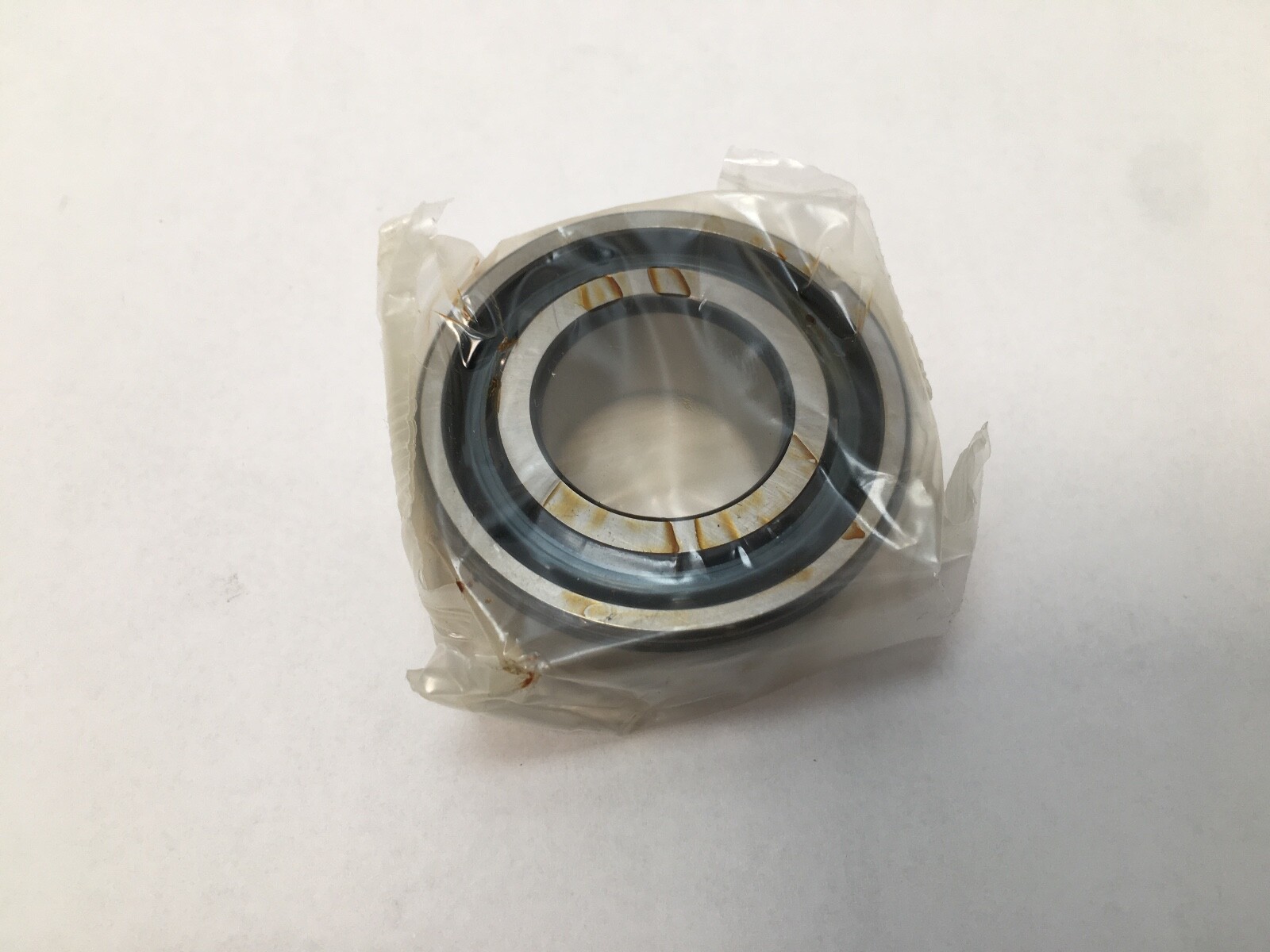

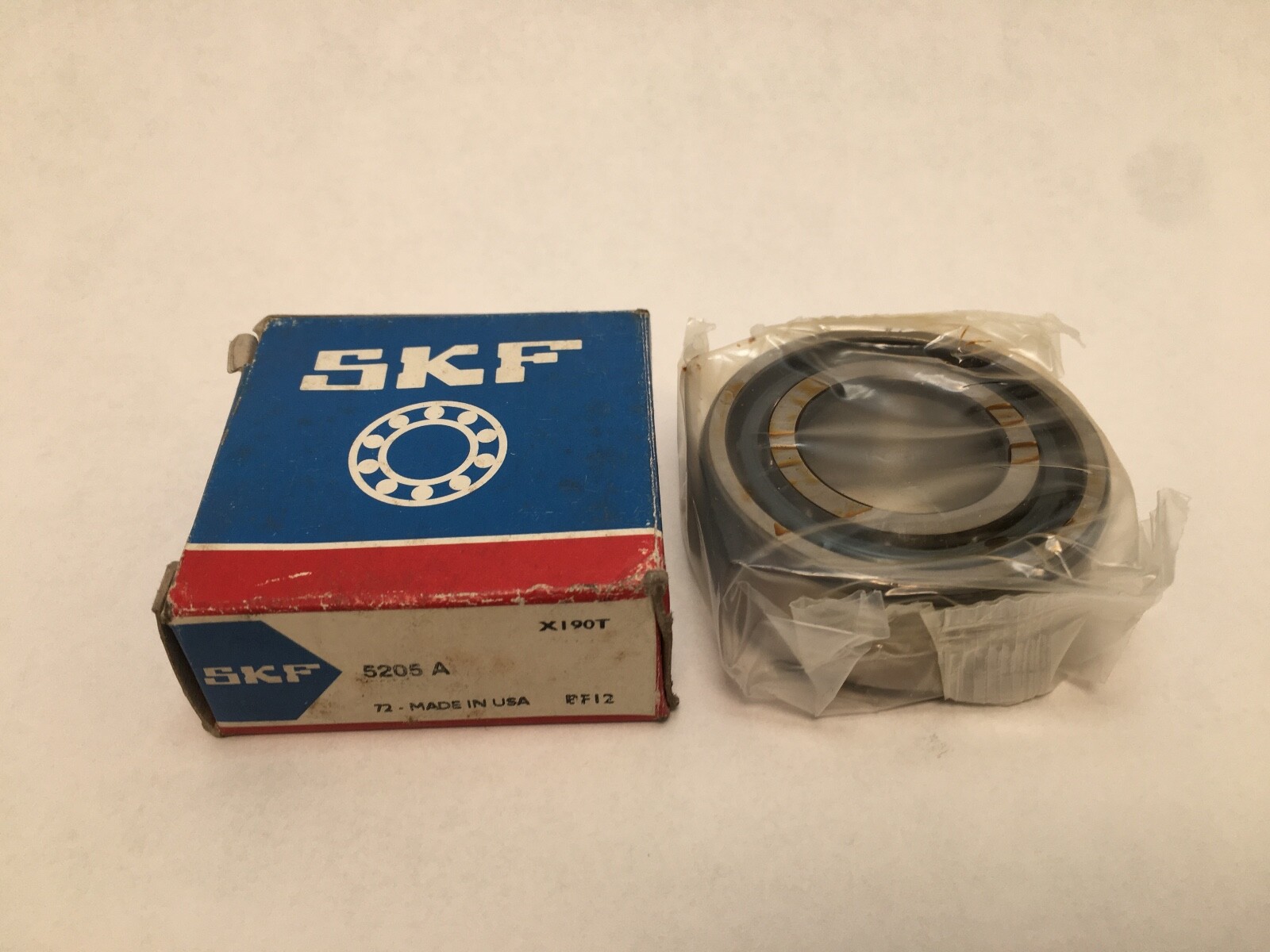

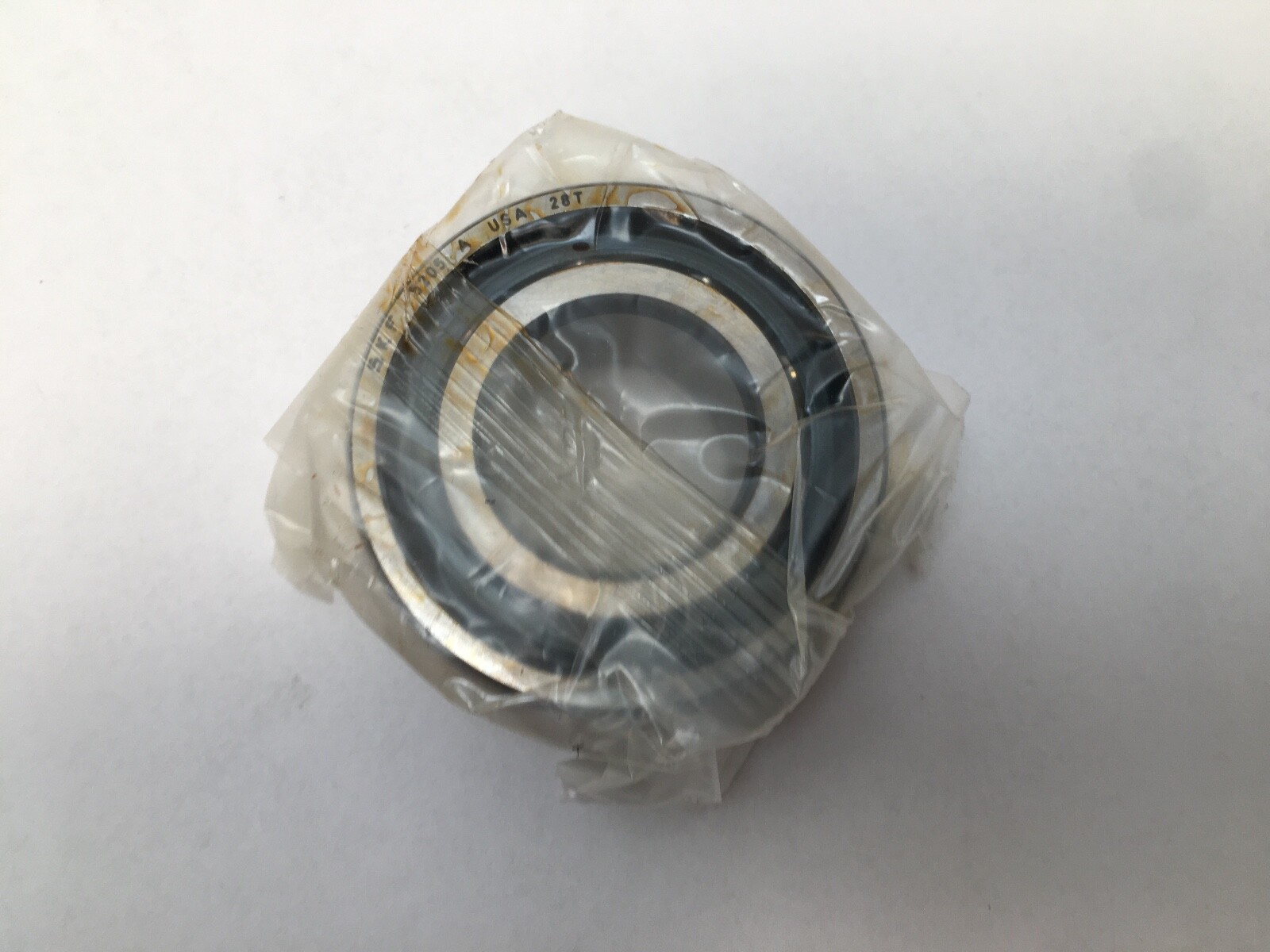

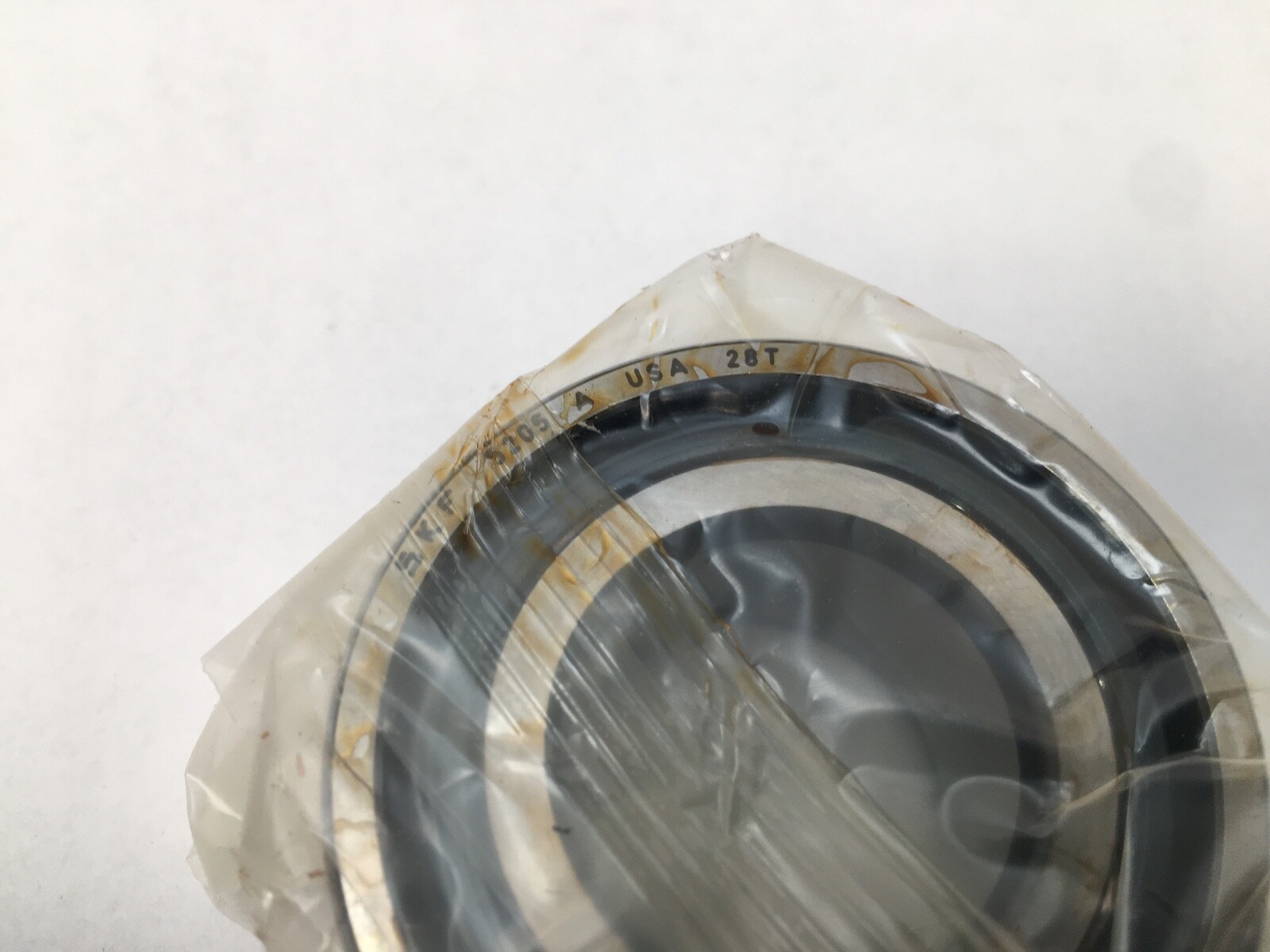

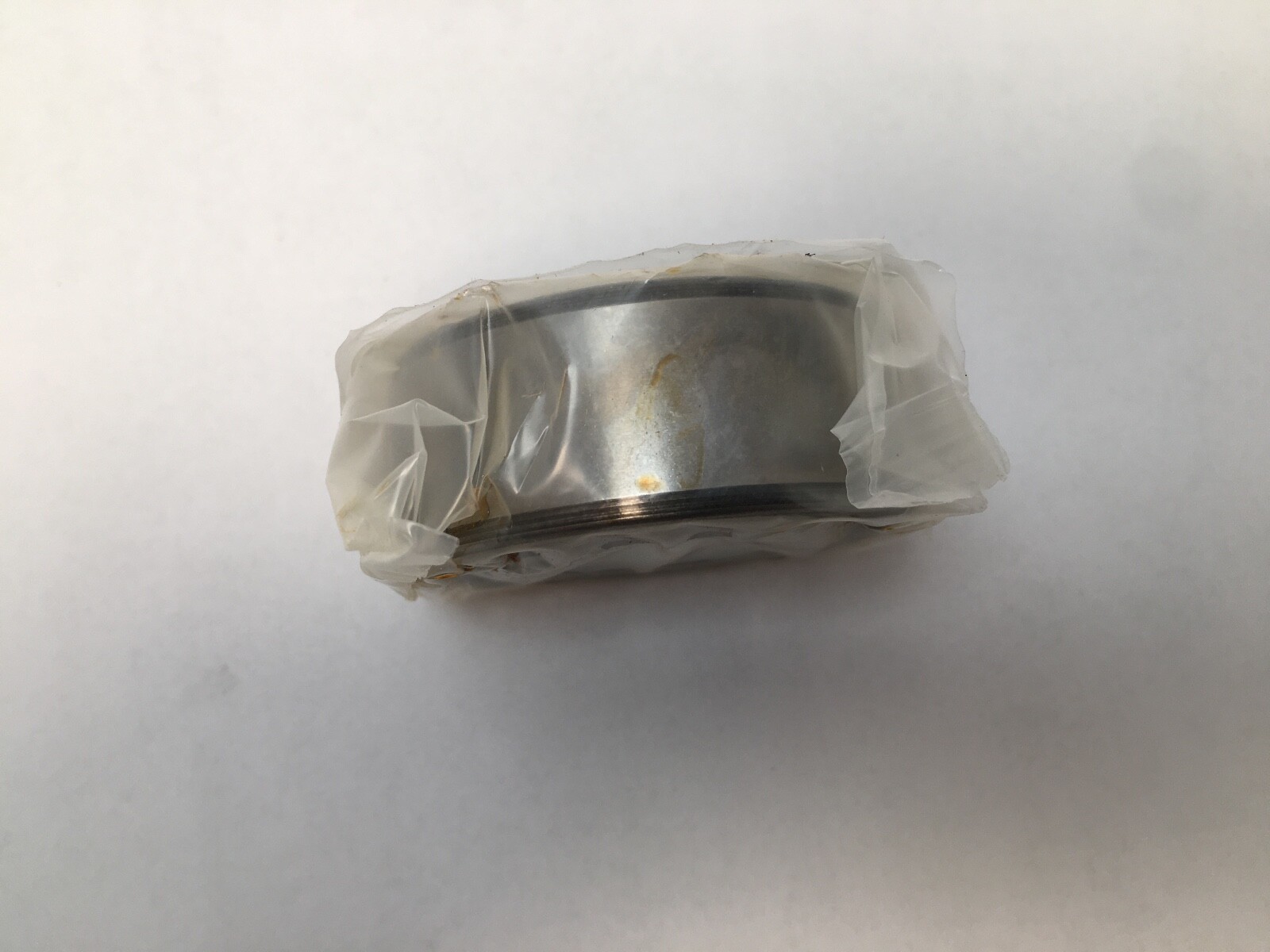

SKF 5205 A is a double row angular contact ball bearing, new. Two rows of balls in a back-to-back (O) arrangement inside one-piece inner and outer rings, open on both sides. Bore Diameter: 25 mm. Outside Diameter: 52 mm. Width: 20.6 mm (13/16 in). Contact Angle: 30°. Sold as a single bearing, one-piece double row unit. Unit Quantity: 1 Pc.
5205 — SKF/MRC US numbering for the ISO 3205 double row angular contact series, 25 mm bore, light (02) section. The metric catalogue designation for the same bearing is 3205 A.
A — standard internal design for this series, sheet metal cage.
Series: 5200. Number Of Rows: 2. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Cage Material: Sheet metal. Axial Internal Clearance: CN (normal). Bearing Material: Bearing steel. Mounting Arrangement: Back-to-back (O). Lubricant: None, supplied unlubricated. Relubrication Feature: Without. Item Weight: 0.172 kg.
Basic Dynamic Load Rating (C): 22 kN. Basic Static Load Rating (C0): 15.3 kN. Limiting Speed: 12,000 r/min.
Bore Diameter: 25 mm. Outside Diameter: 52 mm. Overall Width: 20.6 mm (13/16 in). Arrangement of contact angle: back-to-back (O).
SKF 3205 A — SKF metric designation of the same bearing.
MPN variants: 5205A, 5205-A, 3205-A, 3205 A.
Bore Diameter: 25 mm. Outside Diameter: 52 mm. Width: 20.6 mm (13/16 in).
3205 A.
Contact Angle: 30°. Cage Material: Sheet metal.
