SKF 5200 ATN9/C3 double row angular contact ball bearing, 10 x 30 x 14 mm, 30 degree contact angle, polymer cage, C3 axial clearance. Metric: 3200 ATN9/C3.
List Price
$26.58
8 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 5200 ATN9/C3 |
| Model | 5200A TN9 C3 5200ATN9C3 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 10 mm |
| OD | 30 mm |
| Width | 14 mm |
| Material | Chrome Steel |
|---|---|
| Series | 5200 |
| Dynamic Load Rating | 7.61 kN |
| Static Load Rating | 4.3 kN |
| Rolling Elements | Ball |
| Item Weight | 0.0505 kg |
| Cage Material | Non-metallic |
| Limiting Speed | 24000 |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | C3 (greater than normal axial) |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 30° |
| Mounting Arrangement | Back-to-back (O) |
| Bearing Material | Bearing steel |
| Industry Terms | double row angular contact ball bearing; 10x30x14 bearing; 5200 ATN9 C3 bearing; SKF 3200 ATN9/C3; polymer cage angular contact bearing |
| Common Misspellings | SKF 5200ATN9 C3; SKF 5200 ATN 9 C3; SFK 5200 ATN9/C3; 5200 ANT9/C3 |
| Application Types | Industrial machinery; pumps; gearboxes; compact drive assemblies |
| Mpn Variants | 5200 ATN9/C3; 5200-ATN9-C3; 5200ATN9C3; 5200 A TN9 C3; 3200 ATN9/C3; 3200ATN9C3 |
| Cross Reference 1 | SKF 3200 ATN9/C3 |
|---|

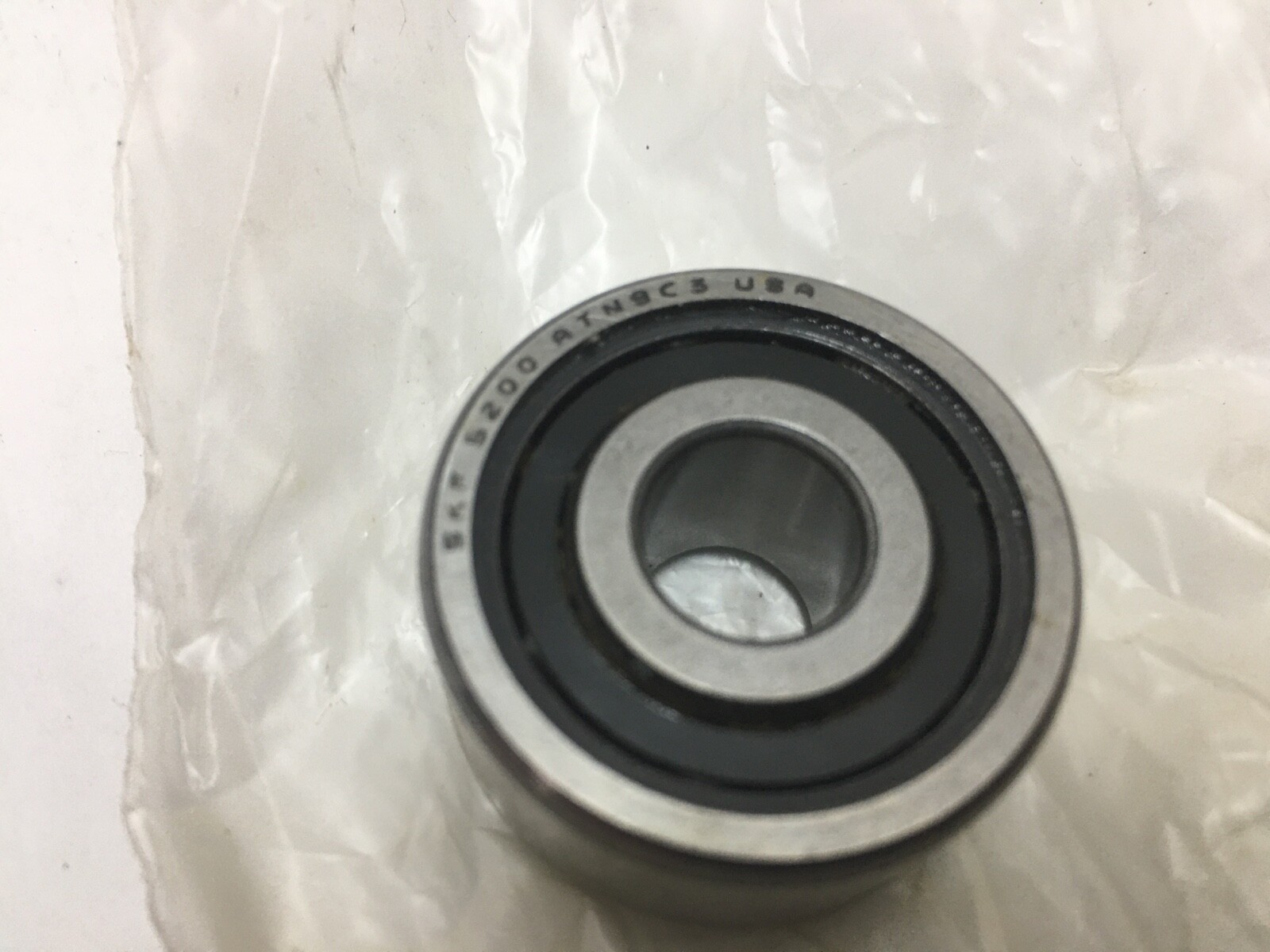

An SKF 5200 ATN9/C3 double row angular contact ball bearing, new. Two rows of balls in a back-to-back (O) arrangement inside one-piece inner and outer rings, open on both sides. The 5200 series is SKF’s US numbering; the metric catalogue designation for the same bearing is 3200 ATN9/C3. Unit Quantity: 1 Pc.
5200 — SKF/MRC US numbering for the ISO 3200 double row angular contact series, 10 mm bore, light (02) section.
A — standard internal design for this series.
TN9 — non-metallic (injection moulded polymer) cage.
C3 — greater than normal axial internal clearance.
Bearing Type: Double Row Angular Contact Ball Bearing. Bore Diameter: 10 mm. Outside Diameter: 30 mm. Width: 14 mm. Contact Angle: 30°. Number Of Rows: 2. Rolling Elements: Ball. Basic Dynamic Load Rating (C): 7.61 kN. Basic Static Load Rating (C0): 4.3 kN. Reference Speed: 26 000 r/min. Limiting Speed: 24 000 r/min. Cage: non-metallic. Axial Internal Clearance: C3. Seal Type: Open. Material: bearing steel. Lubricant: none, supplied unlubricated. Item Weight: 0.0505 kg. Series: 5200. Harmonization Code: 8482.10.50.
Arrangement of contact angle: back-to-back (O). Bore Diameter: 10 mm. Outside Diameter: 30 mm. Width: 14 mm. Carries axial load in both directions plus radial load and tilting moment, in less axial space than a matched pair of single row bearings.
SKF metric designation: 3200 ATN9/C3. Common spellings: 5200 A TN9 C3, 5200ATN9C3, 5200-ATN9-C3, 3200 ATN9/C3.
A double row angular contact ball bearing, 10 mm bore, 30 mm OD and 14 mm width, with a 30° contact angle, a polymer cage and C3 axial clearance.
3200 ATN9/C3. The 5200 series is SKF’s US numbering.
TN9 is a non-metallic injection moulded polymer cage.
