This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Angular Contact Ball Bearing - Double Row, 25 mm ID, 52 mm OD, 20.6 mm Width, Double Shield.$30.51
FAG 3205BC.TNH Angular Bearing 3205.BC.TNH 5205 B C 25mmx52mmx13/16"$33.91
Angular Contact Ball Bearing - Double Row, 25 mm ID, 52 mm OD, 20.6 mm Width, Double Shield, C3 Internal Clearance.$27.51
Spindle Angular Contact Ball Bearing - 25 mm ID, 52 mm OD, 15 mm Width, Open, 15°, Light Preload$180.51| MFR / Brand | SKF |
|---|---|
| MPN | 3205A2RS1 |

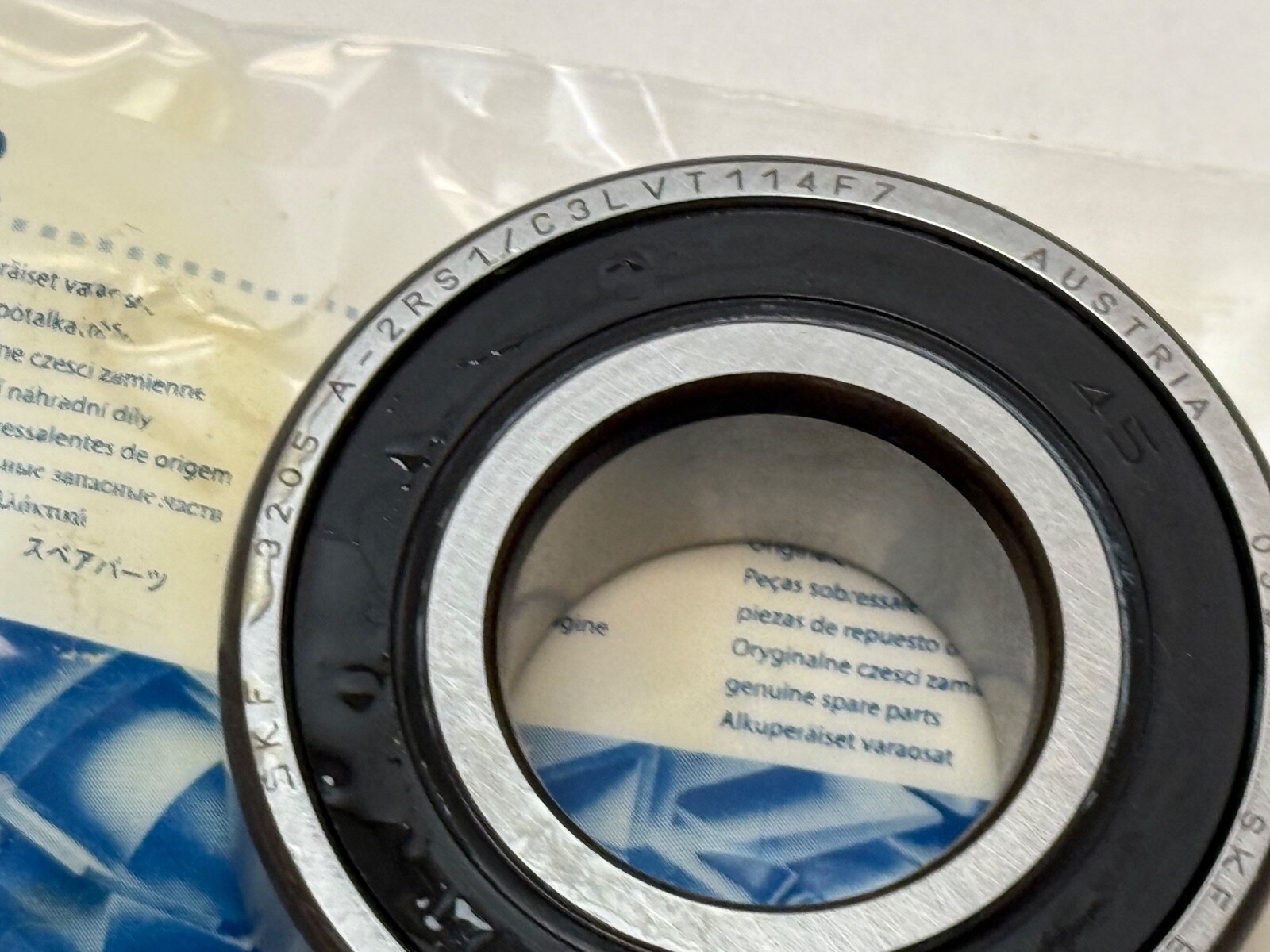

| Model | 5205 3205 A 2RS1 RS 2RS C3LVT114F7 |
| Bearing Type | Angular Contact Ball Bearing, Double Rubber Seal |
| ID | 25 mm |
| OD | 52 mm |
| Width | 13/16 in |

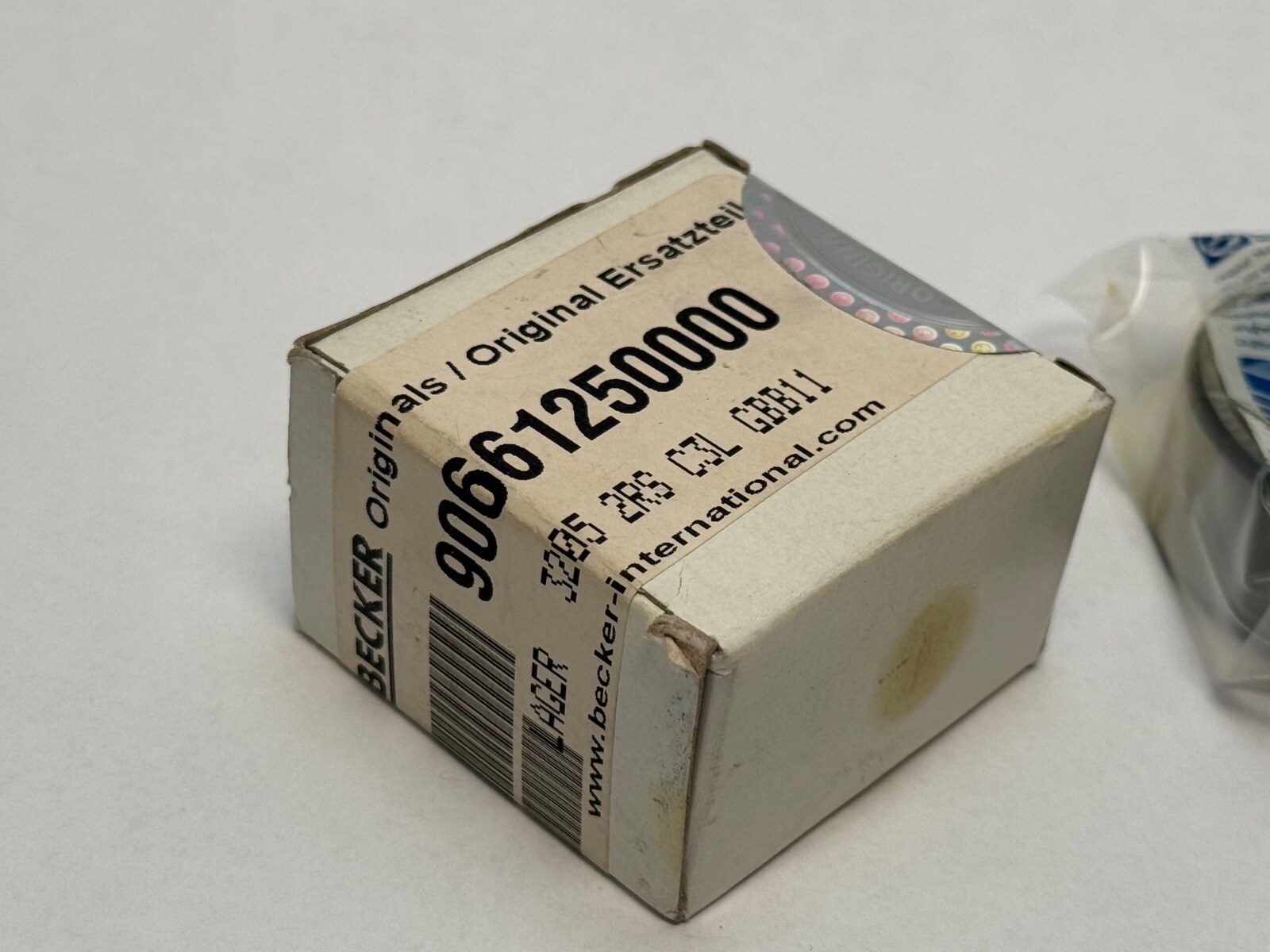

| For | Becker 90661250000 |
|---|---|
| Series | 3200 |
| Condition | New |
| Lubricant | Grease |
| Material | Bearing Steel |
| Cage Type | Molded |
| Dynamic Load Rating | 21.6 kN / 4855 lbf |
| Static Load Rating | 14.3 kN / 3214 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Ball |
| Max Temp | 110°C |
| Item Weight | 0.42 lbs |
| Cage Material | Polyamide |
| Limiting Speed | 8500 rpm |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Contact Angle | 30° |
| Internal Clearance | C3 |

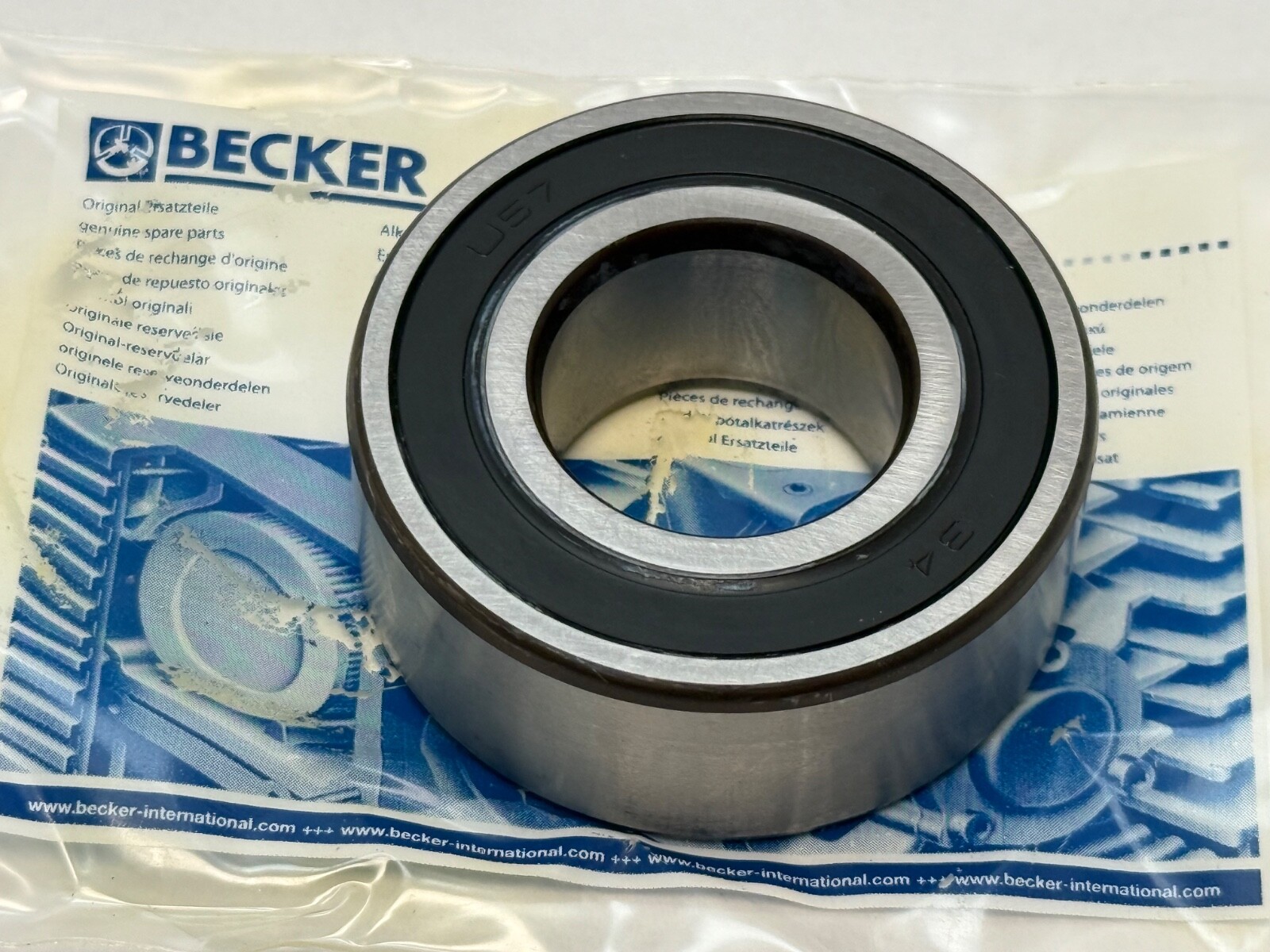

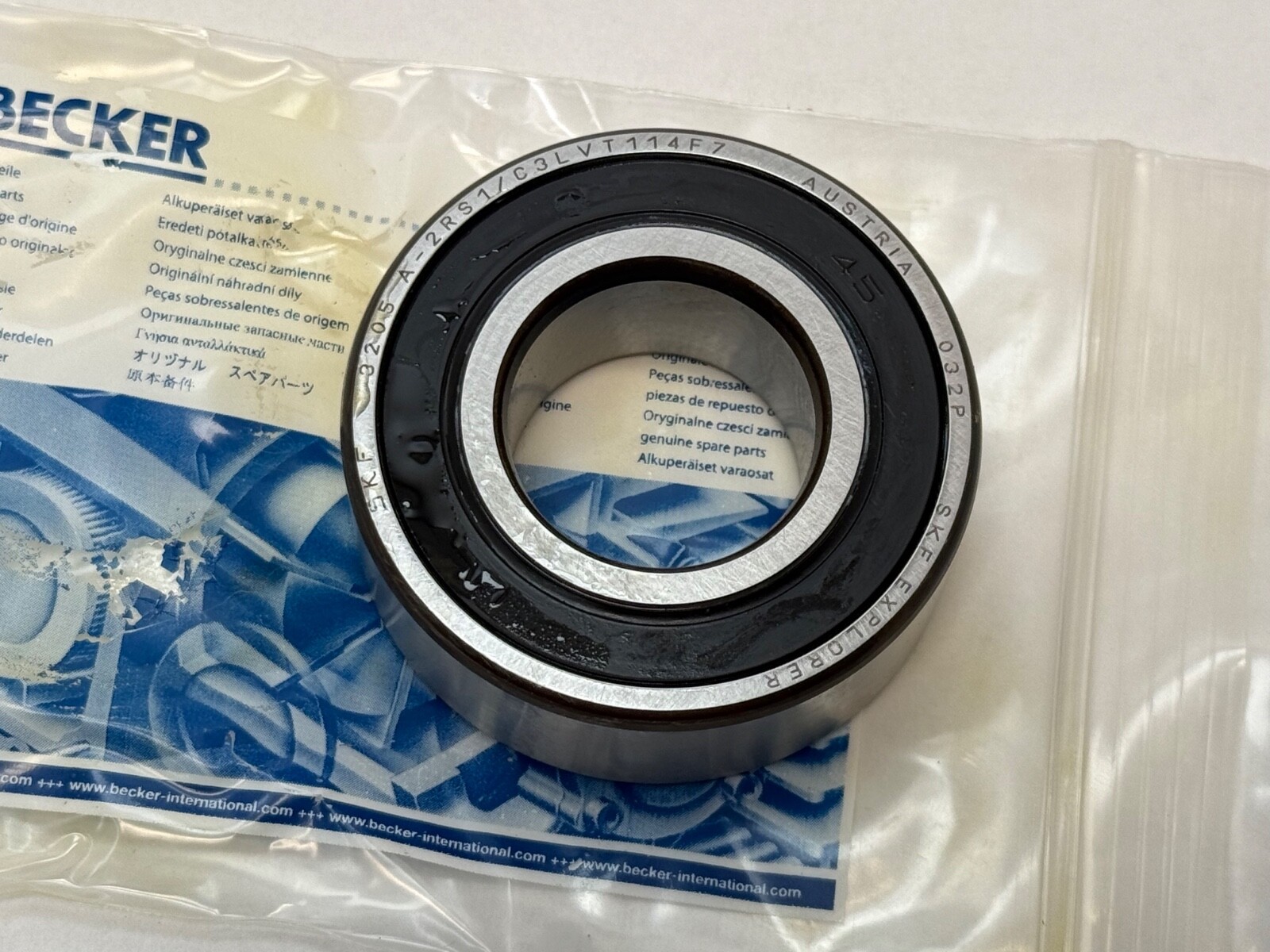

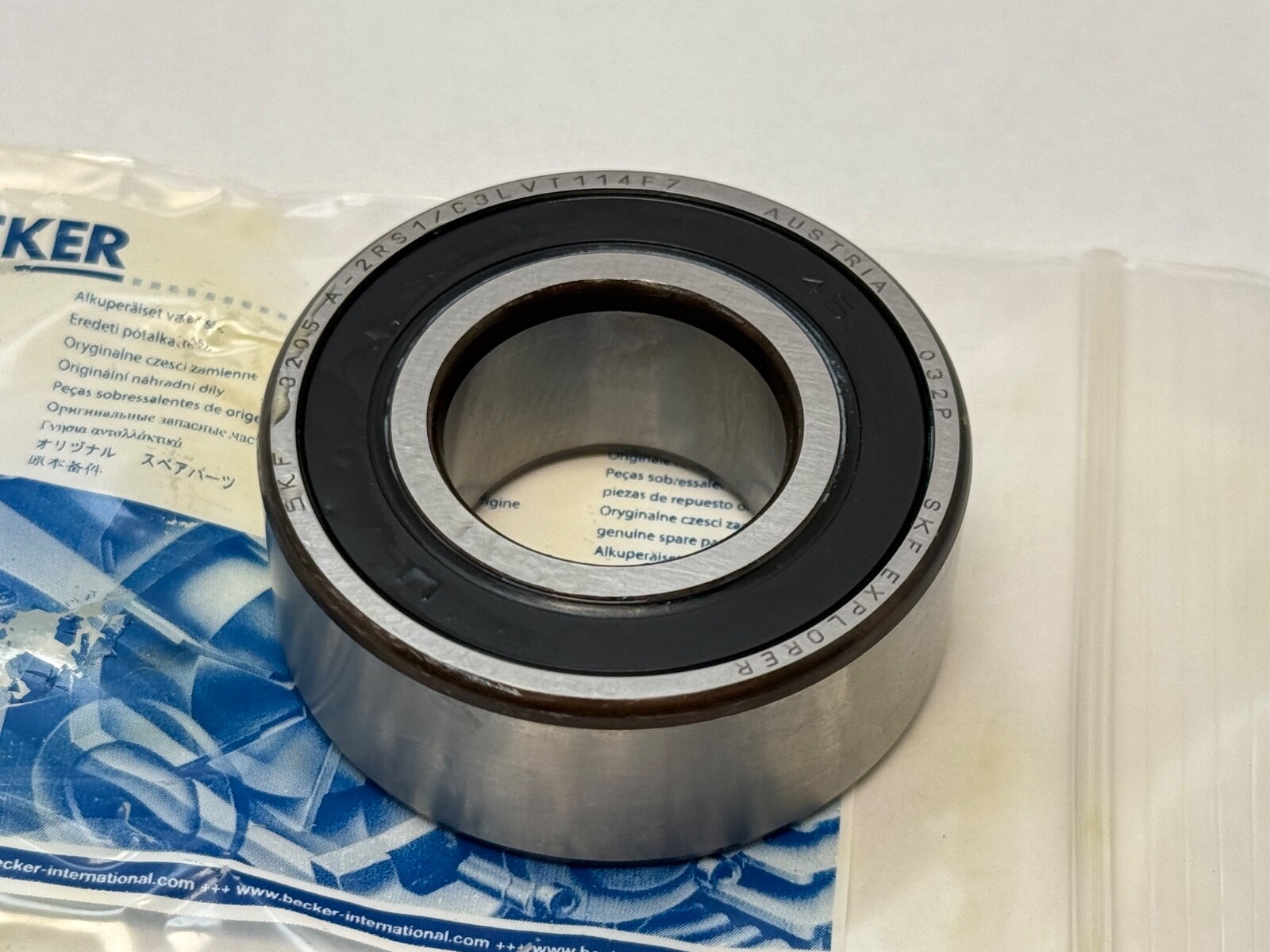

Angular Contact Ball Bearing – 25 mm ID, 52 mm OD, 20.6 mm Width, Double Rubber Seal, 30° Contact Angle, C3 Internal clearance
$151.78
36 in stock
$43.50
30 in stock
$231.30
29 in stock
$118.54
46 in stock
$137.64
92 in stock
