RHPB7005X2TADULEP7Super-Precision Angular Contact Ball Bearing Duplex Pair — 25 mm ID, 47 mm OD, 12 mm Width, Open, 15°, Light Preload, Phenolic Cage

Product Description

What this part is

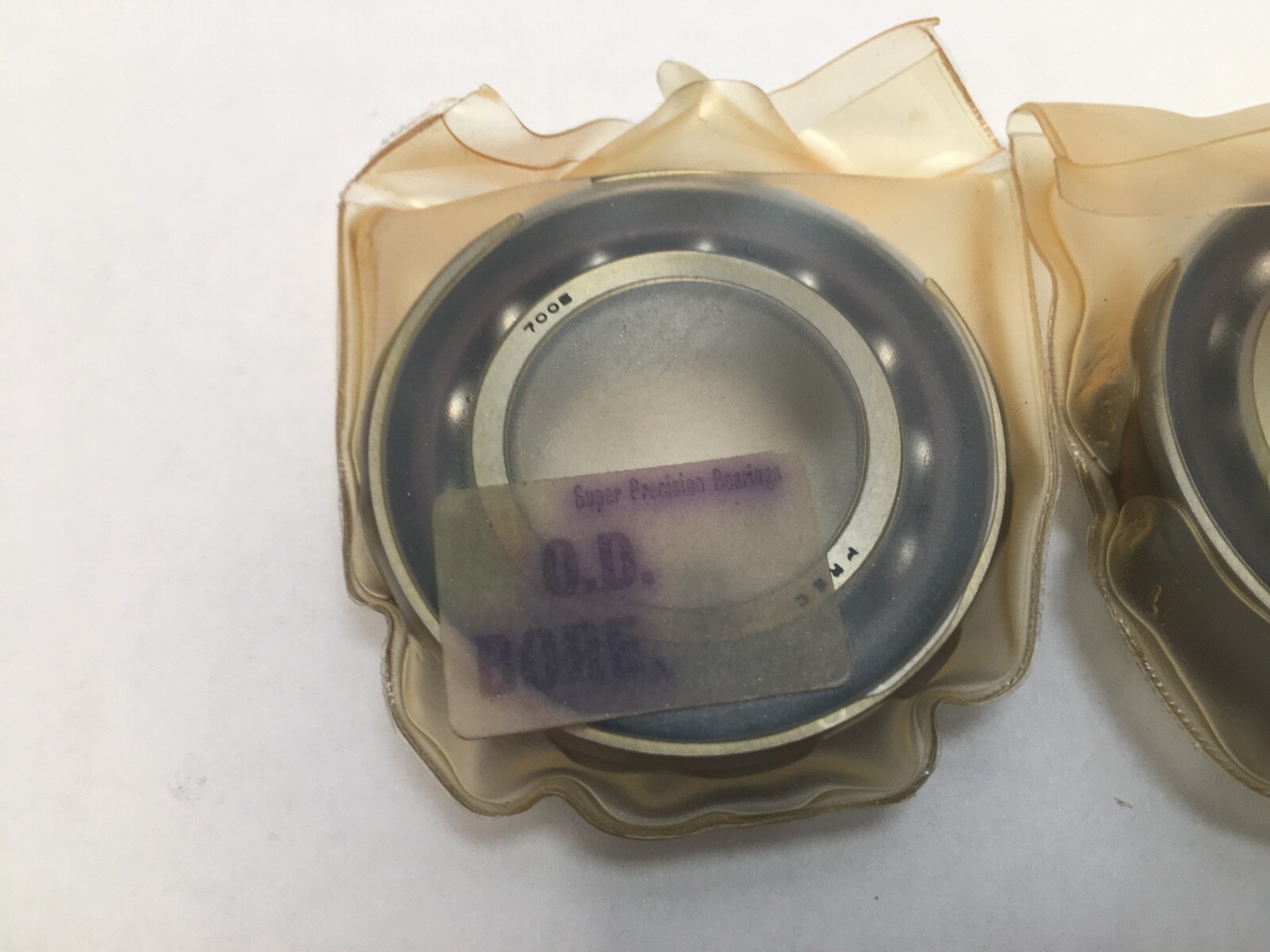

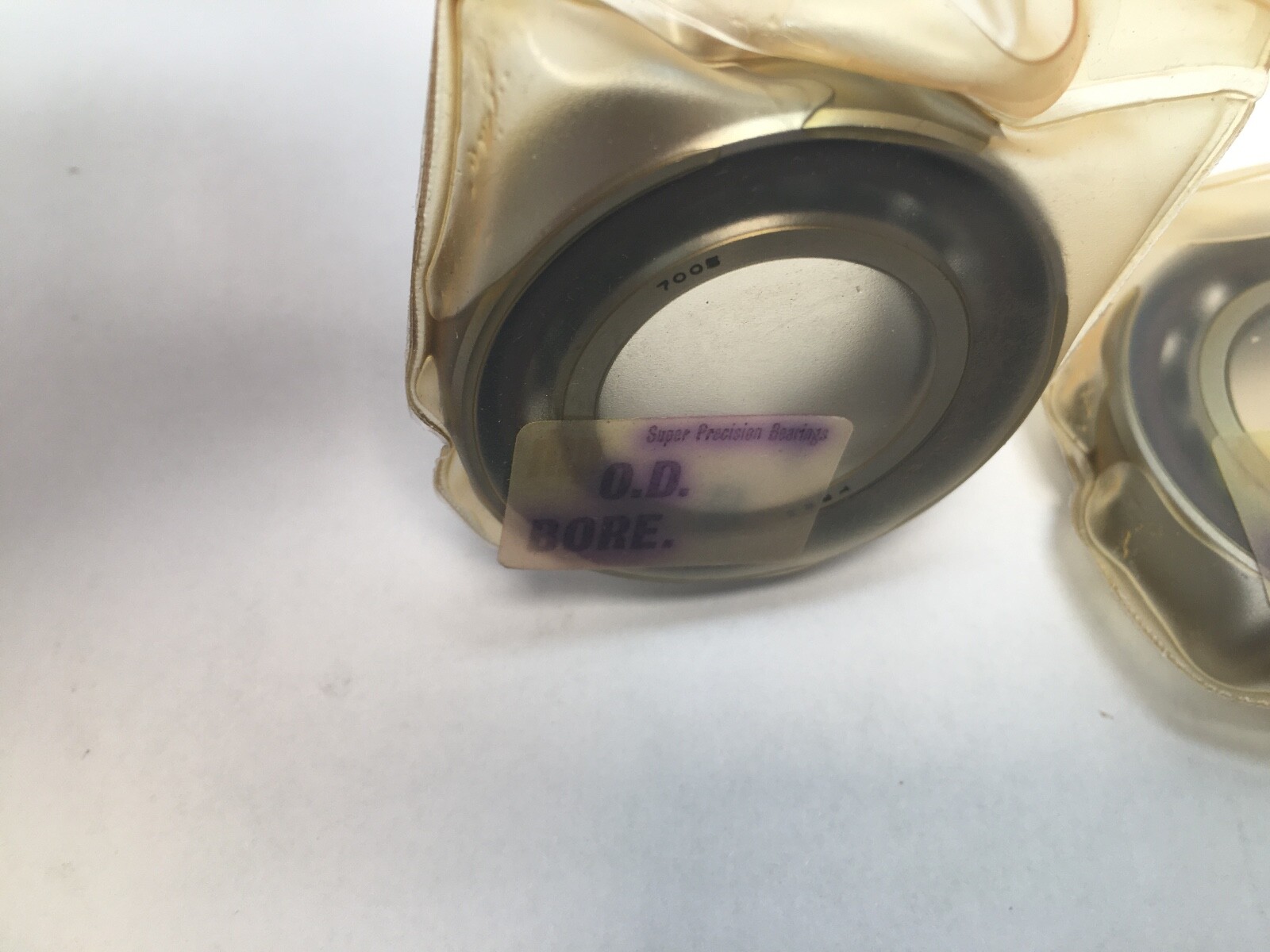

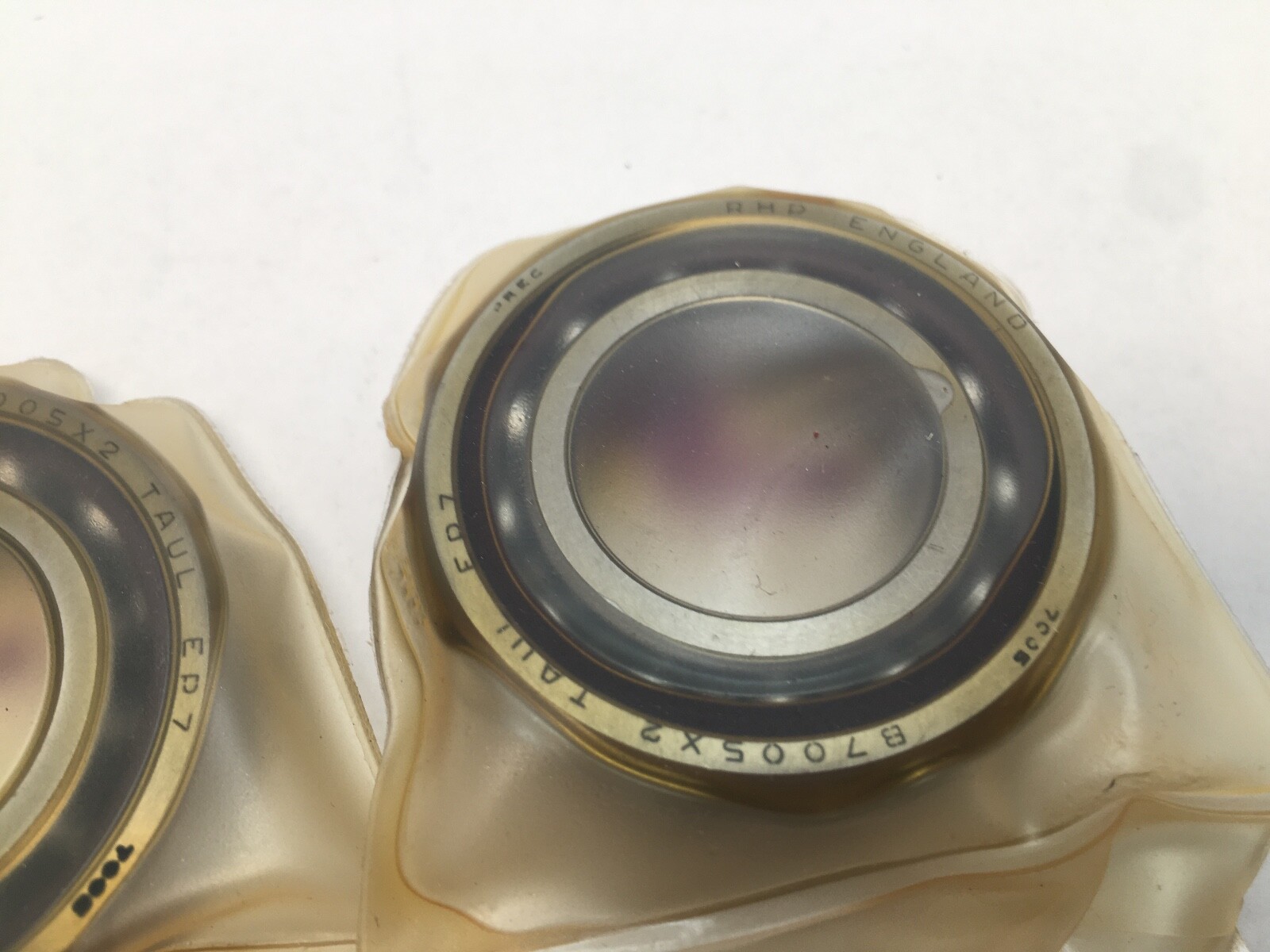

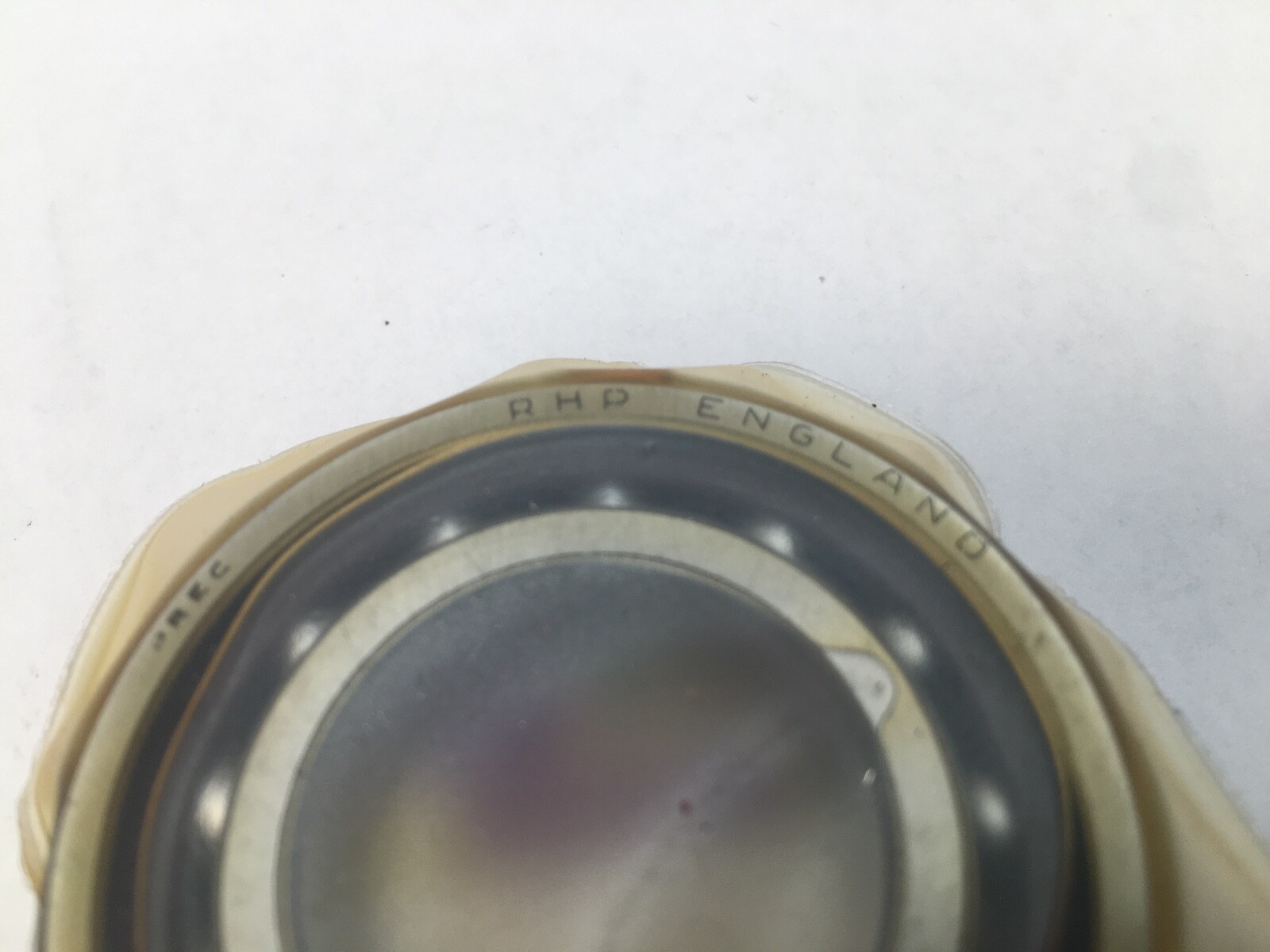

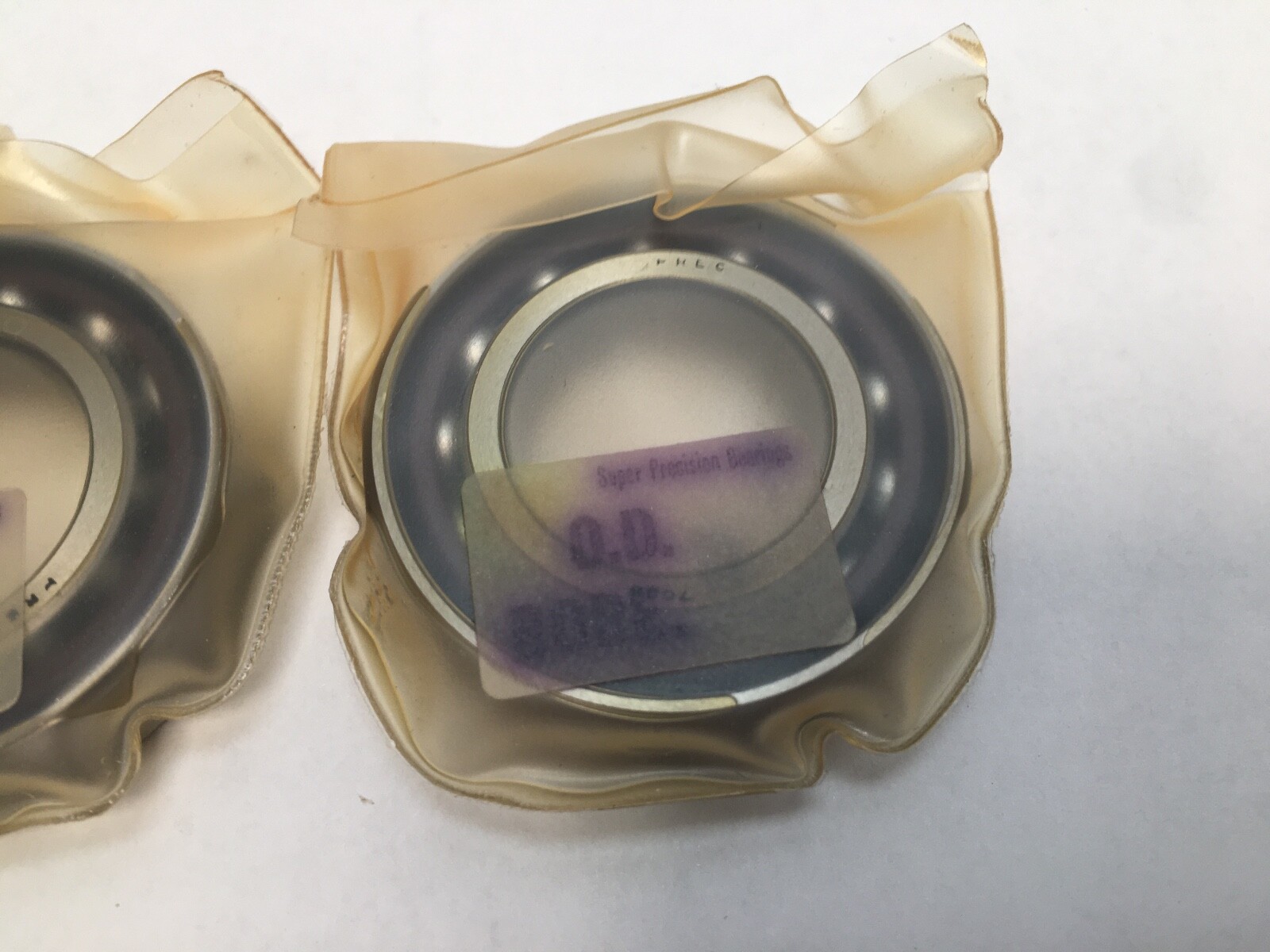

A matched duplex pair of RHP 7005CTDULP4 super-precision angular contact ball bearings. Each bearing has a 25 mm bore, 47 mm outside diameter and 12 mm width, is open on both faces and runs a straight bore. The pair is universally ground with light preload built in.

Decoding the designation

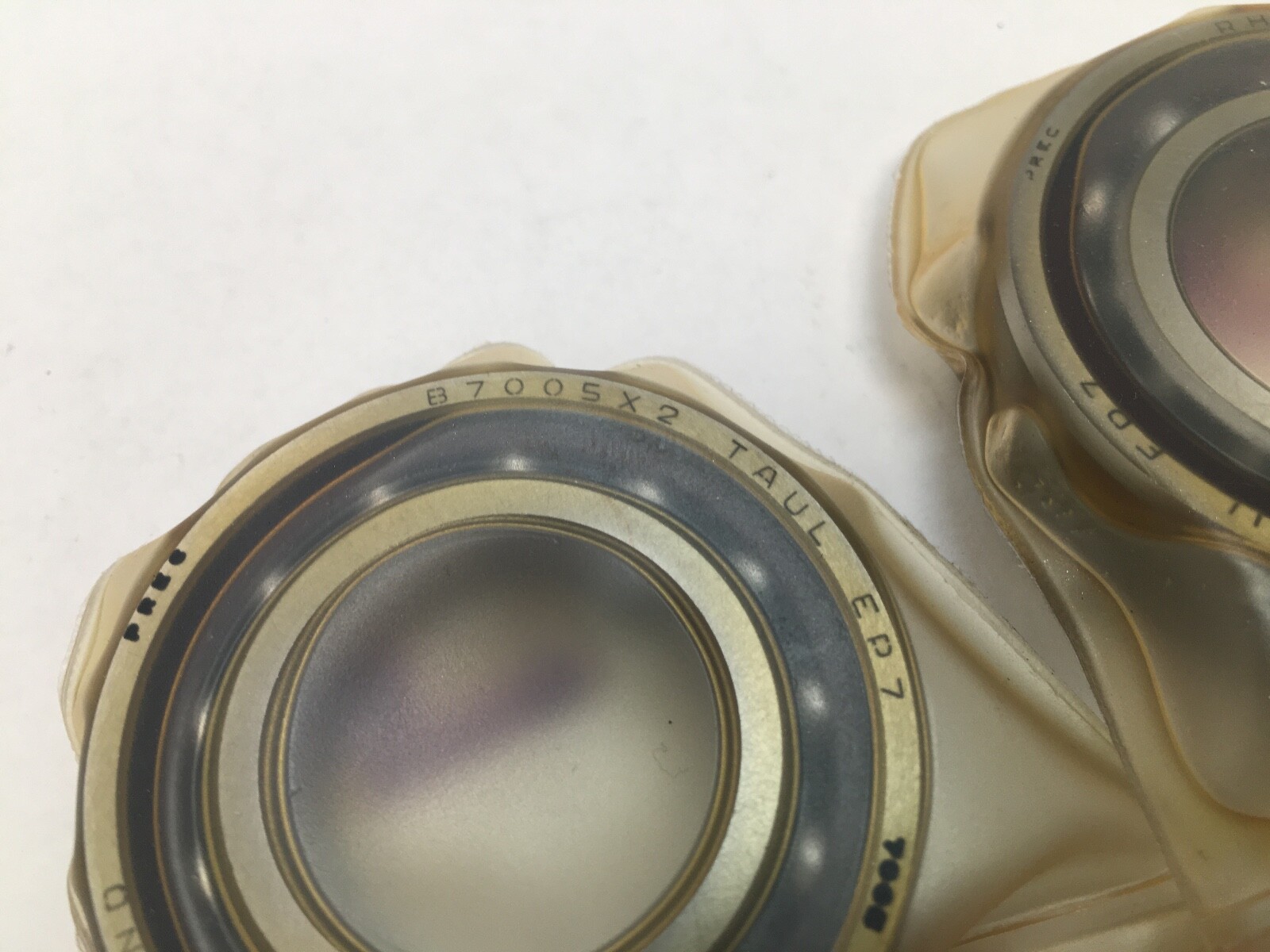

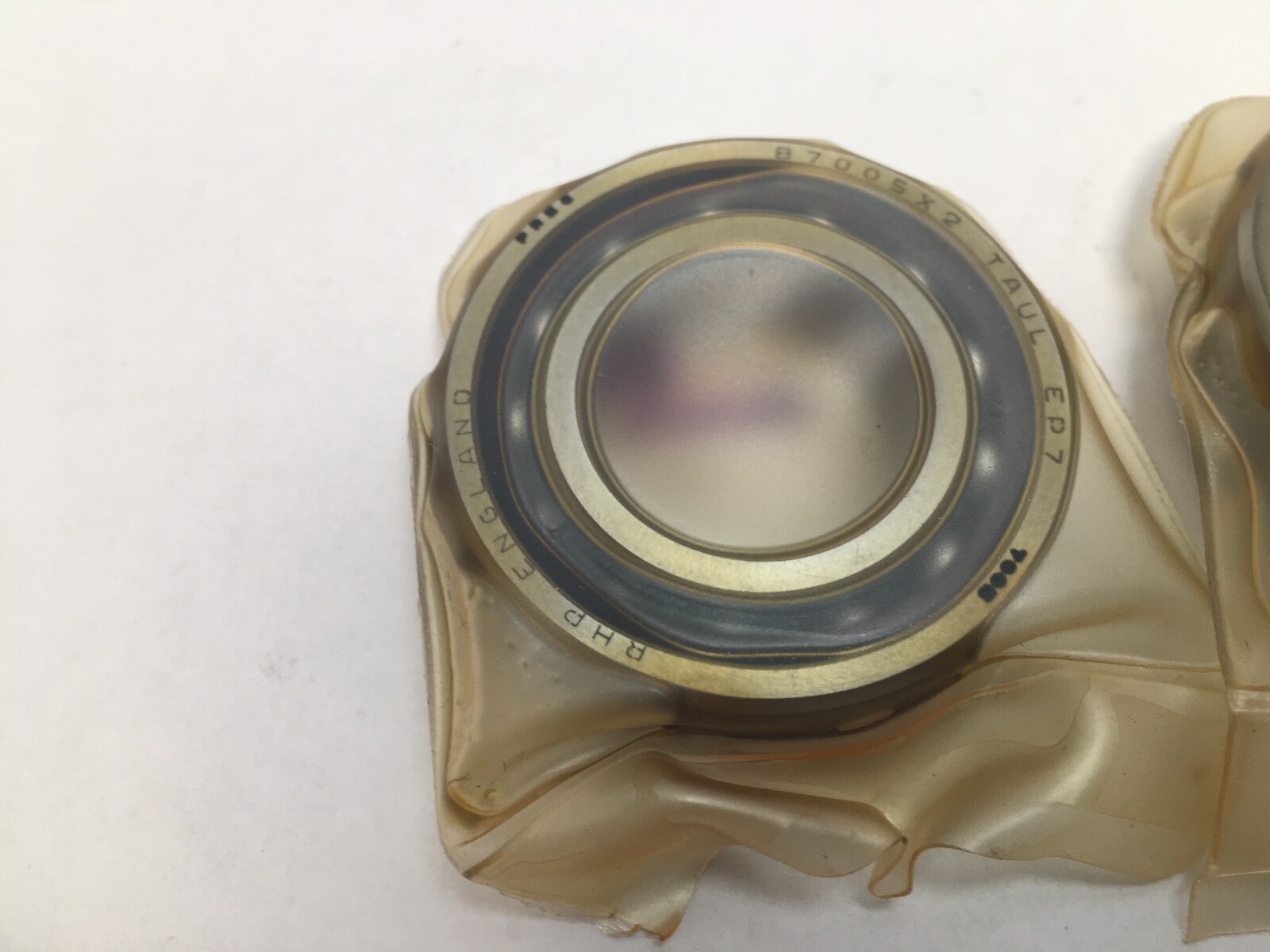

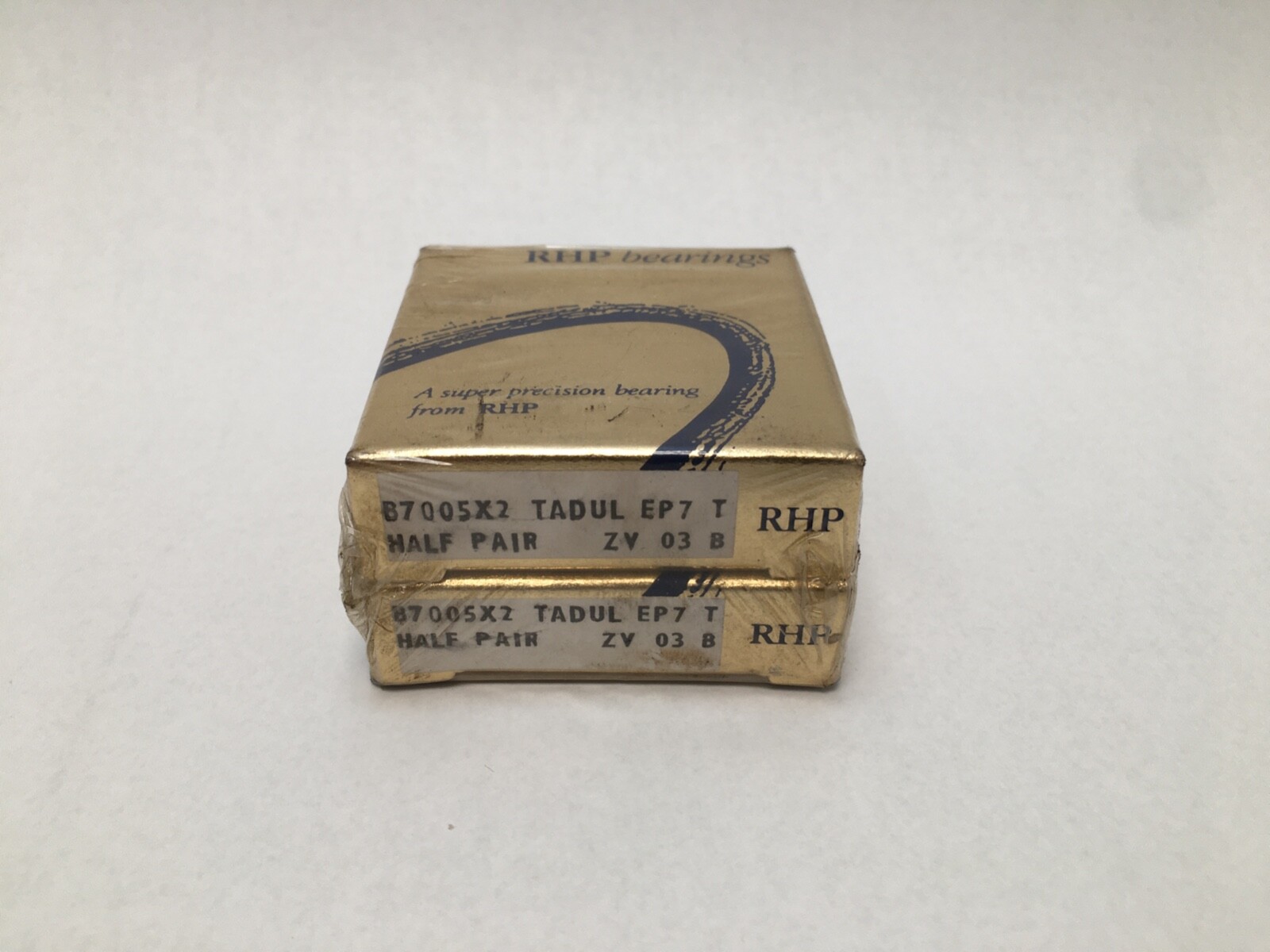

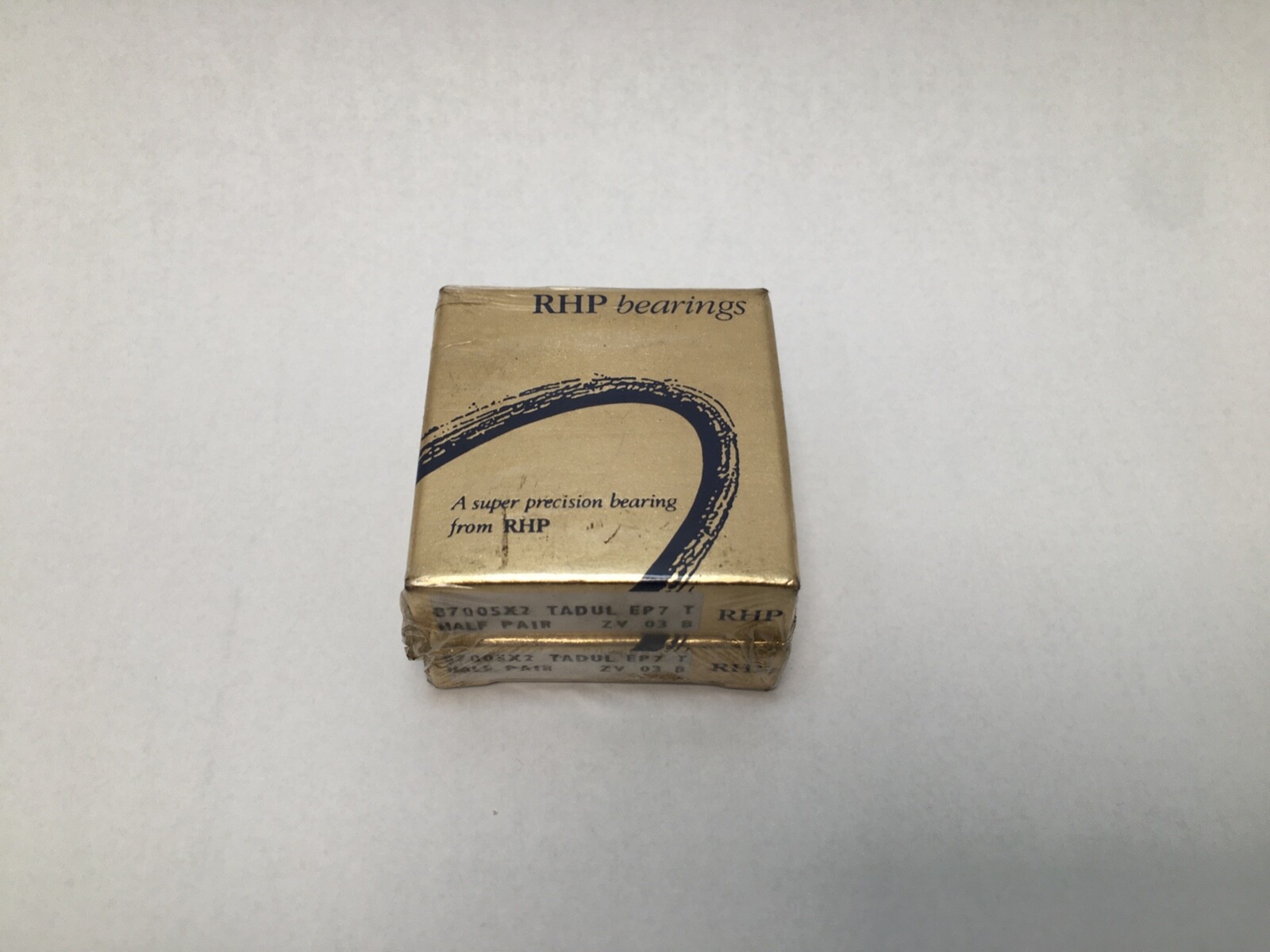

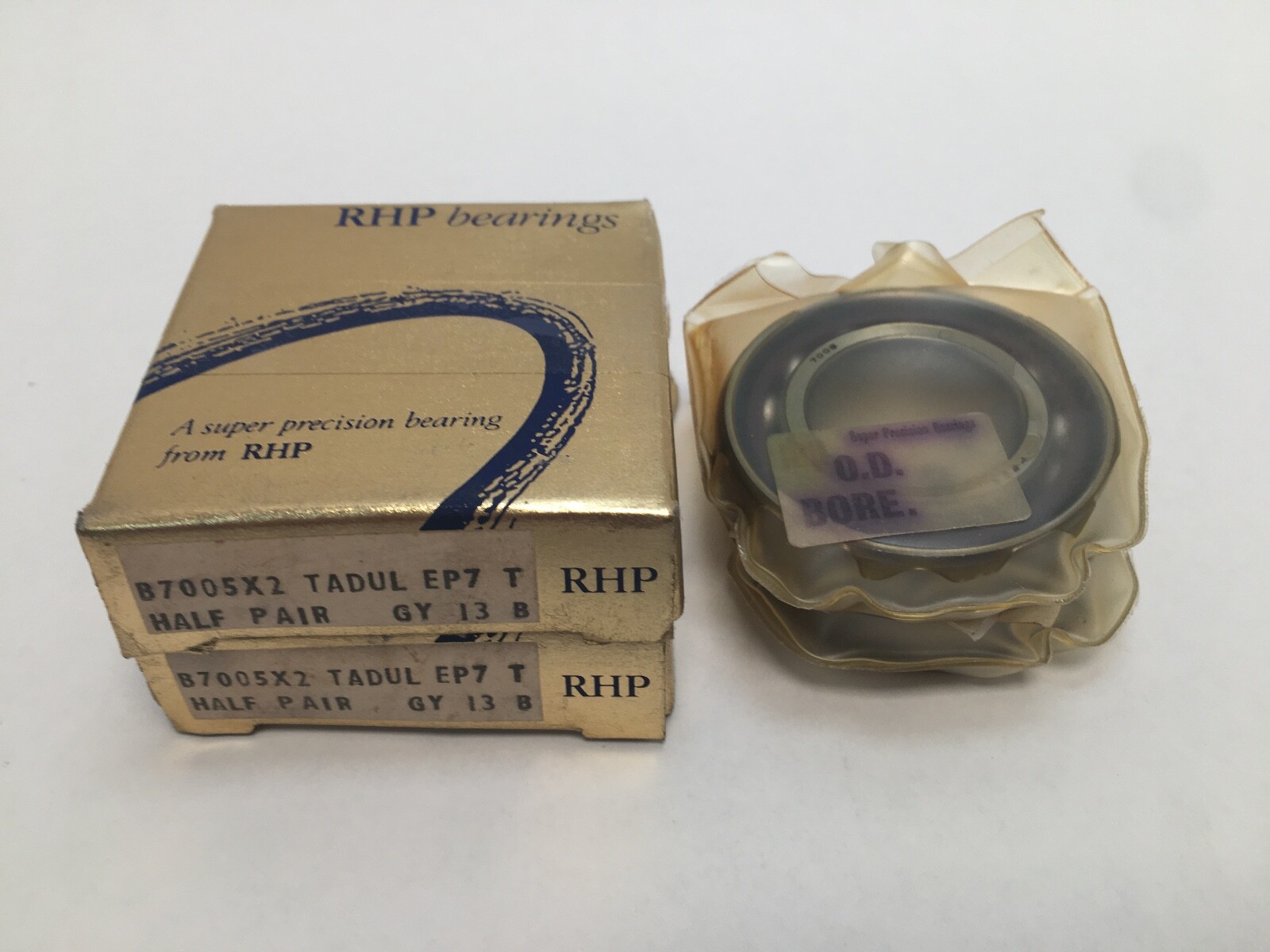

7005 identifies an angular contact ball bearing in the ISO 70 light series with a 25 mm bore. C sets a 15° contact angle in the RHP scheme. T denotes a phenolic cage. DU marks the bearings as a universally ground duplex set and the following L sets light preload. P4 is the precision class, equivalent to ABEC 7. The carton also carries B7005X2TADULEP7, which reads consistently in the RHP B-series scheme: X2 confirms the 15° angle and EP7 the equivalent precision grade.

What these specs mean in practice

A 15° contact angle favours speed and radial stiffness over thrust capacity, which is why this configuration is standard in high-speed spindles. Light preload holds the set rigid at minimum friction and heat rise, giving the highest speed capability of the preload range. The phenolic cage is light and self-lubricating and tolerates high cage speeds. P4 accuracy controls bore, outside diameter and running runout to super-precision tolerances.

Load and speed data

Dynamic and static load ratings, limiting speed and temperature limits are published in the specification table on this page.

Quantity and configuration

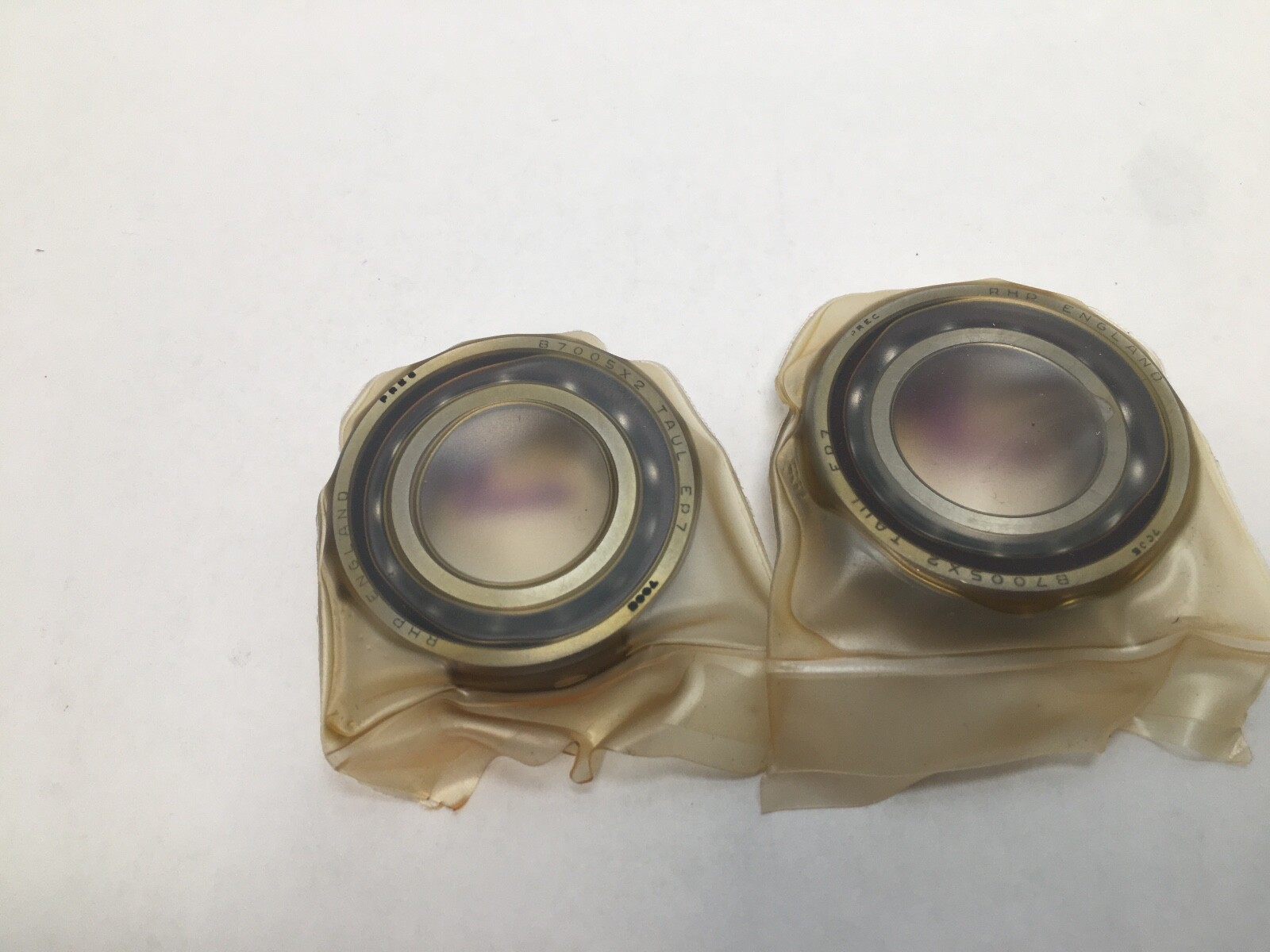

Two bearings, supplied as a matched universal duplex set. Each is single row and open, with no snap ring, seals or shields.

Fitting notes

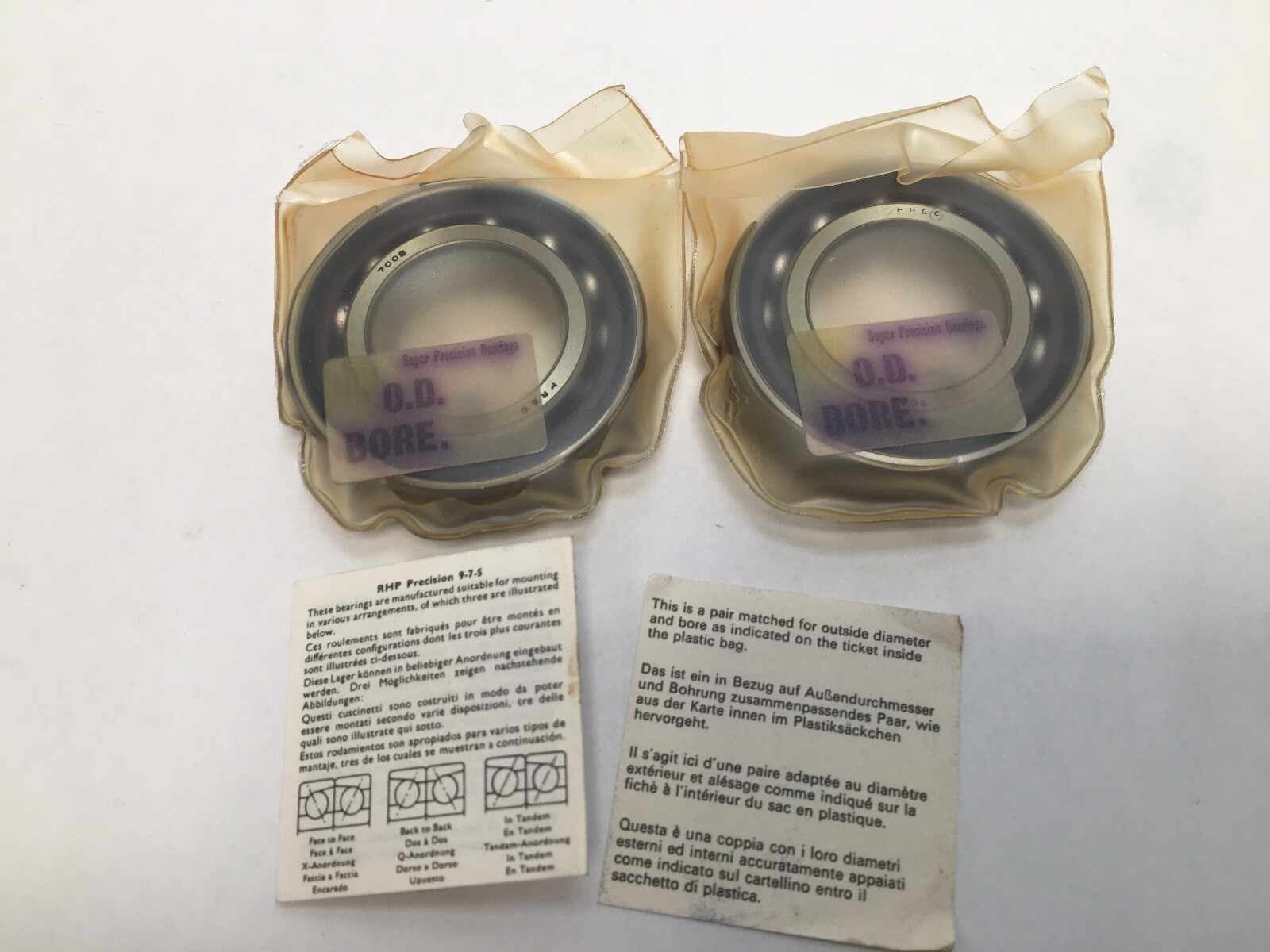

Universal grinding allows assembly back-to-back, face-to-face or in tandem. A back-to-back or face-to-face arrangement locates the shaft axially in both directions and develops the built-in light preload as the rings are clamped; tandem mounting shares thrust in one direction only. A single row alone takes thrust in one direction. The set is matched and stays together as supplied.

Interchange guidance

A substitution needs the same 15° angle, the same light preload and the same P4 or EP7 class. A 7005 with a 25° angle, a different preload letter or a lower precision class shares the 25 x 47 x 12 mm envelope but is a related size rather than an equivalent. Same-spec designations from other manufacturers are listed in the cross-reference table.
