Angular contact ball bearing, 30 mm bore, 47 mm OD, 9 mm wide, 15° contact angle, ABEC 7 / P4, phenolic cage; RHP 7906CTSULP4 single universal, light preload.
List Price
$33.98
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7906CTSULP4 |
| Model | 7906 C T SUL P4 / 71906C / 2MM9306WI CR SUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 30 mm |
| OD | 47 mm |
| Width | 9 mm |
| Material | Steel |
|---|---|
| Series | 7900 |
| Preload | Light |
| Precision Class | ABEC 7 / P4 |
| Dynamic Load Rating | 8,300 N |
| Static Load Rating | 6,250 N |
| Rolling Elements | Ball |
| Item Weight | 0.049 kg (0.11 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 27,900 rpm grease; 45,200 rpm oil |
| Contact Angle | 15° |
| Industry Terms | super precision angular contact bearing; spindle bearing; universal ground angular contact; 30x47x9 angular contact; 15 degree angular contact bearing; P4 ABEC 7 bearing |
| Common Misspellings | RHP 7906CTSUL P4; RHP 7906 CTSULP4; R.H.P. 7906CTSULP4; RHP7906CTSULP4 |
| Application Types | Machine tool spindles; high-speed spindles; precision grinding spindles; duplex or triplex bearing sets |
| Mpn Variants | 7906CTSULP4, 7906-C-T-SUL-P4, 7906 C T SUL P4, 71906C, 7906X2TAULEP7 |
| Closure Type | Open |

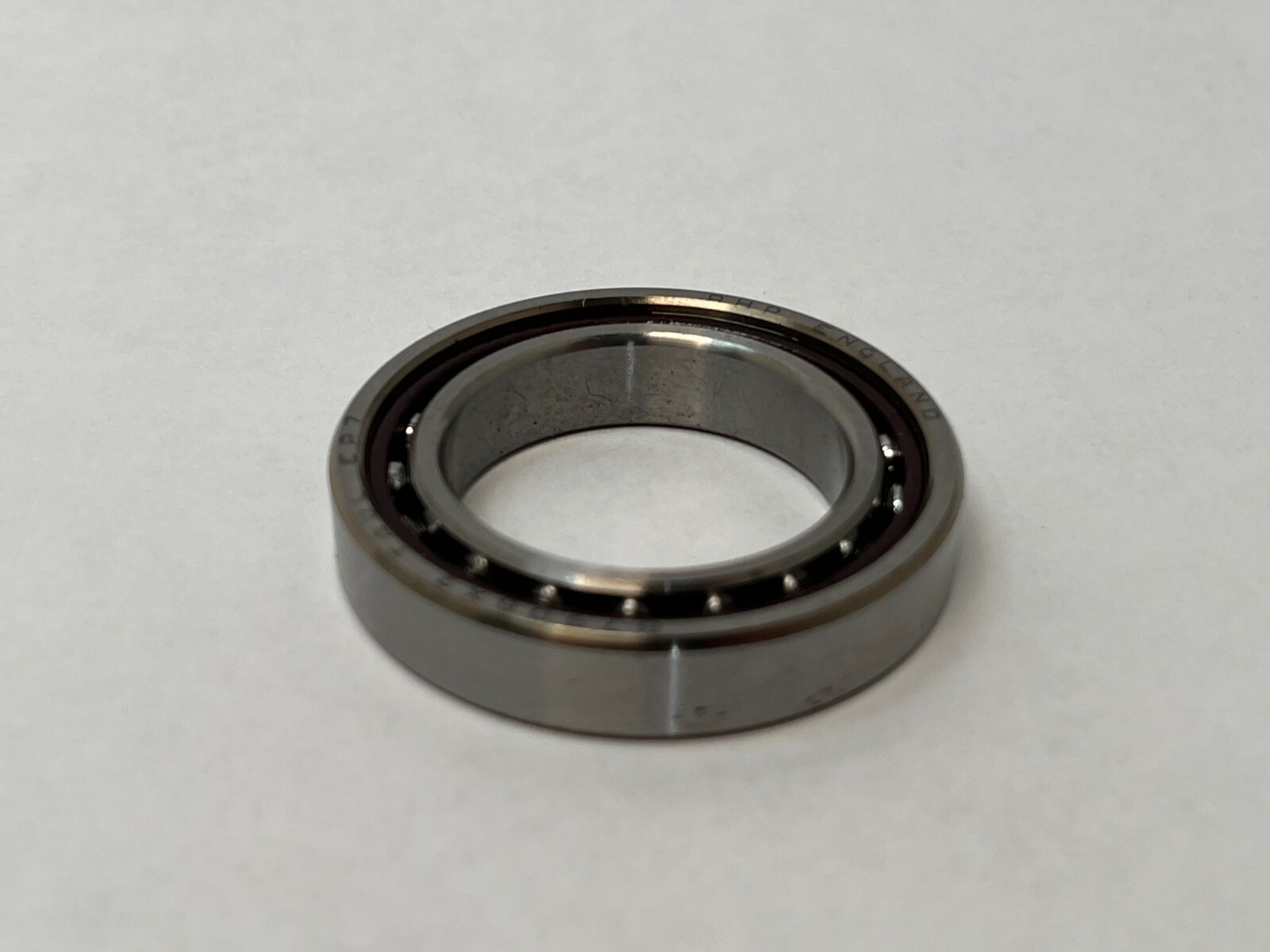

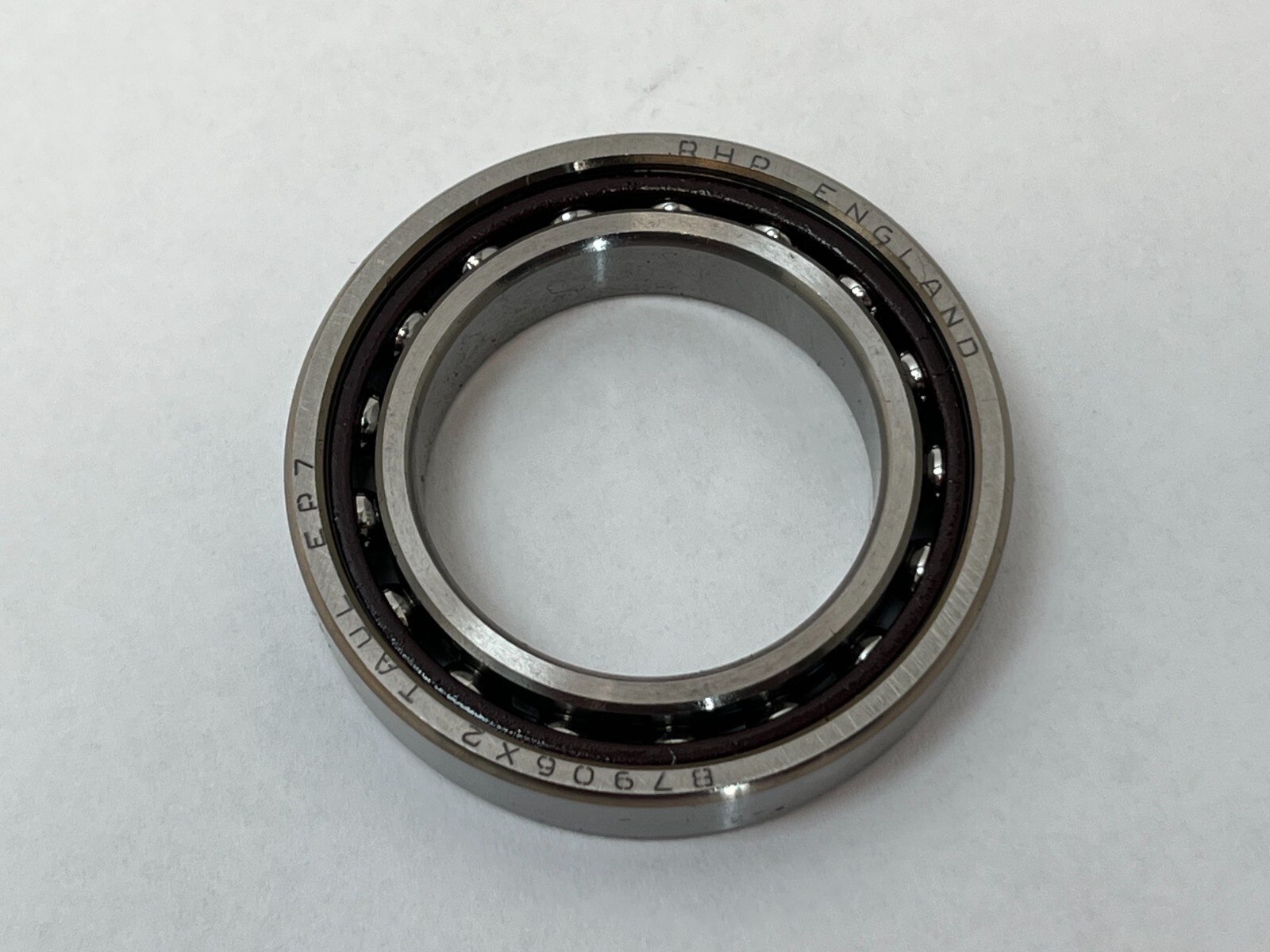

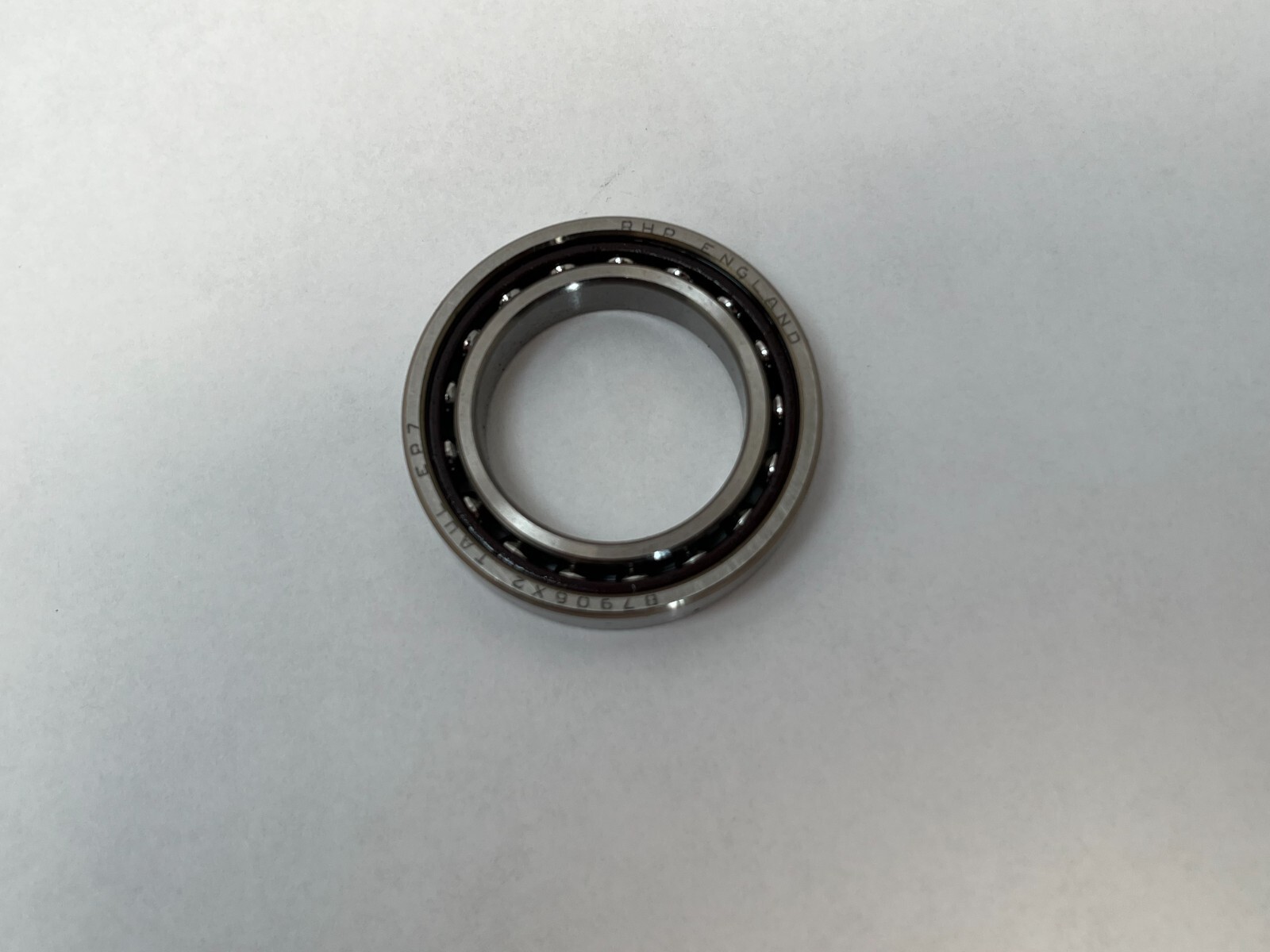

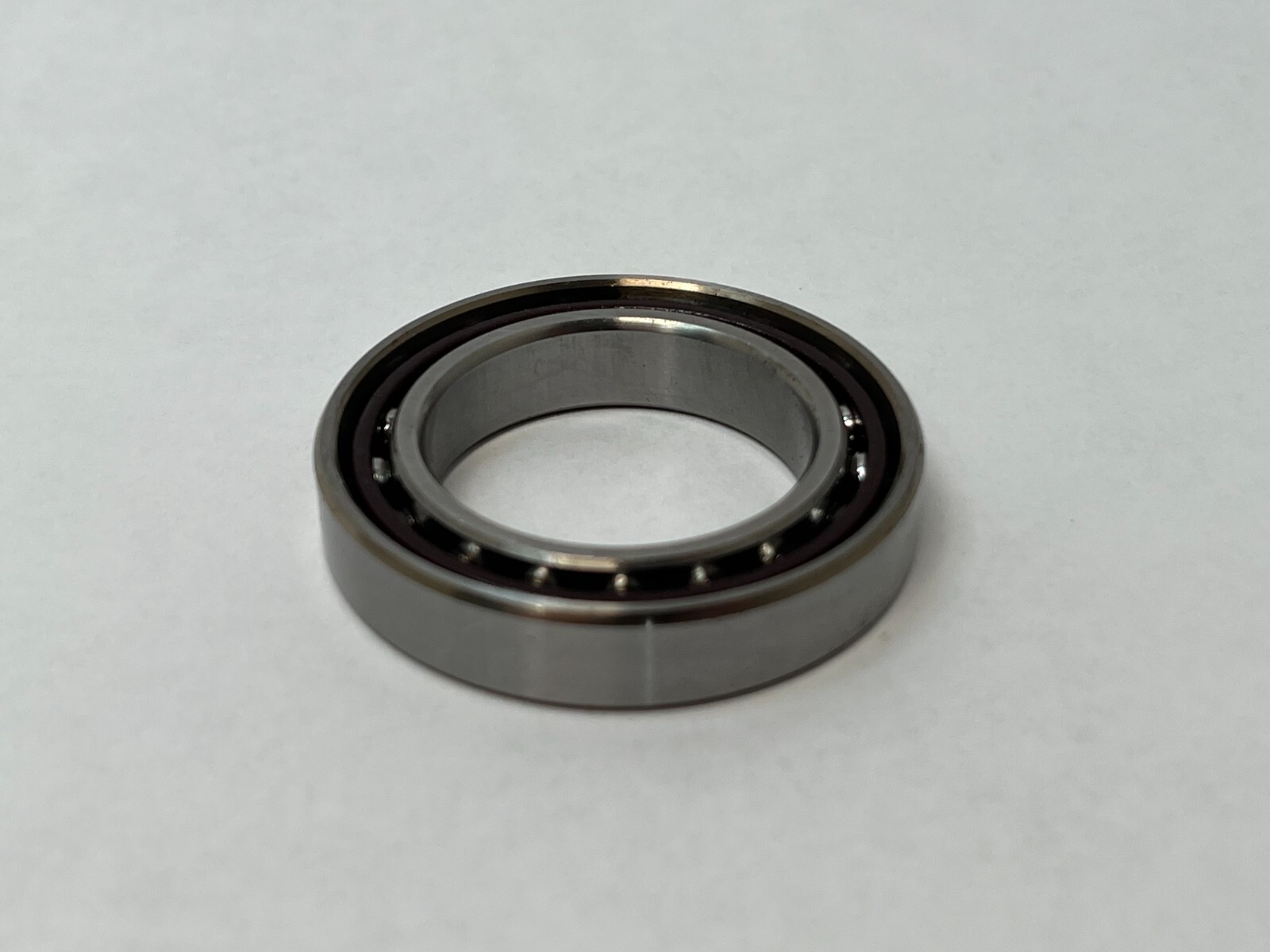

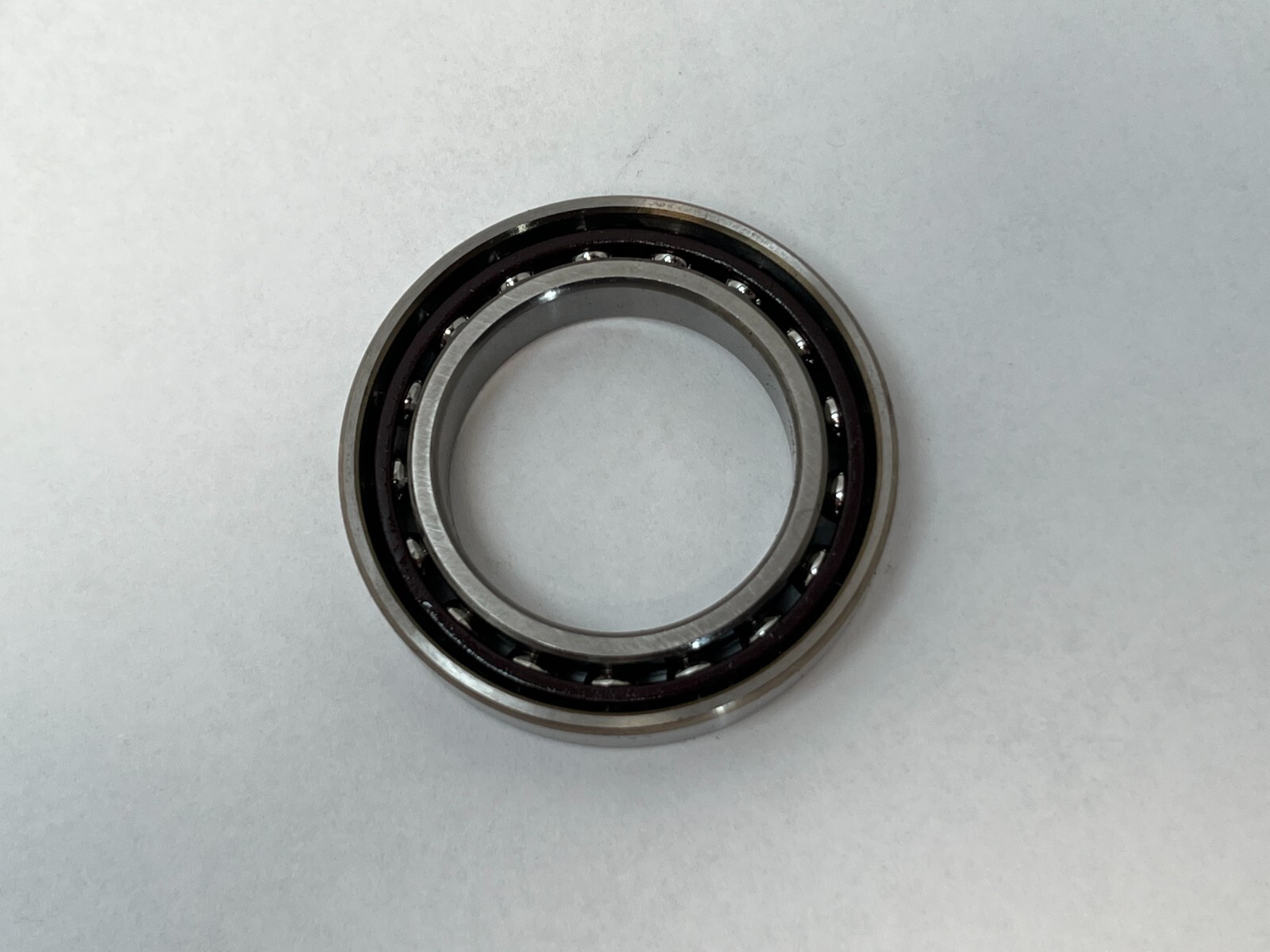

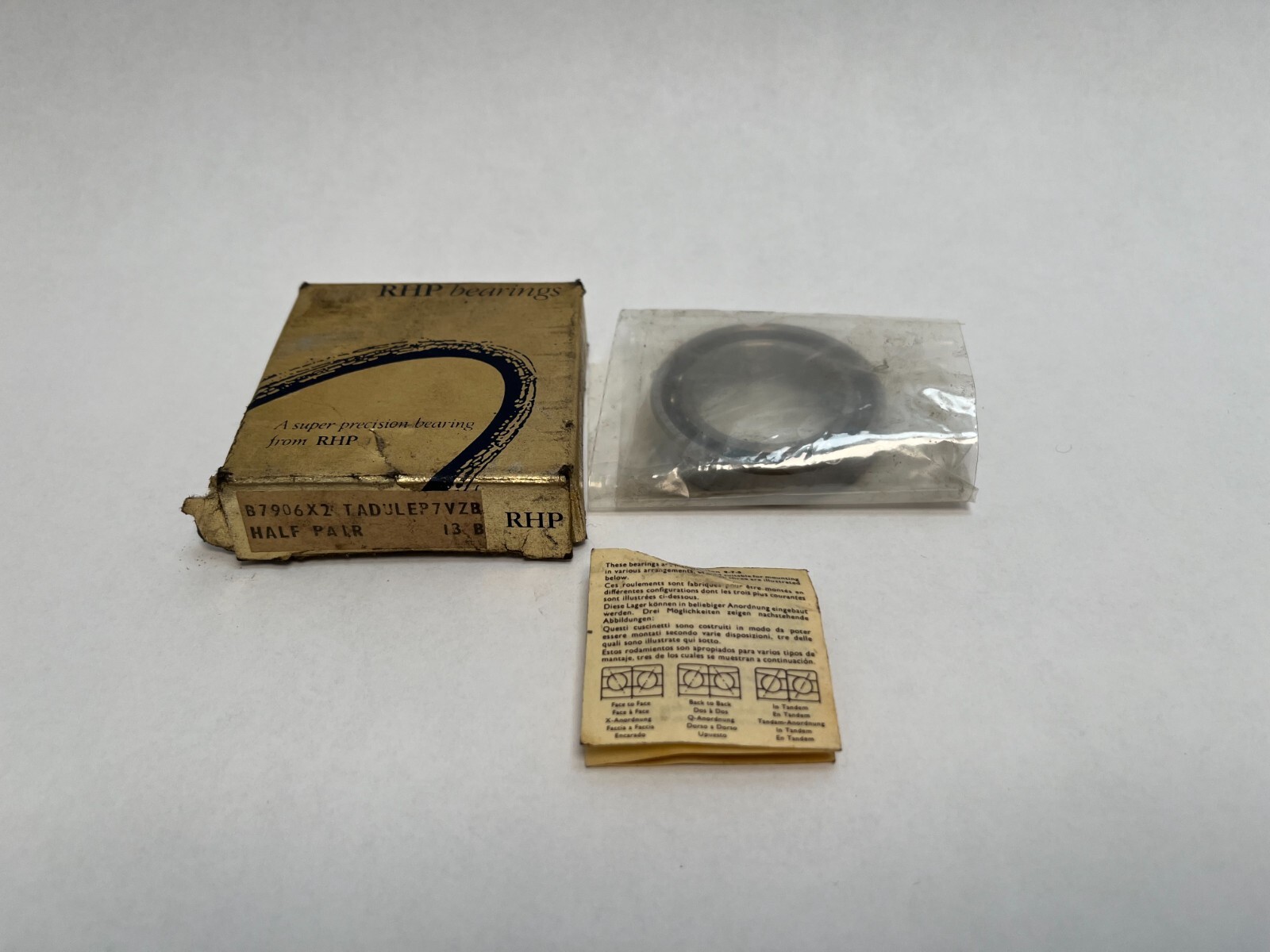

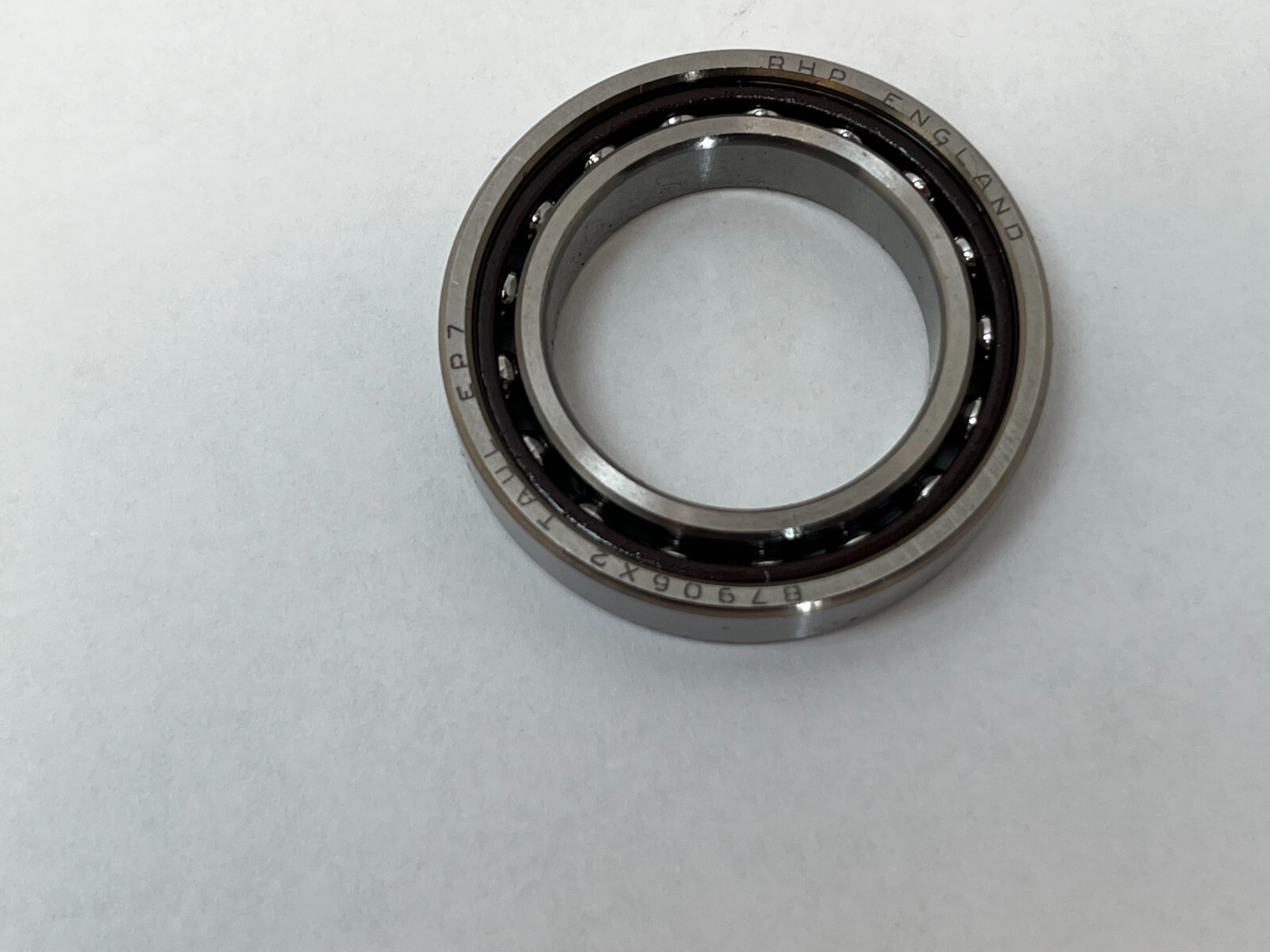

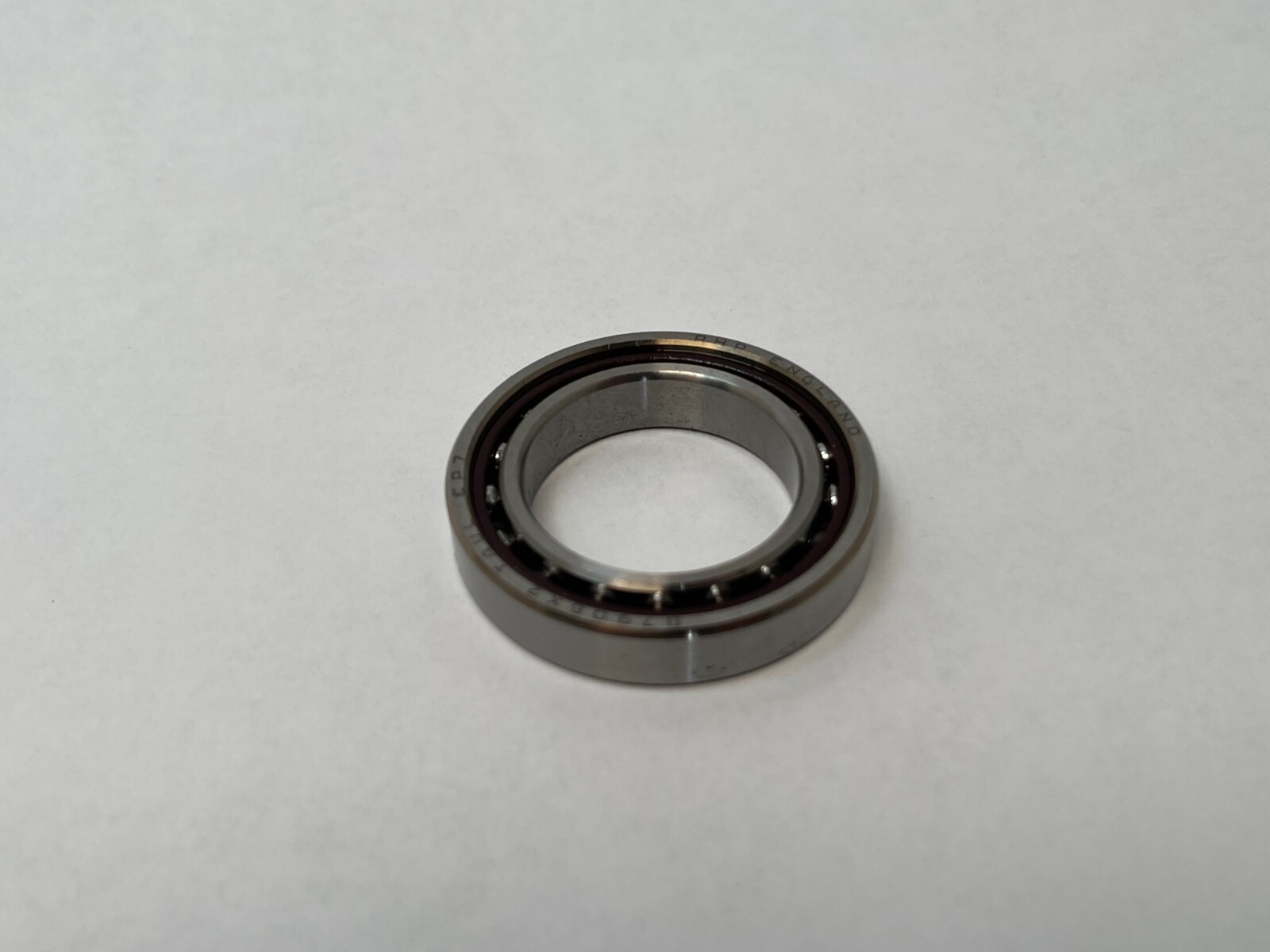

RHP 7906CTSULP4 is a single-row angular contact ball bearing in the 79 series, ground as a single universal bearing with light preload. Bore Diameter: 30 mm. Outside Diameter: 47 mm. Overall Width: 9 mm. Condition: new, open box, old stock. Unit Quantity: 1 Pc.
7906 — ISO size code for the 30 x 47 x 9 mm series-19 envelope.
C — 15° contact angle.
T — phenolic cage.
SU — single universal: faces ground for mounting in any duplex or triplex combination.
L — light preload.
P4 — RHP super-precision class, ABEC 7.
Bore Diameter: 30 mm. Outside Diameter: 47 mm. Overall Width: 9 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Preload: Light. Dynamic Load Rating: 8,300 N. Static Load Rating: 6,250 N. Limiting Speed: 27,900 rpm grease; 45,200 rpm oil. Item Weight: 0.049 kg (0.11 lb). Number Of Rows: 1. Closure Type: Open.
30 mm bore, 47 mm outside diameter, 9 mm width. Series: 7900. Universal face grinding allows back-to-back, face-to-face or tandem arrangement.
Also marked or listed as 7906-C-T-SUL-P4, 7906 C T SUL P4, 71906C and 7906X2TAULEP7.
30 mm bore, 47 mm outside diameter, 9 mm width.
15° contact angle, ABEC 7 / P4.
Light preload, single universal (SUL) ground.
