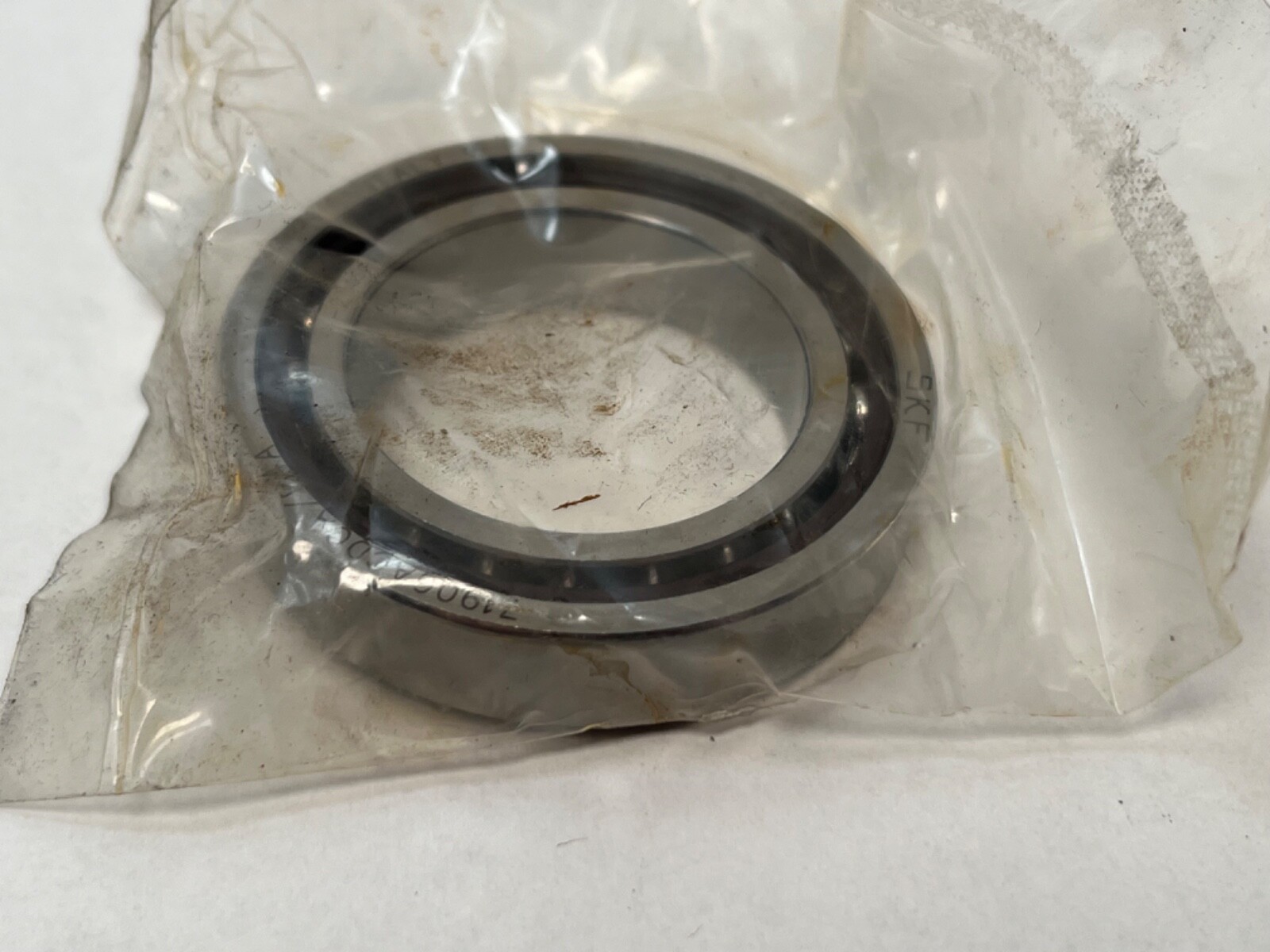

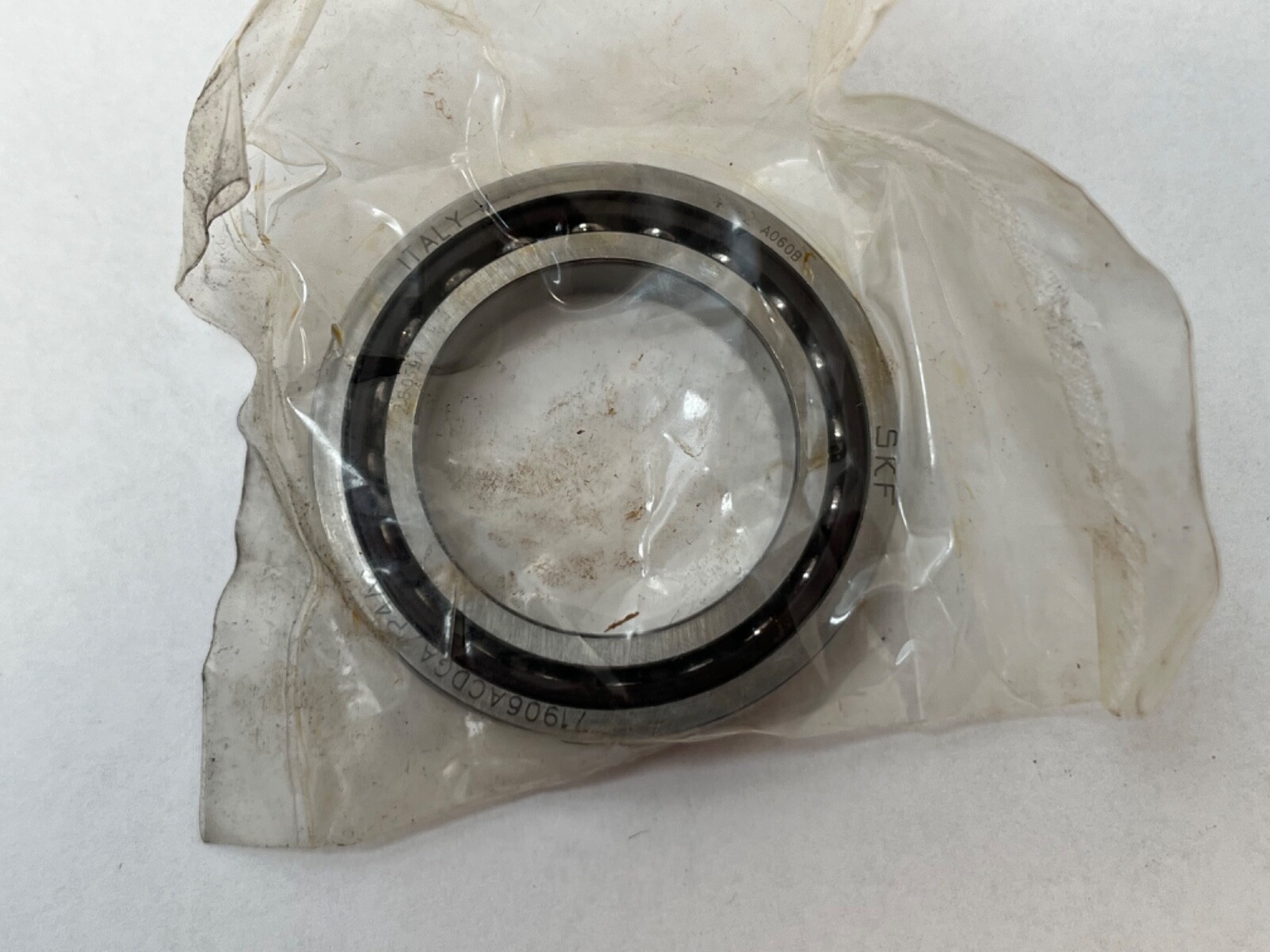

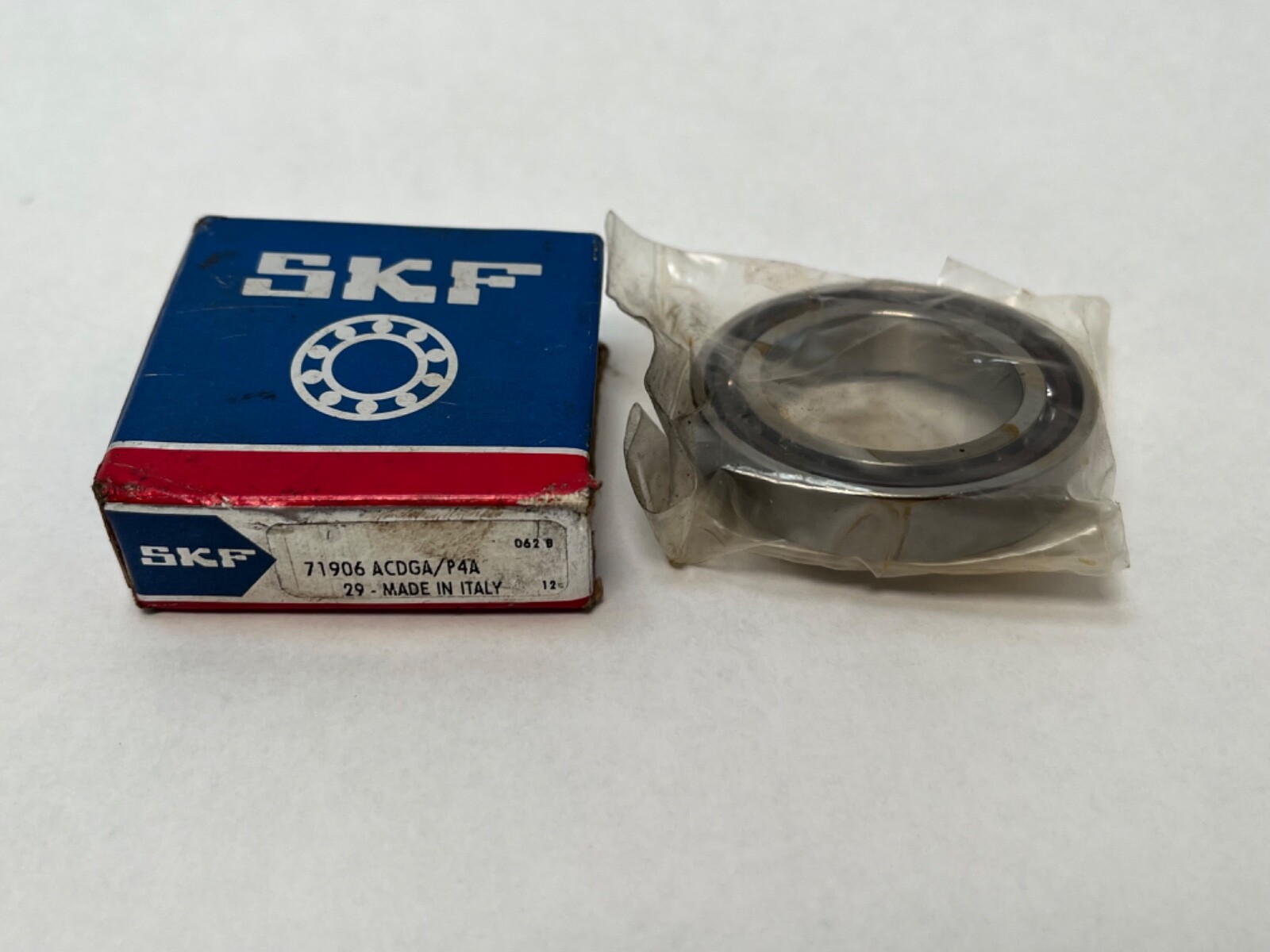

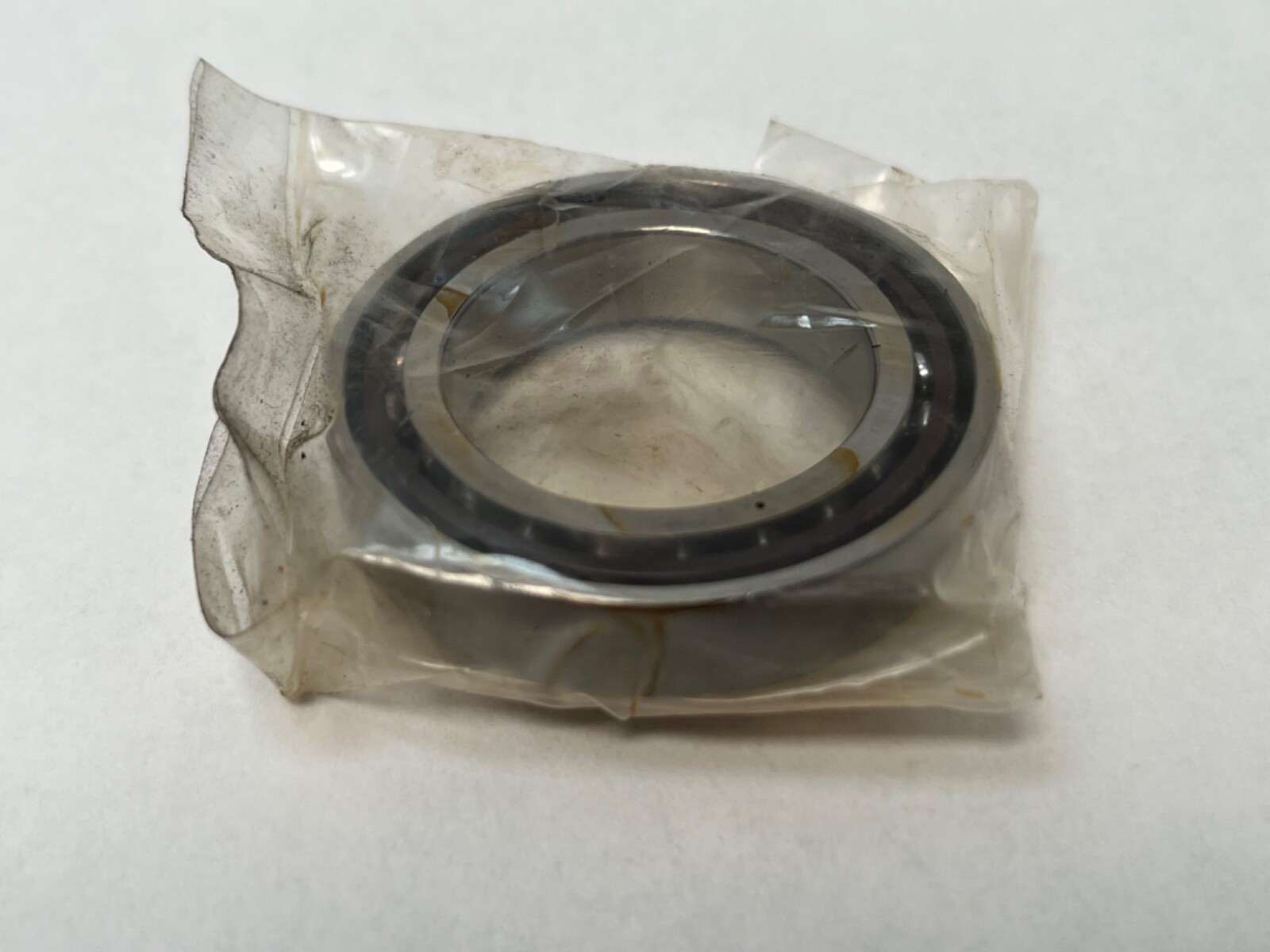

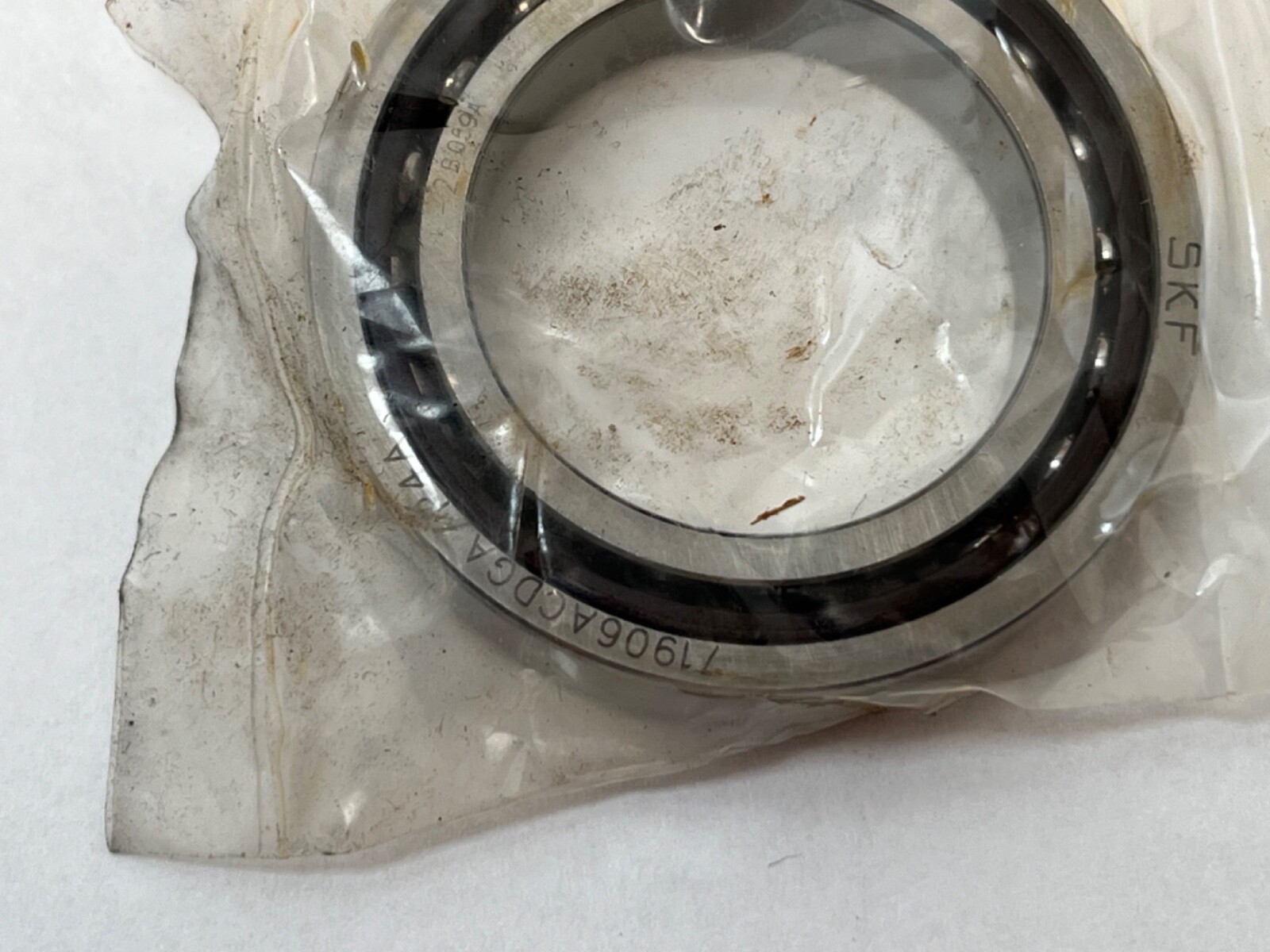

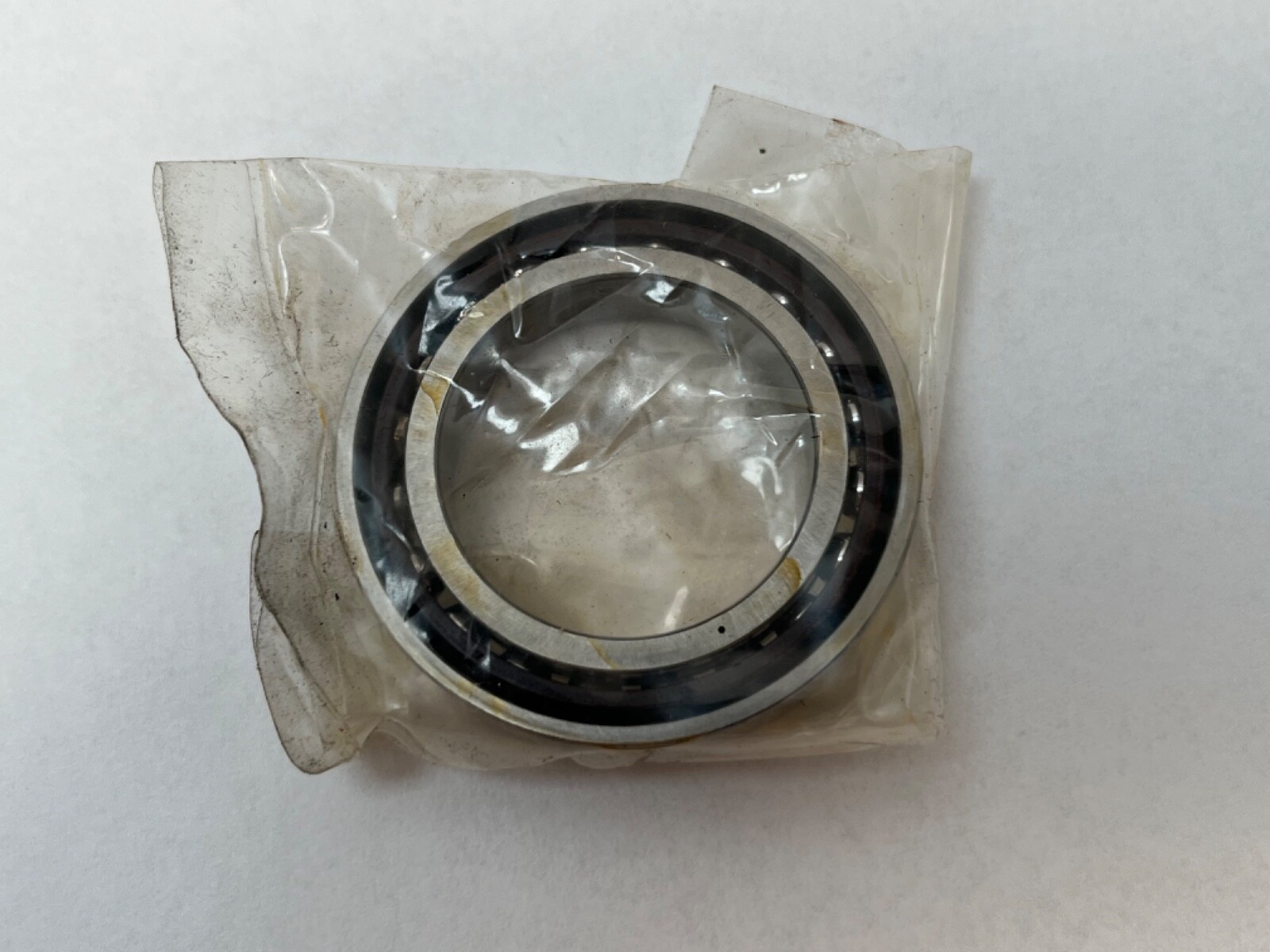

SKF 71906 ACDGA/P4A super precision angular contact ball bearing, 30 x 47 x 9 mm, 25° contact angle, P4A class, extra light preload 40 N. 719 series, 1 Pc.
List Price
$87.60
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 71906-ACDGA/P4A |
| Model | 71906 ACD GA P4A / 3MM 9306 WI CR DUL / B71906E / 7906A5 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 30 mm |
| OD | 47 mm |
| Width | 9 mm |
| Preload | Extra light (40 N) |
|---|---|
| Material | Bearing Steel |
| Mpn Variants | 71906-ACDGA/P4A, 71906 ACDGA/P4A, 71906ACDGAP4A, 71906-ACD-GA-P4A, 7906A5, 7906 |
| Precision Class | ABEC 7 / P4A |
| Additional Attributes | Fatigue load limit 183 N; axial stiffness 65 N/µm; 20 balls of 4.762 mm; oil nozzle position 36.8 mm |
| Dynamic Load Rating | 6,760 N |
| Static Load Rating | 4,300 N |
| Rolling Elements | Ball |
| Item Weight | 0.049 kg (0.11 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Contact Angle | 25° |
| Mounting Arrangement | Universally matchable: back-to-back, face-to-face or tandem |
| Bearing Material | Bearing steel |
| Closure Type | Open |
| Cross Reference 1 | FAG B71906-E-T-P4S-UL - light preload |
|---|---|
| Cross Reference 2 | NSK 7906A5TYNSULP4 - light preload |
| Cross Reference 3 | Timken 3MM9306WI SUL - light preload |
SKF 71906 ACDGA/P4A super-precision, high-capacity single row angular contact ball bearing from the SKF 719 thin-section series. Bore Diameter: 30 mm. Outside Diameter: 47 mm. Width: 9 mm. Contact Angle: 25°. Universally matchable: it can be combined back-to-back, face-to-face or in tandem to give a predetermined extra light preload without shims. Unit Quantity: 1 Pc.
71906 — 719 series angular contact ball bearing, 30 mm bore, 47 mm outside diameter.
ACD — high-capacity D design with a 25° contact angle.
GA — single bearing for universal matching, extra light preload.
P4A — SKF precision class: ISO P4 dimensional accuracy with tighter running accuracy.
Contact Angle: 25°. Precision Class: ABEC 7 / P4A. Preload: Extra light, 40 N unmounted (back-to-back or face-to-face pair). Axial stiffness: 65 N/µm. Dynamic Load Rating: 6,760 N. Static Load Rating: 4,300 N. Fatigue load limit: 183 N. Ball diameter: 4.762 mm. Number of balls: 20. Reference grease quantity: 0.63 cm³. Item Weight: 0.049 kg (0.11 lb). Bearing Material: Bearing steel. Closure Type: Open.
Bore Diameter: 30 mm. Outside Diameter: 47 mm. Width: 9 mm. Inner ring shoulder diameter d1: 35.6 mm. Outer ring shoulder diameter D1: 41.4 mm. Chamfer r1,2 min: 0.3 mm. Chamfer r3,4 min: 0.2 mm. Pressure point distance a: 13.6 mm. Shaft abutment da/db min: 32 mm. Housing abutment Da max: 45 mm; Db max: 45.6 mm. Fillet radius ra max: 0.3 mm; rb max: 0.2 mm. Oil nozzle position dn: 36.8 mm.
Same envelope and 25° angle, light preload (UL/SUL): FAG B71906-E-T-P4S-UL, NSK 7906A5TYNSULP4, Timken/Fafnir 3MM9306WI SUL. Cage execution and exact class vary by maker.
Bore Diameter: 30 mm. Outside Diameter: 47 mm. Width: 9 mm.
Extra light preload, 40 N unmounted, when combined back-to-back or face-to-face.
Contact Angle: 25°.
