RHP7305ETSULP4Super Precision Angular Contact Ball Bearing – 25 mm ID, 62 mm OD, 17 mm Width, Open, 25° Contact Angle, Light Preload

Product Description

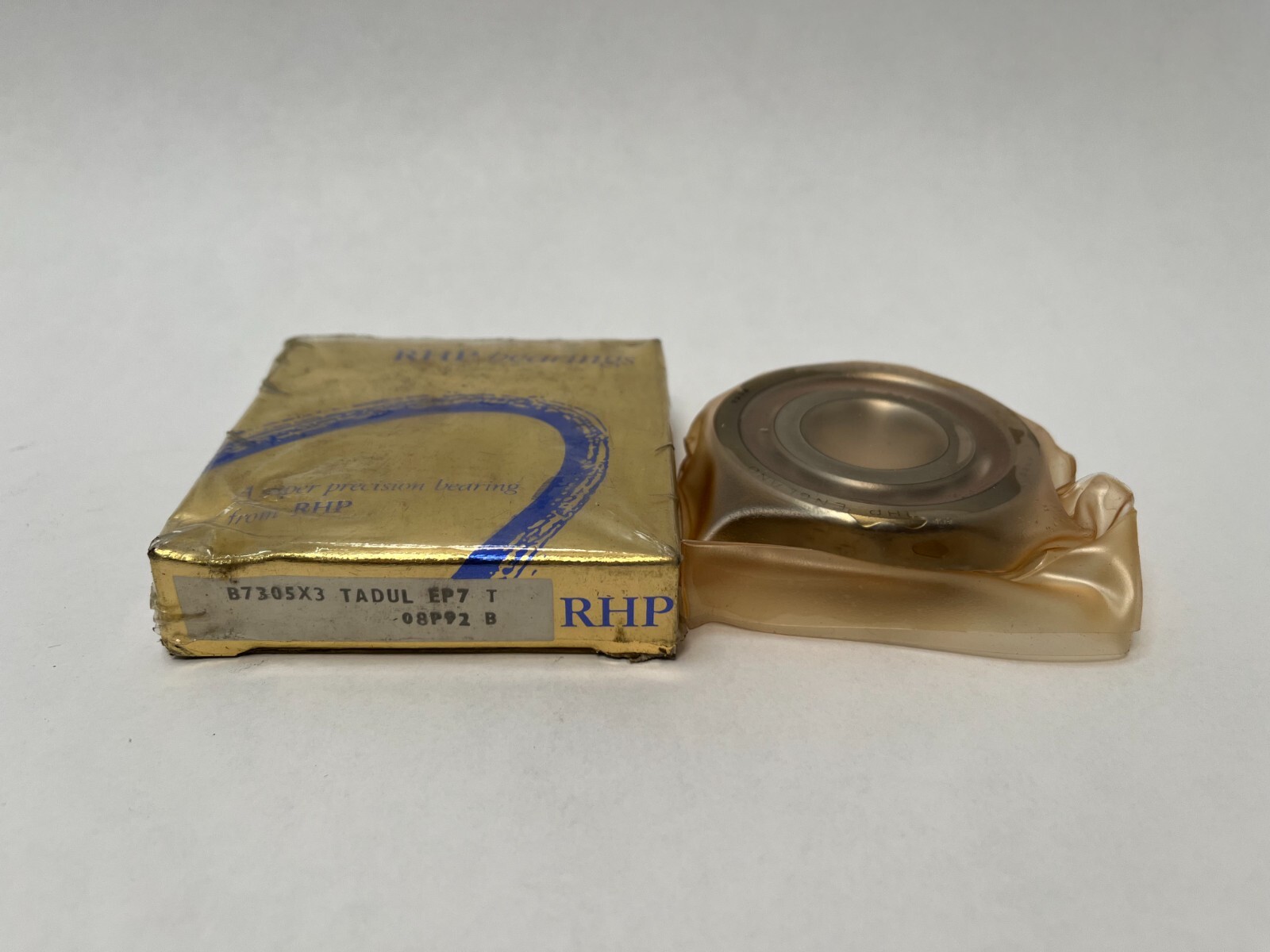

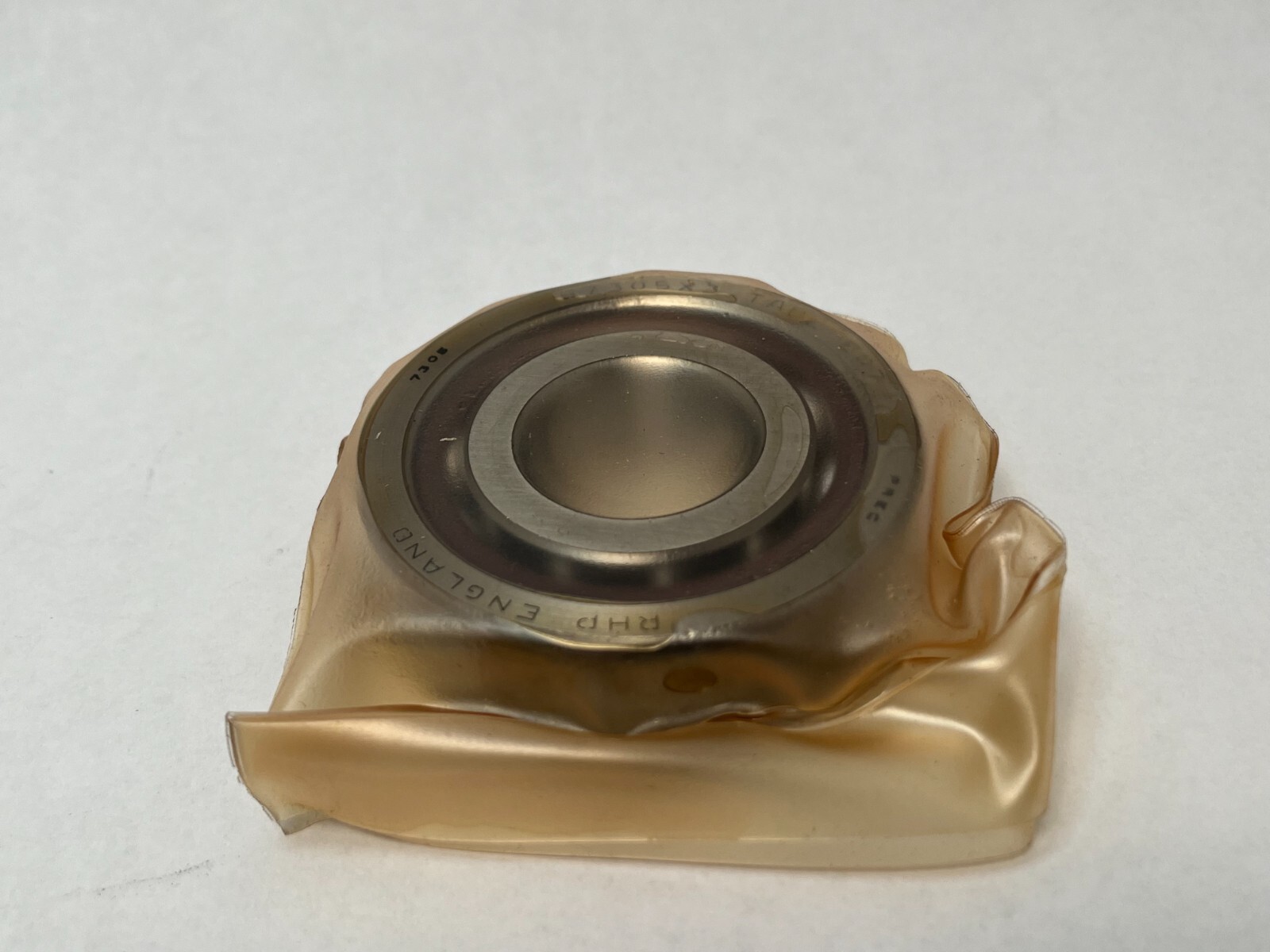

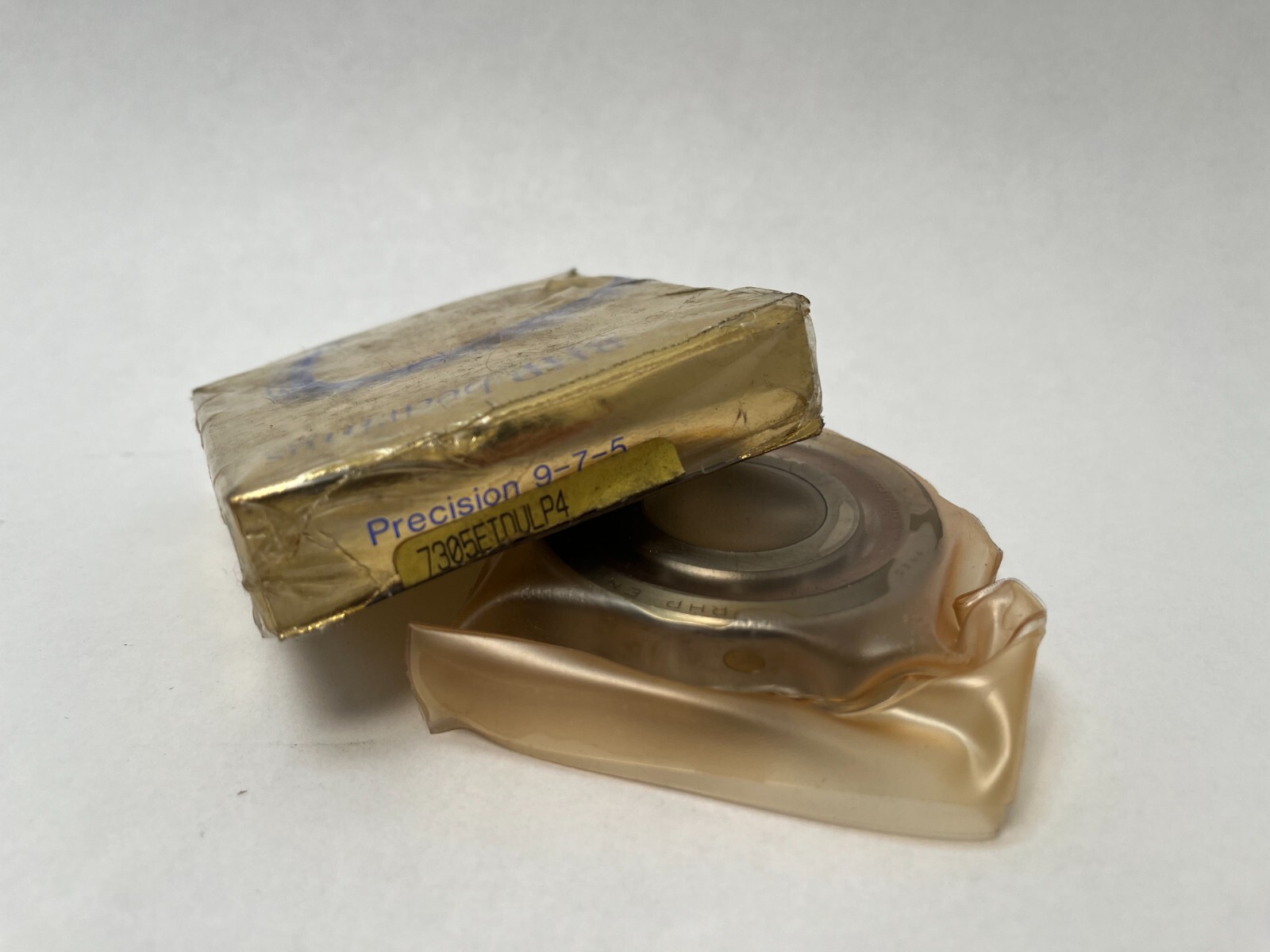

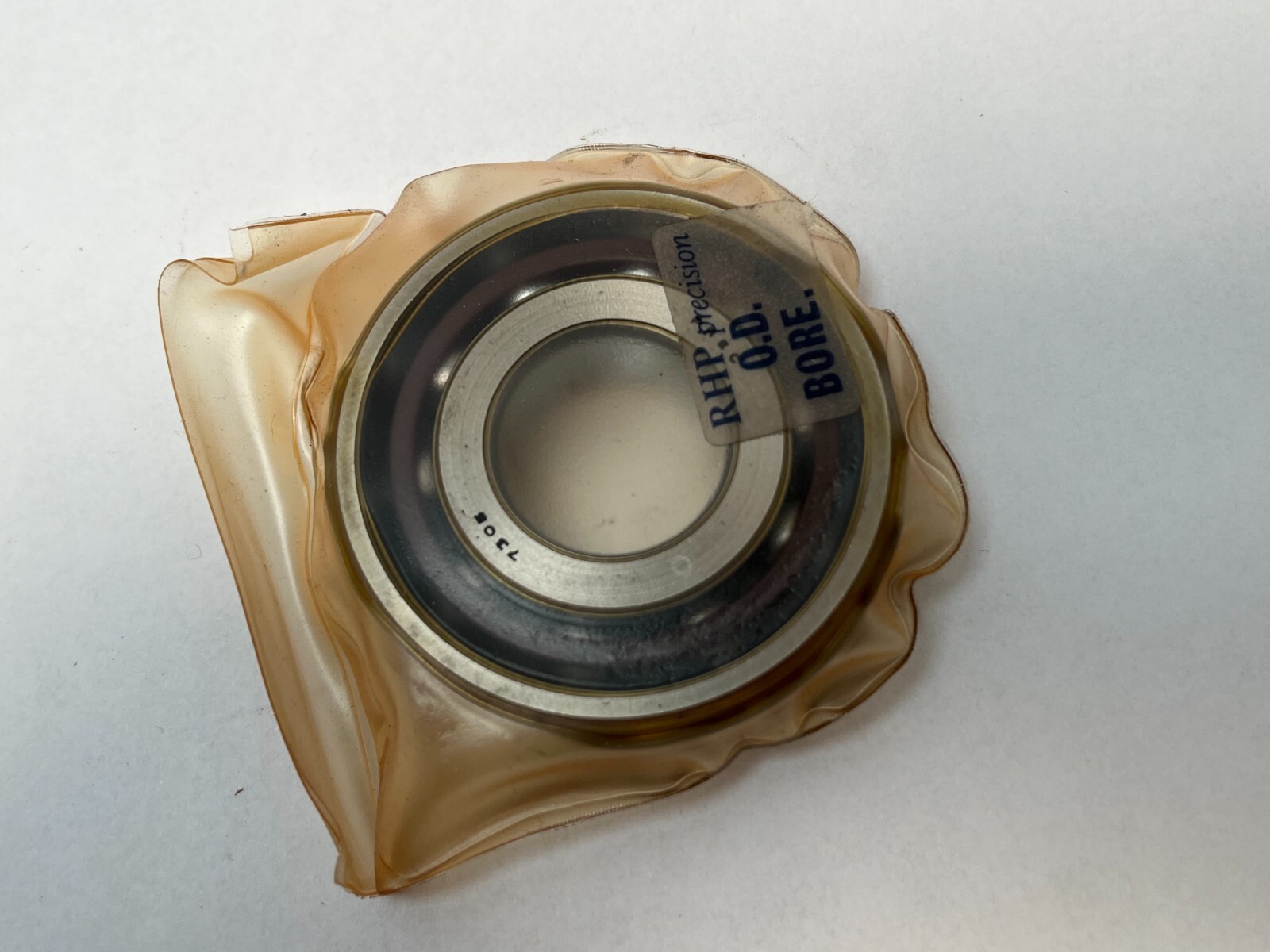

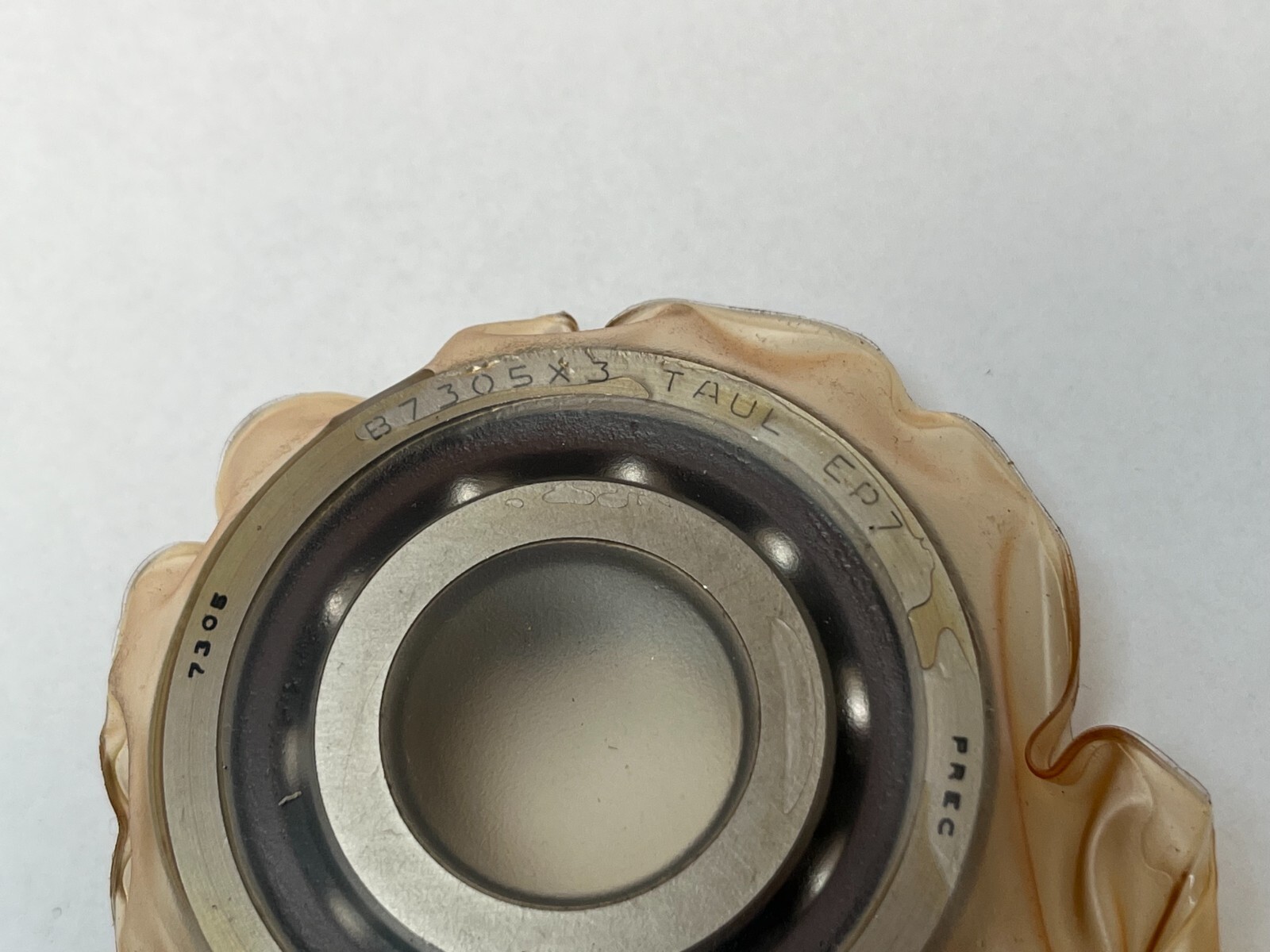

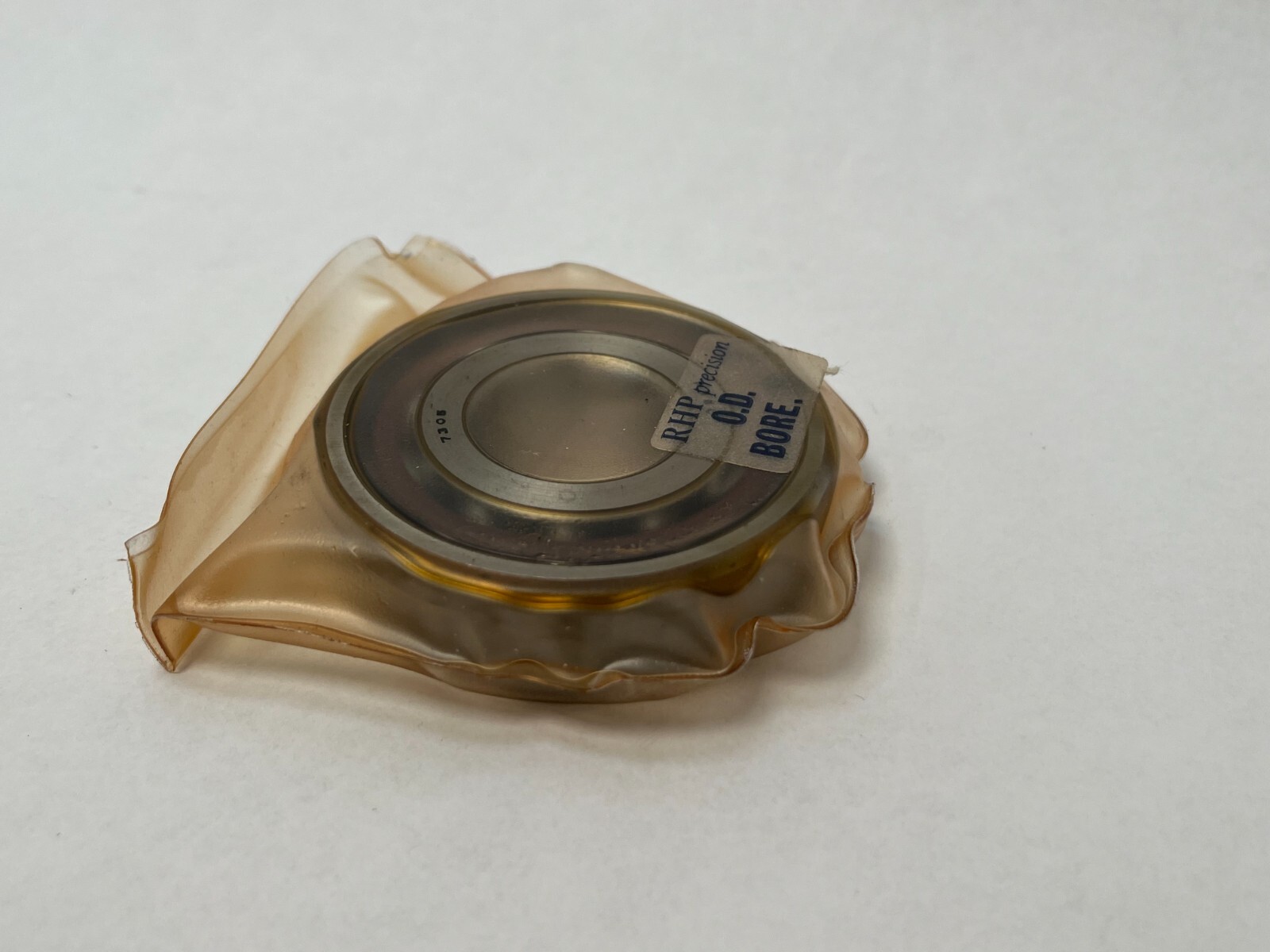

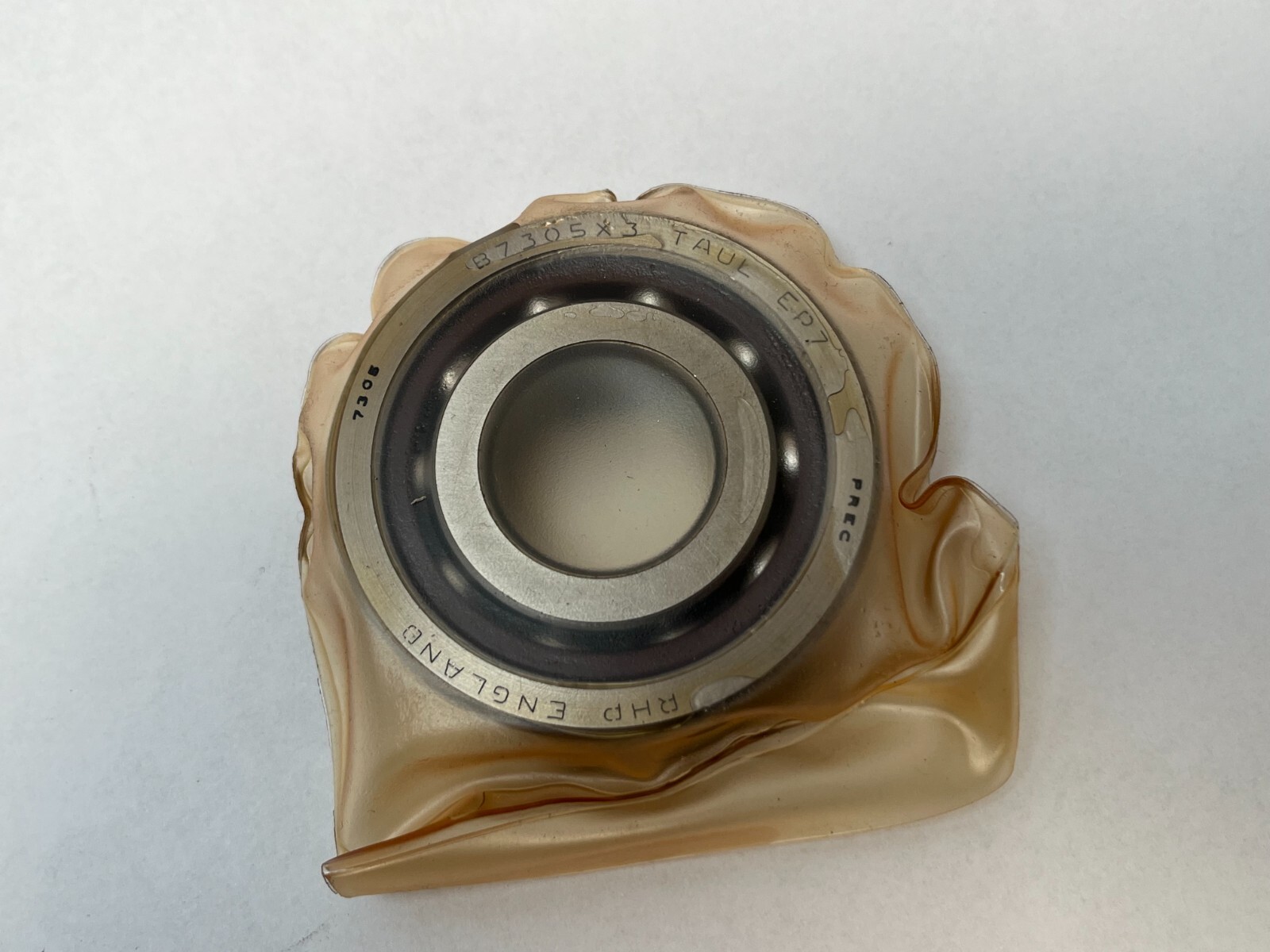

What this part is: RHP 7305ETSULP4 super precision single-row angular contact ball bearing. Bore: 25 mm. Outside Diameter: 62 mm. Overall Width: 17 mm. Series: 7300, ISO dimension series 03. Number Of Rows: 1. Rolling Elements: Balls. Bore Type: Straight. Closure Type: Open. Country of Origin: United Kingdom. Decoding the designation: Contact Angle: 25°. Cage Material: Laminated phenolic resin. Cage Type: Machined, outer-ring guided. Preload: Light. Mounting Arrangement: Single universal. Precision Class: RHP P4, ISO Class 4, ABEC 7. The carton carries the same bearing in three schemes: RHP 7305-E-T-SUL-P4, RHP B-series B7305X3TADULEP7, and Fafnir 3MM305WICRDUL. Searchable forms: 7305ETSULP4, 7305 E T SUL P4, 7305-E-T-DUL-P4, 7305E. What these specs mean in practice: A 25° contact angle carries more thrust and less speed than a 15° execution on the same envelope. Bearing Material: Carbon chrome bearing steel, SAE 52100, through hardened and heat treated for stability and life. Cage Material: Laminated phenolic resin, outer-ring guided, for high-speed quiet running. Maximum Operating Temperature: 120 °C. Minimum Operating Temperature: -30 °C. Internal Clearance: N/A — the light preload is set at manufacture, so the bearing is preloaded rather than clearance-graded. Lubricant: grease or oil. Quantity and configuration: Unit Quantity: 1 Pc. Universal face control means the inner and outer rings are ground to the same width and the face relationships are adjusted at manufacture, so two of these mount back-to-back or face-to-face at the same light preload, and tandem-mounted bearings share load equally. Fitting notes: The high point of radial runout is marked by a burnished spot or small circle on the inner ring face and by a V line on the outer ring diameter. The V line also gives the direction of the contact angle, and points toward maximum axial capacity when load is applied to the inner ring. Item Weight: 0.51 lbs. Interchange guidance: Cross-Reference: NSK 7305A5TYNSULP4. Cross-Reference: Fafnir 3MM305WI. Harmonization Code: 8482.10.50.
