Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

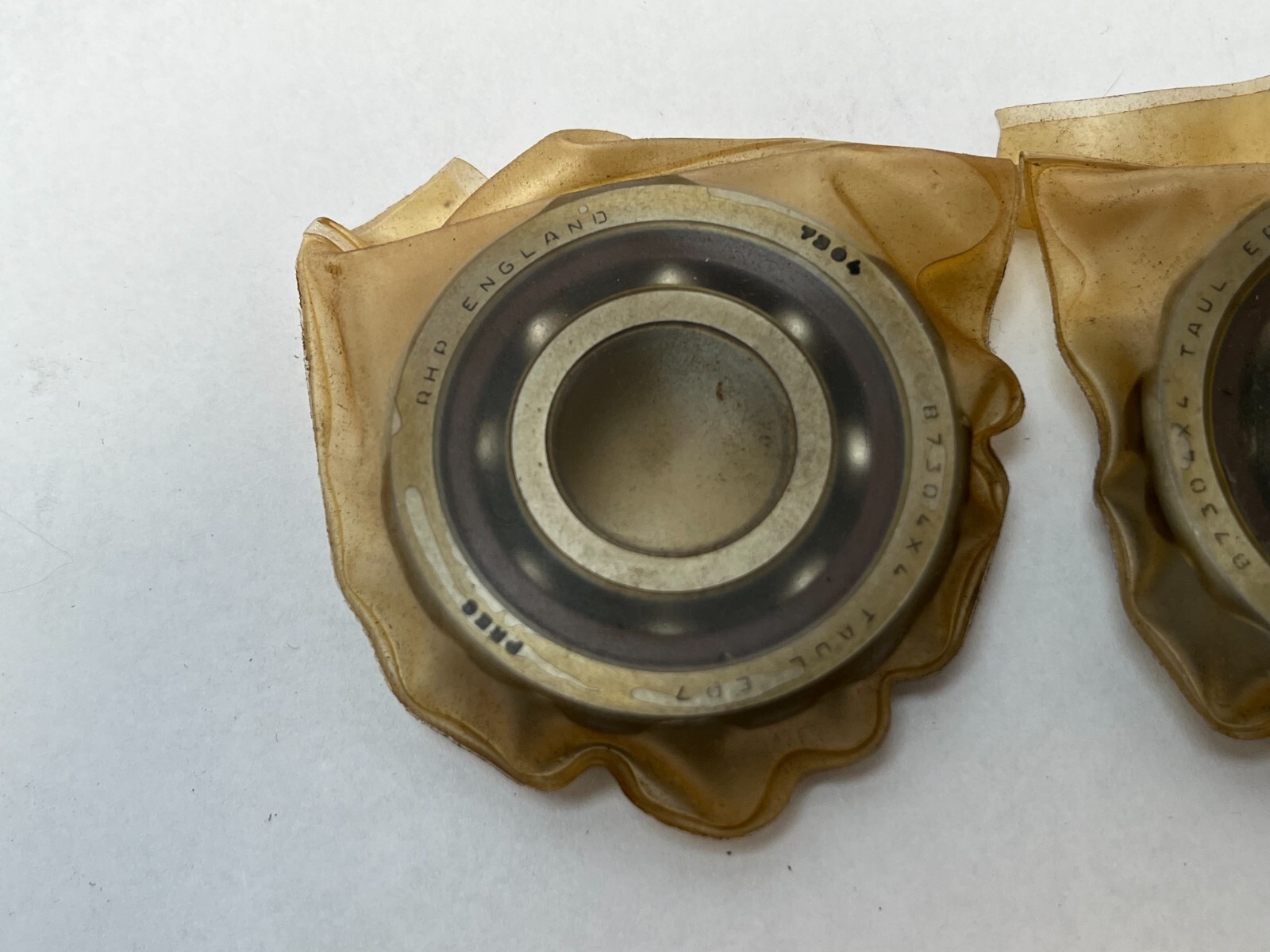

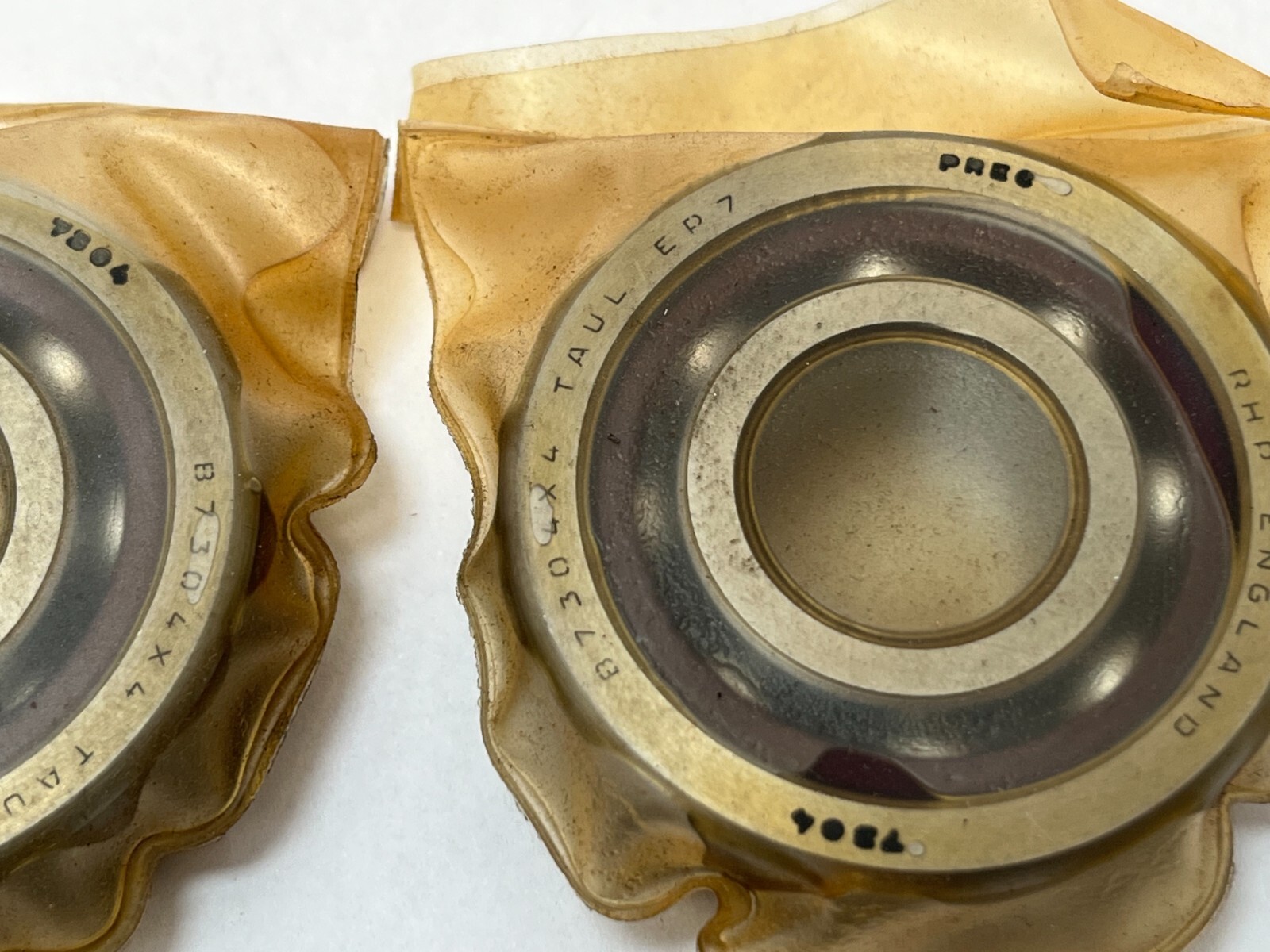

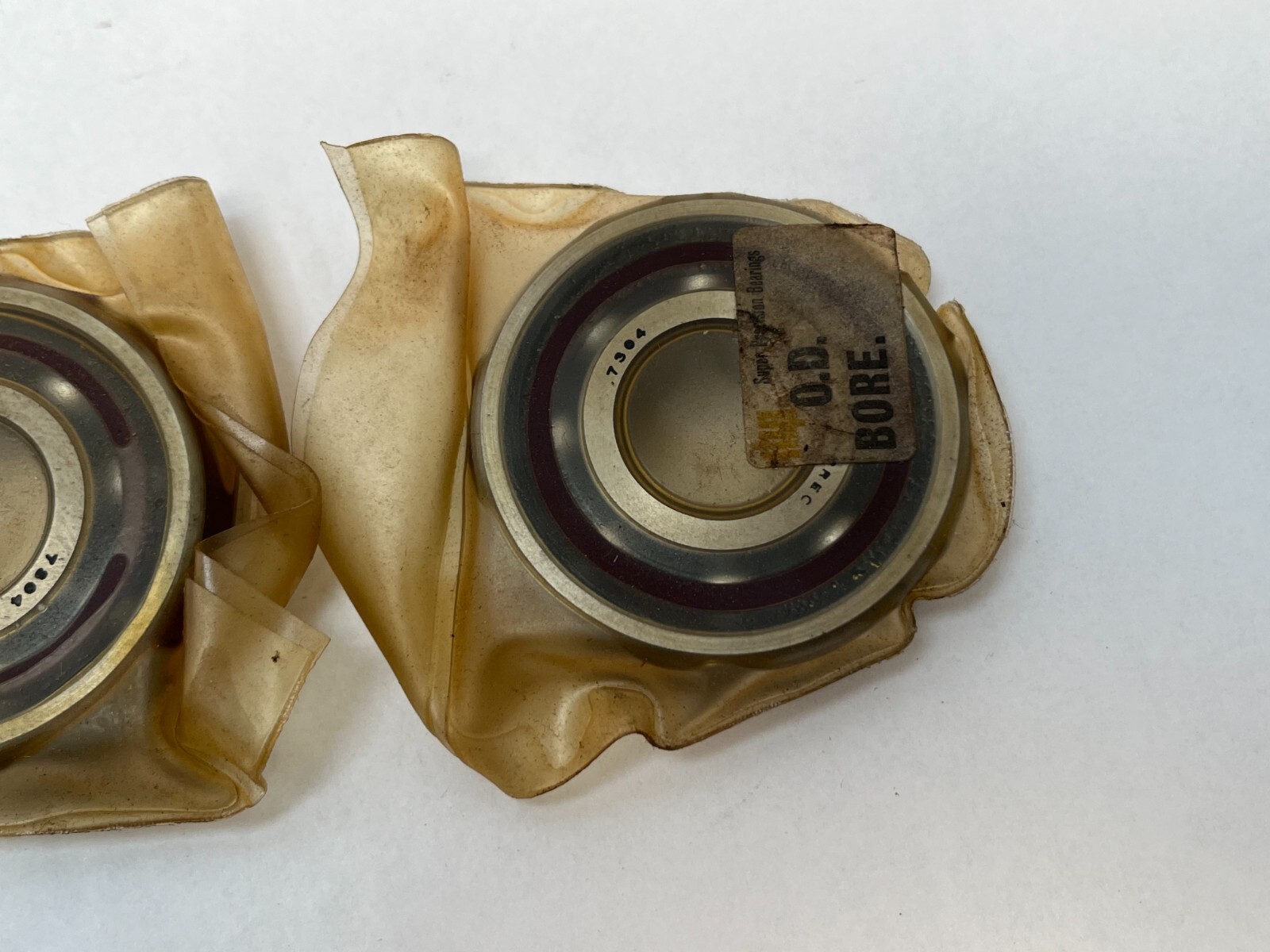

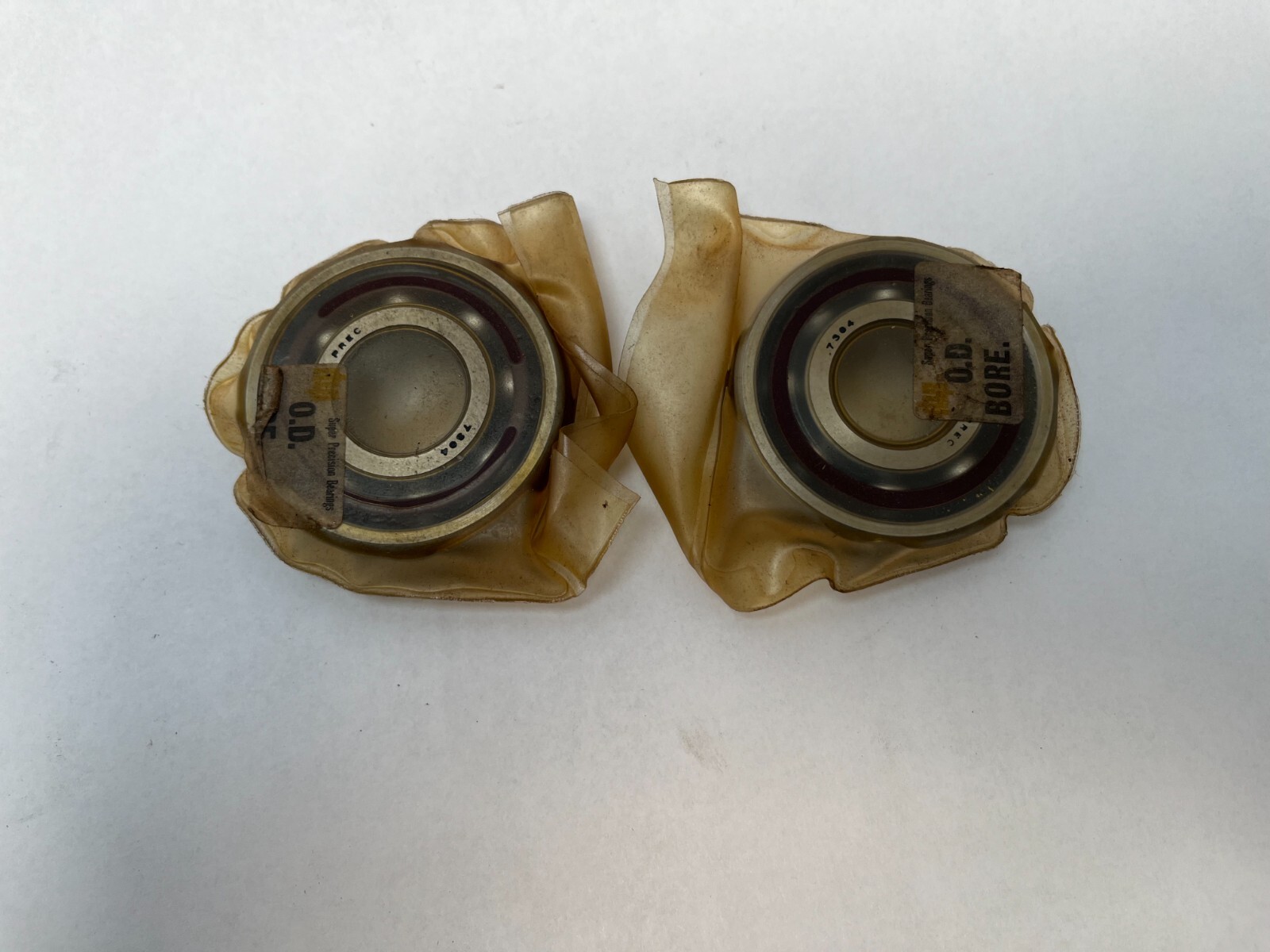

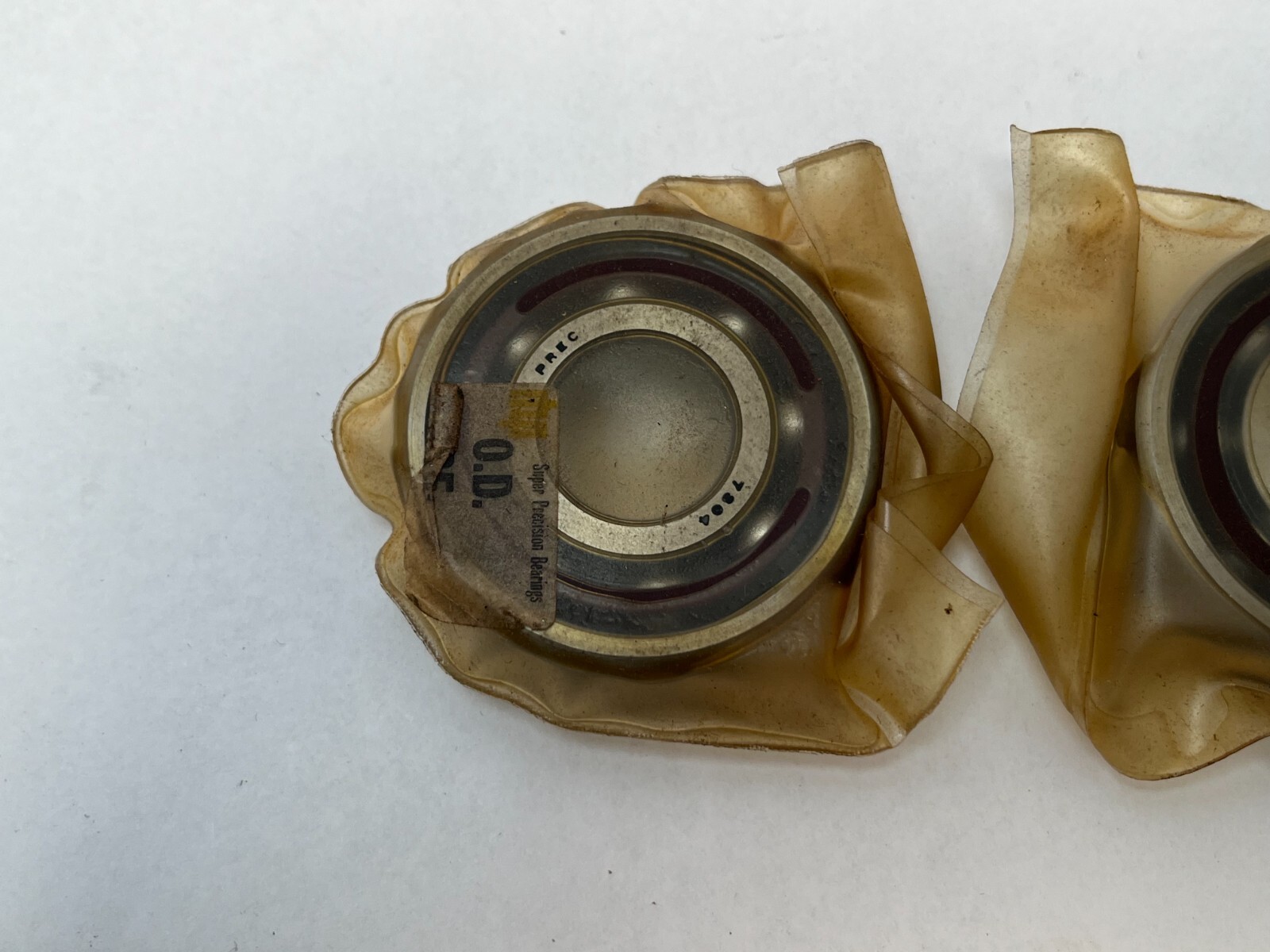

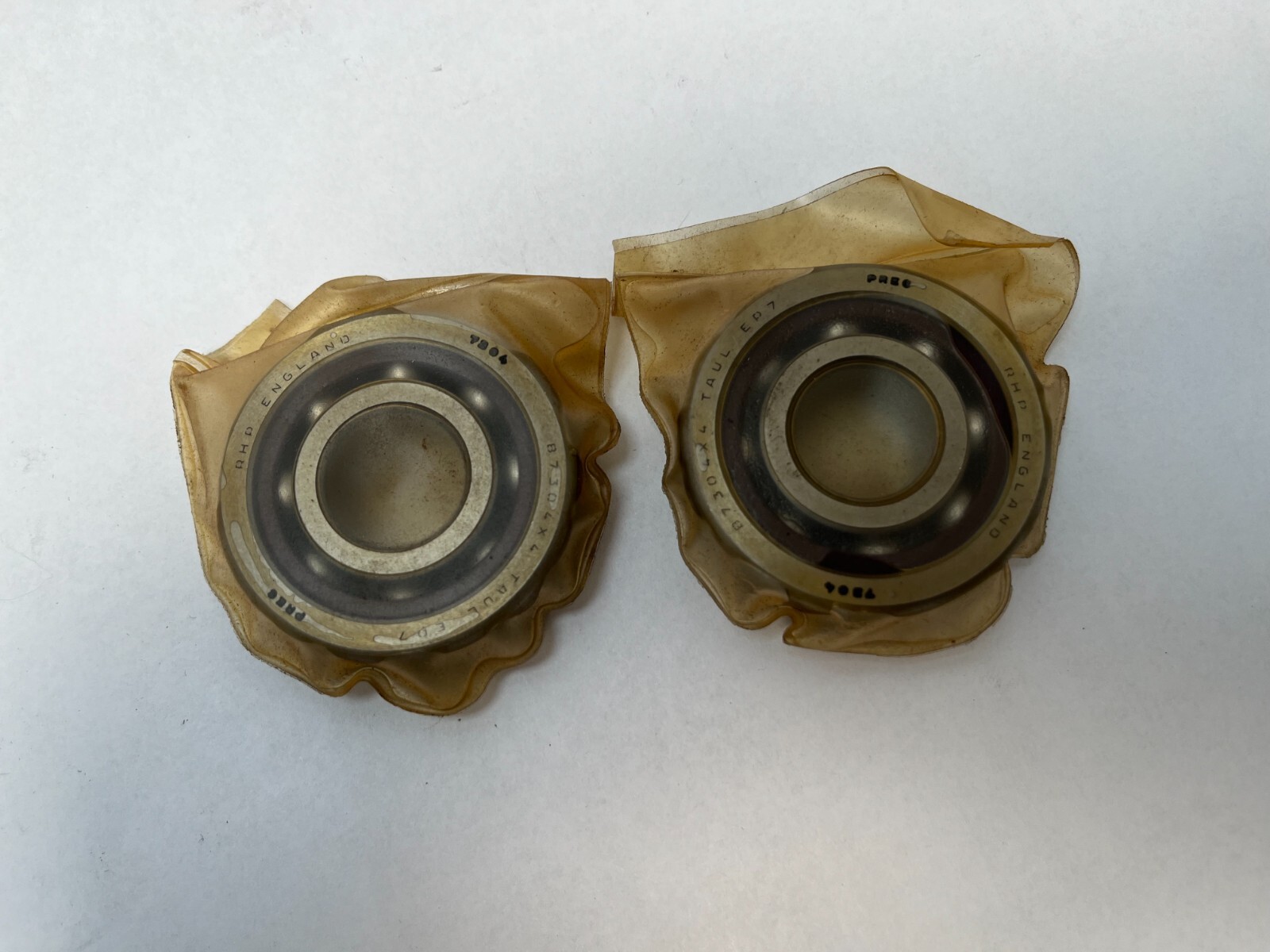

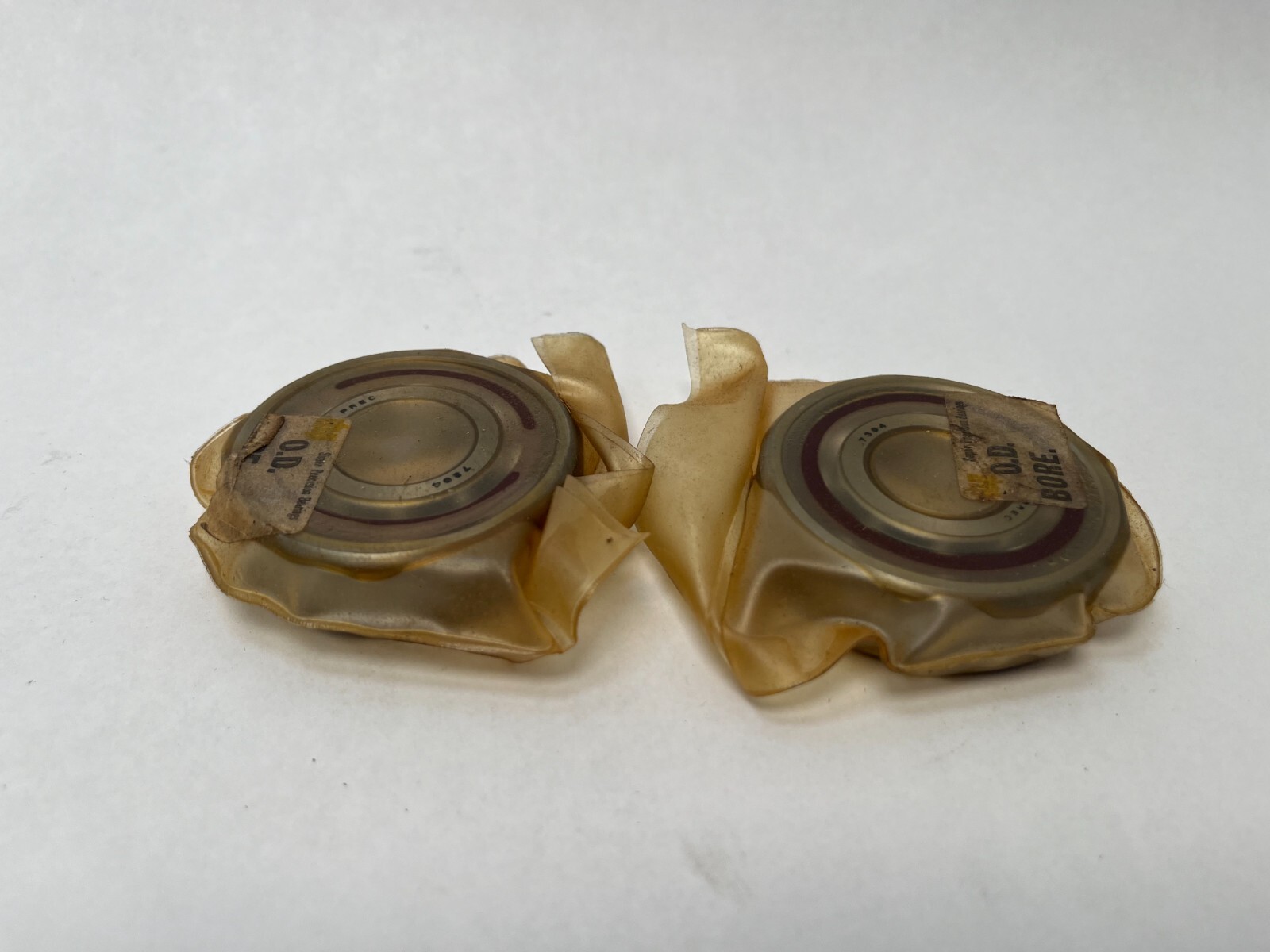

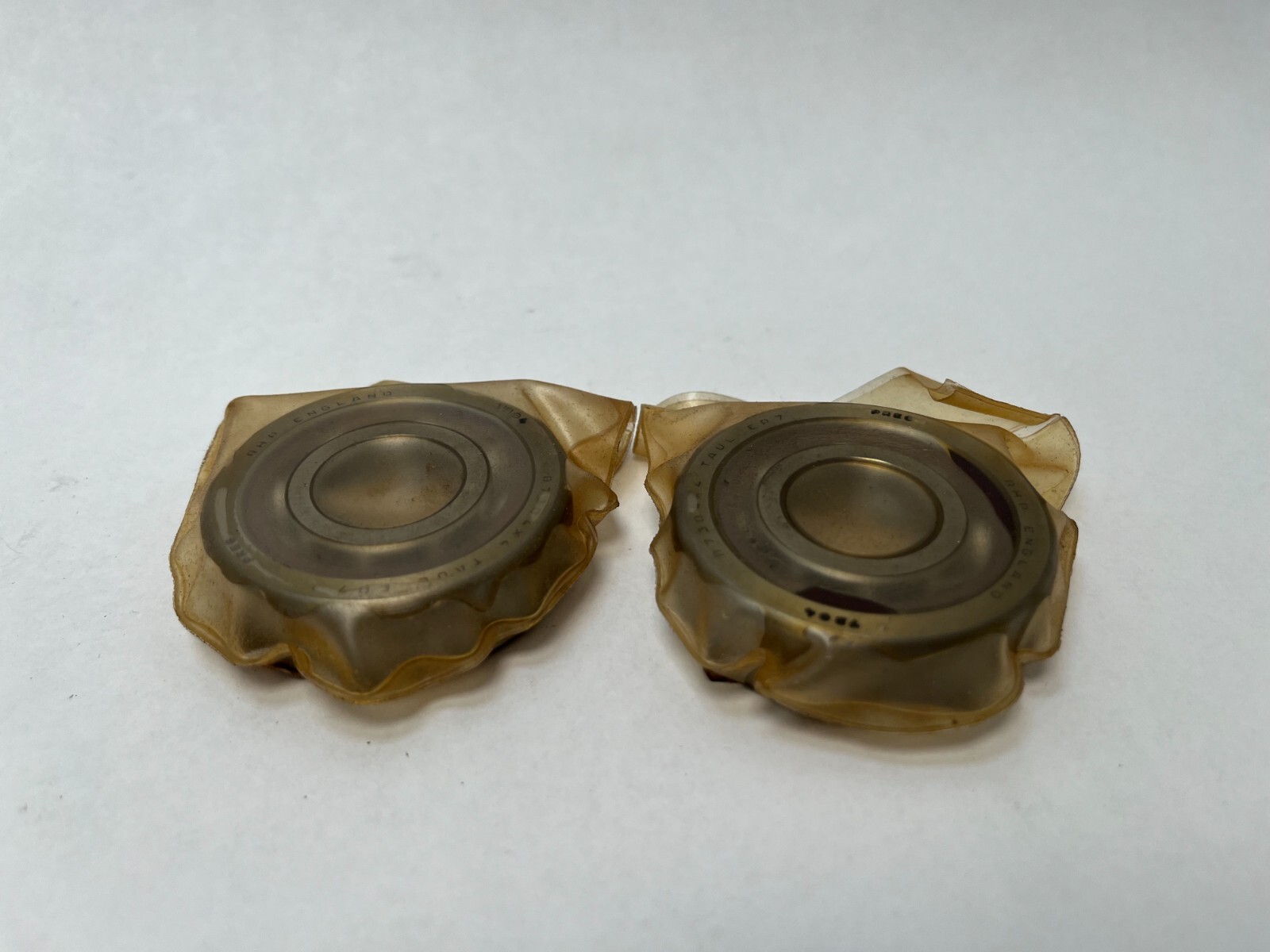

Super-precision angular contact ball bearing, 20 x 52 x 15 mm, 30 degree contact angle, ABEC 7. Two pieces from a matched light-preload duplex set.
List Price
$118.56
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7304ATDULP4 |
| Model | 7304 A T DUL P4 / 2MM304 WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 20 mm |
| OD | 52 mm |
| Width | 15 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7300 |
| Preload | Light |
| Industry Terms | Super precision angular contact bearing; machine tool spindle bearing; duplex matched pair |
| Application Types | Machine tool spindles; grinding spindles; high-speed gearboxes |
| Overall Width | 15 mm |
| Mpn Variants | 7304ATDULP4; 7304-A-T-DUL-P4; B7304X4TADULEP7 |
| Precision Class | ABEC 7 / P4 |
| Cage Type | Machined, outer-ring guided |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 30° |
| Mounting Arrangement | Duplex, universally ground |
| Bearing Material | Bearing Steel |
| Cross Reference 1 | NSK 7304ATRDULP4 |
|---|---|
| Cross Reference 2 | Koyo 7304 (related, standard precision, 30°) |
| Cross Reference 3 | NTN 7304 (related, standard precision, 30°) |
RHP 7304-A-T-DUL-P4 super-precision angular contact ball bearing. Bore Diameter: 20 mm. Outside Diameter: 52 mm. Overall Width: 15 mm. Contact Angle: 30°. Precision Class: ABEC 7 / P4. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Bearing Material: Bearing steel. Series: 7300.
7304 — ISO series 03 angular contact ball bearing, 20 mm bore, 52 mm outside diameter, 15 mm width.
A — 30° contact angle.
T — machined cage. The carton’s B-series string resolves it to TA: a one-piece machined laminated phenolic cage, outer-ring centred.
DU — duplex universal. The faces are ground so that any two bearings from the range mount back-to-back, face-to-face or in tandem.
L — light preload.
P4 — ISO precision class 4, equivalent to ABEC 7.
EP7 — the same class written in RHP’s B-series scheme, equivalent to ABEC 7.
Contact Angle: 30°. A 30° angle puts more of the load path along the shaft axis than a 15° or 25° execution of the same envelope, so a pair carries a higher thrust load and a lower radial one.
Cage Material: Phenolic. Cage Type: Machined, outer-ring guided. A laminated phenolic cage is light, runs against the outer-ring land and tolerates high cage speeds.
Preload: Light. A light preload removes internal play with the least axial force, holding running temperature down at speed.
Precision Class: ABEC 7 / P4. Tighter bore, outside diameter and running-accuracy tolerances than a standard-class bearing.
Mounting Arrangement: Duplex, universally ground. Bore Type: Straight. Snap Ring Included: No.
Unit Quantity: 2 Pcs. Two pieces from a factory matched set, ground for light preload when mounted as a pair.
Same 20 x 52 x 15 mm envelope at a 30° contact angle: NSK 7304ATRDULP4 in the same super-precision class, and the standard-precision Koyo 7304 and NTN 7304. The 15° and 40° executions of the 7304 envelope are a different load split and are not a substitution.
