This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Super-Precision Angular Contact Bearing - 120 mm ID, 215 mm OD, 40 mm Width, Open, 25° Contact Angle, Matched Duplex Pair$1,613.20
Angular Contact Ball Bearing - Straight Bore, 120 mm ID, 215 mm OD, 40 mm Width, Open, 15° Contact Angle, Light Preload, Matched Duplex Pair$1,932.75
Angular Contact Ball Bearing - 120 mm ID, 215 mm OD, 40 mm Width, Open, 15° Contact Angle, ABEC 5, Back-to-Back Match.$450.48
Super-Precision Angular Contact Bearing - 120 mm ID, 215 mm OD, 40 mm Width, Open, 15° Contact Angle, Matched Duplex Pair$2,009.25| MFR / Brand | RHP |
|---|---|
| MPN | 7224ETDUMP4 |
| Model | 7224E T DUM P4 / 3MM224WIDUM |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 120 mm |
| OD | 215 mm |
| Width | 40 mm |
| Material | Steel |
|---|---|
| Series | 7200 |
| Preload | Medium |
| Min Temp | -30 °C |
| Cage Type | Machined |
| Dynamic Load Rating | 186 kN / 41800 lbf |
| Static Load Rating | 176 kN / 39600 lbf |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Balls |
| Max Temp | 120 °C |
| Item Weight | 12.5 lbs |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Mounting Arrangement | Universal |
| Limiting Speed | 3200 rpm |
| Cross Reference 1 | SKF 7224 ACD/P4ADGB |
|---|---|
| Cross Reference 2 | Fafnir 2MM224WI-DUM |
| Cross Reference 3 | NSK 7224A5TYNDUMP4 |

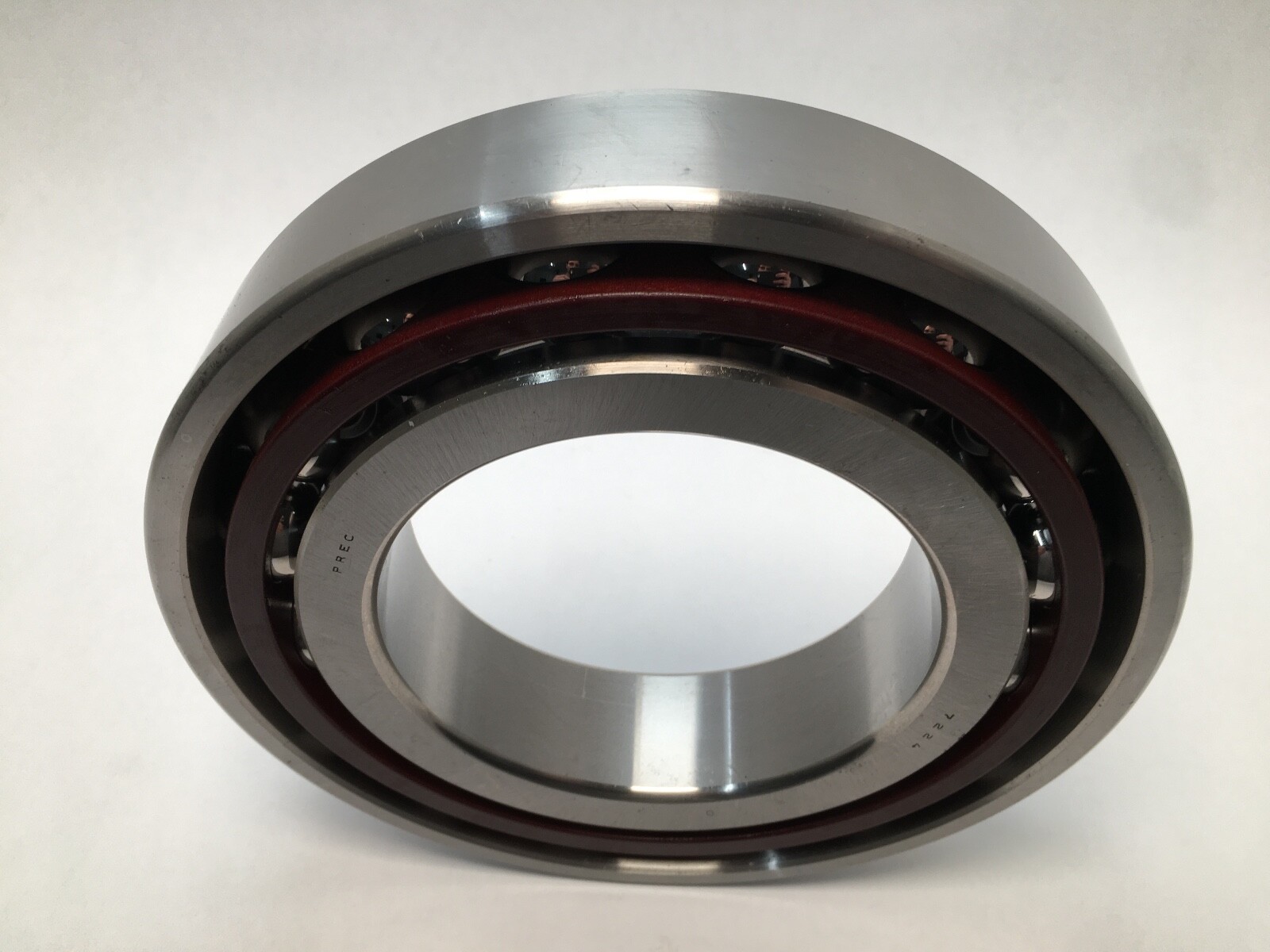

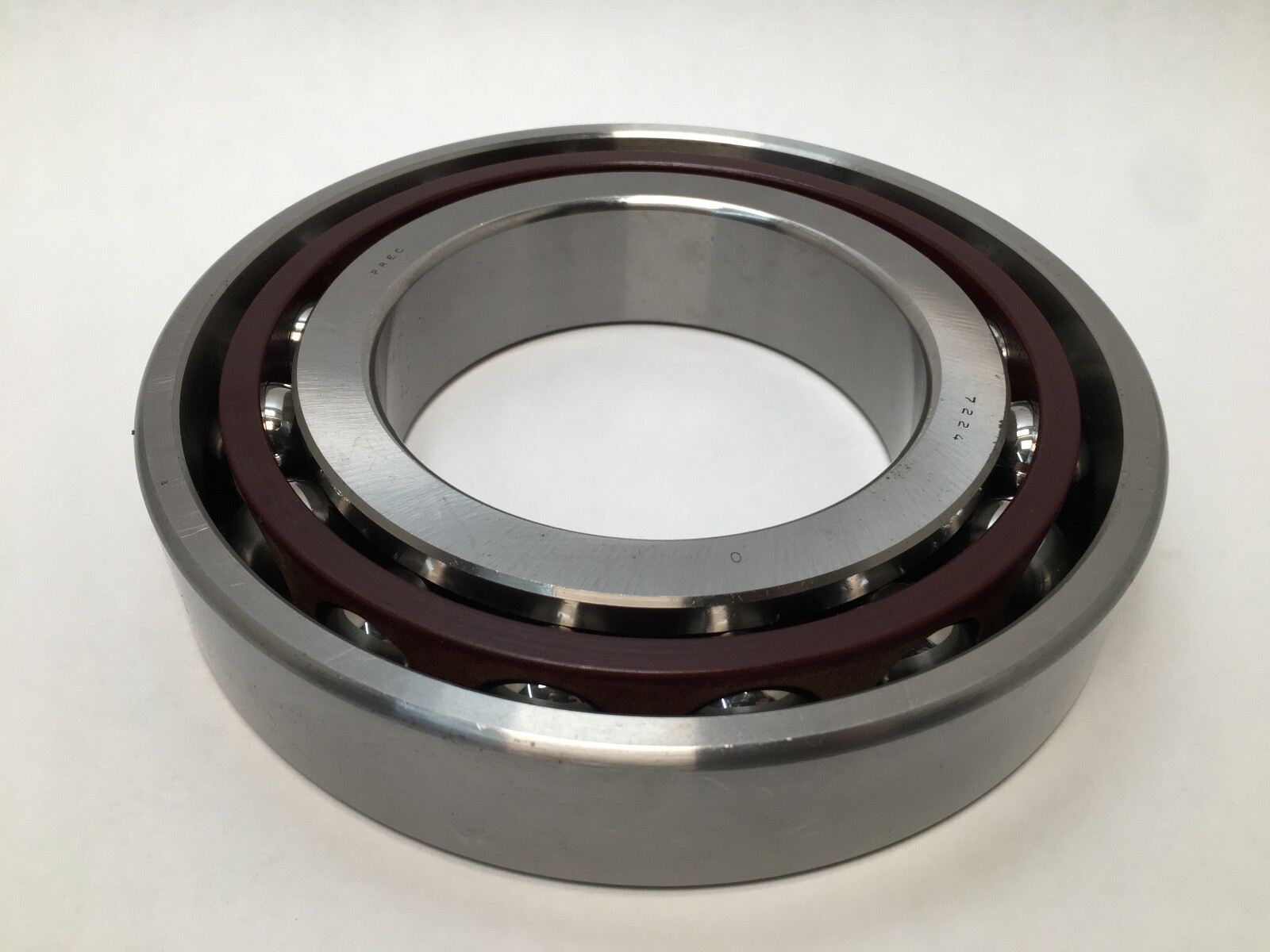

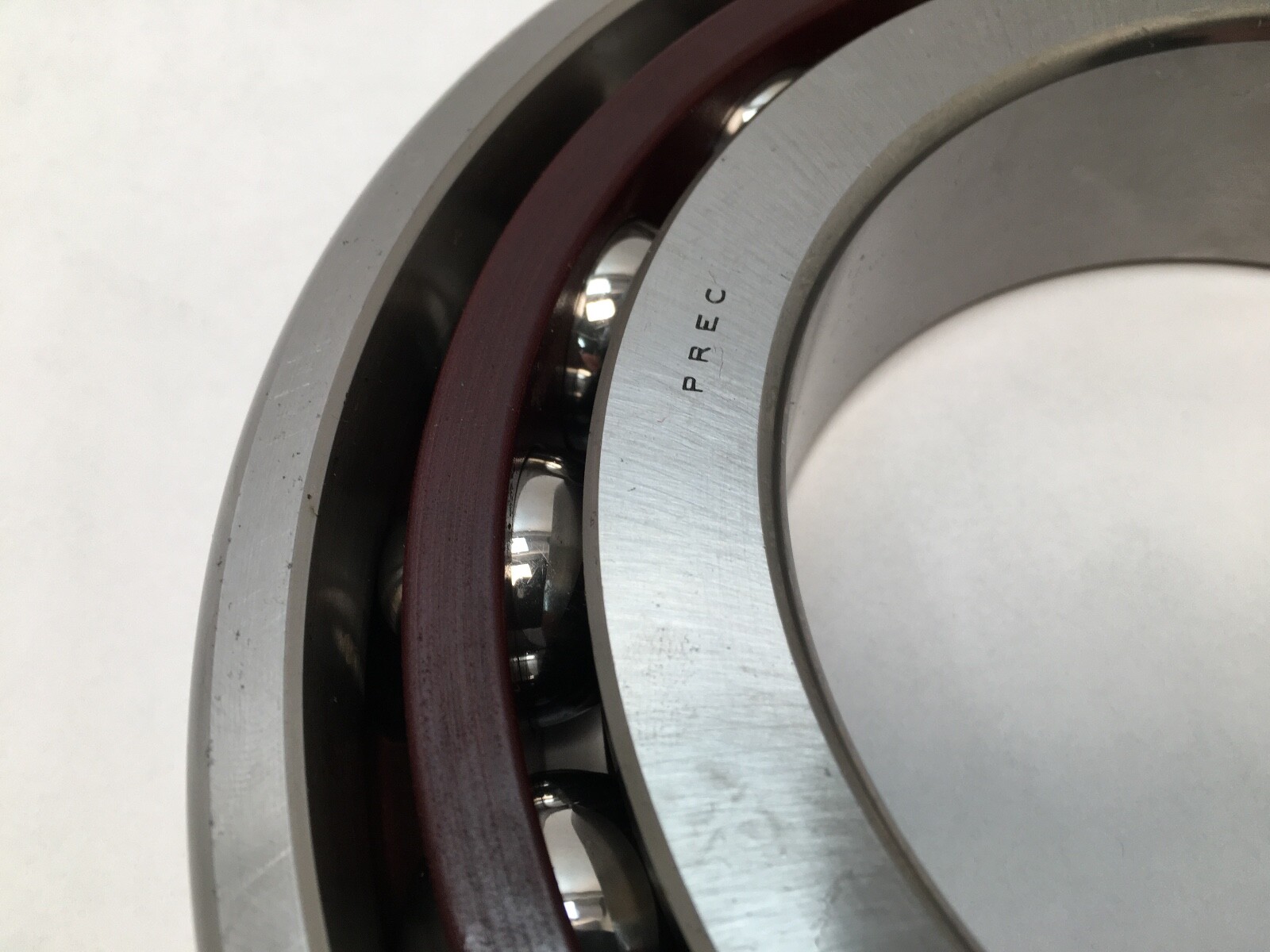

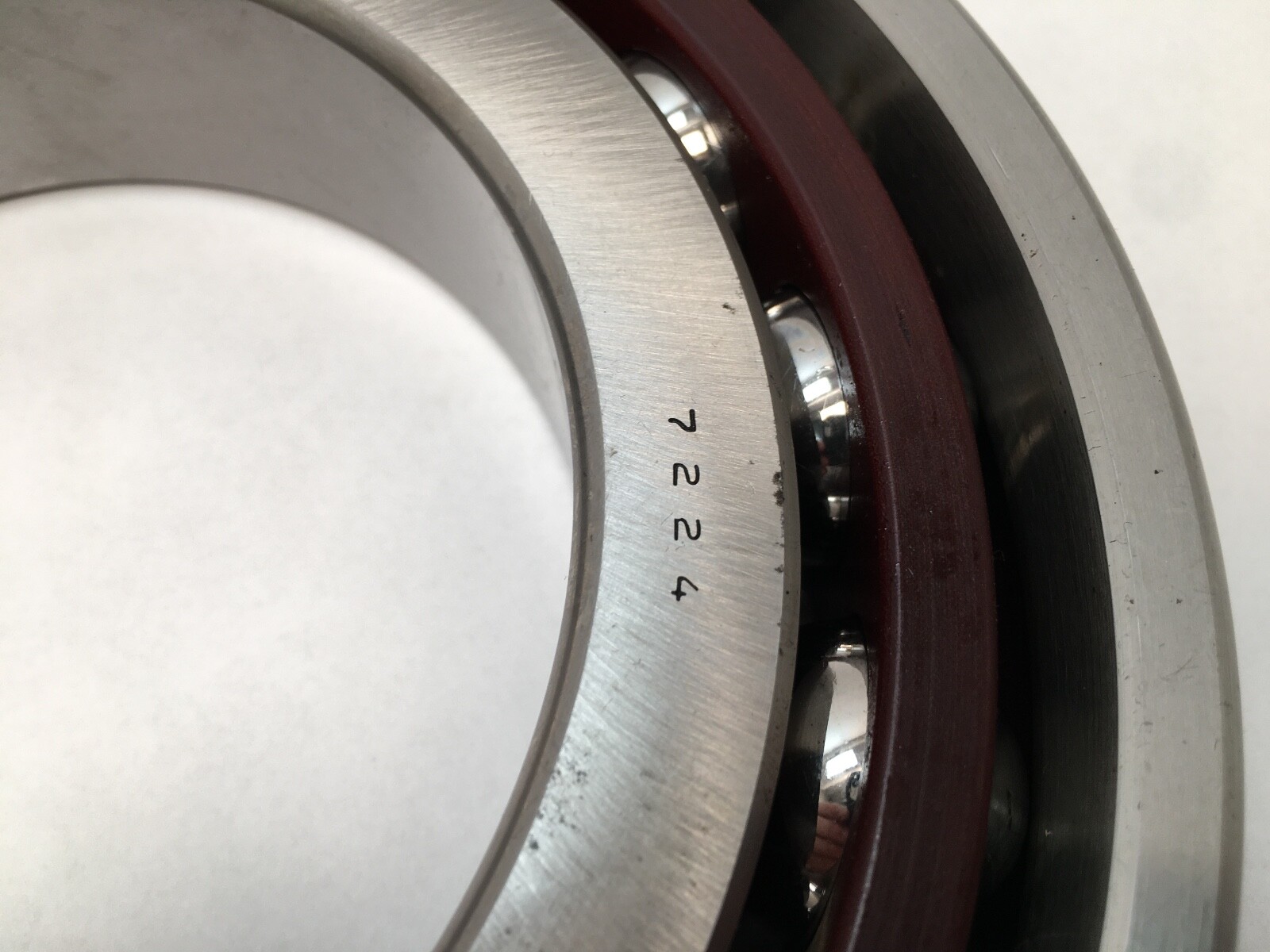

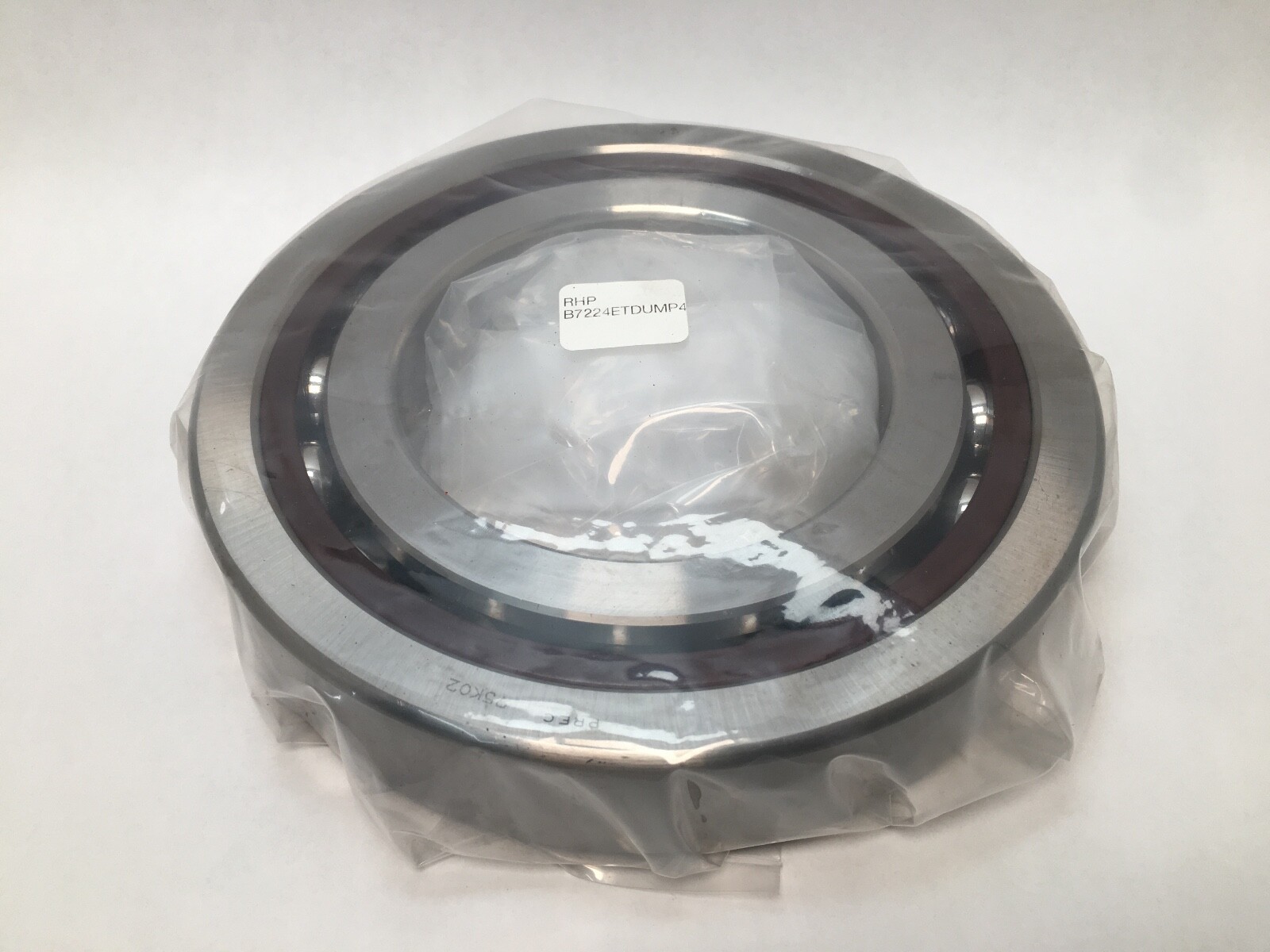

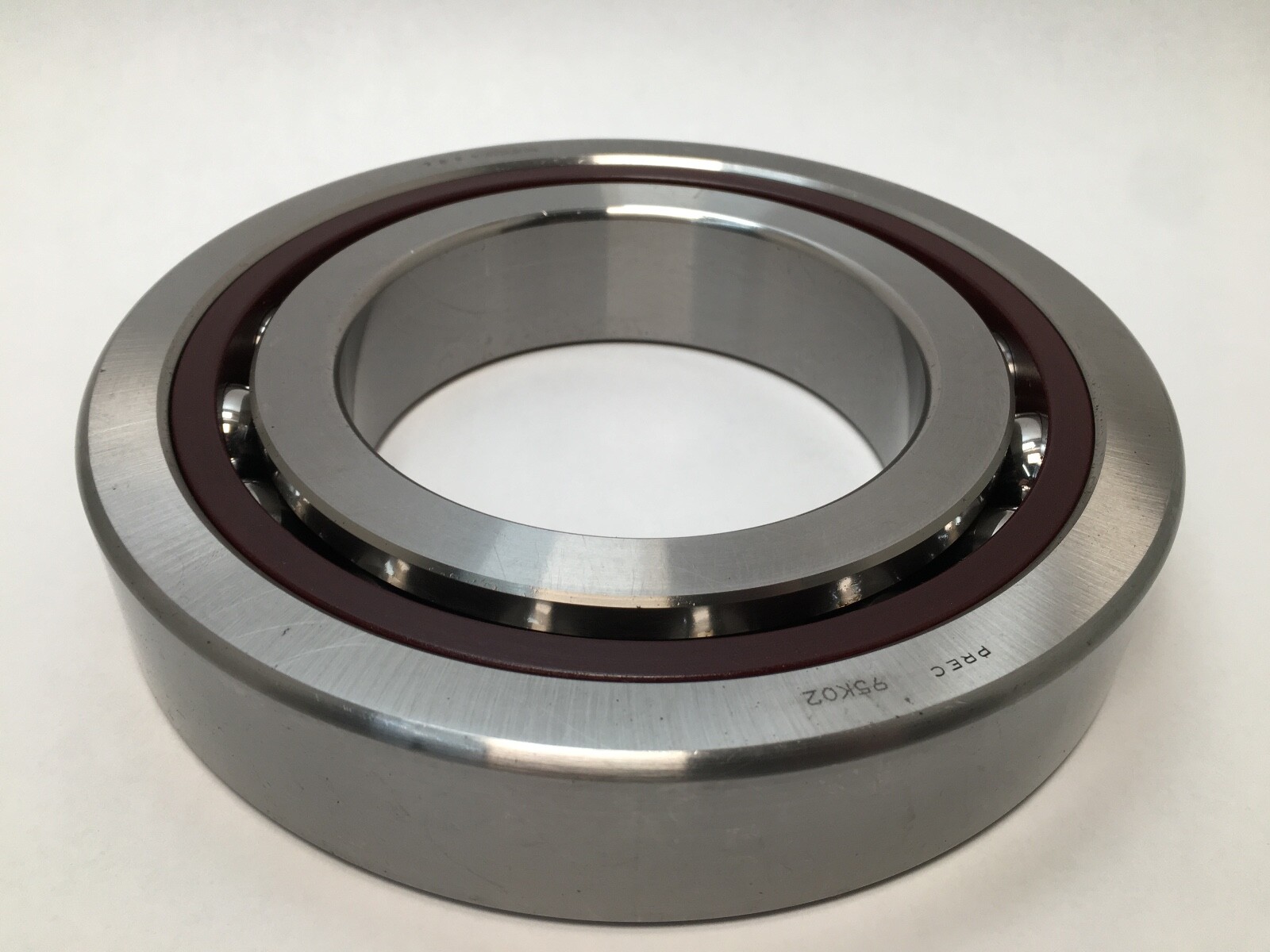

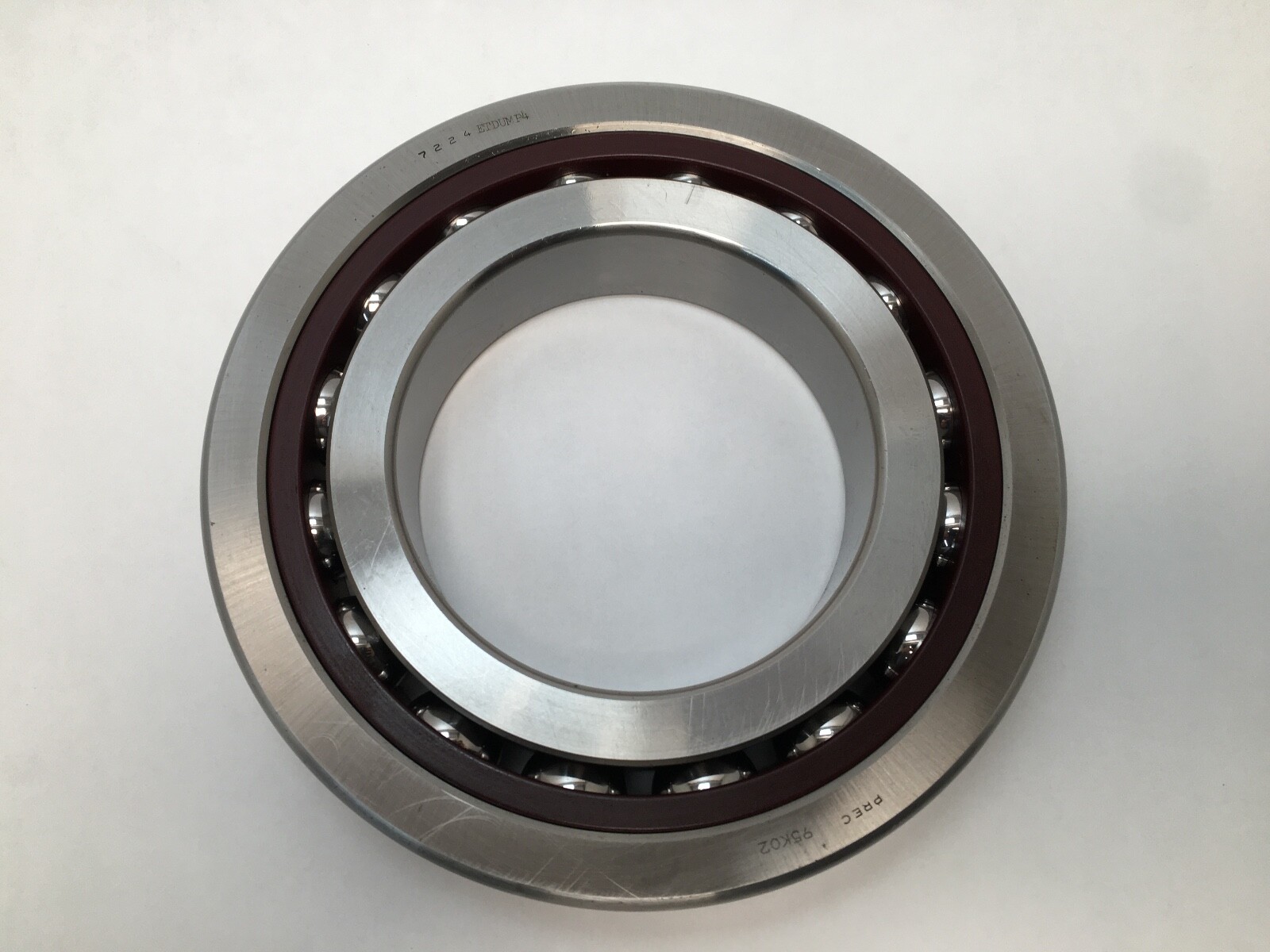

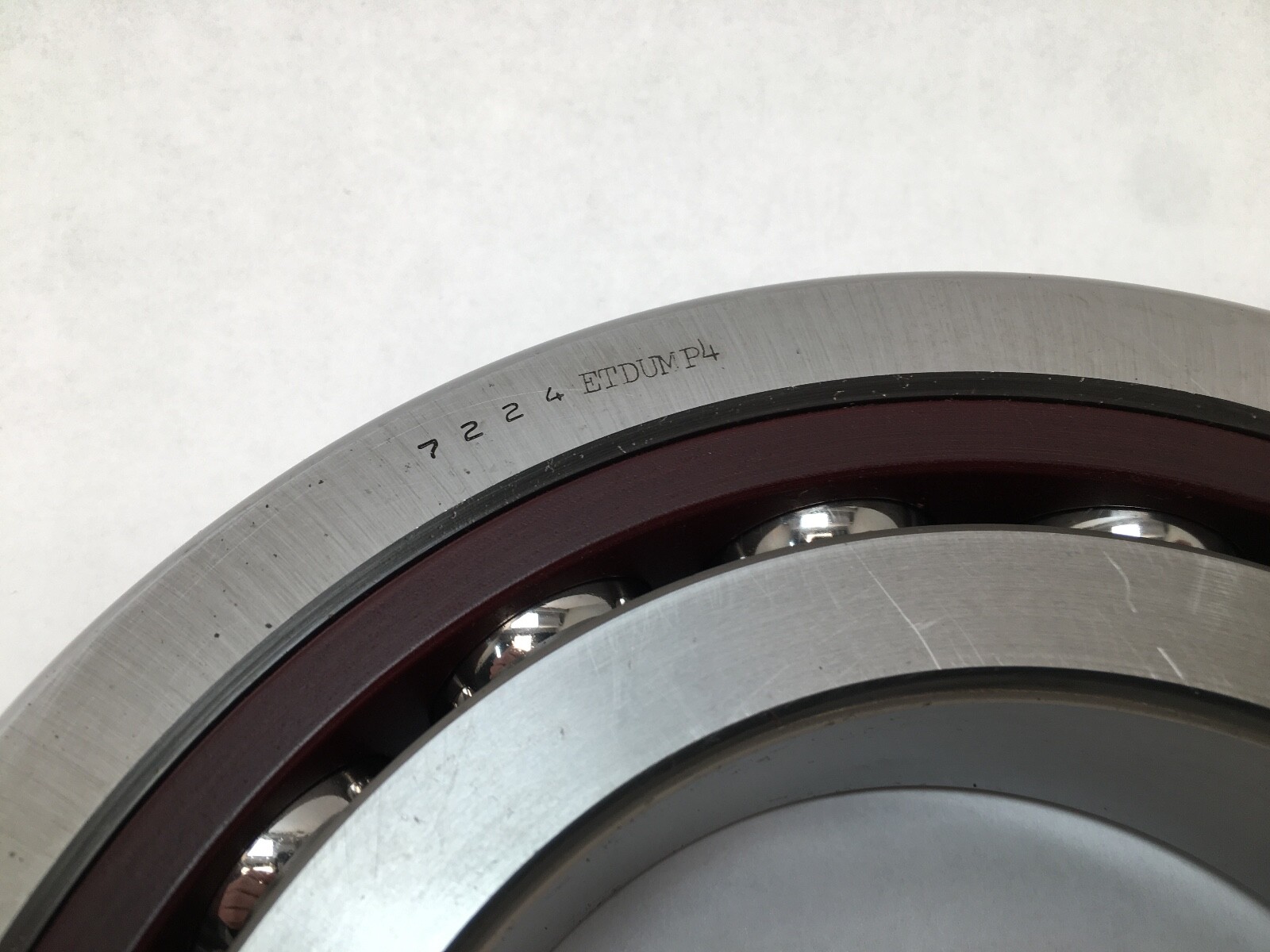

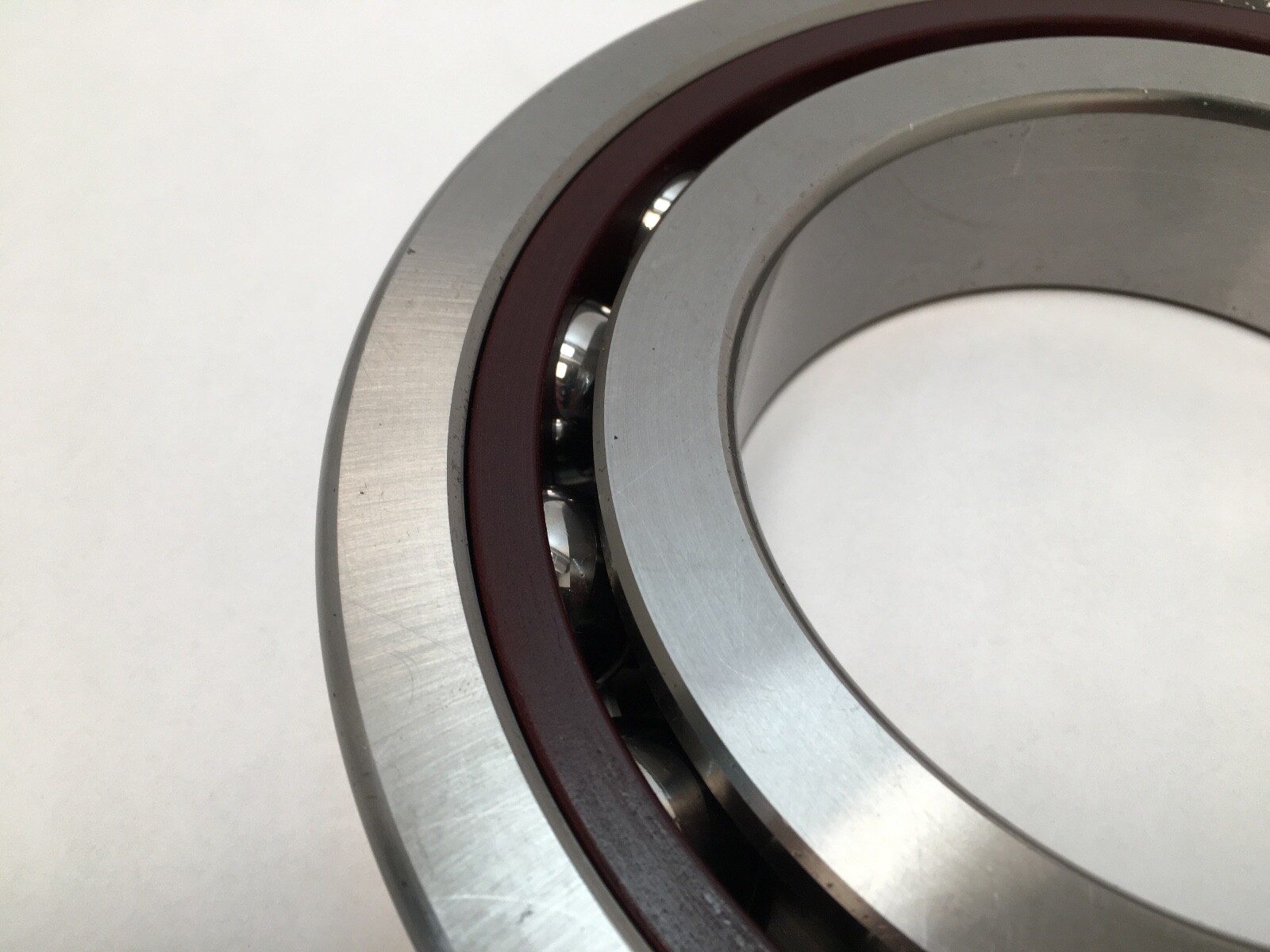

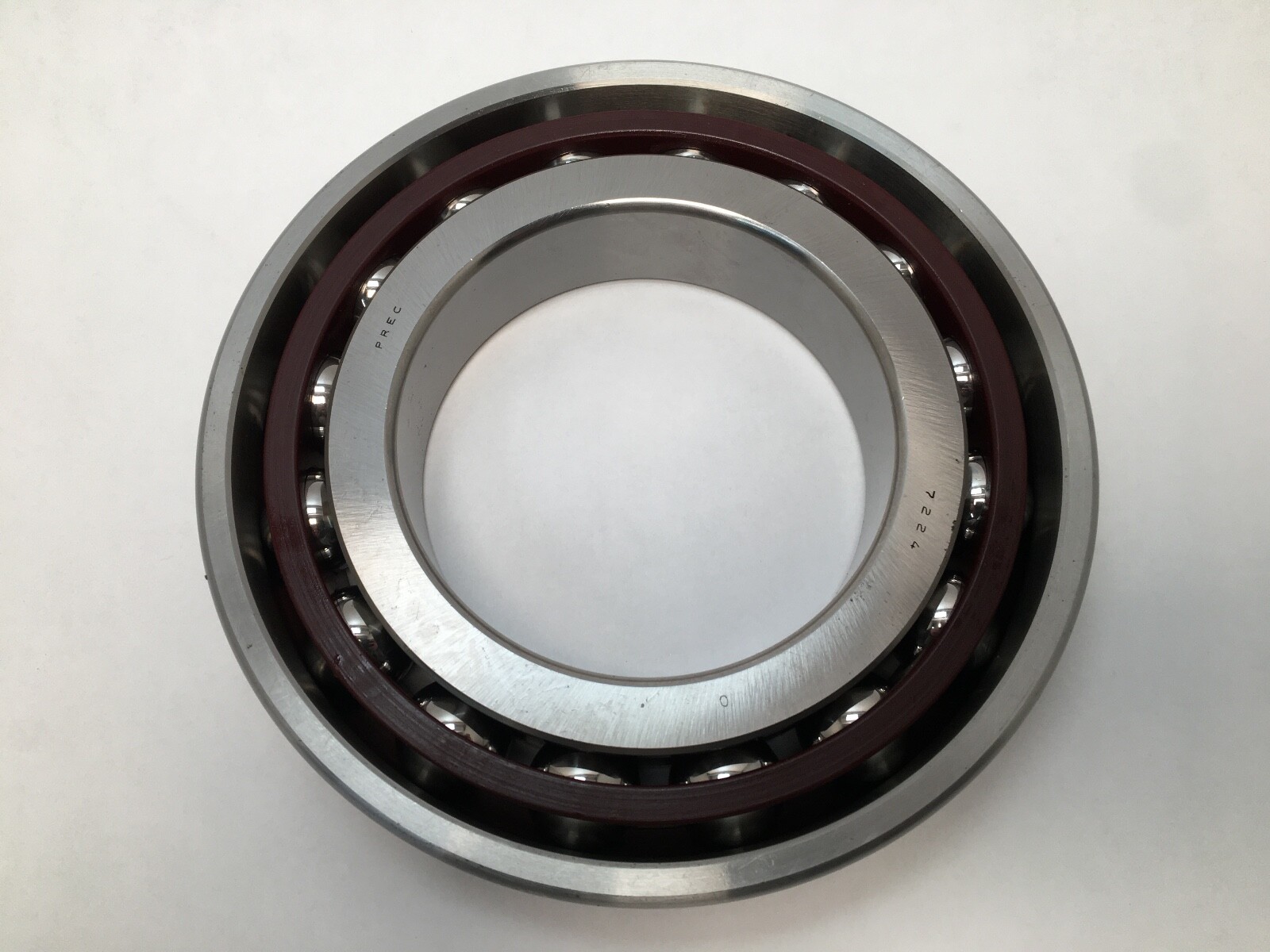

The RHP 7224ETDUMP4-1/2PR Angular Bearing is a high-quality steel bearing with a bore diameter of 120 mm, outside diameter of 215 mm, and width of 40 mm. This specific model is an angular contact ball bearing, featuring the 7224E T DUM P4 / 3MM224WIDUM designation. Ideal for industrial automation and motion control applications, this bearing offers reliable performance and durability for various mechanical power transmission needs.
$111.47
35 in stock
