Availability:
Out of stock
List Price
$59.25
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Angular Contact Ball Bearing Duplex Set – 75 x 130 x 25 mm, ABEC 7 / P4, Phenolic Cage, Light Preload, Universally Ground, Open$175.90
Angular Contact Ball Bearing Tandem Duplex Set 75x130x25 mm ABEC-5 Medium Preload Phenolic Separator$304.49
Super Precision Angular Contact Ball Bearing 75 x 130 x 25 mm 15 Degree ABEC 7 Light Preload Phenolic Cage$190.49
Super-Precision Angular Contact Ball Bearing - Straight Bore, 75 mm ID, 130 mm OD, 25 mm Width, Open, 15° Contact Angle, Phenolic Cage, Light Preload, Single Universally Ground$190.49| MFR / Brand | RHP |
|---|---|
| MPN | 7215TDULP4 |
| Model | 7215 T DUL P4 / MM215WI CR DUL / 7215-B |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 75 mm |
| OD | 130 mm |
| Width | 25 mm |
| Series | 7200 |
|---|---|
| Lubricant | Oil |
| Preload | Light |
| Material | Bearing Steel |
| Min Temp | -30 °C |
| Cage Type | Phenolic |
| Dynamic Load Rating | 70 kN |
| Static Load Rating | 64 kN |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Balls |
| Max Temp | 120 °C |
| Item Weight | 2.60 lbs |
| Cage Material | Phenolic Resin |
| Limiting Speed | 12000 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.1 |
| Contact Angle | 15° |
| Mounting Arrangement | Duplex |
| Internal Clearance | CN |
| Cross Reference 1 | SKF 7215 CD/P4 |
|---|---|
| Cross Reference 2 | FAG B7215-C-T-P4S |

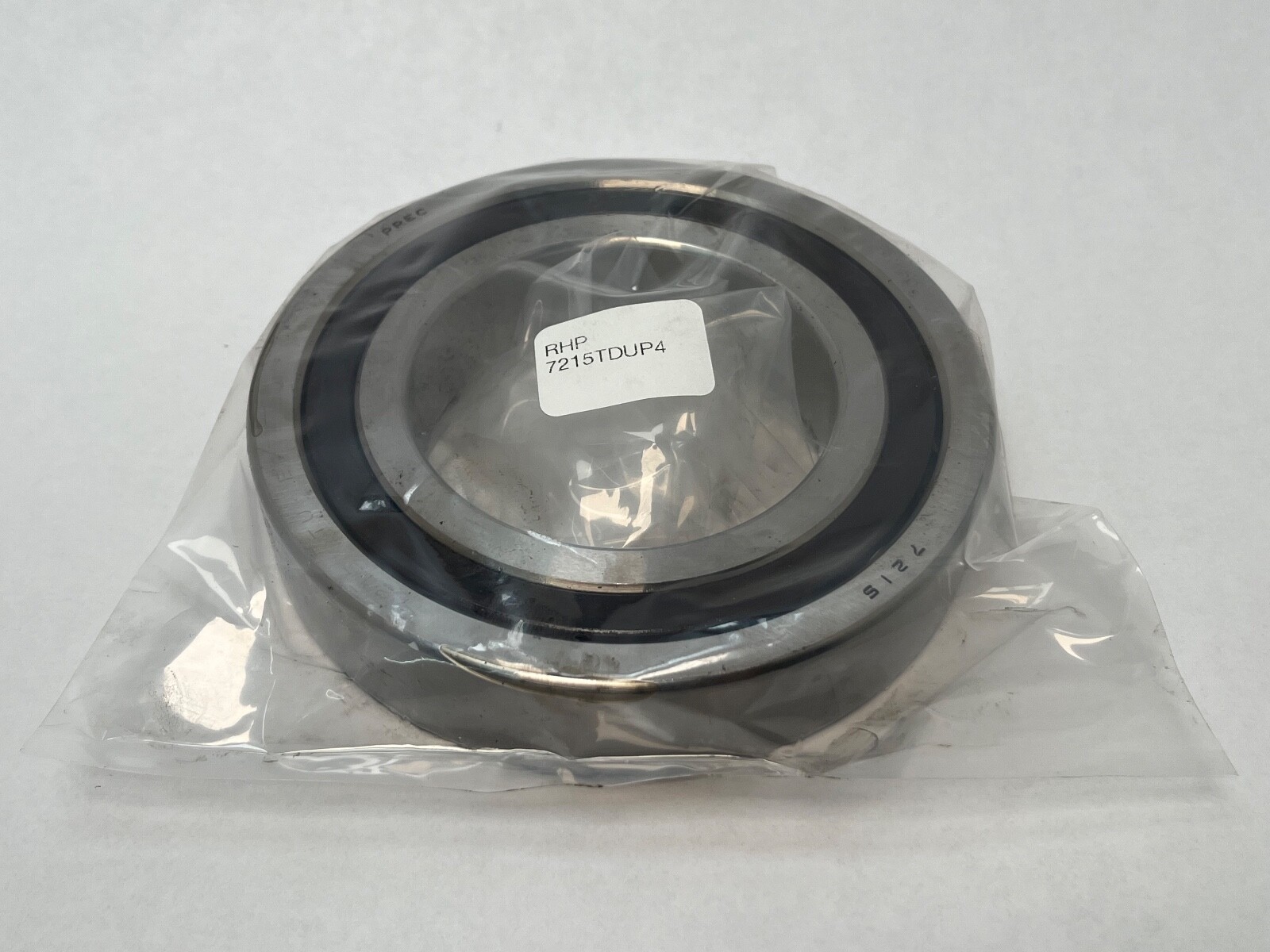

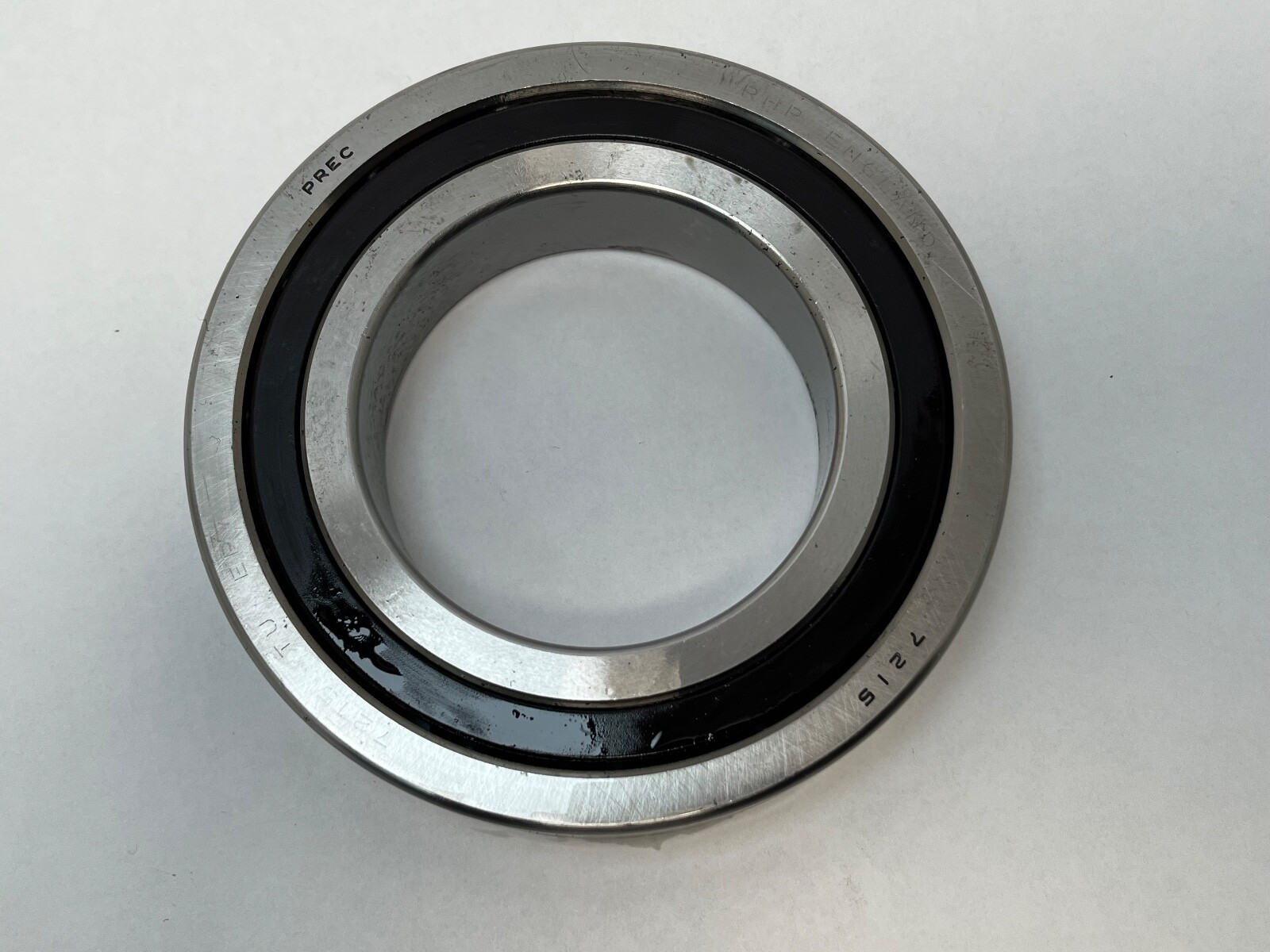

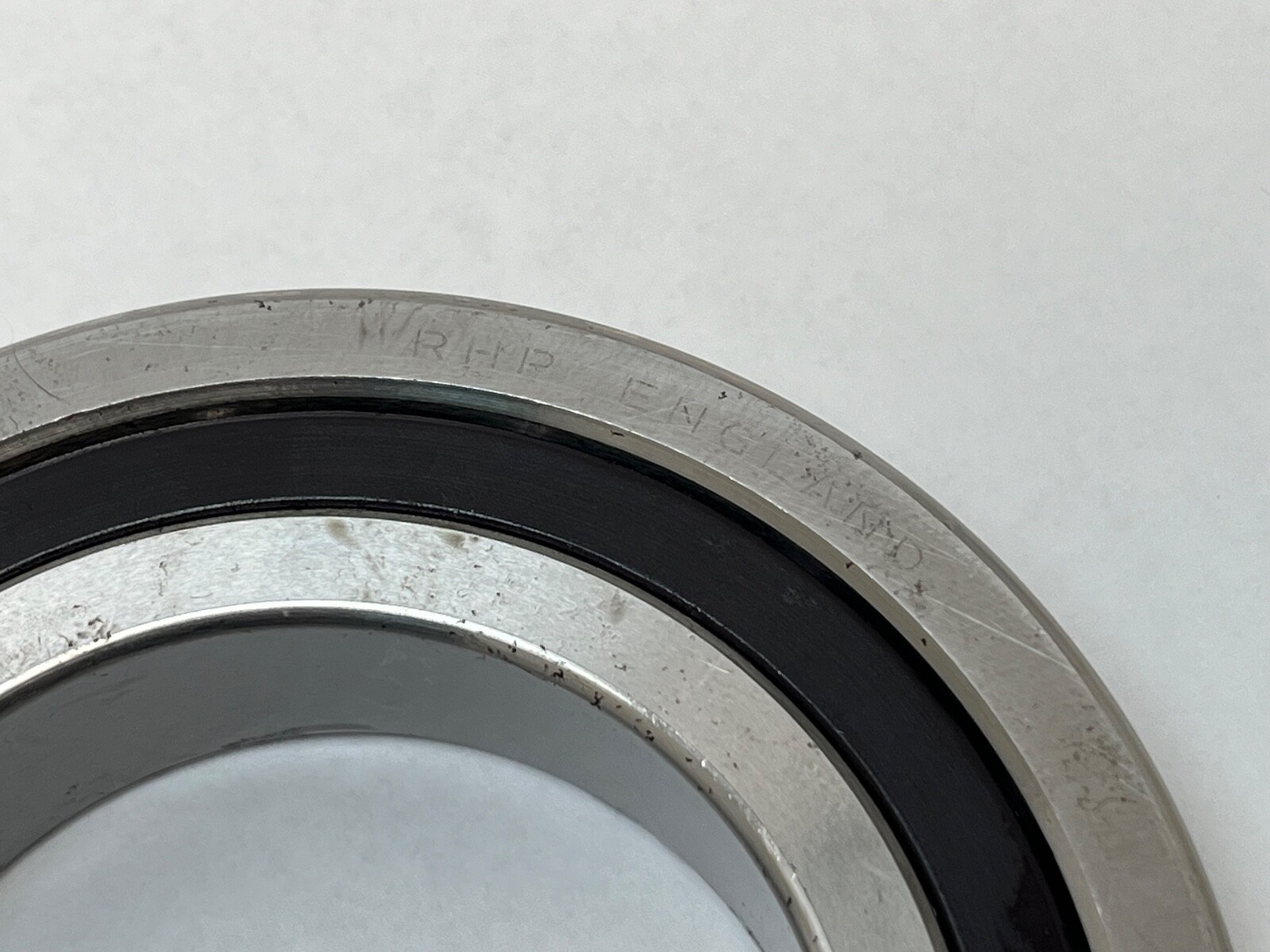

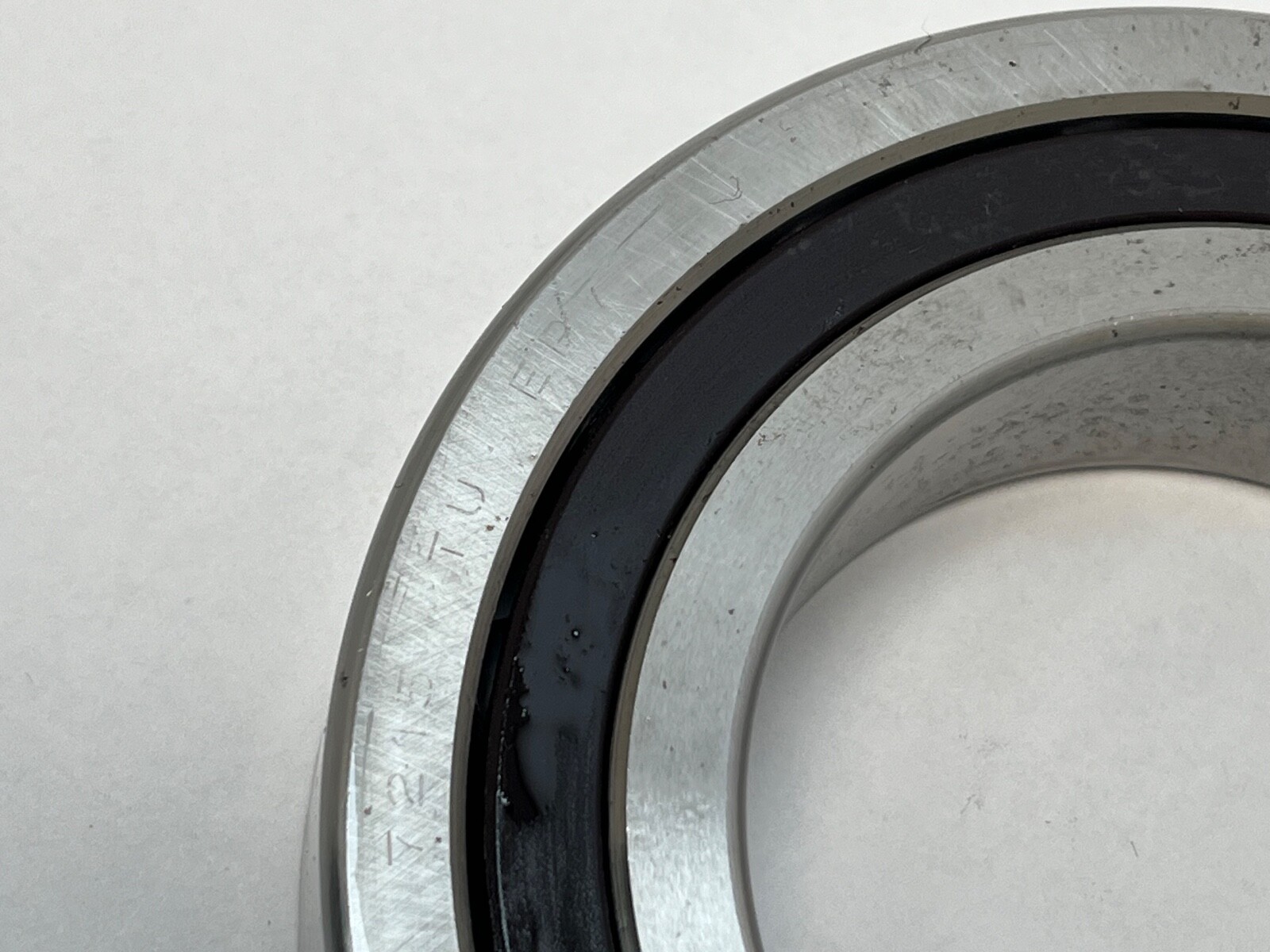

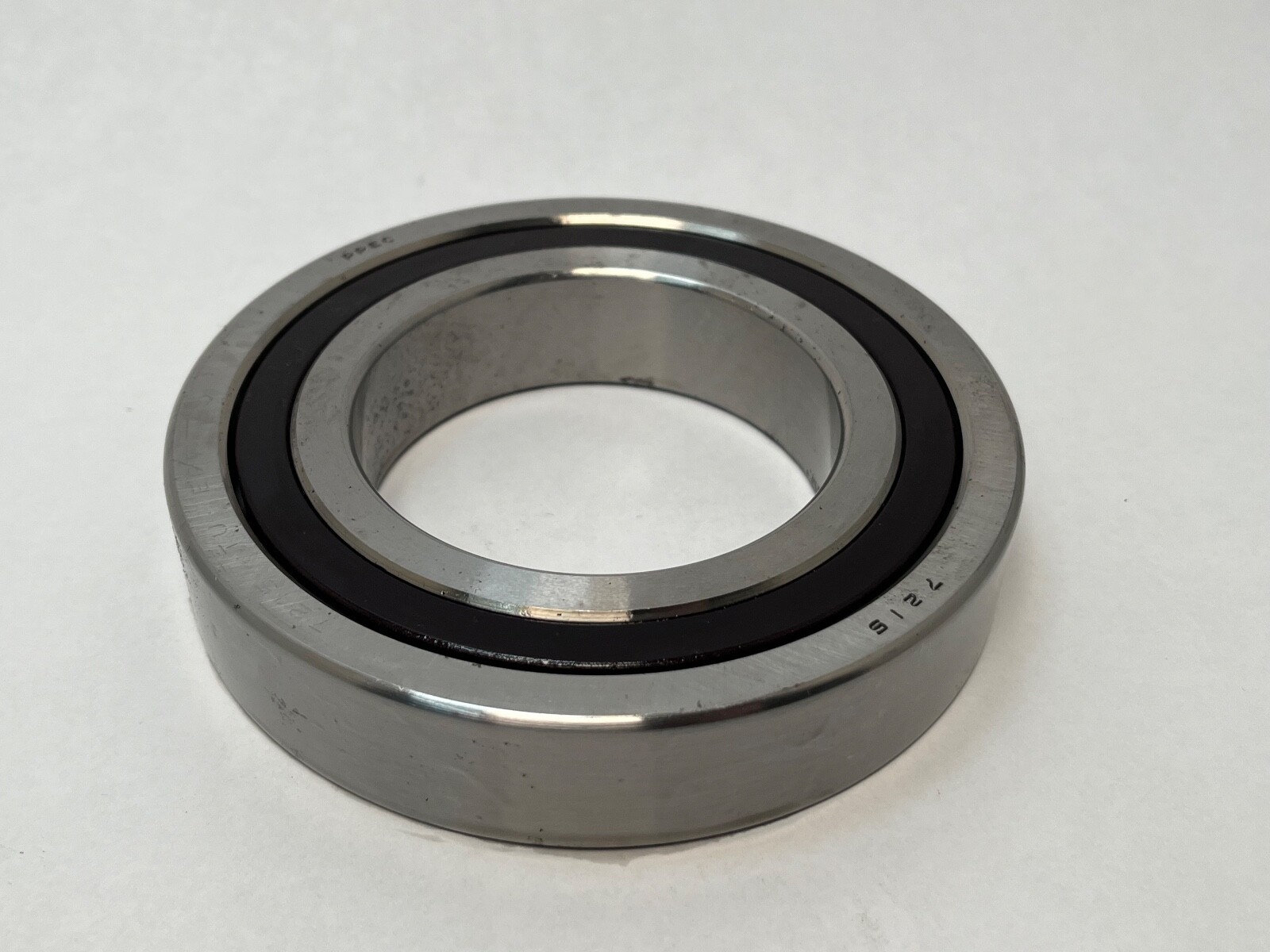

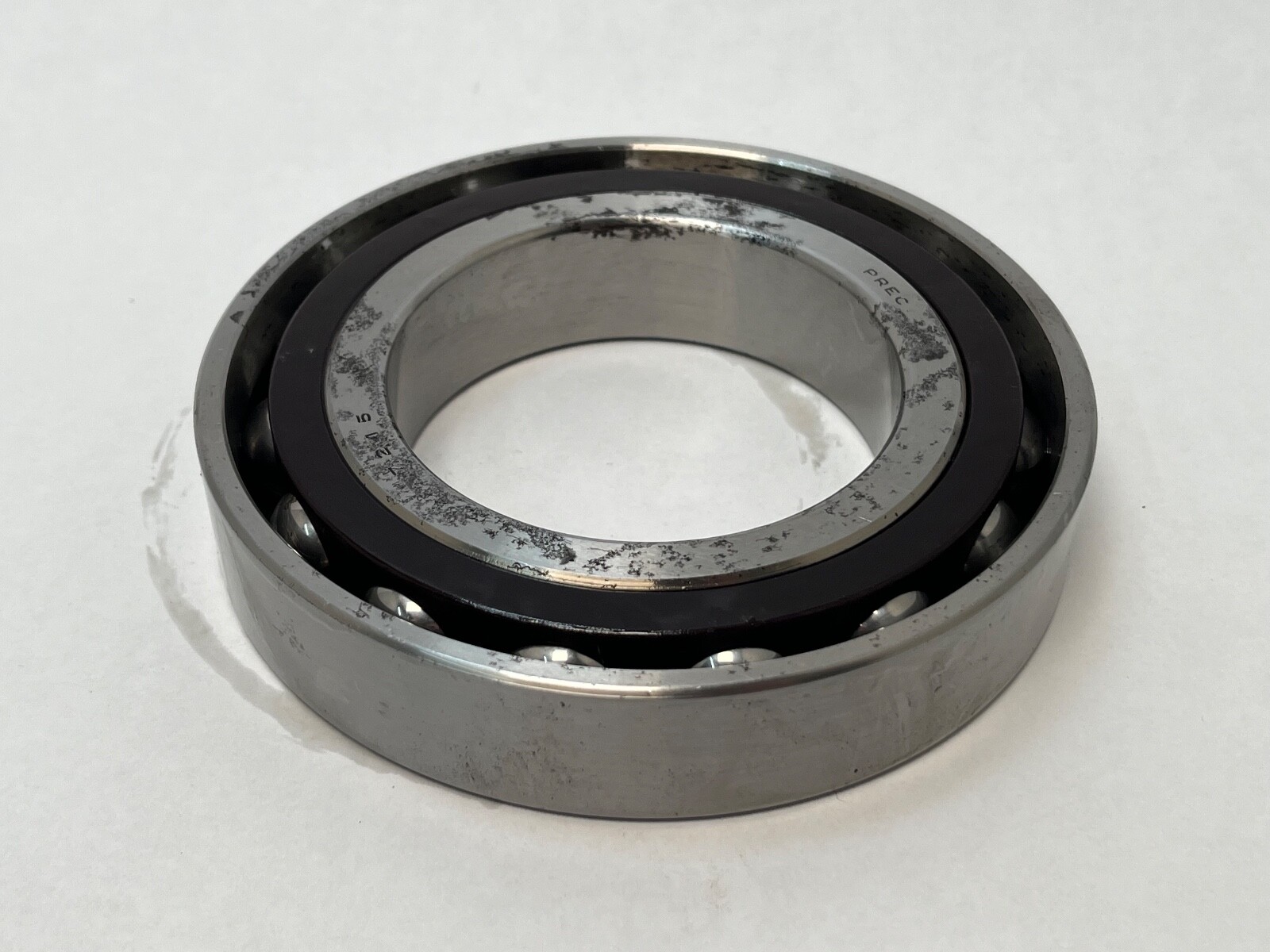

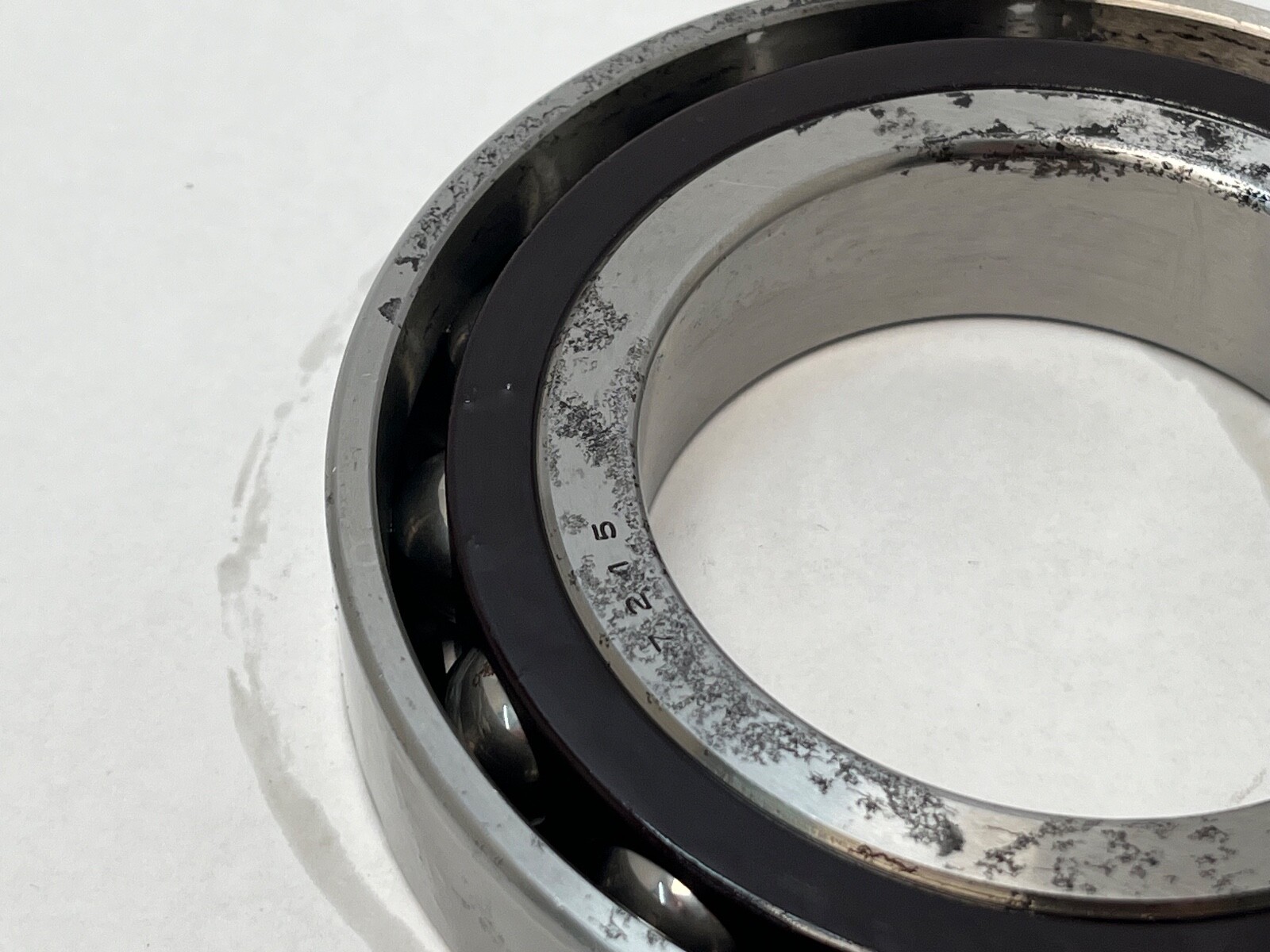

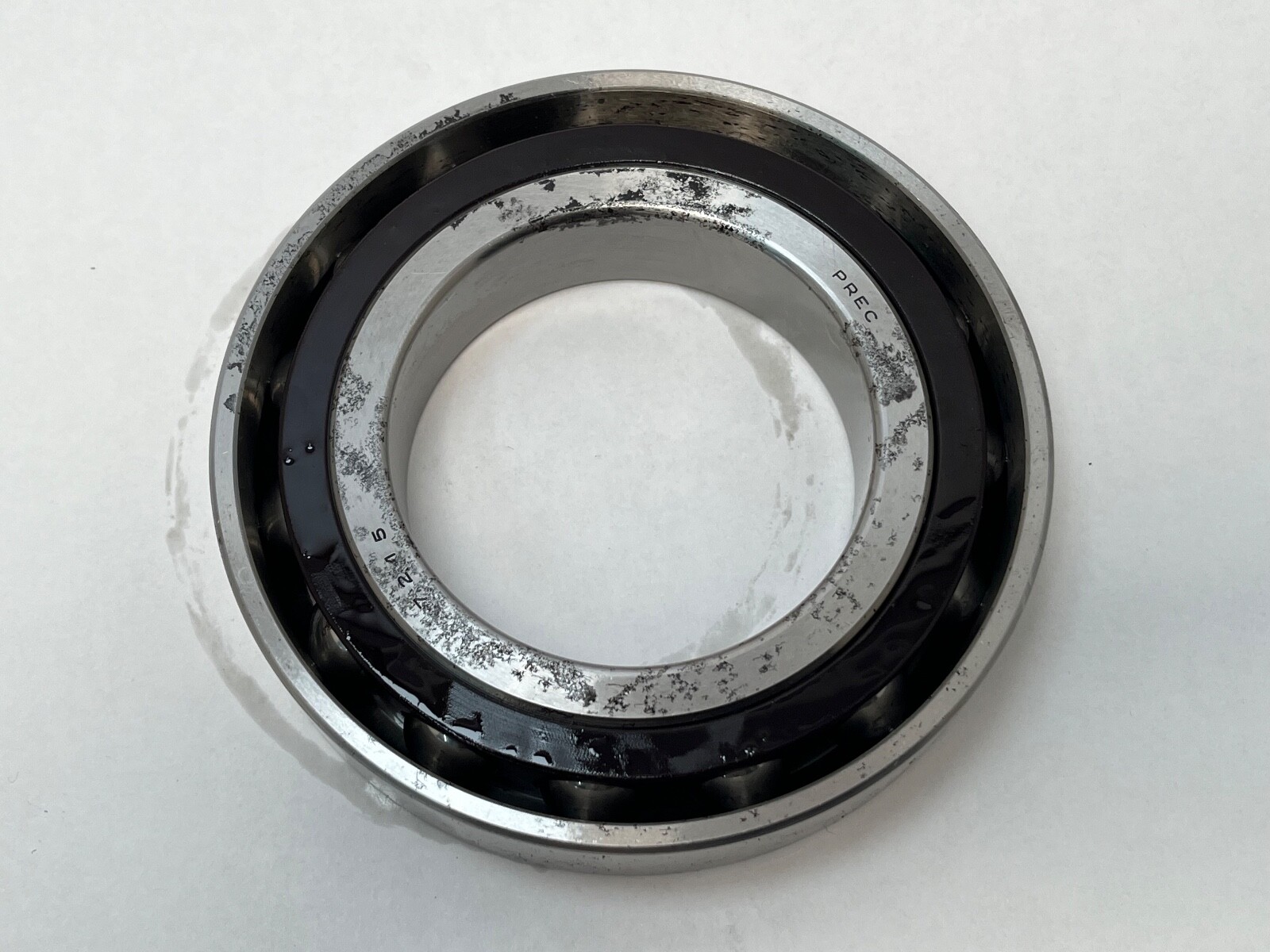

Angular Contact Ball Bearing – Straight Bore, 75 mm ID, 130 mm OD, 25 mm Width, Open, 15° Contact Angle.
