Availability:
1 in stock

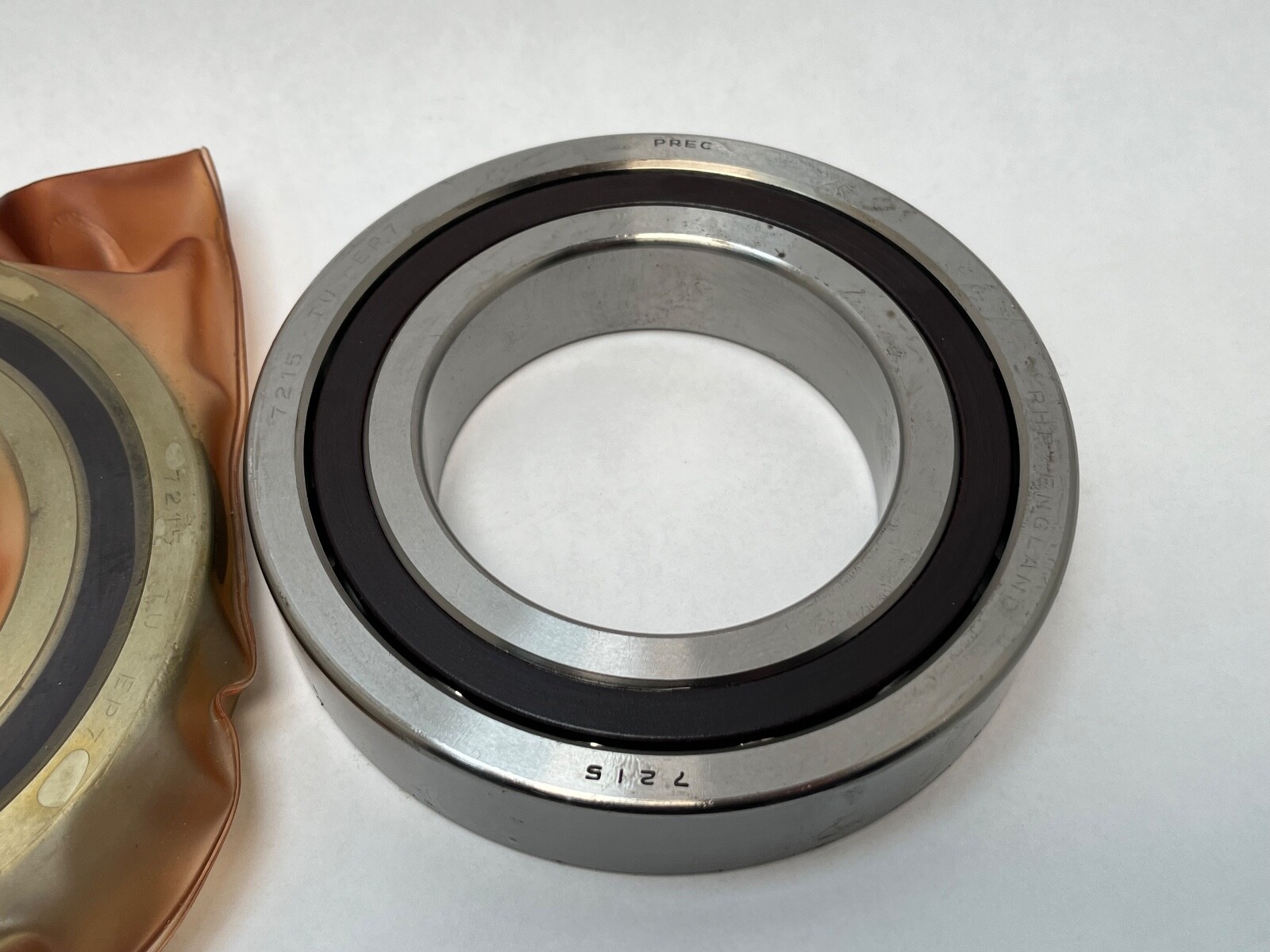

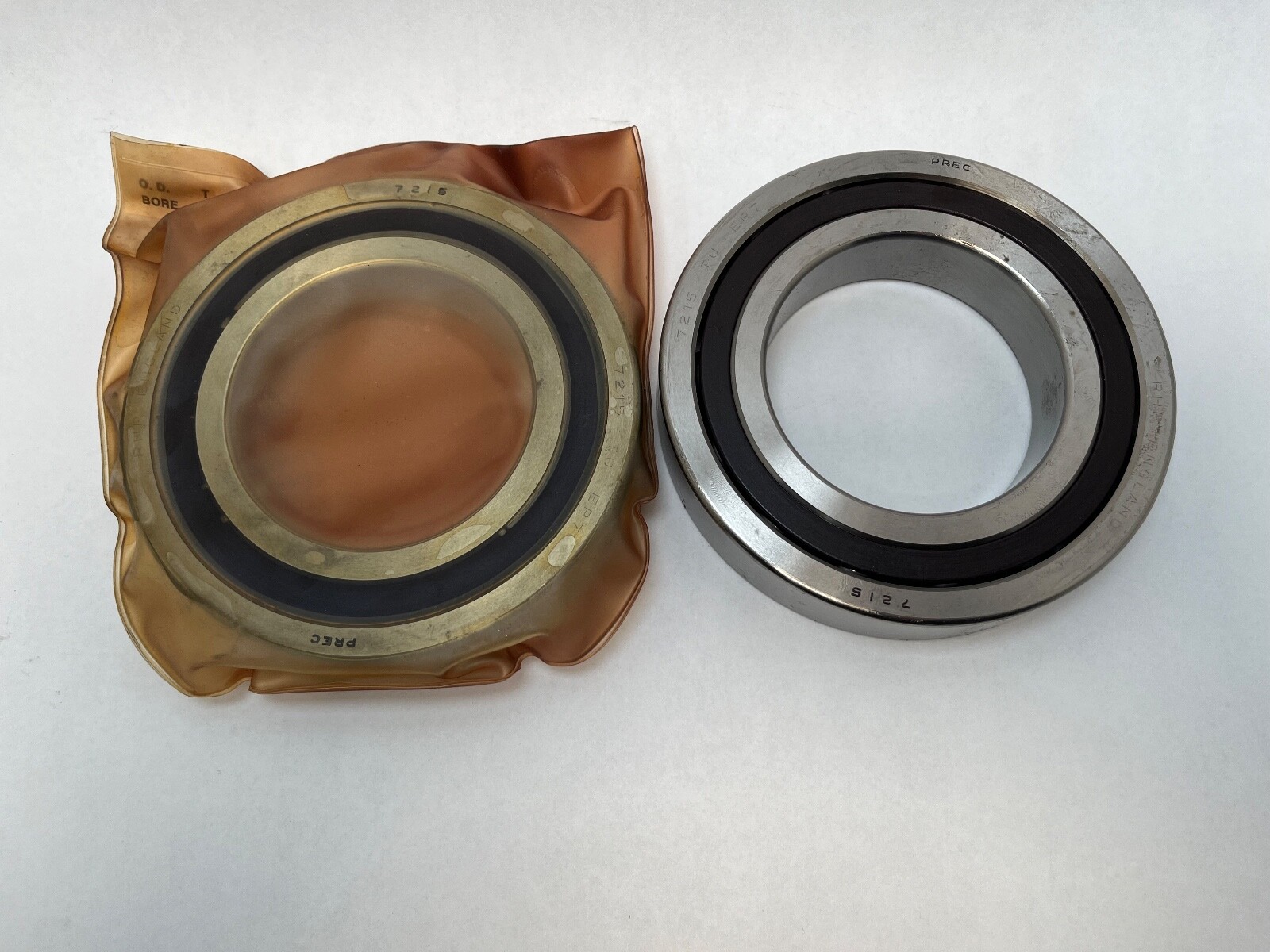

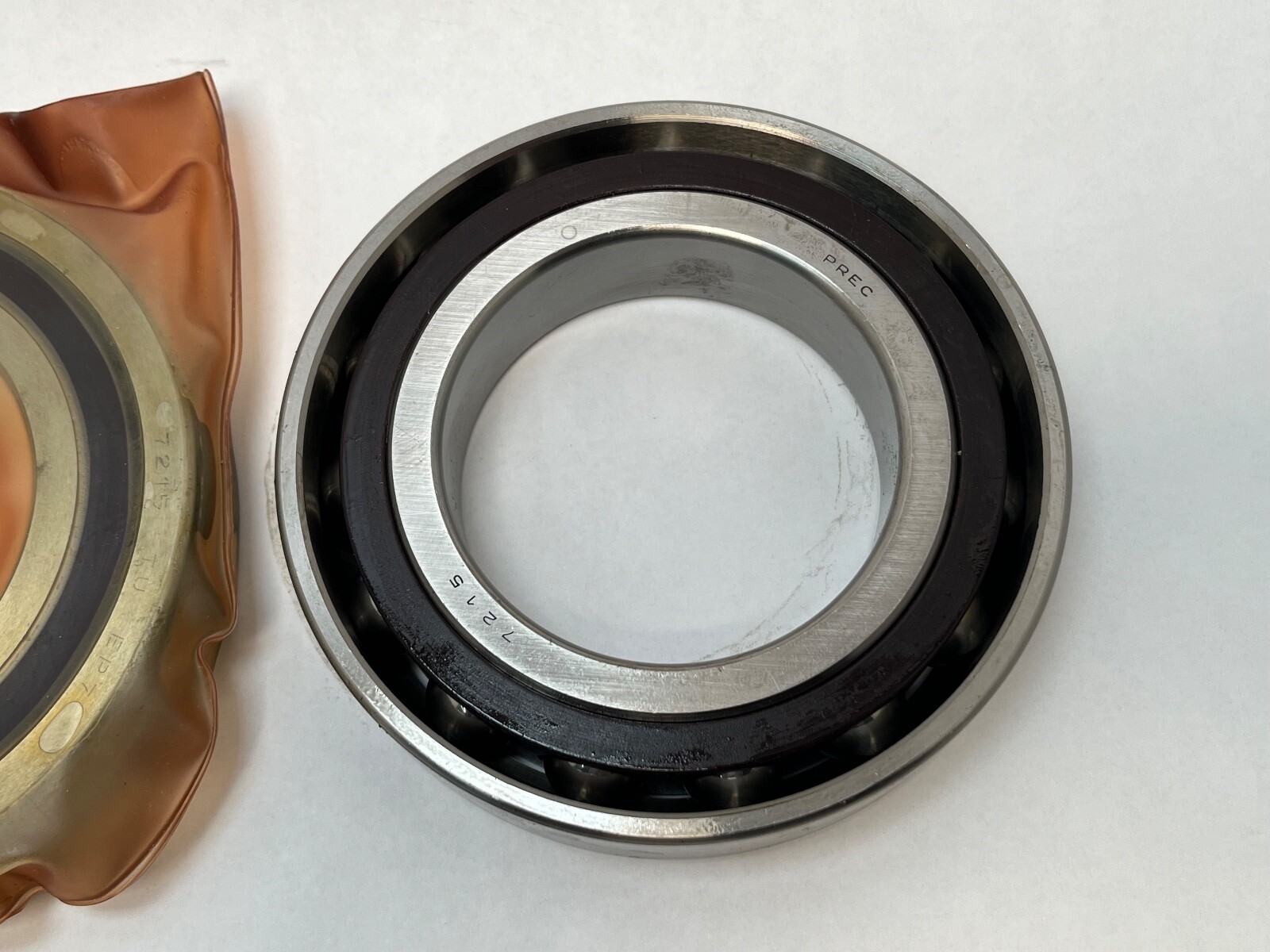

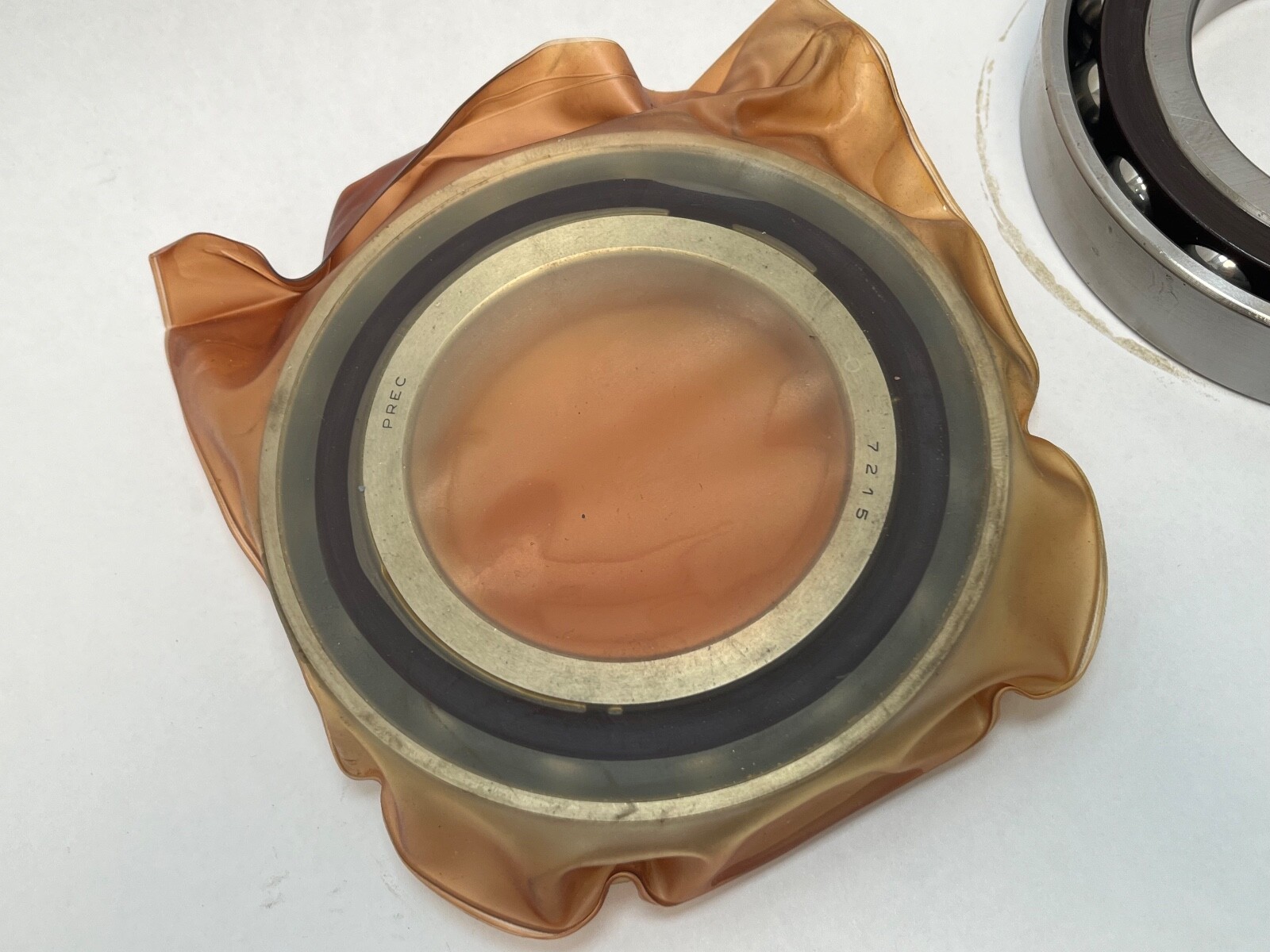

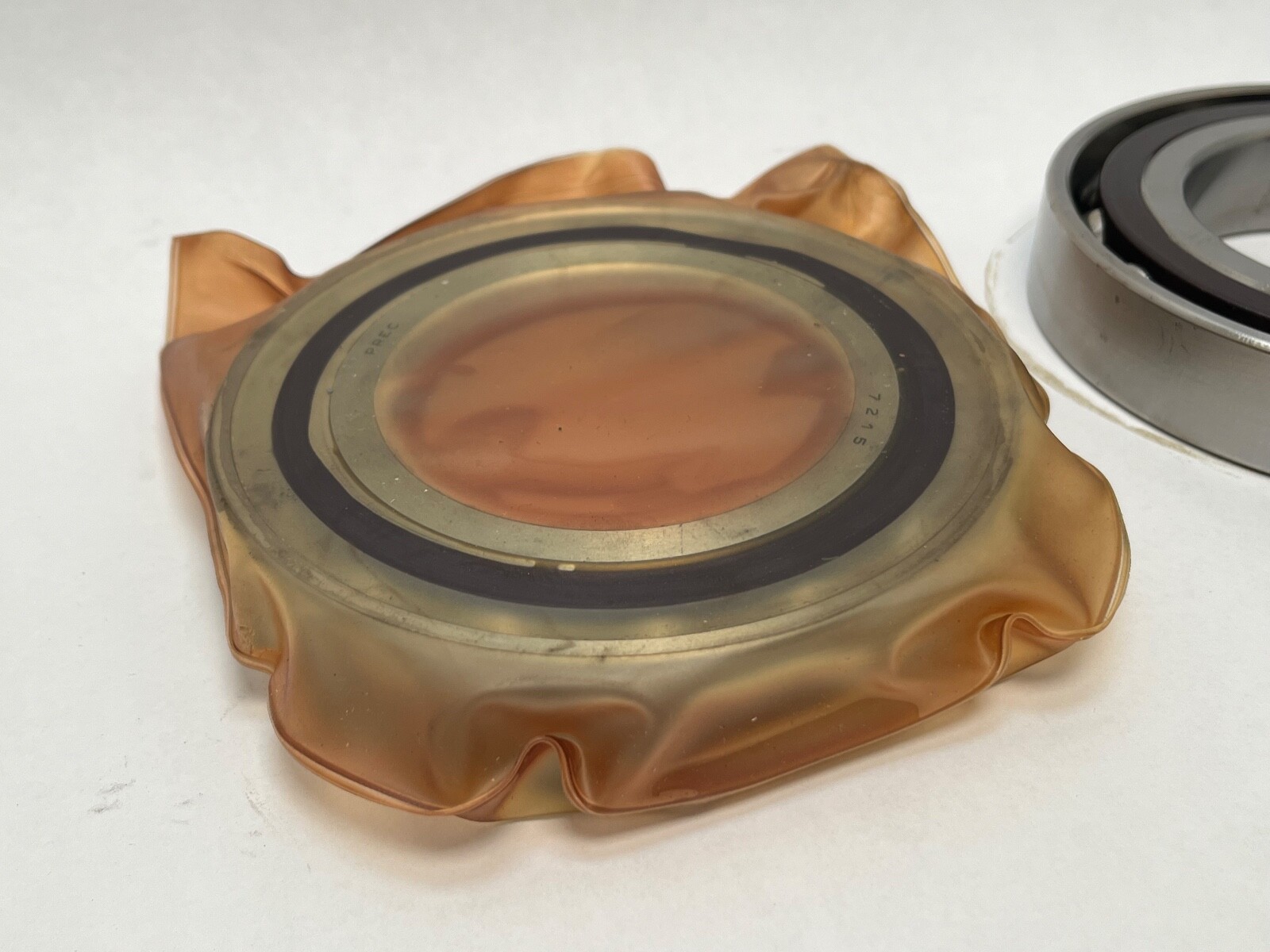

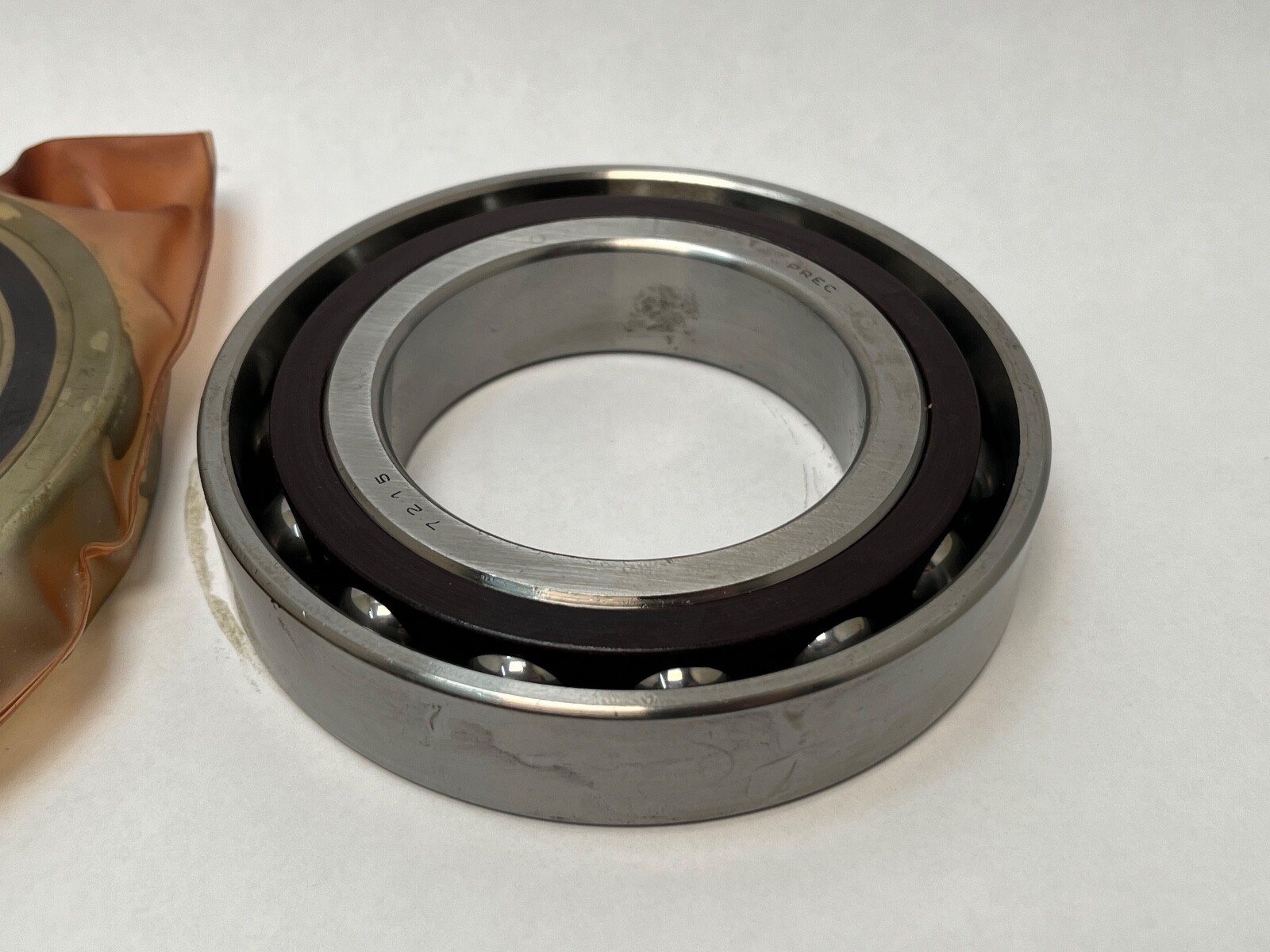

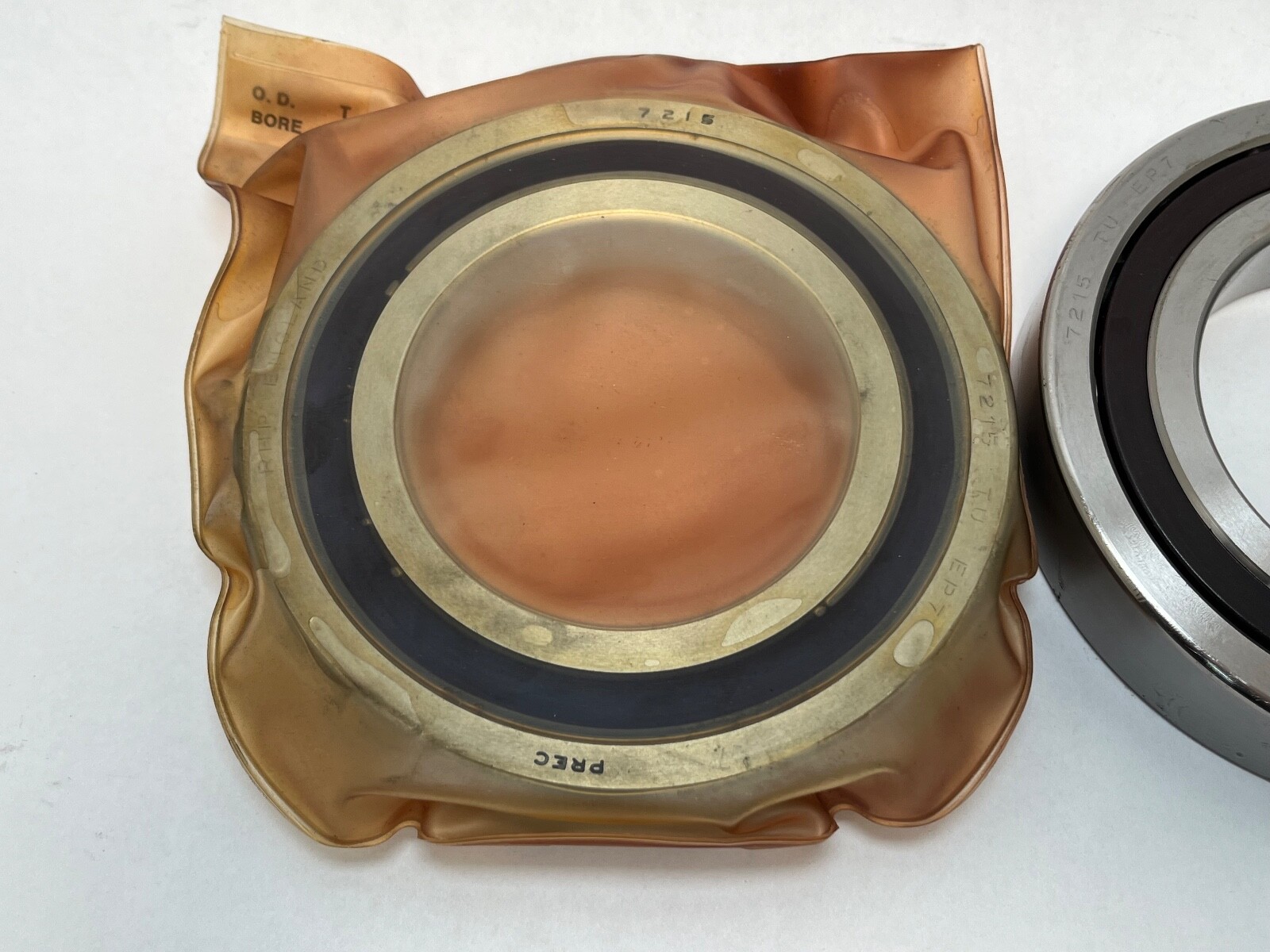

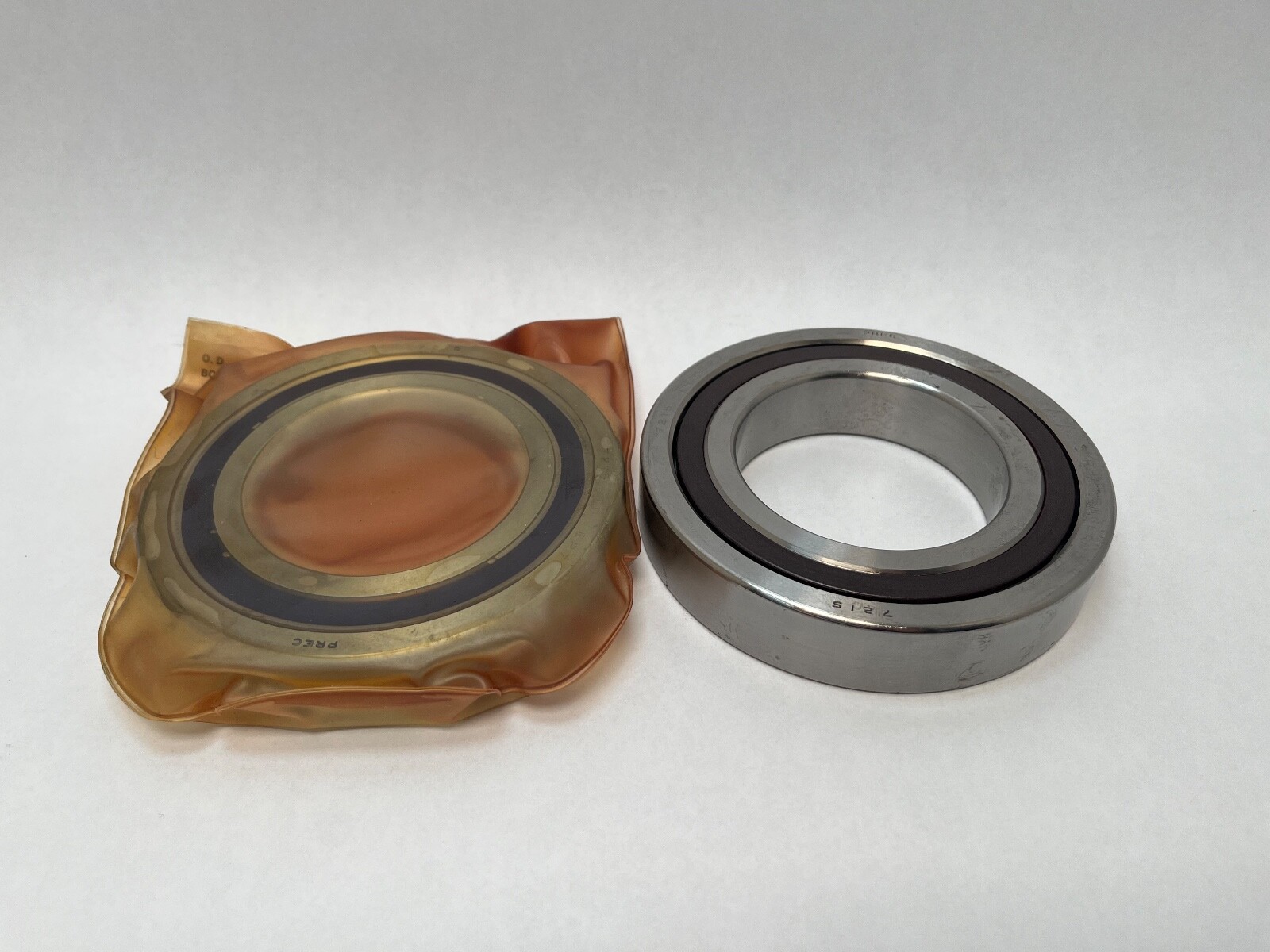

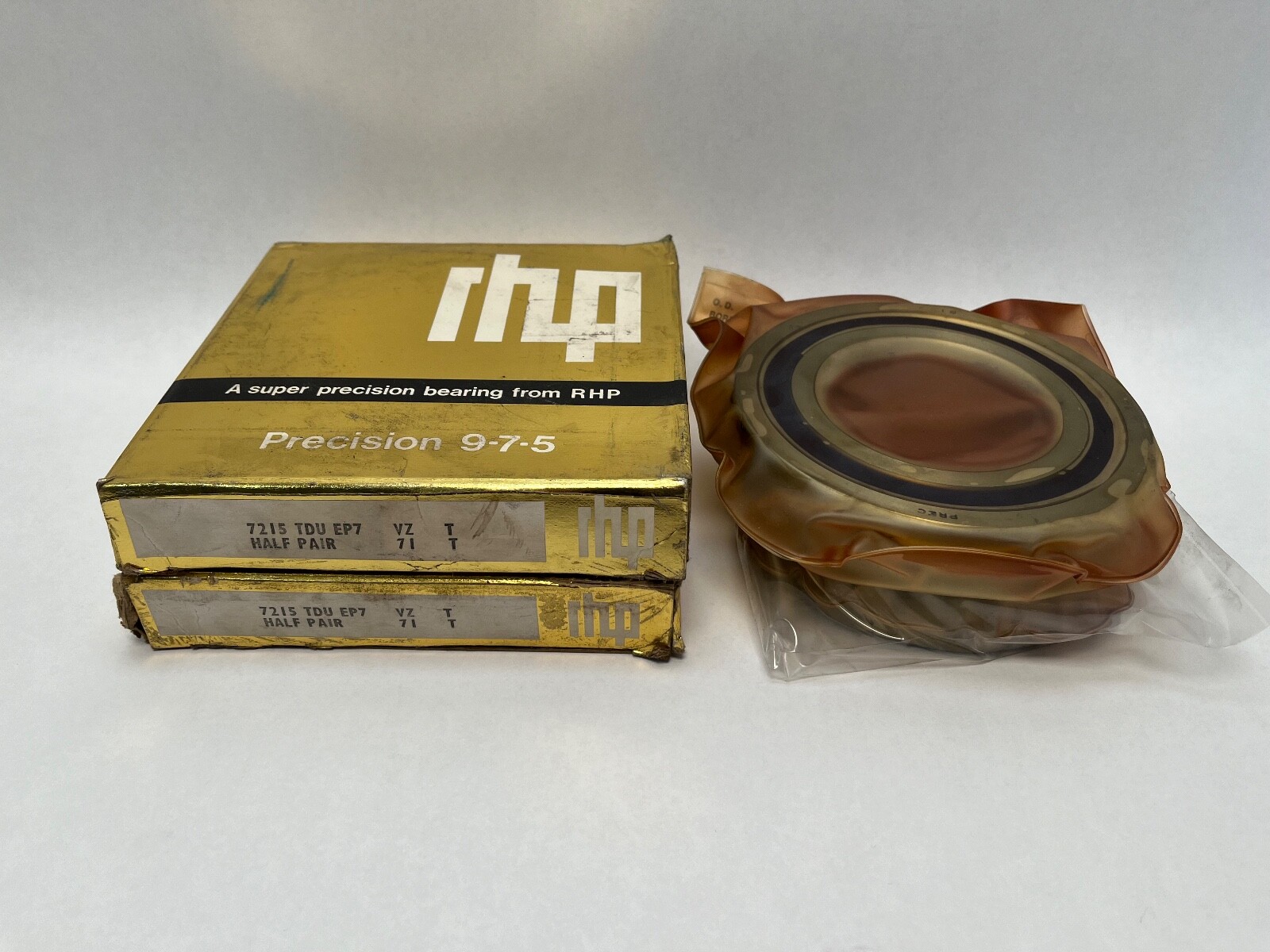

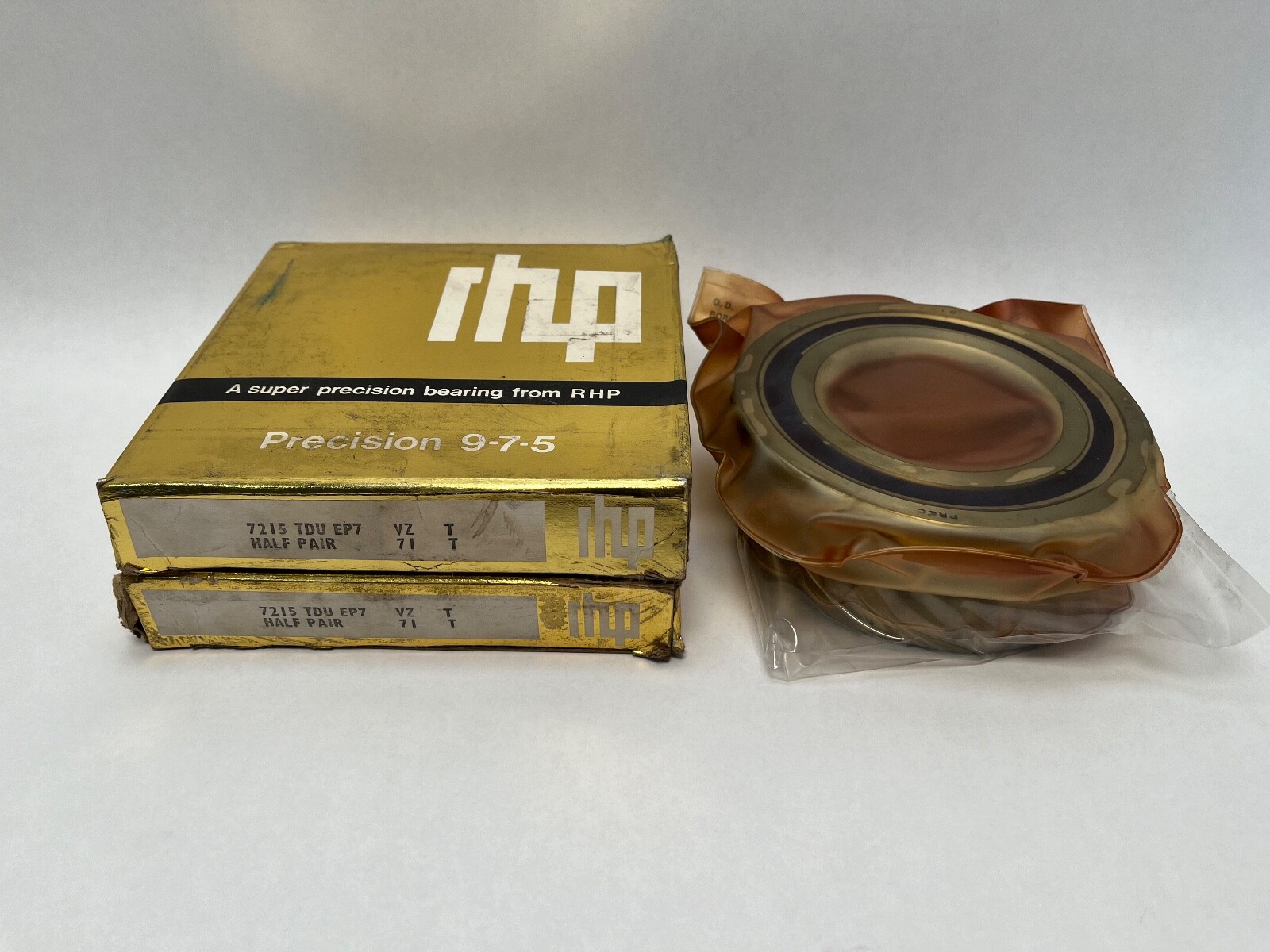

Super-precision angular contact ball bearing pair, 75 x 130 x 25 mm, ABEC 7 / P4, phenolic cage, light preload, universally ground, open.
List Price
$175.90
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7215TDULP4 |
| Model | 7215 T DUL P4 / MM215WI CR DUL / 7215-B |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 75 mm |
| OD | 130 mm |
| Width | 25 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Preload | L light |
| Base Number | 7215 |
| Industry Terms | Super precision angular contact ball bearing; spindle bearing; duplex universal set; phenolic cage bearing; EP7 precision bearing |
| Common Misspellings | 7215 TDULP4; 7215TDLUP4; 7215-TDUL-P4; RHP7215TDULP4; 7215TDULP-4 |
| Total Width | 50 mm |
| Overall Width | 25 mm |
| Bore Shaft Size | 75 mm |
| Mpn Variants | 7215TDULP4; 7215-T-DUL-P4; 7215 T DUL P4; 7215TDUL; 7215B |
| Arrangement Configuration | Duplex universally ground set, 2 pieces |
| Precision Class | ABEC 7 / P4 |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Mounting Arrangement | Universally matchable back-to-back, face-to-face or tandem |
| Design Units | Metric |
| Bearing Material | Chrome steel |
| Part Number | 7215TDULP4 |
| Cross Reference 1 | RHP 7215TDULP4 |
|---|
RHP 7215TDULP4 super-precision angular contact ball bearing duplex set, 75 x 130 x 25 mm per bearing. Bore Diameter: 75 mm. Outside Diameter: 130 mm. Overall Width: 25 mm. Total Width: 50 mm. Precision Class: ABEC 7 / P4. Preload: L light. Cage Material: Phenolic. Rolling Elements: Ball. Number Of Rows: 1 per bearing. Bore Type: Straight. Closure Type: Open. Bearing Material: Chrome steel. Design Units: Metric. Series: 7200. Base Number: 7215. Part Number: 7215TDULP4. Unit Quantity: 2 Pcs.
7215 — ISO 72 light series angular contact ball bearing, 75 mm bore.
T — machined phenolic cage.
DU — duplex universally ground, so any two pieces close to the set preload in any arrangement.
L — light preload.

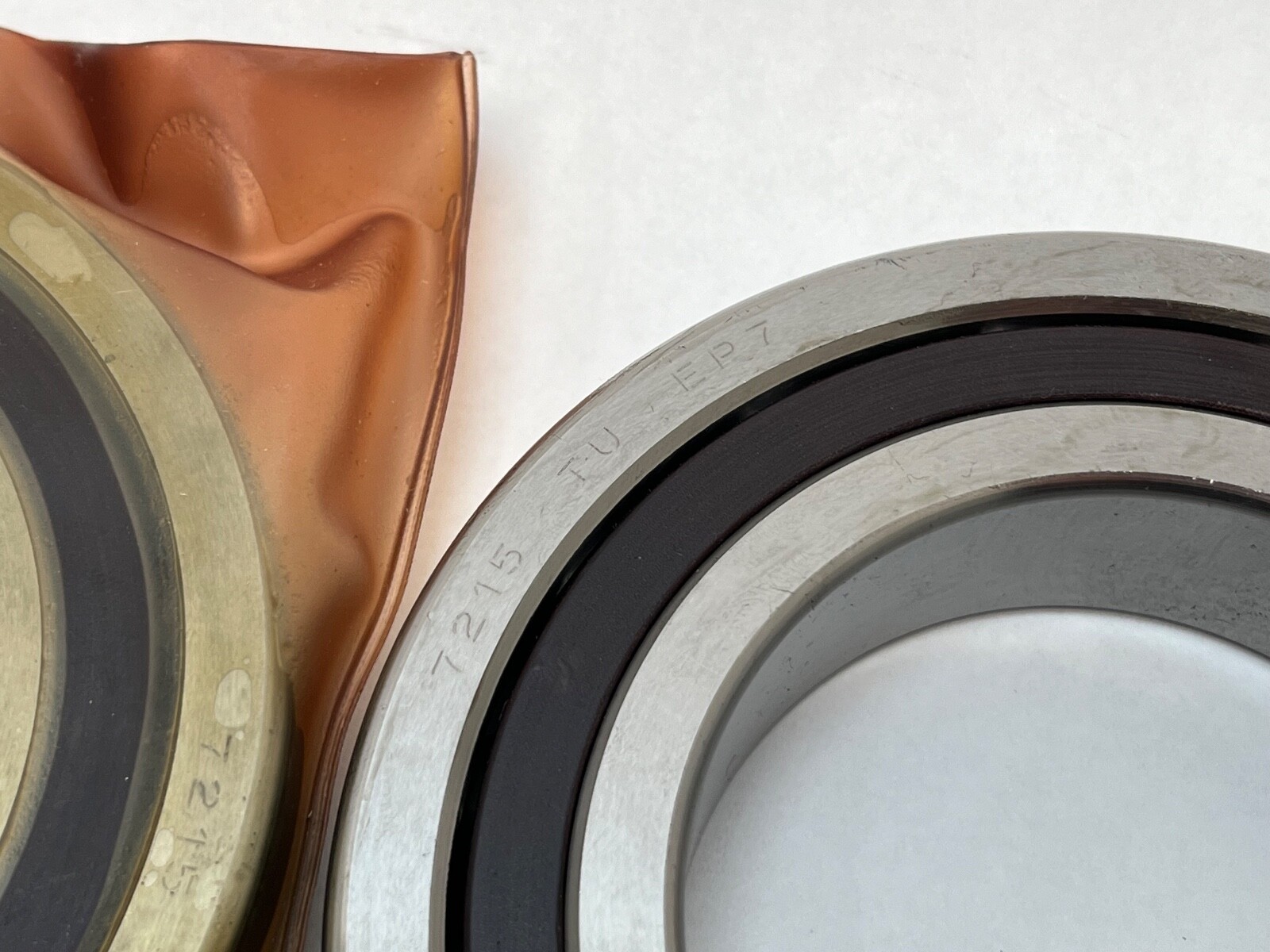

P4 — RHP class EP7, equivalent to ABEC 7.
Precision Class: ABEC 7 / P4. Bore, outside diameter and running accuracy are held to super-precision limits, which is the grade machine tool spindles are specified to.
Cage Material: Phenolic. A machined fabric-base laminate cage is light and self-lubricating, which suits sustained high-speed running and is the cage RHP pairs with its P4 spindle range.
Preload: L light. The light class is chosen where spindle speed and heat matter more than absolute axial stiffness. Internal Clearance is not applicable on a preloaded set.
Shaft seat 75 mm. Housing bore 130 mm. Ring width 25 mm each, 50 mm across the pair. The universally ground faces let the two pieces be arranged back-to-back, face-to-face or in tandem, with the ground offset setting the preload in each case.
Unit Quantity: 2 Pcs. Arrangement / Configuration: Duplex universally ground set of two. Mounting Arrangement: Universally matchable back-to-back, face-to-face or tandem.
Cross-Reference 1: RHP 7215TDULP4. The 75 x 130 x 25 mm envelope is the ISO 7215 size, so SKF 7215, FAG 7215, NSK 7215 and NTN 7215 share the boundary dimensions. Those are related sizes rather than interchanges until the contact angle is matched: a 15°, 25° and 40° bearing all exist on this envelope and they behave very differently in thrust and in speed. Searchable variants of the manufacturer number: 7215TDULP4, 7215-T-DUL-P4, 7215 T DUL P4, 7215TDUL, 7215B.
