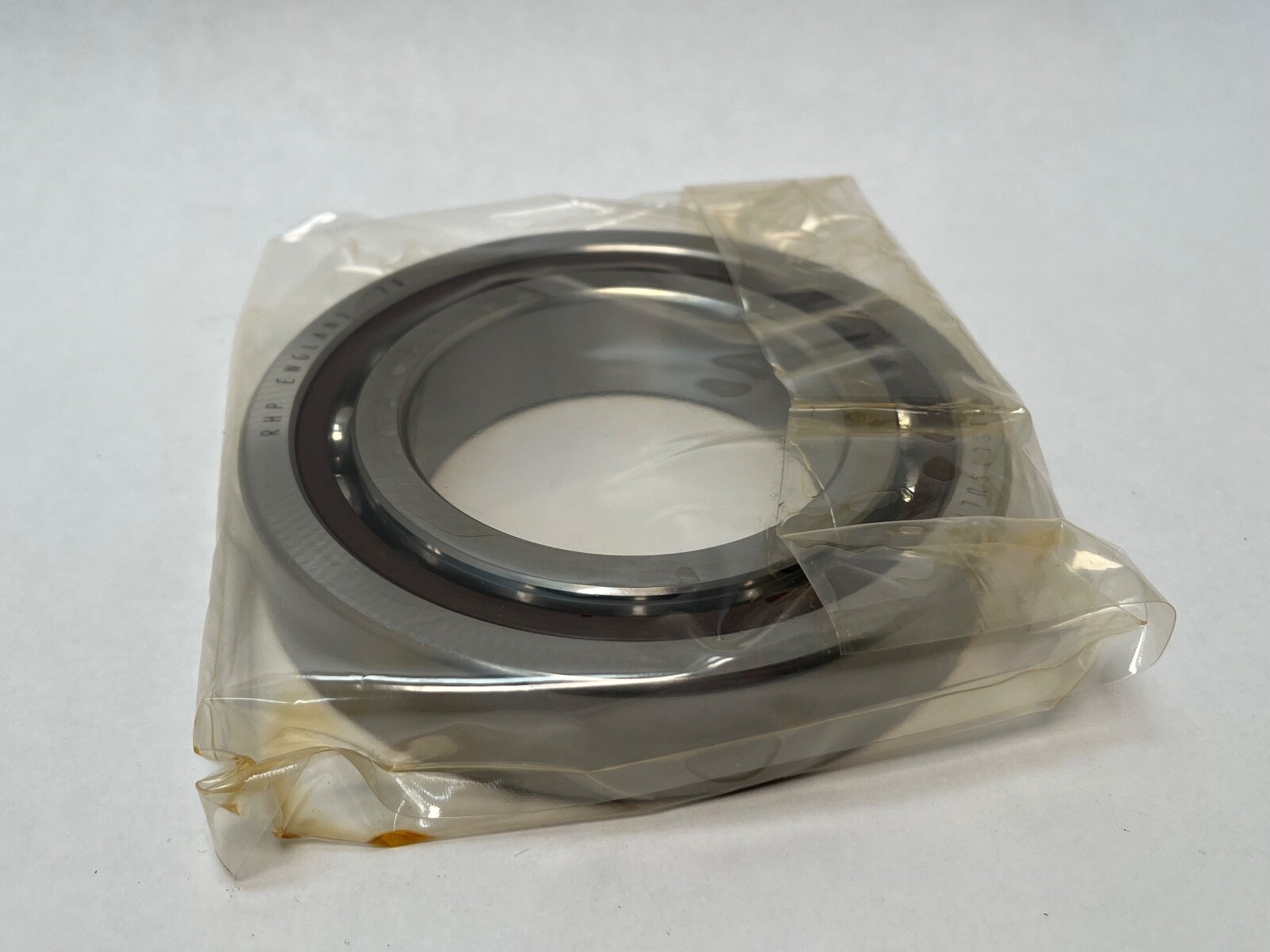

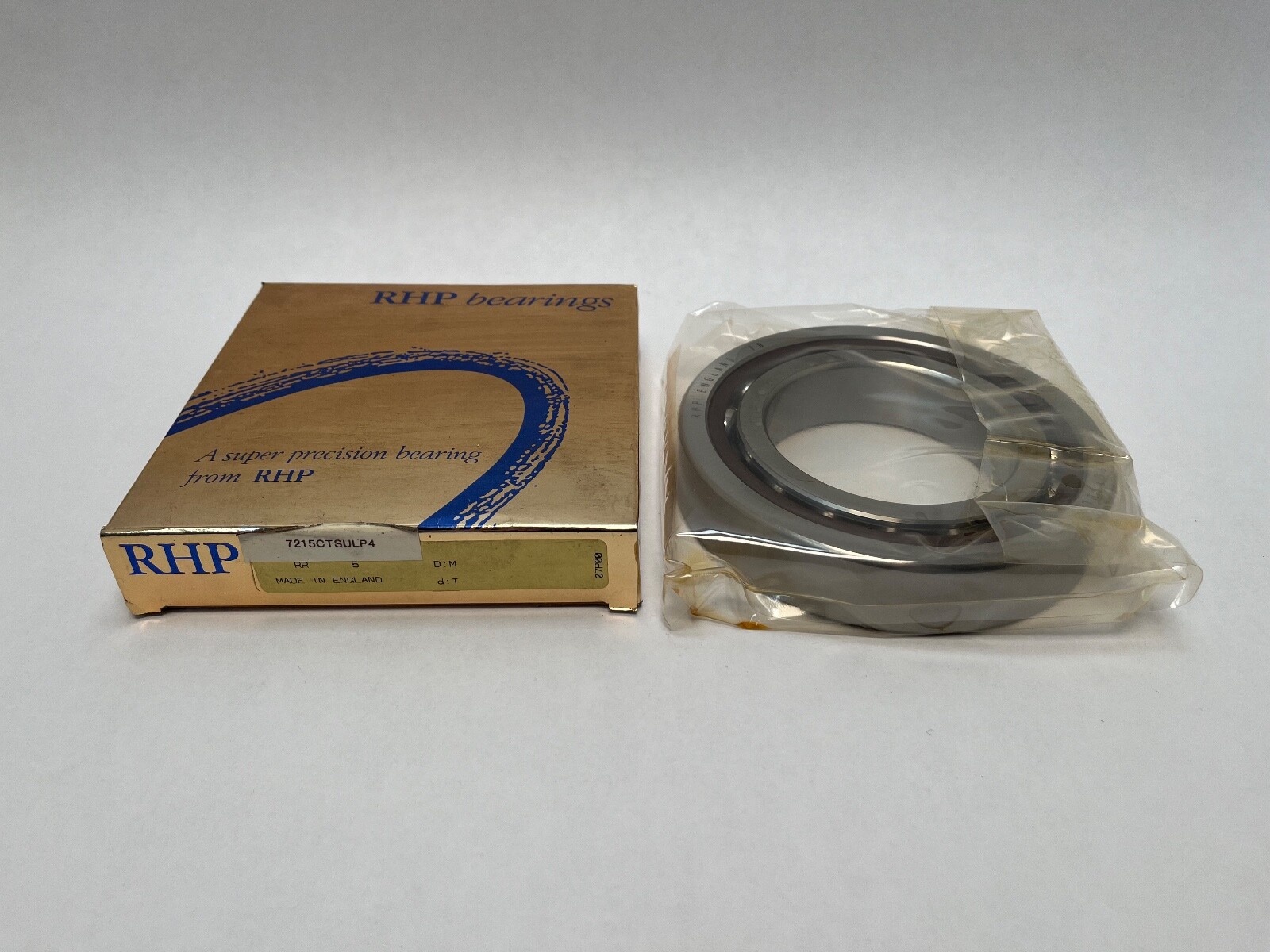

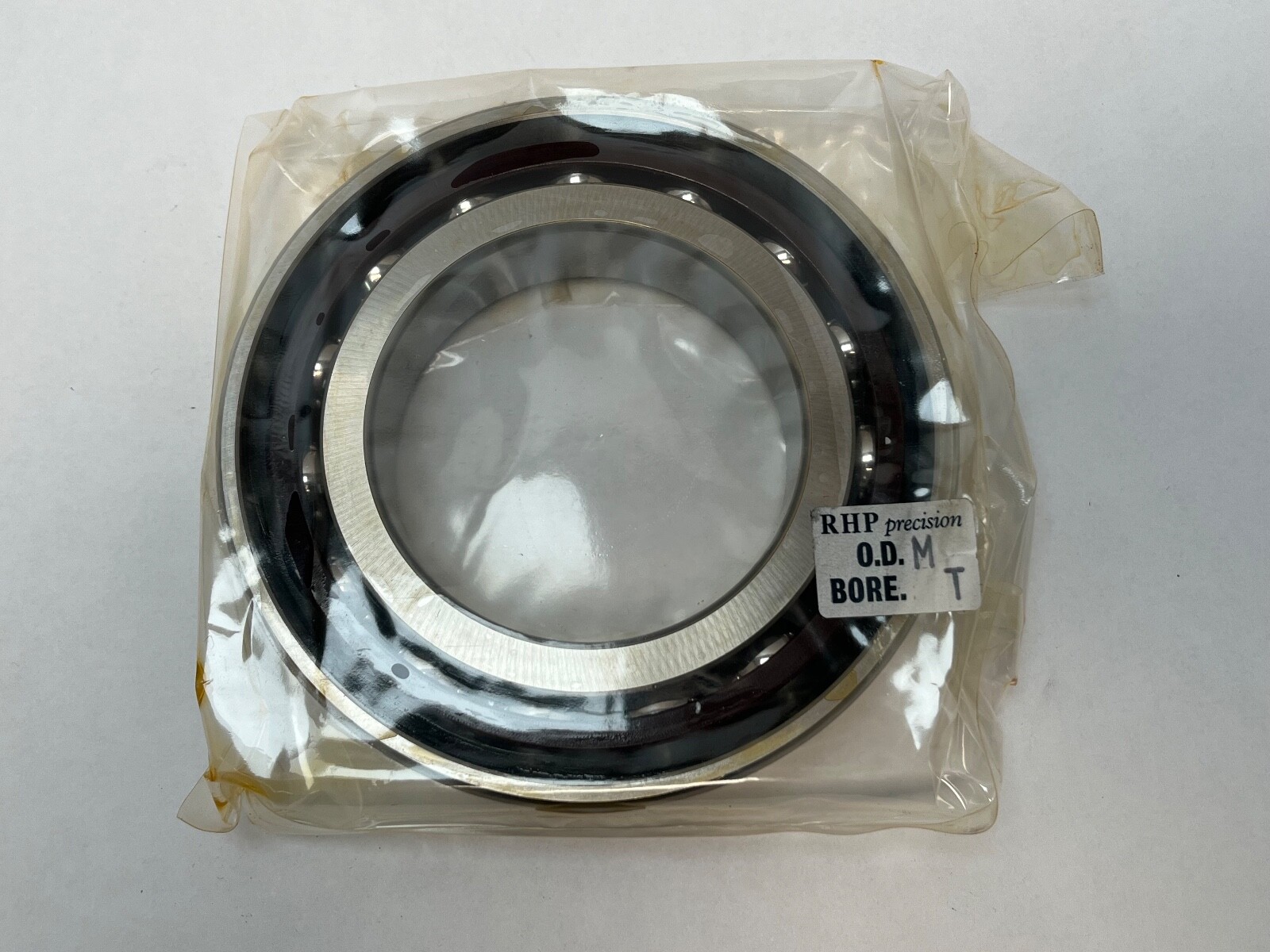

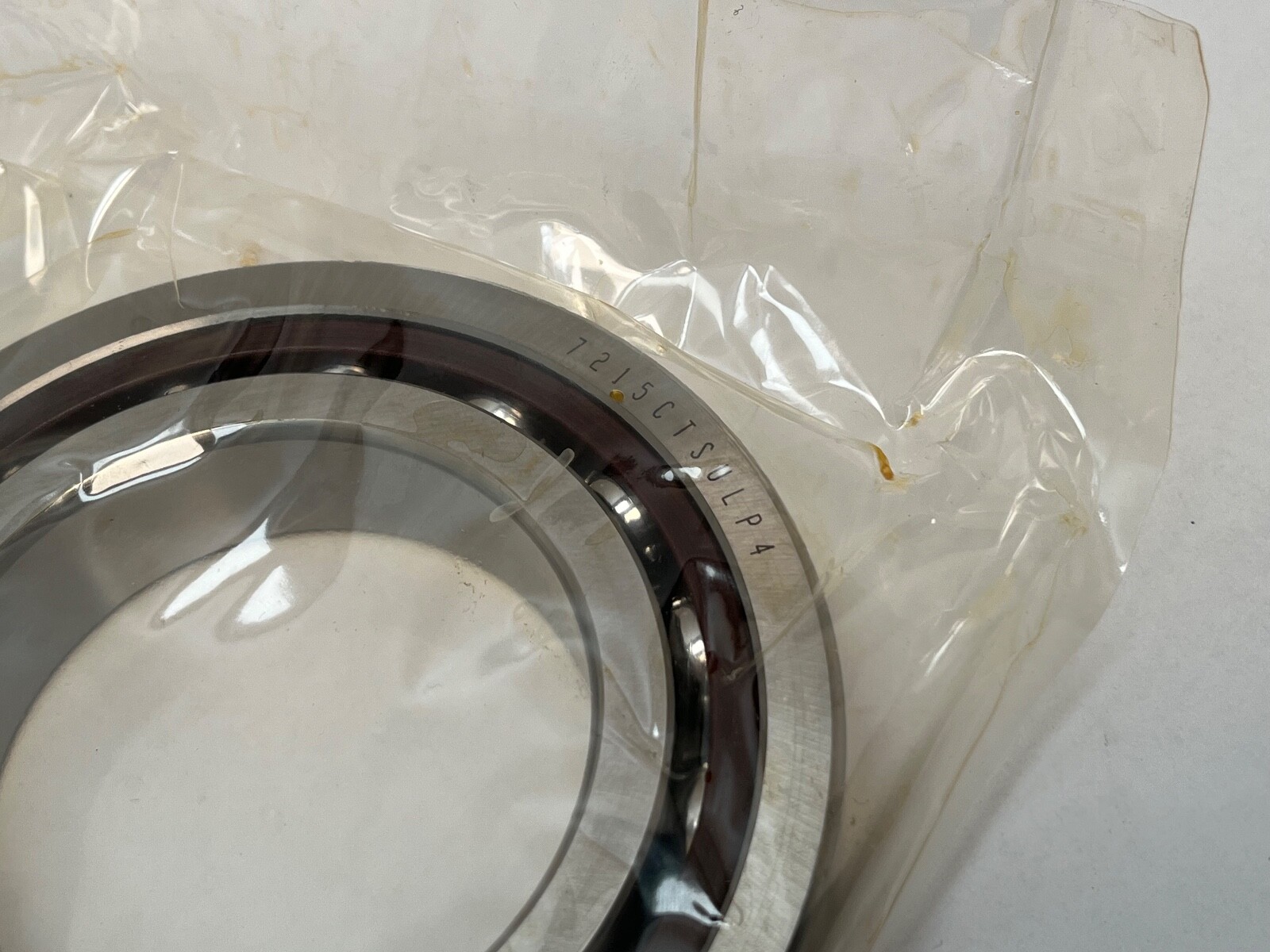

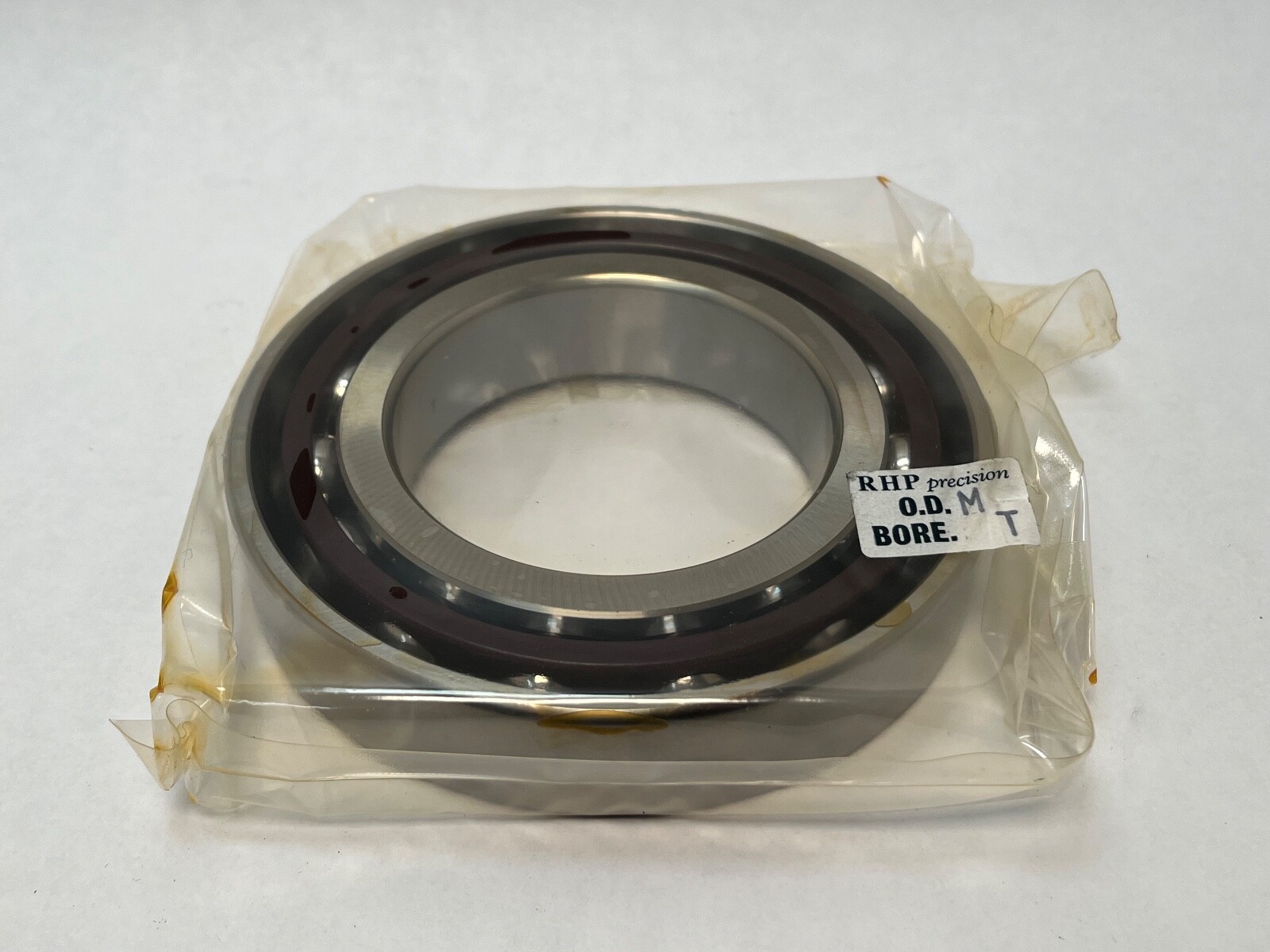

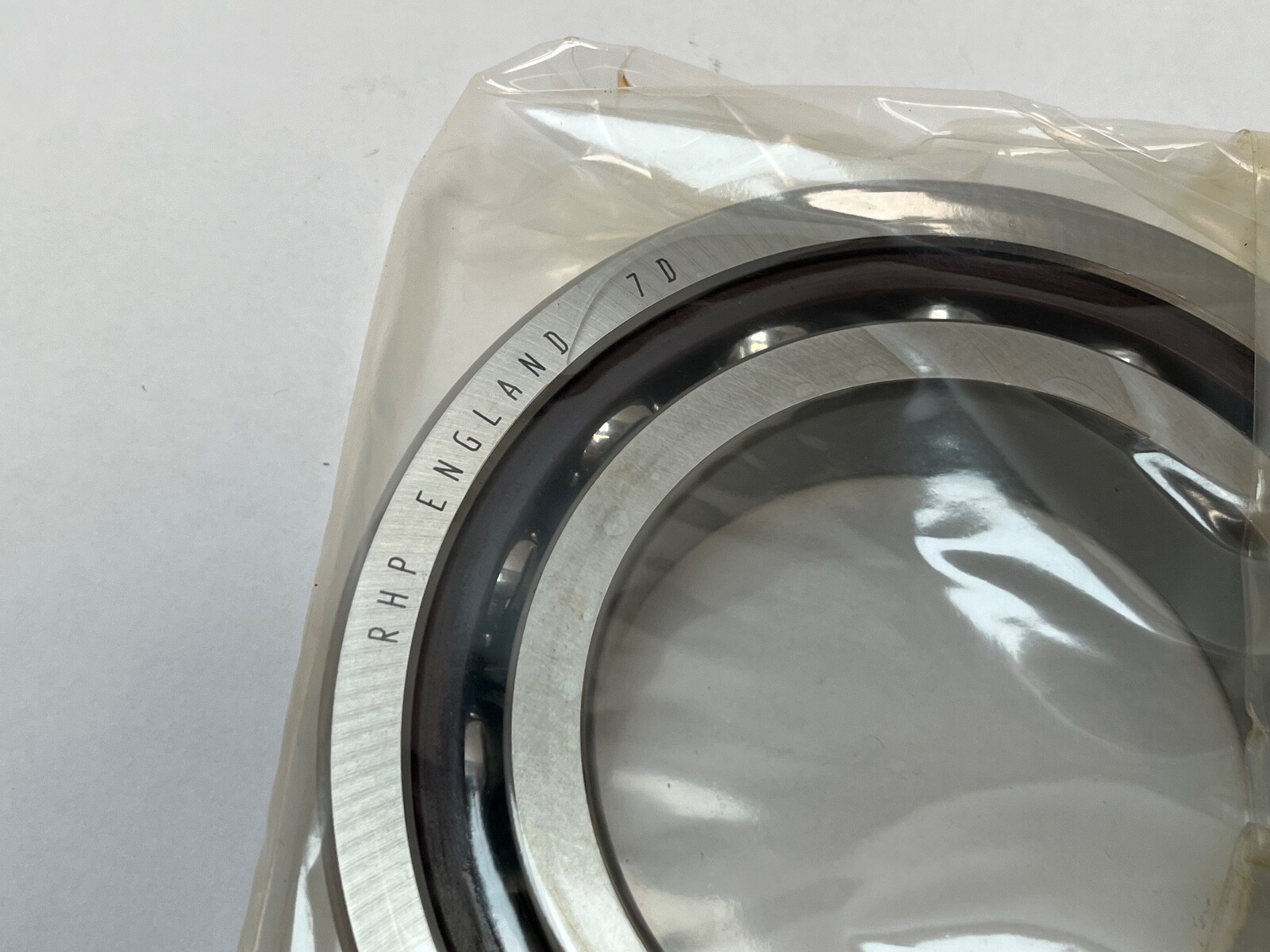

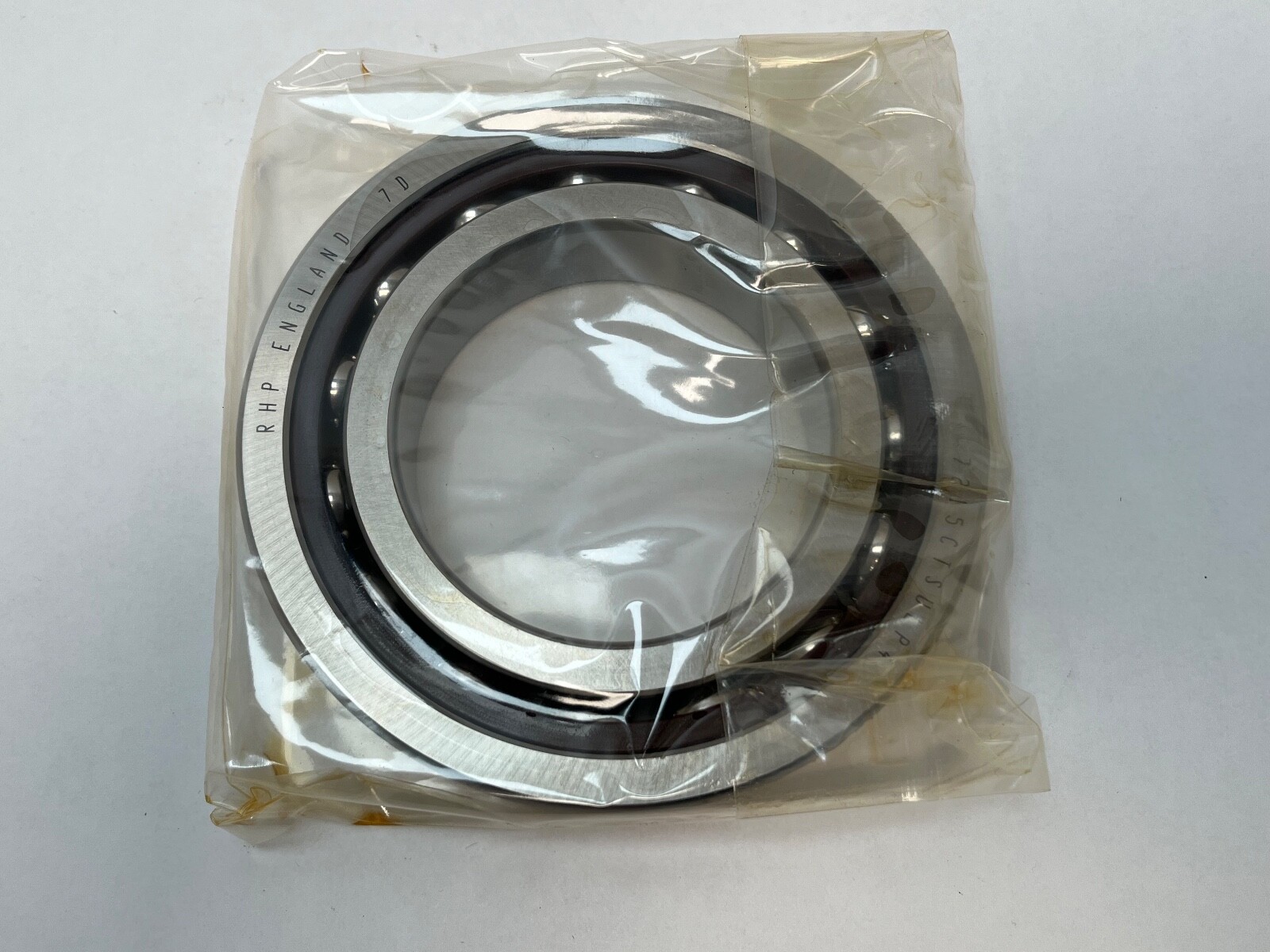

Super-precision angular contact ball bearing, 75 x 130 x 25 mm, 15 degree contact angle, ABEC 7 class, light preload, phenolic cage, open. Single bearing, 1 Pc.
List Price
$190.49
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | RHP |
|---|---|
| MPN | 7215CTSULP4 |
| Model | 7215 C T DUL P4 / 2MM215WI CR SUL / 7215CDP4ADGA |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 75 mm |
| OD | 130 mm |
| Width | 25 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Condition | New |
| Preload | Light |
| Unspsc | 31171504 |
| Base Number | 7215 |
| Industry Terms | spindle bearing, machine tool bearing, super precision bearing, precision angular contact ball bearing, light preload spindle bearing |
| Common Misspellings | RHP 7215CTSULP-4, RHP 7215 C T SUL P4, 72I5CTSULP4, RHP 7215CTSUMP4, RHP 7215CTDULP4 |
| Application Types | Machine tool spindles, grinding spindles, milling heads, high-speed precision gearboxes |
| Bore Shaft Size | 75 mm (2.9528 in) |
| Mpn Variants | 7215CTSULP4, 7215-C-T-SUL-P4, 7215 C T SUL P4, 7215CTSUL, 7215CTSULEP7, B7215CTSULP4, 7215C |
| Arrangement Configuration | Single universally ground bearing (SU) |
| Precision Class | ISO P4 / ABEC 7 / RHP EP7 |
| Min Temp | -40 °C |
| Cage Type | Phenolic |
| Dynamic Load Rating | 72 kN |
| Static Load Rating | 64 kN |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 2.60 lbs |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.5028 |
| Contact Angle | 15 degrees |
| Mounting Arrangement | Universal |
| Design Units | Metric |
| Internal Clearance | CN |
| Part Number | 7215CTSULP4 |
| Cross Reference 1 | SKF 7215 CD/P4ADGA |
|---|---|
| Cross Reference 2 | FAG B7215-C-T-P4S-UL |
| Cross Reference 3 | NSK 7215CTYSUL |
| Cross Reference 4 | Timken Fafnir 2MM215WI-SUL |
A single-row super-precision angular contact ball bearing, 75 mm bore × 130 mm outside diameter × 25 mm width, in the ISO 7215 envelope.
7215 — single-row angular contact ball bearing, 200 dimension series, bore code 15, giving a 75 mm bore.
C — 15° contact angle in the RHP scheme. An E in that position would be 25°, and no letter would be 40°.
T — phenolic cage.
SU — single bearing, universally ground for matching.
L — light preload.
P4 — ISO precision class 4, equivalent to ABEC 7. RHP writes the same class as EP7.
A single-row angular contact ball bearing takes thrust in one direction only, which is why these bearings are normally used in pairs or stacks so the arrangement carries thrust both ways. A 15° contact angle biases the bearing toward speed and radial rigidity, and carries less thrust than a 25° or 40° bearing in the same envelope. Light preload keeps contact loads and heat generation low, suiting high-speed spindles where thermal growth rather than stiffness sets the limit. Phenolic places the working temperature ceiling near 120 °C.
Bore: 75 mm (2.9528 in)
Outside diameter: 130 mm (5.1181 in)
Width: 25 mm (0.9843 in)
Contact angle: 15°
Precision class: ISO P4 / ABEC 7 / RHP EP7
Preload: light (L)
Rows: 1
Cage material: phenolic
Rolling elements: steel balls
Closure: open, both faces
ISO base number: 7215 C
Single bearing, 1 Pc. Universal grinding allows it to be stacked back-to-back, face-to-face or in tandem with matching bearings of the same designation.
Mounting is an interference fit on the shaft and a close fit in the housing bore, both held to super-precision spindle limits. Faces seat against square ground shoulders, and a runout error at the shoulder transfers directly into the raceway.
Same-spec 15° P4 light-preload equivalents in other schemes are the SKF 7215 CD/P4ADGA, FAG B7215-C-T-P4S-UL, NSK 7215CTYSUL and Timken Fafnir 2MM215WI-SUL. The 7215E at 25° and the plain 7215 at 40° share the envelope at a different contact angle, and the SUM and SUH versions differ in preload — those are related sizes rather than interchanges.
