Availability:
2 in stock
Angular contact ball bearing, 130 x 200 x 33 mm, 15° contact angle, normal precision grade, open, machined phenolic cage, CN internal clearance.
List Price
$534.68
2 in stock
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | RHP |
|---|---|
| MPN | 7026CTP0 |
| Model | 7026C T P0 / B-7026-X2-T-EP1 / M9126 WI CR |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 130 mm |
| OD | 200 mm |
| Width | 33 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Condition | New |
| Lubricant | Oil |
| Base Number | 7026 |
| Industry Terms | angular contact ball bearing; normal grade bearing; ABEC 1 bearing; EP1; 130 mm bore angular contact |
| Common Misspellings | 7026 CT P0; 7026CTPO; RHP 7026 CTP0 |
| Application Types | General machine spindles; gearboxes; pump and compressor shafts; precision rotary positions |
| Bore Shaft Size | 130 mm (5.1181 in) |
| Mpn Variants | 7026CTP0; 7026-C-T-P0; 7026C T P0; B-7026-X2-T-EP1; B7026X2TAEP1; M9126WICR; M9126 WI CR |
| Arrangement Configuration | Single bearing, no set grouping code |
| Precision Class | ISO Normal Class |
| Additional Attributes | Abutment d1 min 140 mm; D1 max 190 mm; D2 max 194 mm; fillet radius r min 2.5 mm, r1 min 1.0 mm; lubrication jet PCD 156.2 mm; internal free volume 131.8 cm3 |
| Min Temp | -30 °C |
| Cage Type | Machined, outer ring guided |
| Dynamic Load Rating | 129 kN (29,000 lbf) |
| Static Load Rating | 137 kN (30,800 lbf) |
| Precision Rating | P0 / EP1 / ABEC 1 / ISO Normal Class |
| Rolling Elements | Balls |
| Max Temp | 120 °C |
| Item Weight | 3.229 kg (7.12 lb) |
| Cage Material | Laminated phenolic resin |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Internal Clearance | CN (normal) |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Design Units | Metric |
| Bearing Material | SAE 52100 through-hardened chrome bearing steel |
| Part Number | 7026CTP0 |
| Cross Reference 1 | SKF 7026 CD (15°) |
|---|---|
| Cross Reference 2 | Fafnir / Timken M9126WICR (7026 envelope 130 x 200 x 33 mm) |
| Cross Reference 3 | FAG 7026-B-TVP (related size, same envelope at 40° with a glass-fibre polyamide cage) |
| Cross Reference 4 | NSK 7026C (15°) |

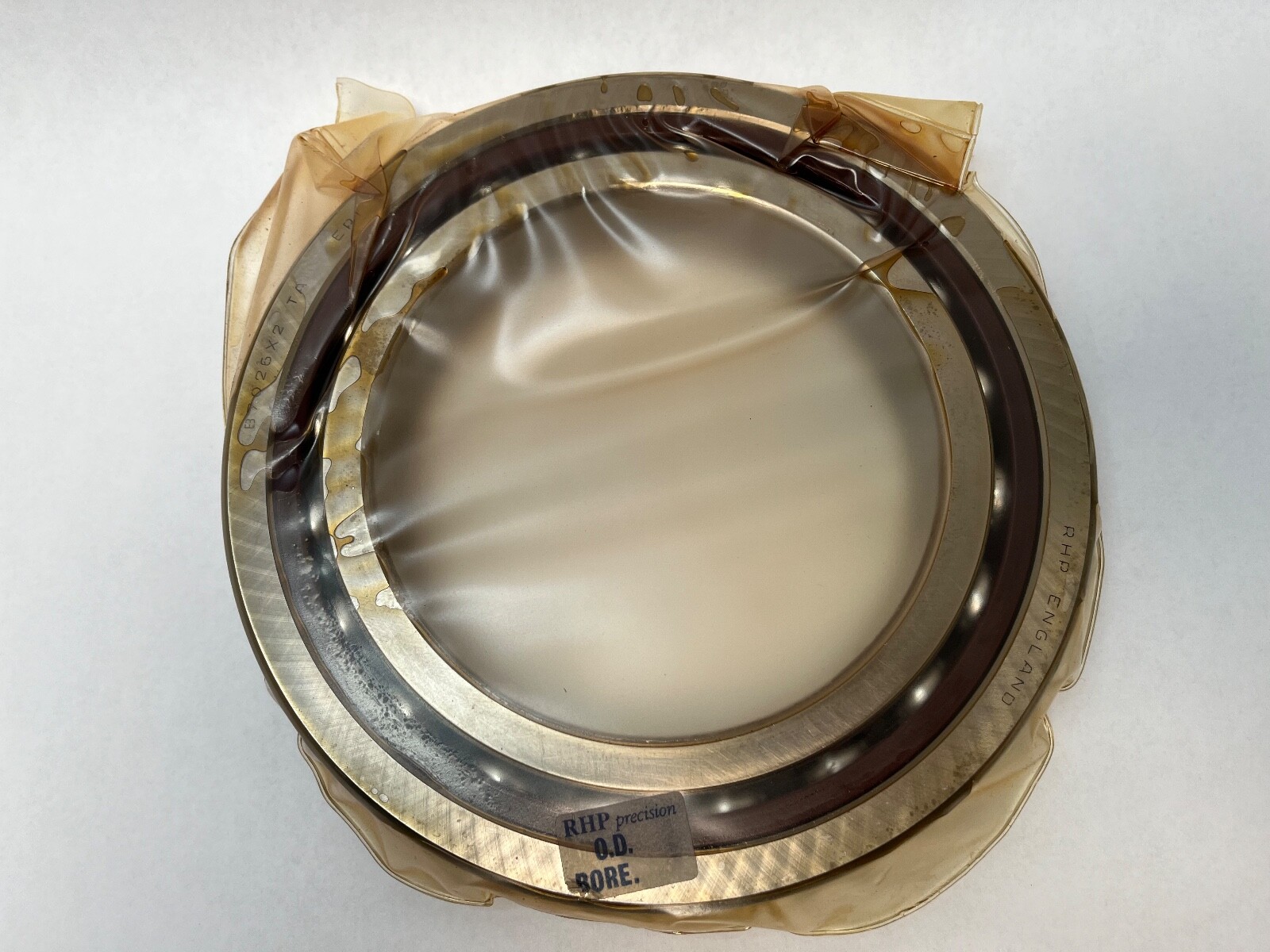

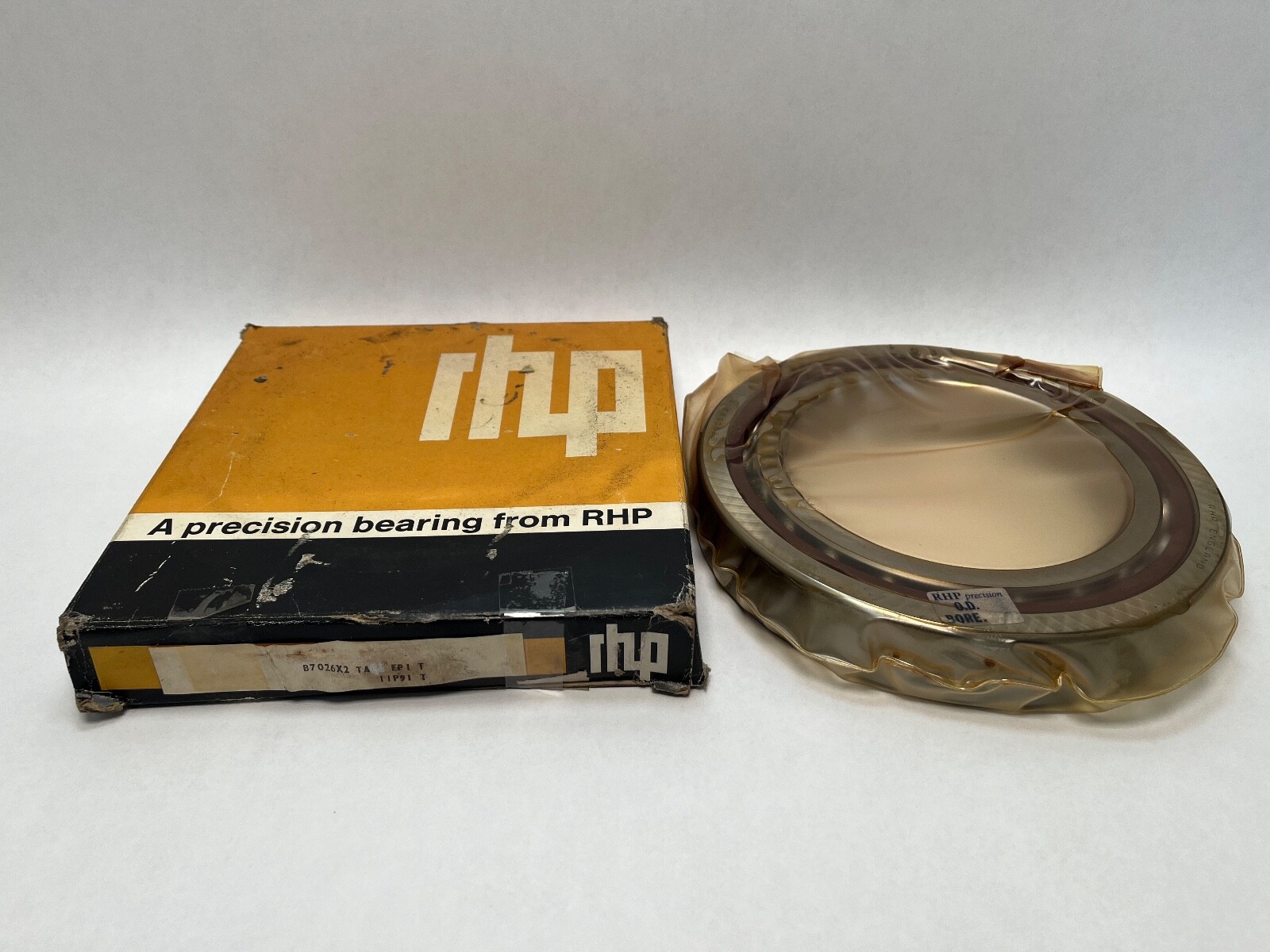

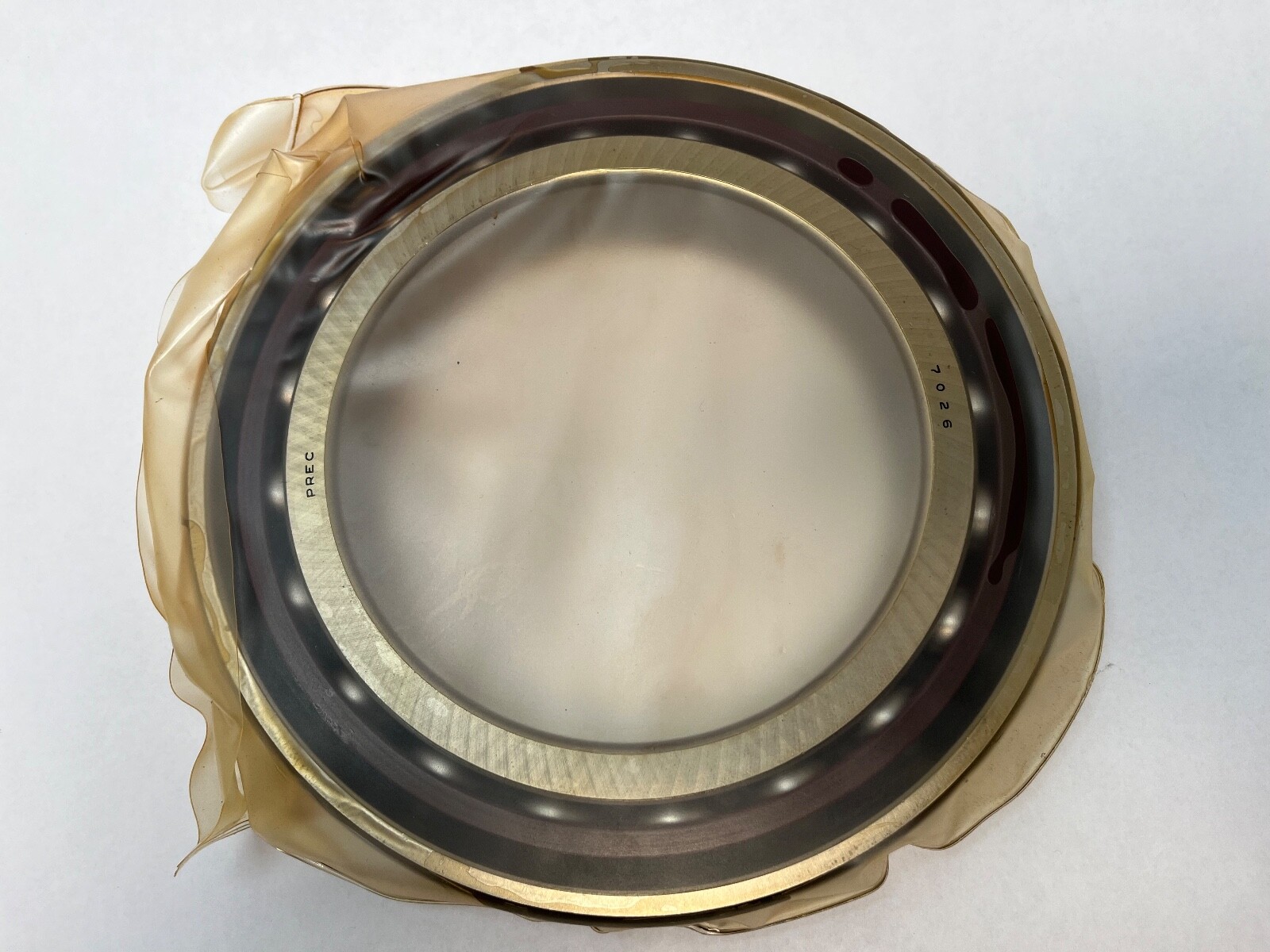

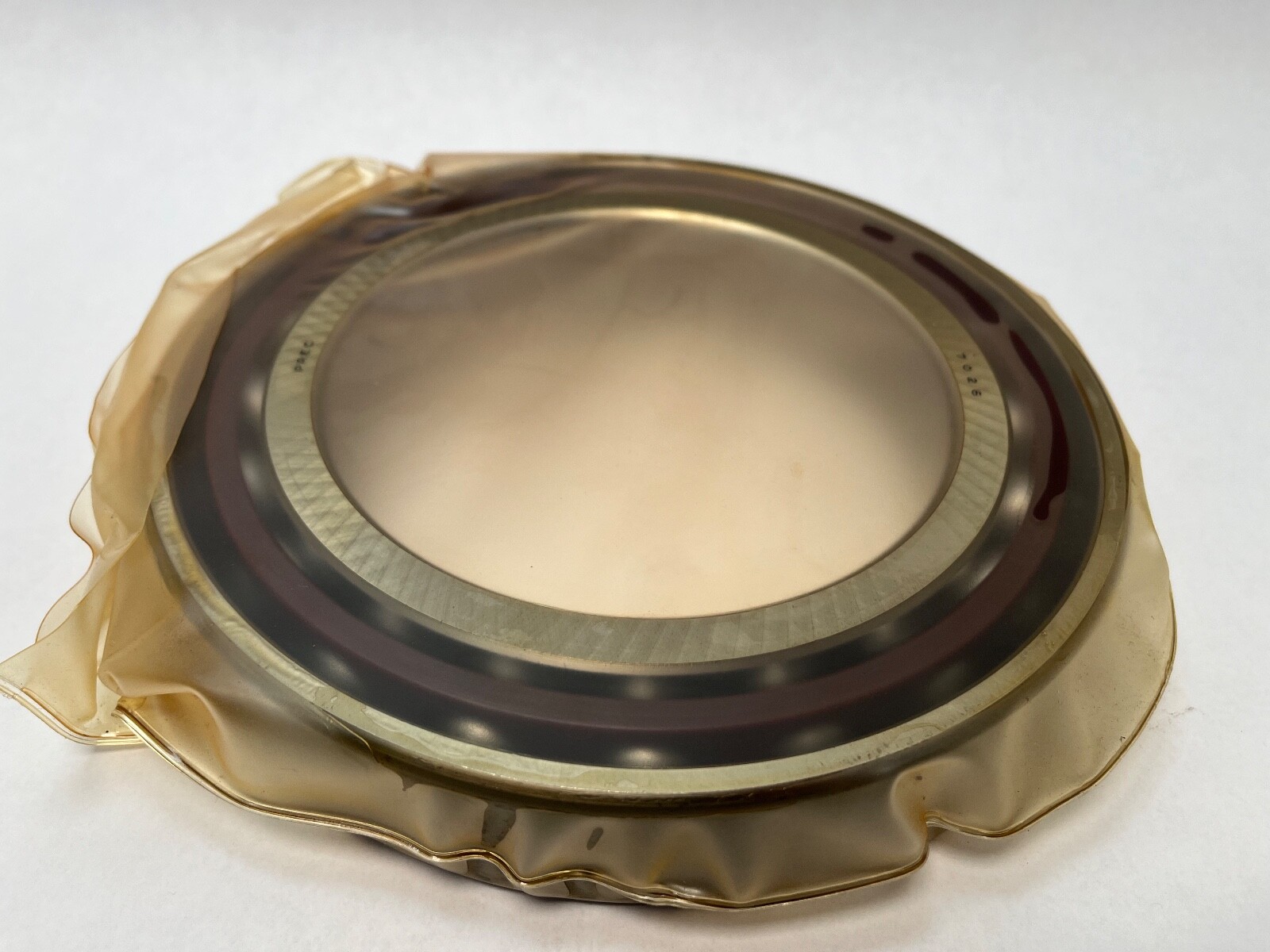

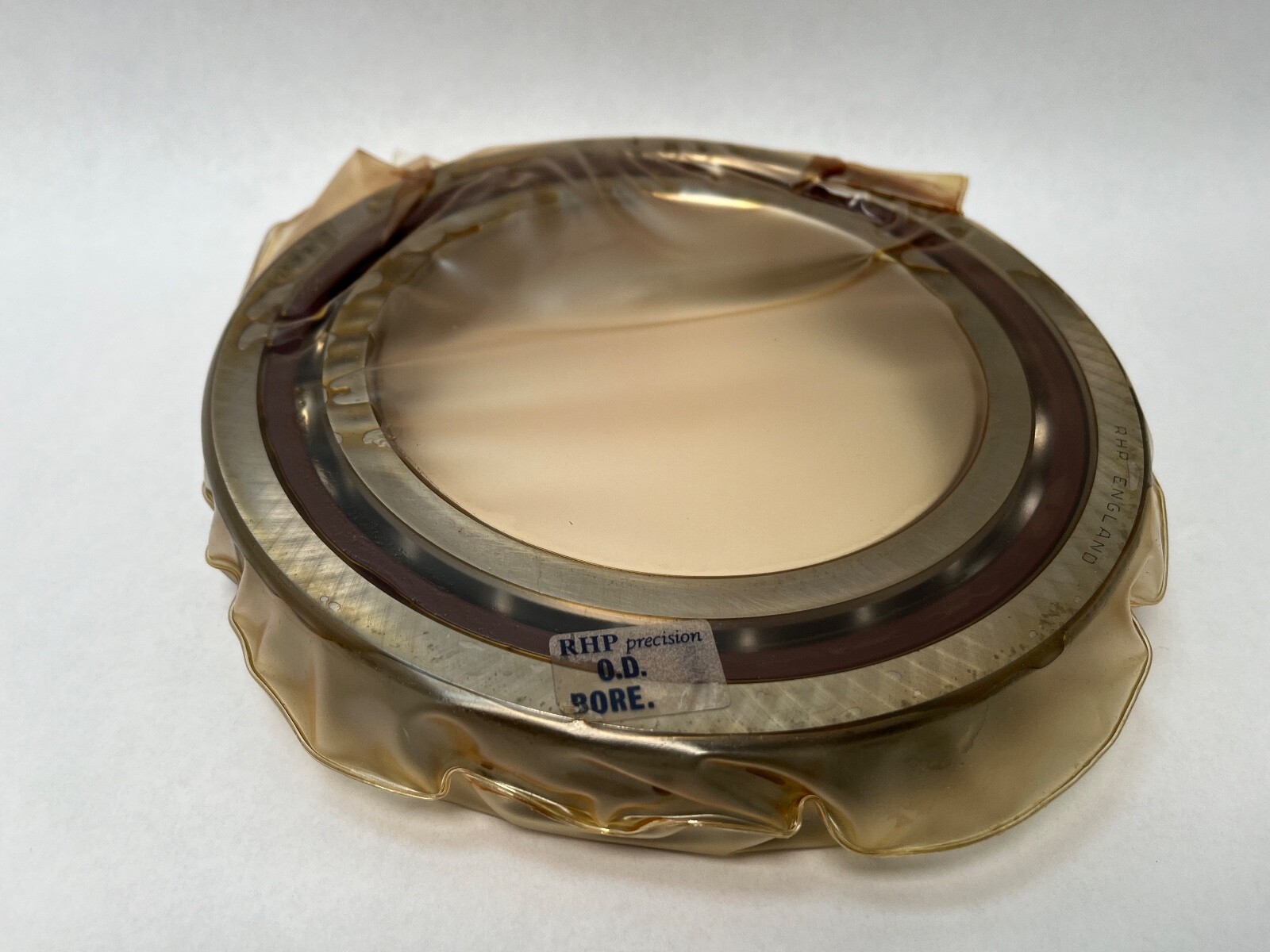

RHP 7026CTP0 angular contact ball bearing. Bore: 130 mm. Outside diameter: 200 mm. Width: 33 mm. Series: 70, ISO dimension series 10. Single row, open, straight bore.

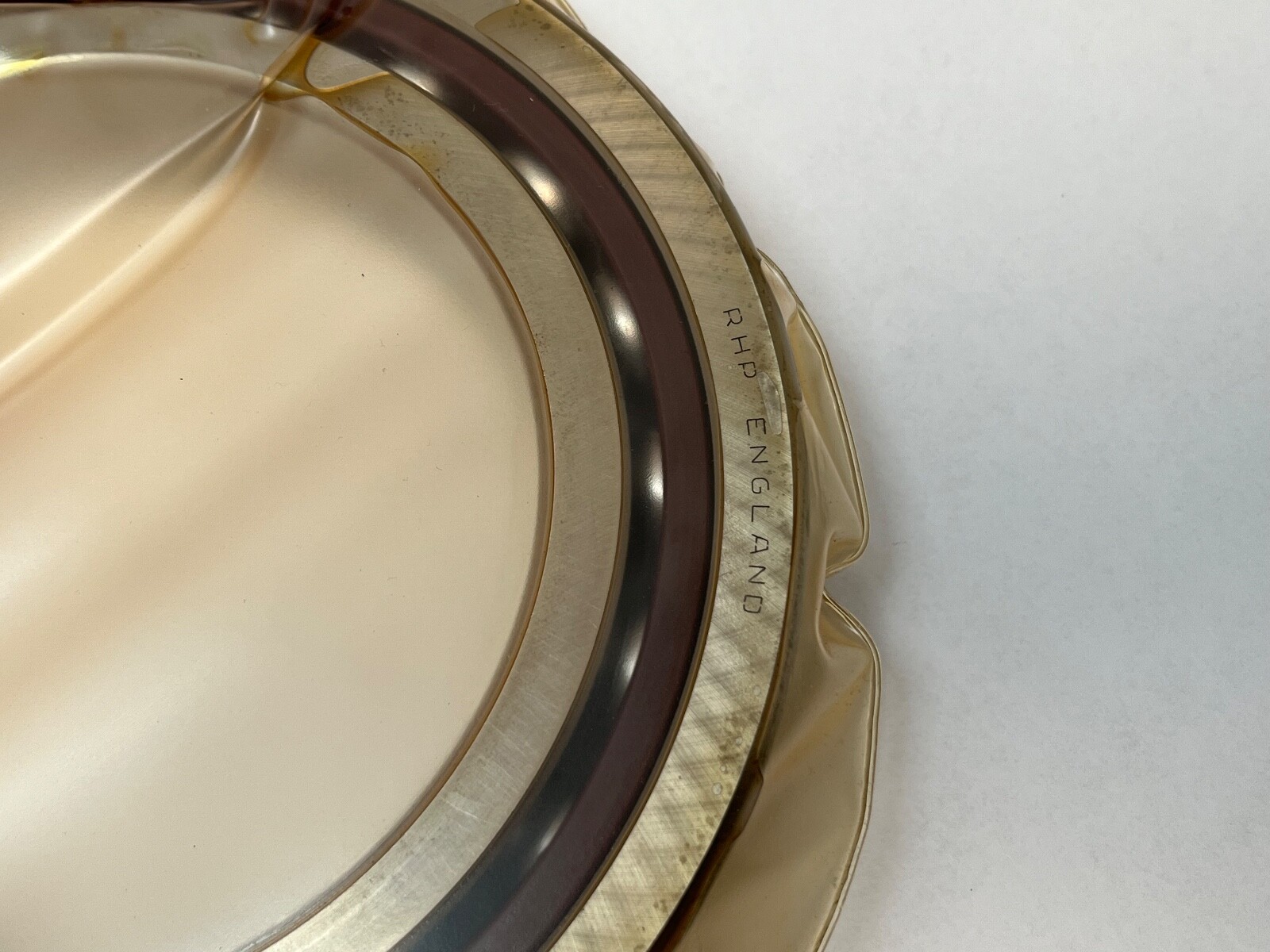

Contact Angle: 15°. Cage: machined laminated phenolic resin, outer ring guided. Precision Grade: P0, equivalent to EP1, ABEC 1 and ISO Normal Class. Internal Clearance: CN, normal. Manufactured in the United Kingdom.
Dynamic Load Rating: 129 kN. Static Load Rating: 137 kN. A 15° contact angle runs faster and carries less thrust than a 25°. The normal precision grade suits general machine and gearbox positions where standard running accuracy and a clearance-set fit are the requirement, and it costs less than the P4 super-precision execution of the same envelope.
One bearing, clearance-set at CN. This execution carries no preload code and no set-grouping code, so it is supplied and fitted as a single bearing. Two opposed bearings, or a combination of more than two, locate a shaft axially in both directions.
Inner ring abutment diameter d1: 140 mm minimum. Outer ring abutment diameters D1 and D2: 190 mm and 194 mm maximum. Fillet radii r and r1: 2.5 mm and 1.0 mm minimum. Internal free volume: 131.8 cm3. Lubrication jet pitch circle diameter: 156.2 mm. Maximum recommended operating temperature: 120 °C for the laminated phenolic cage. Rings and balls: SAE 52100 through-hardened chrome bearing steel. Mass: 3.229 kg (7.12 lb).

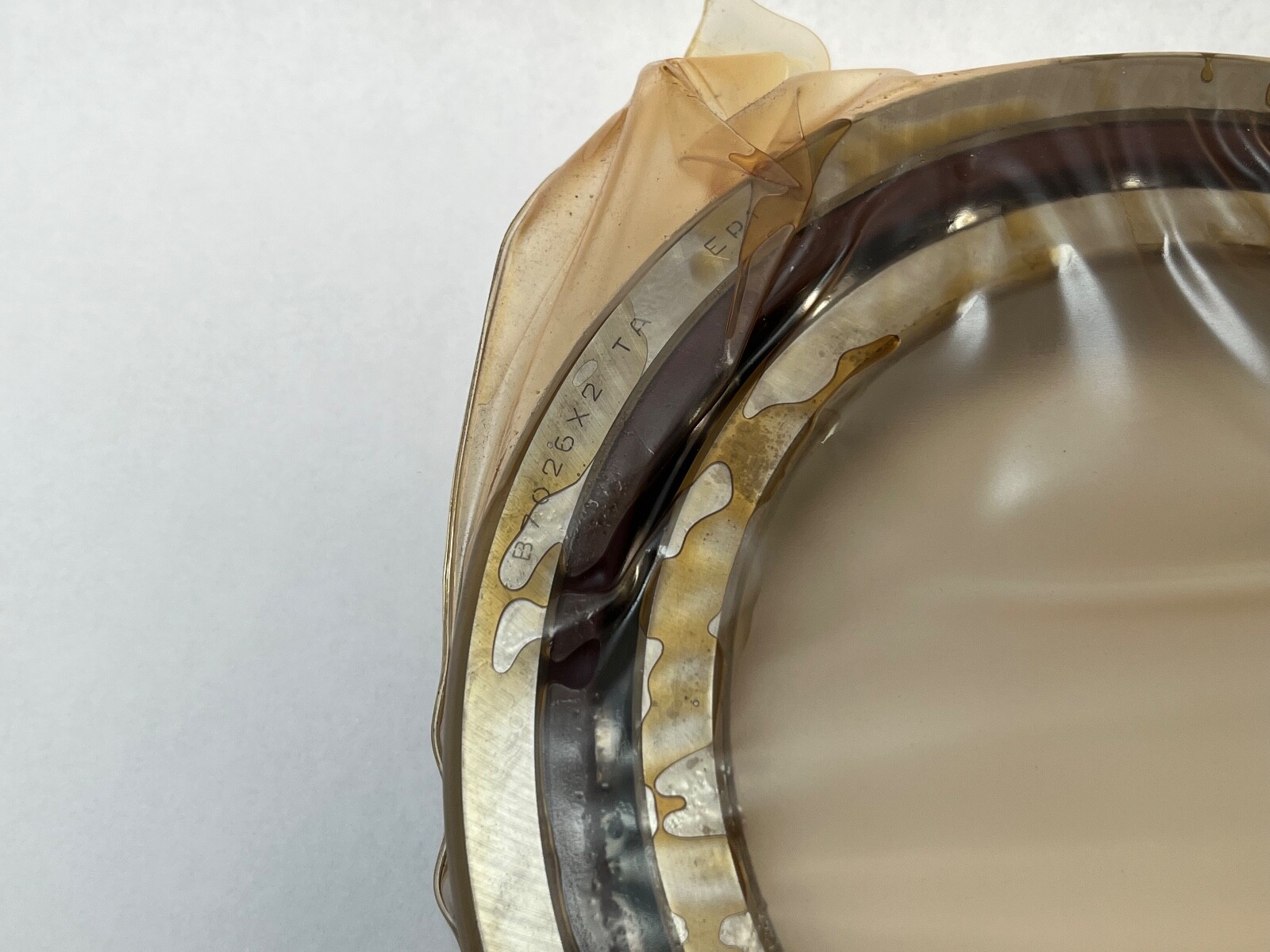

Carton designations: 7026CTP0, 7026-C-T-P0, B-7026-X2-T-EP1, B7026X2TAEP1, M9126WICR. Fafnir M9126WICR shares the 7026 envelope at 130 x 200 x 33 mm. SKF 7026 CD is a 15° equivalent. Related size: FAG 7026-B-TVP is the same envelope at 40° with a glass-fibre polyamide cage.
