Availability:
Out of stock
Angular contact ball bearing, 35 x 62 x 14 mm, 15 degree contact angle. ABEC 1 / P0 class, machined phenolic cage, open on both faces.
List Price
$64.16
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Angular Contact Ball Bearing - 35 mm ID, 62 mm OD, 14 mm Width, 15° Contact Angle, Light Preload, ABEC 7 / P4, Phenolic Cage, Open.$51.83
Super Precision Angular Contact Ball Bearing – 35 mm ID, 62 mm OD, 14 mm Width, Open, 15° Contact Angle, Heavy Preload, P4$88.77
Duplex Pair Angular Contact Ball Bearings 35 x 62 x 14 mm 15 Degree Heavy Preload Phenolic Cage P4$177.55
Super-Precision Angular Contact Ball Bearing, 35x62x14 mm, 15° Contact Angle, Universal Single, Medium Preload, ISO Class 2 / ABEC 9$206.53| MFR / Brand | RHP |
|---|---|
| MPN | 7007CTP0 |
| Model | 7007 C T P0 / B 7007 2X T EP1 / 2-9107WI CR |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 35 mm |
| OD | 62 mm |
| Width | 14 mm |
| Series | 7000 |
|---|---|
| Material | Bearing Steel |
| Base Number | 7007 |
| Industry Terms | Angular contact ball bearing; spindle bearing; ABEC 1 bearing; P0 class bearing; phenolic cage bearing |
| Common Misspellings | 7007 C T P0; 7007CTPO; 7007 CT P0; RHP 7007TP0; B7007 X2 T EP1 |
| Application Types | Machine tool spindles; gearboxes; pumps; electric motors; indexing heads |
| Overall Width | 14 mm |
| Mpn Variants | 7007CTP0; 7007-C-T-P0; B7007X2TEP1; 7007X2; 7007C; 2MM9107WICRSUL |
| Precision Class | ABEC 1 / P0 |
| Additional Attributes | Effective load centre a: 13.5 mm; internal free volume 7.0 cm3; lubrication jet PCD 44.6 mm |
| Cage Type | Machined |
| Dynamic Load Rating | 19,100 N |
| Static Load Rating | 13,700 N |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Bearing Material | Bearing steel |
| Cross Reference 1 | SKF 7007 CD/P4A - P4 class |
|---|---|
| Cross Reference 2 | FAG B7007-C-T-P4S - P4 class |
| Cross Reference 3 | NSK 7007CTRSULP4 - P4 class |
| Cross Reference 4 | NTN 7007UCG/GNP4 - P4 class |
| Cross Reference 5 | Timken Fafnir 2MM9107WICRSUL - P4 class |
| Cross Reference 6 | RHP B7007X2TEP1 - same bearing, RHP B-series scheme |
| Cross Reference 7 | Koyo 7007C/GNP4 - P4 class |
| Cross Reference 8 | GMN S6007 C TA P4 - P4 class |
| Cross Reference 9 | SNFA E 7007 7CE1 - P4 class |
RHP 7007-C-T-P0 single-row angular contact ball bearing. Bore Diameter: 35 mm. Outside Diameter: 62 mm. Overall Width: 14 mm. Contact Angle: 15°. Precision Class: ABEC 1 / P0. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Cage Material: Phenolic.
70 — ISO dimension series 10, the light section of the angular contact range. At a given bore it has a smaller outside diameter and a lower section height than the 72 series.
07 — bore code. Bore Diameter: 35 mm.

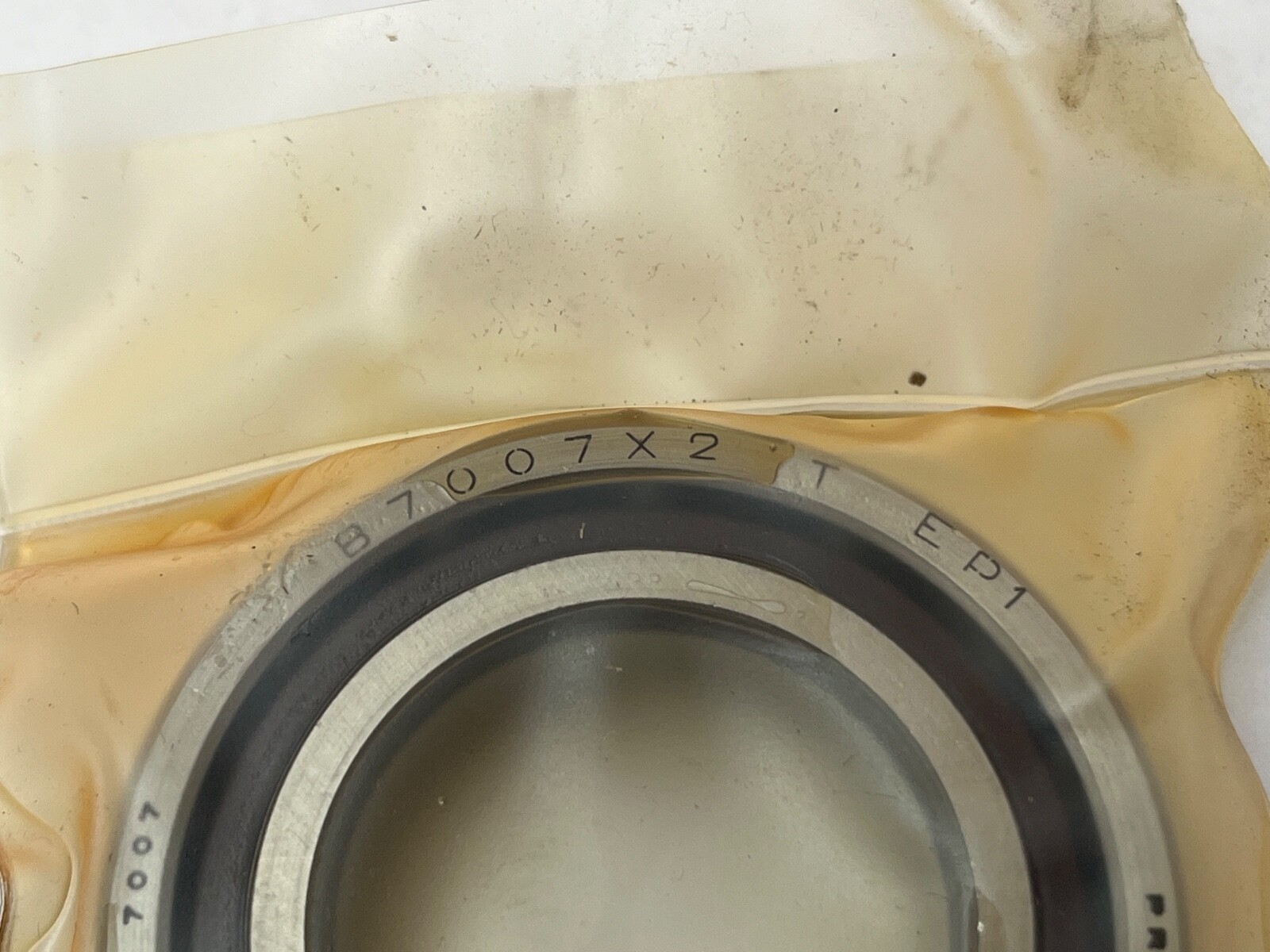

C — 15° contact angle. The carton confirms it with X2 in the RHP B-series string B7007X2TEP1.
T — machined laminated phenolic cage.
P0 — RHP tolerance class P0, equivalent to BS 292 EP1 and ABEC 1. EP1 appears directly in the carton’s B-series string.
Dynamic Load Rating: 19,100 N. Static Load Rating: 13,700 N. These are the ISO 281 and ISO 76 ratings for the 7007 C envelope and are set by the internal geometry, so they hold across precision classes.
Cage Material: Phenolic. A laminated phenolic cage is light, tolerant of marginal lubrication and quiet at speed.
Item Weight: 0.150 kg (0.33 lb).
Minimum inner ring abutment diameter: 41 mm. Maximum outer ring abutment diameter: 56 mm. Maximum outer ring seating diameter: 57 mm. Chamfer r min: 1.0 mm. Chamfer r1 min: 0.6 mm.
Effective load centre a: 13.5 mm. Internal free volume: 7.0 cm3. Pitch circle diameter for lubrication jets: 44.6 mm.

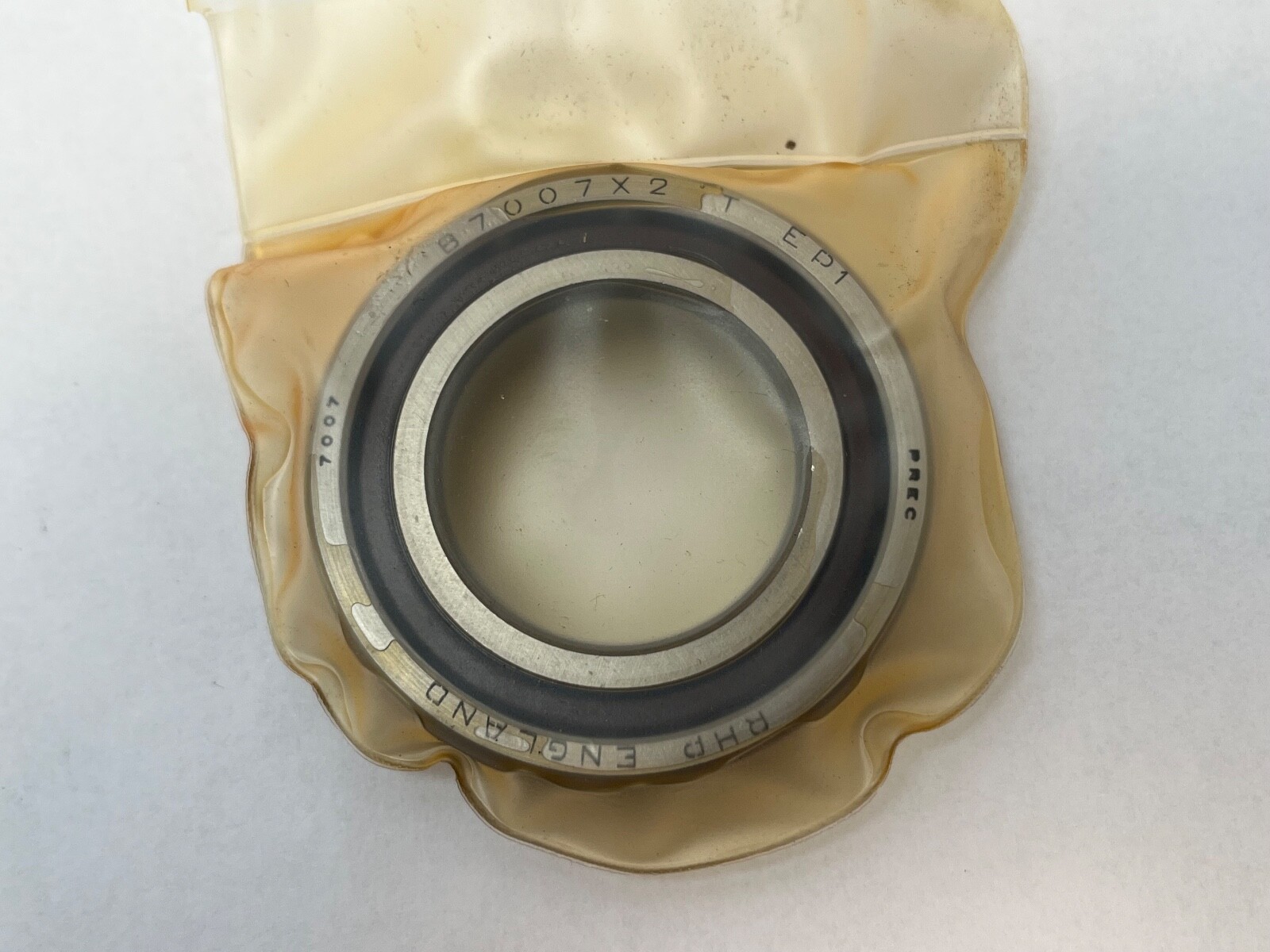

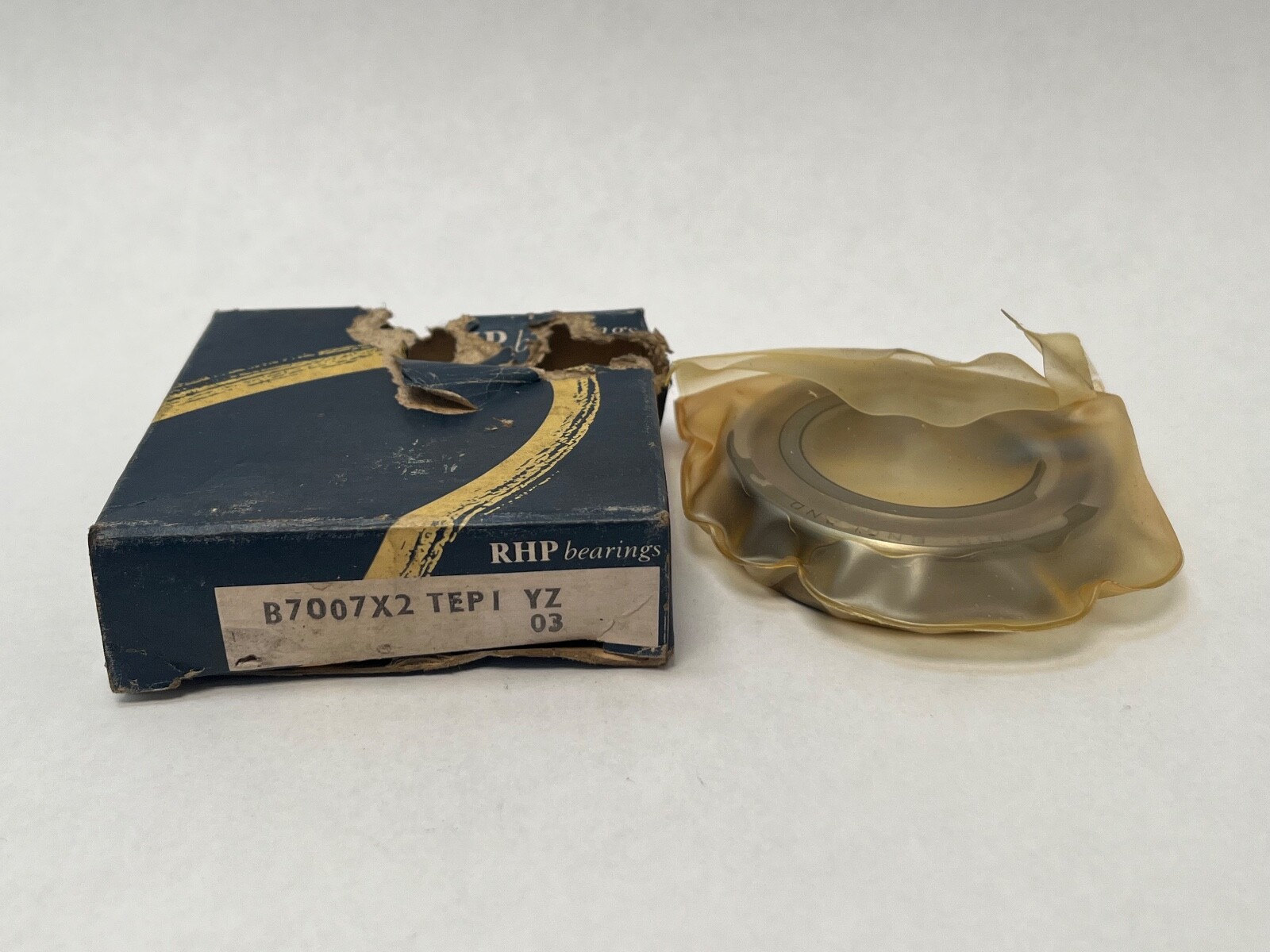

Unit Quantity: 1 Pc. The carton also carries the RHP B-series designation B7007X2TEP1.
Same 35 x 62 x 14 mm envelope at 15°, in the precision classes each maker publishes: SKF 7007 CD/P4A, FAG B7007-C-T-P4S, NSK 7007CTRSULP4, NTN 7007UCG/GNP4, Timken Fafnir 2MM9107WICRSUL, Koyo 7007C/GNP4, GMN S6007 C TA P4 and SNFA E 7007 7CE1 are all P4 executions of the same size and angle. RHP B7007X2TEP1 is this same bearing in the RHP B-series scheme.
$111.47
35 in stock
$137.64
92 in stock
$141.11
255 in stock
