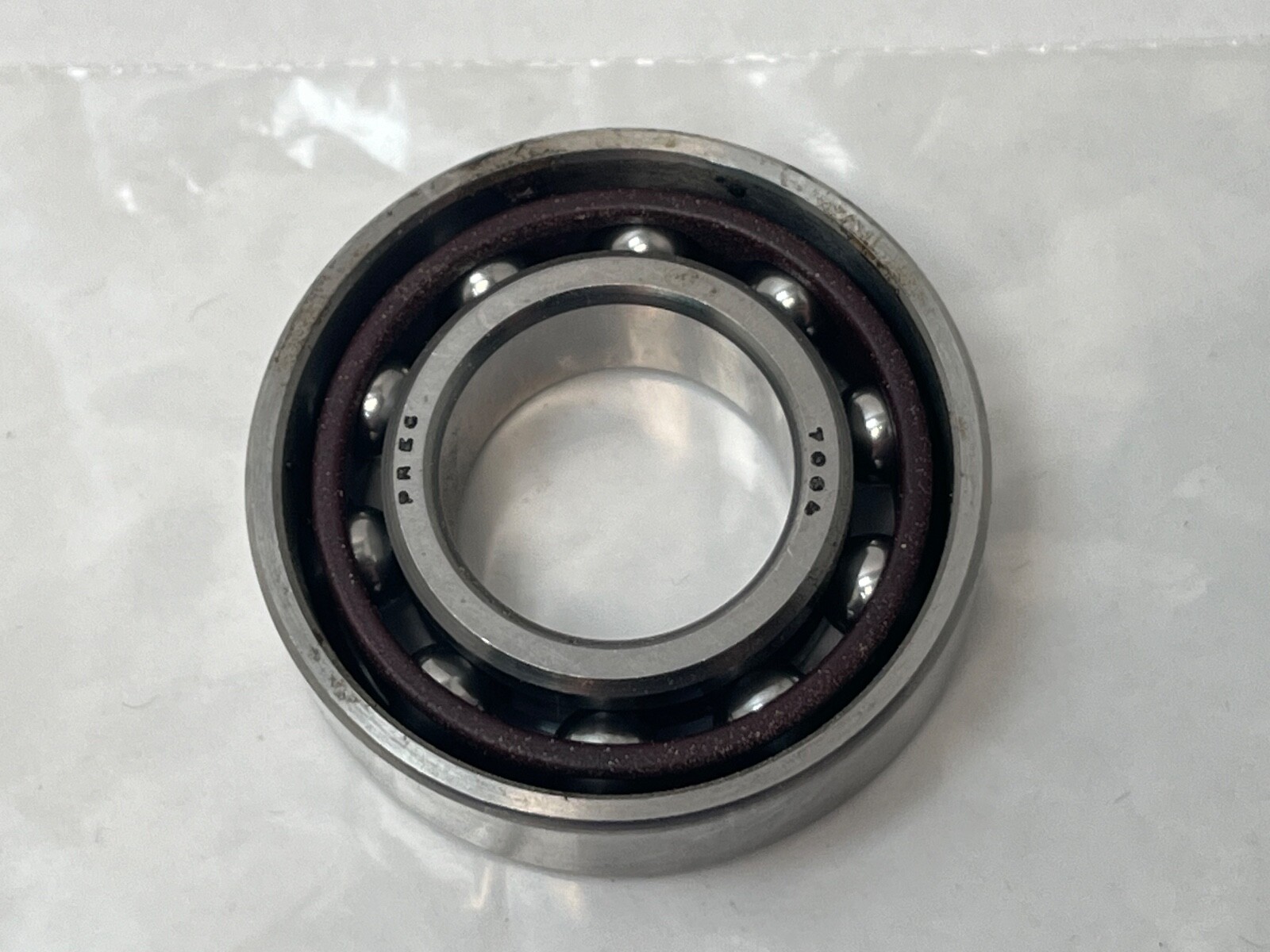

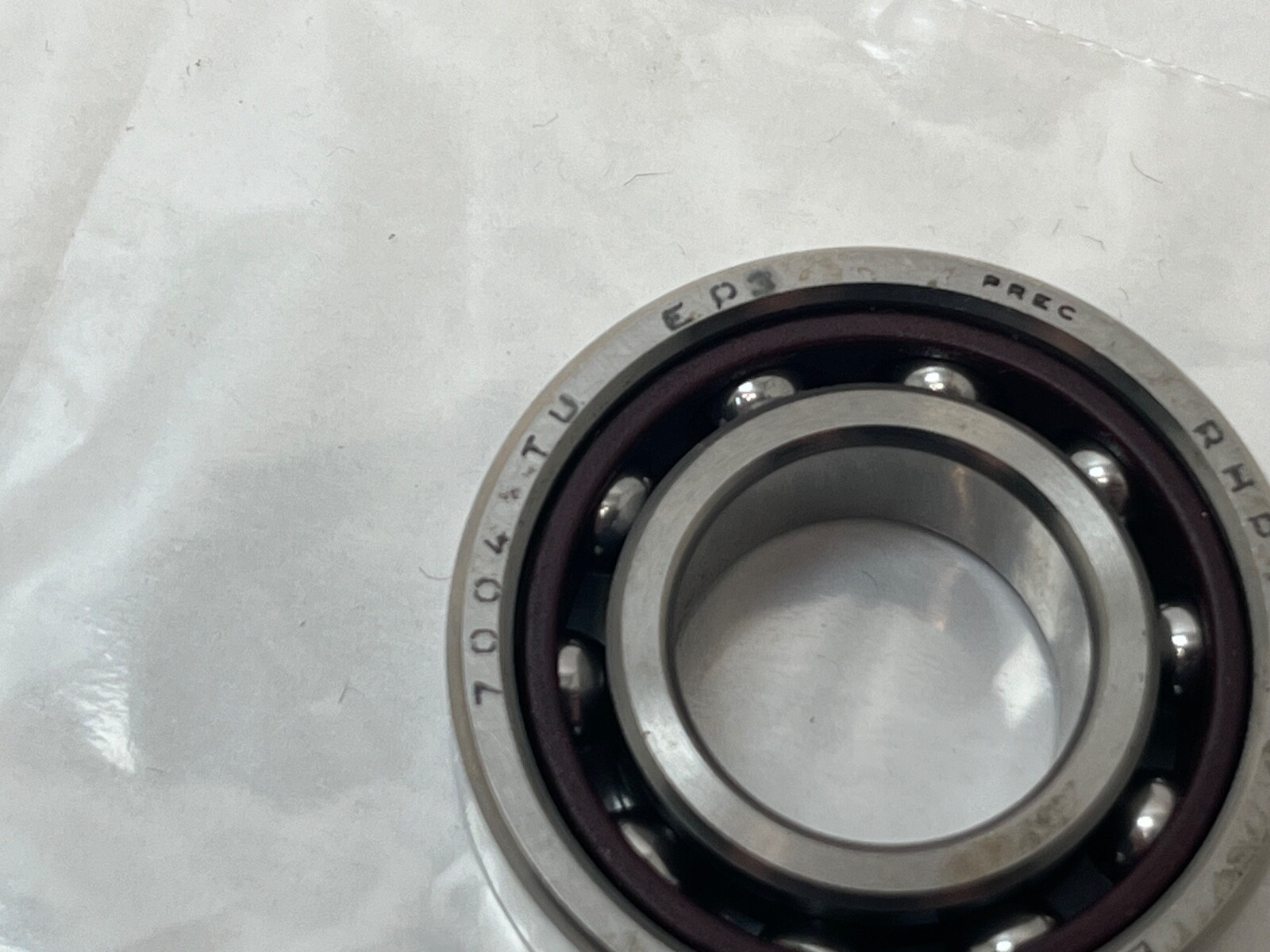

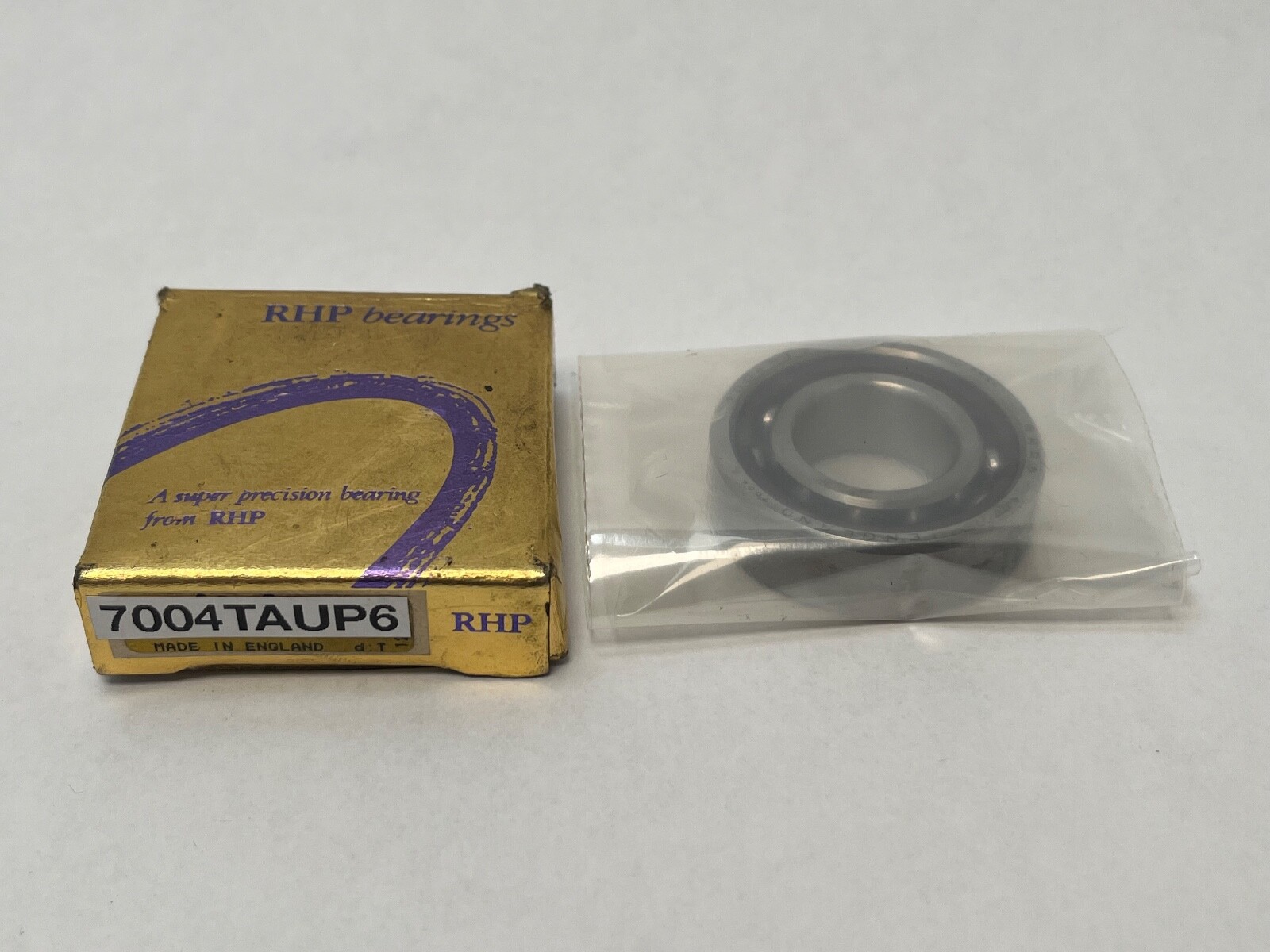

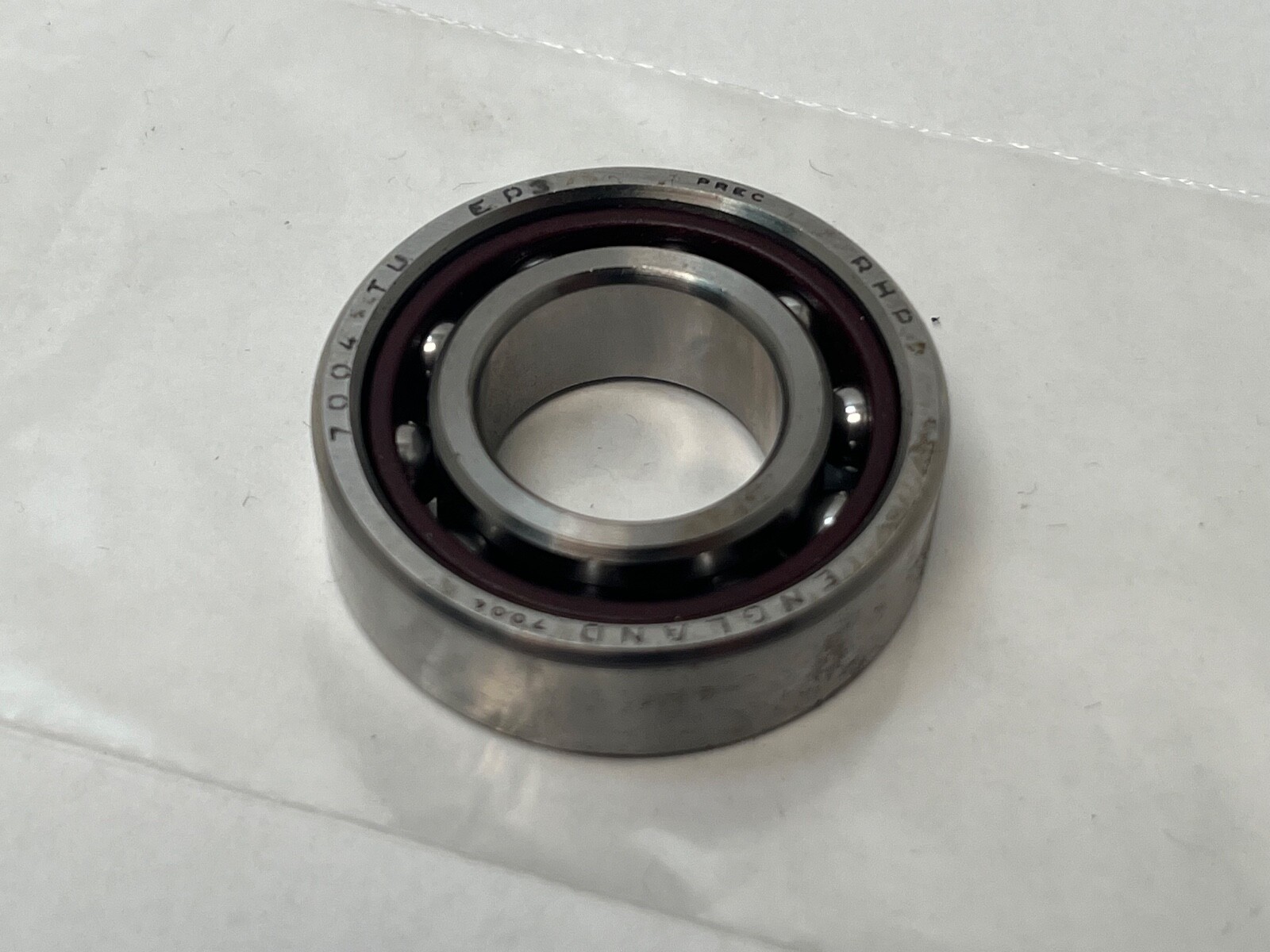

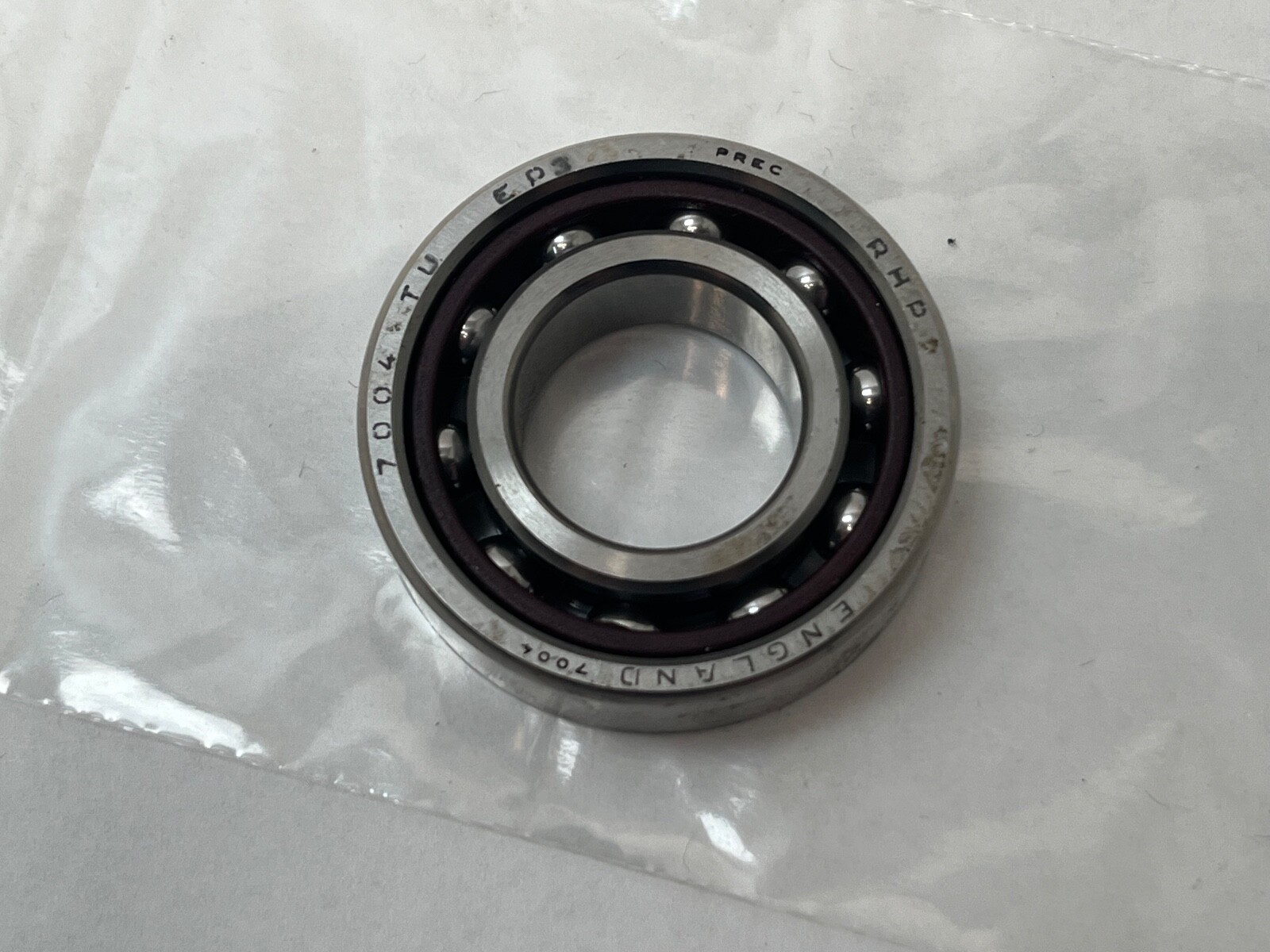

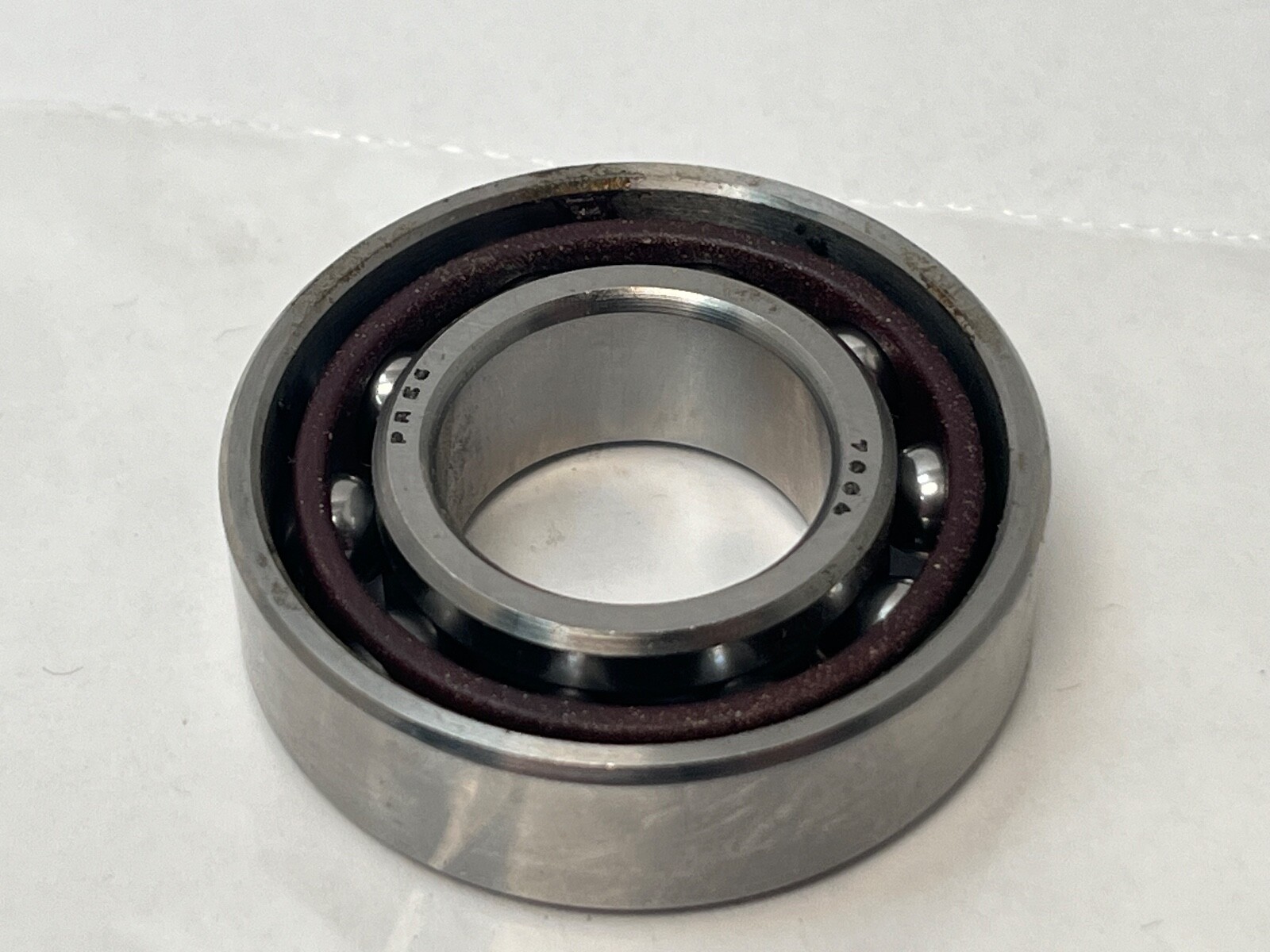

RHP 7004TSULP6 angular contact ball bearing, 20 mm bore, 42 mm OD, 12 mm width, 15° contact angle, ABEC 3 / P6, open, light preload, made in England.
List Price
$52.67
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Super-Precision Angular Contact Ball Bearing - 20 mm ID, 42 mm OD, 12 mm Width, Open, 25° Contact Angle, Light Preload, ABEC 7$54.38
Super-Precision Angular Contact Ball Bearing - 20 mm ID, 42 mm OD, 12 mm Width, Open, 15° Contact Angle, Light Preload, ABEC 7$54.38
Super Precision Angular Contact Ball Bearing Pair - 20 mm ID, 42 mm OD, 12 mm Width, 15° Contact Angle, ABEC 7, Light Preload$107.72
Super Precision Angular Contact Ball Bearing - Straight Bore, 20 mm ID, 42 mm OD, 12 mm Width, Open, 25° Contact Angle, Light Preload, ABEC 7 / P4, Matched Pair$110.02| MFR / Brand | RHP |
|---|---|
| MPN | 7004TSULP6 |
| Model | 7004 TA U P6 / M9104WI SUL / 7004 T SUL P6 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 20 mm |
| OD | 42 mm |
| Width | 12 mm |
| Series | 7000 |
|---|---|
| Preload | Light |
| Material | Bearing Steel |
| Precision Class | ABEC 3 / P6 |
| Dynamic Load Rating C1 | 11,100 N |
| Cage Type | Machined, outer-ring guided |
| Dynamic Load Rating | 11,100 N |
| Static Load Rating | 6,550 N |
| Precision Rating | ABEC 3 / P6 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Cross Reference 1 | SKF 7004 CD |
|---|---|
| Cross Reference 2 | FAG B7004-C |
| Cross Reference 3 | NSK 7004C |
| Cross Reference 4 | NTN 7004 |
Angular contact ball bearing. Bore Diameter: 20 mm. Outside Diameter: 42 mm. Overall Width: 12 mm. Contact Angle: 15°. Precision Class: ABEC 3 / P6. Closure Type: Open.
7004 — RHP’s number for the ISO series 10 size, 20 x 42 x 12 mm.
TA — outer-ring centred, machined phenolic cage.
SU — universal face control, ground for mounting in any combination.
L — light preload.
P6 — RHP precision class, the current equivalent of the legacy EP3 grade, ABEC 3.
Dynamic Load Rating: 11,100 N. Static Load Rating: 6,550 N. Rolling Elements: Ball. Bore Type: Straight.
Unit Quantity: 2 Pcs.
Same 20 x 42 x 12 mm, 15° envelope as SKF 7004 CD, FAG B7004-C, NSK 7004C, NTN 7004, and Timken/Fafnir 2MM9104WI.
