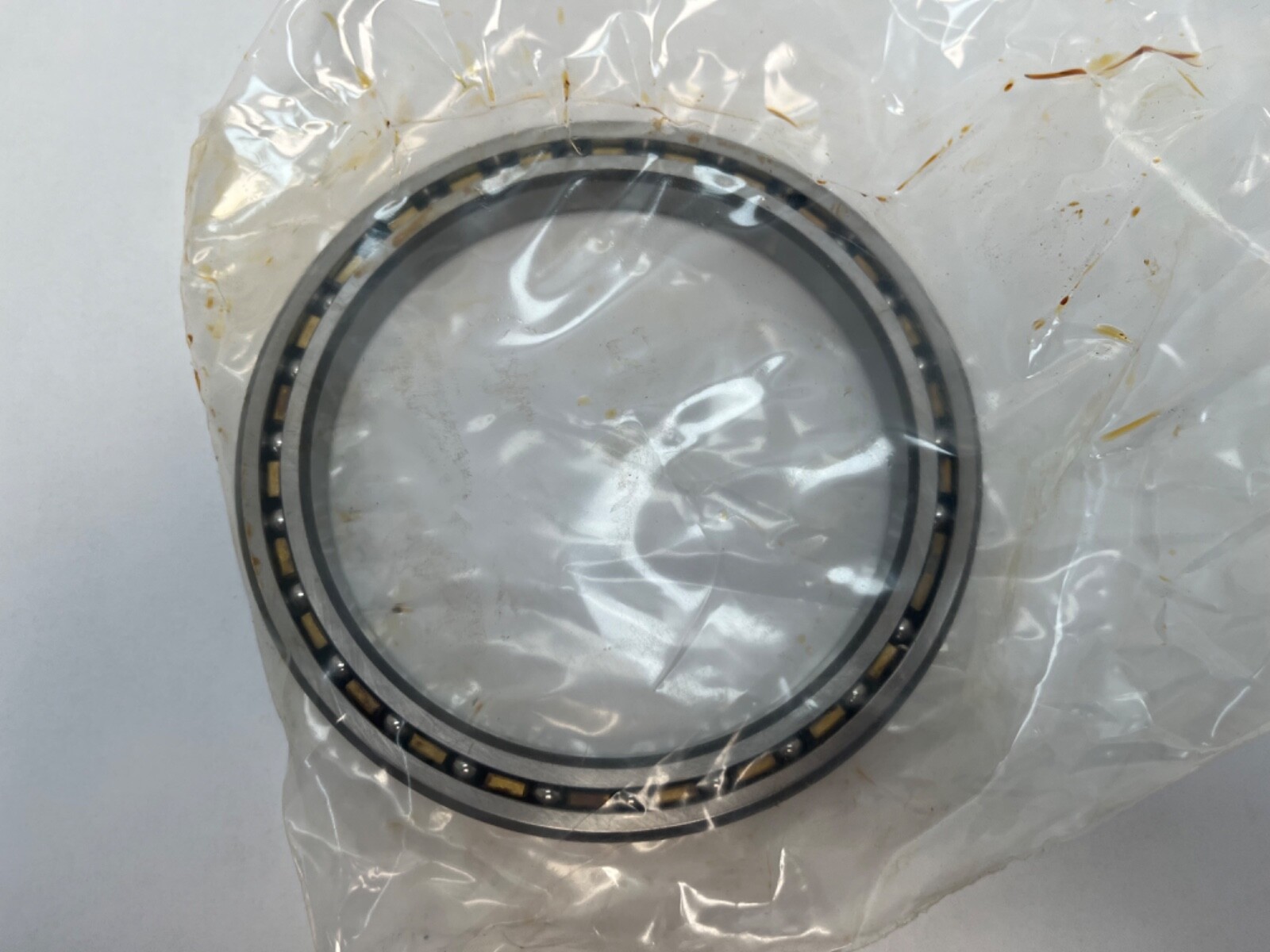

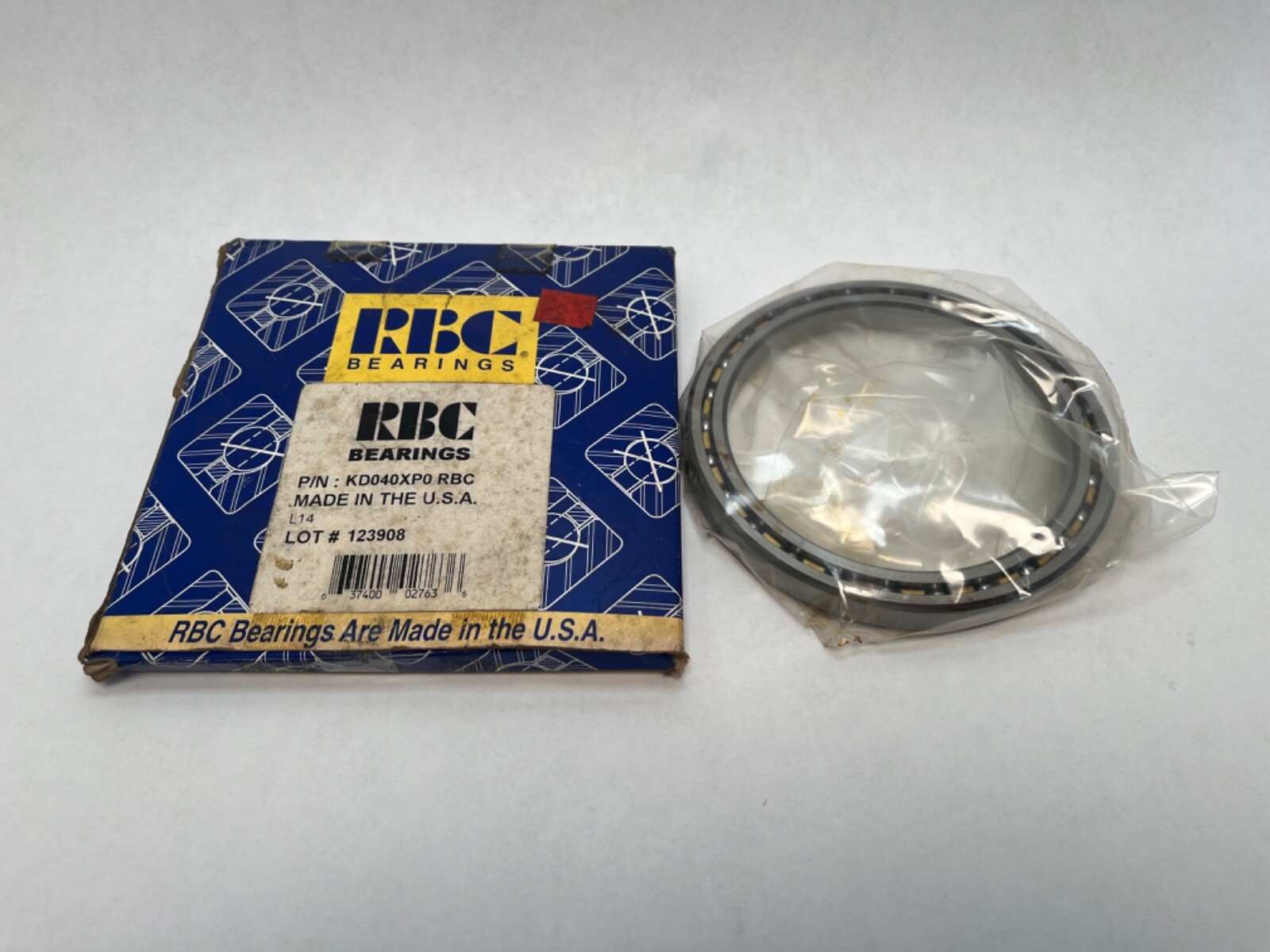

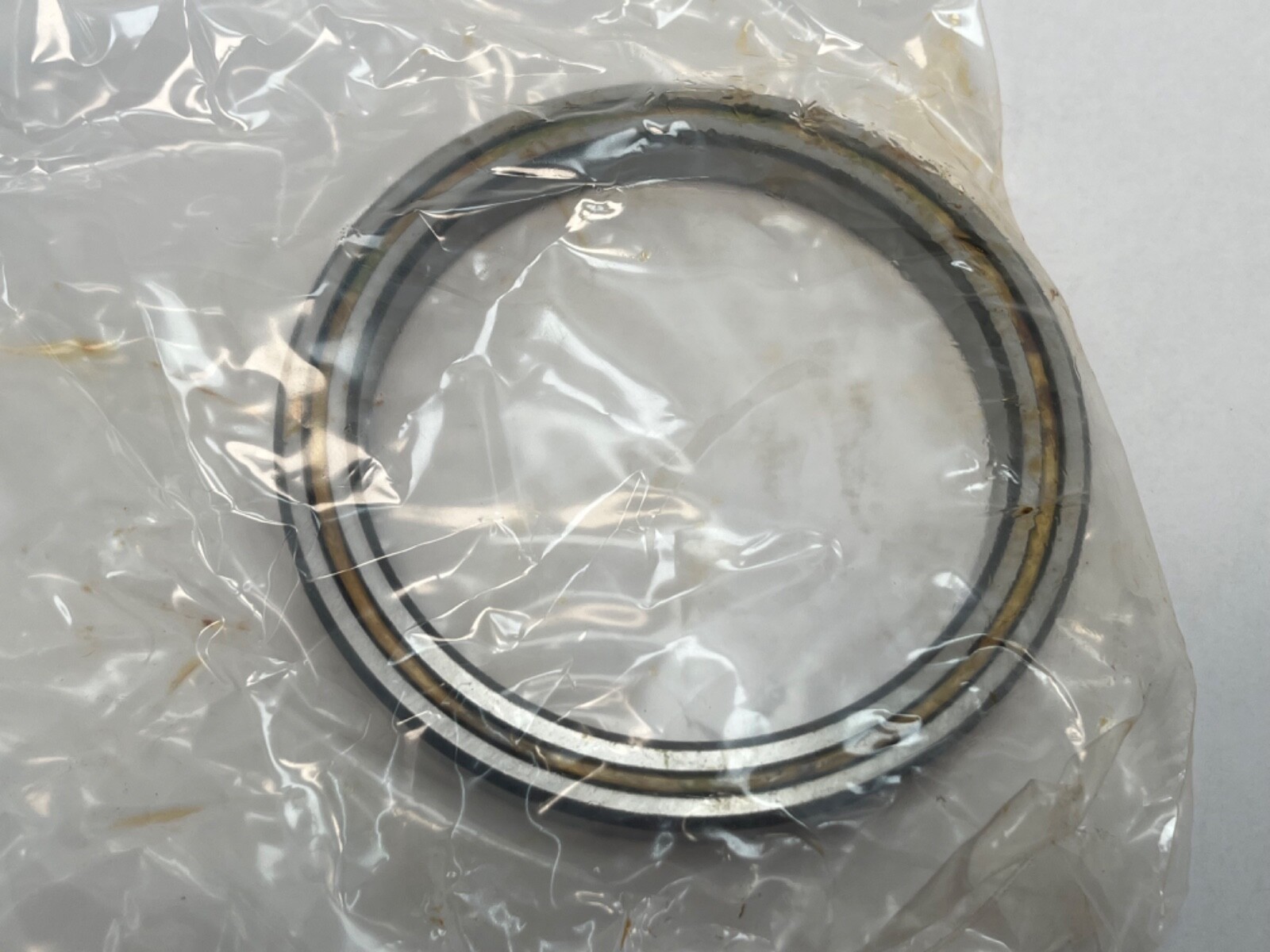

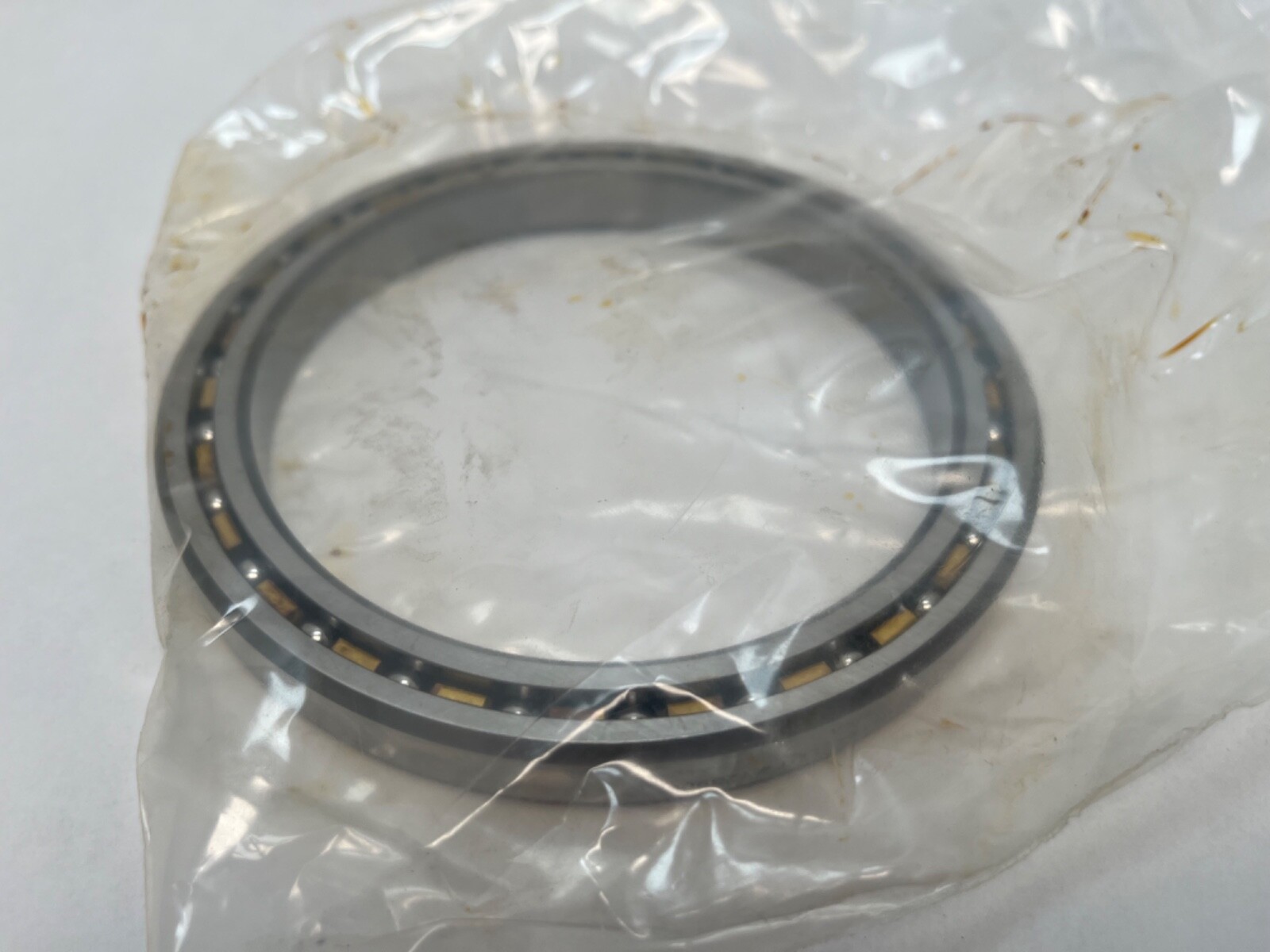

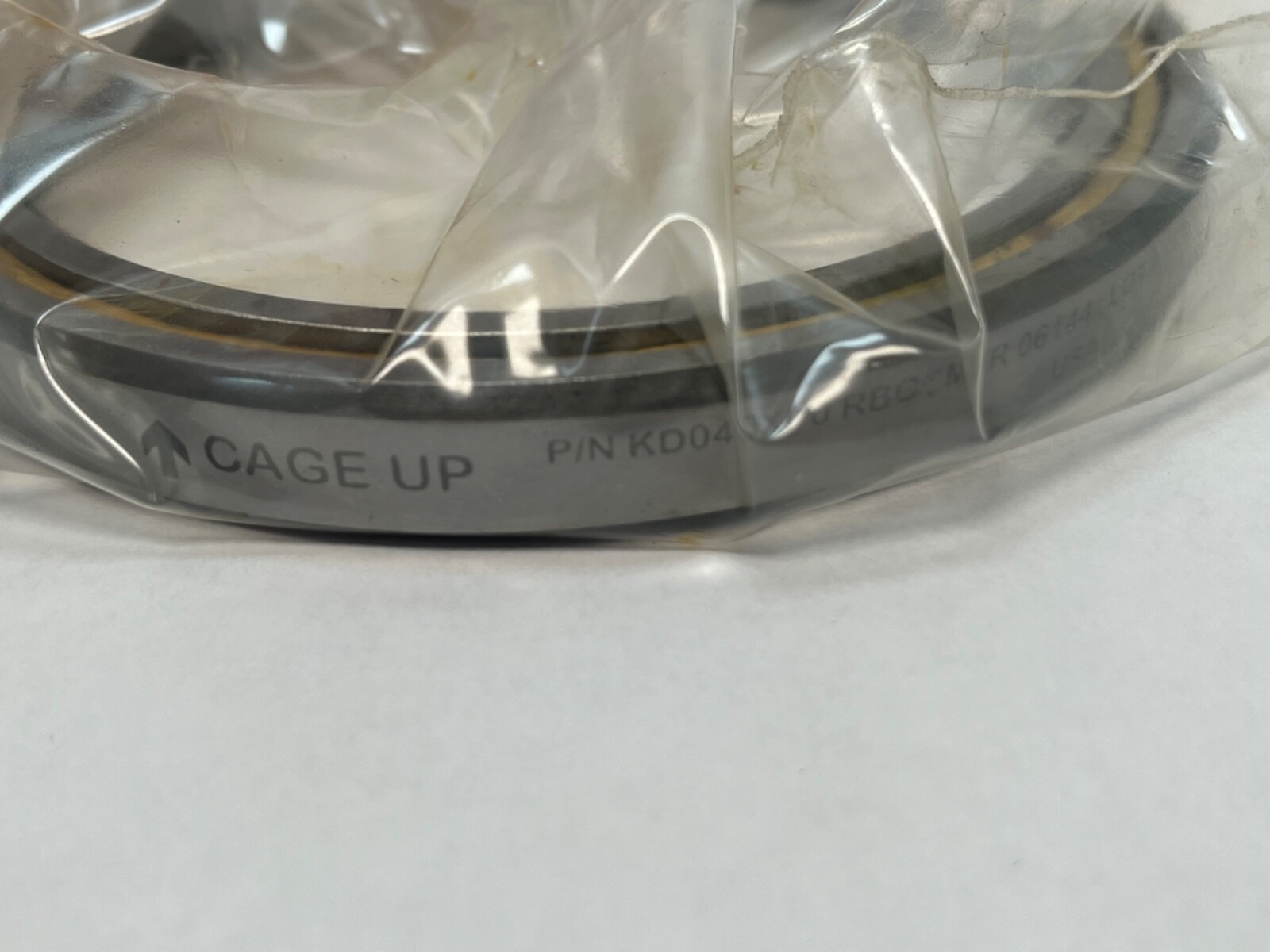

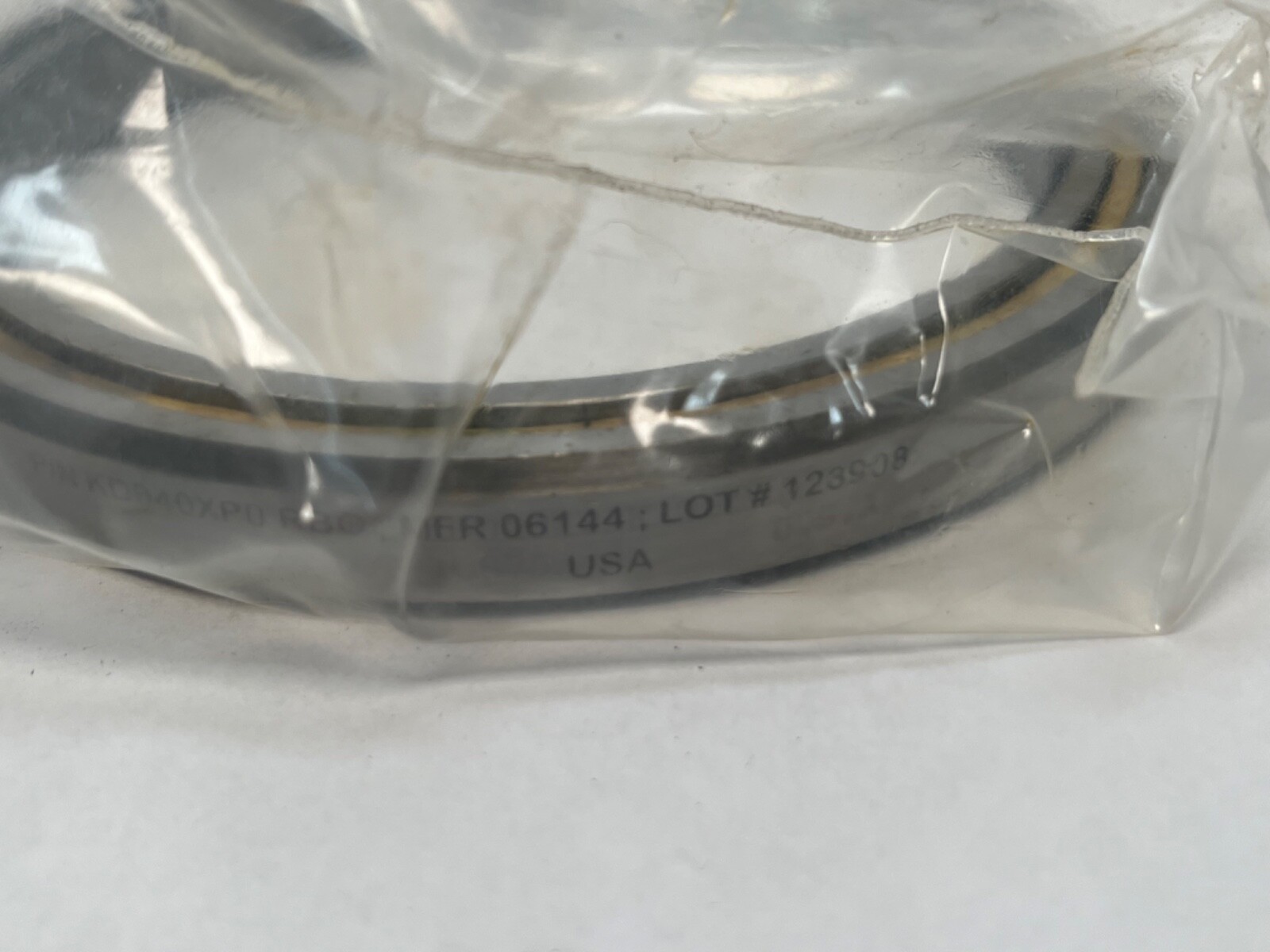

RBC KD040CP0 thin section radial contact ball bearing, 4.000 in bore x 5.000 in OD x 0.500 in wide, open, ABEC 1F. Interchanges with Kaydon Reali-Slim KD040CP0.
List Price
$335.78
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RBC |
|---|---|
| MPN | KD040CP0 |
| Model | KD040CP0 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 4.000 in |
| OD | 5.000 in |
| Width | 0.500 in |
| Material | 52100 bearing quality steel |
|---|---|
| Series | KD |
| Closure Type | Open |
| Cage Type | One-piece snap-type |
| Dynamic Load Rating | 2,250 lbf (radial) |
| Static Load Rating | 3,080 lbf (radial) |
| Rolling Elements | Ball |
| Item Weight | 0.78 lb |
| Cage Material | Brass/non-metallic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Internal Clearance | C0 |
| Base Number | KD040 |
| Industry Terms | thin section bearing, Reali-Slim, constant section bearing, slim bearing, Type C radial contact |
| Common Misspellings | KD040CPO, KD04OCP0, KD40CP0 |
| Overall Width | 0.500 in |
| Mpn Variants | KD040CP0, KD-040-CP0, KD 040 CP0, KD040CP0-RBC, KD040CP0*RBC |
| Compatible With Replaces | Kaydon Reali-Slim KD040CP0 |
| Precision Class | ABEC 1F |
| Additional Attributes | Operating temperature: -60 to 250 °F; Housing fillet: 0.06 in; Filling slot: none; Standards: MIL-PRF-23827, MIL-PRF-3150 |
| Limiting Speed | 3,560 rpm grease; 4,440 rpm oil |
| Bearing Material | 52100 bearing quality steel |
| Cross Reference 1 | Kaydon KD040CP0 |
|---|
The RBC KD040CP0 is a single-row thin section ball bearing of radial contact (Type C) design in the KD series, which holds a constant 1/2 in radial cross section as bore size increases. It is built for compact assemblies where a standard-series bearing is too bulky.
KD — thin section series with a 1/2 in x 1/2 in cross section.
040 — 4.000 in bore.
C — radial contact (Type C) ball bearing.
P — one-piece snap-type cage in brass or non-metallic composite.
0 — standard precision, ABEC 1F.
Bore Diameter: 4.000 in. Outside Diameter: 5.000 in. Overall Width: 0.500 in. Precision Class: ABEC 1F. Internal Clearance: C0. Cage Material: Brass/non-metallic. Closure Type: Open. Number Of Rows: 1. Bearing Material: 52100 bearing quality steel. Snap Ring: No. Filling Slot: None.
Dynamic Load Rating: 2,250 lbf (radial). Static Load Rating: 3,080 lbf (radial). Limiting Speed: 3,560 rpm grease; 4,440 rpm oil. Operating Temperature: -60 to 250 °F. Item Weight: 0.78 lb.
The 1/2 in section gives a 4 in shaft a bearing only 1/2 in deep radially, saving space and weight over a standard-series bearing of the same bore.
Housing Fillet: 0.06 in. Standards: MIL-PRF-23827, MIL-PRF-3150.
Kaydon Reali-Slim KD040CP0 shares the designation, envelope and Type C construction.
