NTN7407T1GD2GLAngular Contact Ball Bearing – 35 mm ID, 100 mm OD, 25 mm Width, 30° Contact Angle, Light Preload

Product Description

What this part is:

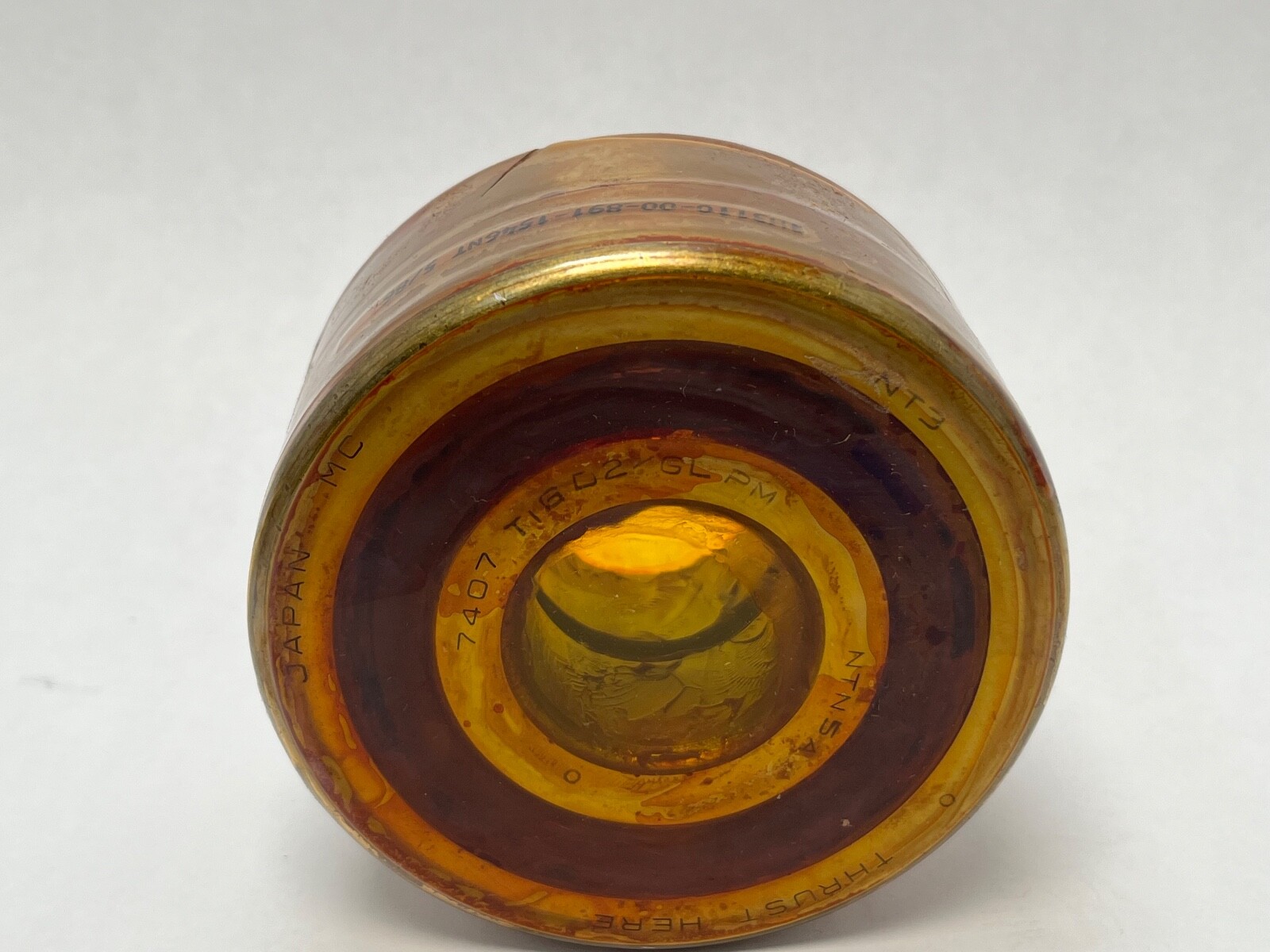

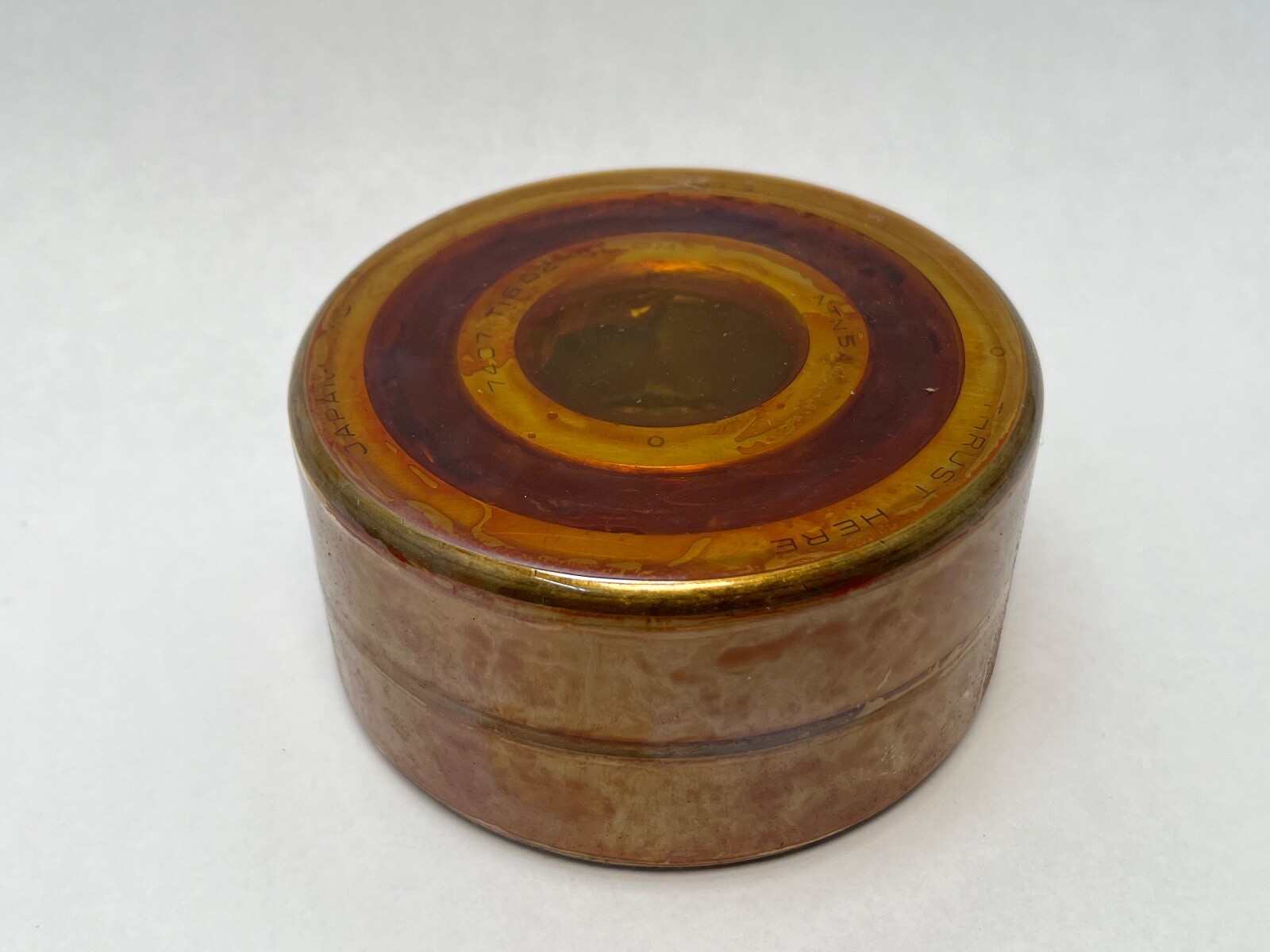

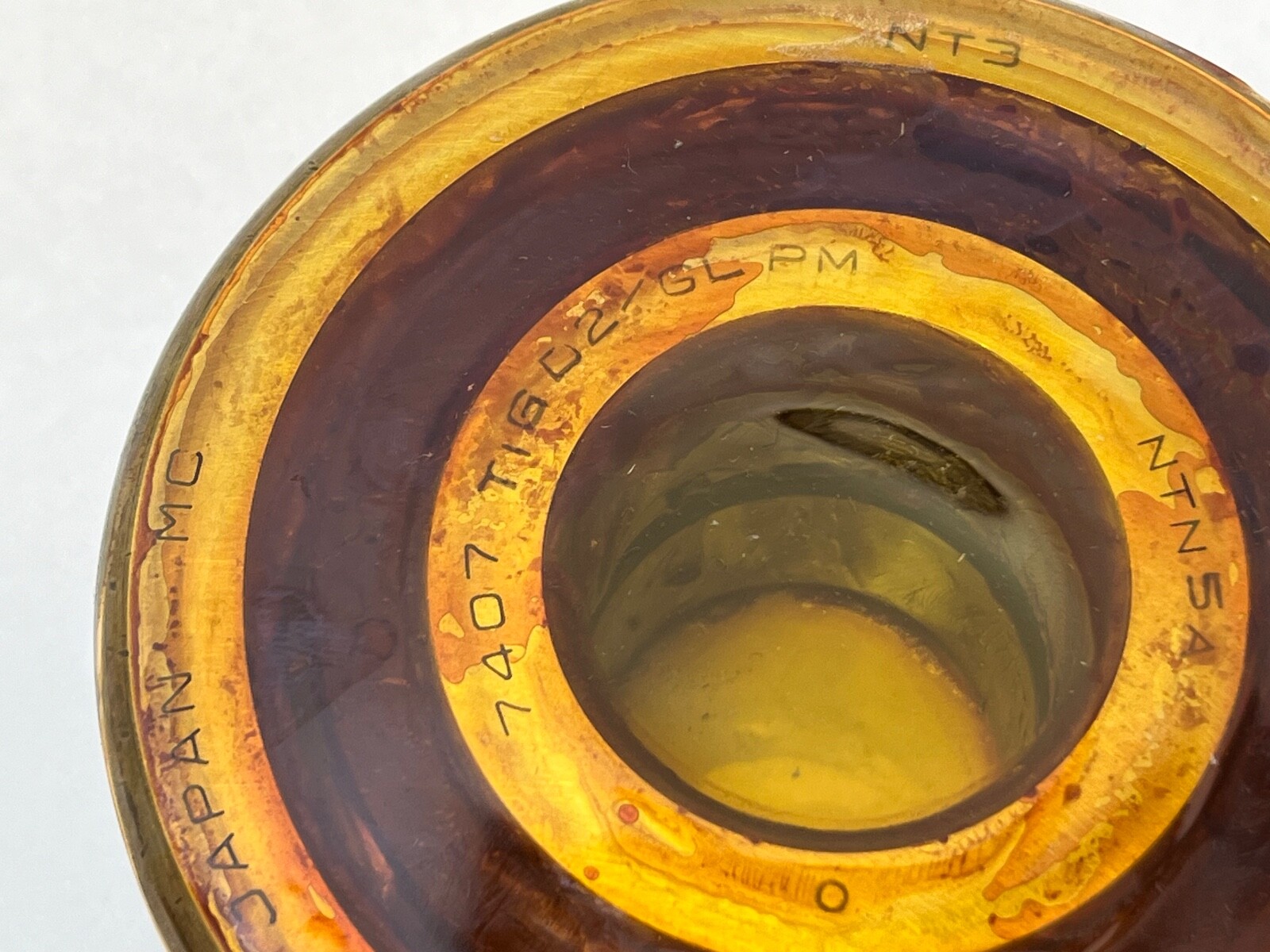

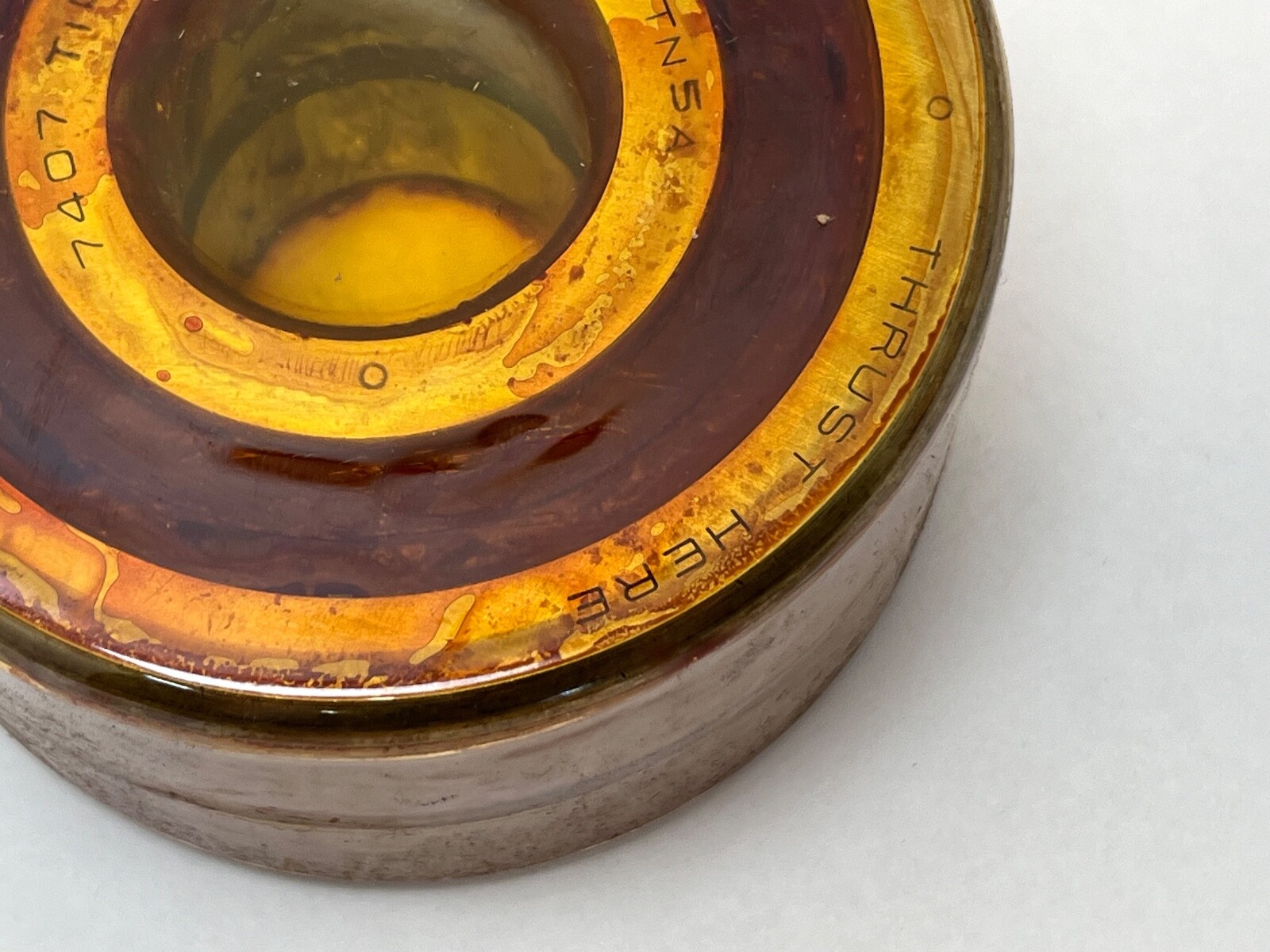

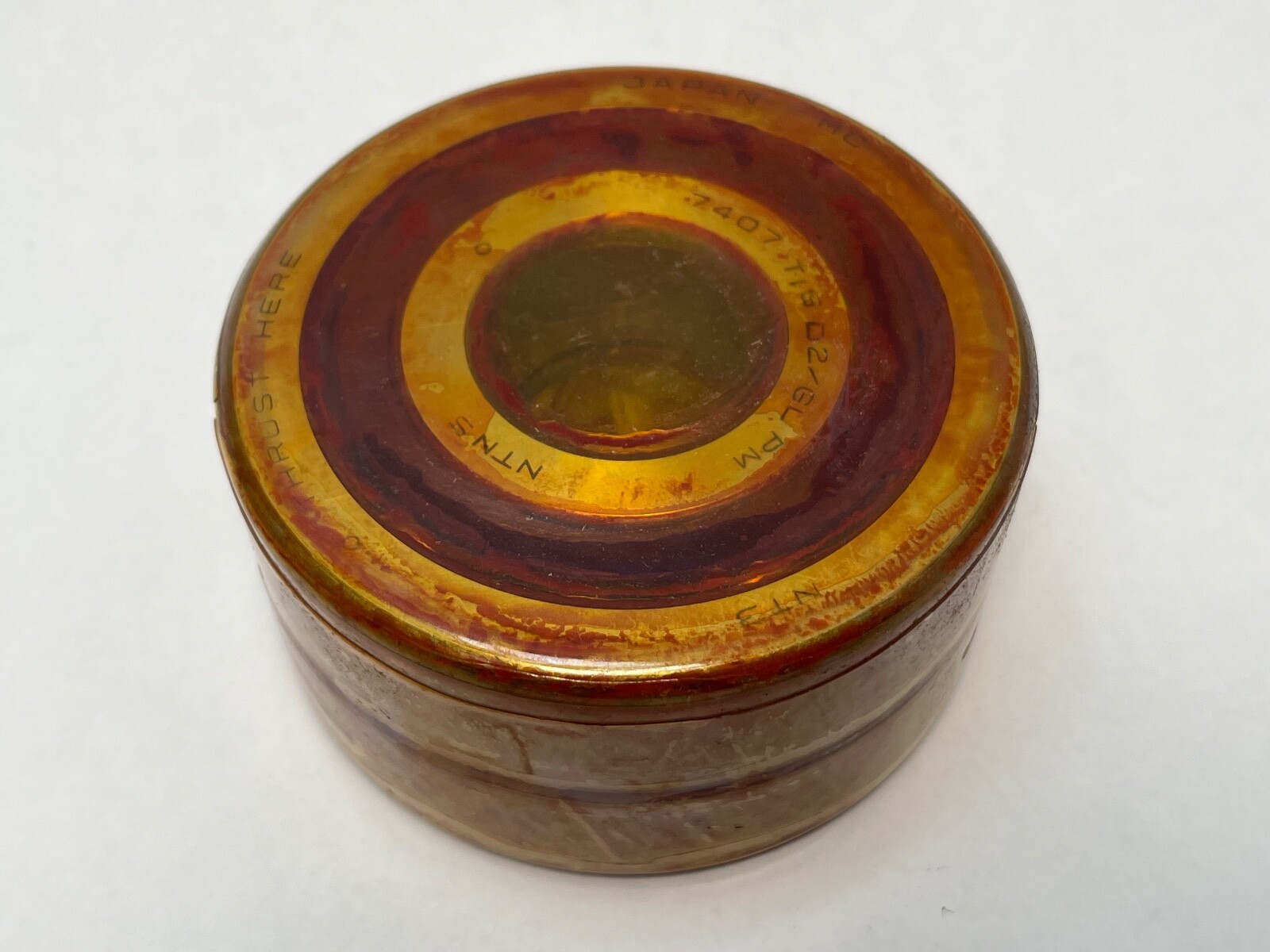

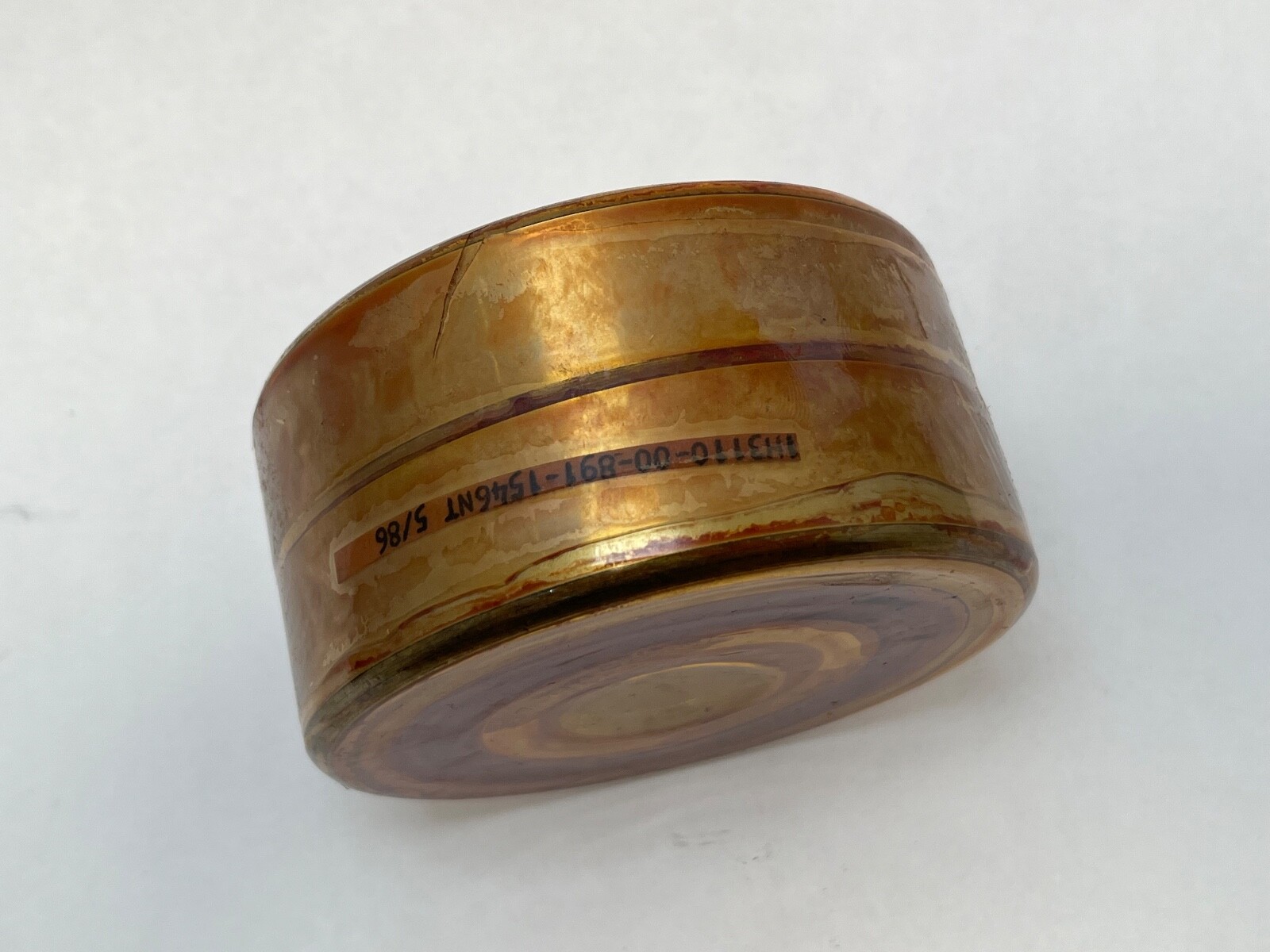

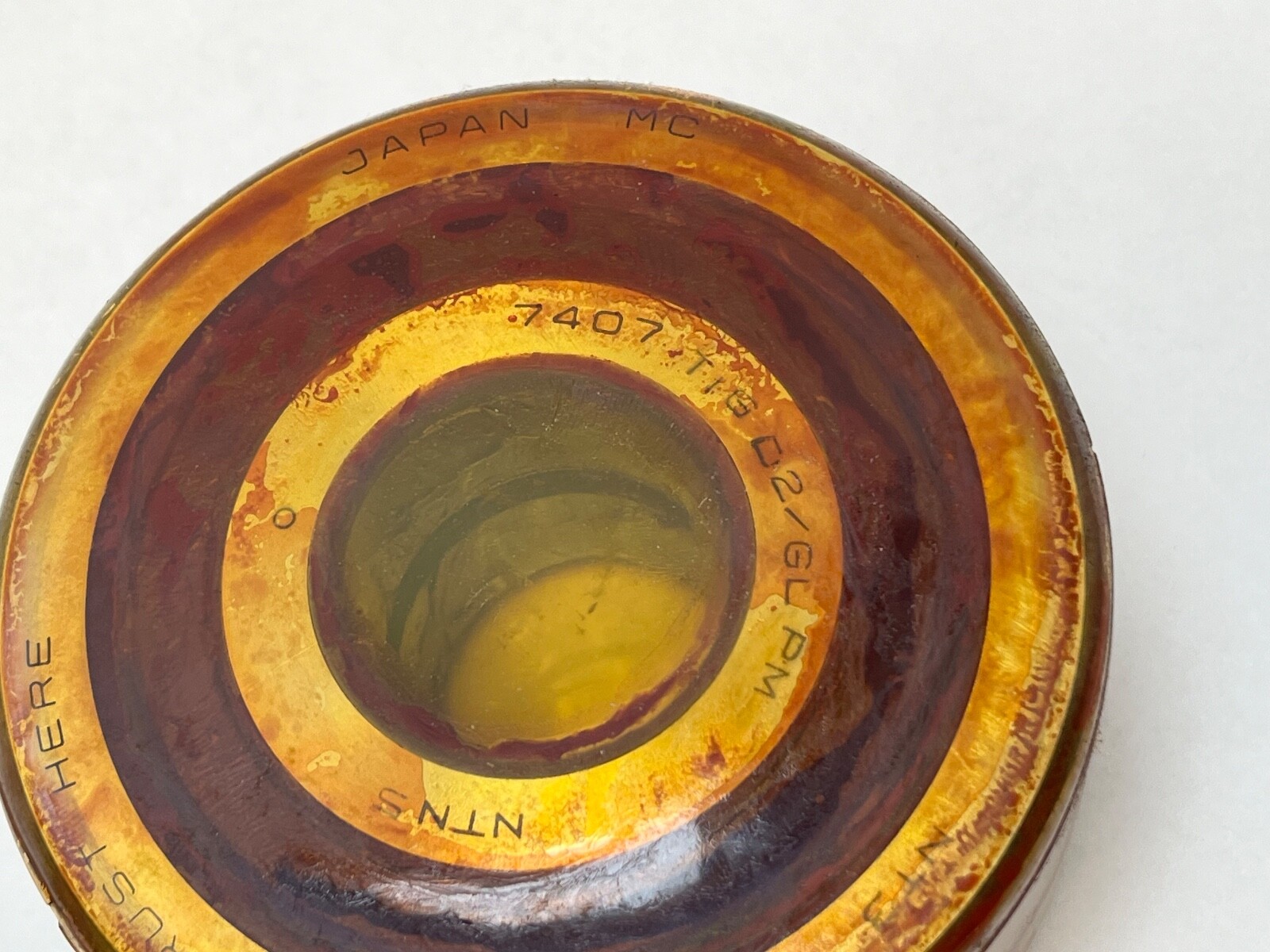

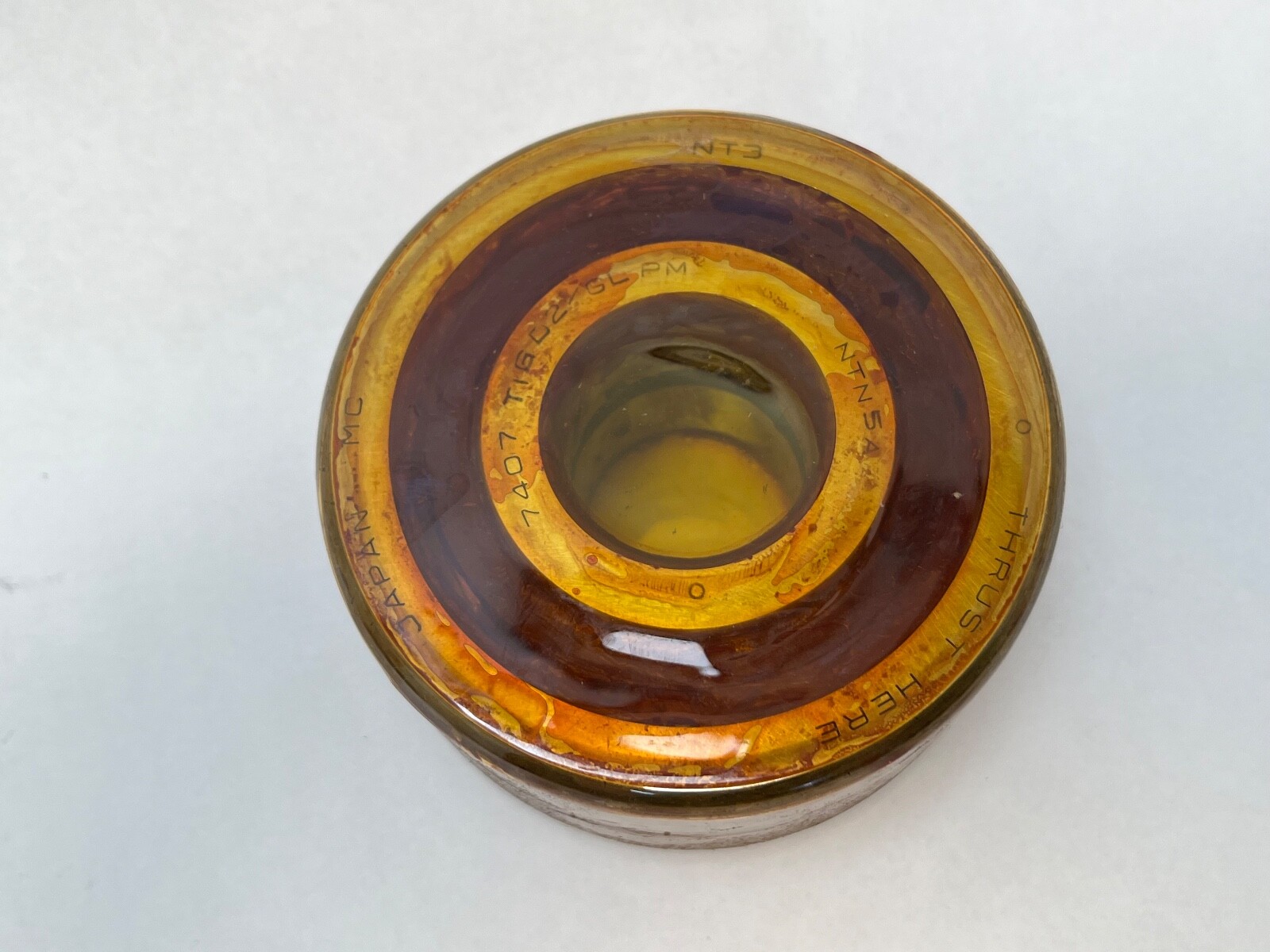

NTN 7407T1GD2GL single-row angular contact ball bearings, 74 series, supplied as a universal flush-ground pair. 35 mm bore, 100 mm outside diameter, 25 mm width per bearing. 30° contact angle, light preload, open. Sold as 2 Pcs.

Decoding the designation:

7407 — NTN single-row angular contact ball bearing, 74 series, bore code 07 = 35 mm bore. No angle letter: 30° contact angle.

GD2 — universal flush-ground duplex set of two bearings, mountable back-to-back, face-to-face or in tandem.

GL — light preload.

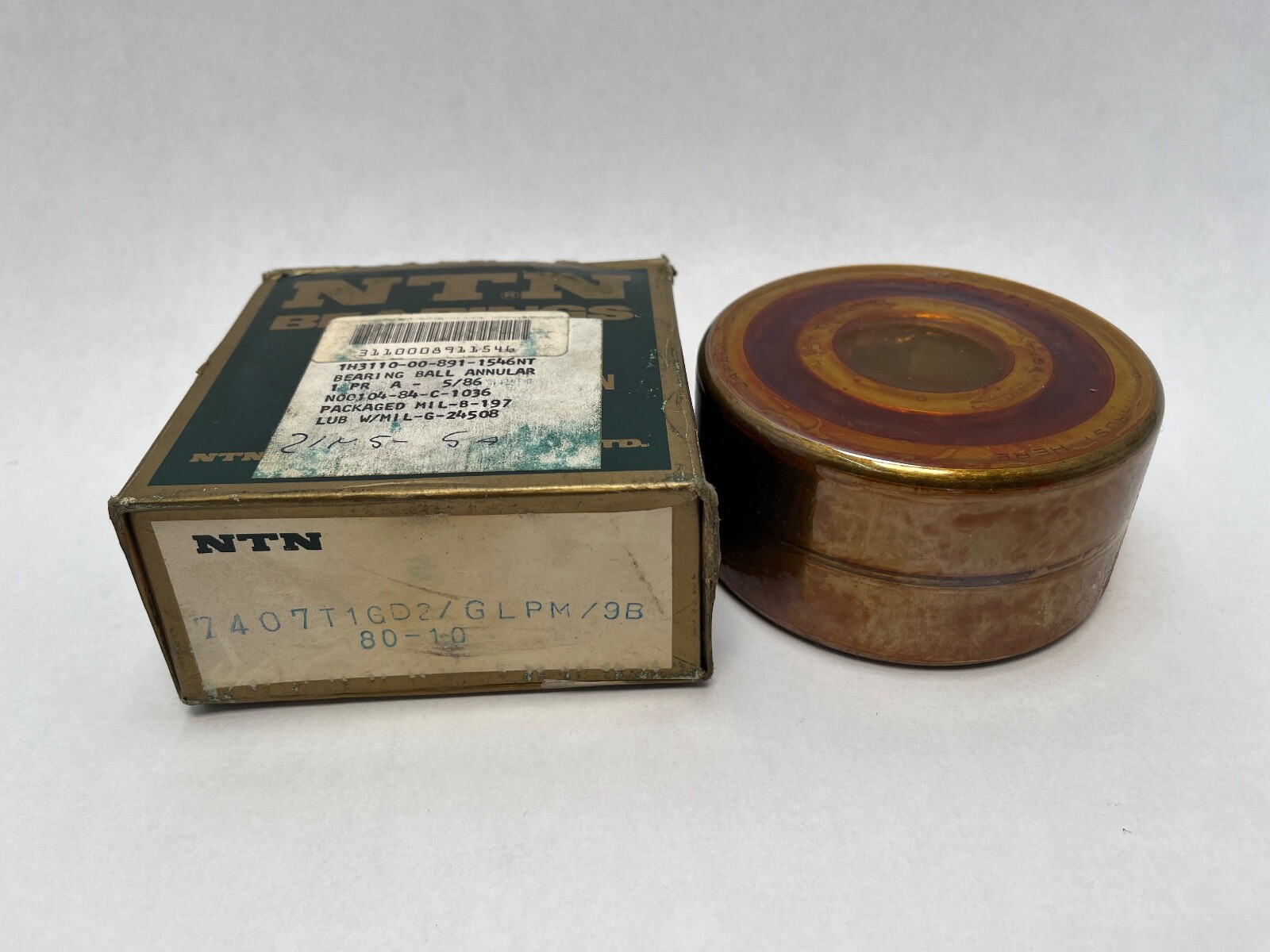

DUL — carton cross-marking for a universal duplex pair with light preload.

Specifications:

Bore Diameter: 35 mm. Outside Diameter: 100 mm. Width: 25 mm per bearing. Contact Angle: 30°. Preload: Light. Mounting Arrangement: Universal pair (DB, DF or DT). Rolling Elements: Ball. Number Of Rows: 1. Closure Type: Open. Series: 7400. Unit Quantity: 2 Pcs.

Dimensions and mounting:

Flush-ground faces allow the pair to be arranged back-to-back (DB), face-to-face (DF) or in tandem (DT).

Frequently asked questions:

What are the dimensions of the NTN 7407T1GD2GL?

35 mm bore, 100 mm outside diameter, 25 mm width per bearing.

What is the contact angle?

30°. A 7407 with no angle letter is a 30° bearing in the NTN scheme.

What do GD2 and GL mean?

GD2 is a universal flush-ground duplex set of two bearings and GL is light preload.
