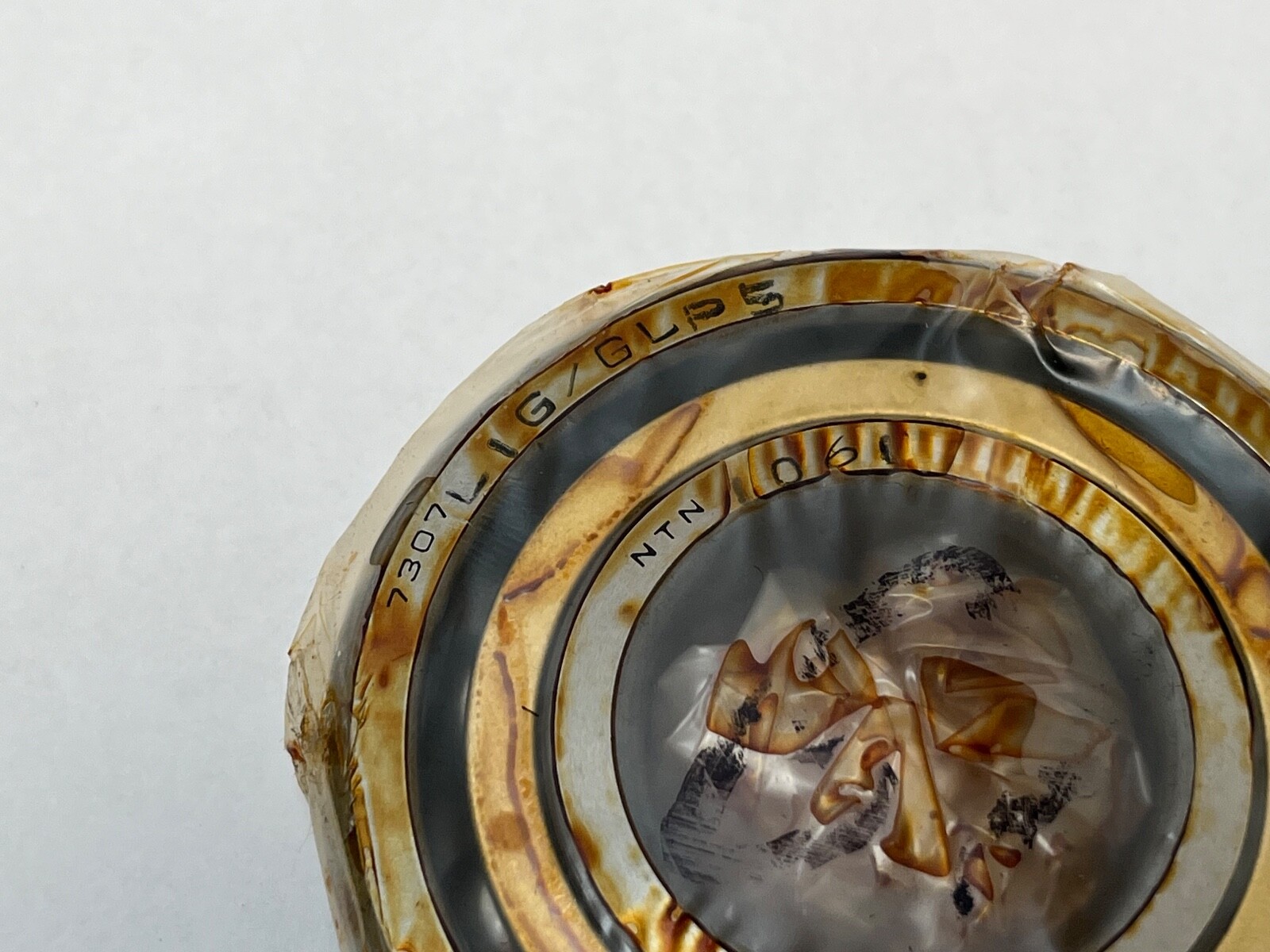

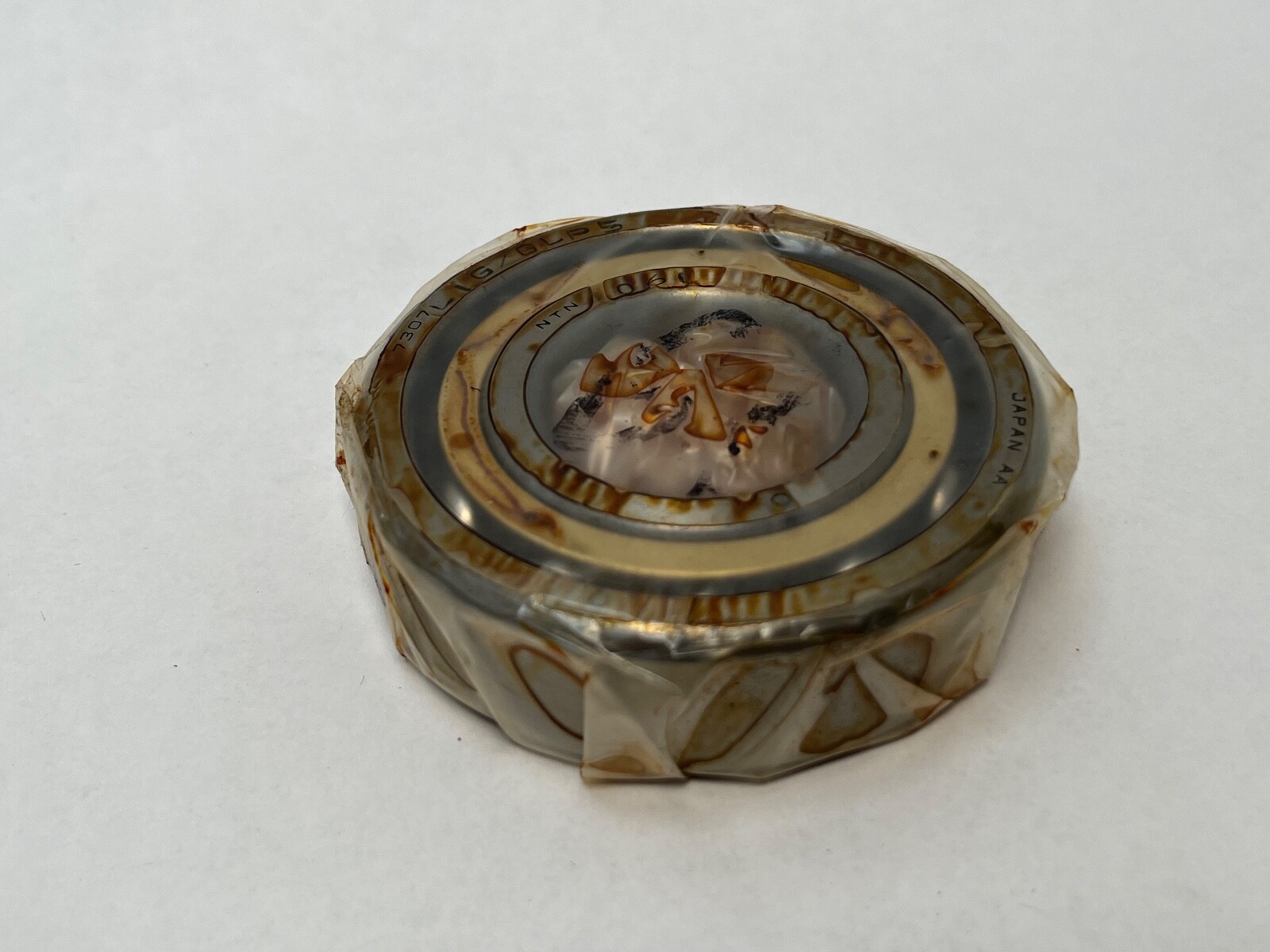

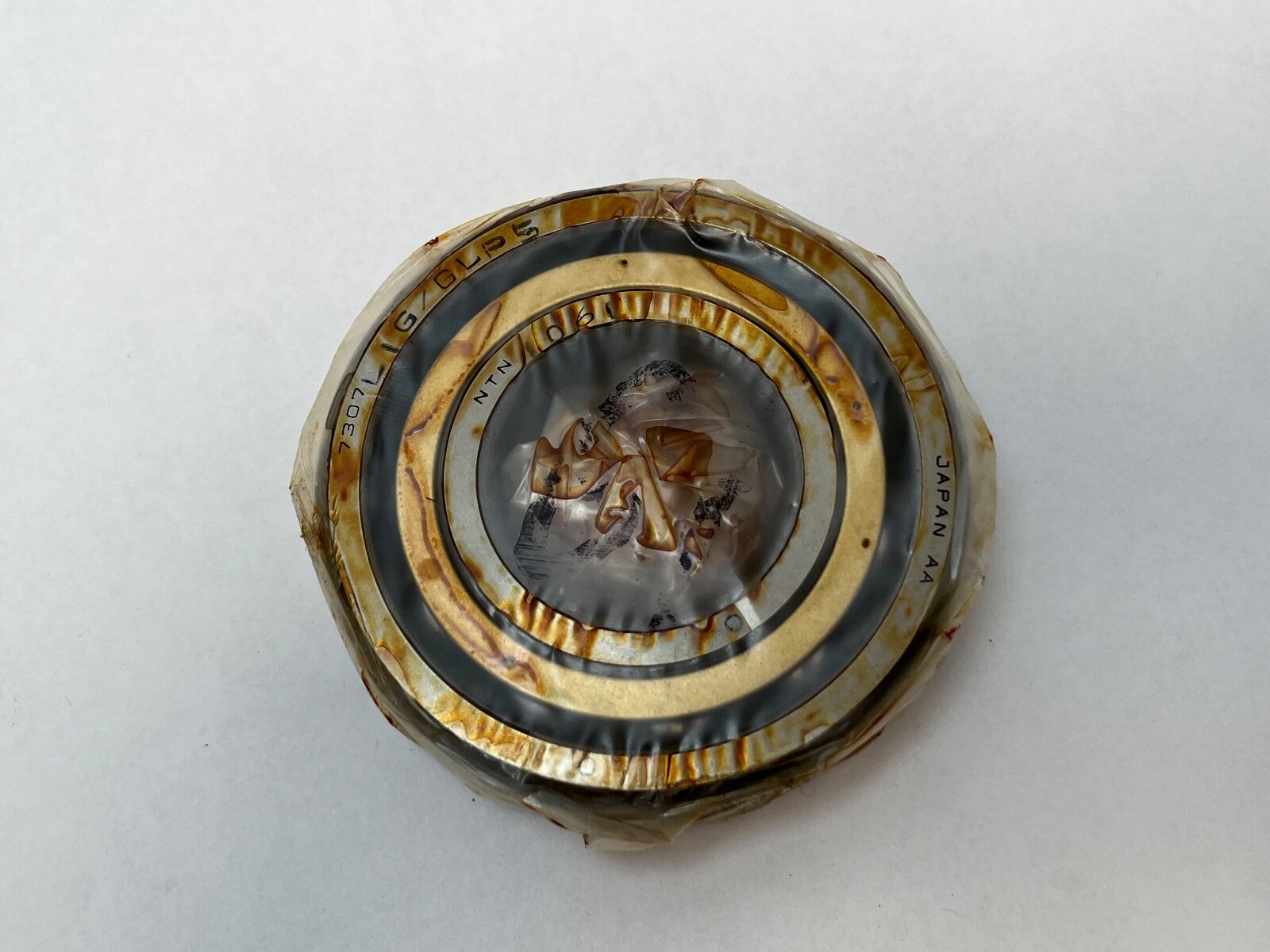

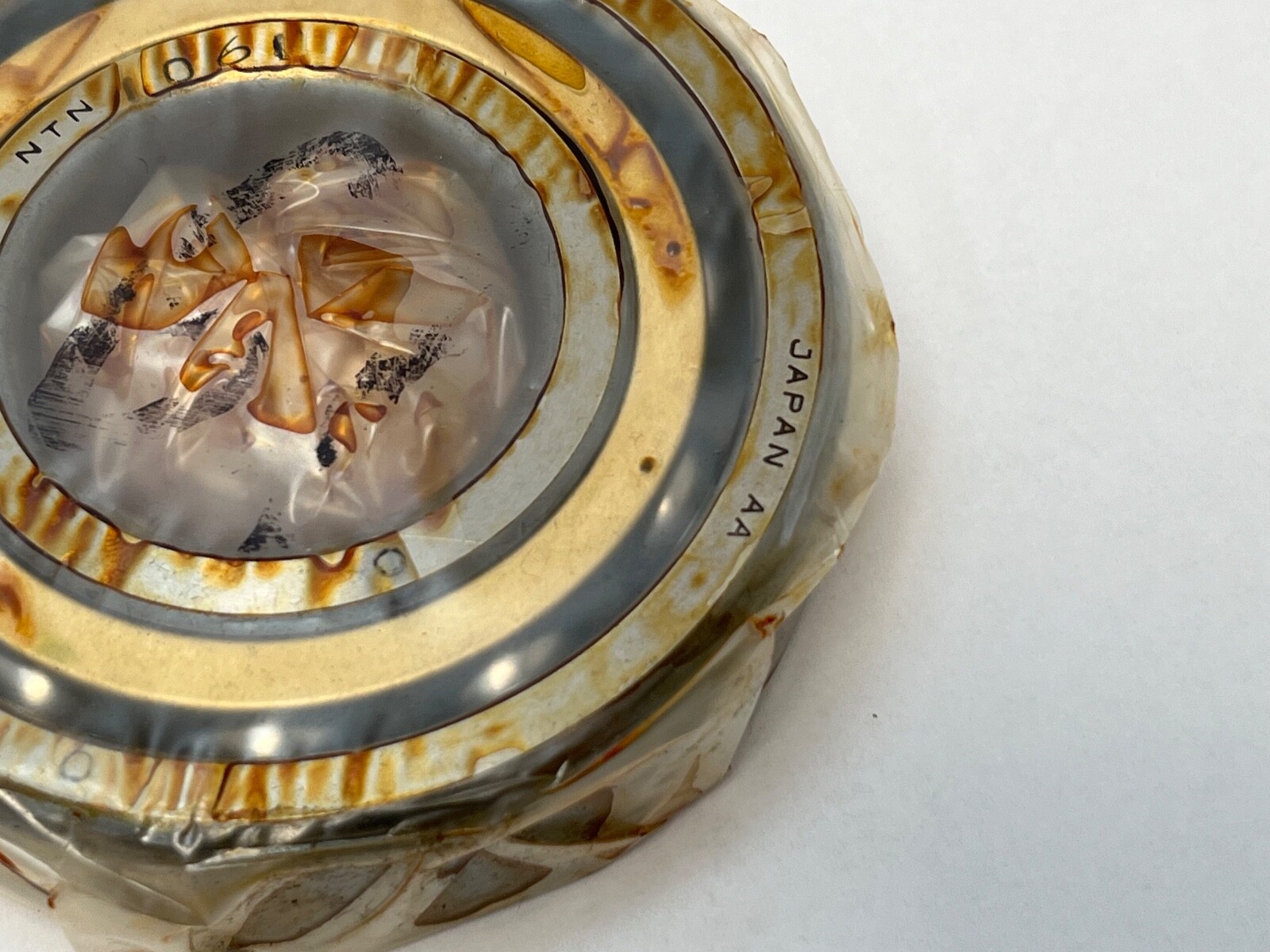

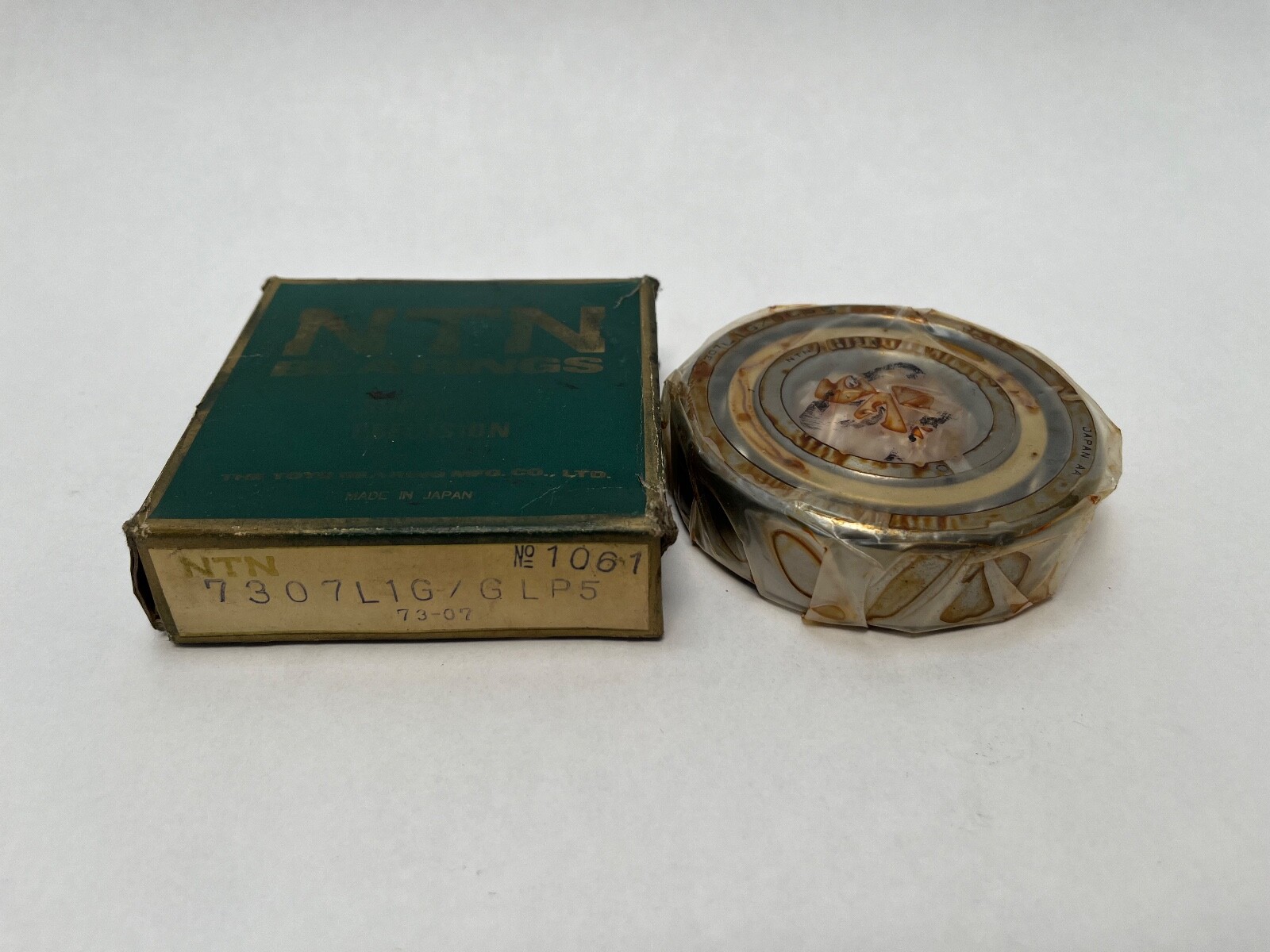

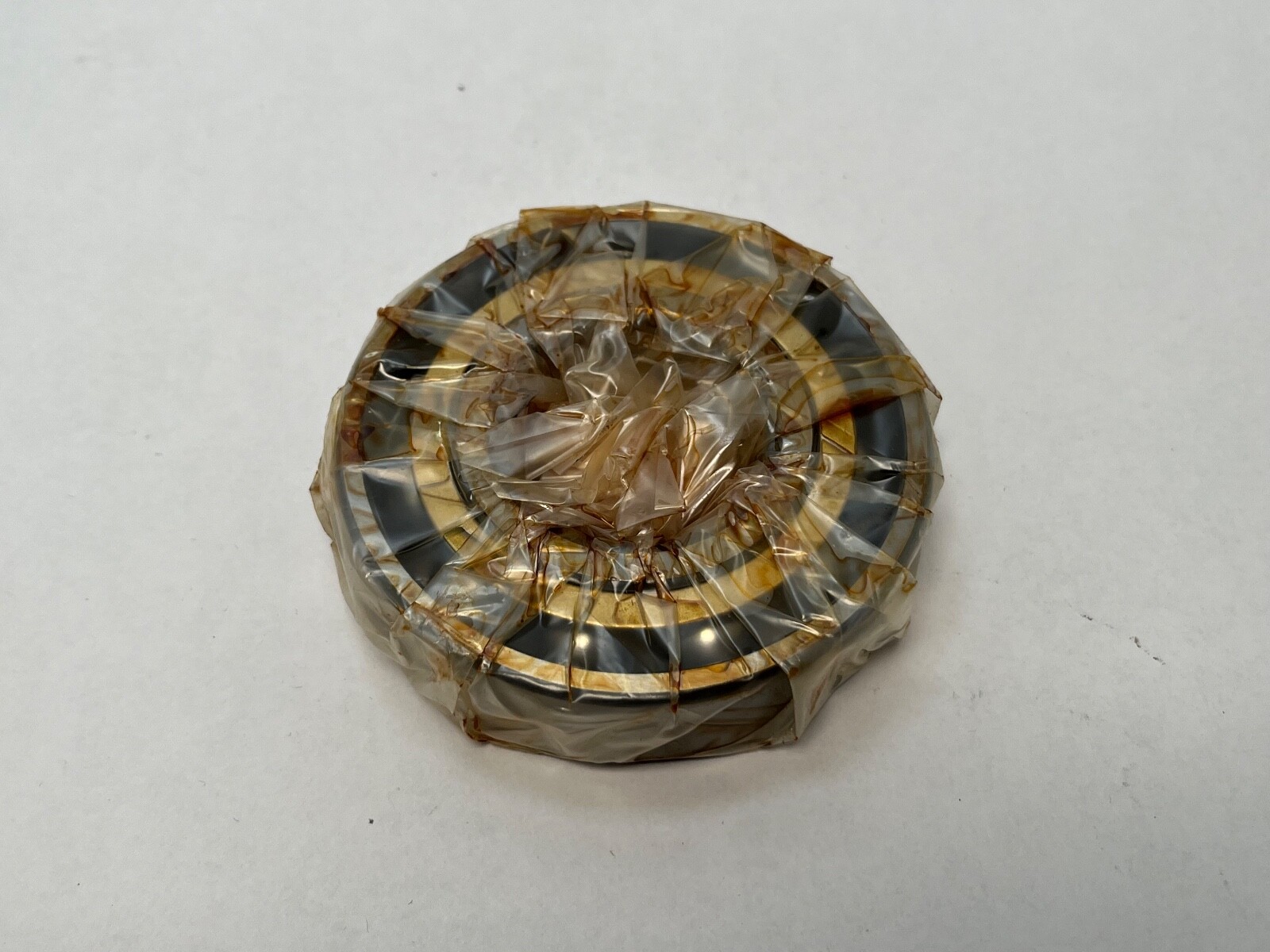

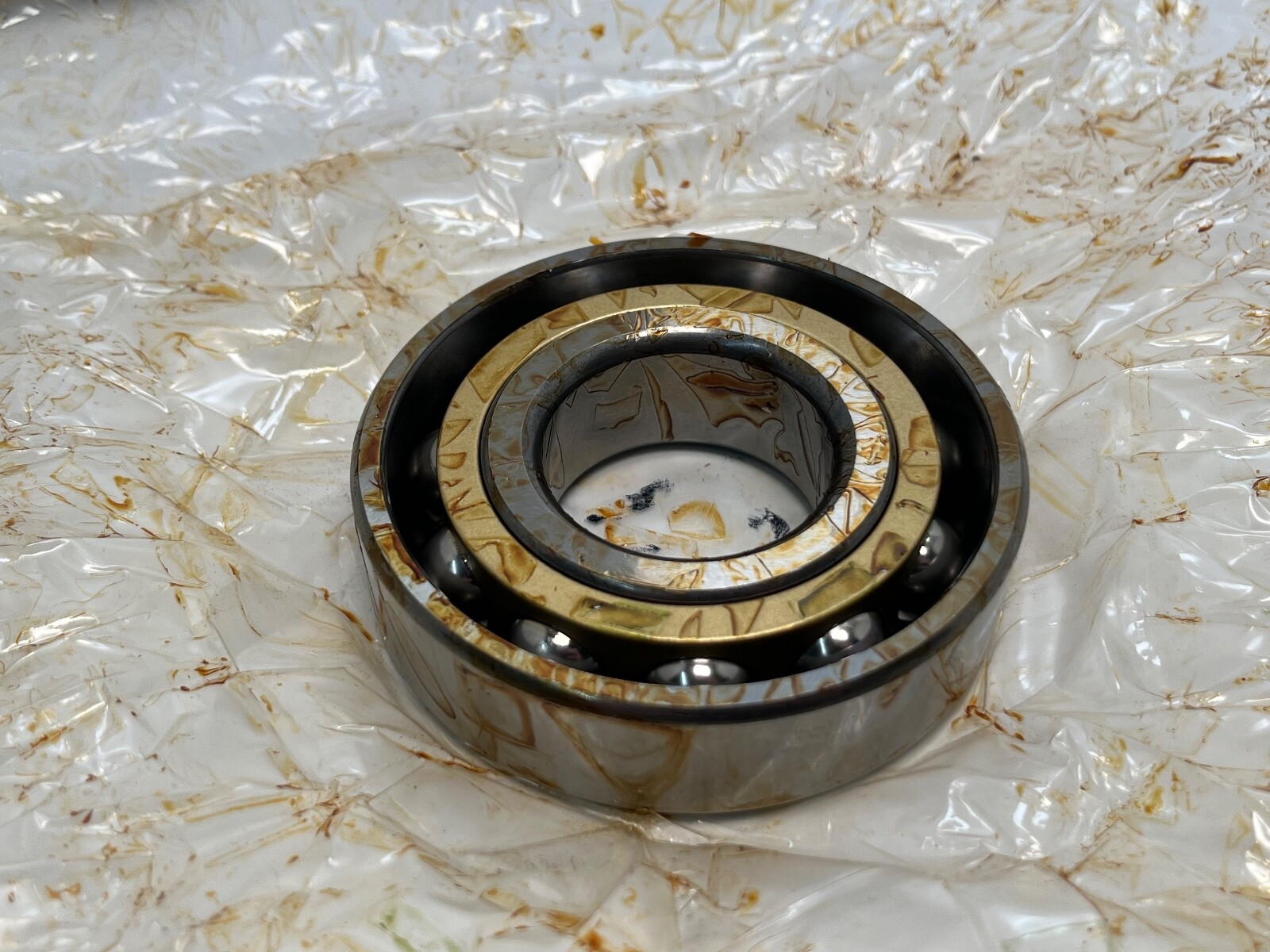

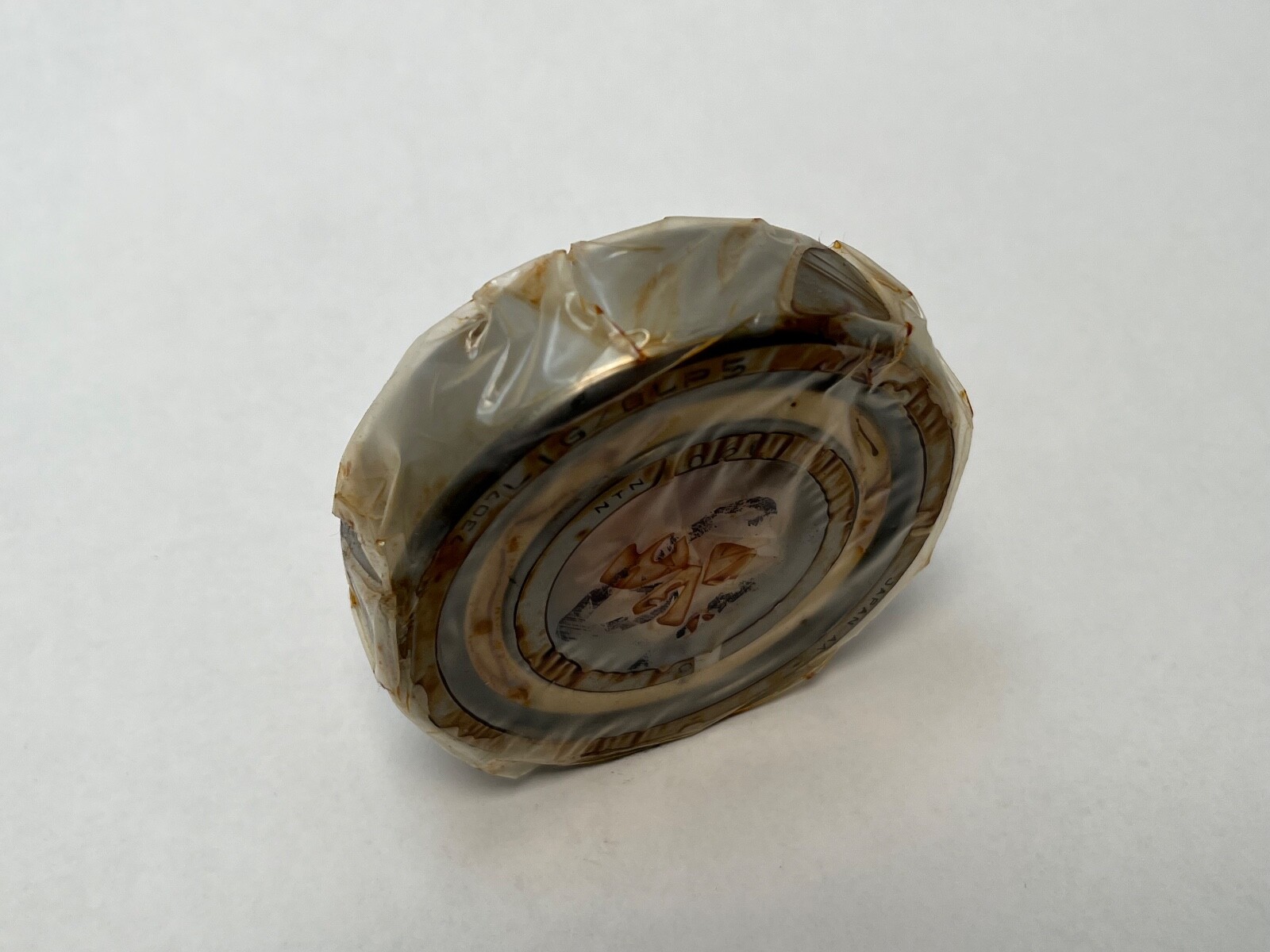

NTN7307L1GGLP5Angular Contact Ball Bearing — 35 mm ID, 80 mm OD, 21 mm Width, 30° Contact Angle, Machined Brass Cage, Light Preload, ABEC 5

Product Description

What this part is:

NTN 7307L1GGLP5 is a single-row angular contact ball bearing, flush-ground for universal matching. Bore Diameter: 35 mm. Outside Diameter: 80 mm. Overall Width: 21 mm. Contact Angle: 30°. Cage Material: Machined brass. Precision Class: ABEC 5 / P5. Preload: Light. Closure Type: Open. Rolling Elements: Ball. Unit Quantity: 1 Pc.

Decoding the designation:

7307 — ISO 73-series medium angular contact ball bearing, 35 mm bore, 35 x 80 x 21 mm. No angle letter: 30° contact angle.

L1 — machined brass cage.

G — single flush-ground faces for universal mounting in back-to-back, face-to-face or tandem sets.

GL — light preload when two bearings are paired.

P5 — ISO tolerance class 5, equivalent to ABEC 5.

Specifications:

Number Of Rows: 1. Contact Angle: 30°. Cage Material: Machined brass. Cage Type: Machined. Precision Class: ABEC 5 / P5. Preload: Light. Mounting Arrangement: Universal (single flush-ground). Closure Type: Open. Rolling Elements: Ball. Harmonization Code: 8482.10.50.28.

Dimensions and mounting:

Bore Diameter: 35 mm. Outside Diameter: 80 mm. Overall Width: 21 mm. Chamfer r min: 1.5 mm. Chamfer r1 min: 1.0 mm. Universal flush grinding lets any two bearings of this designation pair in any arrangement at the stated light preload.

Compatibility and replacement:

Same 35 x 80 x 21 mm envelope at 30°: NSK 7307A, Koyo 7307. Cage material and class vary by maker. Searchable forms: 7307L1GGLP5, 7307-L1-G-GL-P5, 7307 L1 G GL P5, 7307 M SUL P5.

Frequently asked questions:

What is the contact angle of the NTN 7307L1GGLP5?

Contact Angle: 30°. The 7307 designation carries no angle letter.

What cage does it use?

A machined brass cage (L1).

What does GL mean?

Light preload when two flush-ground bearings are paired.
