Availability:
2 in stock
Angular contact ball bearing, 20 mm bore, 42 mm OD, 12 mm width, 30° contact angle, phenolic cage, universal flush-ground, Medium preload, ABEC 5 / P5.
List Price
$75.69
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| Model | 7004 T1 G GM P5 3MM9104 WI CR SUM |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 20 mm |
| OD | 42 mm |
| Width | 12 mm |
| Mpn Variants | 7004T1GGMP5, 7004T1G-GMP5, 7004-T1-G-GM-P5, 7004 T1 G GM P5 |
|---|---|
| Precision Class | ABEC 5 / P5 |
| Series | 7000 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Contact Angle | 30° |
| Preload | Medium |
| Mounting Arrangement | Universal (flush-ground) |

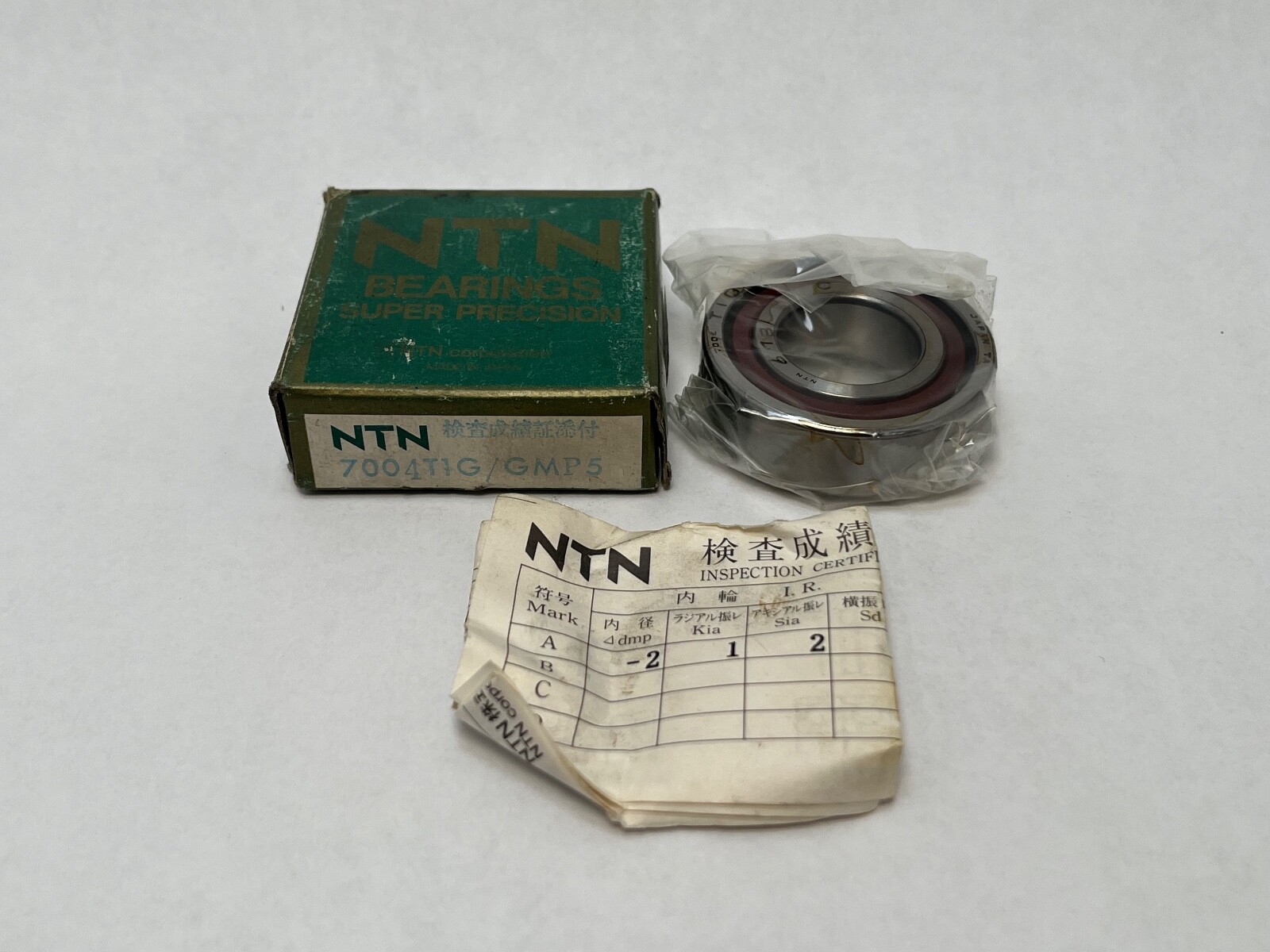

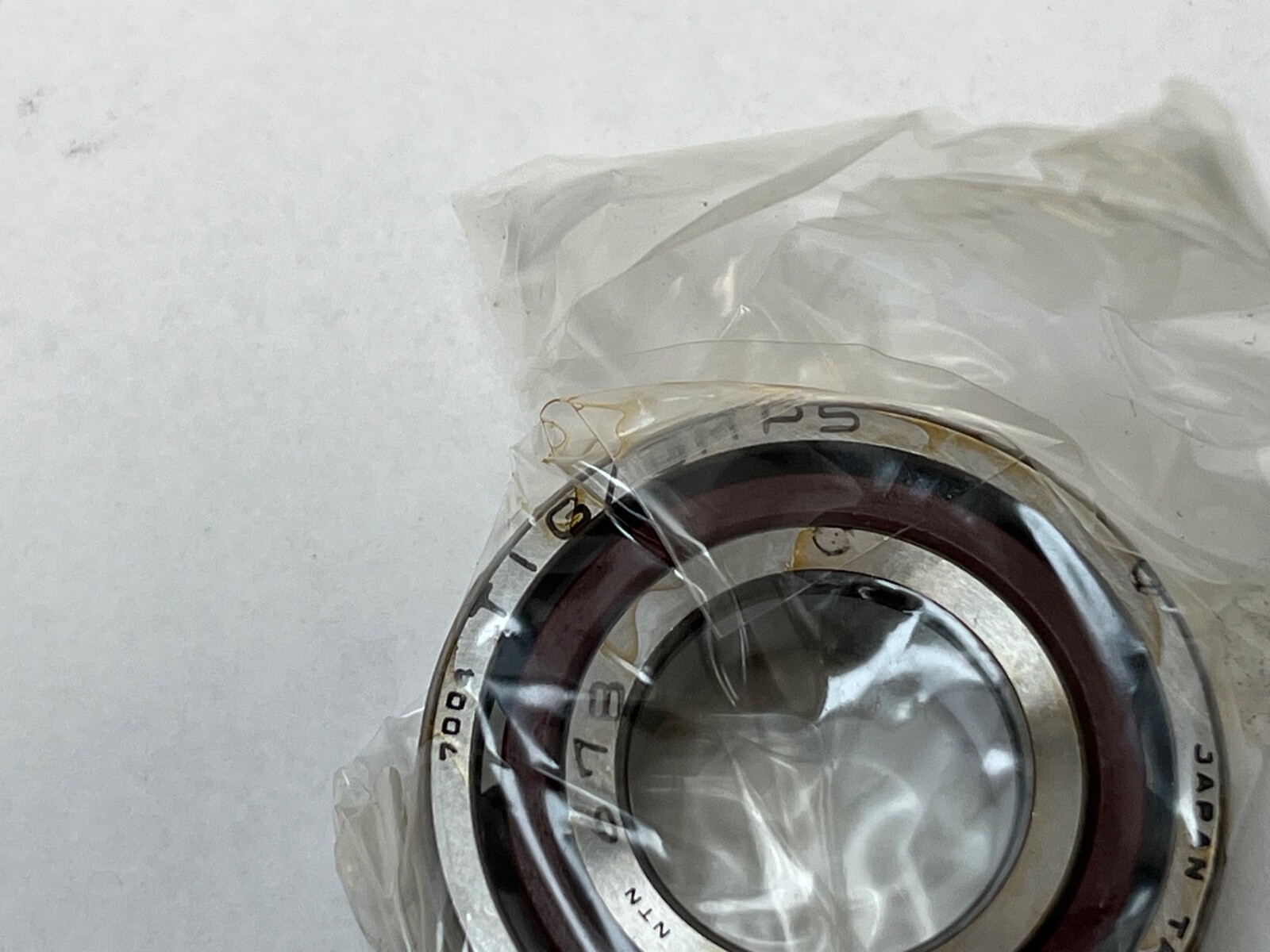

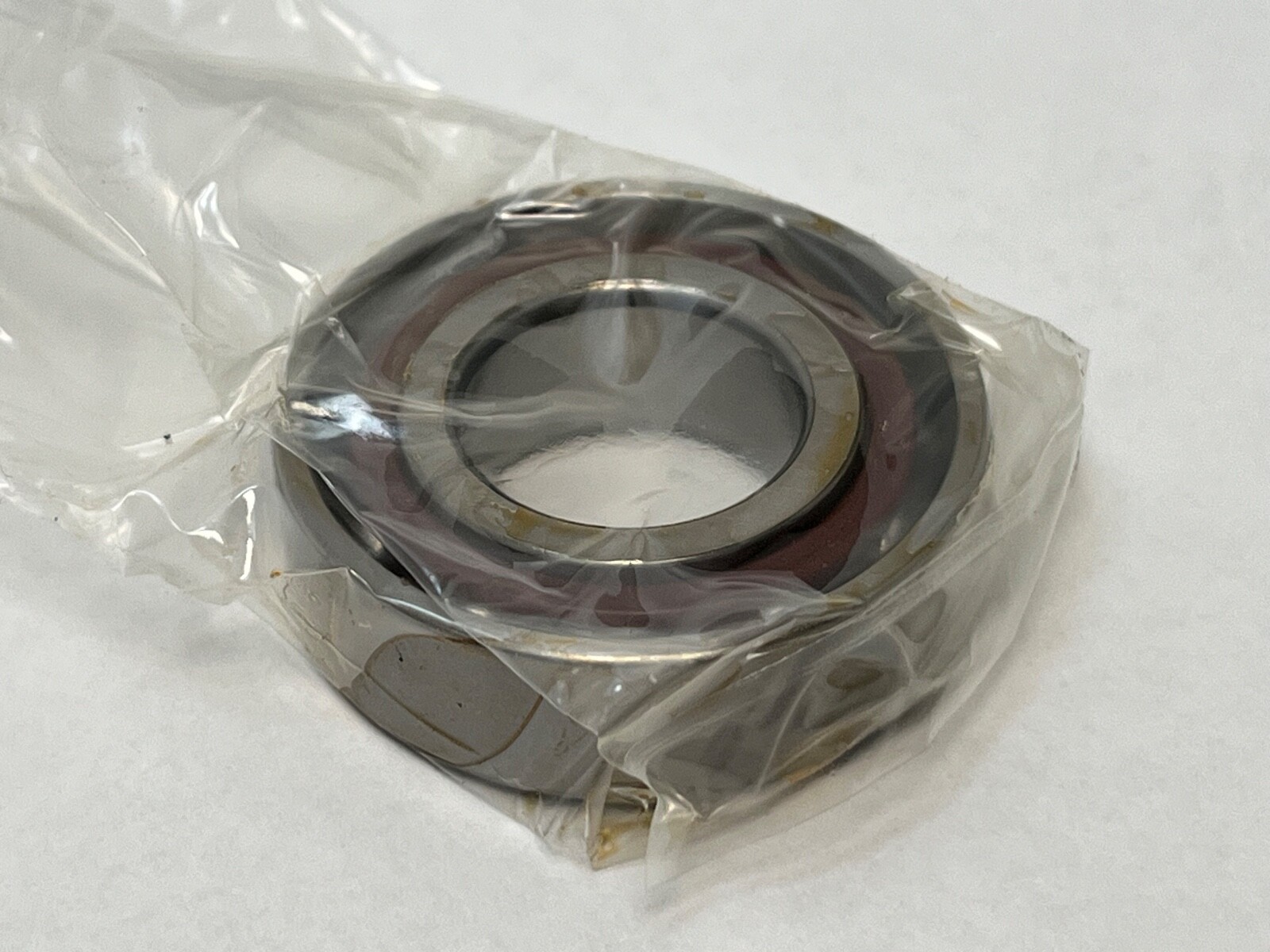

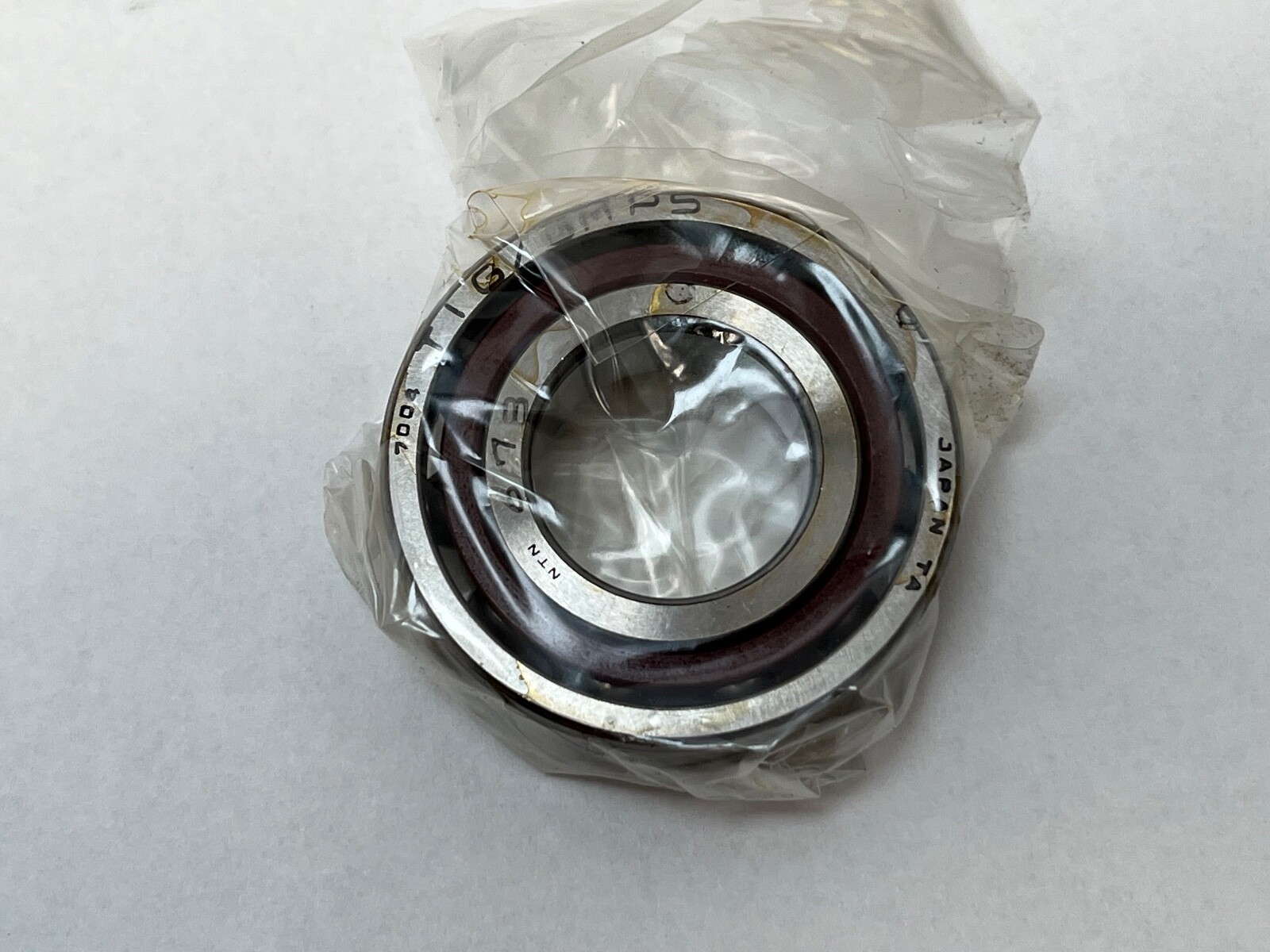

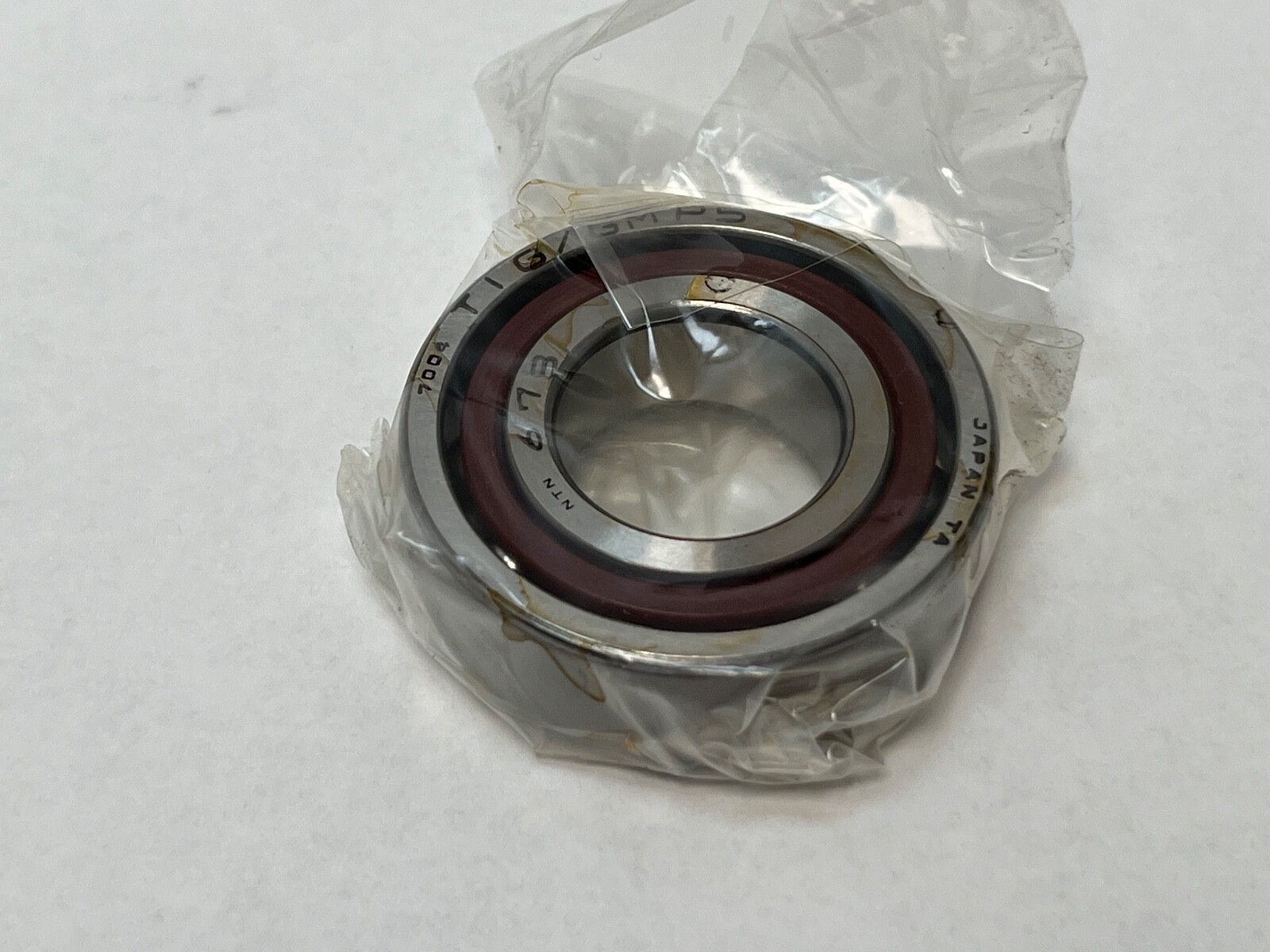

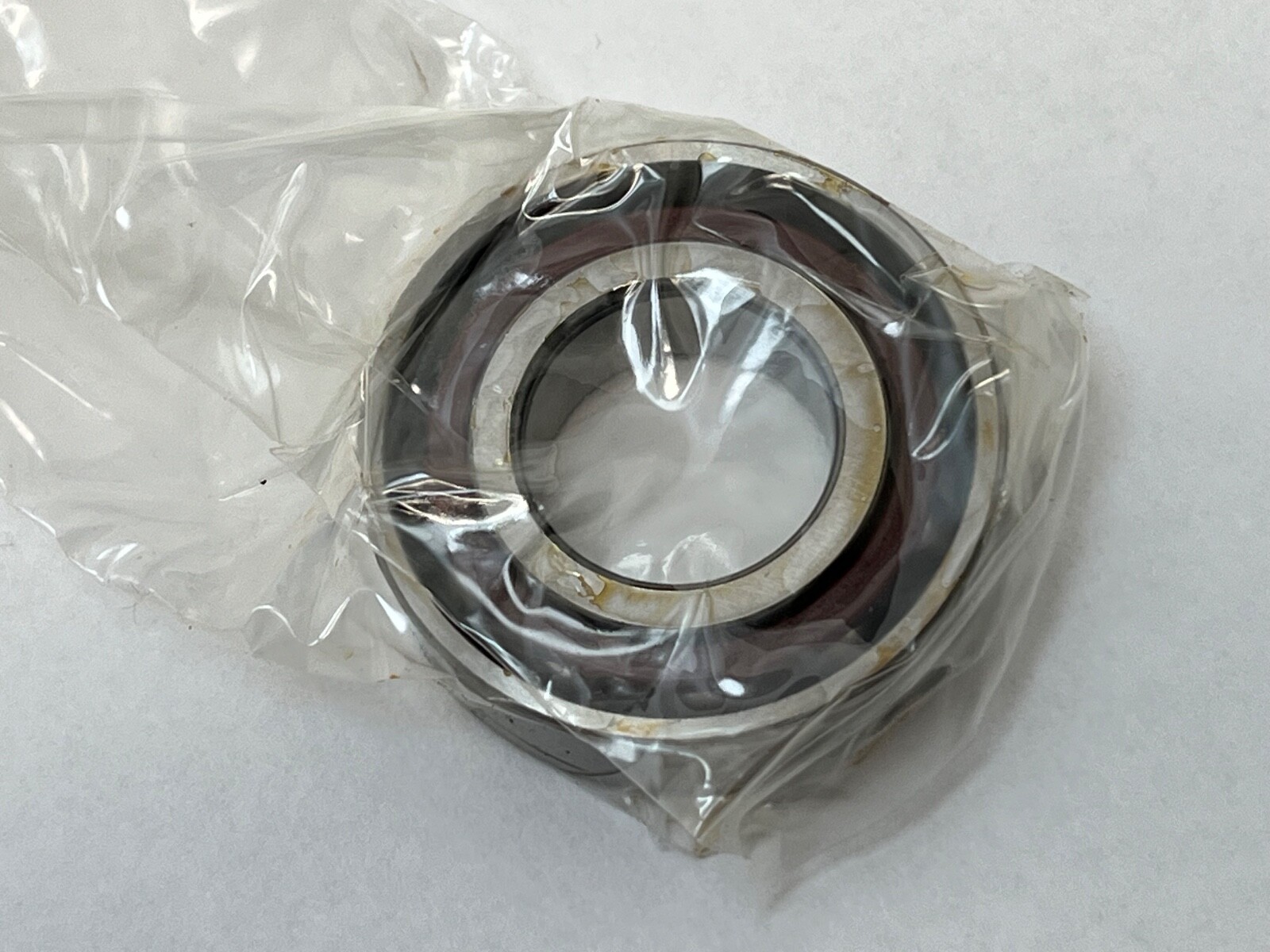

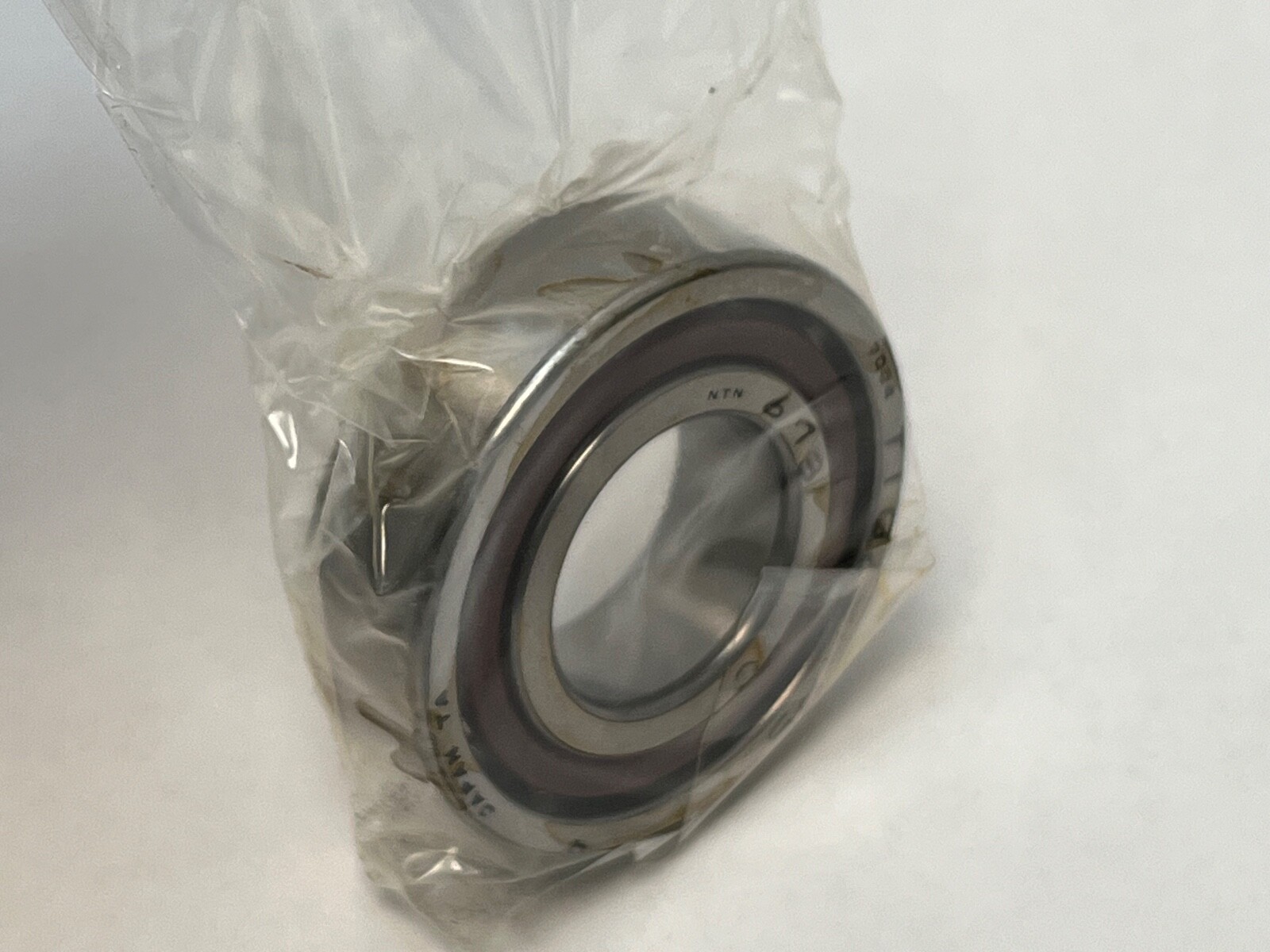

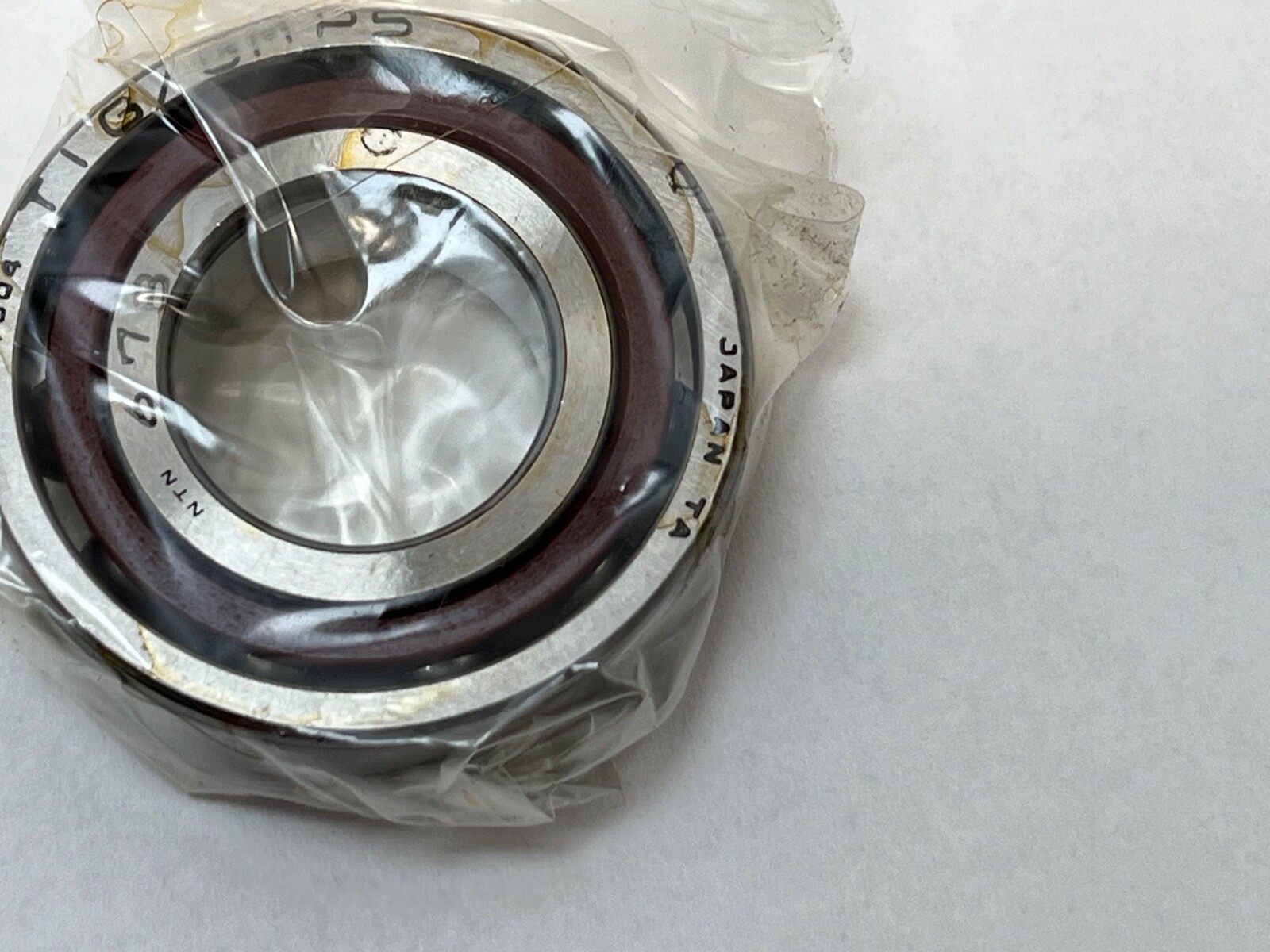

NTN 7004T1GGMP5 is a single-row precision angular contact ball bearing, flush-ground for universal matching with a medium preload. Bore Diameter: 20 mm. Outside Diameter: 42 mm. Width: 12 mm. Contact Angle: 30°. Cage Material: Phenolic. Preload: Medium. Precision Class: ABEC 5 / P5. Closure Type: Open.
7004 — ISO 70 series (extra-light section), bore code 04, 20 x 42 x 12 mm. No angle letter: 30° contact angle.
T1 — phenolic resin cage.
G — single bearing with flush-ground faces, universally matchable in back-to-back, face-to-face or tandem sets.
GM — Medium preload when paired.
P5 — ISO class 5 tolerances, equivalent to ABEC 5.
The 30° angle carries a higher axial share than a 15° spindle bearing. Flush-ground universal faces let any two or more of these bearings be combined into a matched set, and the medium preload raises stiffness for machining spindles. The phenolic cage is light and runs well at speed with oil or grease.
Fillet Radius r: 0.6 mm. Fillet Radius r1: 0.3 mm. Shaft Abutment da min: 24.5 mm. Housing Abutment Da max: 37.5 mm.
Unit Quantity: 1 Pc. Single universal bearing.
