Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
3 in stock

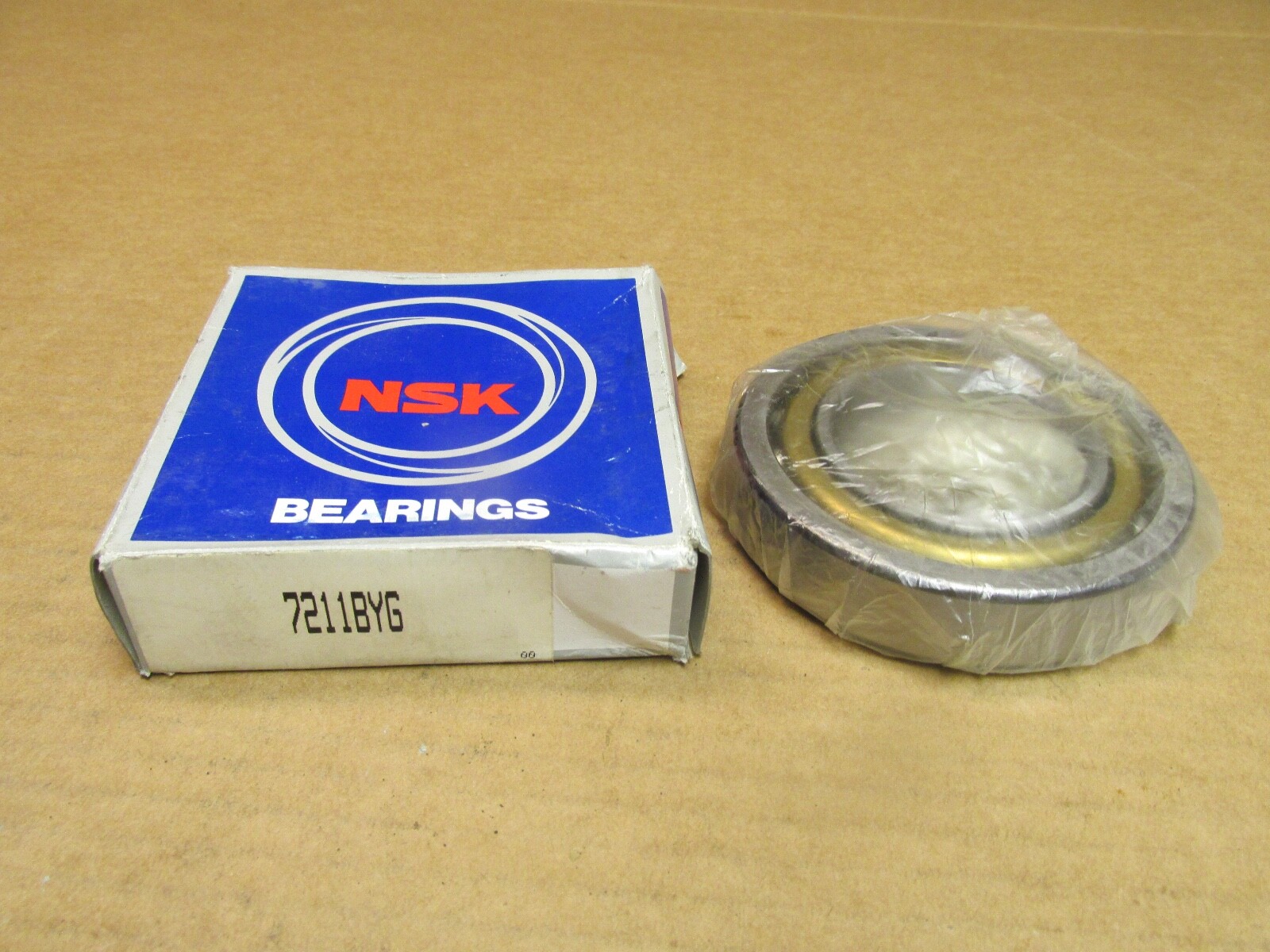

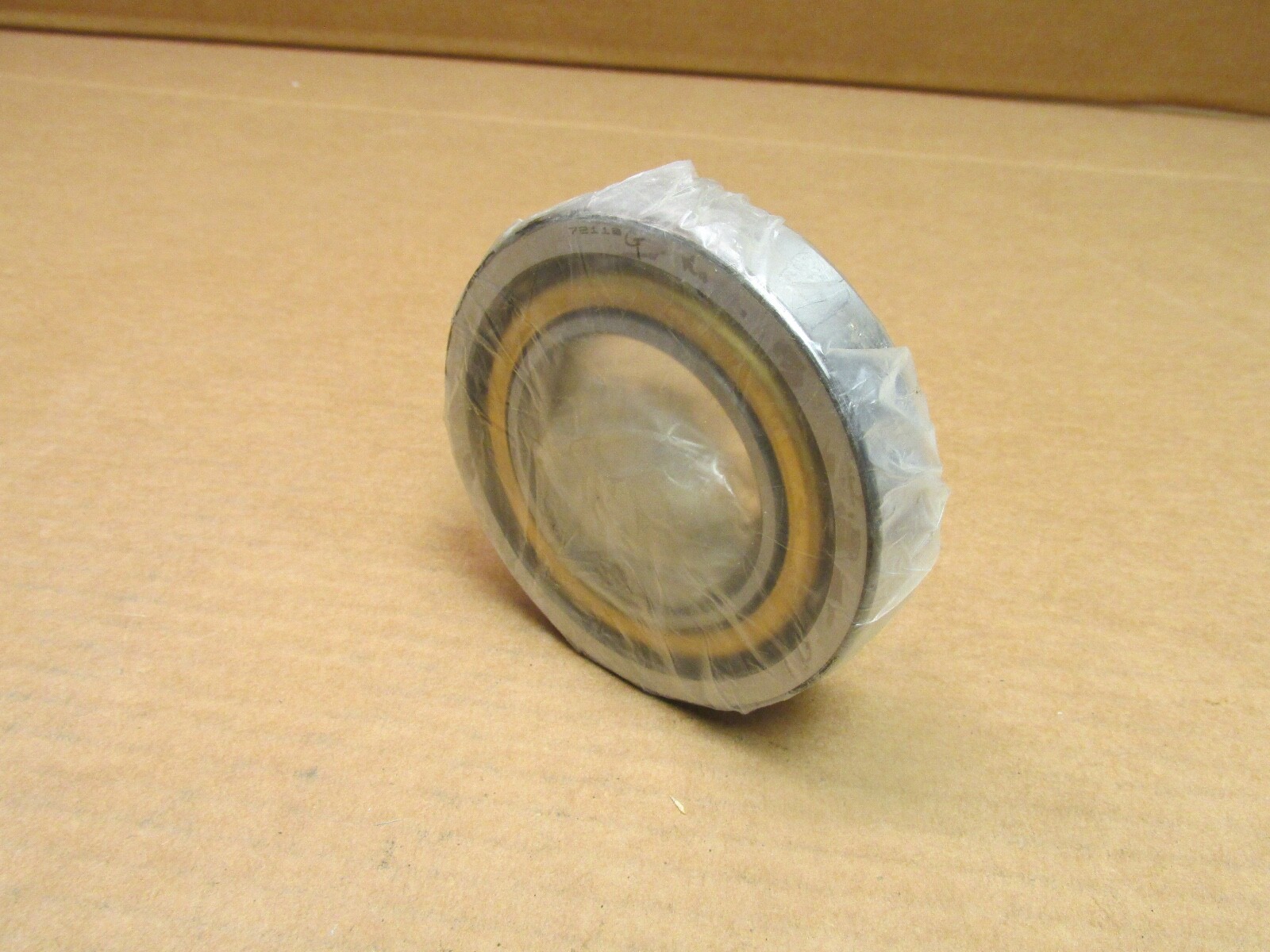

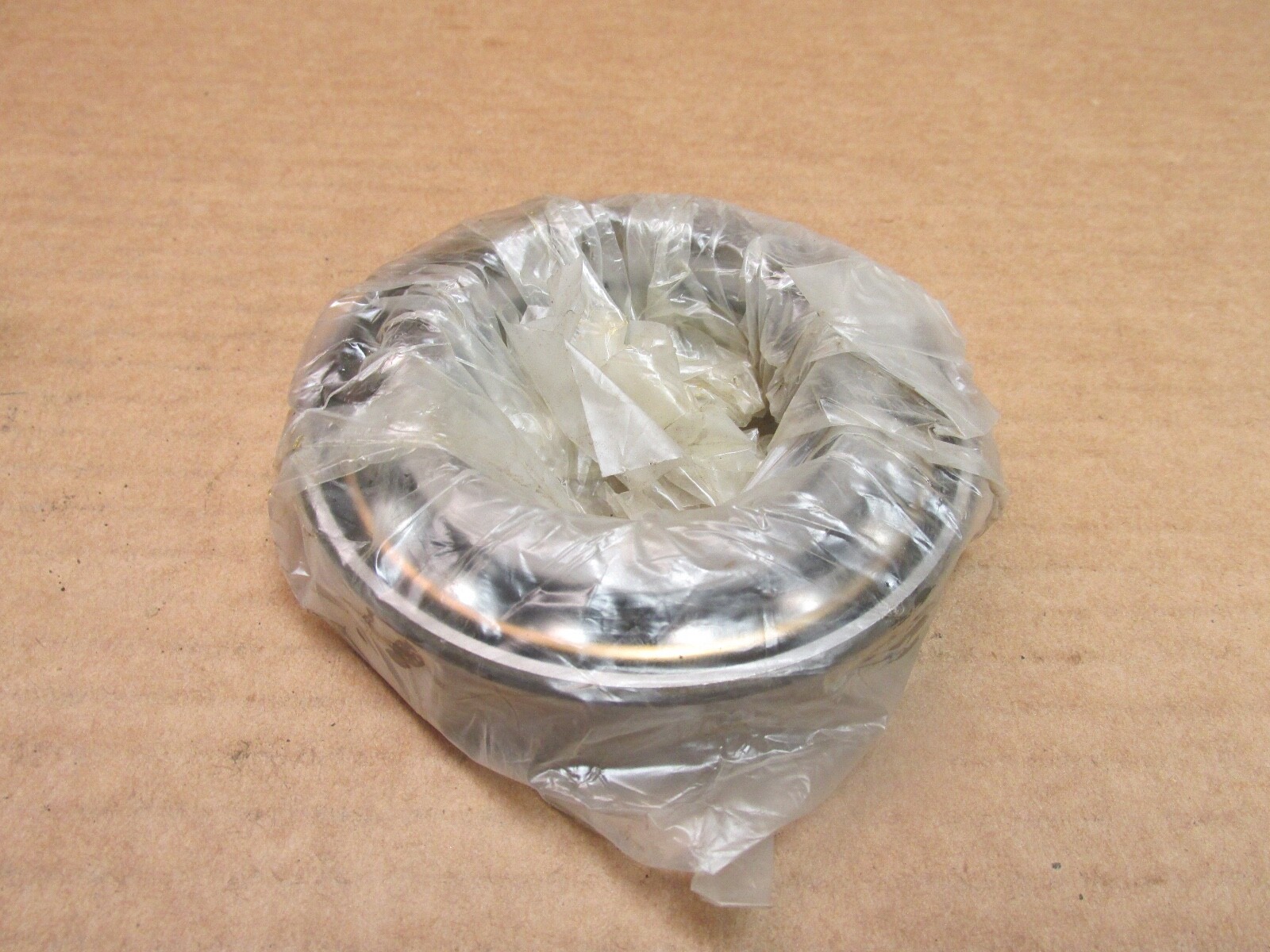

NSK 7211BYG angular contact ball bearing, 55 x 100 x 21 mm, 40° contact angle, pressed brass cage, flush ground for universal pairing. Dynamic 46,500 N, static 36,000 N.
List Price
$37.88
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 7211BYG |
| GTIN | 029176018848 |
| Model | 7211BYG |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 55 mm |
| OD | 100 mm |
| Width | 21 mm |
| Material | Chrome Steel |
|---|---|
| Series | 7200 |
| Cage Type | Pressed |
| Dynamic Load Rating | 46,500 N |
| Static Load Rating | 36,000 N |
| Rolling Elements | Ball |
| Cage Material | Pressed brass |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 40° |
| Internal Clearance | CN |
| Base Number | 7211 |
| Industry Terms | angular contact ball bearing, 40 degree bearing, universal matching bearing, thrust bearing |
| Common Misspellings | 7211BGY, 7211BYC, 7211BG |
| Application Types | Pumps, compressors, gearboxes, worm drives |
| Mpn Variants | 7211BYG, 7211 BYG, 7211B YG, 7211B, 7211-B-YG |
| Additional Attributes | Effective load centre a 43.0 mm; shaft abutment da min 64 mm; housing abutment Da max 91 mm; fillet ra max 1.5 mm; chamfer r min 1.5 mm, r1 min 1 mm |
| Mounting Arrangement | Universal matching (flush ground) |
| Cross Reference 1 | SKF 7211 BEP |
|---|---|
| Cross Reference 2 | FAG 7211-B-JP |
| Cross Reference 3 | Fafnir 7211WN SU |
| Cross Reference 4 | NTN 7211B |
| Cross Reference 6 | MRC 7211PJ |
The NSK 7211BYG is a single-row angular contact ball bearing with a 40° contact angle, 55 mm bore, 100 mm outside diameter and 21 mm width. The 40° angle gives high axial load capacity in one direction, combined with radial load. Faces are flush ground so bearings can be paired in back-to-back, face-to-face or tandem sets.
72 — light 02 dimension series angular contact ball bearing.
11 (bore code) — 11 x 5 = 55 mm bore.
B — 40° contact angle.
Y — pressed brass cage.
G — flush-ground faces for universal matching.
Bore Diameter: 55 mm. Outside Diameter: 100 mm. Overall Width: 21 mm. Contact Angle: 40°. Cage Material: Pressed brass. Closure Type: Open. Bore Type: Straight. Number Of Rows: 1. Rolling Elements: Ball. Internal Clearance: CN.
Dynamic Load Rating: 46,500 N. Static Load Rating: 36,000 N. Effective load centre a: 43.0 mm.
Typical uses are pumps, compressors, gearboxes and worm drives where thrust dominates.
Shaft abutment diameter da min: 64 mm. Housing abutment diameter Da max: 91 mm. Fillet radius ra max: 1.5 mm. Chamfer r min: 1.5 mm; r1 min: 1 mm.
Unit Quantity: 1 Pc. Single universally matchable bearing.
GTIN: 029176018848.
Same 55 x 100 x 21 mm envelope and 40° angle: SKF 7211 BEP, FAG 7211-B-JP, NTN 7211B, Koyo 7211B, Fafnir 7211WN SU, MRC 7211PJ. Cage material differs by maker.
