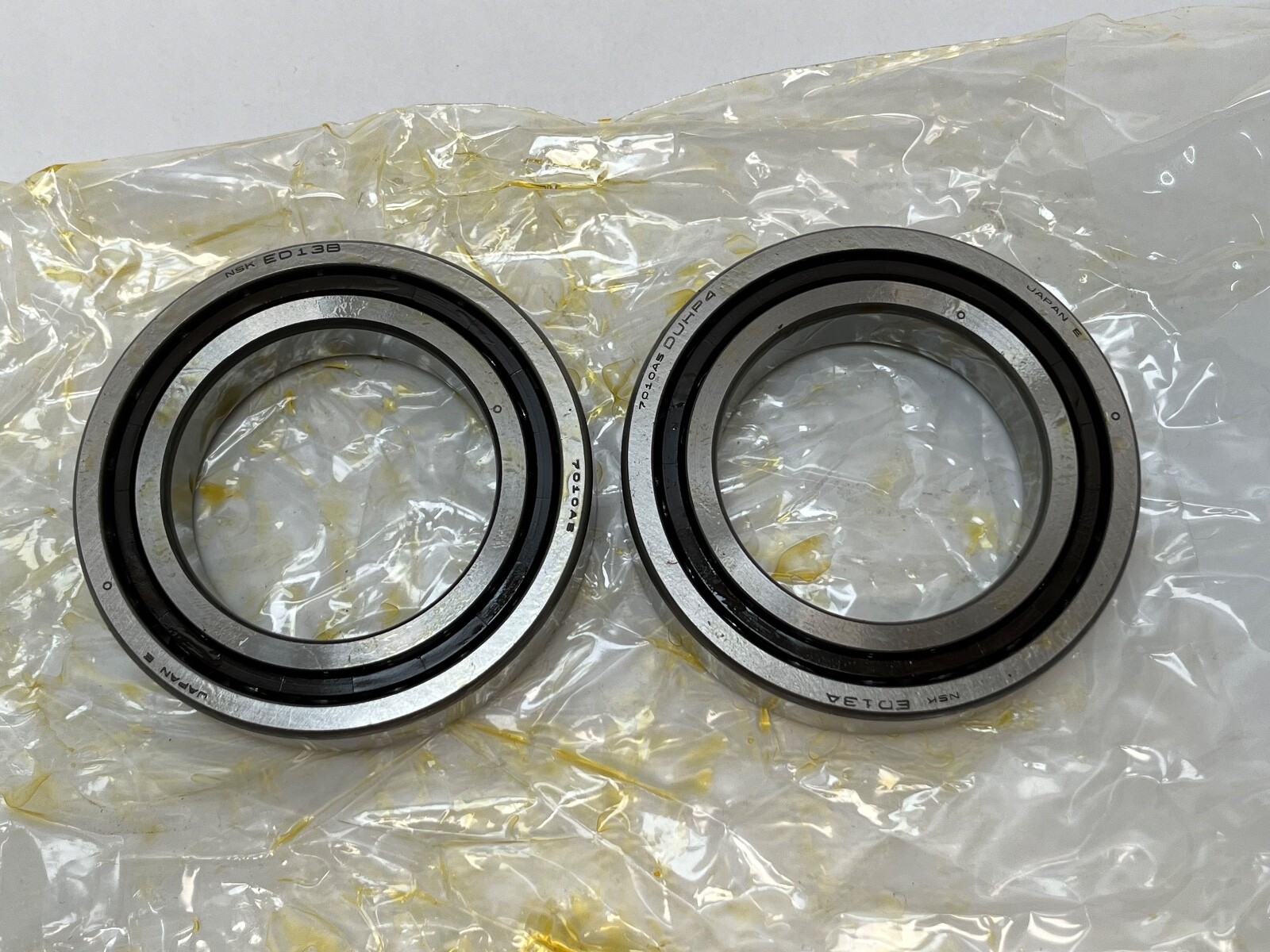

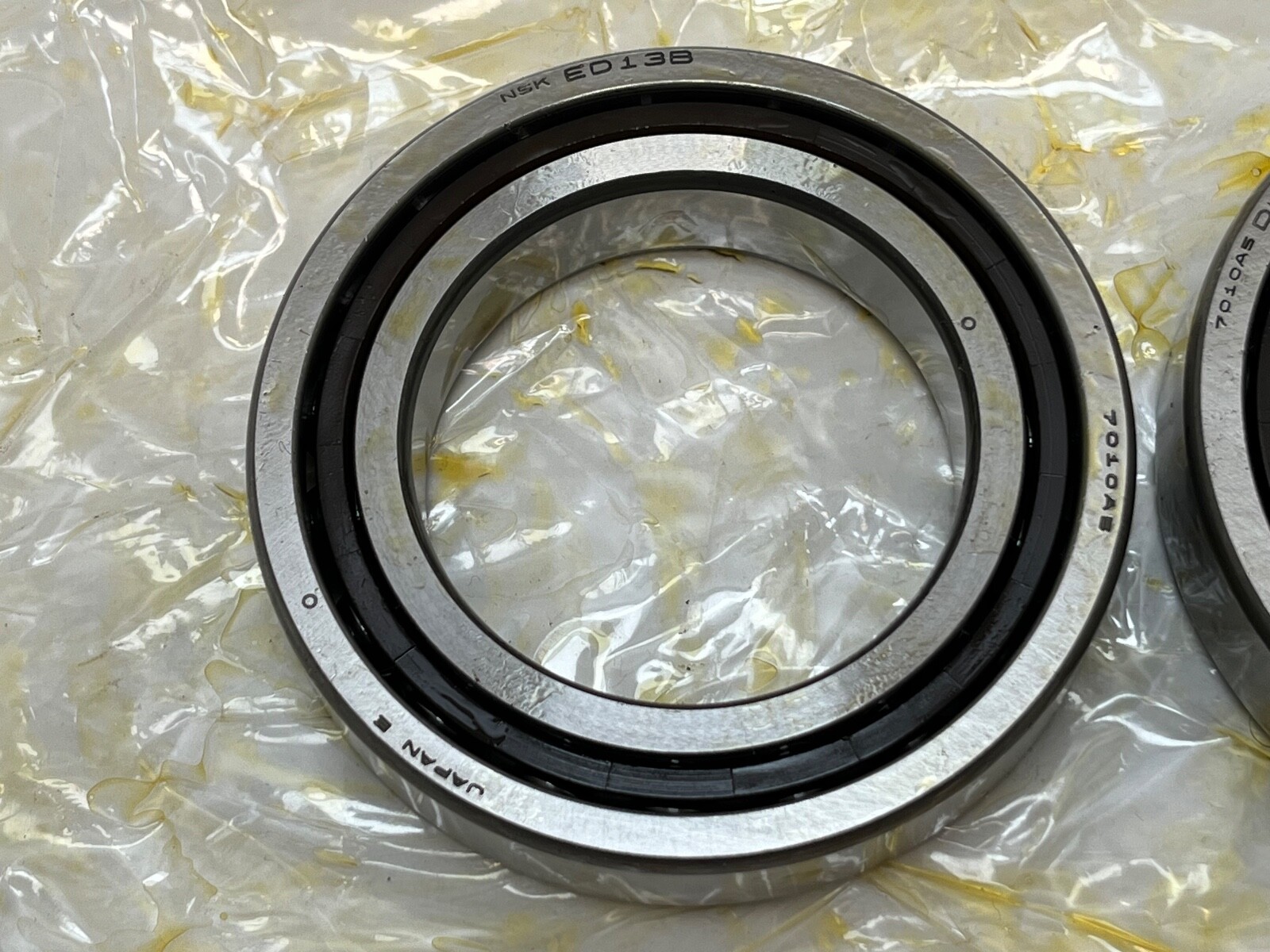

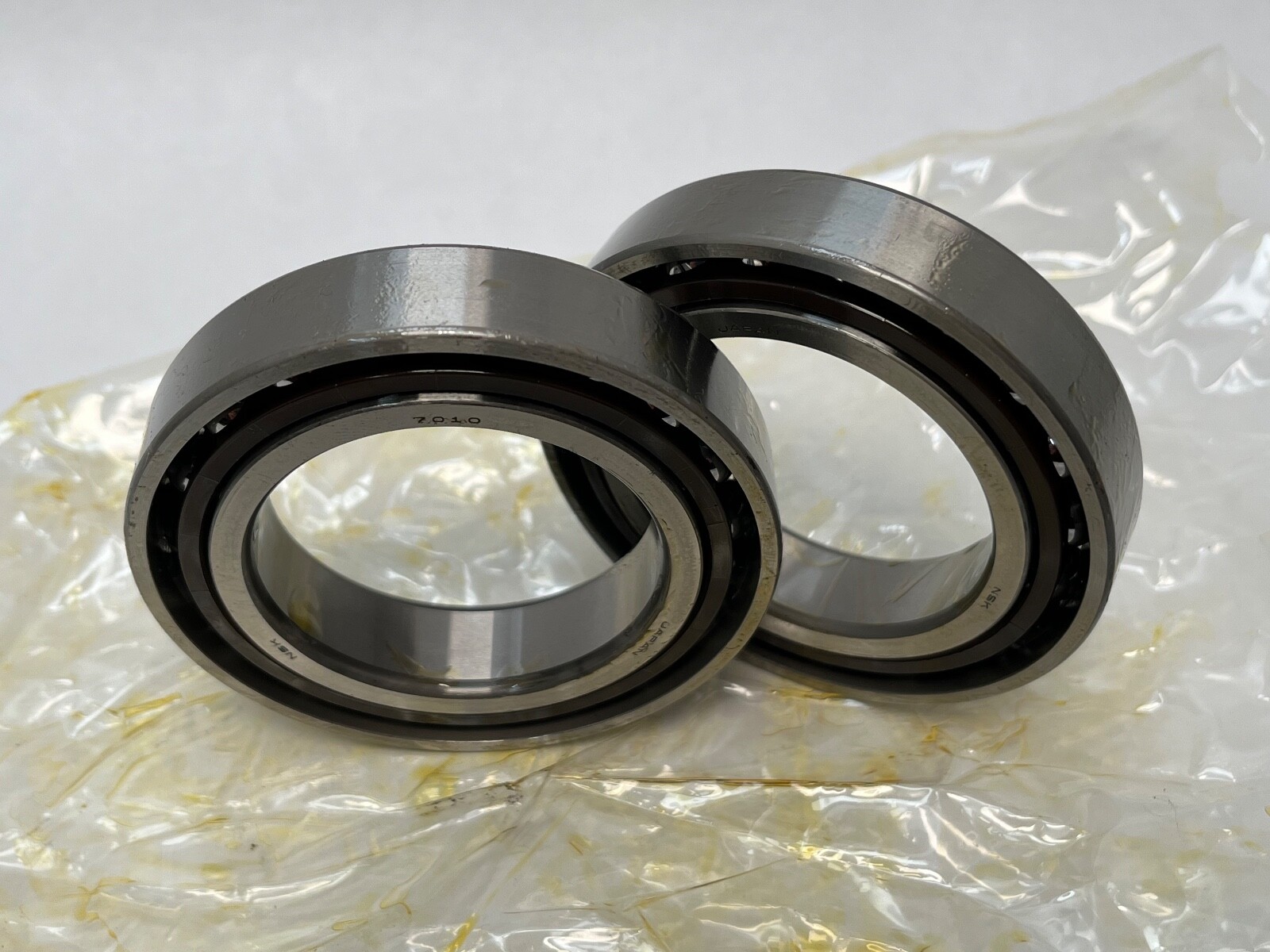

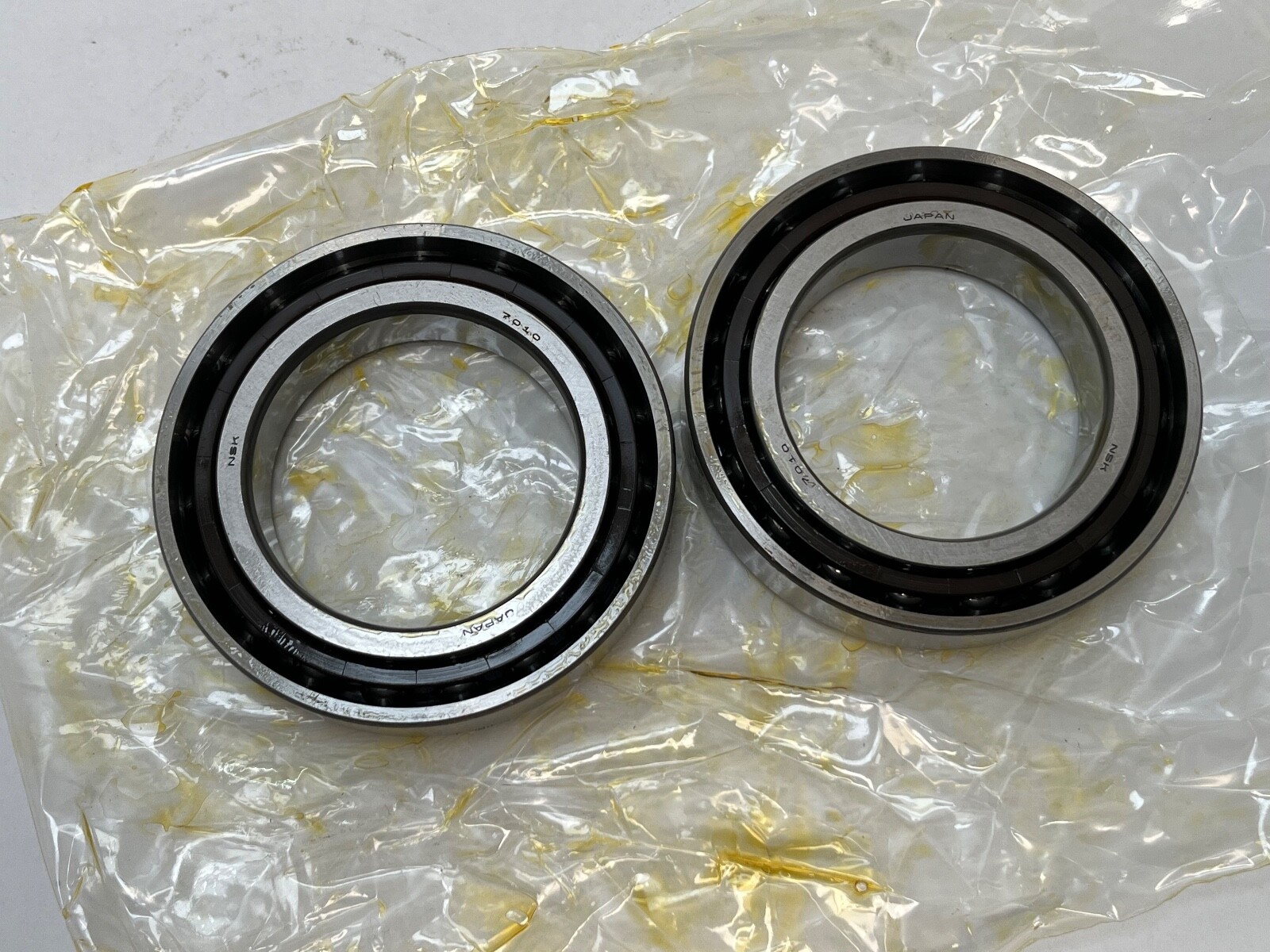

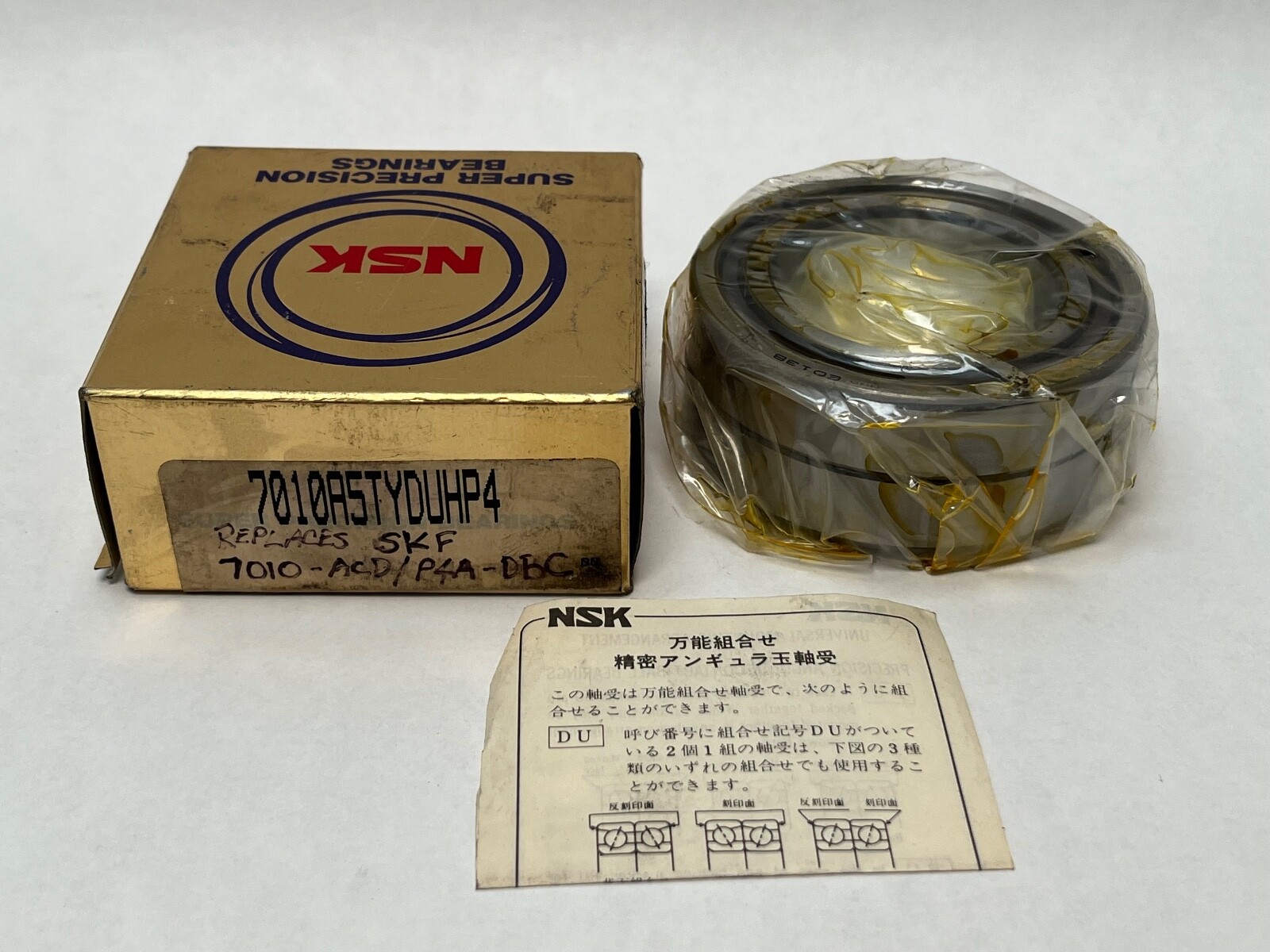

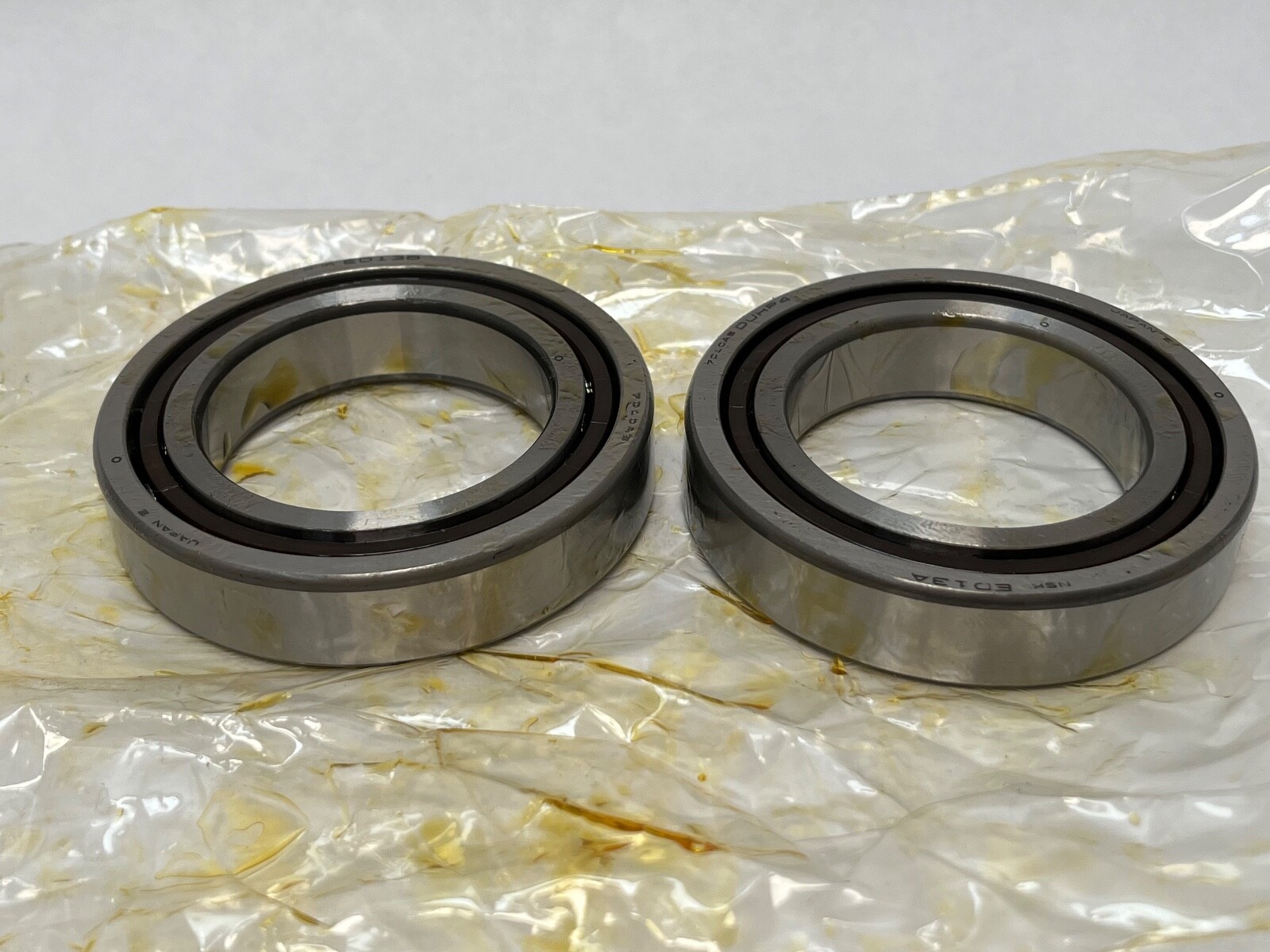

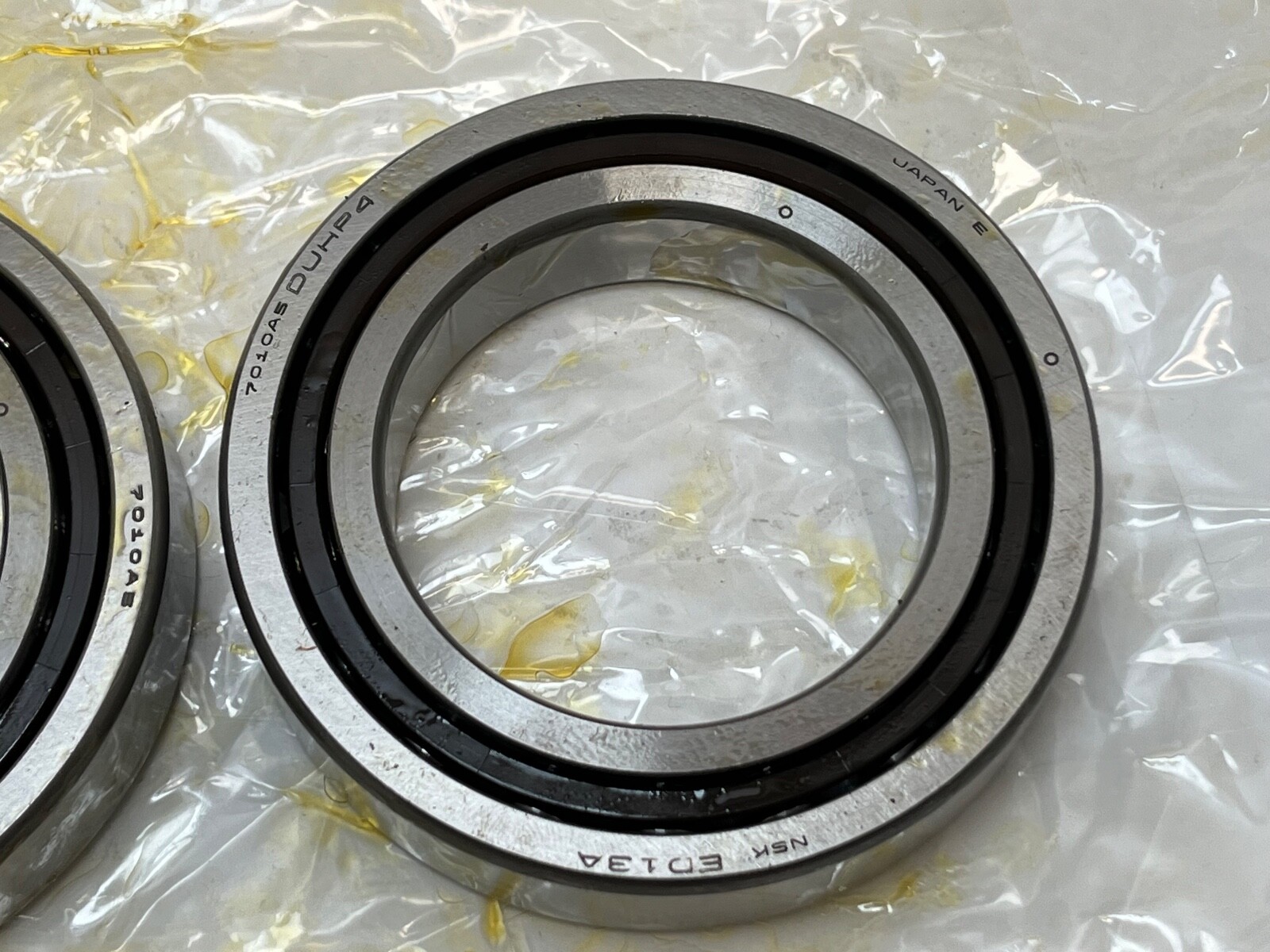

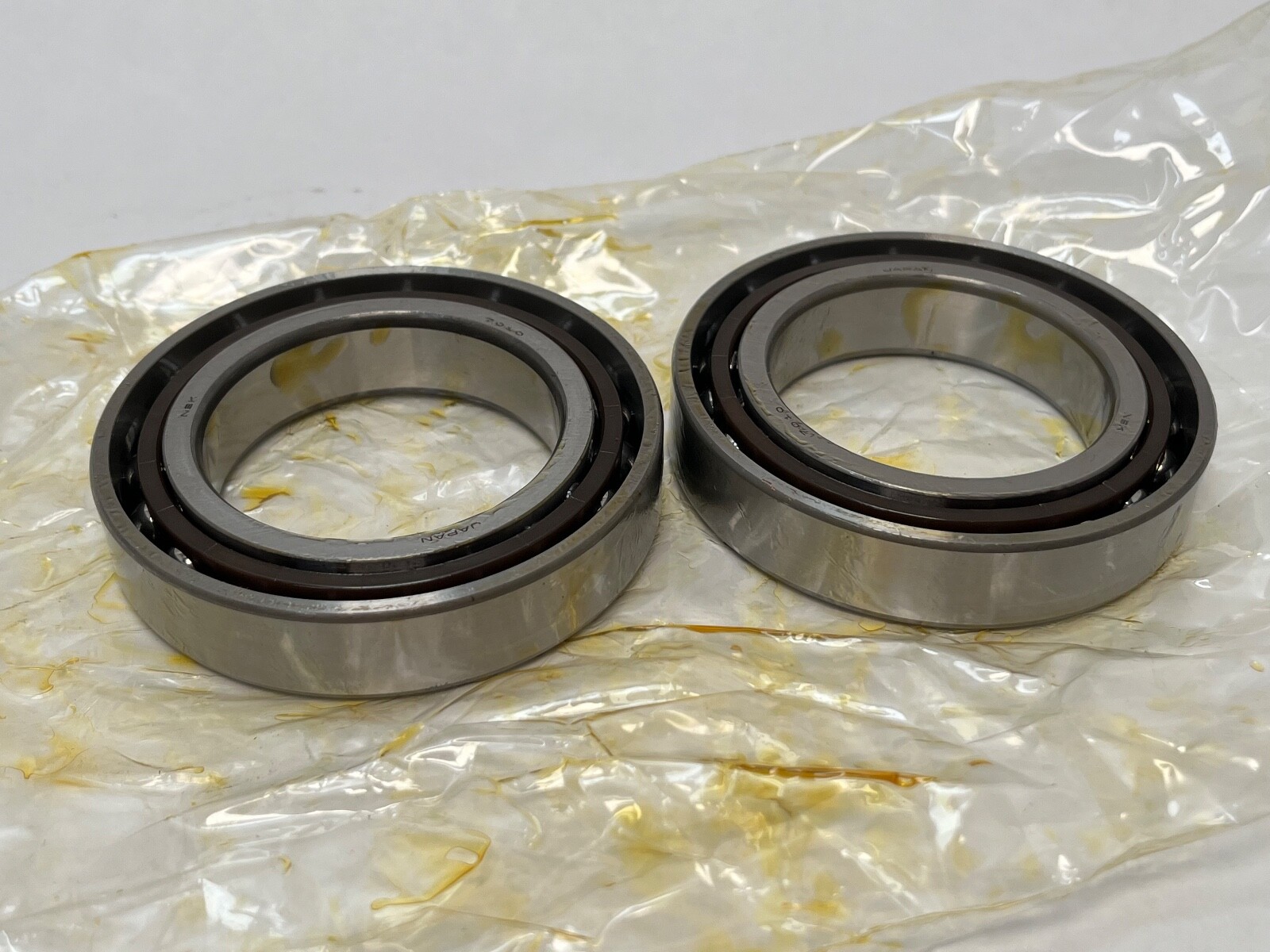

Super precision angular contact ball bearing, 50x80x16 mm, 25 degree contact angle, ABEC 7 / P4, heavy-preload universally ground duplex pair.
List Price
$215.53
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 7010A5TYDUHP4 |
| Model | 7010A5 T Y DUH P4 / 3MM7110 WI CR DUH / 7010 ACD P4A |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 50 mm |
| OD | 80 mm |
| Width | 16 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 Series Super Precision |
| Preload | Heavy (H) |
| Base Number | 7010 |
| Industry Terms | Super precision angular contact ball bearing; spindle bearing; matched duplex pair; ABEC 7 bearing; machine tool bearing |
| Common Misspellings | 7010ASTYDUHP4; 7010A5TYDUHP-4; 7010A5TYDU HP4; 7010 A5TYDUHP4; 7010A5TYDUNP4 |
| Application Types | Machine tool spindles; grinding spindles; precision gearboxes; high-speed rotary tables; milling and turning centres |
| Overall Width | 16 mm |
| Mpn Variants | 7010A5TYDUHP4; 7010A5 TY DUH P4; 7010-A5-TY-DUH-P4; 7010A5 TYDUH P4; 7010A5TYDUH P4 |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Effective load centre a 23.2 mm; permissible axial load Pa 16.2 kN; da min 56 mm; Da max 74 mm; Db max 75 mm; ra max 1 mm; rb max 0.5 mm; r min 1 mm; r1 min 0.6 mm |
| Closure Type | Open |
| Cage Type | Ball-guided |
| Dynamic Load Rating | 31,000 N |
| Static Load Rating | 20,800 N |
| Rolling Elements | Ball |
| Item Weight | 0.270 kg (0.595 lb) per bearing |
| Number Of Rows | Single Row |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Limiting Speed | 15,400 rpm grease; 23,100 rpm oil |
| Lubricant | Grease or oil-air; 1.5 g grease per bearing recommended |
| Harmonization Code | 8482.10.5028 |
| Contact Angle | 25° |
| Mounting Arrangement | Universal duplex (DU), pairable DB, DF or DT |
| Bearing Material | Bearing Steel |
| Cross Reference 1 | SKF 7010 ACD/P4A |
|---|---|
| Cross Reference 2 | FAG B7010-E-T-P4S |
| Cross Reference 3 | Fafnir / Timken 3MM9110WI |
| Cross Reference 4 | NSK 7010A5TRDUHP4 (sibling, phenolic cage) |
| Cross Reference 5 | NSK 7010A5TYNDUHP4 (sibling, polyamide cage) |
| Cross Reference 6 | NSK 7010A5TYDBHP4 (sibling, back-to-back pairing) |
| Cross Reference 7 | NTN 7010UCDBP4 (comparable 25 degree super precision, not a code-for-code match) |

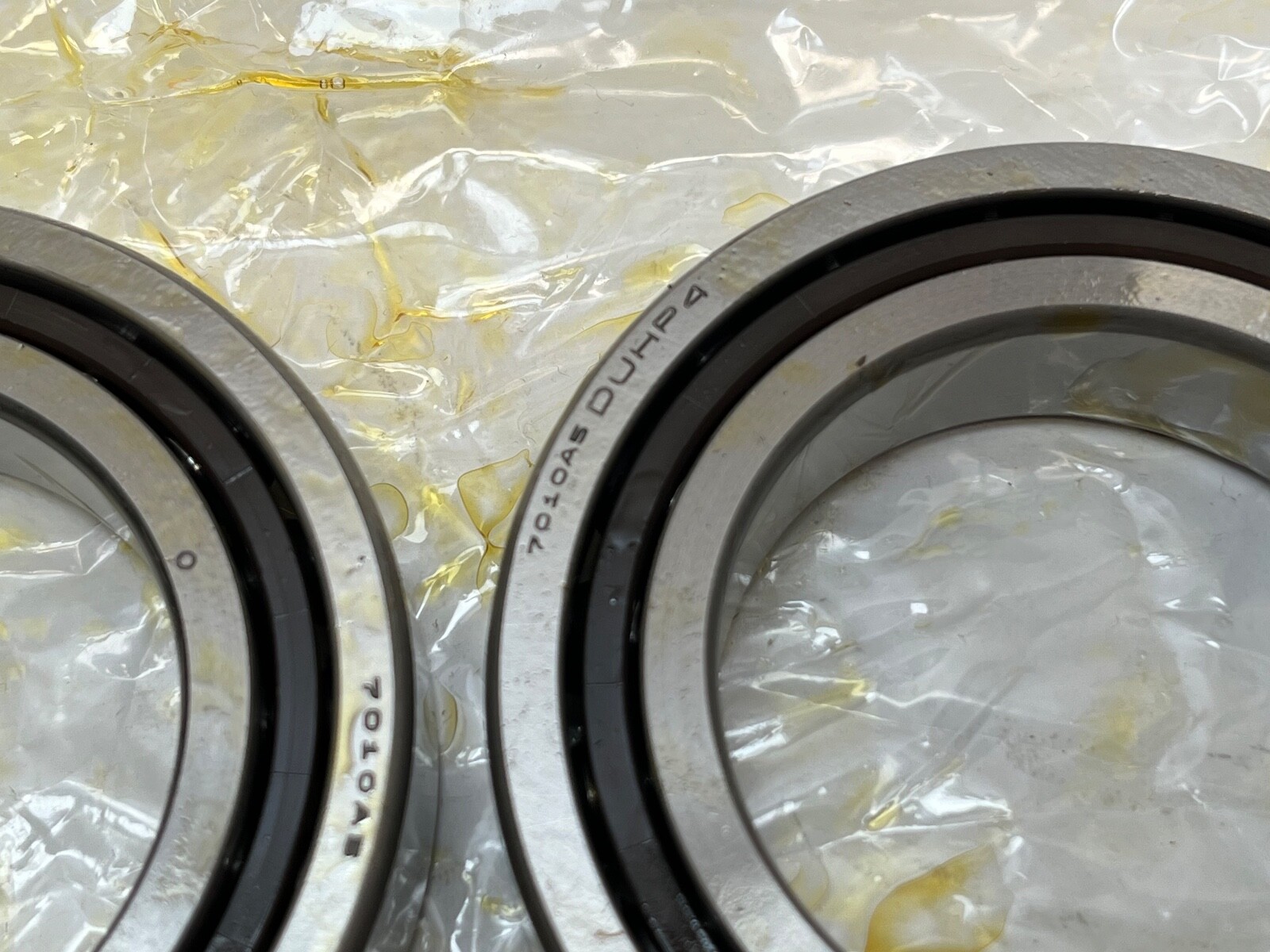

NSK 7010A5TYDUHP4 is a super precision single-row angular contact ball bearing in the 7000 series, 50 mm bore by 80 mm outside diameter by 16 mm width, supplied as a universally ground pair. Bore Diameter: 50 mm. Outside Diameter: 80 mm. Overall Width: 16 mm. Contact Angle: 25°. Precision Class: ABEC 7 / P4. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Number Of Rows: Single Row. Bearing Material: Bearing Steel. Series: 7000 Series Super Precision. Base Number: 7010.
7010 — 70 dimension series, 50 mm bore.
A5 — 25° contact angle in NSK super precision nomenclature.
TY — ball-guided cage.
DU — universally ground duplex set, flush-ground so the two rings pair back-to-back, face-to-face or in tandem.
H — heavy preload class.
P4 — ISO Class 4 accuracy, commonly quoted as ABEC 7.
Dynamic Load Rating: 31,000 N per bearing. Static Load Rating: 20,800 N per bearing. Limiting Speed: 15,400 rpm grease; 23,100 rpm oil. Permissible axial load Pa: 16.2 kN. Item Weight: 0.270 kg (0.595 lb) per bearing. Cage Type: Ball-guided. Preload: Heavy (H). Lubricant: grease or oil-air, 1.5 g grease per bearing recommended. Load ratings and mass are stated per bearing, not per set.
Effective load centre a: 23.2 mm. Shaft abutment diameter da min: 56 mm. Housing abutment diameter Da max: 74 mm. Housing abutment diameter Db max: 75 mm. Shaft fillet radius ra max: 1 mm. Housing fillet radius rb max: 0.5 mm. Chamfer r min: 1 mm. Chamfer r1 min: 0.6 mm.
Unit Quantity: 2 Pcs. Mounting Arrangement: universal duplex (DU), pairable DB, DF or DT. A preloaded set carries a defined preload rather than a running internal clearance.
Equivalents at 25° include SKF 7010 ACD/P4A, FAG B7010-E-T-P4S and Fafnir · Timken 3MM9110WI. NSK siblings in the same envelope include 7010A5TRDUHP4 and 7010A5TYNDUHP4, which differ in cage. NTN 7010UCDBP4 is a comparable 25° super precision bearing rather than a code-for-code match.
