Super-Precision Angular Contact Ball Bearing Pair – 20 mm Bore, 42 mm OD, 12 mm Width, 15°, Light Preload$29.38
Matched Tandem Set, Angular Contact Ball Bearings 20 x 47 x 14 mm, 15 Degree Contact Angle, ABEC 5, Open, 2 Pcs$66.66
Super-Precision Angular Contact Ball Bearing - 20 mm ID, 42 mm OD, 12 mm Width, Open, 15° Contact Angle, P4A$86.03

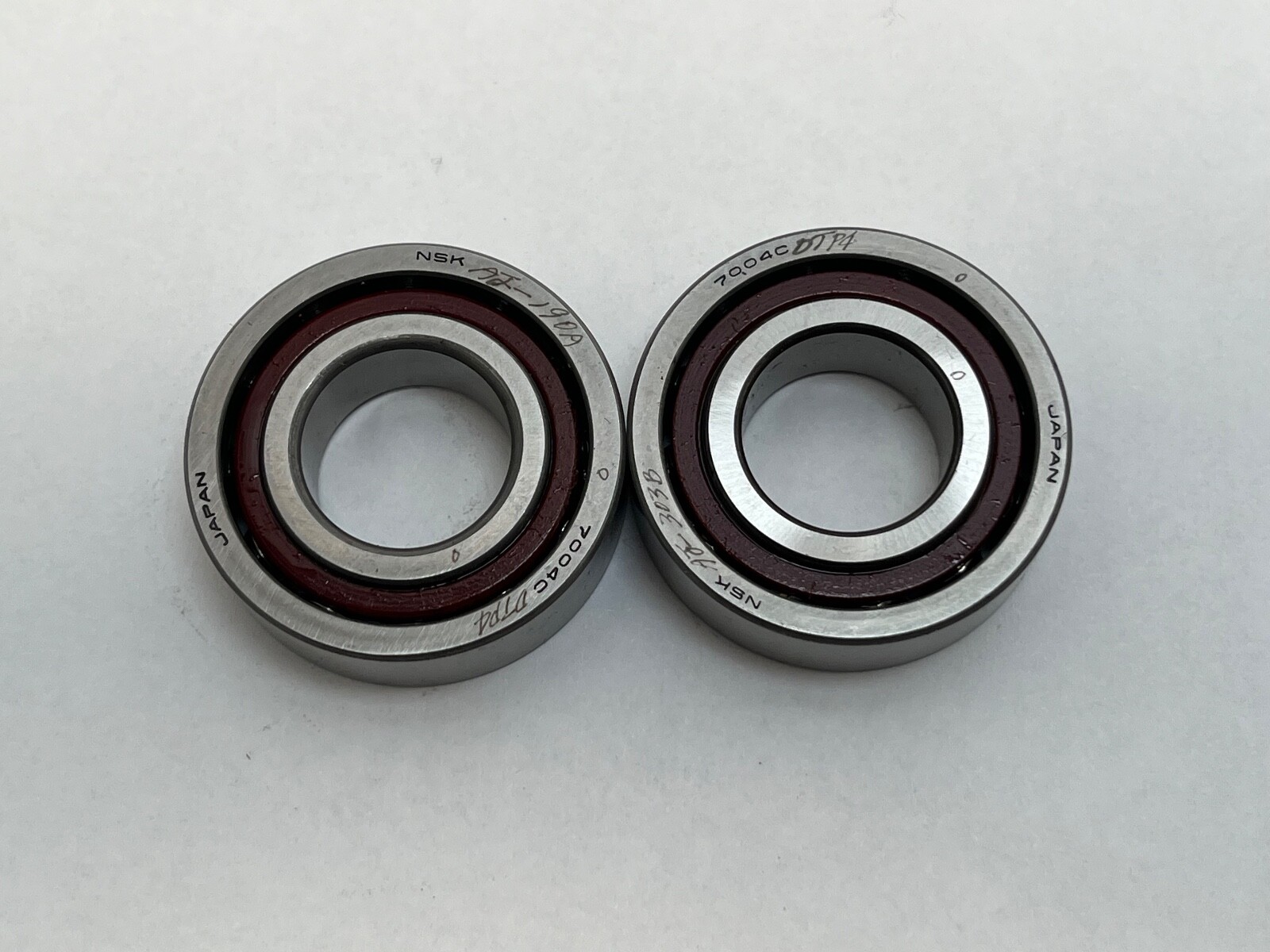

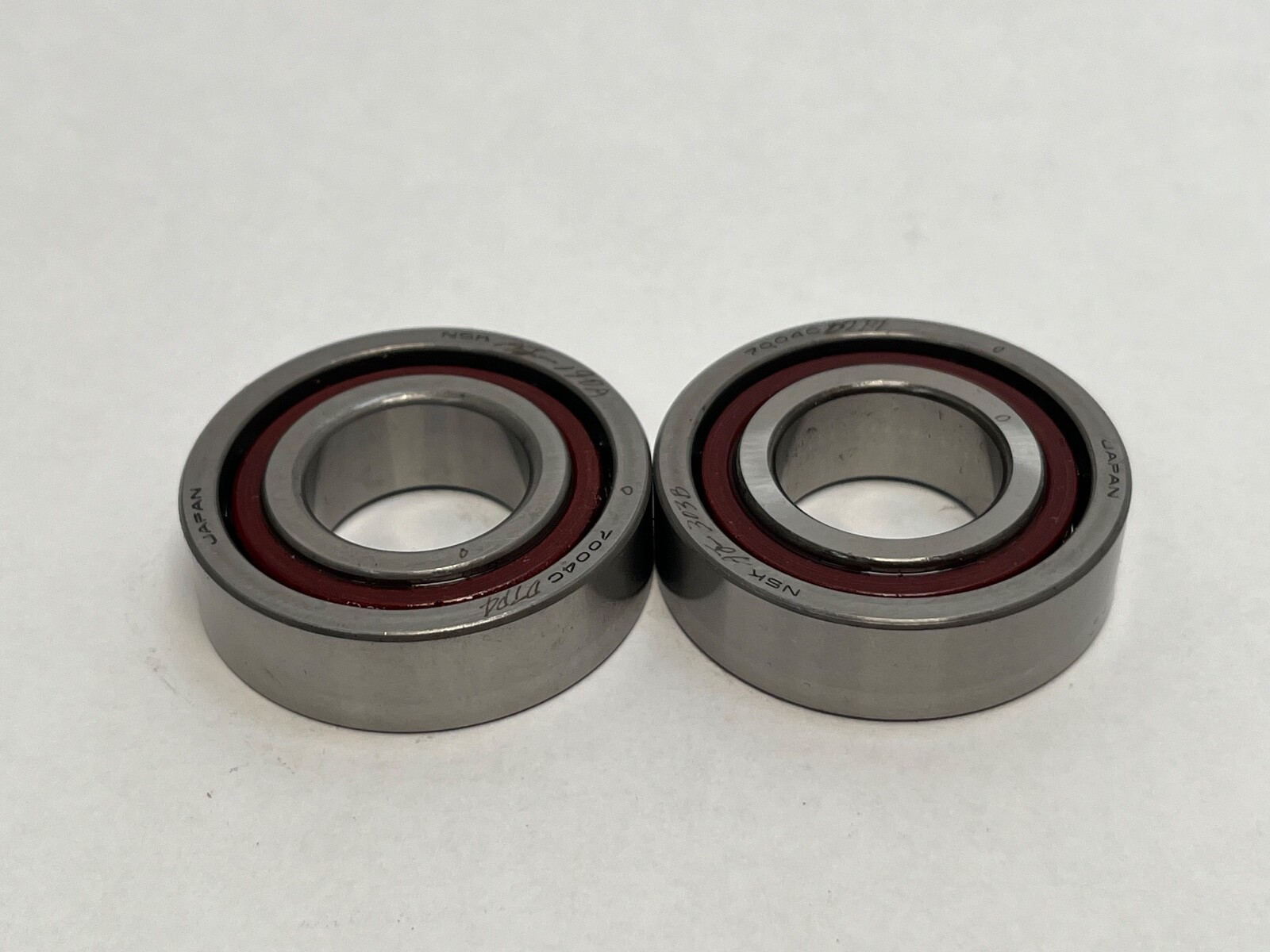

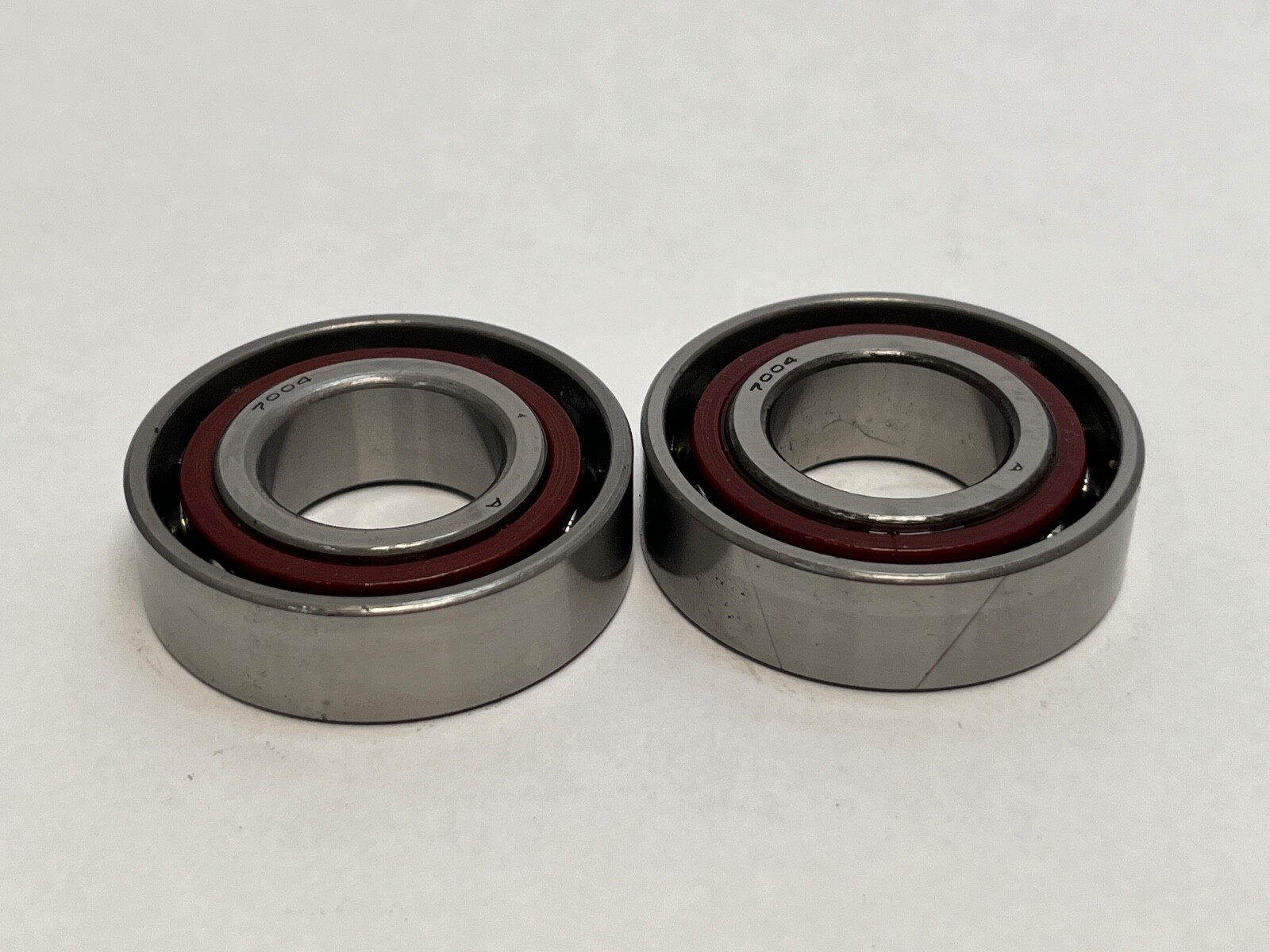

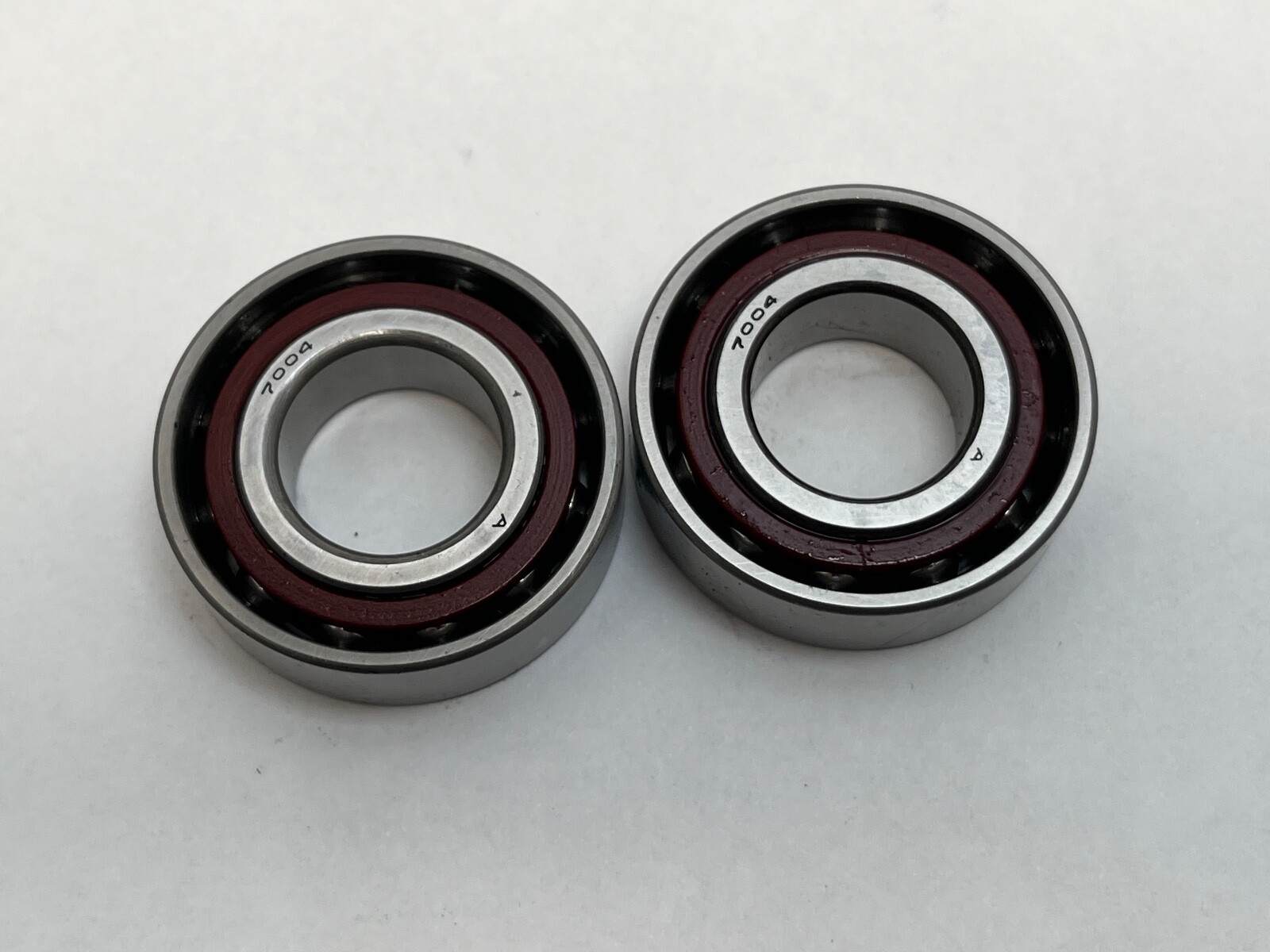

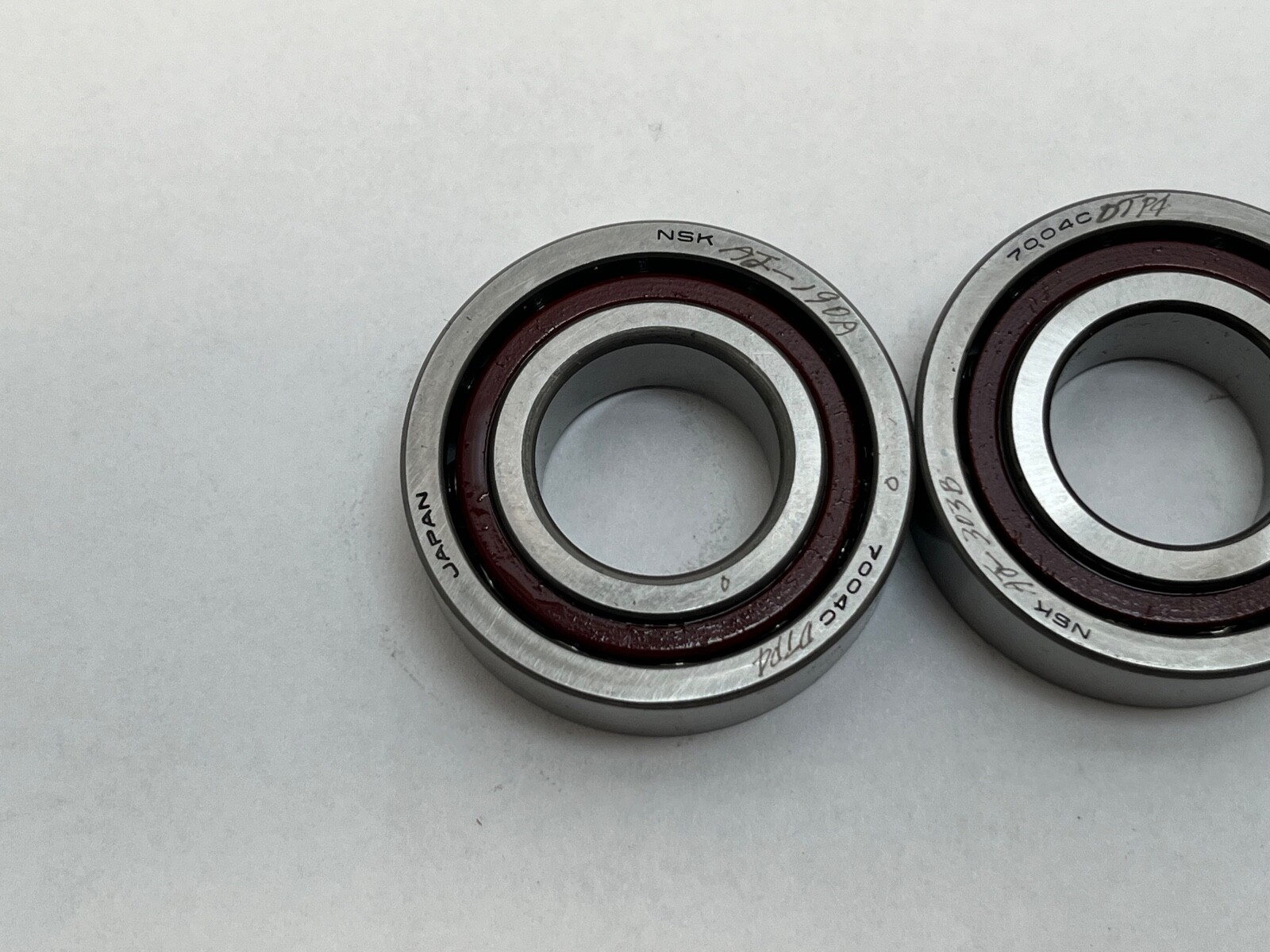

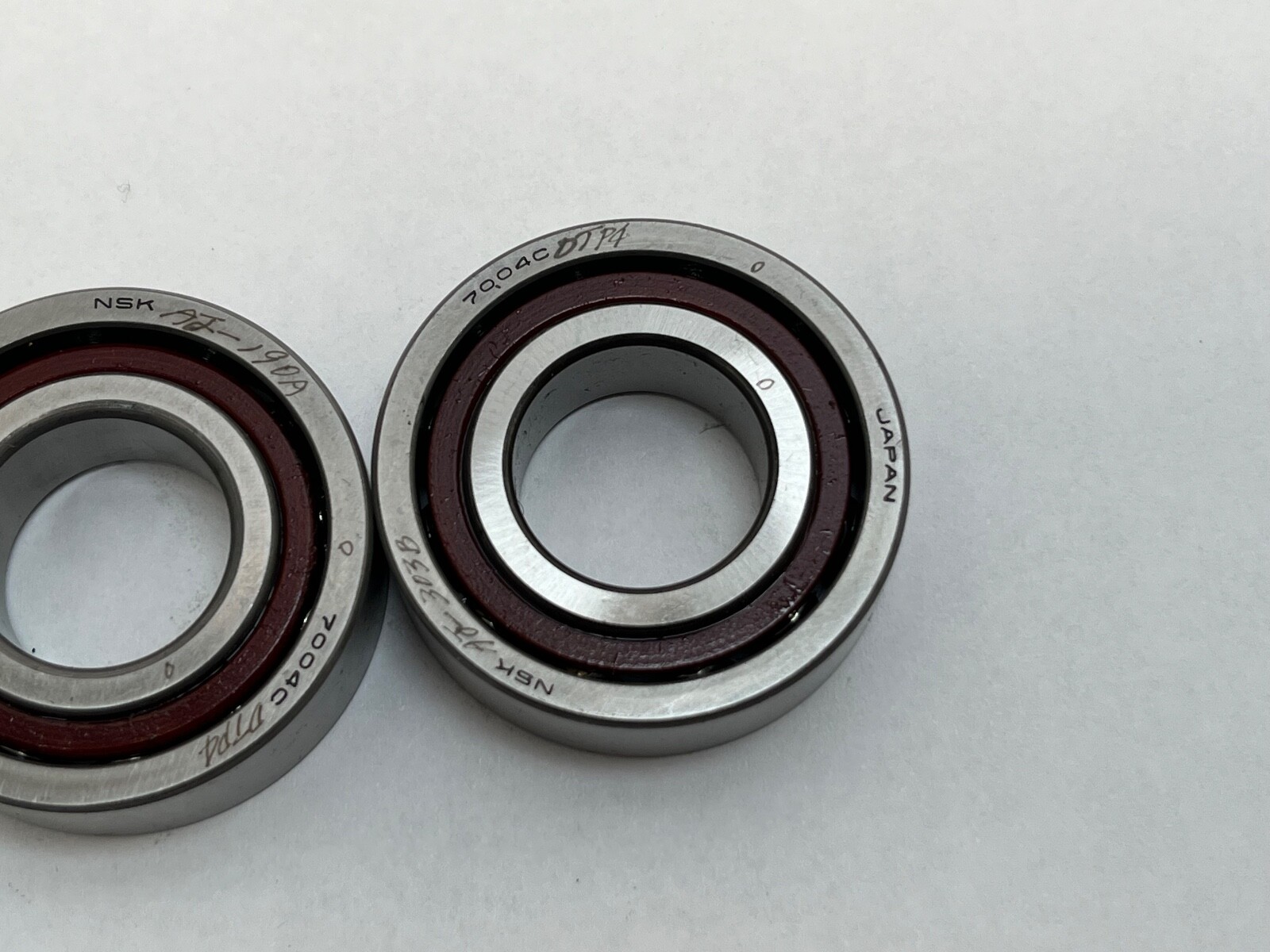

Super-Precision Angular Contact Ball Bearing, Matched Tandem Pair - Straight Bore, 20 mm ID, 42 mm OD, 12 mm Width, Open, 15° Contact Angle, Light Preload$190.49| MFR / Brand | NSK |
|---|---|

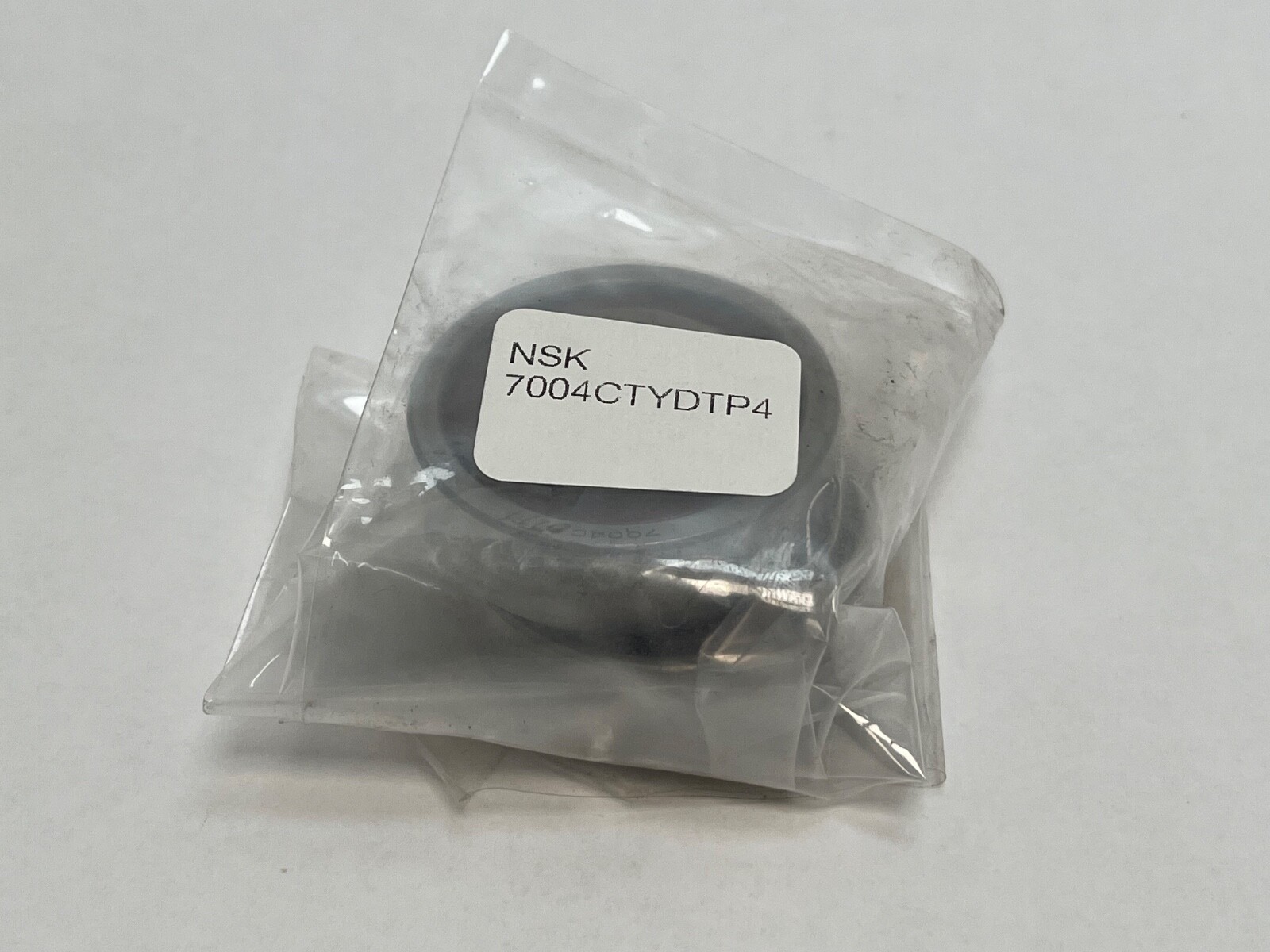

| MPN | 7004CTYDTP4 |
| Model | 7004 C TY DT P4 / 2MM9104 WI CR DU |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 20 mm |
| OD | 42 mm |
| Width | 12 mm |
| Series | 7000 |
|---|---|
| Material | Bearing Steel |
| Min Temp | -30 °C |
| Cage Type | Machined |
| Dynamic Load Rating | 9.9 kN / 2225 lbf |
| Static Load Rating | 5.3 kN / 1190 lbf |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Balls |
| Max Temp | 120 °C |
| Item Weight | 0.15 lbs |
| Cage Material | Polyamide |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Tandem Pair |
| Limiting Speed | 34000 rpm |
| Cross Reference 1 | SKF 7004 CD/P4A DT |
|---|---|
| Cross Reference 2 | Fafnir 2MM9104WI |
| Cross Reference 3 | GMN S6004CTA |
Angular Contact Bearing – 20 mm ID, 42 mm OD, 12 mm Width, Open, 15° Contact Angle
$231.30
29 in stock
$231.30
29 in stock
$53.53
48 in stock
