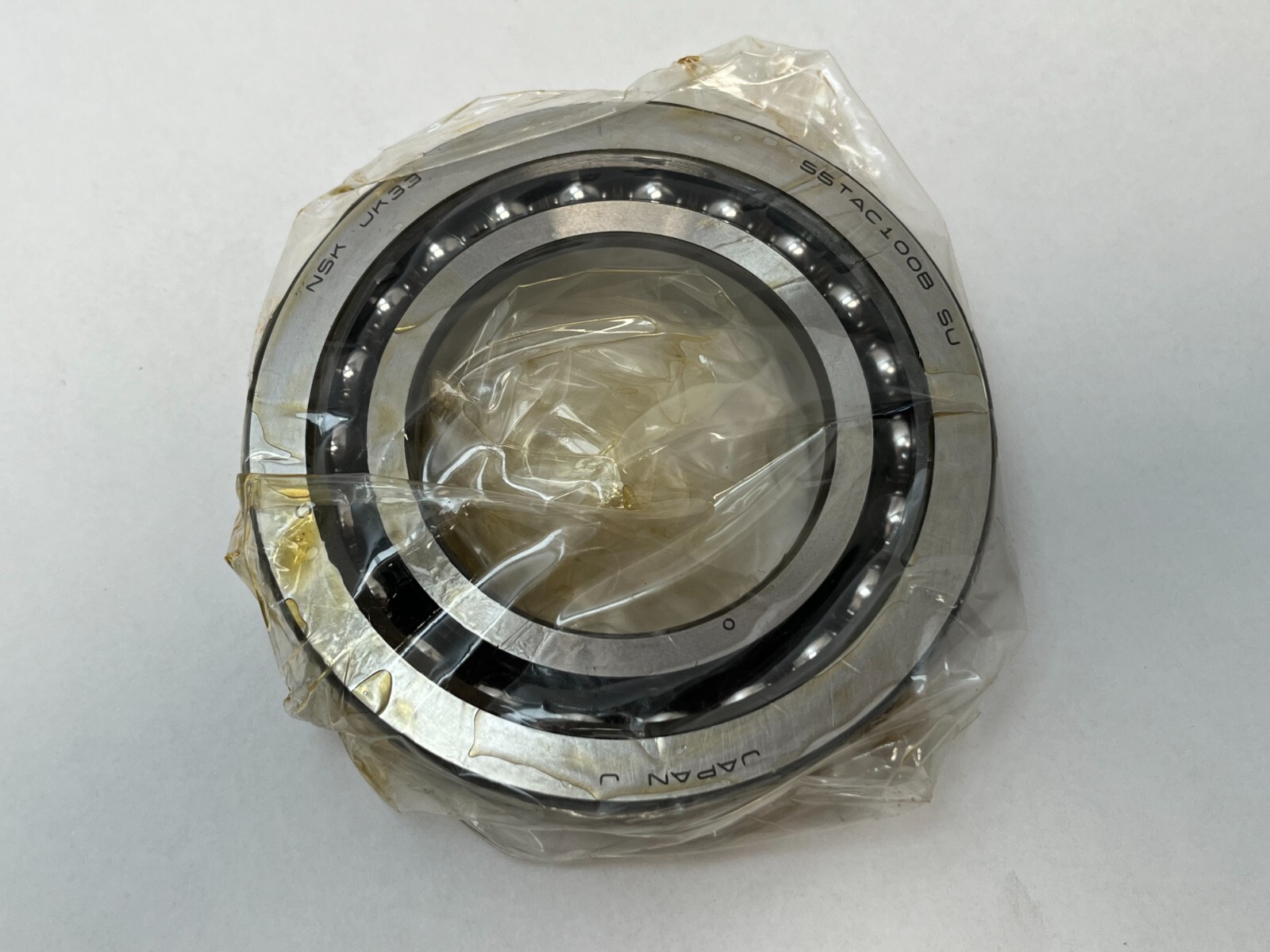

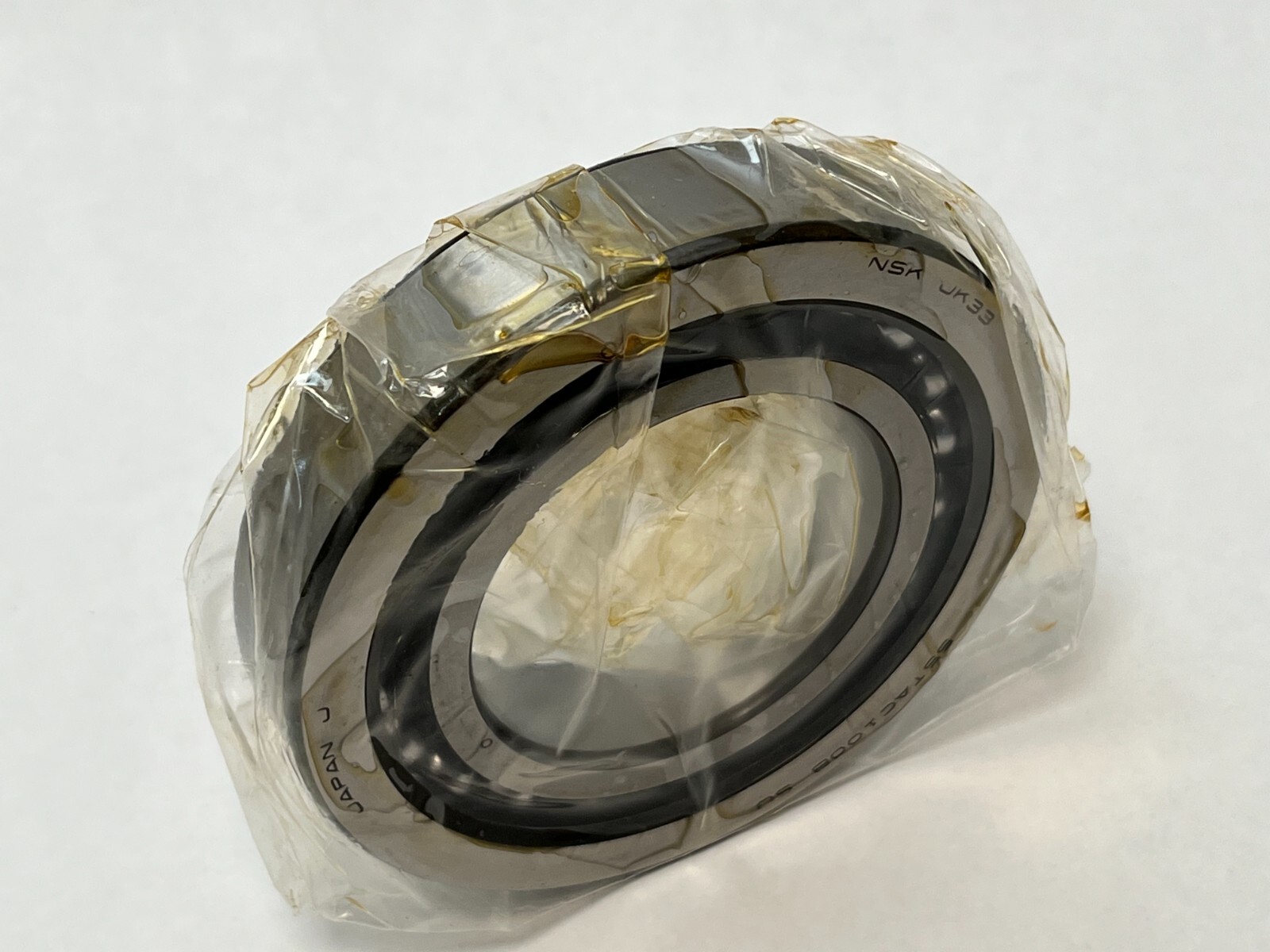

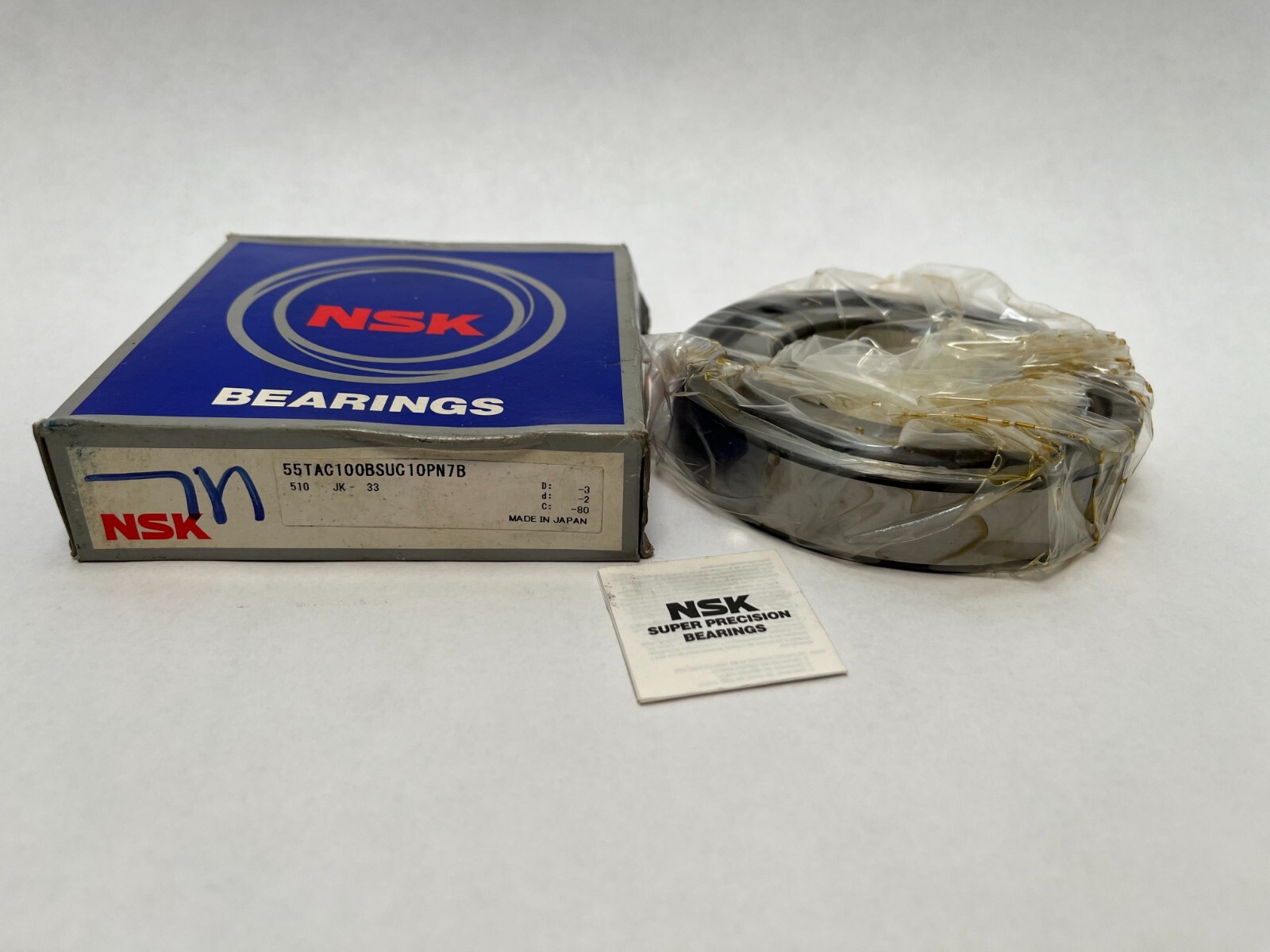

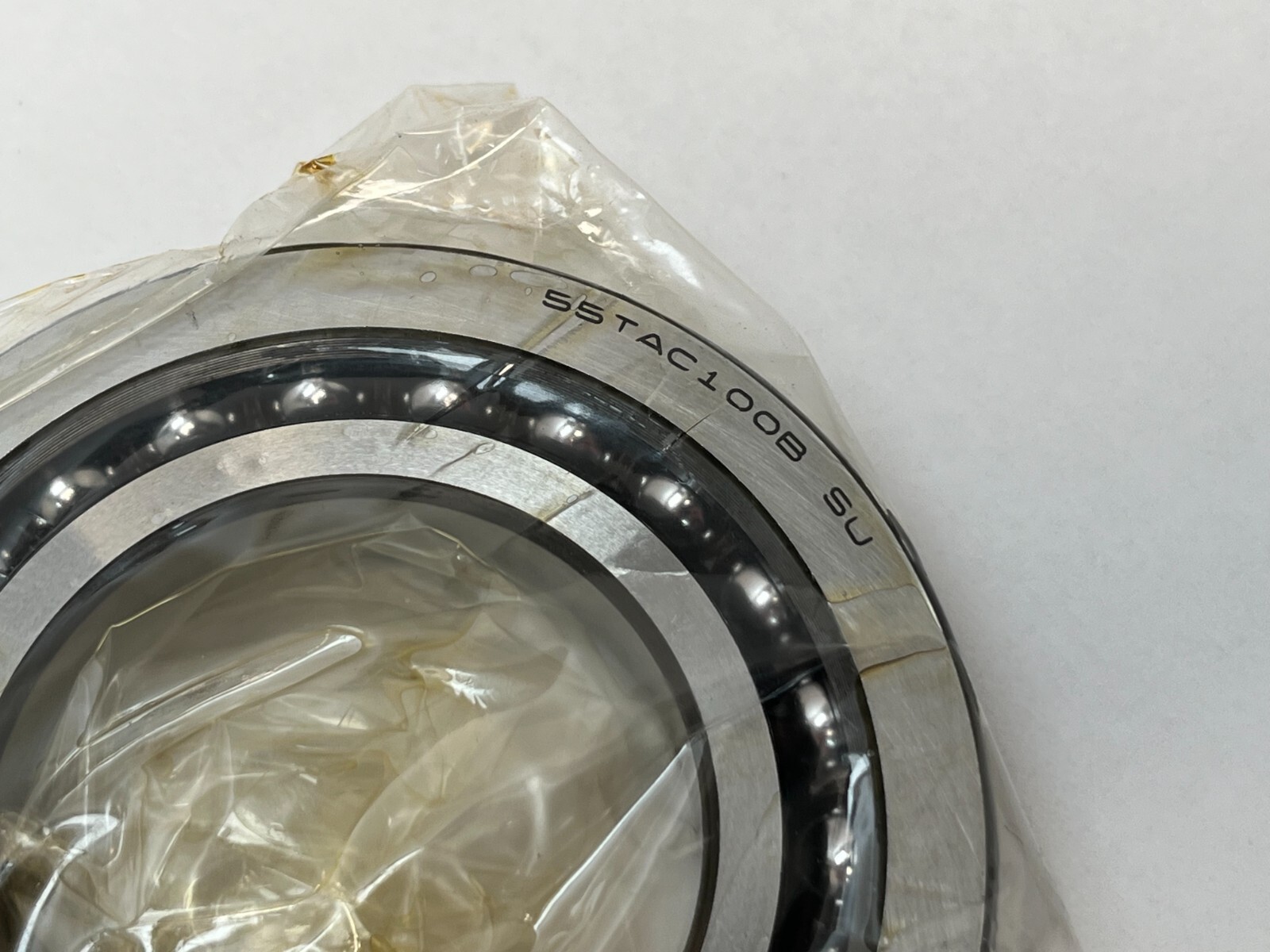

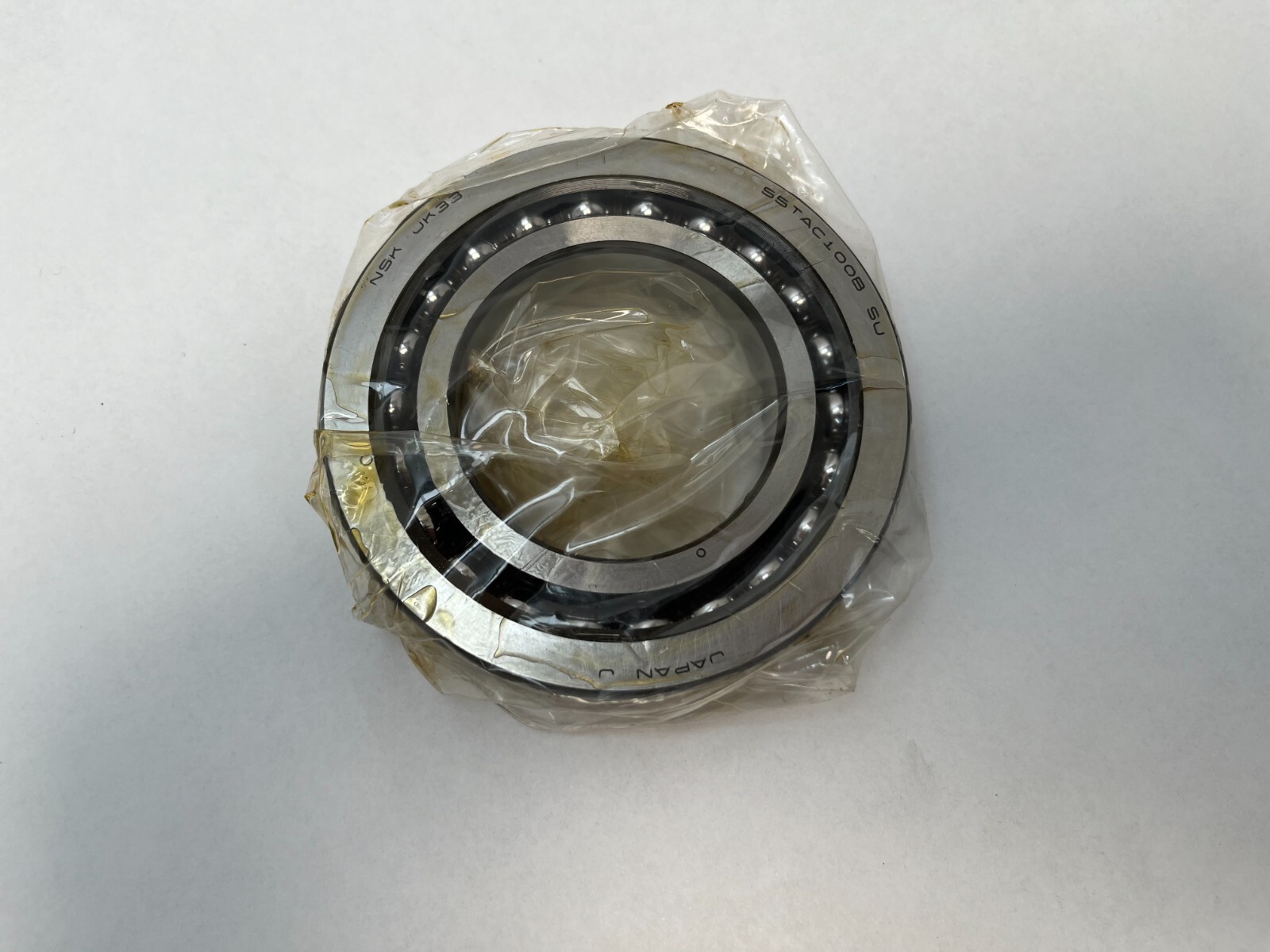

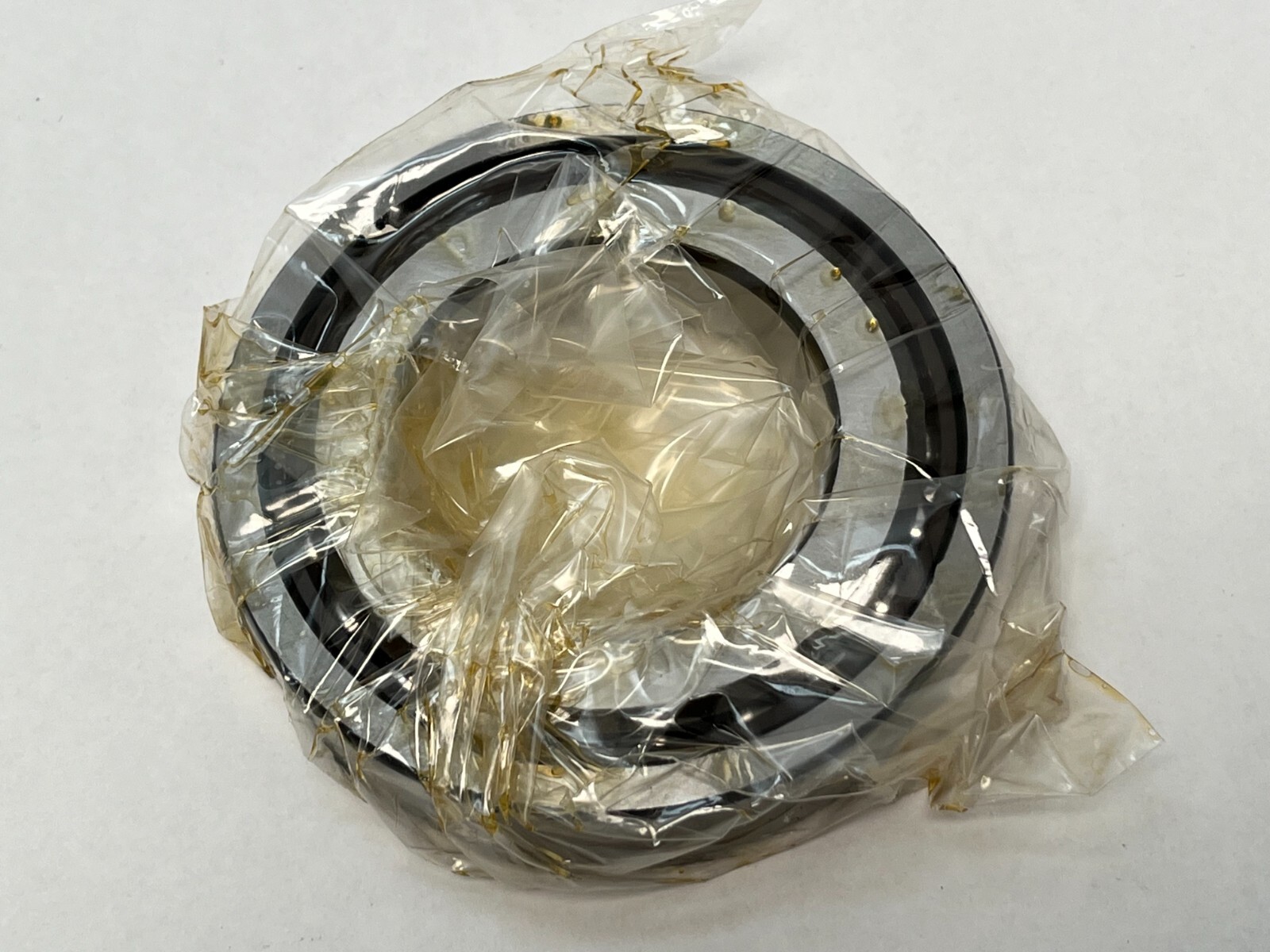

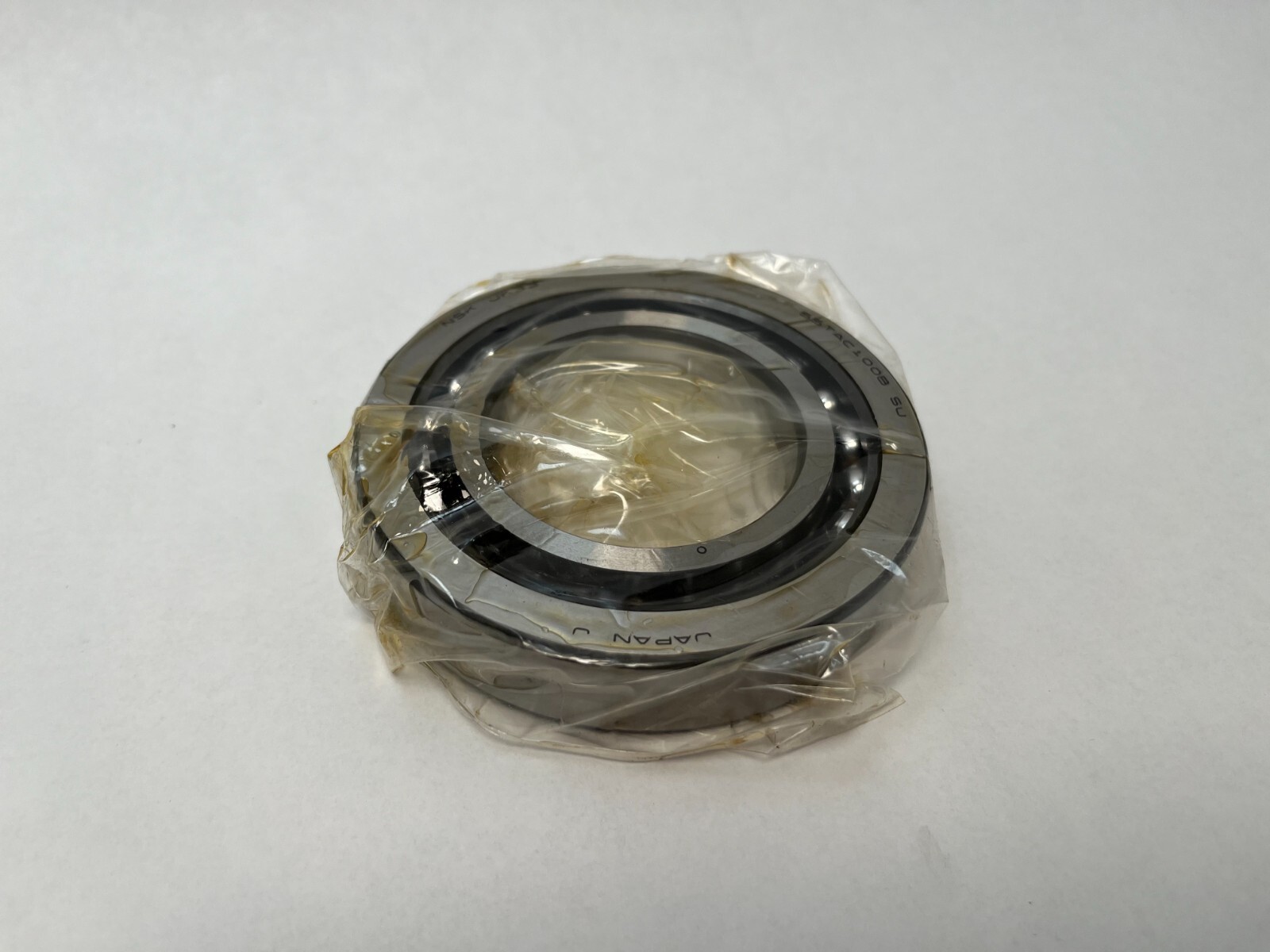

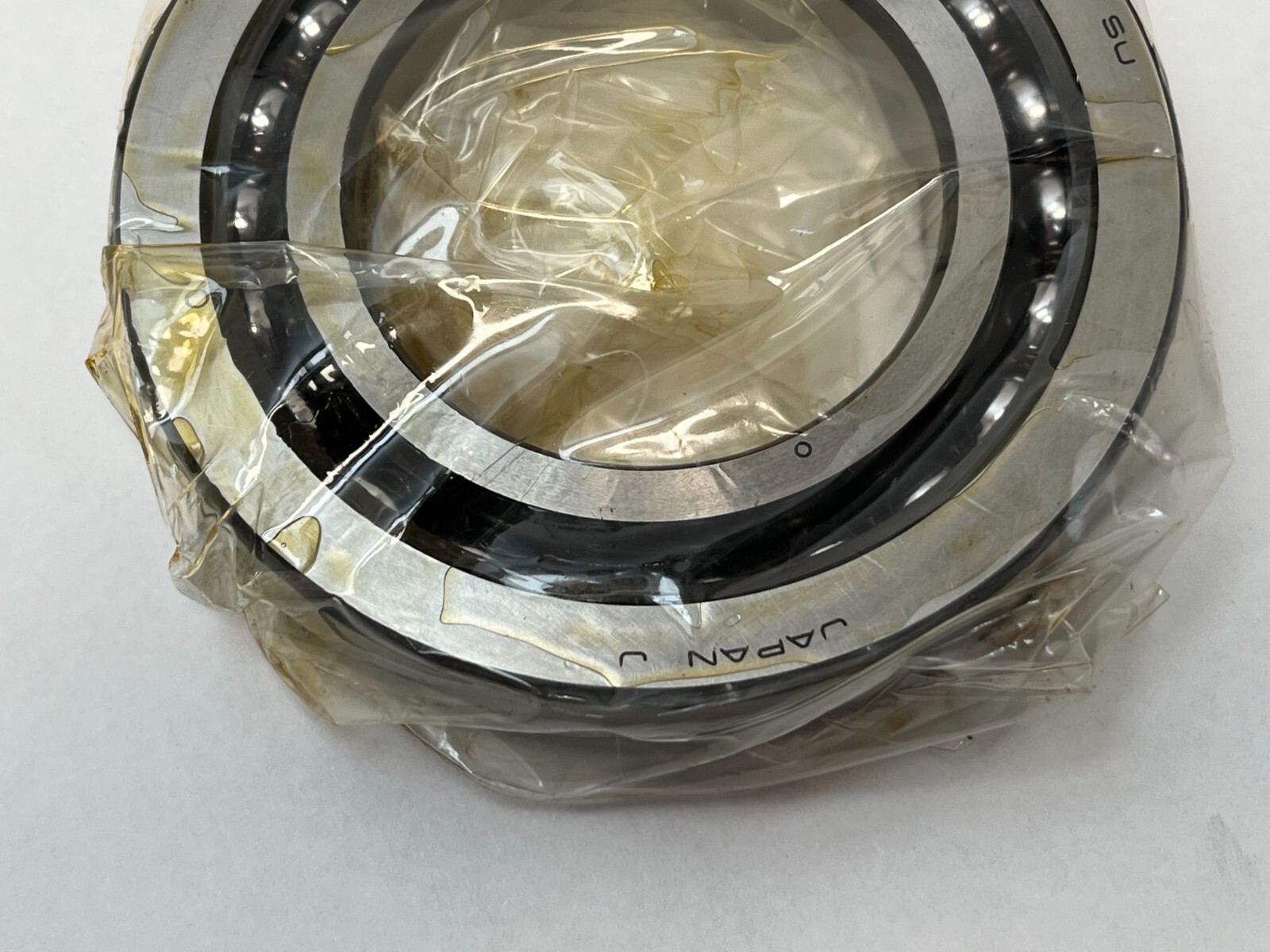

NSK 55TAC100BSUC10PN7B ball screw support bearing, 55 mm bore, 100 mm OD, 20 mm width. Single row, straight bore, open, thick-section TAC series.
List Price
$422.67
5 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 55TAC100BSUC10PN7B |
| Model | 55 TAC 100 B SUC 10 PN 7B / MM55BS100 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 55 mm |
| OD | 100 mm |
| Width | 20 mm |
| Material | Bearing Steel |
|---|---|
| Series | TAC |
| Base Number | 55TAC100B |
| Industry Terms | ball screw support bearing; ball screw bearing; screw support bearing; thrust angular contact ball bearing; BSB bearing |
| Common Misspellings | 55TAC100BSUCI0PN7B; 55TAC1OOBSUC10PN7B; 55TAC100BSU10PN7B; 55TAK100BSUC10PN7B |
| Application Types | CNC machine tool ball screw ends; linear actuator screw supports; press and injection machine screw drives; precision positioning stages |
| Overall Width | 20 mm |
| Mpn Variants | 55TAC100BSUC10PN7B; 55TAC100B SUC10PN7B; 55TAC100-B-SUC-10-PN-7B; 55 TAC 100 B SUC 10 PN 7B; 55TAC100BSUC10; 55TAC100B; 55TAC100 |
| Additional Attributes | Thick-section rings for axial stiffness at a ball screw end support |
| Closure Type | Open |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Bearing Material | Bearing steel |
A single-row ball screw support bearing from NSK’s TAC series. Bore Diameter: 55 mm. Outside Diameter: 100 mm. Overall Width: 20 mm. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Bearing Material: Bearing steel.
TAC — NSK’s ball screw support bearing series. These are angular contact ball bearings built with a high contact angle and thick rings, so the assembly is stiff in the axial direction and holds a ball screw’s axial position under thrust.
55 — Bore Diameter: 55 mm.
100 — Outside Diameter: 100 mm.
A 20 mm width on a 55 mm bore and a 100 mm outside diameter gives a thick radial section for the width. The extra ring material is what makes the bearing axially stiff, which is the property a ball screw end support is selected for.
Axial stiffness at the screw end determines how closely a machine can hold position under cutting load, so ball screw support bearings are rated on stiffness and running accuracy rather than on radial capacity.
Bore Diameter: 2.1654 in. Outside Diameter: 3.9370 in. Overall Width: 0.7874 in. Bore Type: Straight, so the inner ring mounts directly on the screw journal and is clamped by a locknut against a shoulder.
Unit Quantity: 1 Pc.
