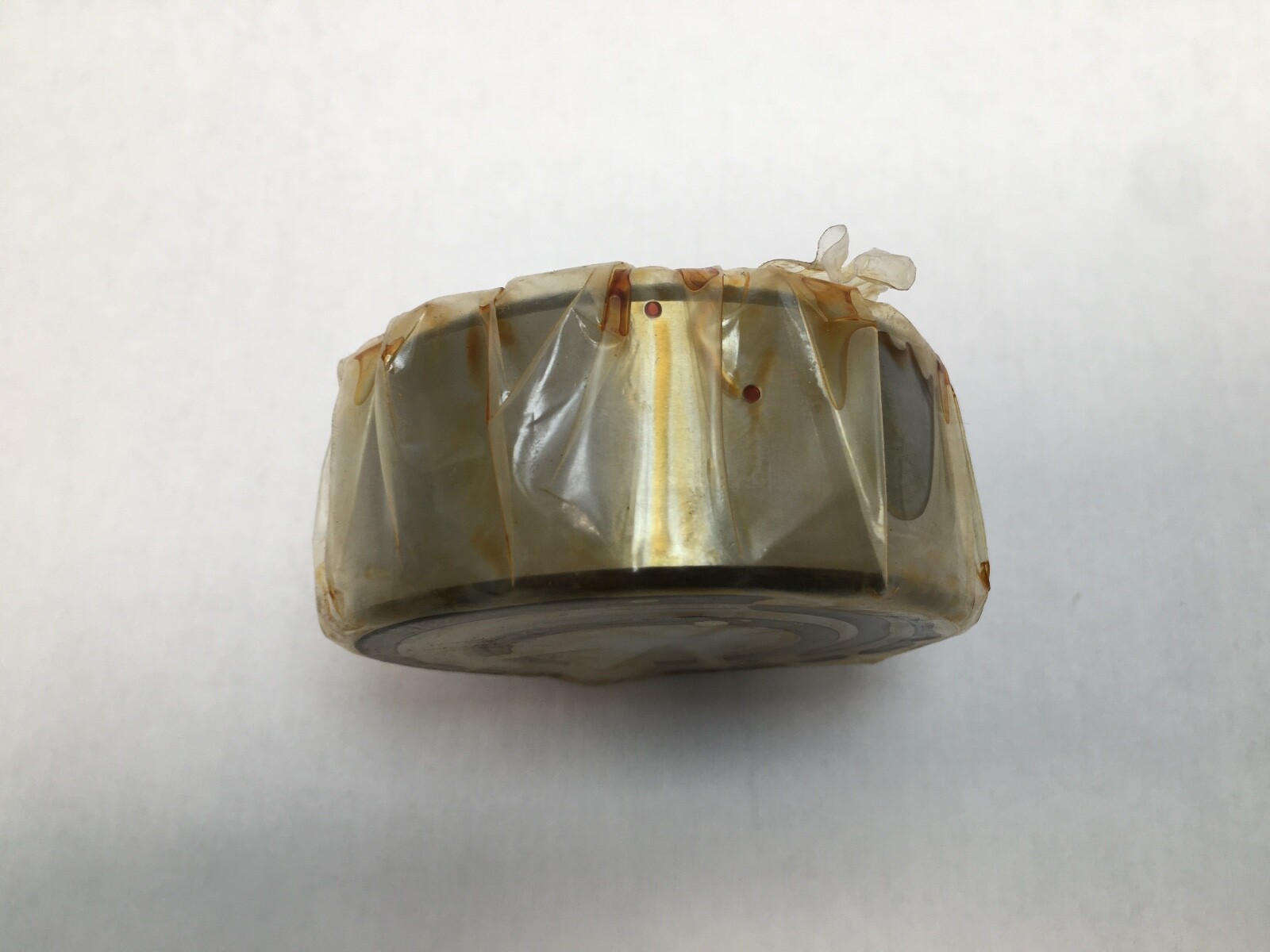

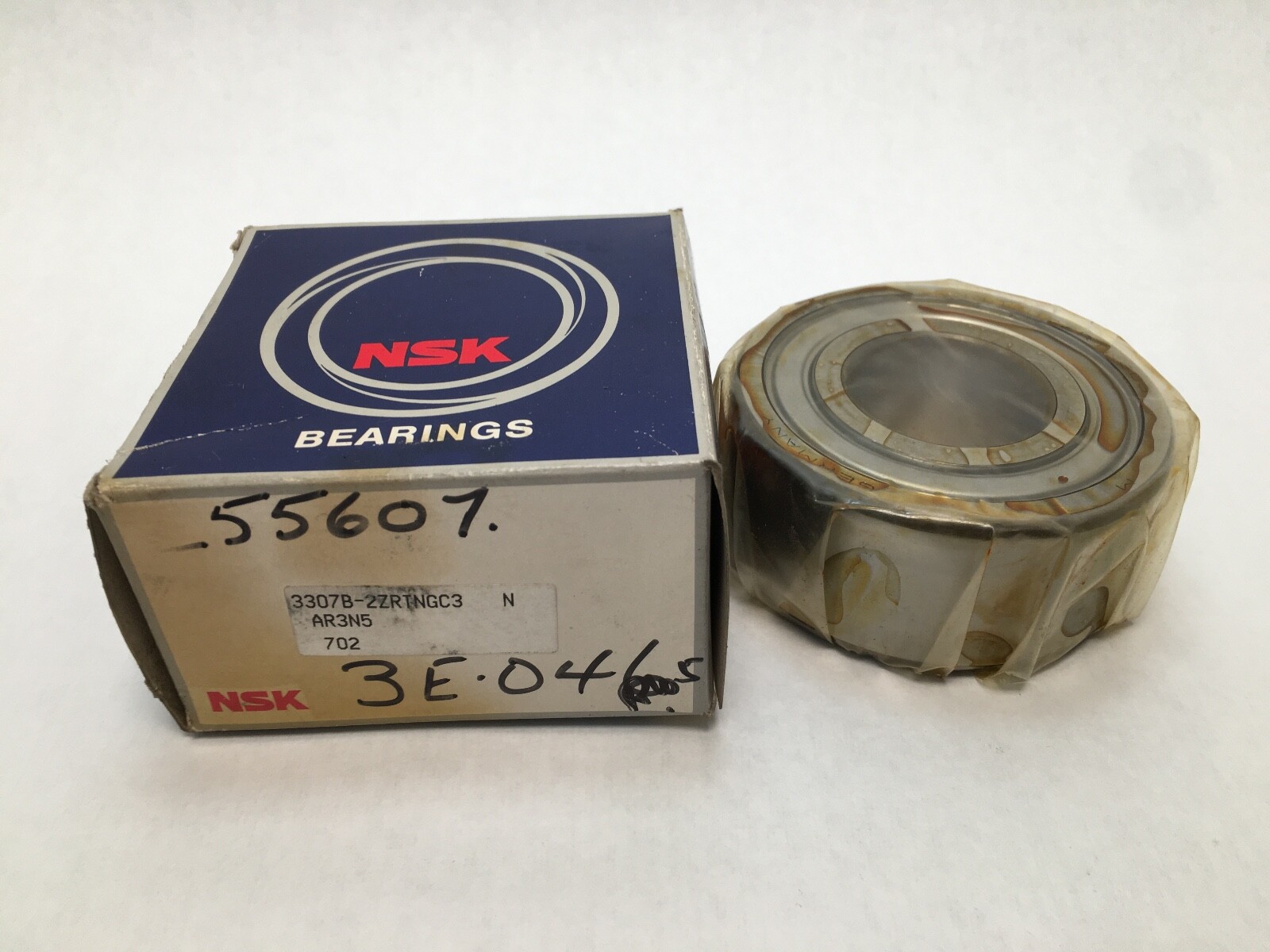

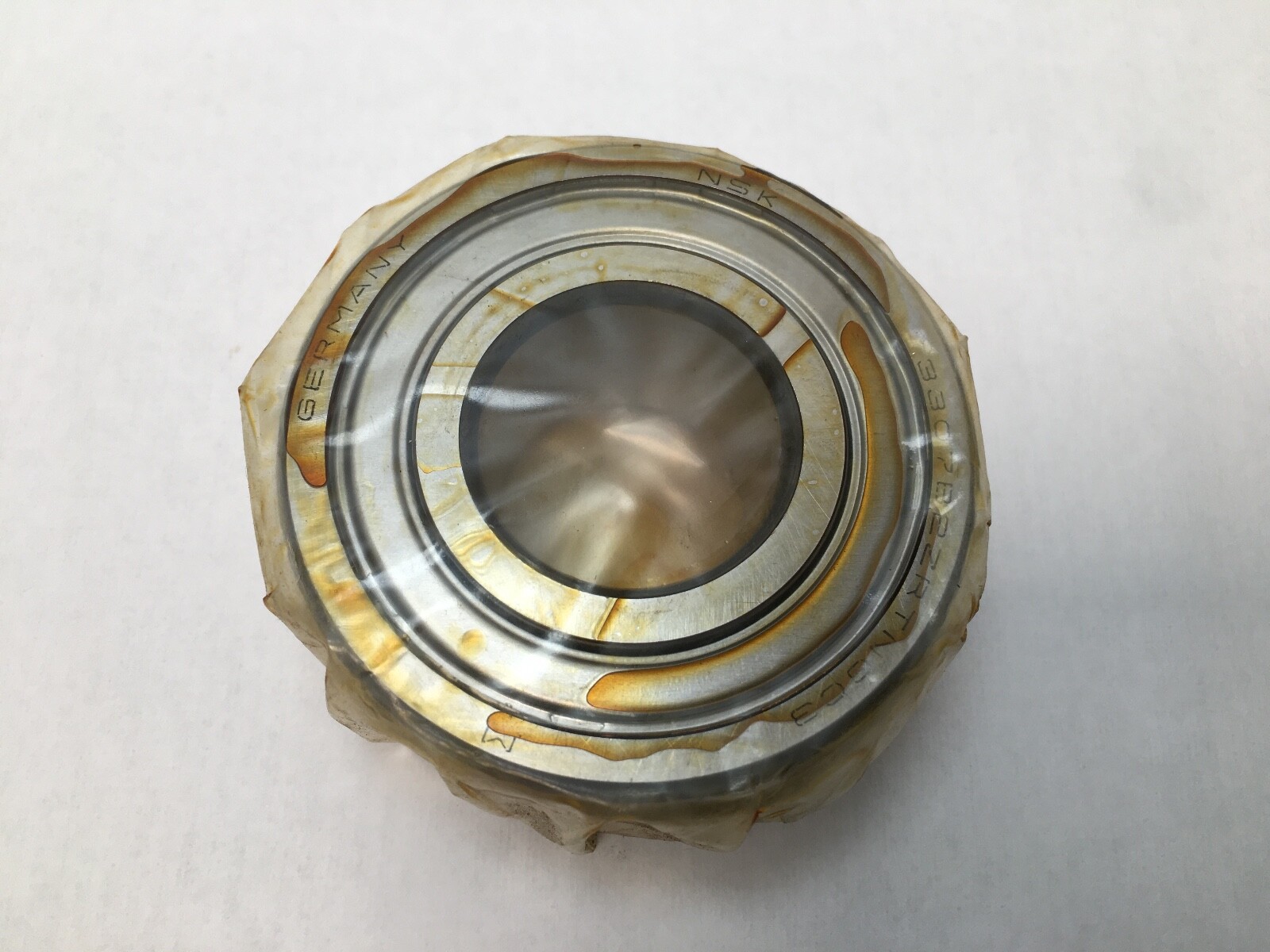

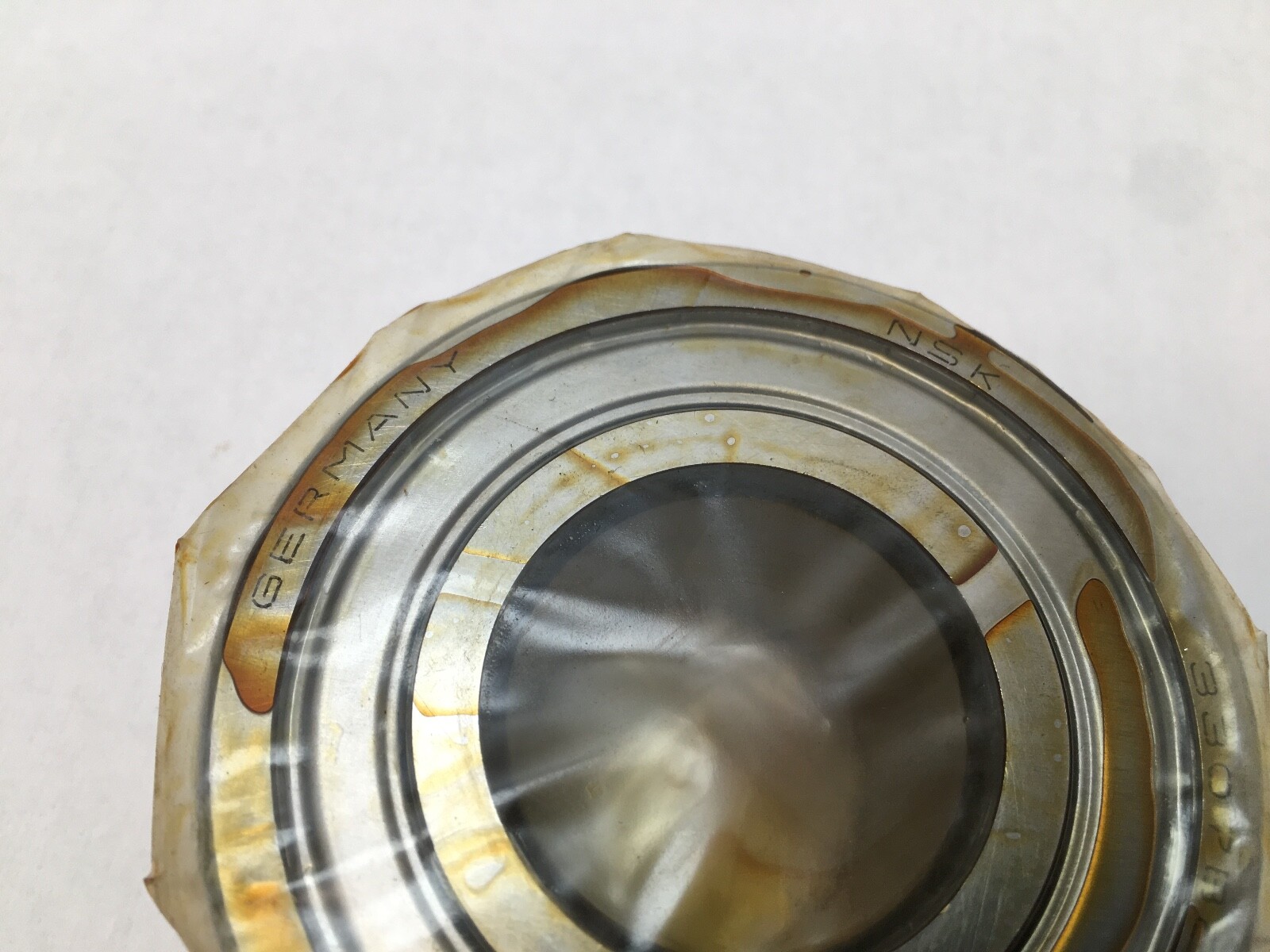

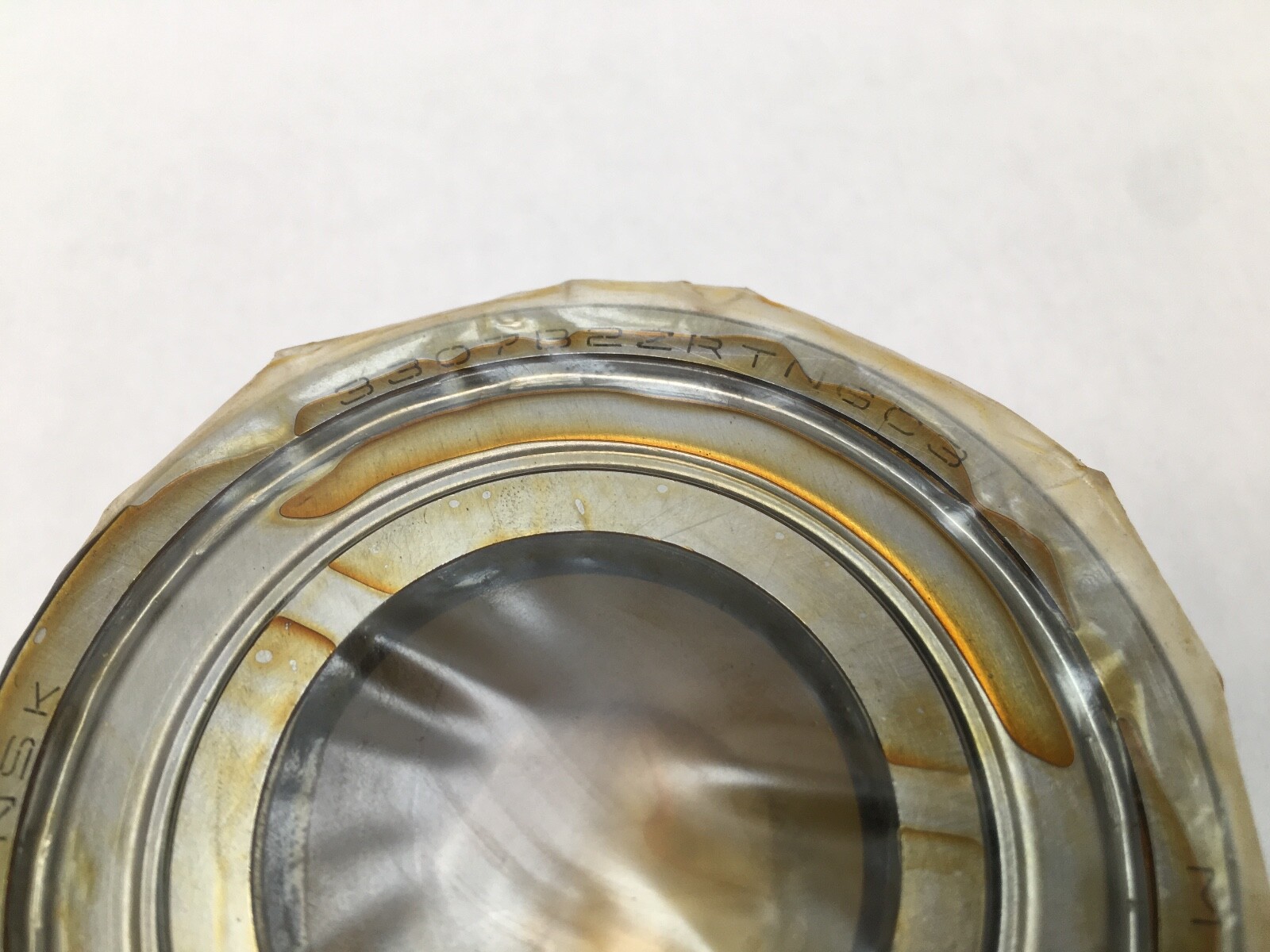

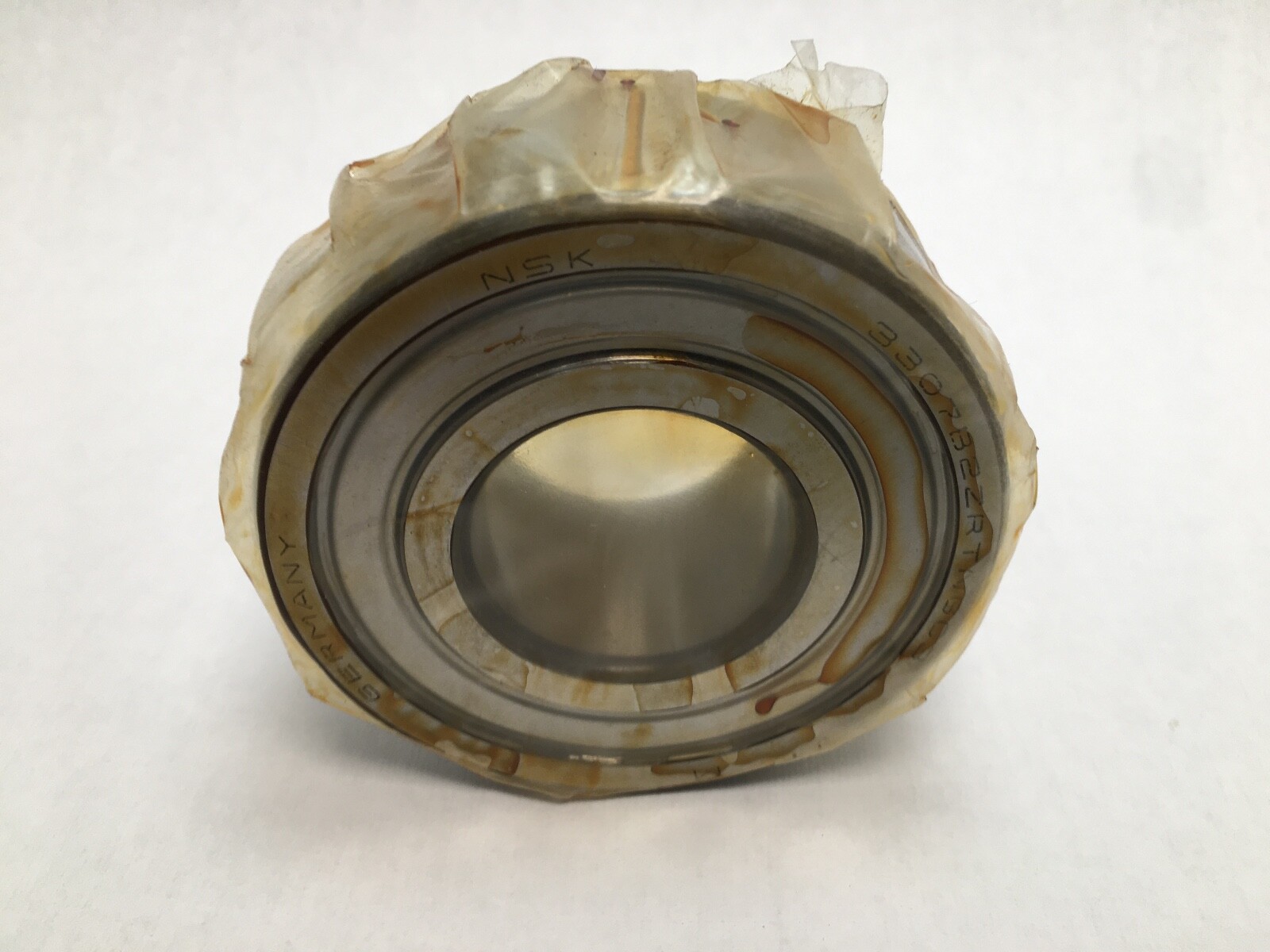

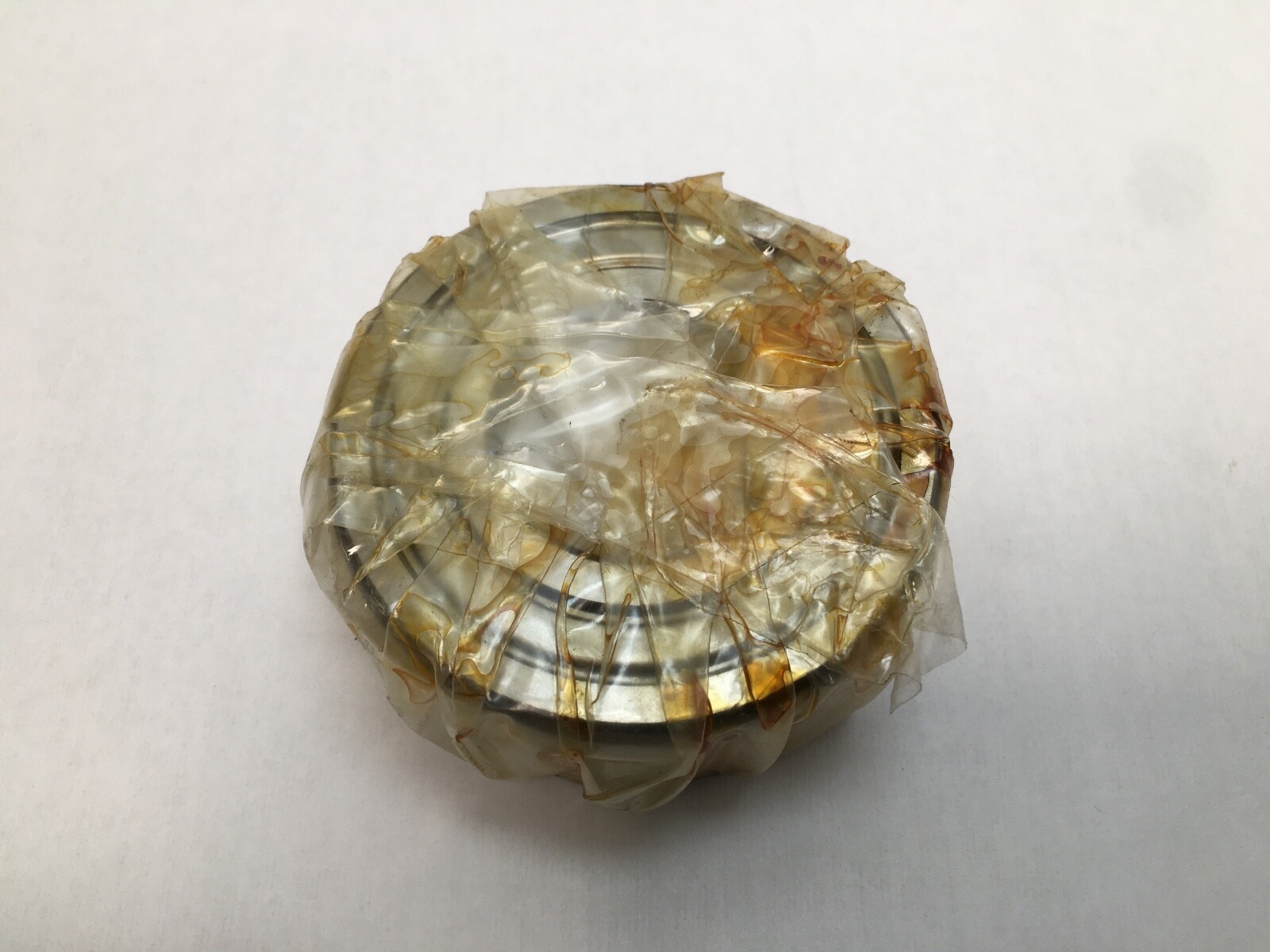

Double-row angular contact ball bearing, 35 x 80 x 34.9 mm, 25° contact angle, steel shields both sides, polyamide cage, C3 clearance. One bearing.
List Price
$95.16
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 3307B-2ZR-TNG-C3 |
| Model | 3307B 2ZR TNG C3 5307ZZ |
| Bearing Type | Angular Contact Ball Bearing, Double Shield |
| ID | 35 mm |
| OD | 80 mm |
| Width | 34.9 mm |
| Material | Bearing Steel |
|---|---|
| Series | 3300 |
| Base Number | 3307 |
| Industry Terms | Double row angular contact bearing, rigid double row ball bearing, two-way thrust ball bearing, shielded angular contact bearing |
| Common Misspellings | 3307B-2ZR-TNG-C3, 3307 B2ZR TNGC3, 3307B-2RZ-TNG-C3, 33O7B, 5307-ZZ C3 |
| Application Types | Pump and gearbox shafts, worm drives, agricultural machinery, material handling equipment |
| Bore Shaft Size | 35 mm |
| Mpn Variants | 3307B-2ZR-TNG-C3, 3307B-2ZRTNGC3, 3307B 2ZR TNG C3, 3307-B-2ZR-TNG-C3, 3307B2ZRTNGC3 |
| Rolling Elements | Ball |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 25° |
| Part Number | 3307B-2ZR-TNG-C3 |
Double-row angular contact ball bearing on the 3307 envelope: 35 mm bore, 80 mm outside diameter, 34.9 mm (1-3/8 in) width, 25° contact angle, steel shields on both sides, glass-fibre reinforced polyamide cage, C3 internal clearance. One bearing. Unit Quantity: 1 Pc.
3307 — ISO double-row angular contact envelope, 35 x 80 x 34.9 mm.
B — 25° contact angle.
2ZR — steel shields on both sides.
TNG — glass-fibre reinforced polyamide cage.
C3 — internal clearance greater than normal.
Bore Diameter: 35 mm. Outside Diameter: 80 mm. Overall Width: 34.9 mm (1-3/8 in). Bearing Type: Double-row angular contact ball bearing. Contact Angle: 25°. Number Of Rows: 2. Rolling Elements: Steel balls. Closure Type: Shields both sides. Cage Material: Glass-fibre reinforced polyamide. Internal Clearance: C3. Bore Type: Straight. Series: 3300 / 5300 double row angular contact. Thrust Capability: Both directions.
Bore: 35 mm. Outside Diameter: 80 mm. Width: 34.9 mm (1-3/8 in). The two rows are ground into a single pair of rings, which locates the shaft axially in both directions without a matched pair or spacer.
The older 5307ZZ designation (5300 series) describes the same double-row angular contact envelope as the 3307. MPN variants: 3307B-2ZR-TNG-C3; 3307B-2ZRTNGC3; 3307B 2ZR TNG C3; 3307-B-2ZR-TNG-C3; 3307B2ZRTNGC3.
Bore Diameter: 35 mm. Outside Diameter: 80 mm. Overall Width: 34.9 mm (1-3/8 in).
25°, from the B in the designation. It takes thrust in both directions.
2ZR is steel shields both sides, TNG is a glass-fibre reinforced polyamide cage, and C3 is internal clearance greater than normal.
