Super-Precision Angular Contact Ball Bearing Pair 20 x 37 x 9 mm, 25° Contact Angle, P4, Light Preload, Duplex Universal$144.88| MFR / Brand | NHBB |
|---|---|
| MPN | ME-11904DL |
| Model | 7904 C T DUL P4 / 2MM9304WI CR DUL / ME 11904 DL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 20 mm |
| OD | 37 mm |
| Width | 9 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Series | 11900 |
| Lubricant | Oil |
| Preload | Light |
| Min Temp | -30 °C |
| Dynamic Load Rating | 6.7 kN / 1506 lbf |
| Static Load Rating | 4.6 kN / 1034 lbf |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 121 °C |
| Item Weight | 0.12 lbs |
| Cage Material | Phenolic |
| Limiting Speed | 32000 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Relubrication Feature | No |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Cross Reference 1 | SKF 71904 CD/P4DGA |
|---|

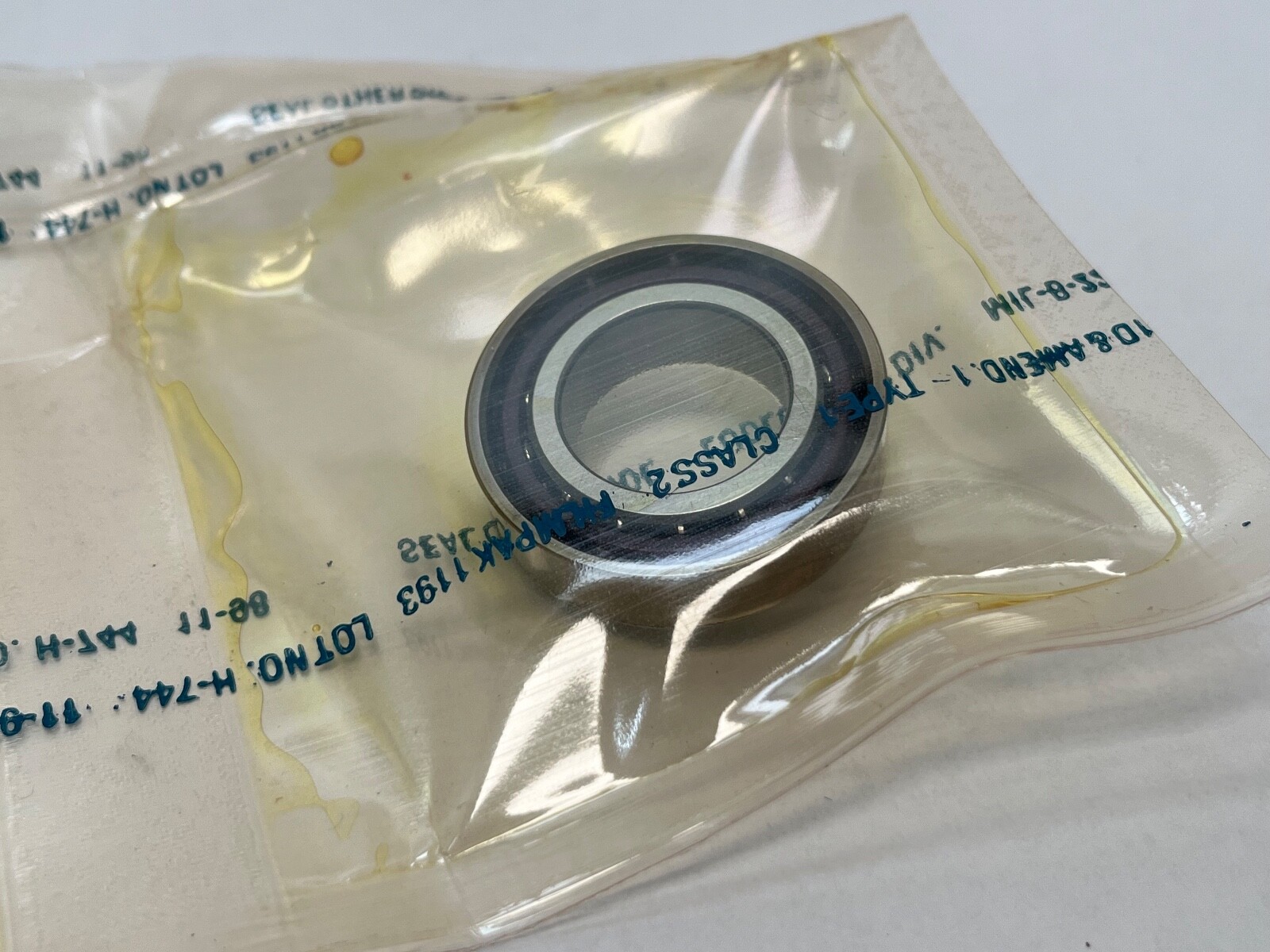

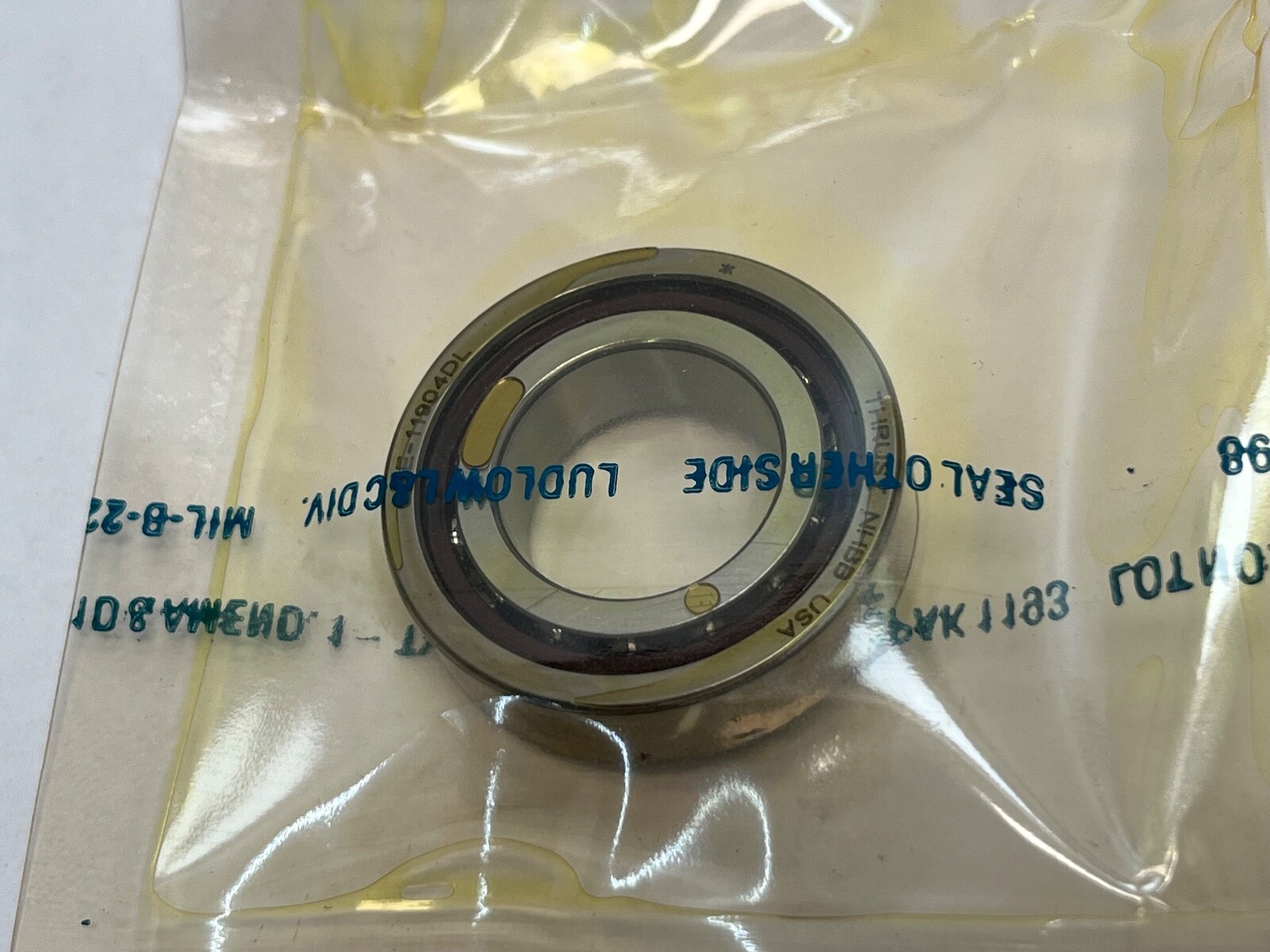

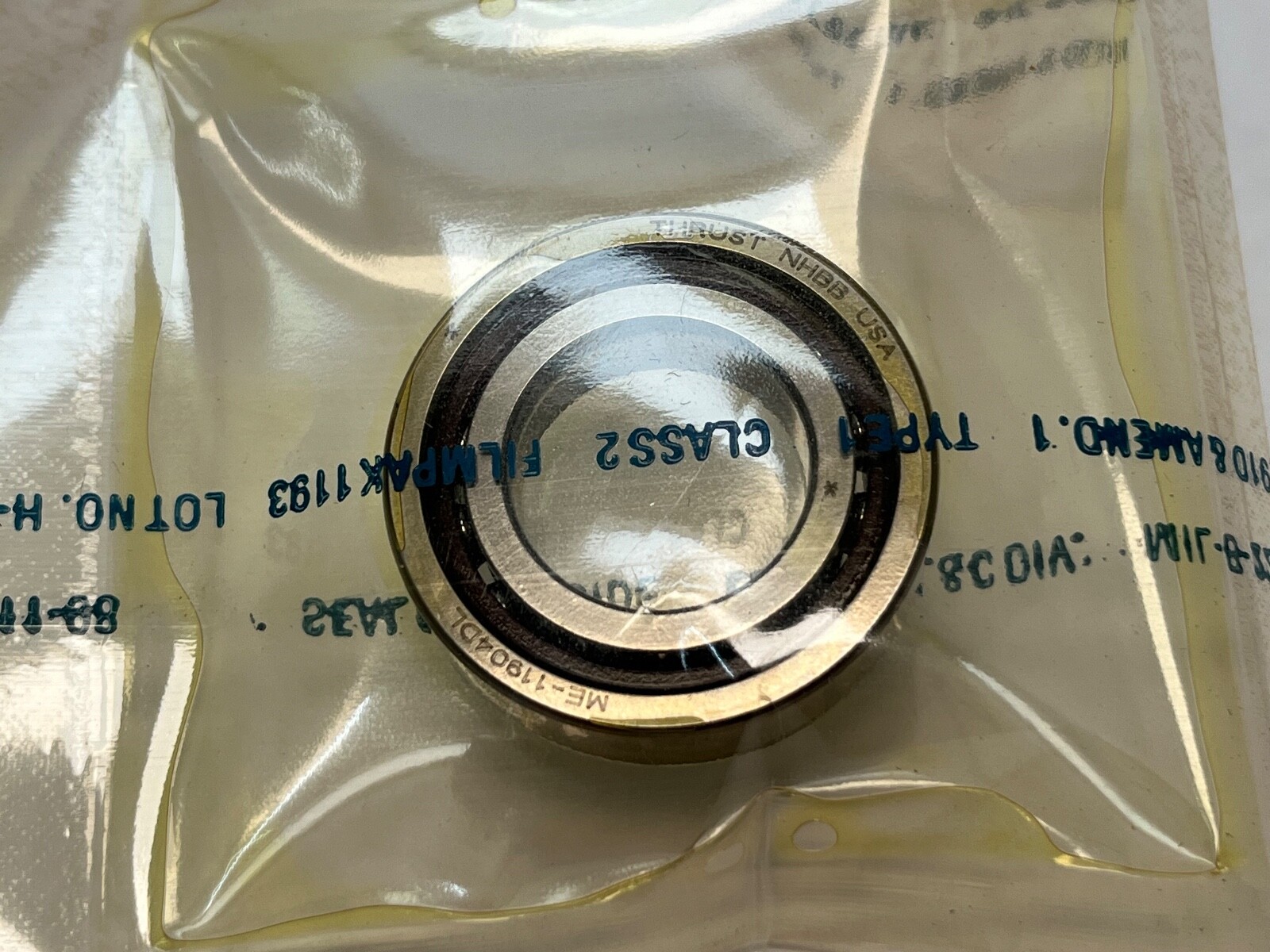

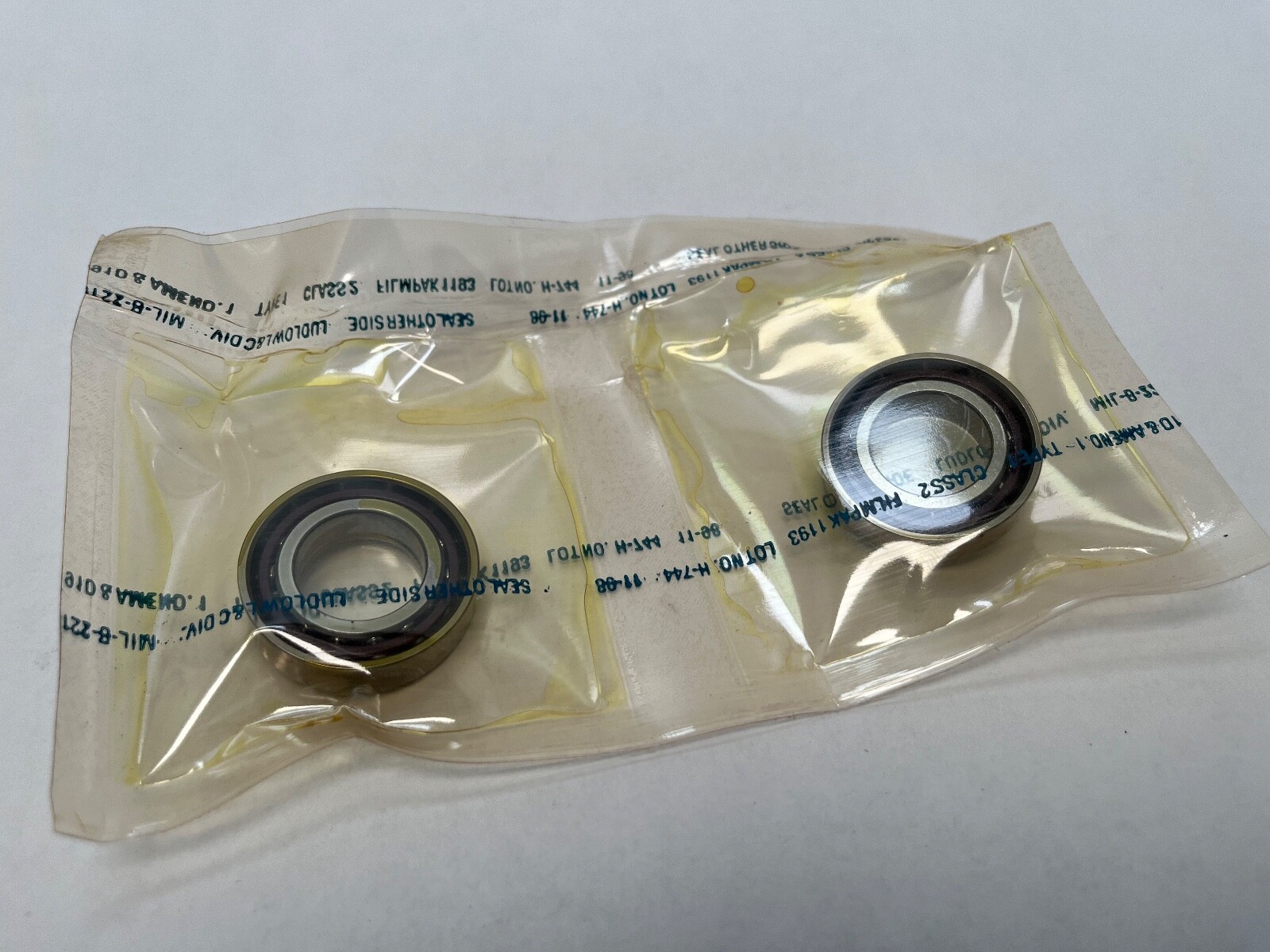

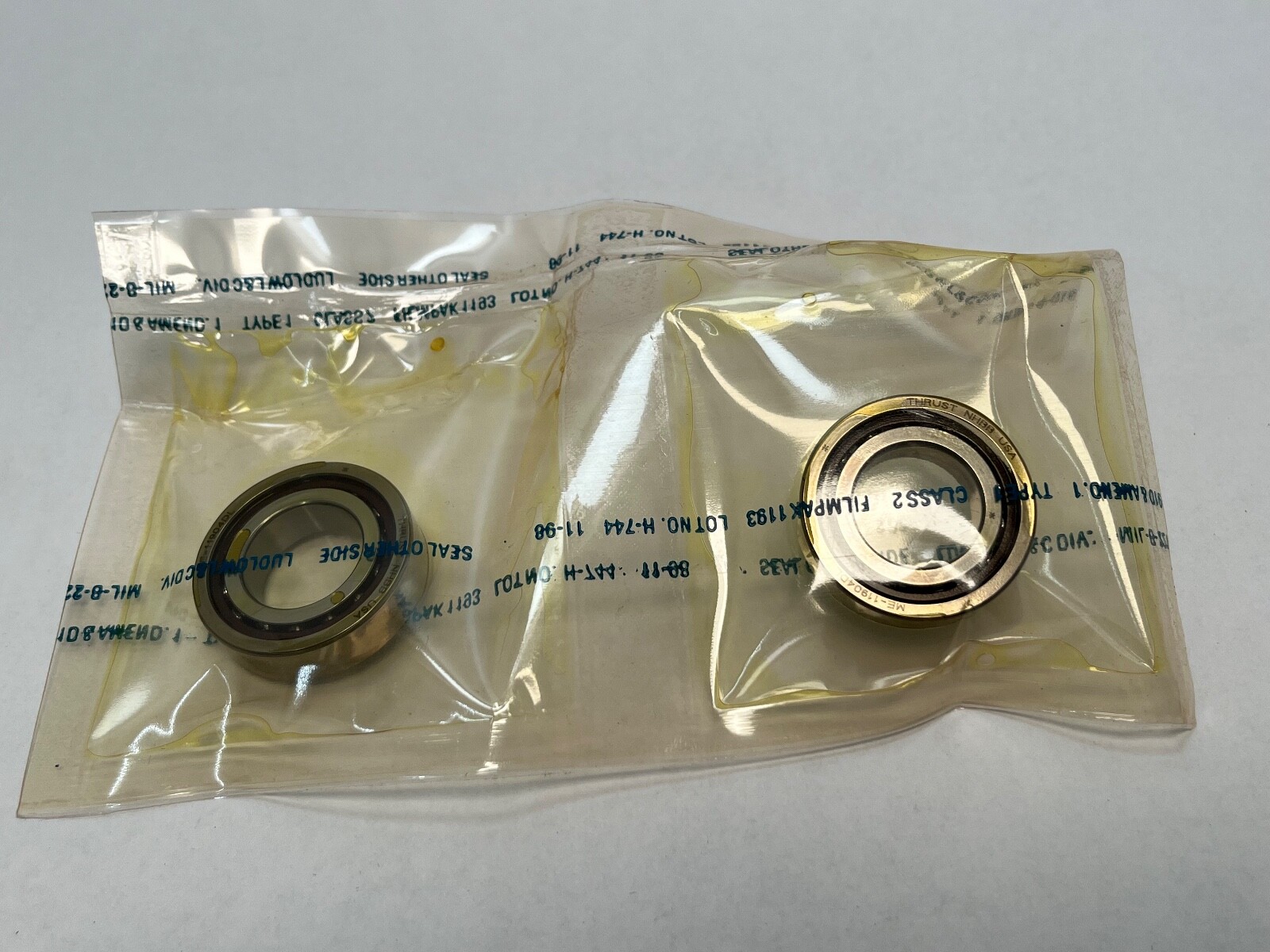

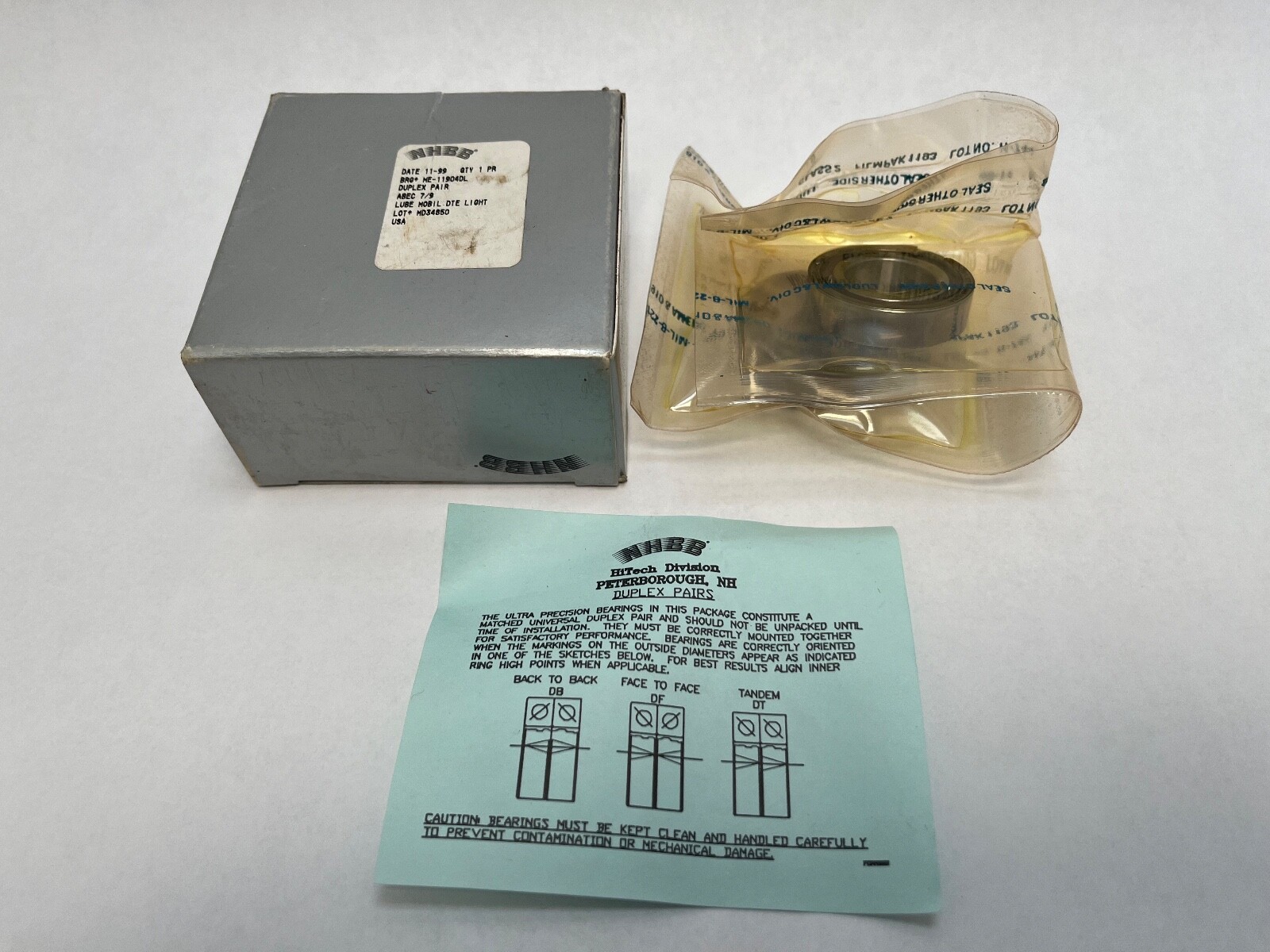

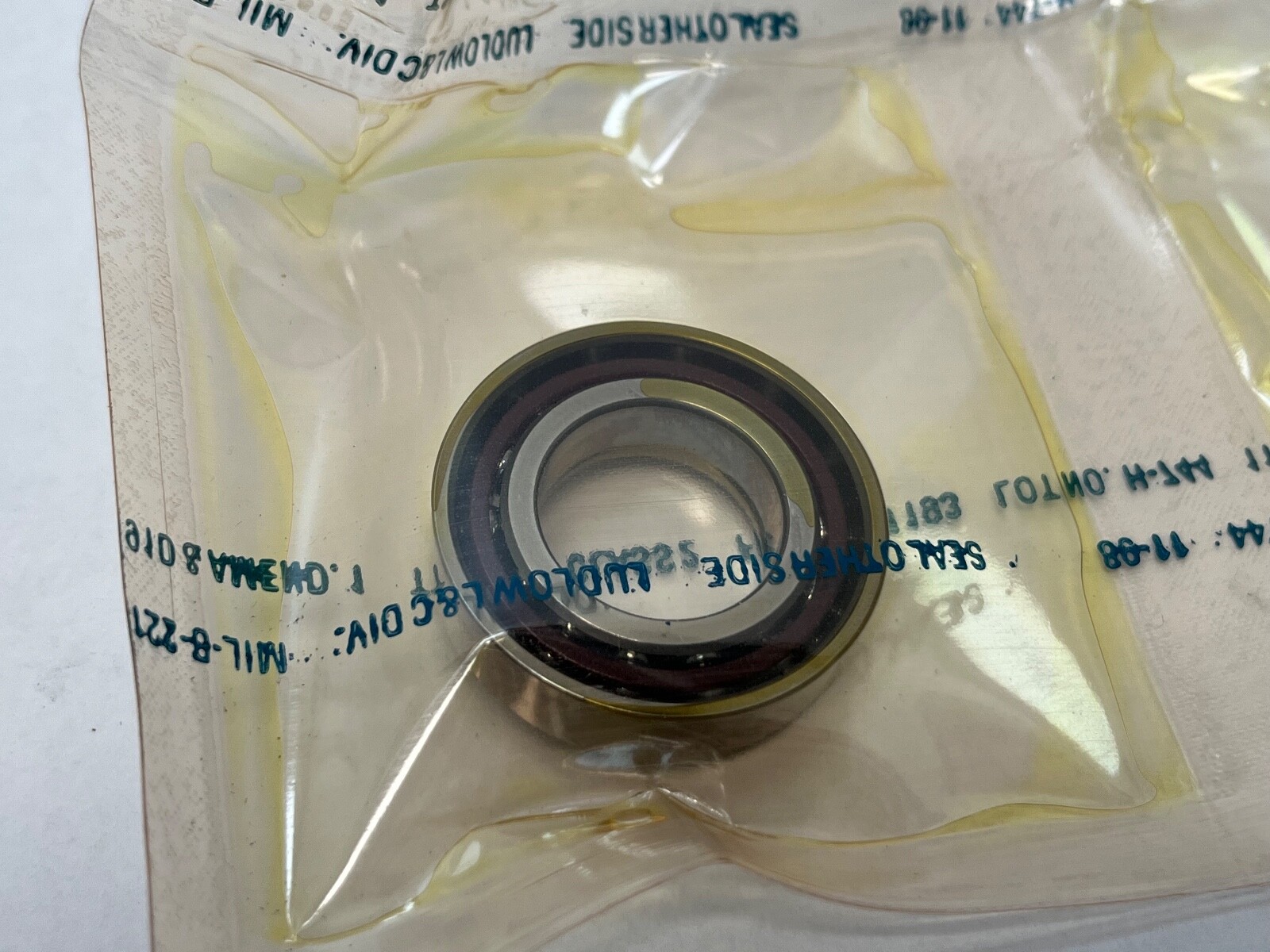

Introducing the NHBB ME-11904DL Bearing – Perfect for Precision Performance!
Experience unparalleled reliability and high performance with the NHBB ME-11904DL Bearing, expertly crafted for a wide array of applications. Measuring 20x37x9 mm, this Angular Contact Ball Bearing is your top choice for achieving exceptional precision and durability in your mechanical projects.
Brand: NHBB
Type: Angular Contact Ball Bearing
Model: 7904 C T DUL P4 / 2MM9304WI CR DUL / ME 11904 DL
MPN: ME-11904DL
Manufactured in: United States
Width: 9 mm
This bearing guarantees optimal performance and comes ready to install. Whether you are replacing outdated inventory or embarking on a new project, the NHBB ME-11904DL Bearing is your ideal solution to boost mechanical efficiency.
We are proud to offer international shipping on every item, along with combined shipping options. Select from UPS, FedEx, DHL, or Freight for your convenience. Enjoy the advantage of same-day shipping on all orders, with next-day shipping available at checkout!
Order now and enhance your projects with the NHBB ME-11904DL Bearing, where top-notch quality meets affordability.
