Ball Screw Support Bearing — 35 mm ID, 72 mm OD, 15 mm Width, 60° Contact Angle, ABEC 7$52.98| MFR / Brand | Koyo |
|---|---|
| MPN | 7201C |
| Model | 7201-C-5GL-P4 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 12mm |
| OD | 32mm |
| Width | 10mm |
| Series | 7200 |
|---|---|
| Material | Bearing Steel |
| Min Temp | -30°C |
| Cage Type | Riveted |
| Dynamic Load Rating | 7.5 kN / 1690 lbf |
| Static Load Rating | 3.5 kN / 790 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Balls |
| Max Temp | 120°C |
| Item Weight | 0.08 lbs |
| Cage Material | Steel |
| Limiting Speed | 22000 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Internal Clearance | CN |
| Cross Reference 1 | SKF 7201 CD |
|---|

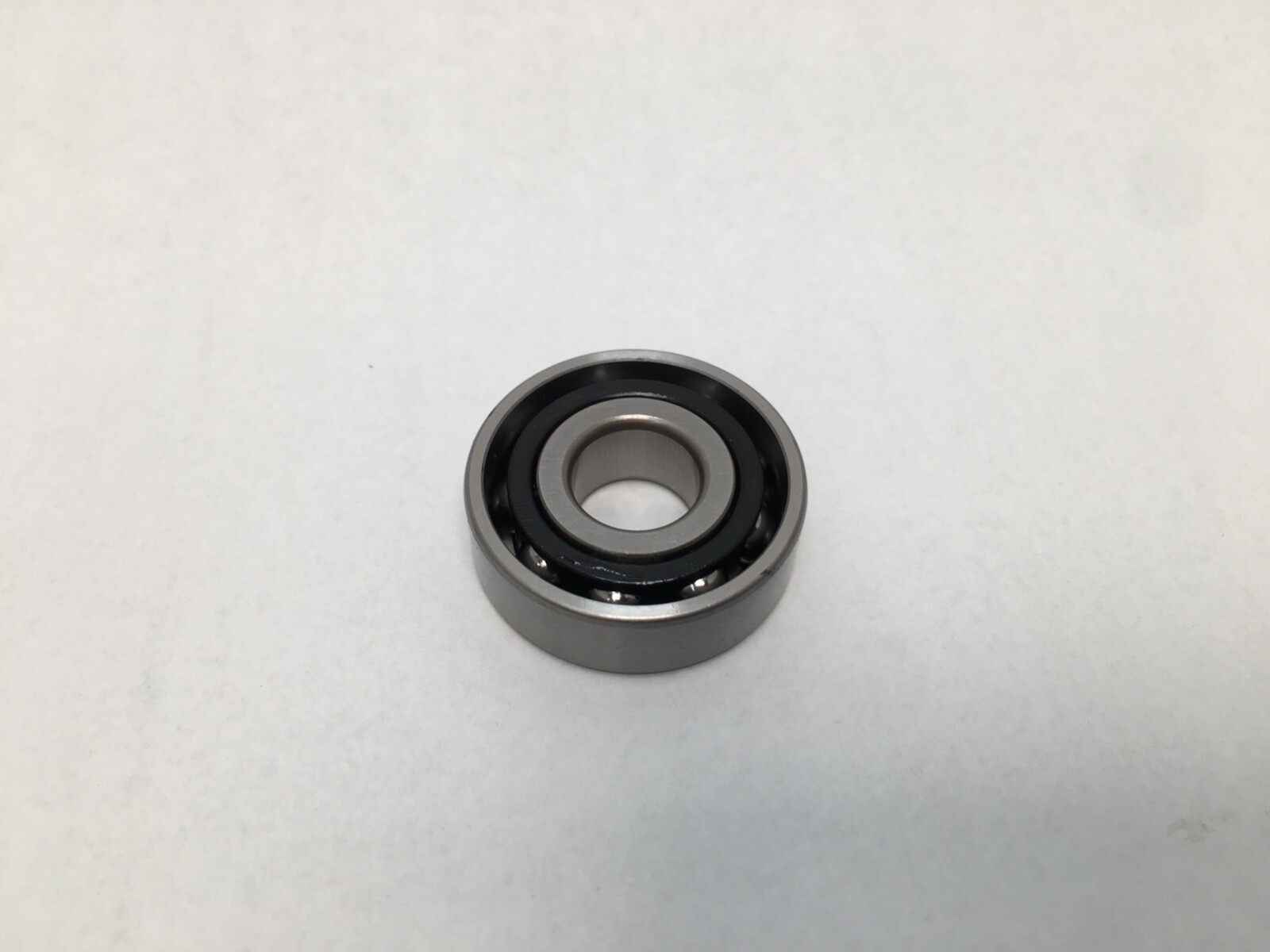

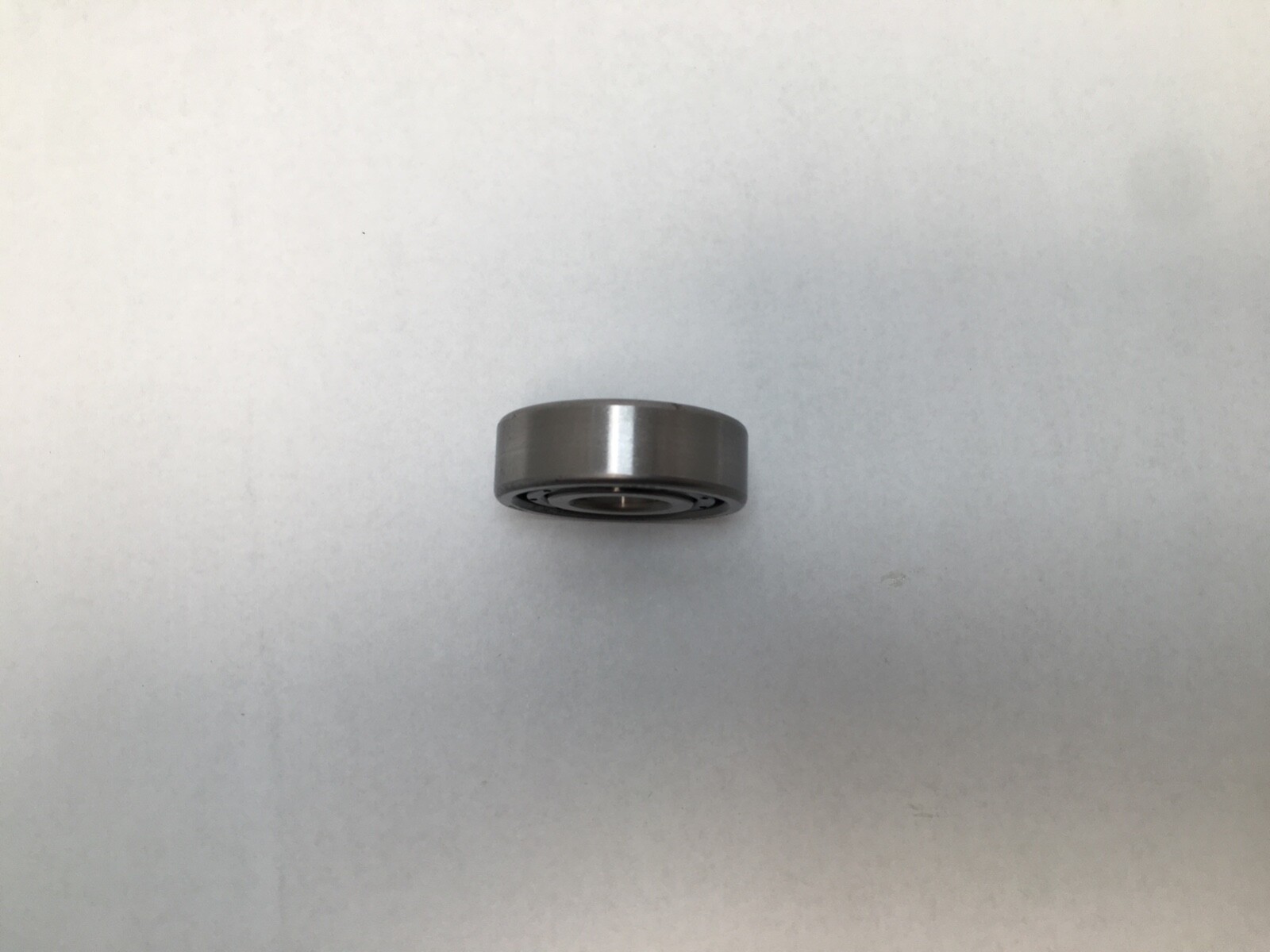

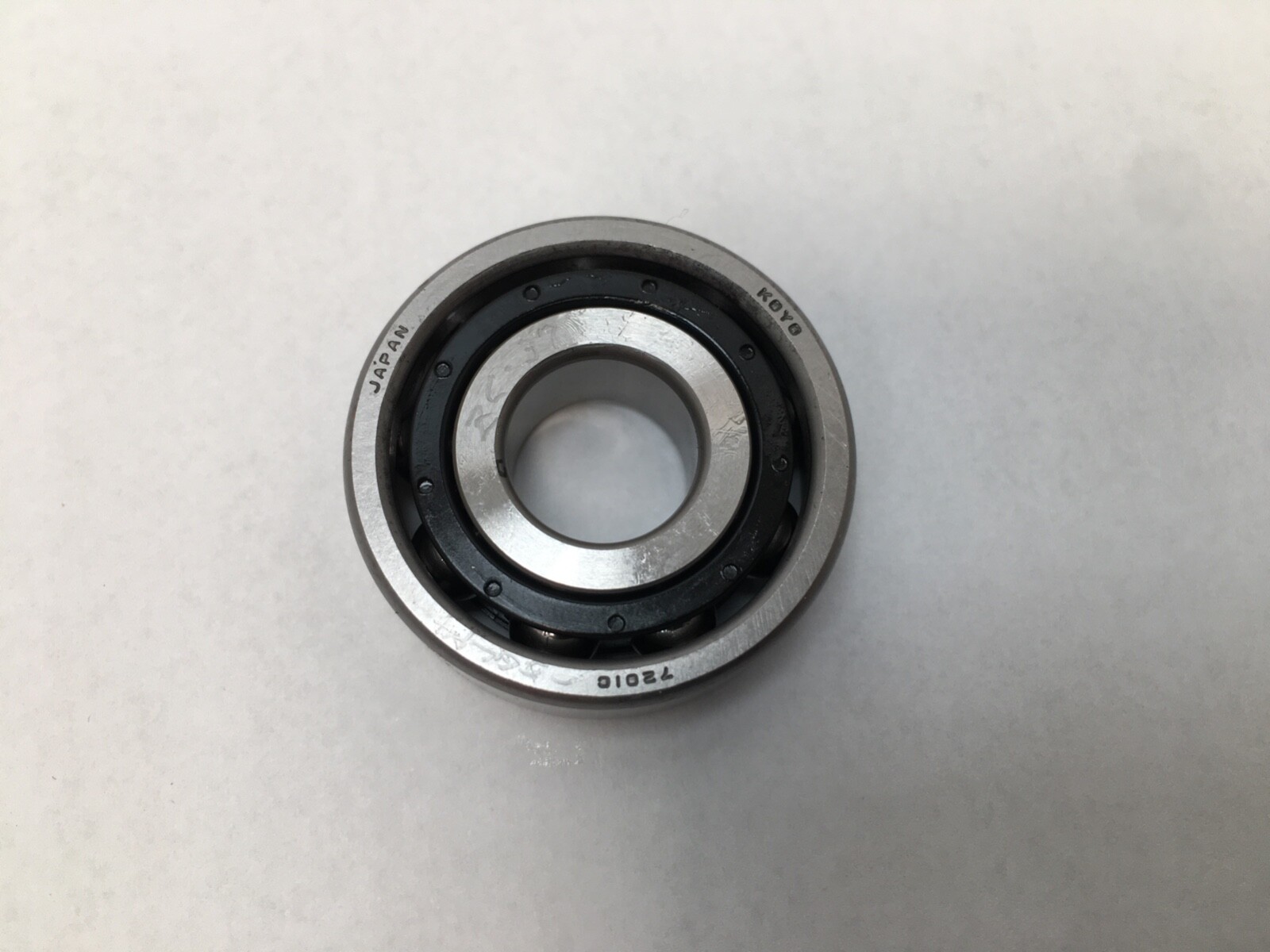

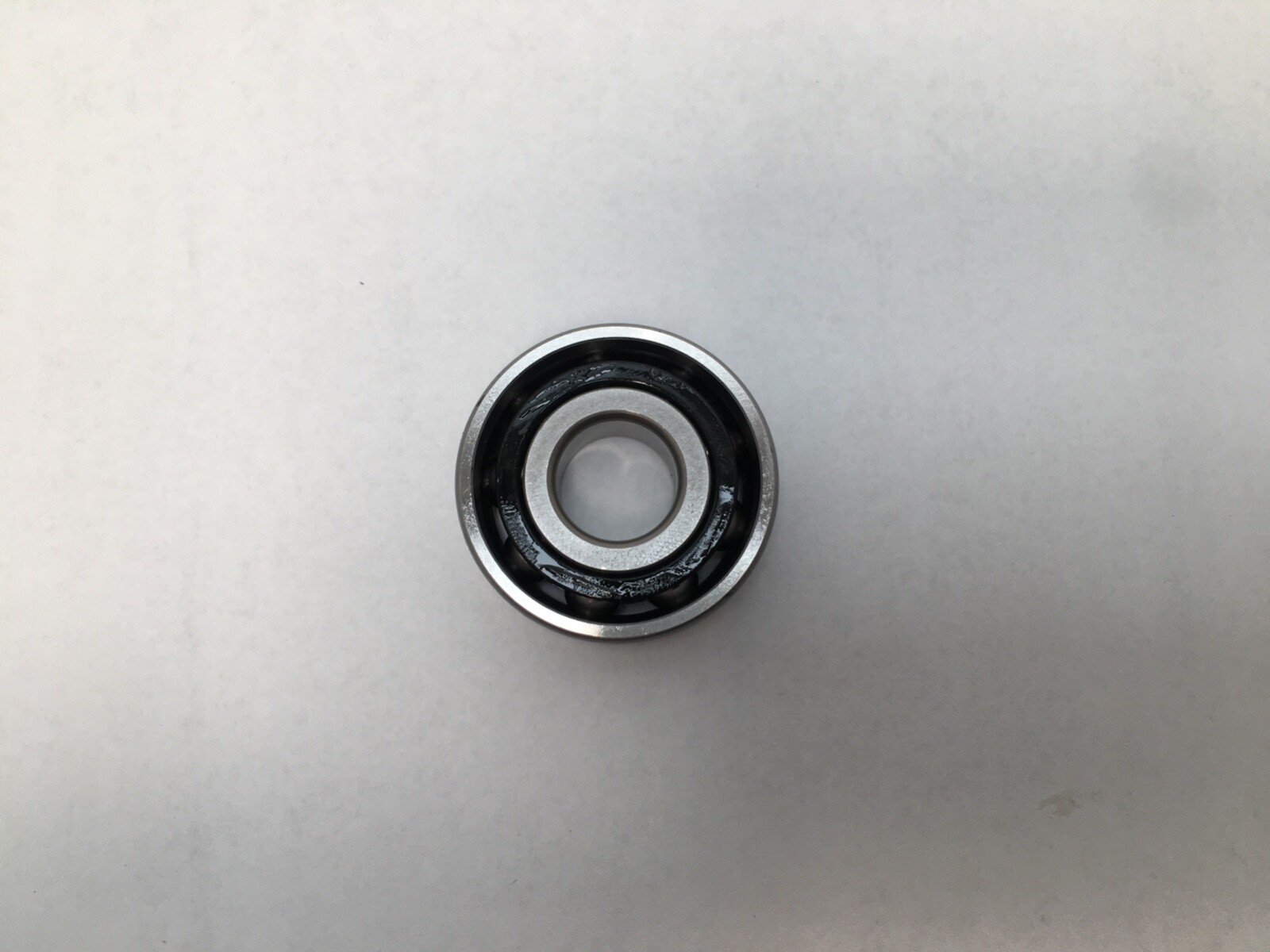

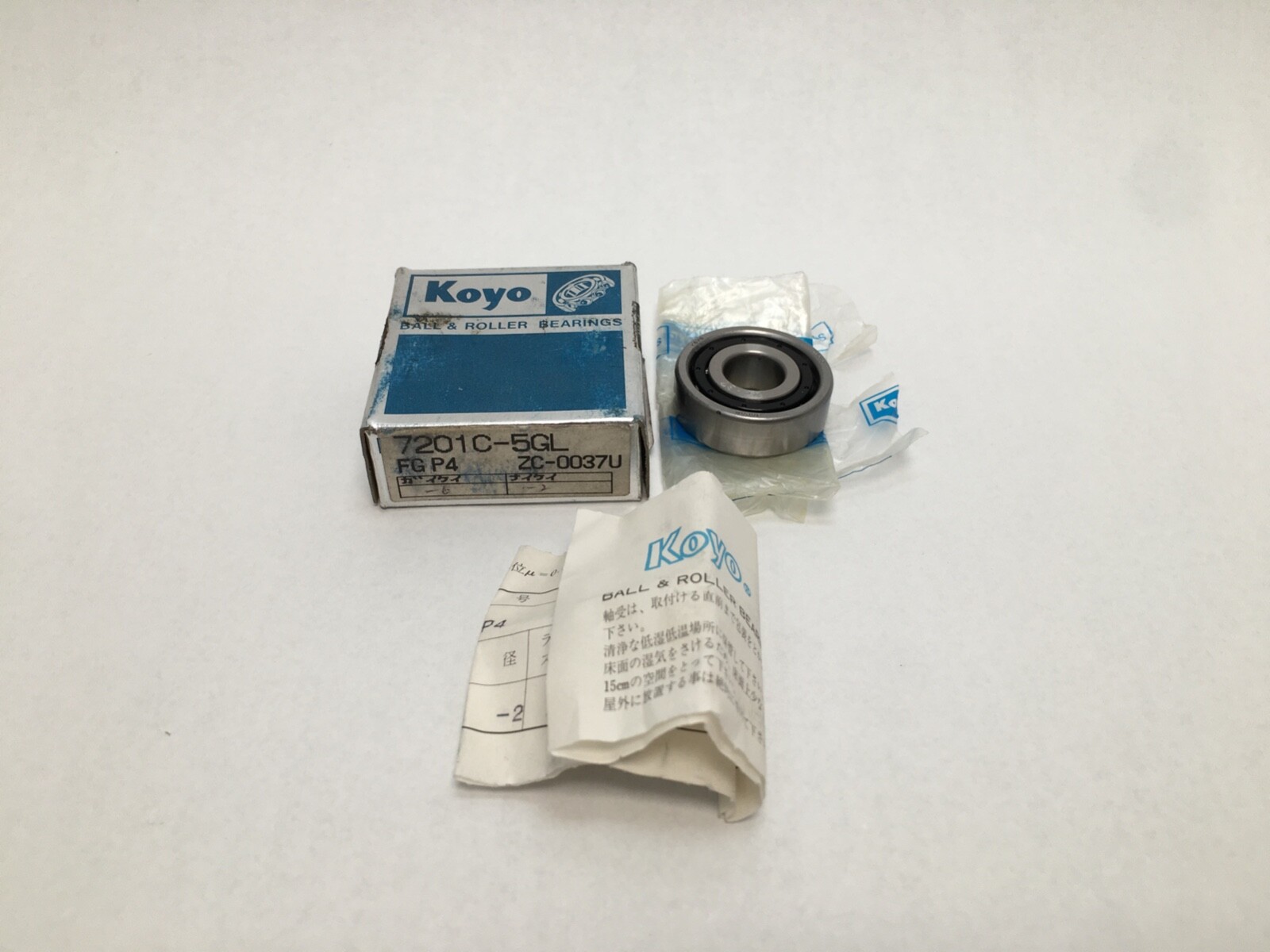

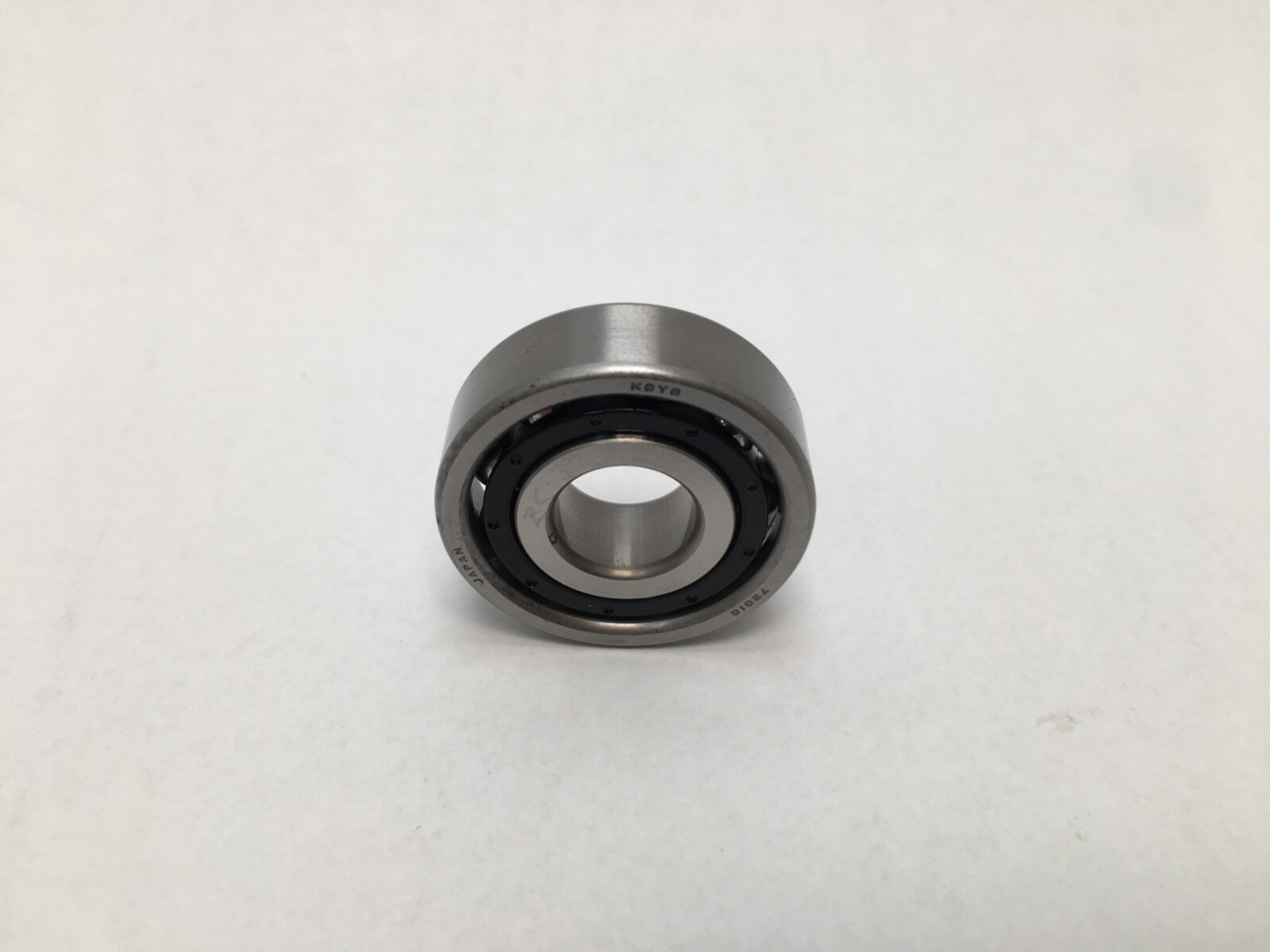

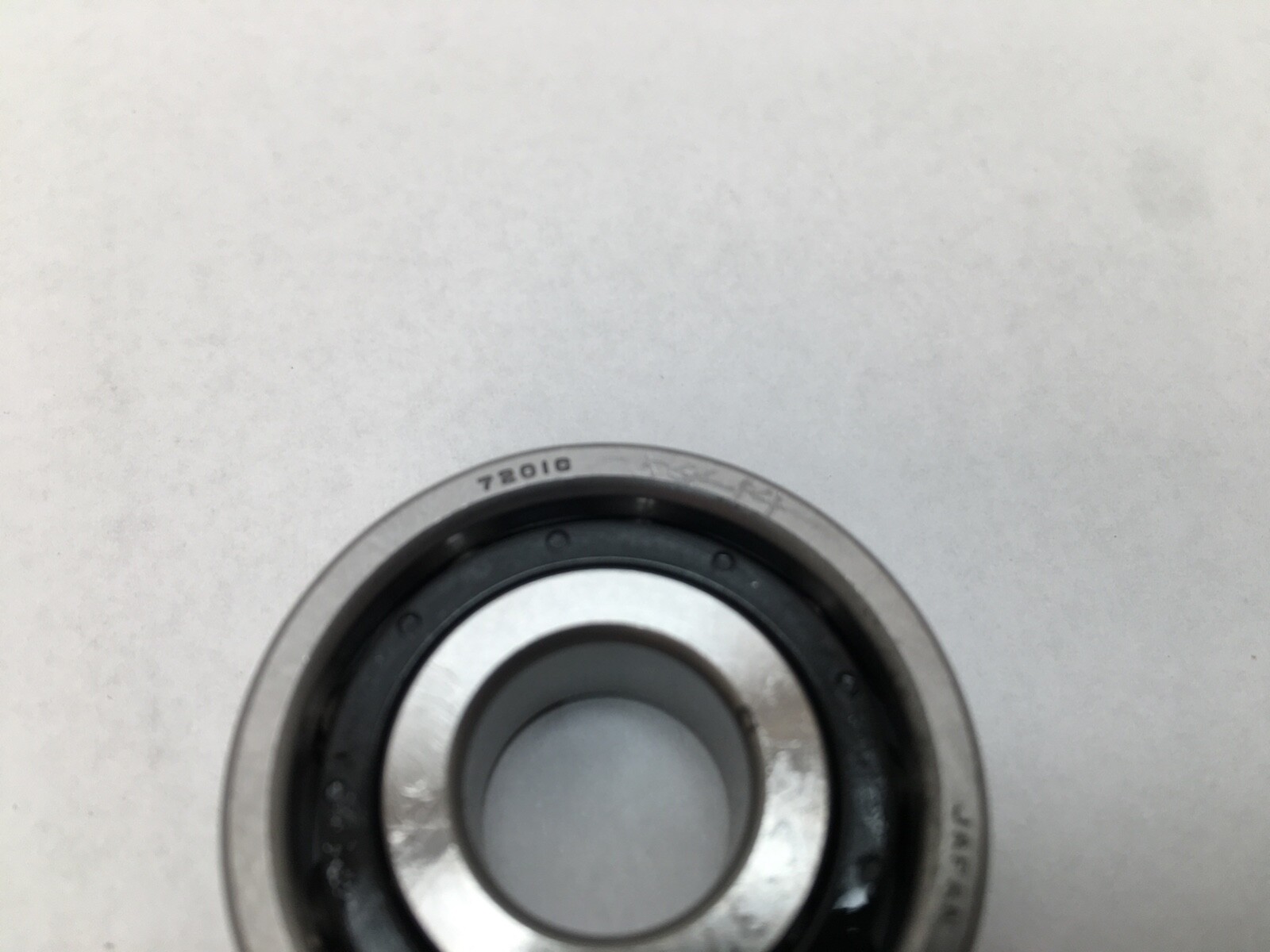

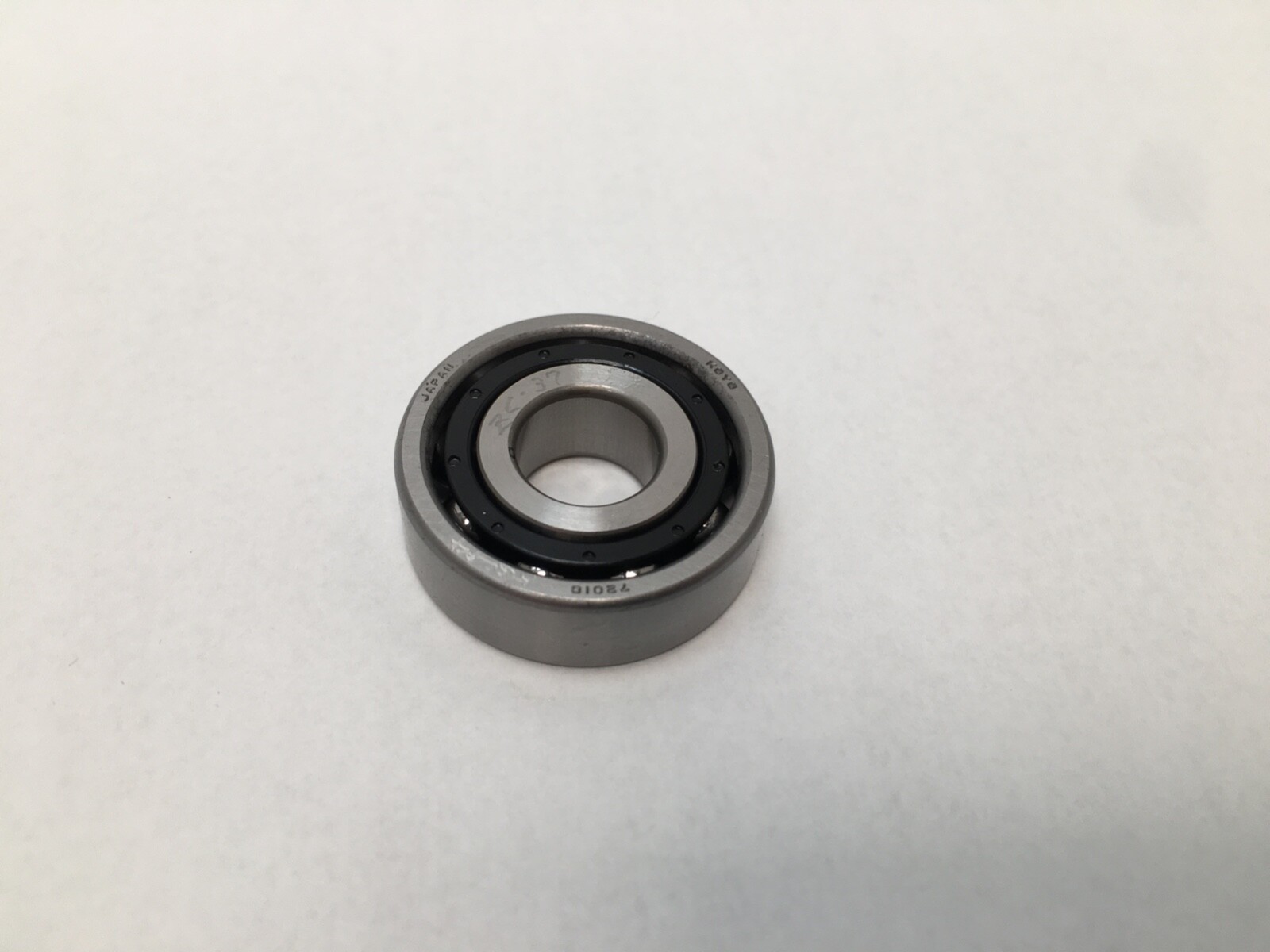

Introducing the KOYO 7201C Precision Angular Contact Bearing, a top-tier component meticulously designed for exceptional performance in your machinery. Measuring at just 12x32x10 mm, this bearing model is ideal for high-speed applications that require precise alignment and support.
Manufactured by the renowned KOYO brand in Japan, the 7201 C 5GL P4 model is engineered with a focus on durability and efficiency. This new angular contact ball bearing is perfect for various uses in the automotive, aerospace, and industrial sectors, ensuring optimal performance under demanding conditions.
The KOYO 7201C bearing stands out for its superior construction, which minimizes friction and enhances stability, making it an excellent choice for applications that require high rotational precision. Its angular contact design allows for higher load capacities and the ability to handle axial loads in one direction, creating a reliable solution for your mechanical needs.
We understand the importance of timely delivery, which is why we offer same-day shipping, with options for next-day shipping available at checkout. Additionally, we buy your surplus bearings, so feel free to contact us for inquiries.
Upgrade your equipment with the KOYO 7201C Precision Angular Contact Bearing today and experience the difference in quality and performance!
