Availability:
1 in stock

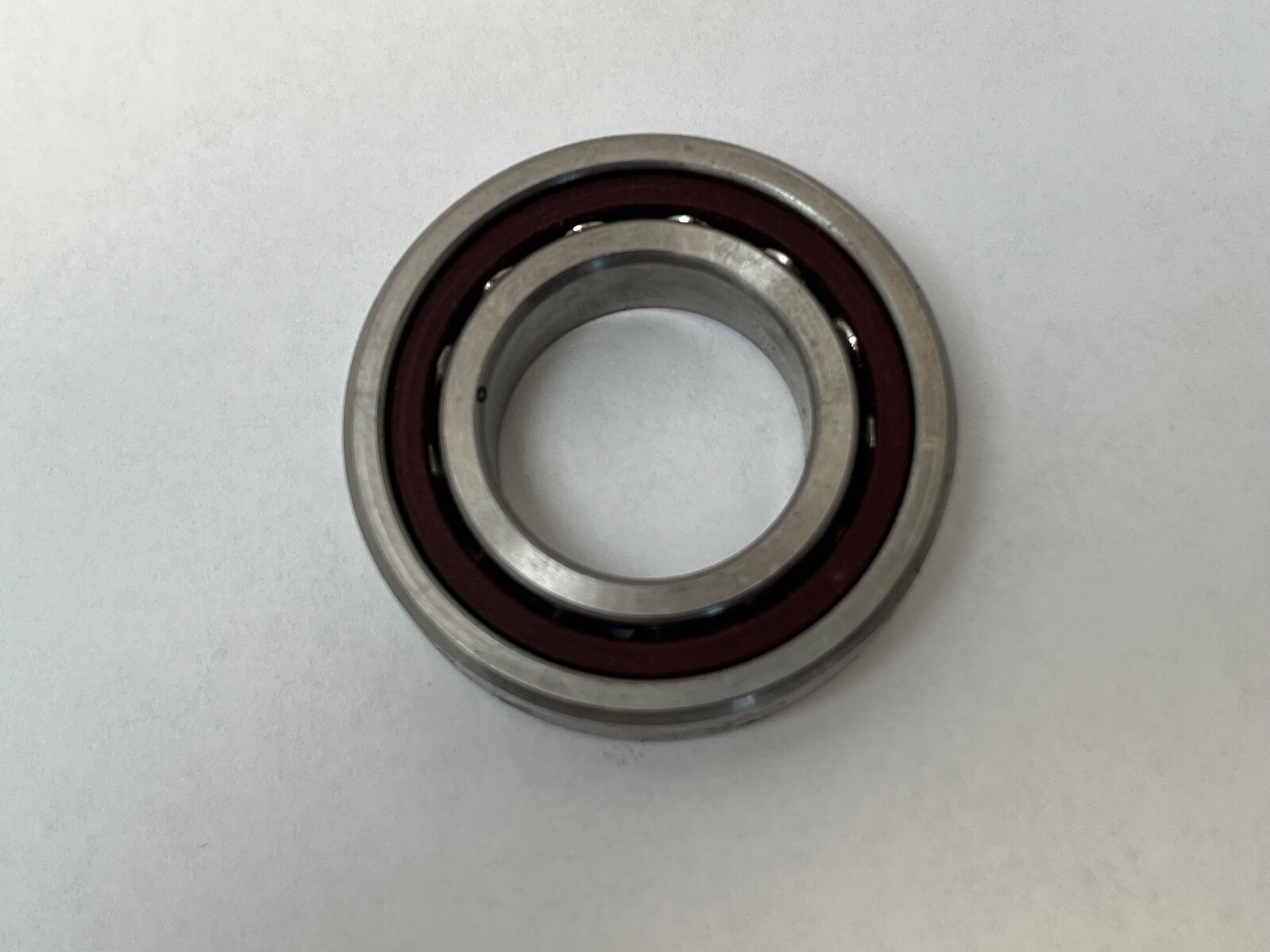

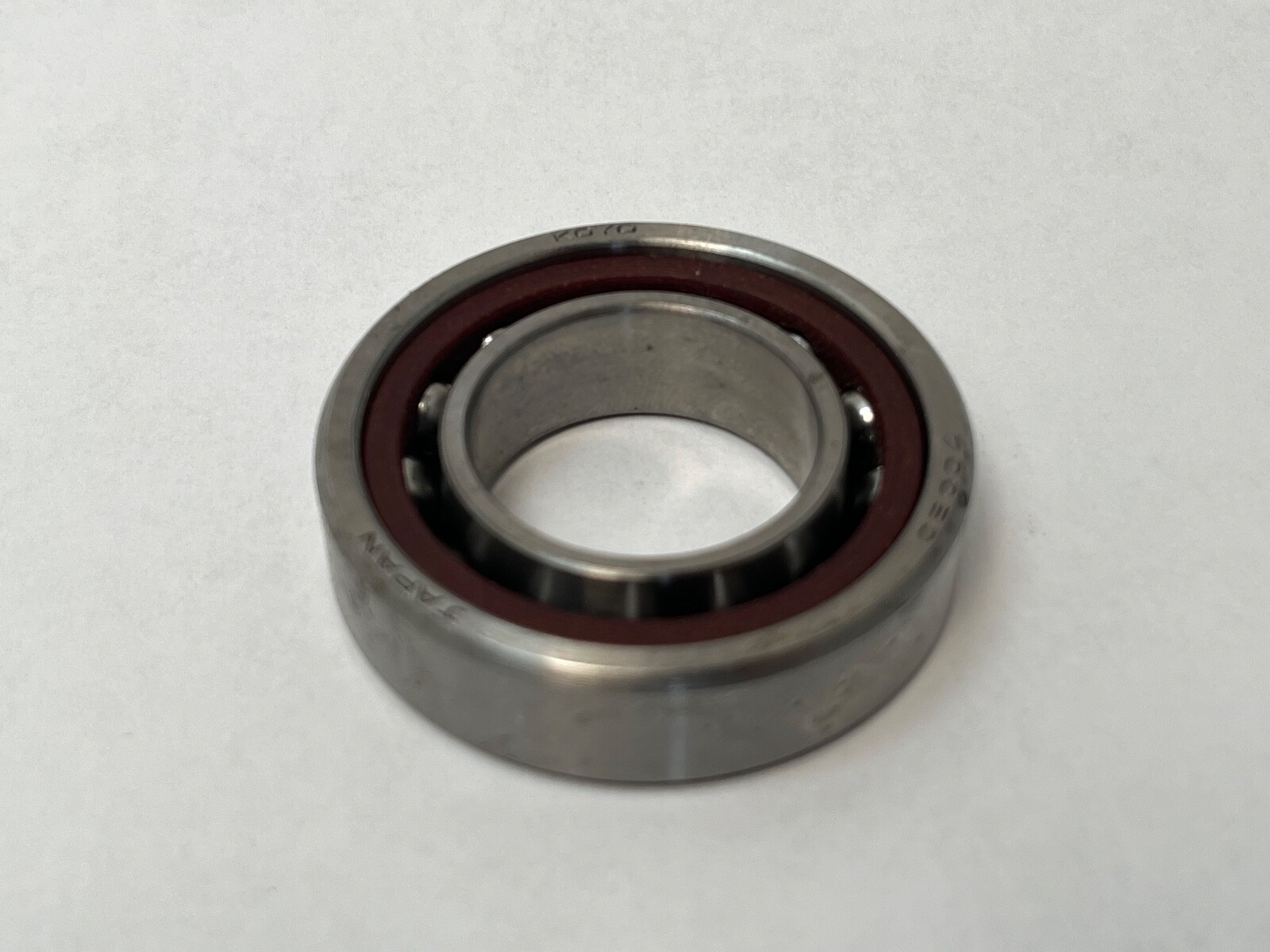

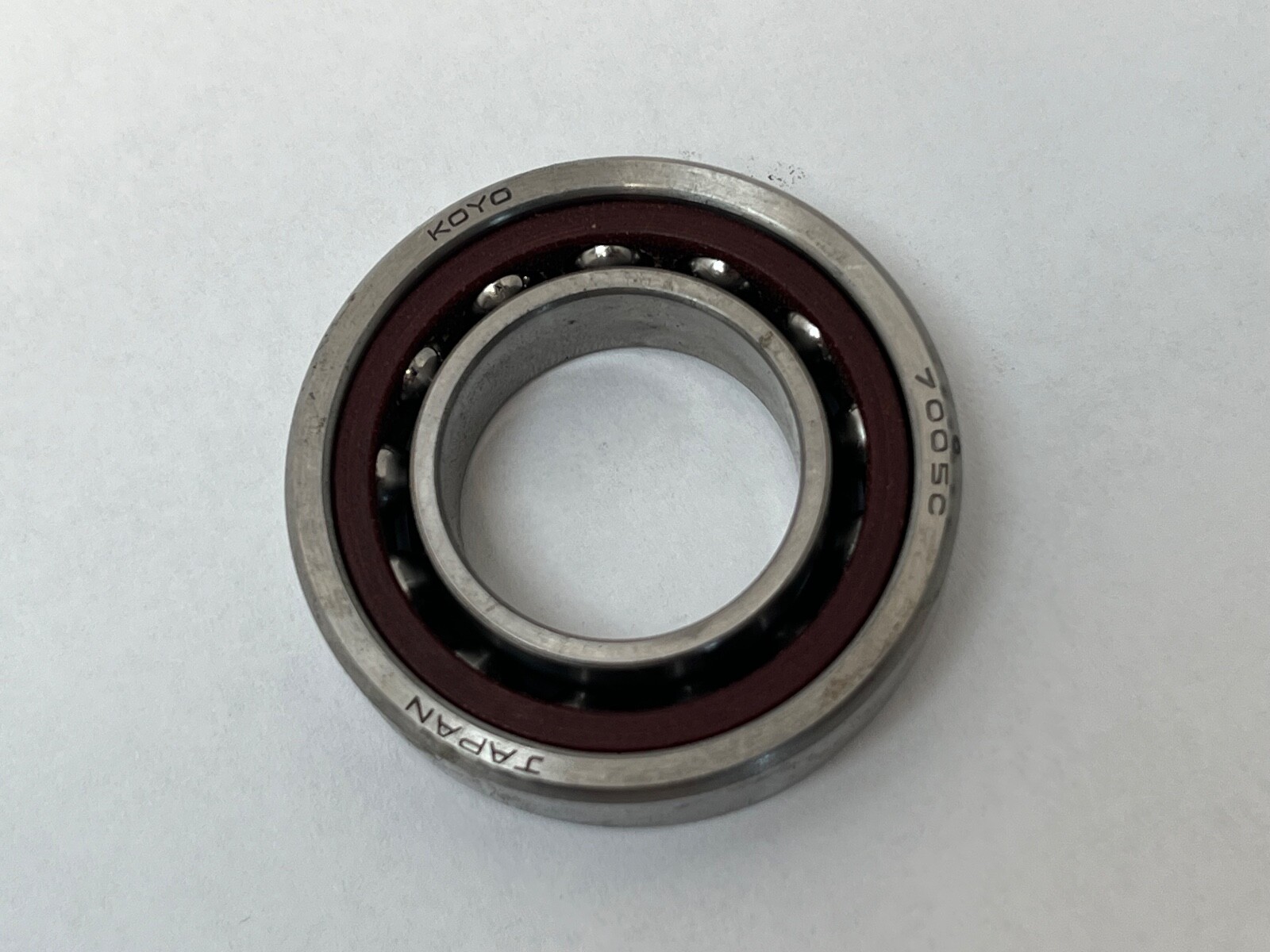

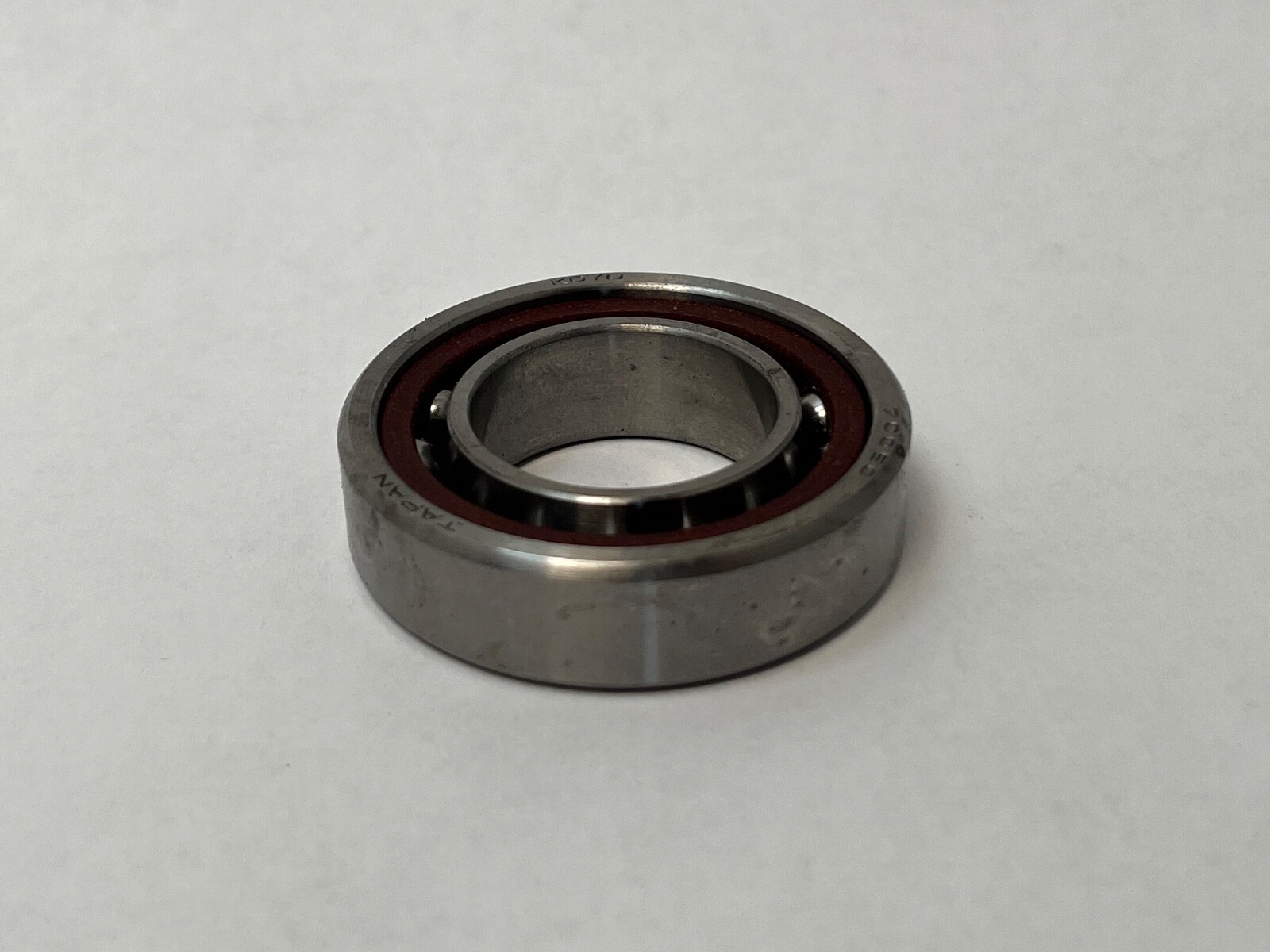

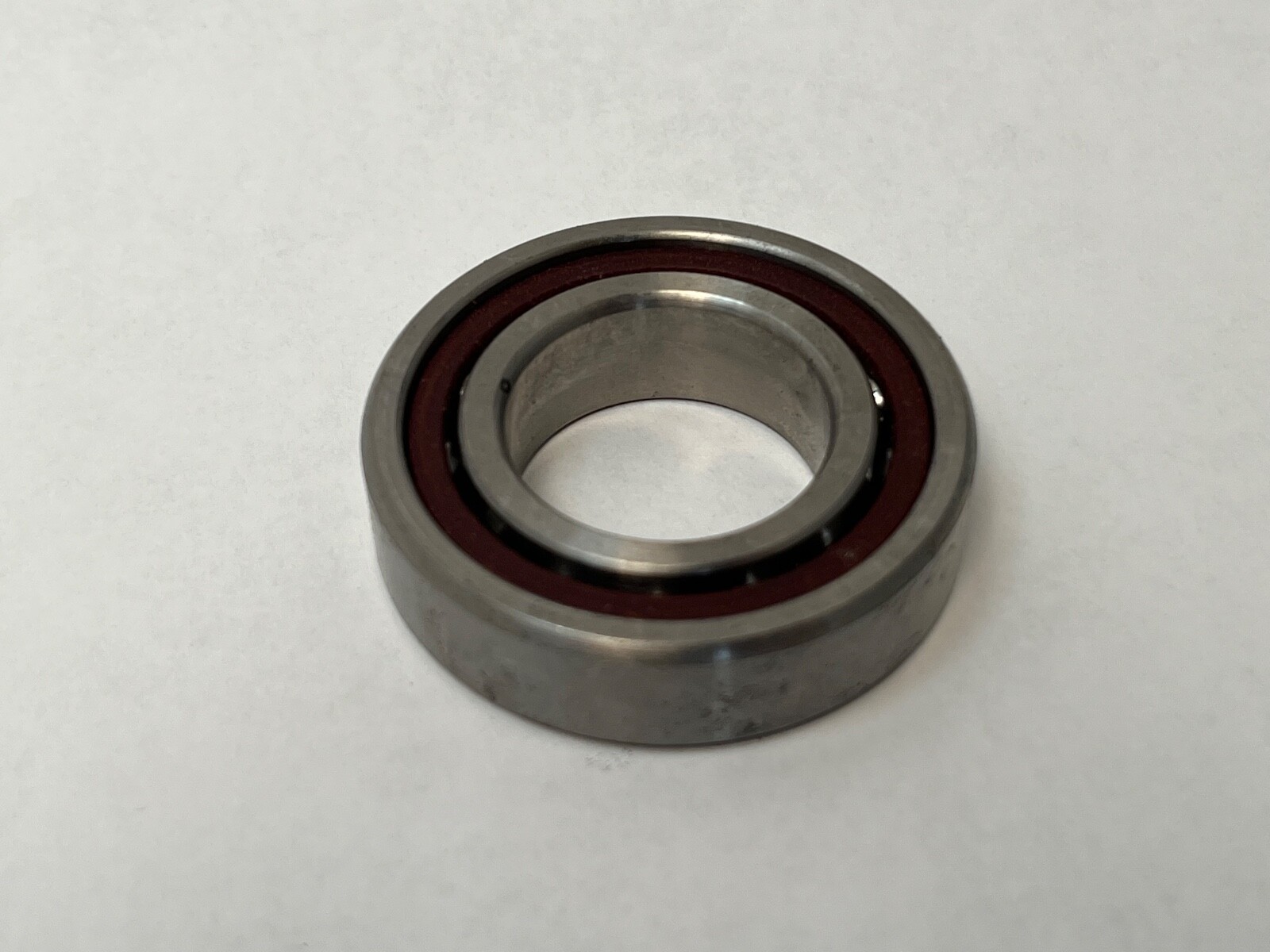

Koyo 7005CGL angular contact ball bearing, 25 mm bore, 47 mm OD, 12 mm wide, 15 degree contact angle. Carton also marked 7005CTUL and 7005-C-5-GL/UL-PA.
List Price
$44.30
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Koyo |
|---|---|
| MPN | 7005CGL |
| Model | 7005 C GL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 47 mm |
| Width | 12 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Base Number | 7005 |
| Industry Terms | angular contact ball bearing, spindle bearing, 15 degree angular contact, 7005C |
| Overall Width | 12 mm |
| Mpn Variants | 7005CGL, 7005 C GL, 7005CTUL, 7005C T UL, 7005-C-5-GL/UL-PA, 7005C GL PA |
| Cross Reference 1 | NSK 7005C |
|---|---|
| Cross Reference 2 | SKF 7005 CD |
| Cross Reference 3 | FAG B7005-C |
| Cross Reference 4 | NTN 7005C |
The Koyo 7005CGL is a single-row angular contact ball bearing in the ISO 7005 envelope: 25 mm bore, 47 mm outside diameter, 12 mm width, with a 15° contact angle. It carries combined radial and single-direction axial load and is used in machine tool spindles and other high-speed, high-accuracy shafts, singly or in matched sets.
7005 — 70 series angular contact ball bearing, bore code 05, 25 mm bore, 47 x 12 mm section.
C — 15° contact angle.
Bore Diameter: 25 mm. Outside Diameter: 47 mm. Overall Width: 12 mm. Contact Angle: 15°. Rolling Elements: Ball. Number Of Rows: 1. Closure Type: Open. Bore Type: Straight. Series: 7000. Unit Quantity: 1 Pc.
The 25 mm straight bore mounts on a 25 mm spindle or shaft seat and the 47 mm outer ring fits a 47 mm housing bore. Width: 12 mm.

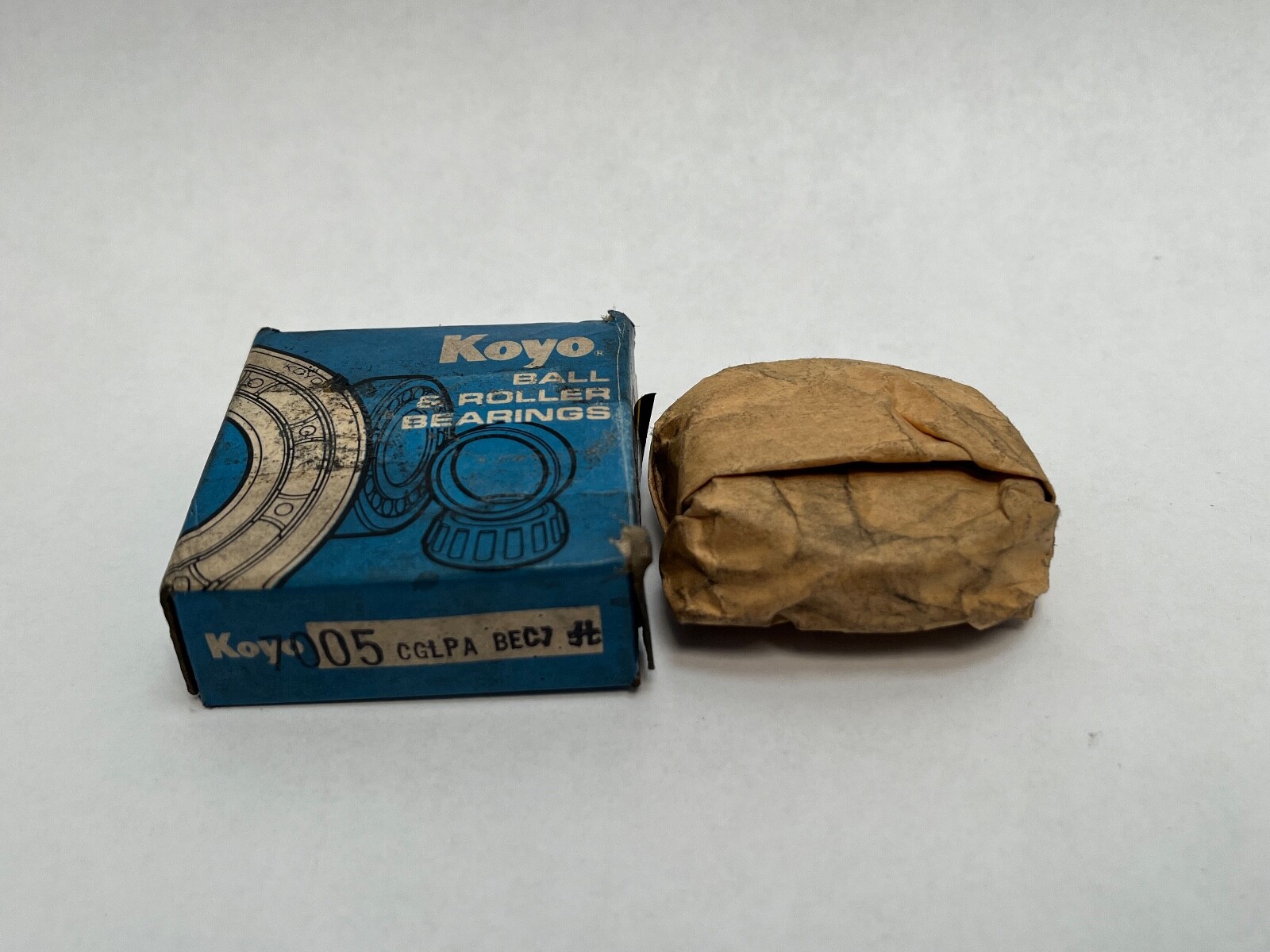

Same envelope and 15° contact angle as NSK 7005C, SKF 7005 CD, FAG B7005-C and NTN 7005C. Carton markings: 7005CTUL and 7005-C-5-GL/UL-PA. Harmonization Code: 8482.10.50.28.
What is the contact angle of the Koyo 7005CGL?
15°, from the C in the designation.
What size is a 7005 angular contact bearing?
25 mm bore, 47 mm outside diameter and 12 mm width.
What other markings does this bearing carry?
7005CTUL and 7005-C-5-GL/UL-PA.
