KoyoSAC3572AGBall Screw Support Bearing – 35 mm ID, 72 mm OD, 15 mm Width, 60° Contact Angle, ABEC 7 / P4

Product Description

What this part is:

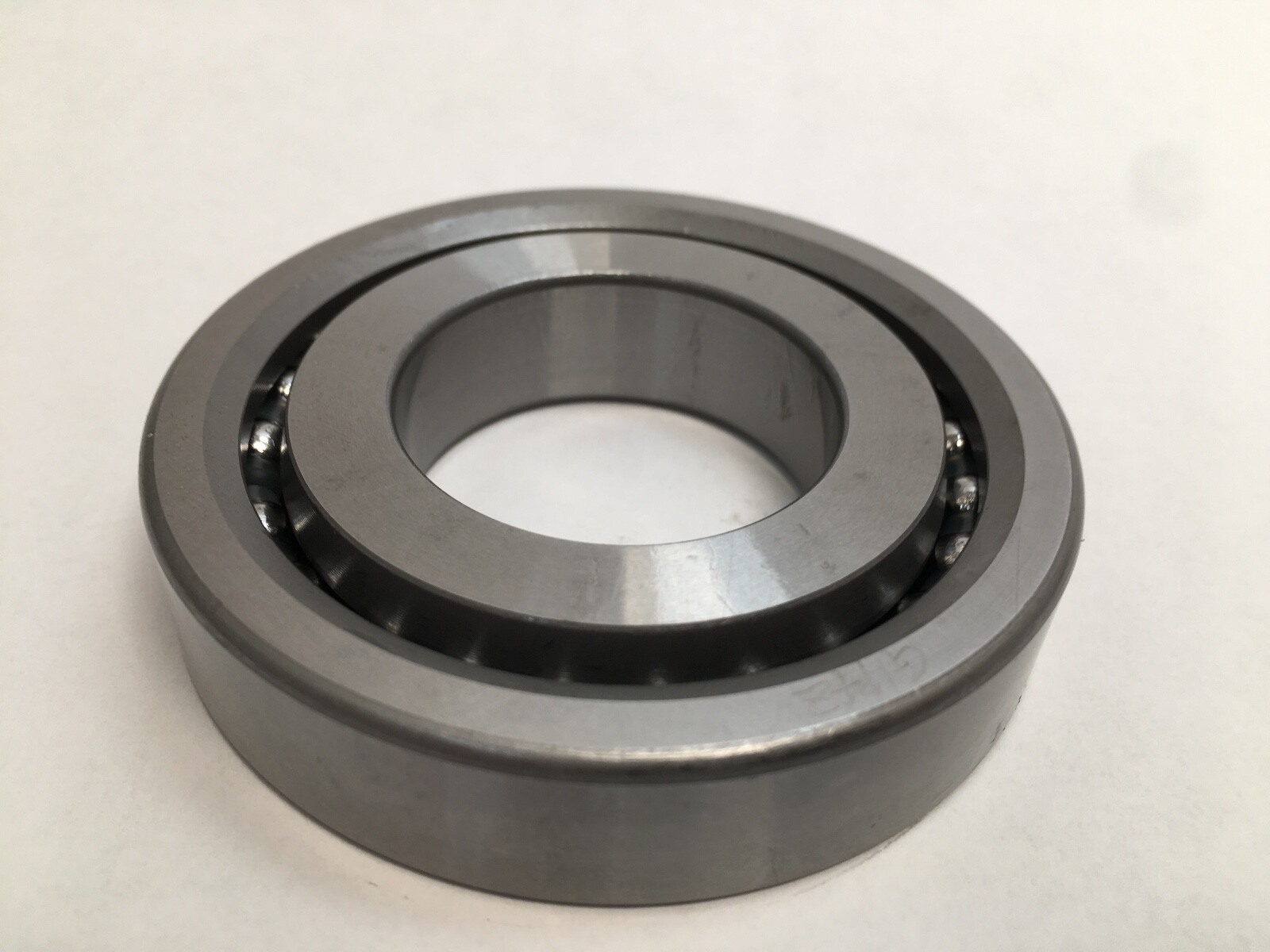

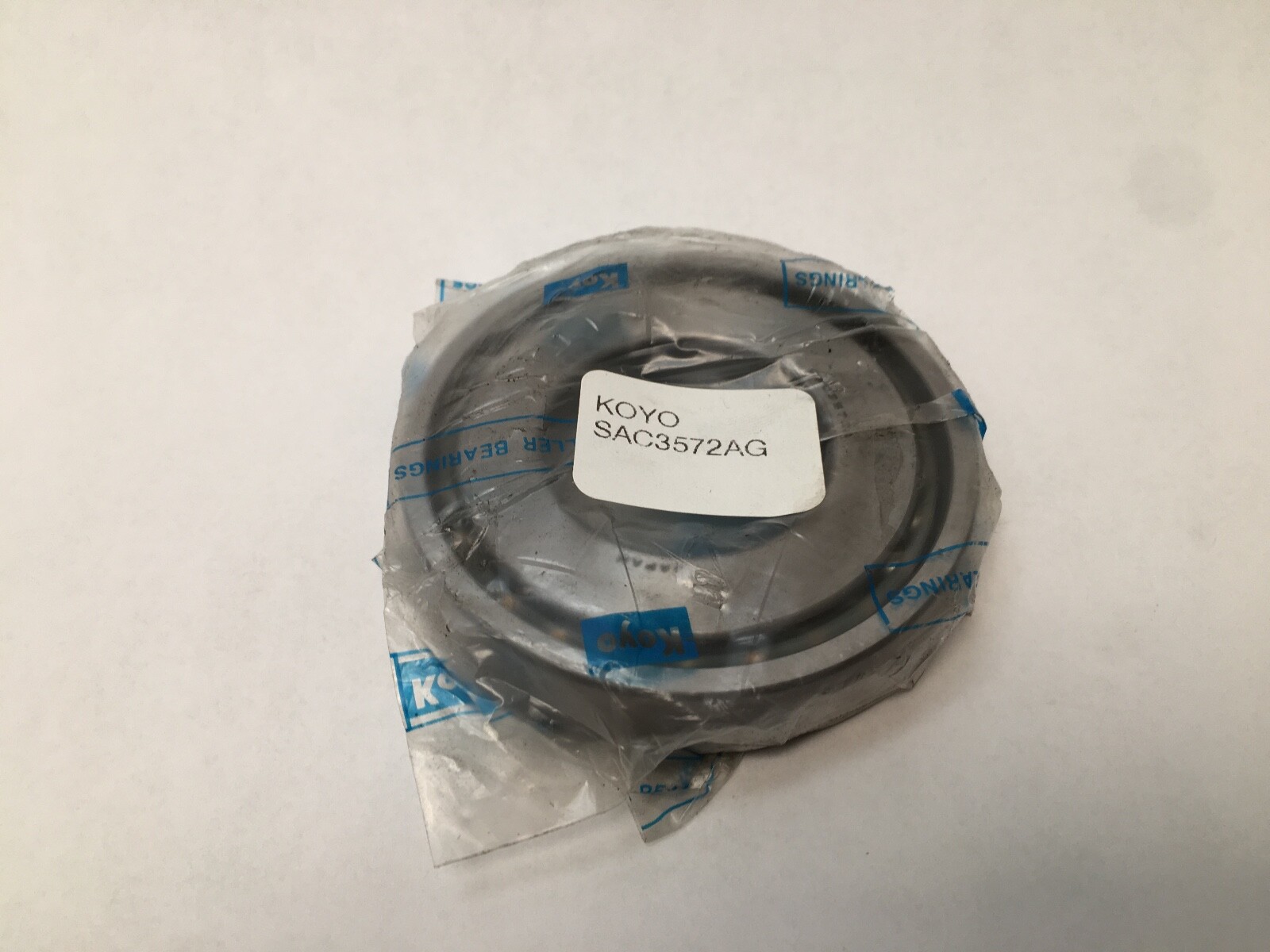

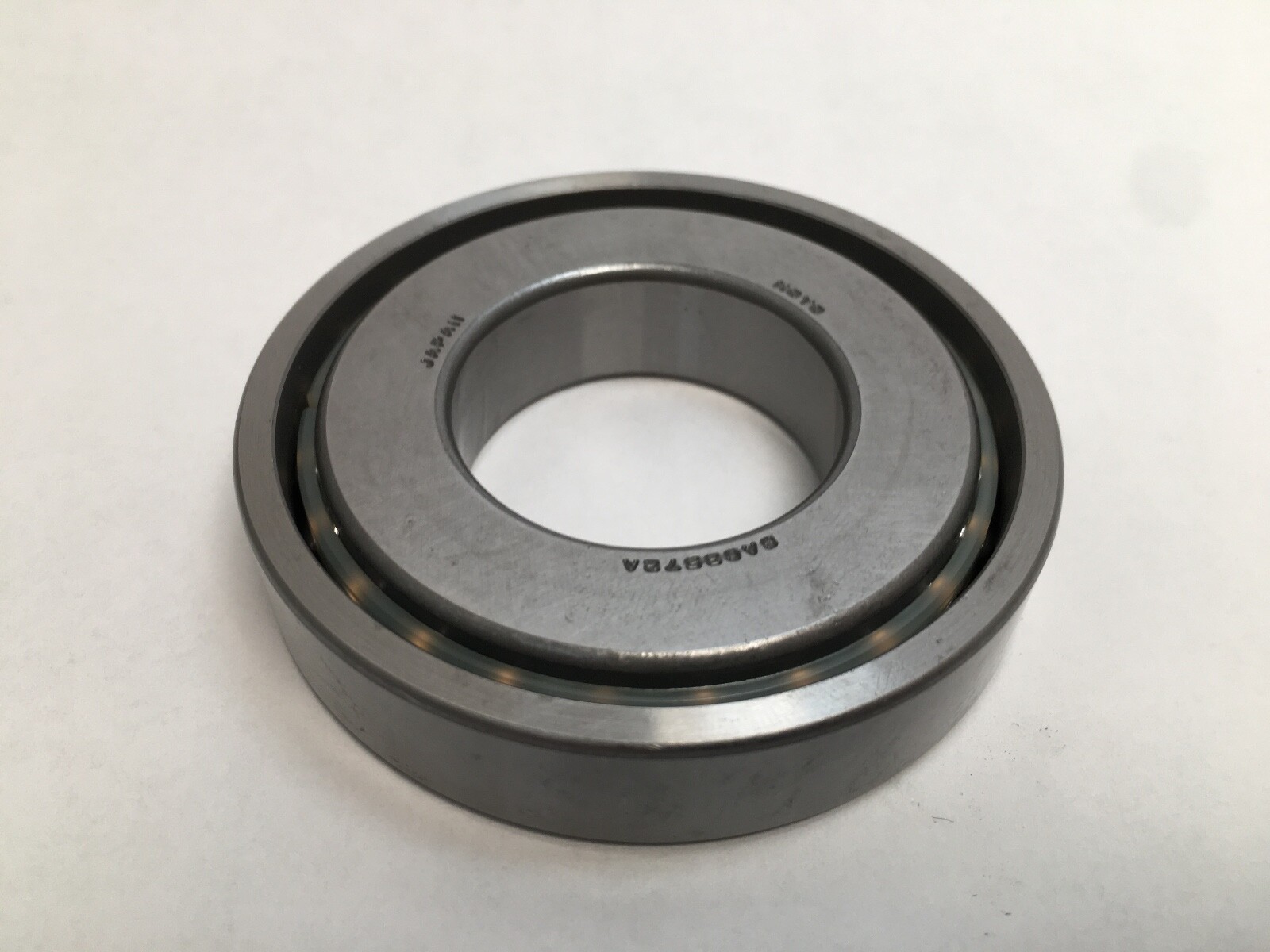

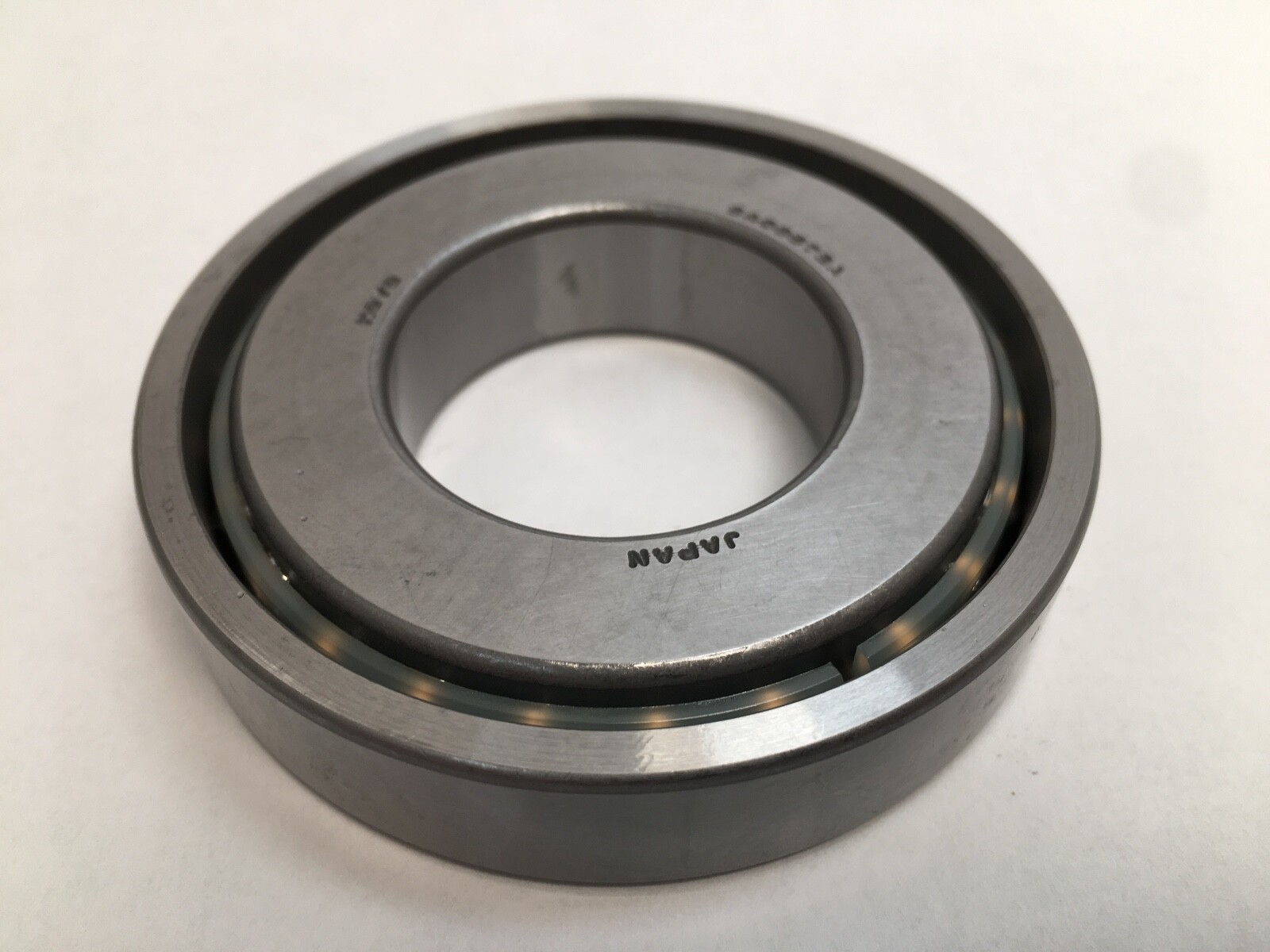

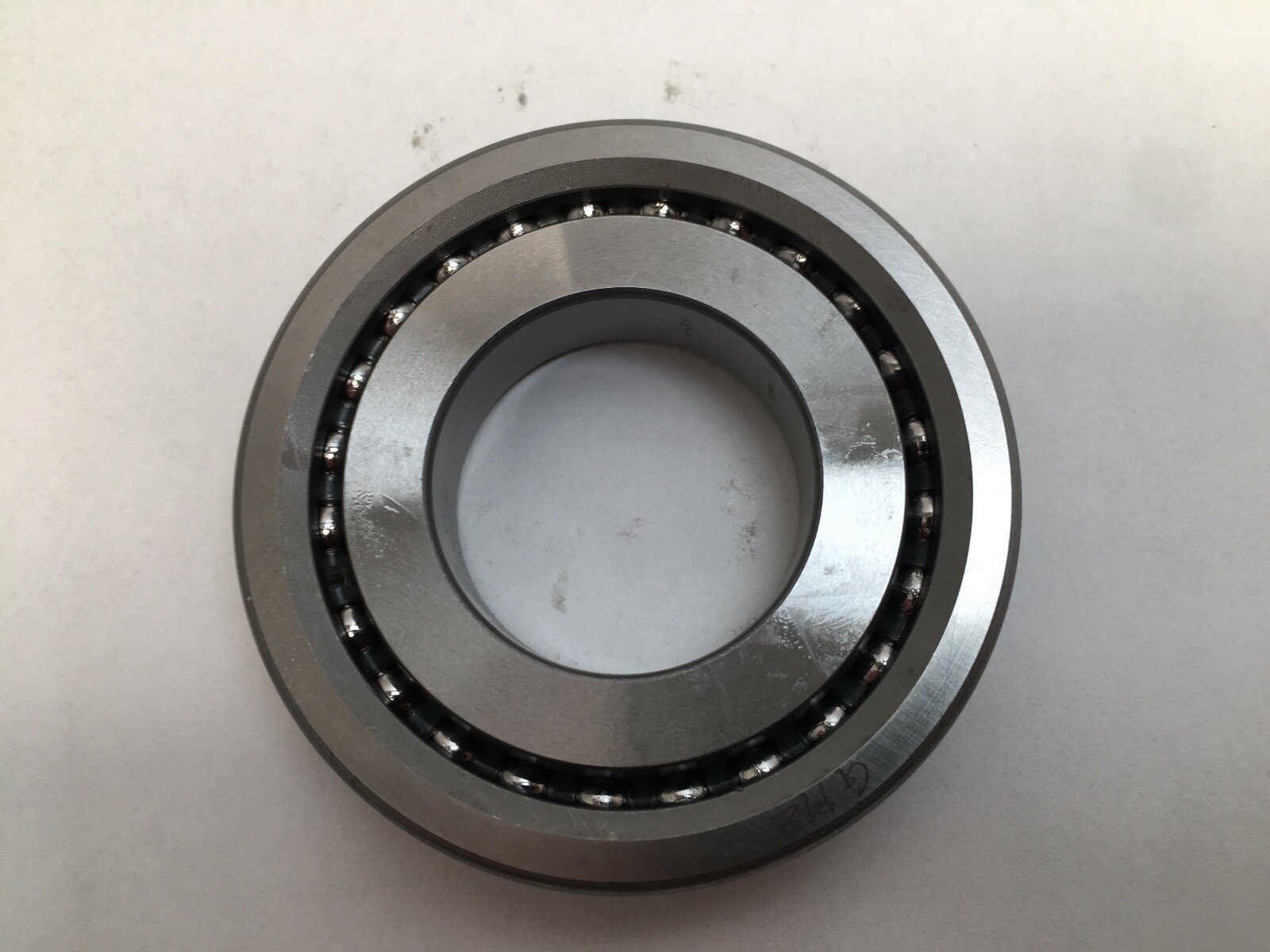

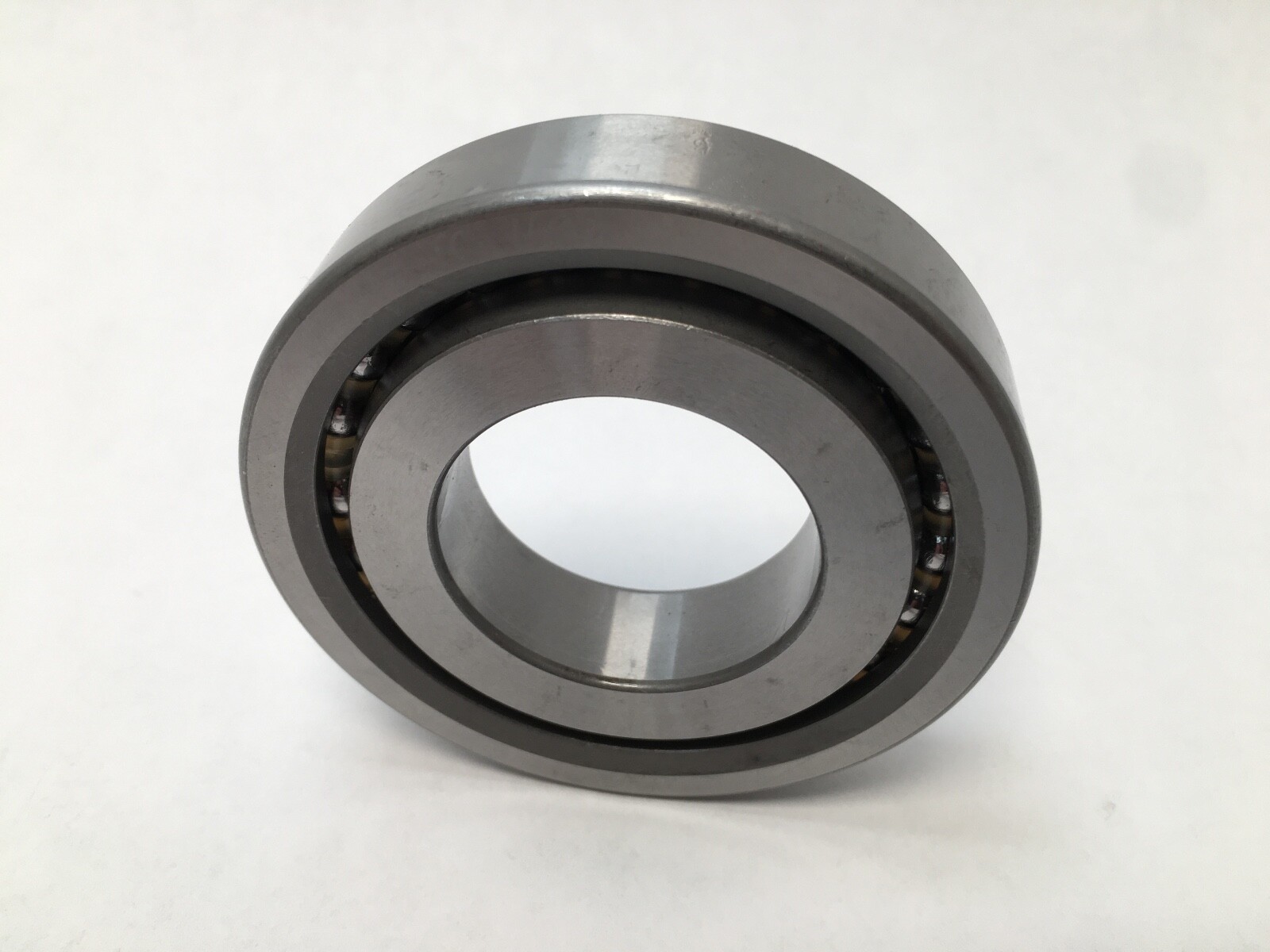

Koyo SAC3572AG is a single-row angular contact thrust ball bearing in Koyo’s SAC series of support bearings for precision ball screws. Bore Diameter: 35 mm. Outside Diameter: 72 mm. Overall Width: 15 mm. Contact Angle: 60°. Unit Quantity: 1 Pc.

Decoding the designation:

SAC — Koyo support bearing for precision ball screws, 60° contact angle.

3572 — 35 mm bore, 72 mm outside diameter.

G — flush-ground faces, so single bearings combine into matched two-, three- or four-row sets.

P4 — JIS class 4 precision, equivalent to ABEC 7.

Specifications:

Bore Diameter: 35 mm.

Outside Diameter: 72 mm.

Overall Width: 15 mm.

Contact Angle: 60°.

Precision Class: ABEC 7 / P4.

Rolling Elements: Ball.

Number Of Rows: 1.

Seal Type: Open.

Unit Quantity: 1 Pc.

Dimensions and mounting:

Envelope: 35 x 72 x 15 mm. Bore Type: Straight. Flush-ground (G) faces allow matched sets in two-, three- or four-row arrangements.

Compatibility and replacement:

Koyo SAC3572BG is the current Koyo execution in the 35 x 72 x 15 mm size. Other forms of the number: SAC-3572-AG, SAC3572AG P4Z and SAC 3572 AG.

Frequently asked questions:

What contact angle does the Koyo SAC3572AG have?

60°. SAC is Koyo’s 60° ball screw support bearing series.

What size is the Koyo SAC3572AG?

35 mm bore, 72 mm outside diameter and 15 mm width.

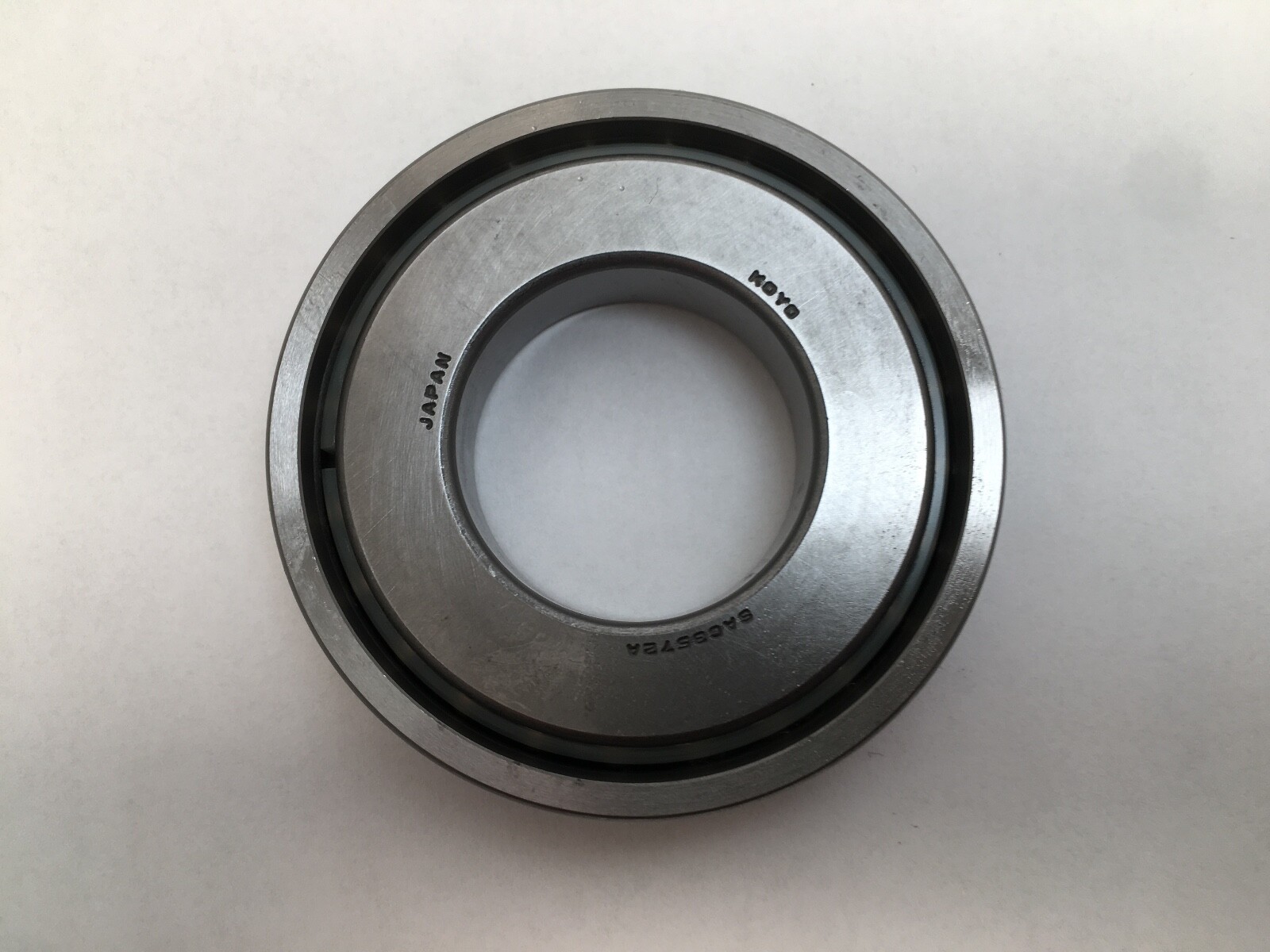

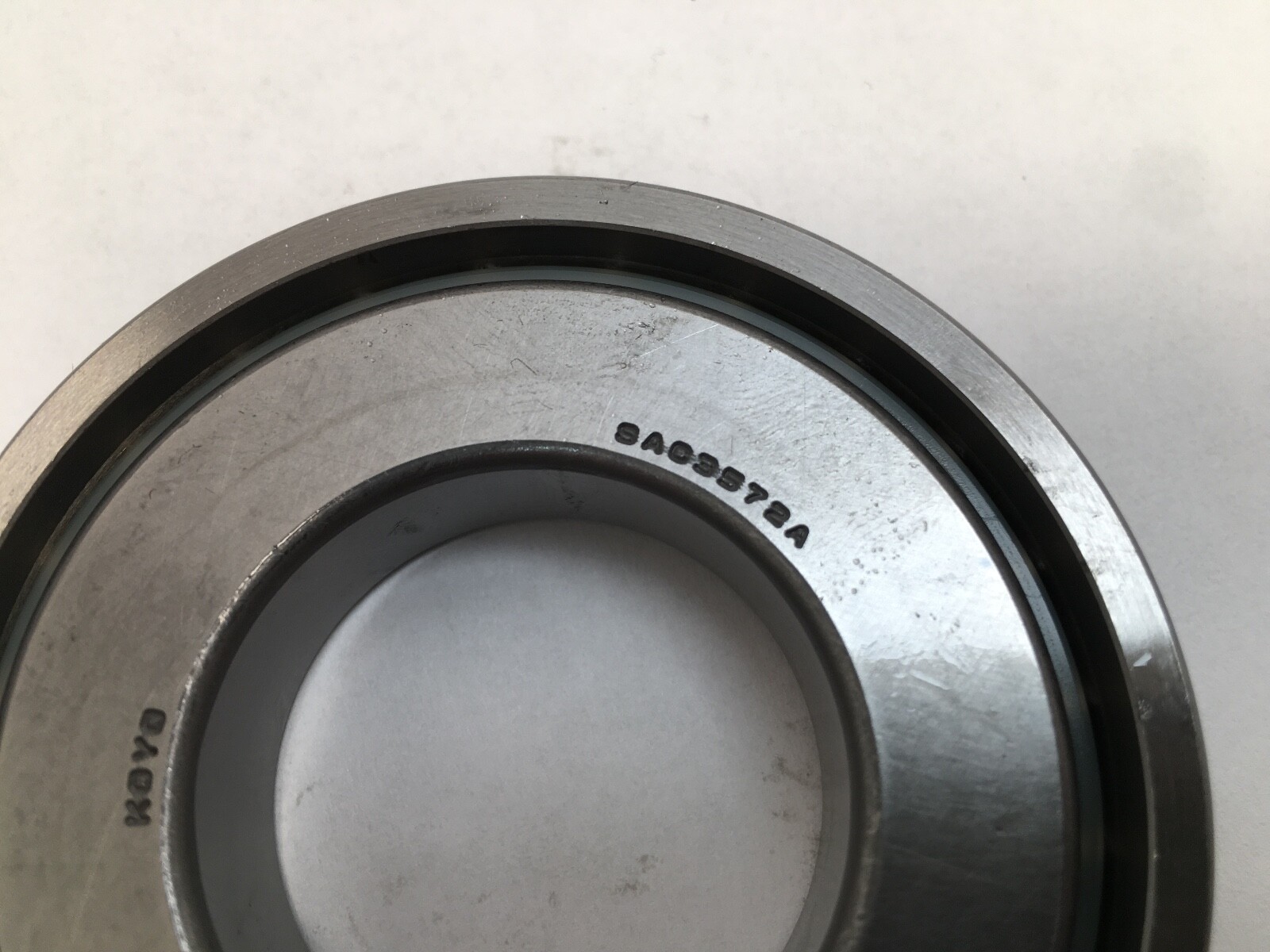

What precision class is marked on the Koyo SAC3572AG?

P4, equivalent to ABEC 7.
