Koyo SAC3572AG single-row ball screw support bearing, 35 x 72 x 15 mm, 60° contact angle, flush ground for matched sets, ABEC 7 / P4 precision.
List Price
$76.47
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Koyo |
|---|---|
| MPN | SAC3572AG |
| Model | SAC3572AG |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 35 mm |
| OD | 72 mm |
| Industry Terms | ball screw support bearing, angular contact thrust ball bearing, 60 degree |
|---|---|
| Application Types | CNC machine tool ball screw supports |
| Overall Width | 15 mm |
| Mpn Variants | SAC3572AG, SAC-3572-AG, SAC3572AG P4Z, SAC 3572 AG |
| Compatible With Replaces | Koyo SAC3572BG (current execution) |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Flush-ground (G) faces for matched sets |
| Precision Rating | ABEC 7 / P4 |
| Series | SAC |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Contact Angle | 60° |
| Common Misspellings | SAC 3572AG; SAC3572 AG; SAC-3572AG; Koyo SAC3572A G; SAC3572AGP4Z |

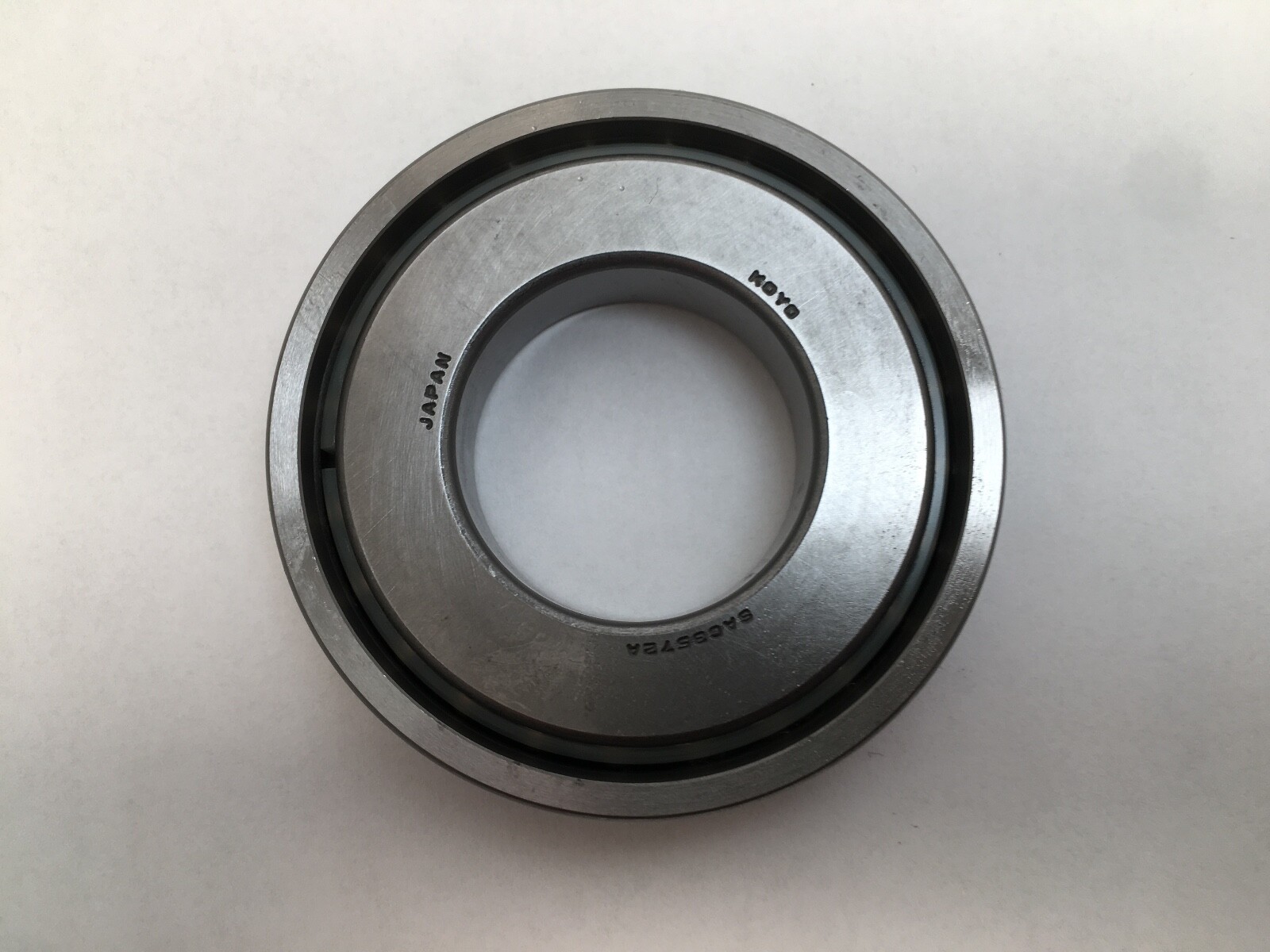

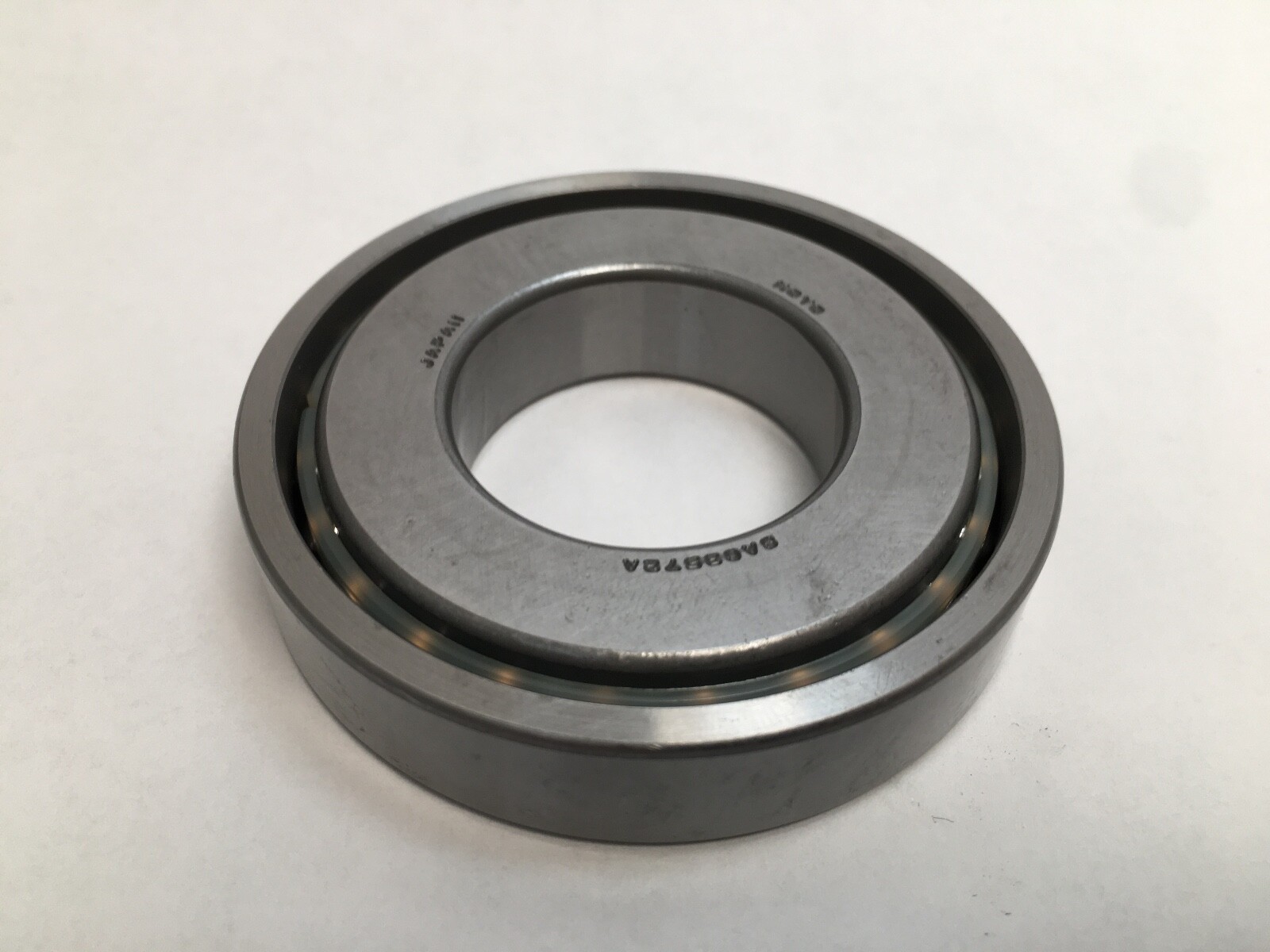

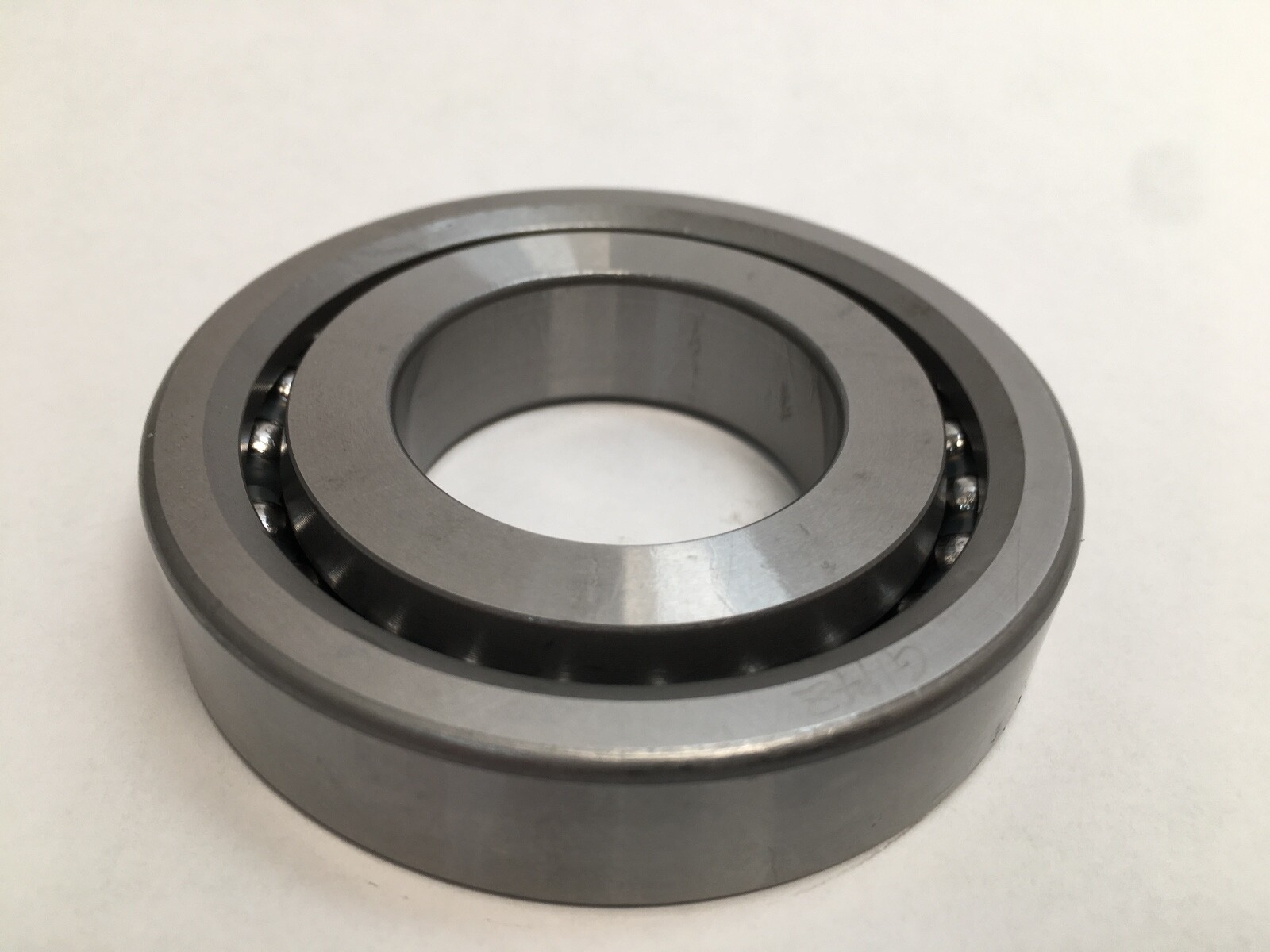

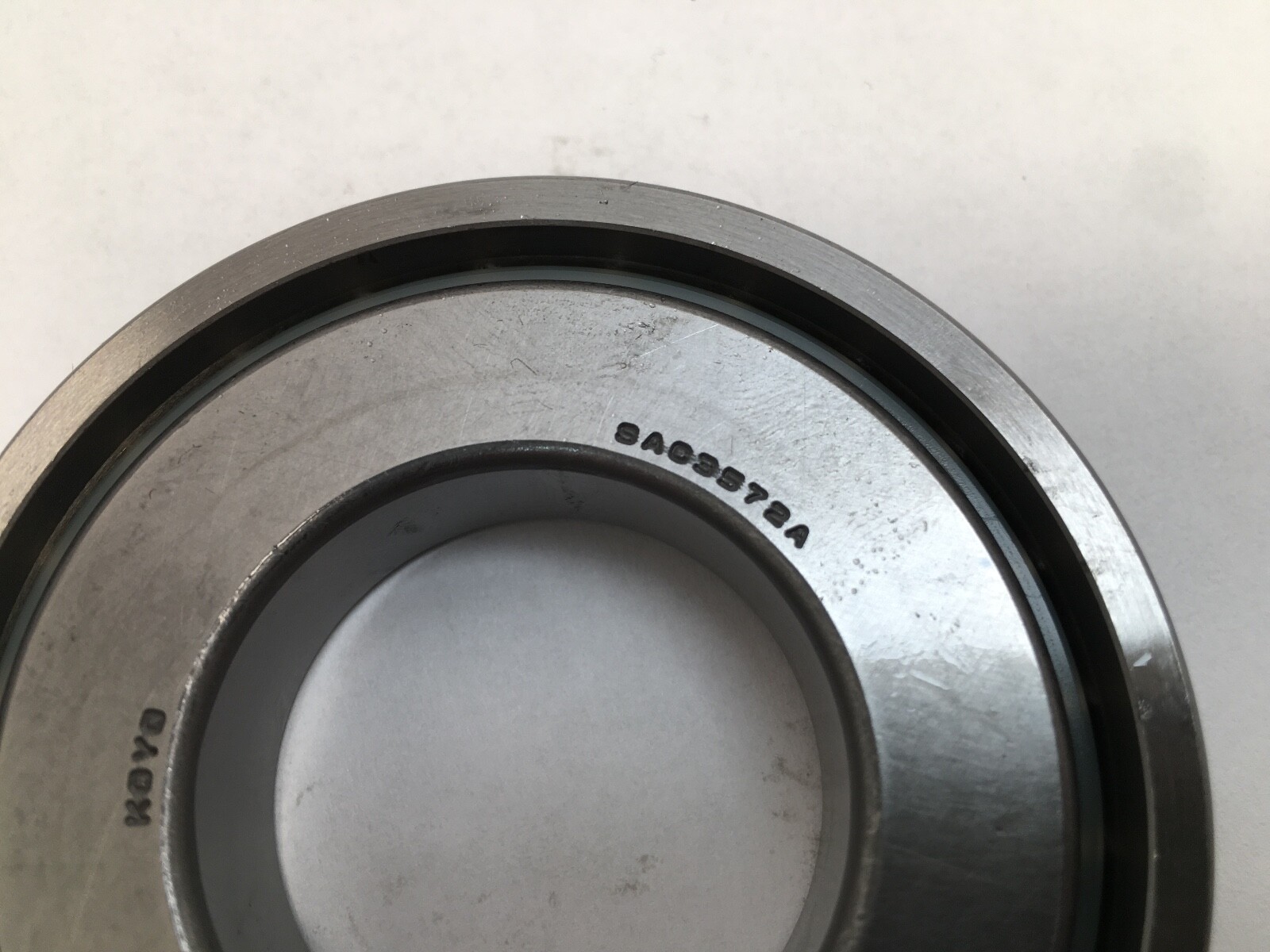

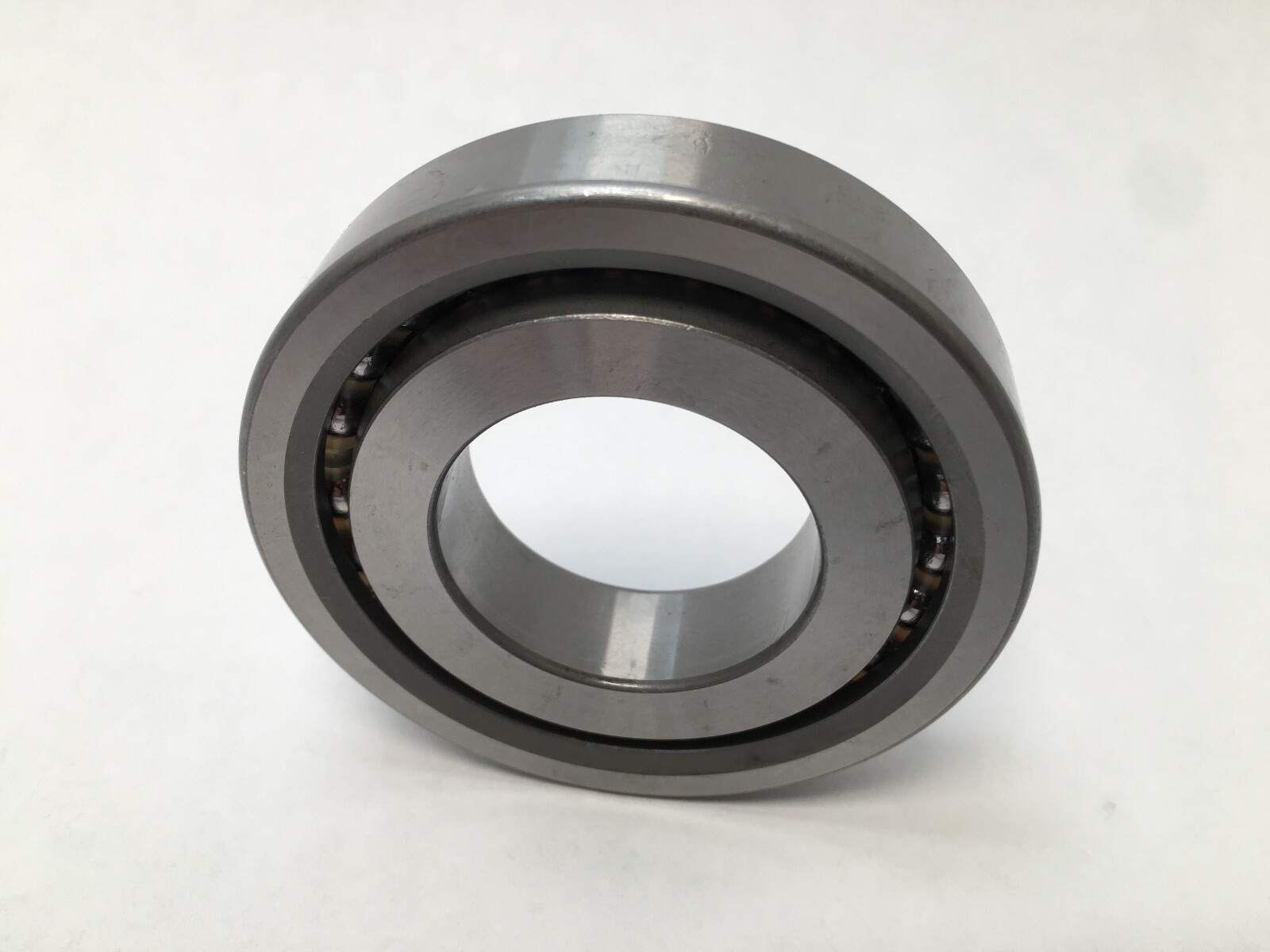

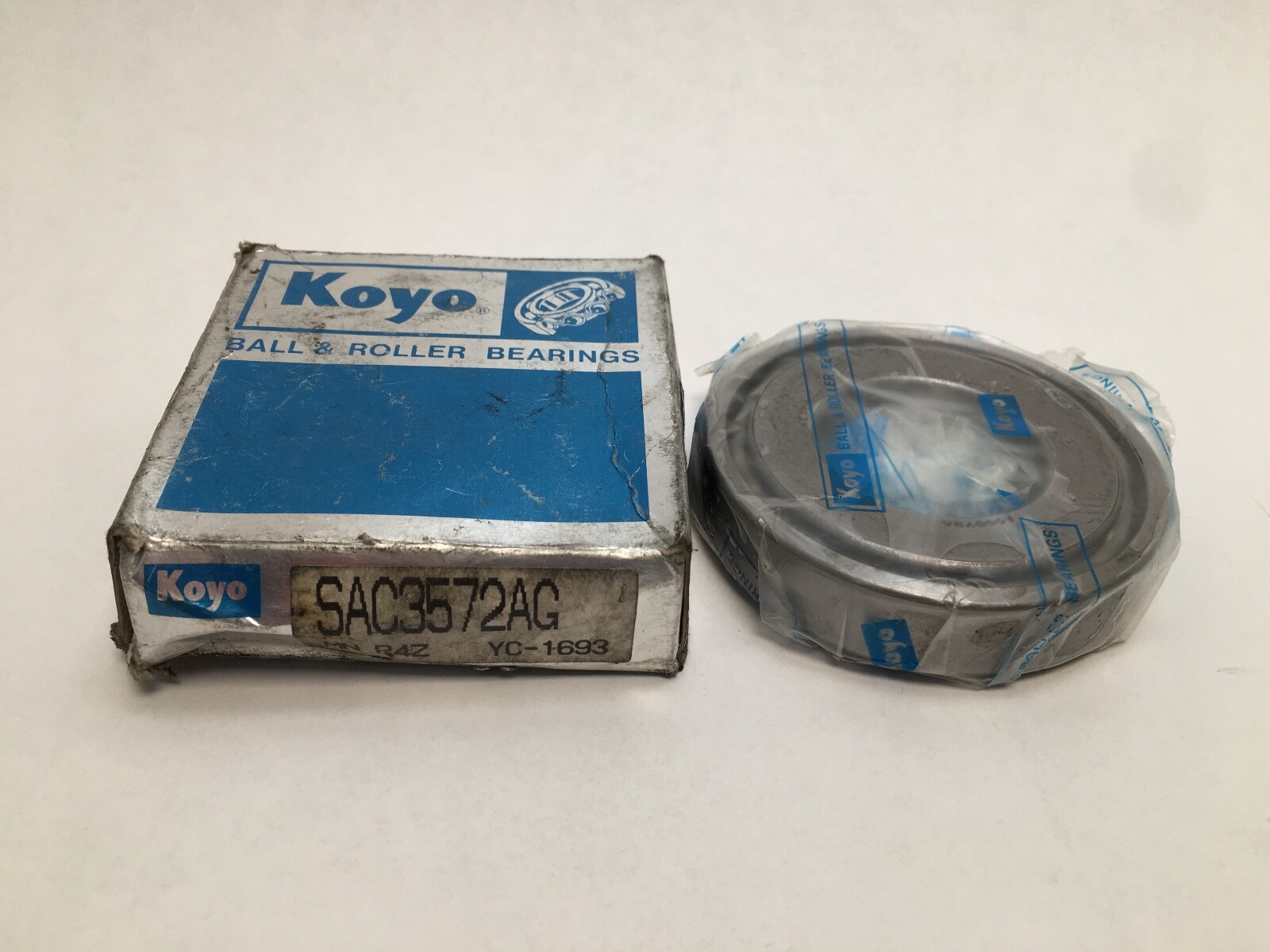

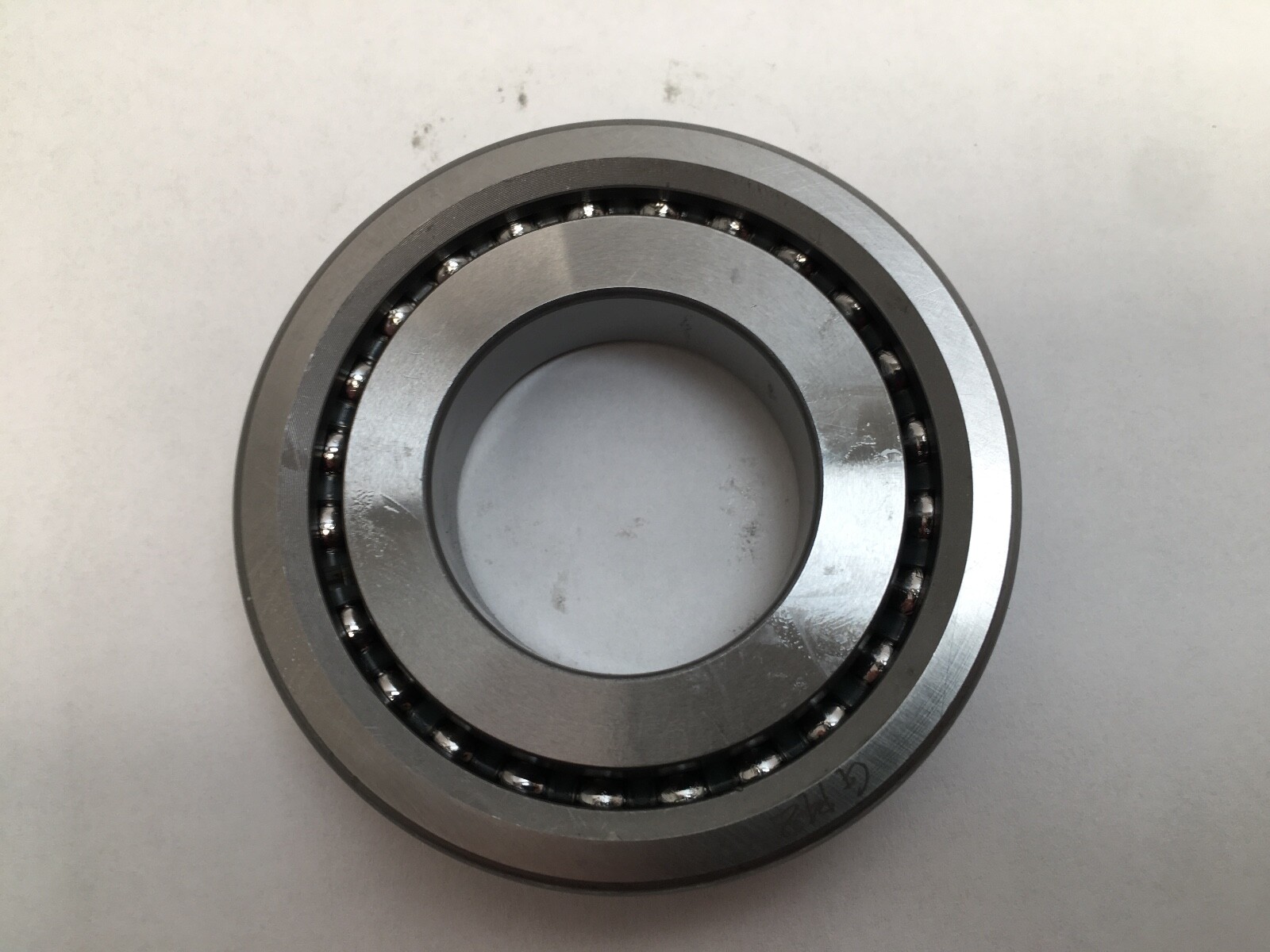

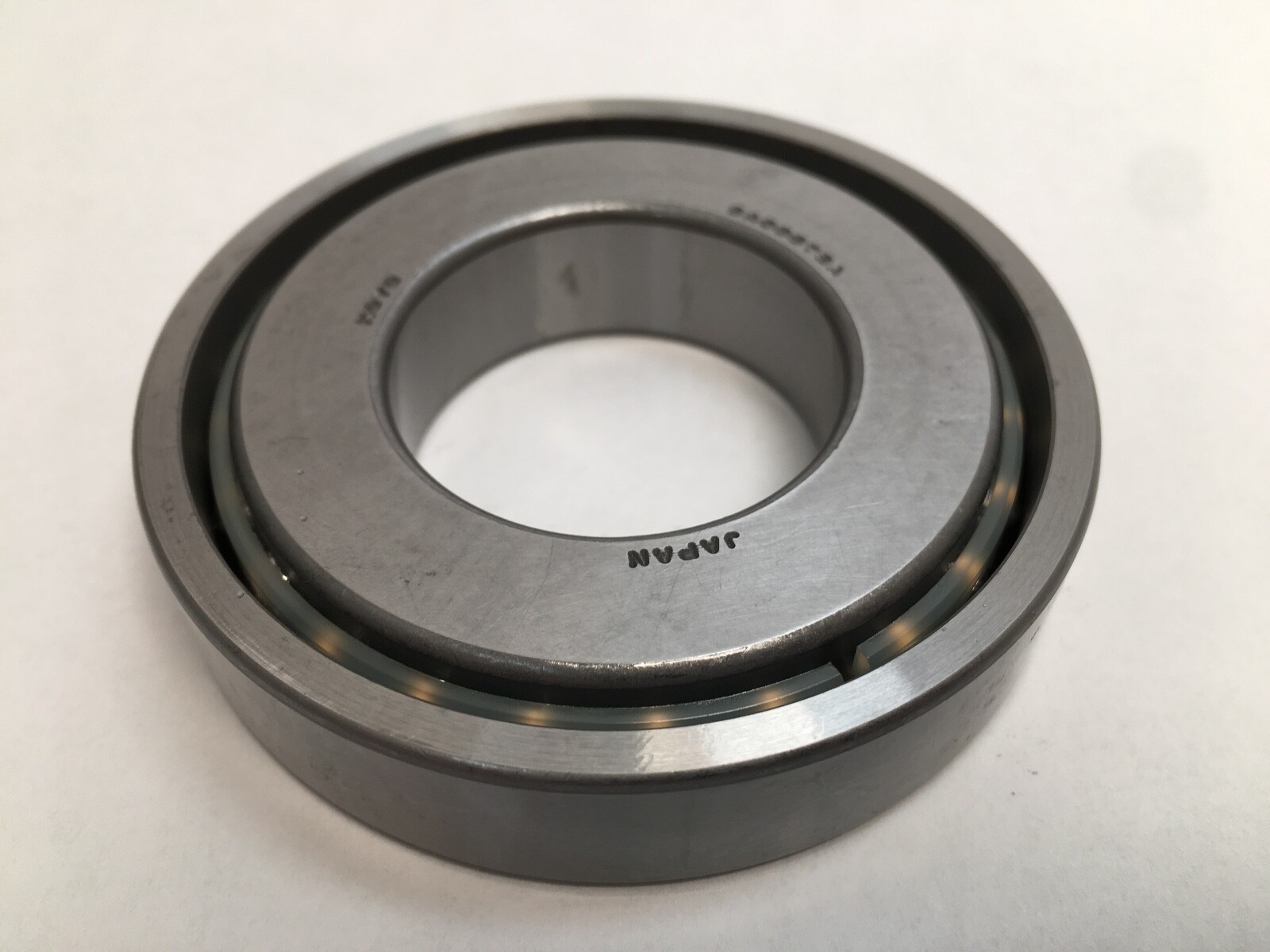

Koyo SAC3572AG is a single-row angular contact thrust ball bearing built by JTEKT to support the screw shaft of a precision ball screw. Unit Quantity: 1 Pc. Bore Diameter: 35 mm. Outside Diameter: 72 mm. Overall Width: 15 mm. Contact Angle: 60°.
SAC — Koyo support bearing for precision ball screws, 60° contact angle.
3572 — 35 mm bore, 72 mm outside diameter.
G — flush-ground faces, so single bearings combine into matched two-, three- or four-row sets.
P4 — JIS class 4 precision, equivalent to ABEC 7.
Bore Diameter: 35 mm. Outside Diameter: 72 mm. Overall Width: 15 mm. Contact Angle: 60°. Rolling Elements: Ball. Number Of Rows: 1. Precision Class: ABEC 7 / P4. Series: SAC. Application: CNC machine tool ball screw supports.
Bore Diameter: 35 mm. Outside Diameter: 72 mm. Overall Width: 15 mm. Flush-ground (G) faces for matched sets.
Current Koyo execution on the same 35 x 72 x 15 mm envelope: SAC3572BG. Also written SAC-3572-AG, SAC3572AG P4Z and SAC 3572 AG.
Bore Diameter: 35 mm. Outside Diameter: 72 mm. Overall Width: 15 mm.
Contact Angle: 60°. Precision Class: ABEC 7 / P4 (JIS class 4).
SAC3572BG is the current Koyo execution on the same 35 x 72 x 15 mm envelope.
