Availability:
23 in stock

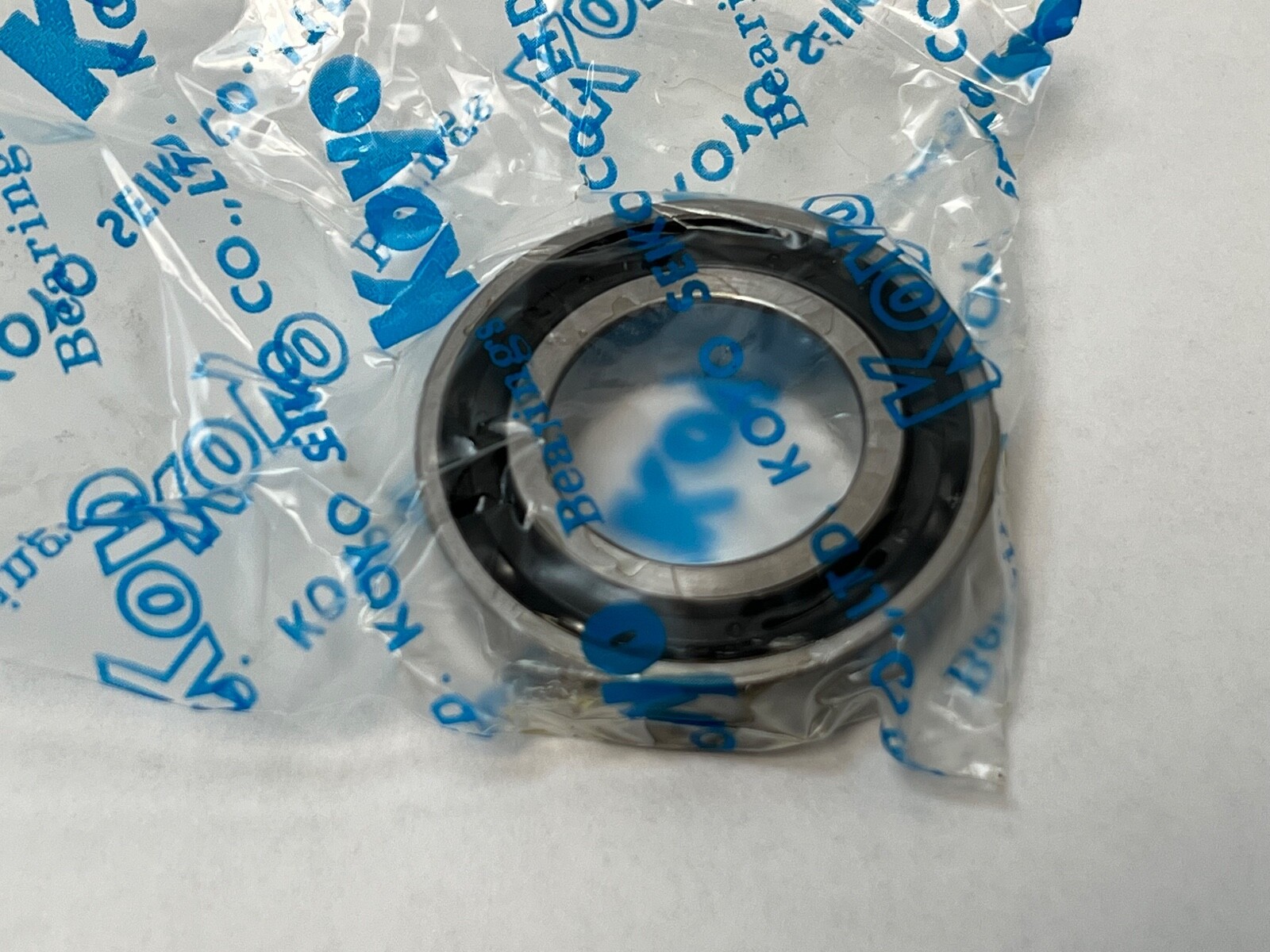

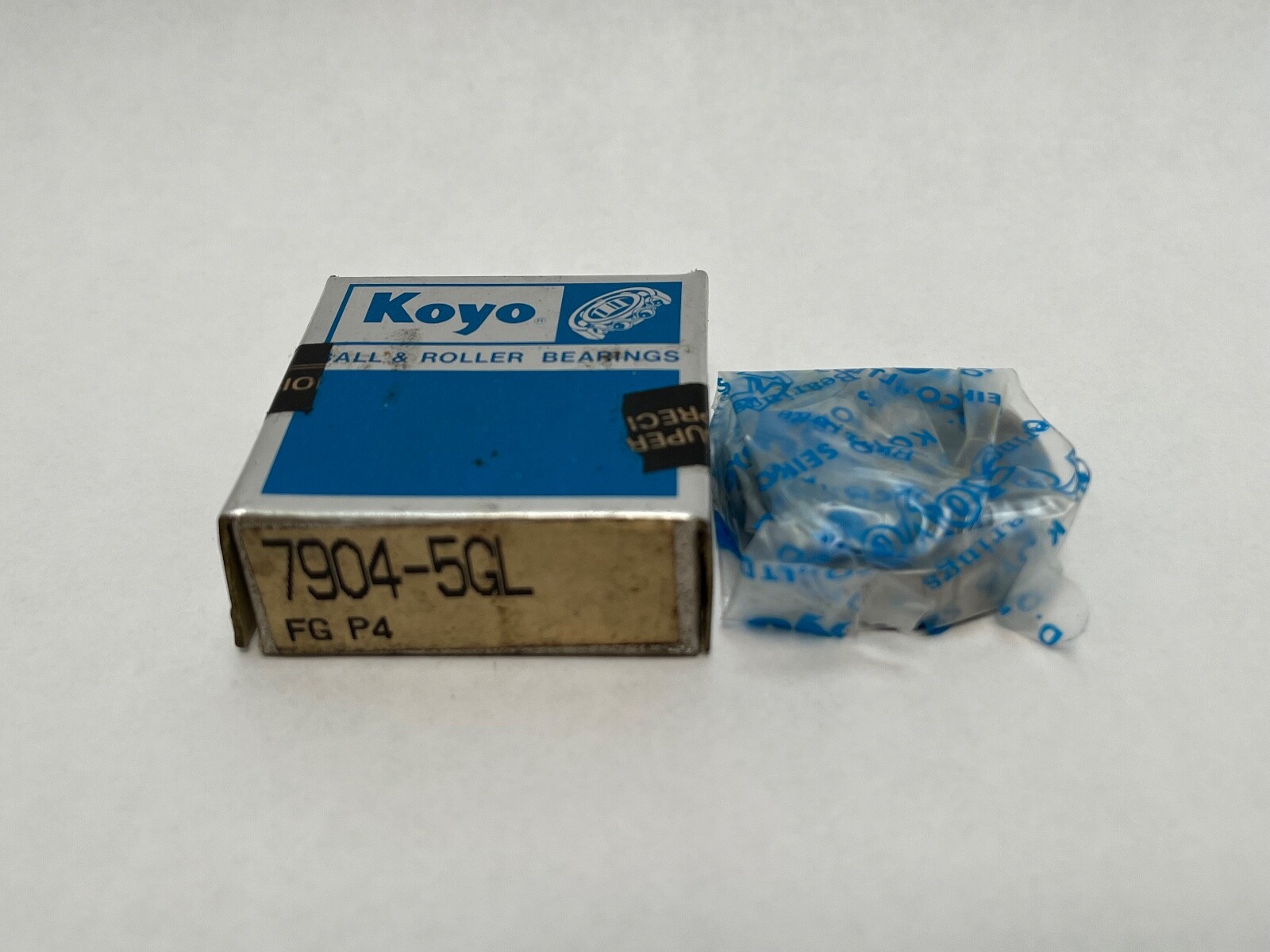

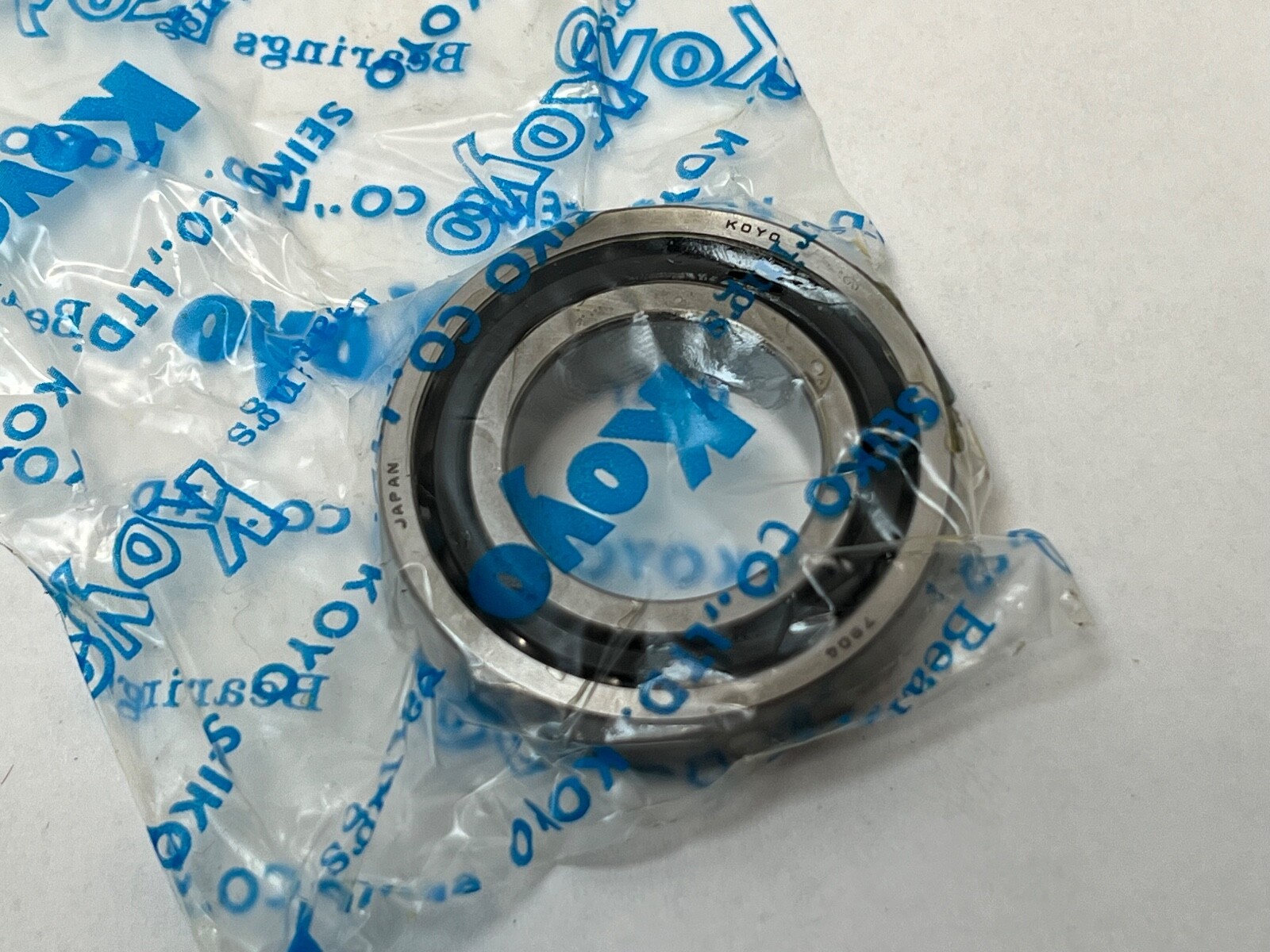

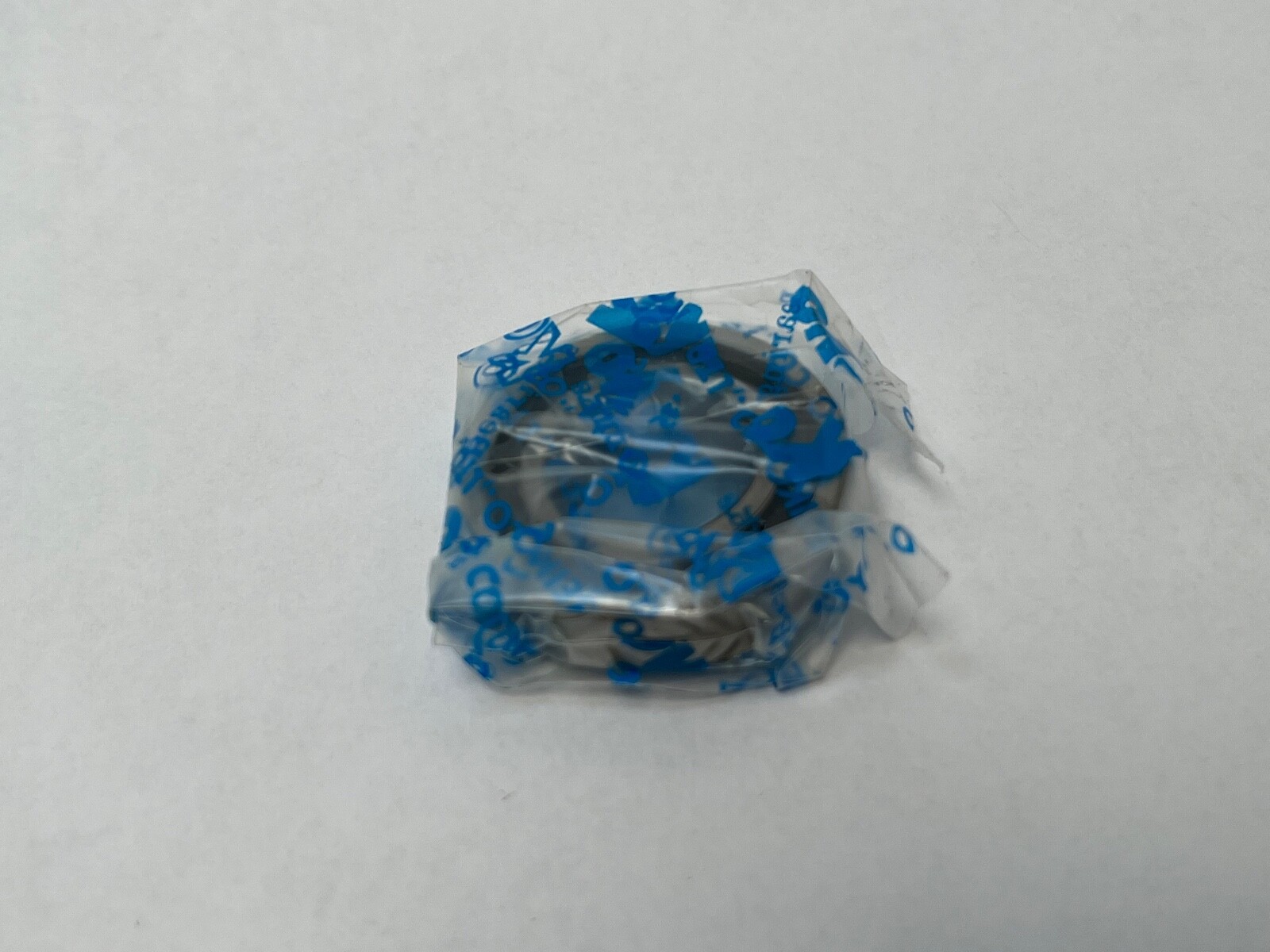

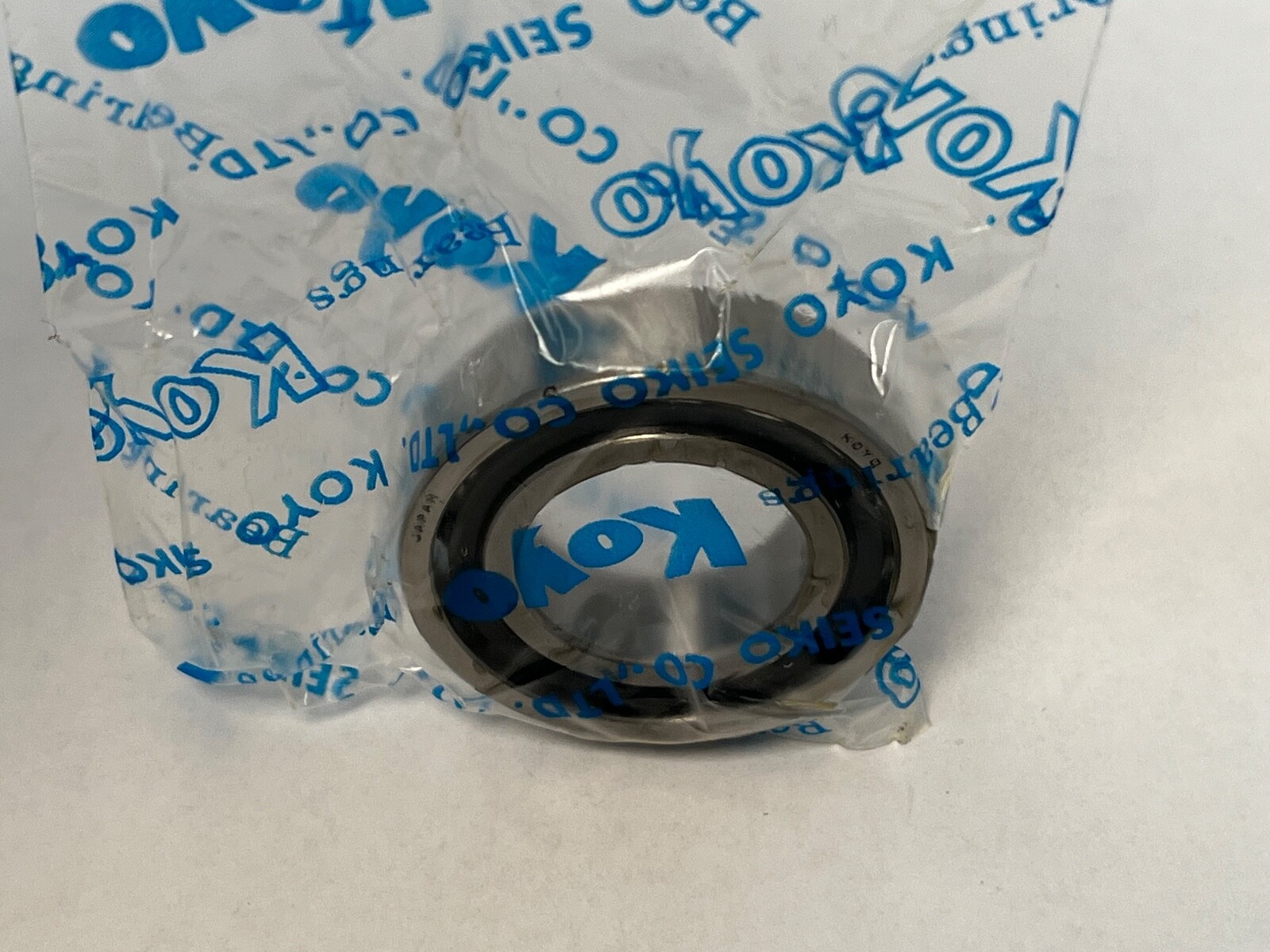

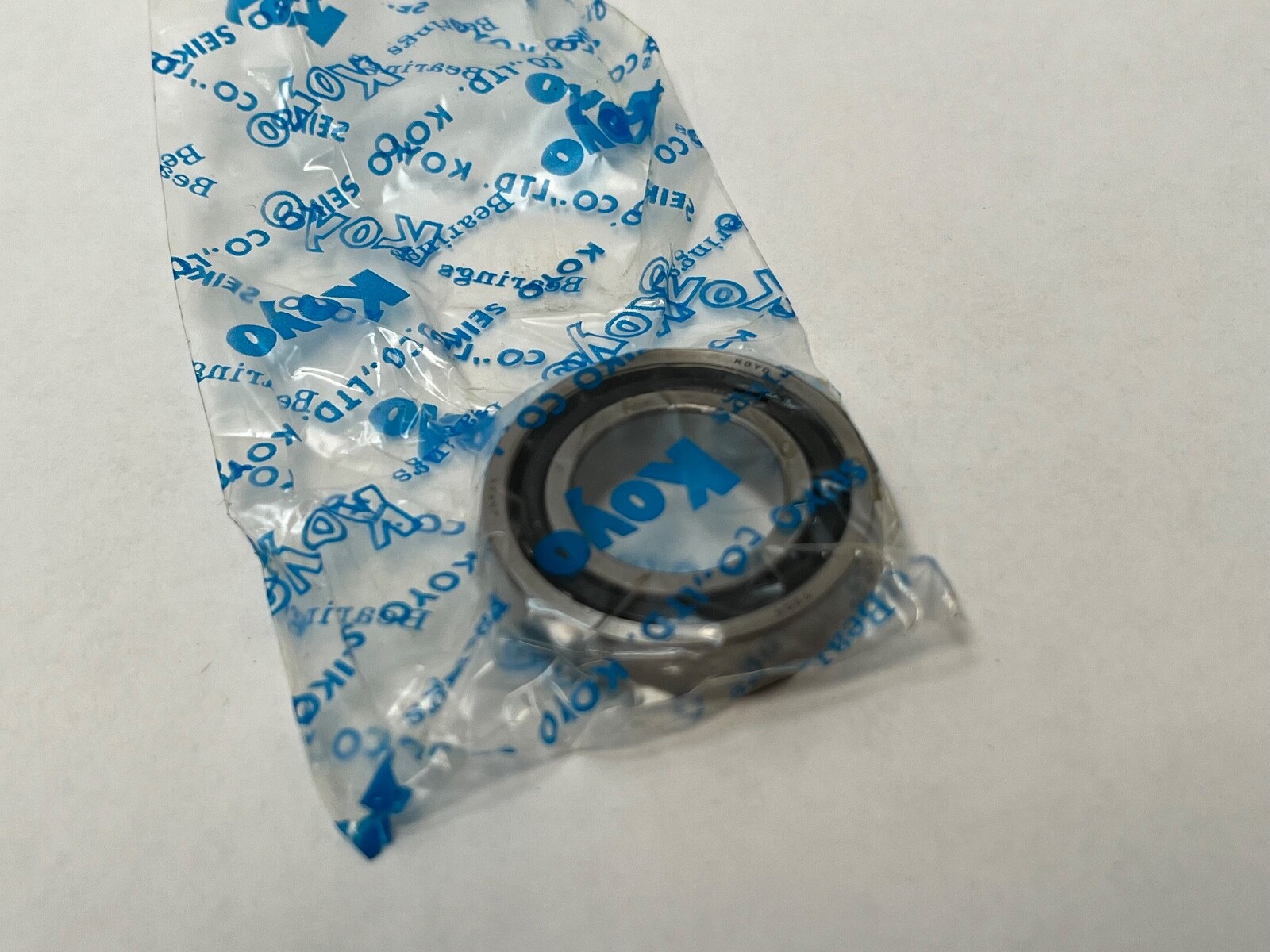

Koyo 7904-5GLP4 angular contact ball bearing, 20 x 37 x 9 mm, ABEC 7 / P4, universal flush ground, light preload, polyamide cage. 79 series super-thin section.
List Price
$41.58
23 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Koyo |
|---|---|
| Model | 7904-5-GL-FG-P4 |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 20 mm |
| OD | 37 mm |
| Width | 9 mm |
| Overall Width | 9 mm |
|---|---|
| Mpn Variants | 7904-5GLP4, 7904-5-GL-FG-P4, 79045GLFGP4, 7904 B T UL P4, 71904B, 7904-B-UL-P4 |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Chamfer r min: 0.3 mm; r1 min: 0.15 mm |
| Series | 7900 |
| Cage Material | Polyamide |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Preload | Light preload |
| Mounting Arrangement | Universal (flush ground for DB, DF or DT) |
Koyo 7904-5GLP4 is a single-row super-thin 79-series angular contact ball bearing, flush ground for universal matching with light preload, P4 tolerance and a polyamide cage (carton marking 7904-5-GL-FG-P4). Bore Diameter: 20 mm. Outside Diameter: 37 mm. Overall Width: 9 mm. Rolling Elements: Ball. Closure Type: Open.
7904 — single-row angular contact, 79 series, bore code 04 = 20 mm.
G — faces flush ground for back-to-back, face-to-face or tandem pairing.
L — light preload when paired.
FG — polyamide (nylon) cage.
P4 — Koyo tolerance class equivalent to ABEC 7.
Precision Class: ABEC 7 / P4. Preload: Light preload. Cage Material: Polyamide. Mounting Arrangement: Universal (flush ground for DB, DF or DT).
The narrow 79-series section and ABEC 7 tolerances suit compact high-speed spindles and precision rotary tables on a 20 mm shaft.
Chamfer r min: 0.3 mm. Chamfer r1 min: 0.15 mm.
Unit Quantity: 1 Pc. Single universally matchable bearing.
Envelope 20 x 37 x 9 mm, the ISO 719 series size shared with SKF 71904, FAG B71904 and NSK 7904. Contact angle, preload and class are specific to each maker’s suffixes.
