Availability:
1 in stock

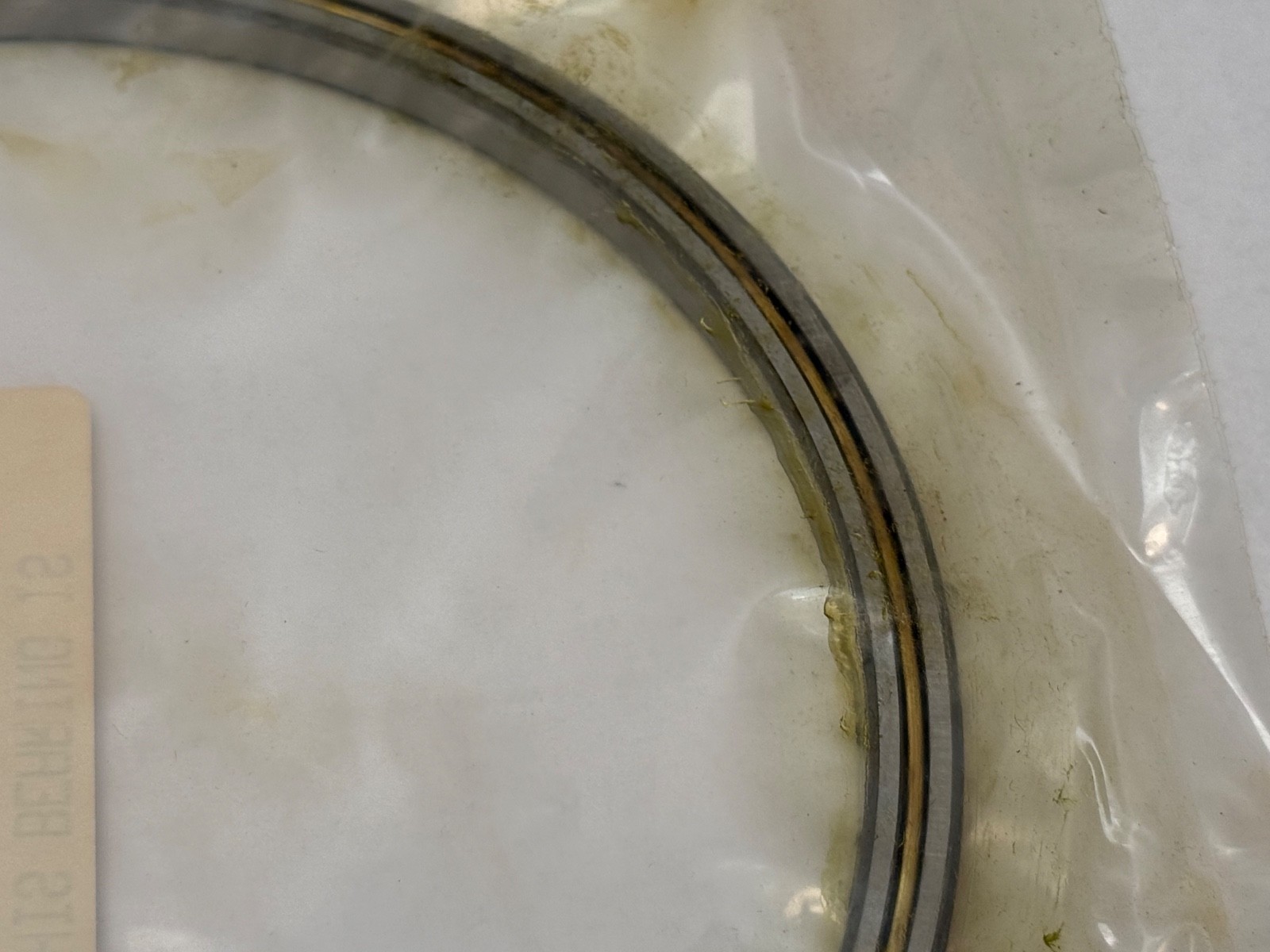

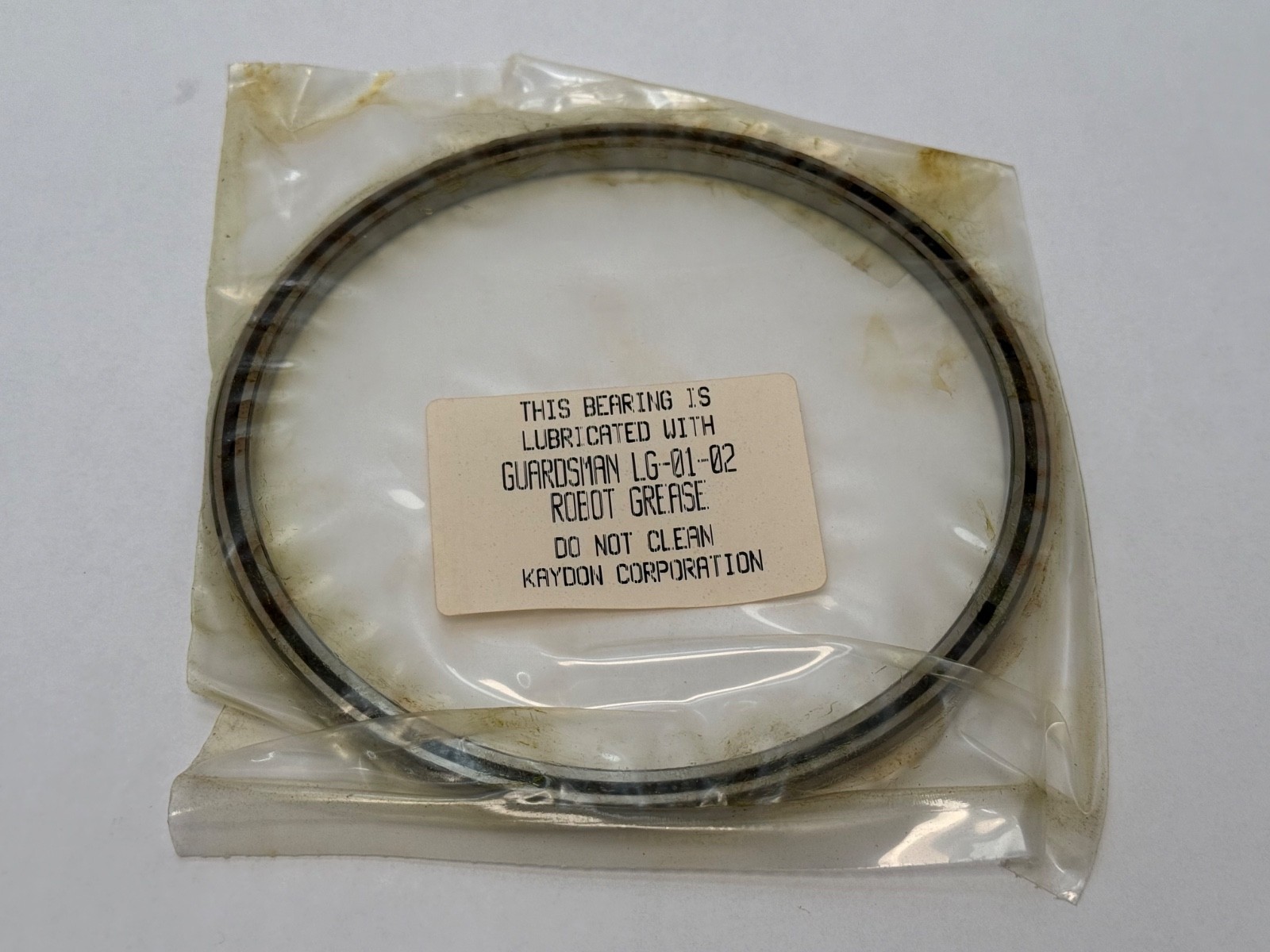

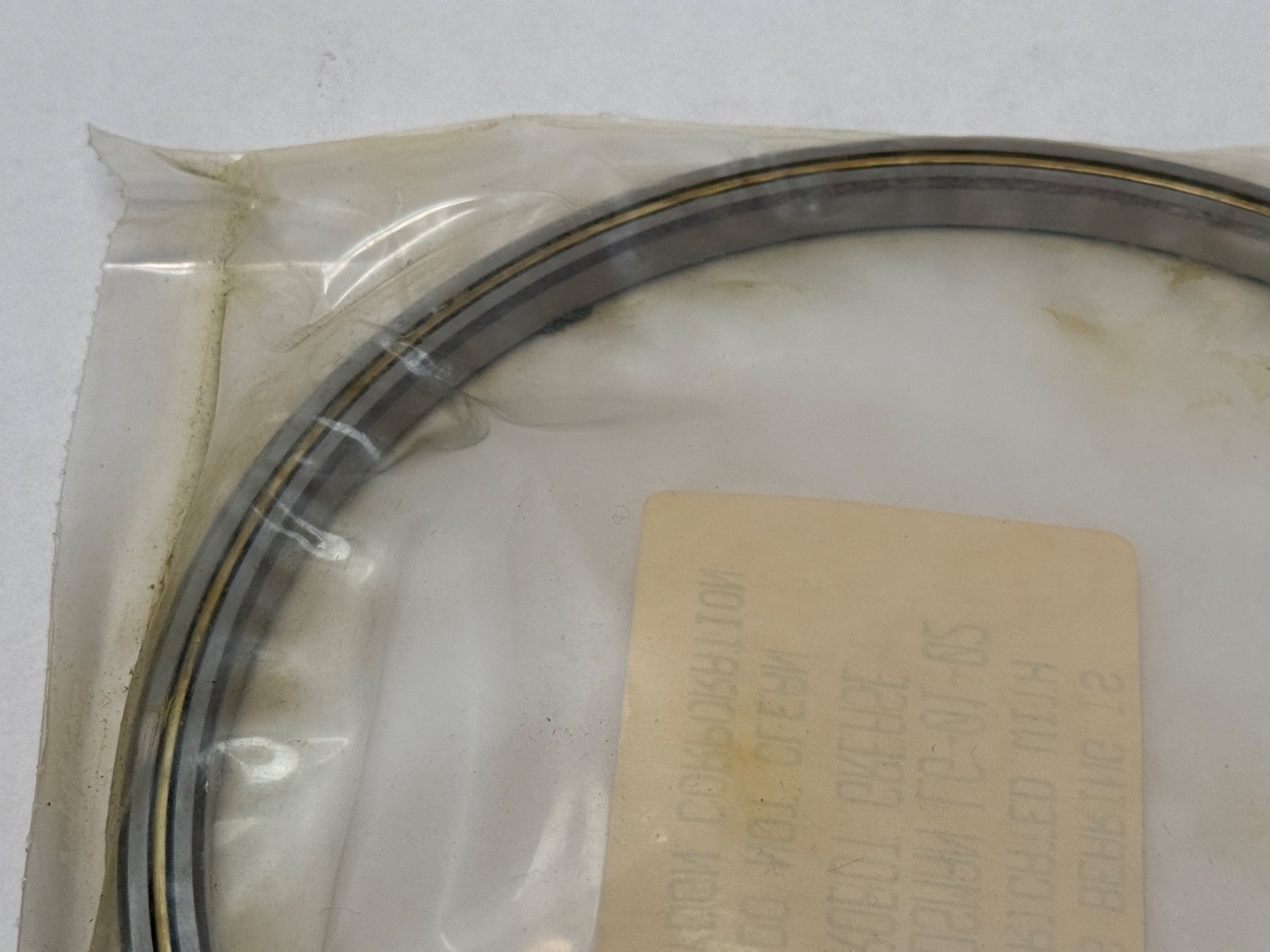

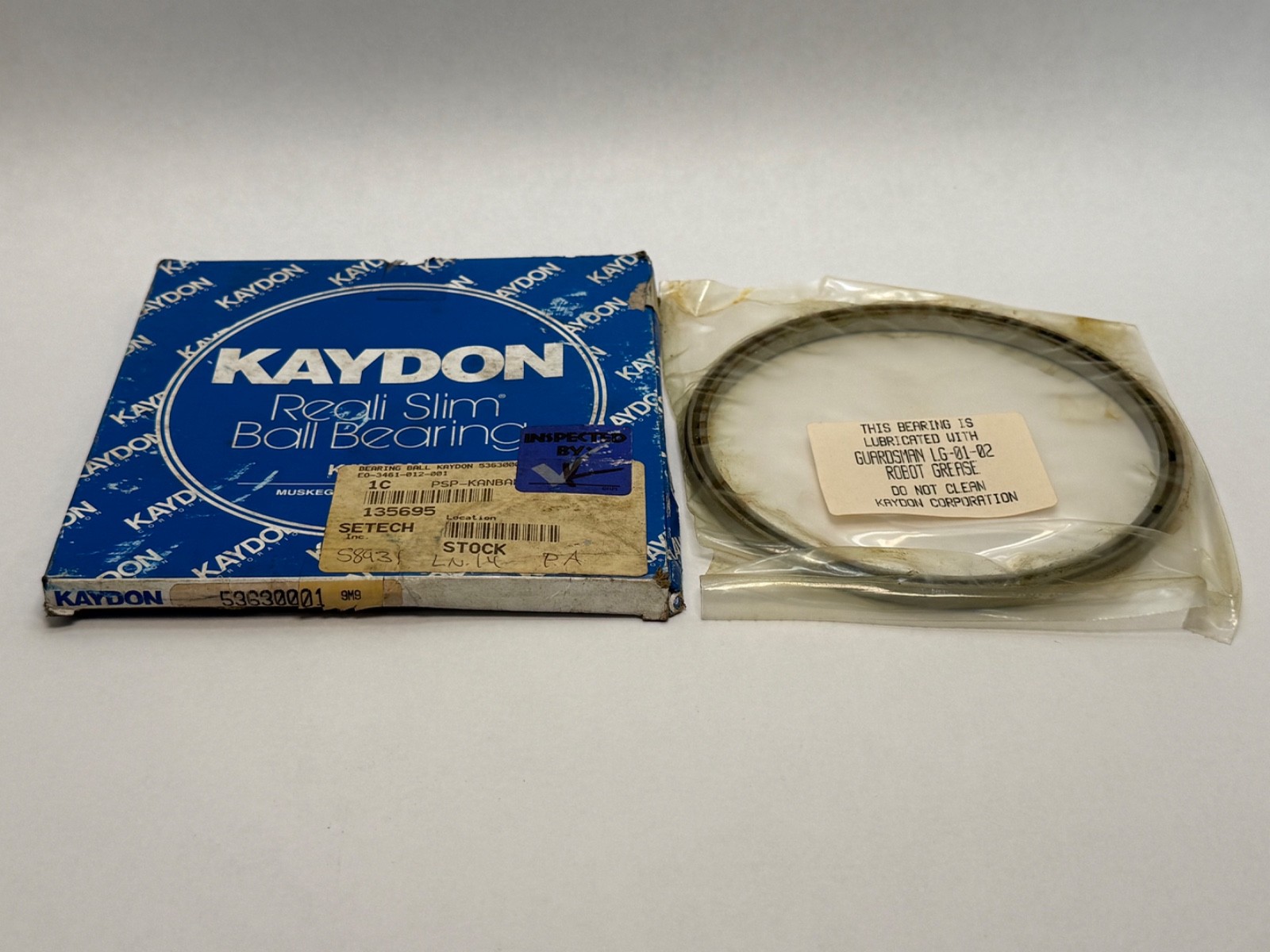

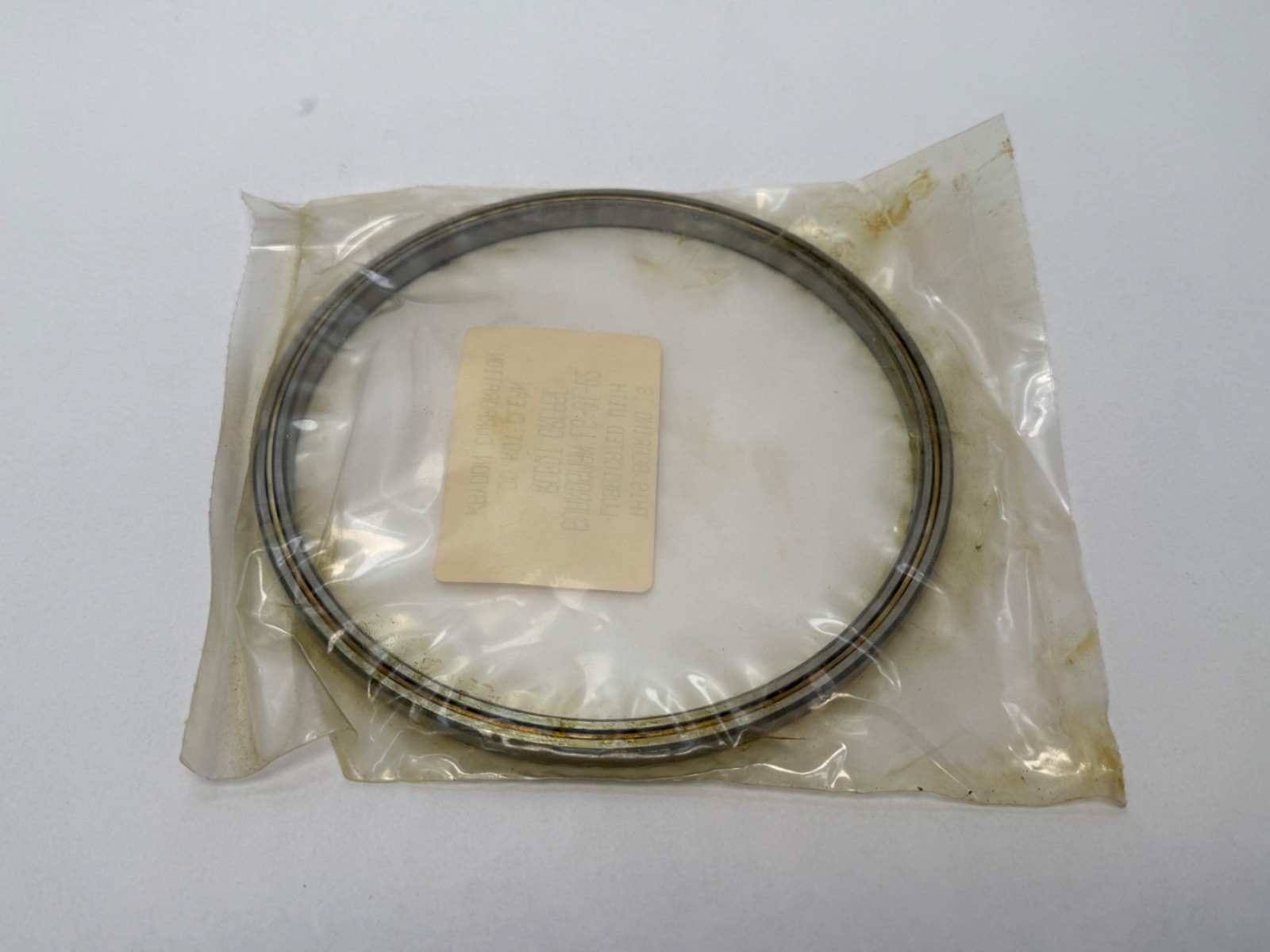

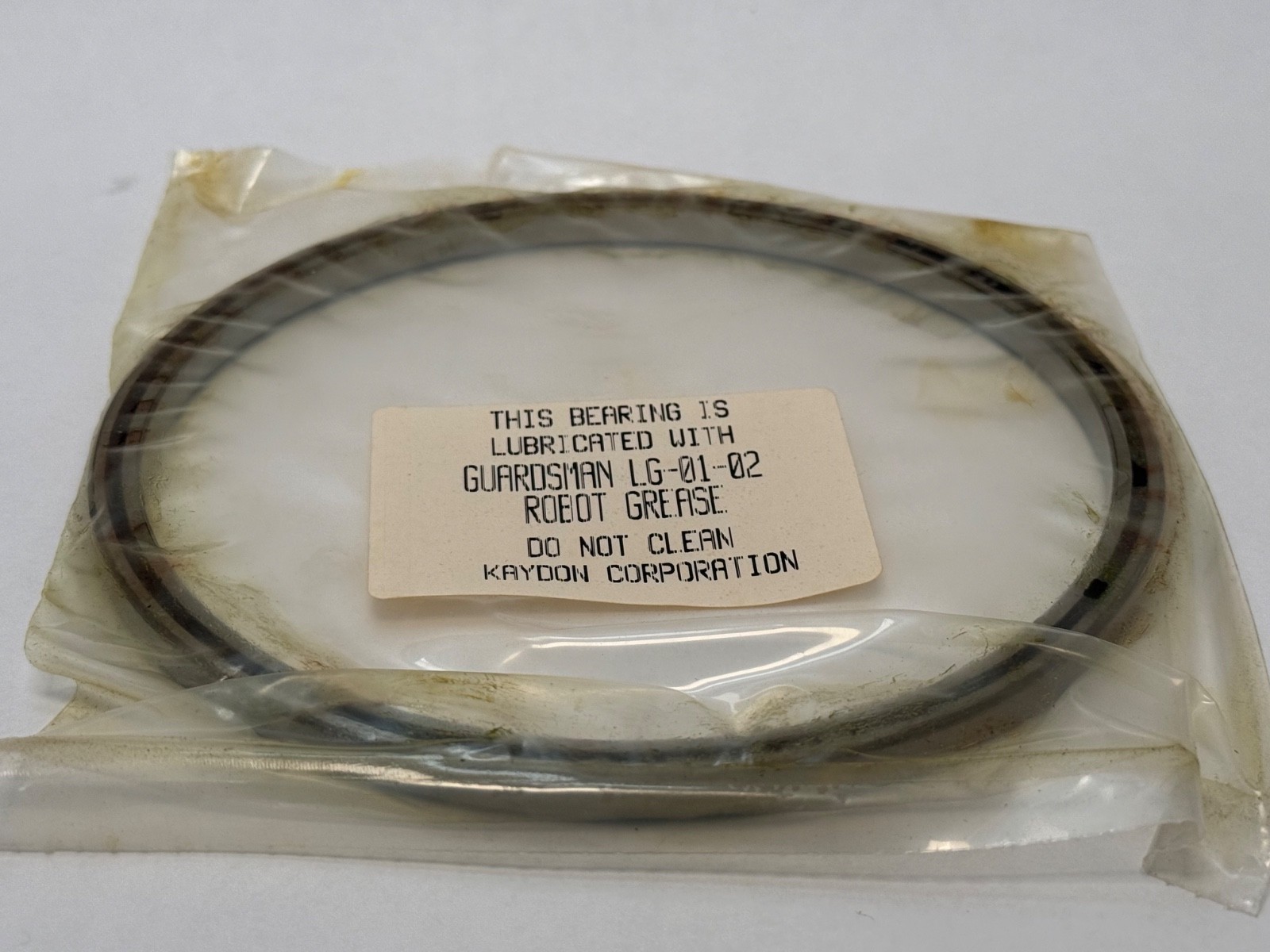

Thin section ball bearing, 6 in bore x 6-5/8 in OD x 5/16 in wide, square 5/16 in cross-section. Kaydon drawing number 53630001, customer part E0-3461-012-001.
List Price
$254.11
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Kaydon |
|---|---|
| MPN | 53630001 |
| Model | OS3Y4 53630001 9M9-3C1 / E0-3461-012-001 |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 6.000 in (152.400 mm) |
| OD | 6.625 in (168.275 mm) |
| Width | 0.3125 in (7.938 mm) |
| Industry Terms | thin section bearing, slim section bearing, constant section bearing, KB060 size thin section bearing |
|---|---|
| Mpn Variants | 53630001, 53630001 9M9, E0-3461-012-001 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
Kaydon 53630001 thin section ball bearing, a Kaydon drawing-number bearing. Kaydon is an SKF brand. Bore Diameter: 6.000 in (152.400 mm). Outside Diameter: 6.625 in (168.275 mm). Width: 0.3125 in (7.938 mm). The 5/16 in square cross-section and 6 in bore match the Kaydon Reali-Slim KB060 envelope.
53630001 — Kaydon drawing number for this specific bearing execution.
Rolling Elements: Ball. Number Of Rows: 1. Cross-section: 0.3125 in radial x 0.3125 in axial. A thin section bearing keeps the same small cross-section regardless of bore size, which saves weight and space around a large-diameter shaft.
Bore Diameter: 6.000 in. Outside Diameter: 6.625 in. Width: 0.3125 in.

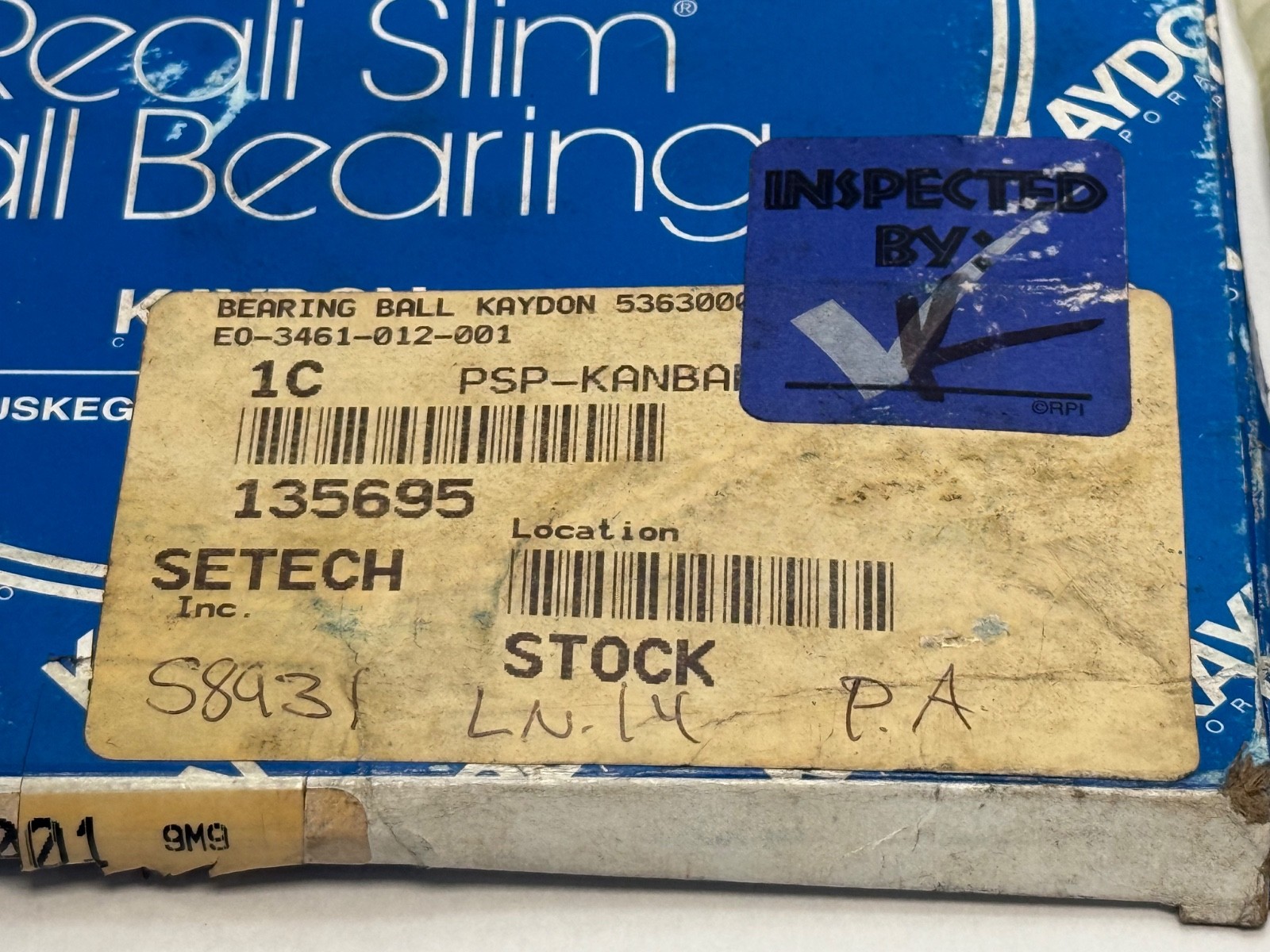

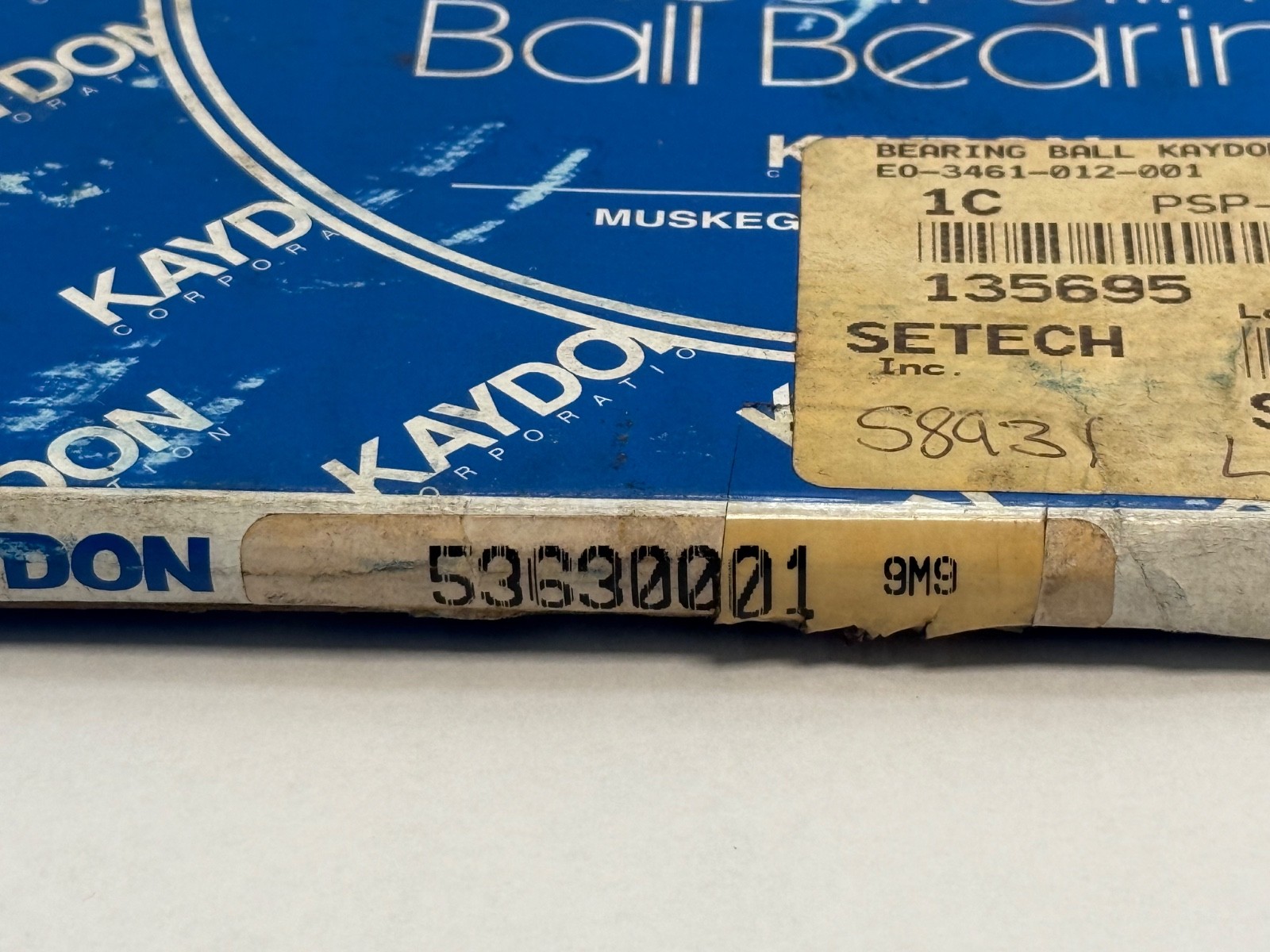

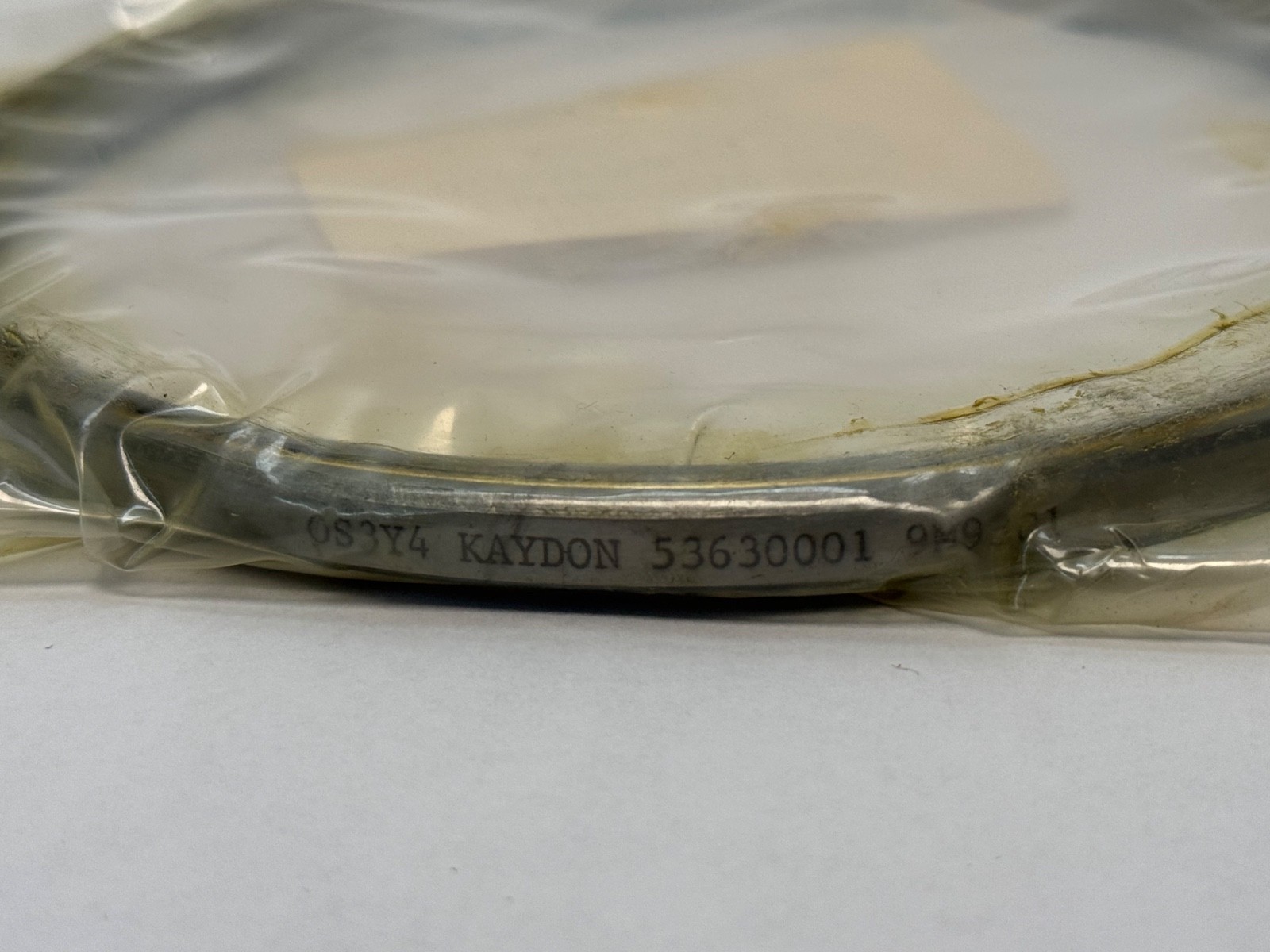

Unit Quantity: 1 Pc. Single bearing. Carton markings: OS3Y4 53630001 9M9 3C1, E0-3461-012-001.
The envelope, 6 x 6-5/8 x 5/16 in, is the Kaydon Reali-Slim KB060 size. MPN Variants: 53630001, 53630001 9M9, E0-3461-012-001.
