Availability:
2 in stock
Super-precision angular contact bearing pair, 60 mm bore x 95 mm OD x 18 mm, 15°, phenolic cage, ABEC 7 / P4, 34 kN, light preload. GMN S6012 C TA A7 DUL.
List Price
$197.30
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | GMN |
|---|---|
| Model | S 6012 C TA A7 DUL / 2MM9112WI CR DUL / 7012C T P4 DUL / ABEC7 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 60 mm |
| OD | 95 mm |
| Width | 18 mm |
| Material | Bearing Steel |
|---|---|
| Series | S 60 |
| Preload | Light (170 N) |
| Overall Width | 18 mm |
| Mpn Variants | S6012CTAA7DUL, S 6012 C TA A7 DUL, S-6012-C-TA-ABEC7-DUL, S6012CTAP4DUL, 7012C |
| Precision Class | ABEC 7 / P4 |
| Closure Type | Open |
| Cage Type | Outer-ring guided |
| Dynamic Load Rating | 34,000 N |
| Static Load Rating | 33,000 N |
| Rolling Elements | Ball |
| Item Weight | 0.415 kg (0.91 lb) per bearing |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 16,500 rpm grease; 22,000 rpm oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal (DB, DF or DT) |
| Bearing Material | 100Cr6 (SAE 52100) steel |
| Cross Reference 1 | Fafnir 2MM9112WI CR DUL |
|---|---|
| Cross Reference 2 | FAG B7012-C-T-P4S-DUL |
| Cross Reference 3 | SKF 7012 CD/P4ADGB |
| Cross Reference 4 | NSK 7012CTYNDULP4 |
| Cross Reference 5 | RHP 7012CTDULP4 |
| Cross Reference 6 | Barden 112HCDUL – ceramic balls, not steel |

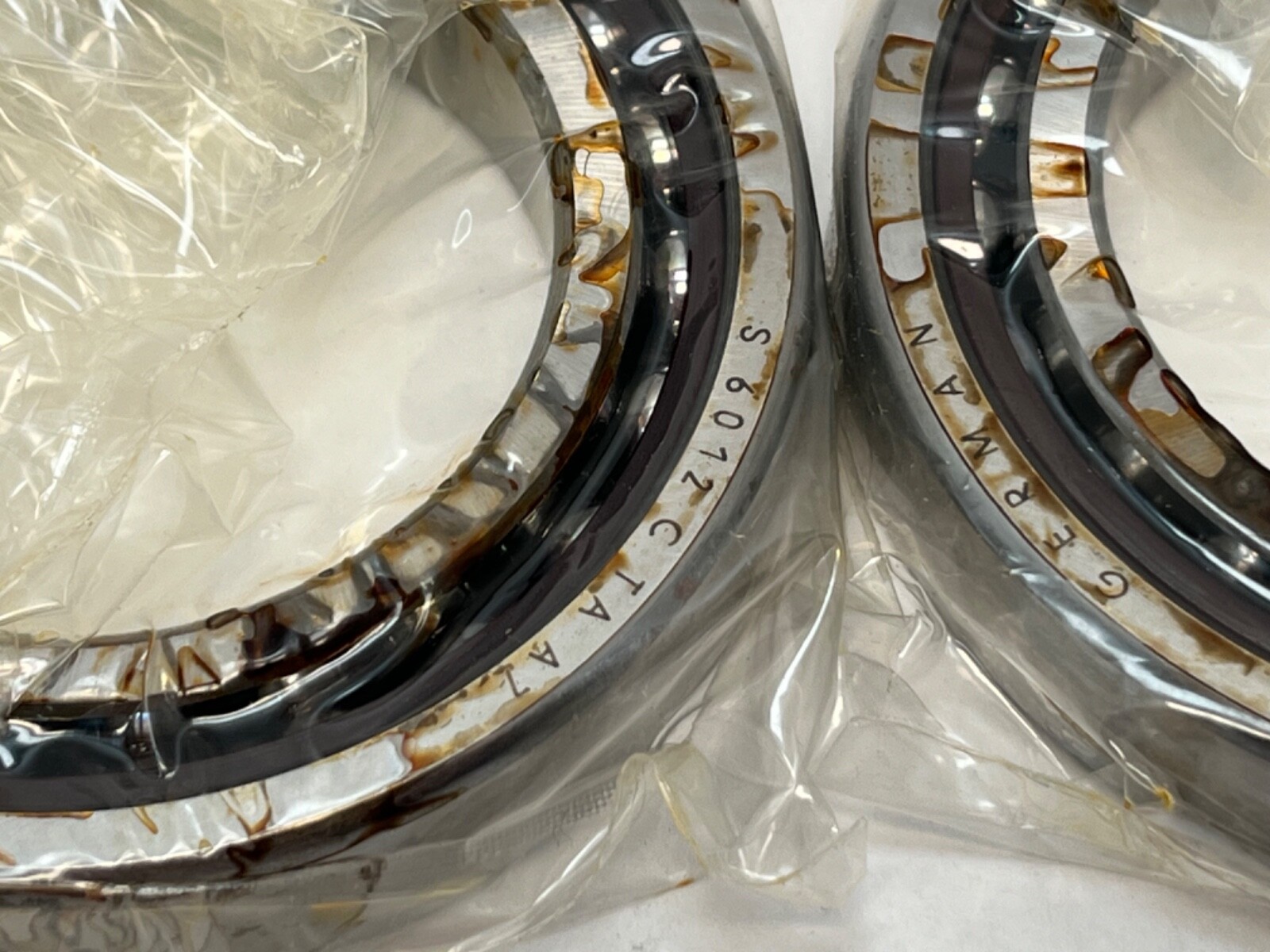

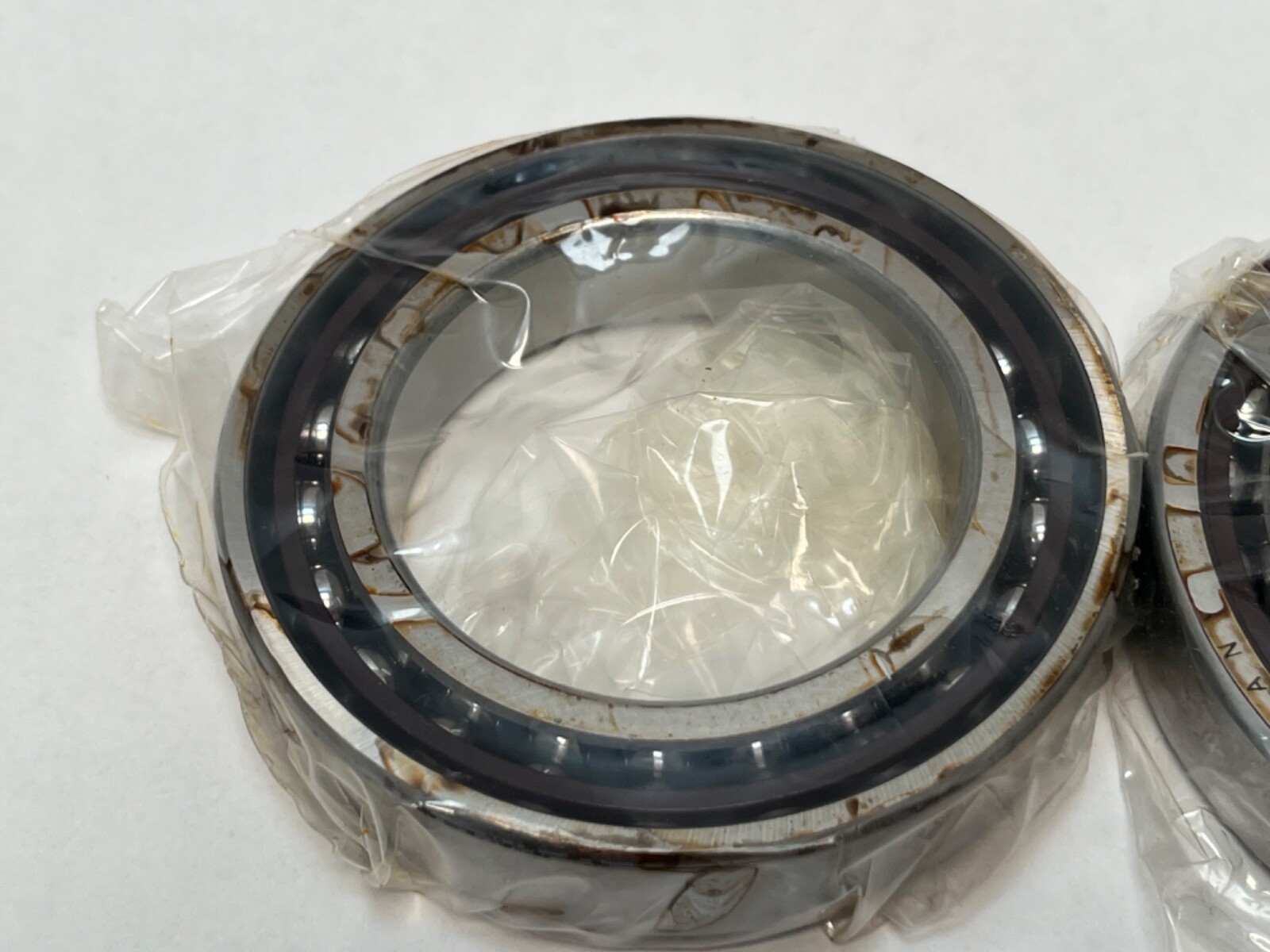

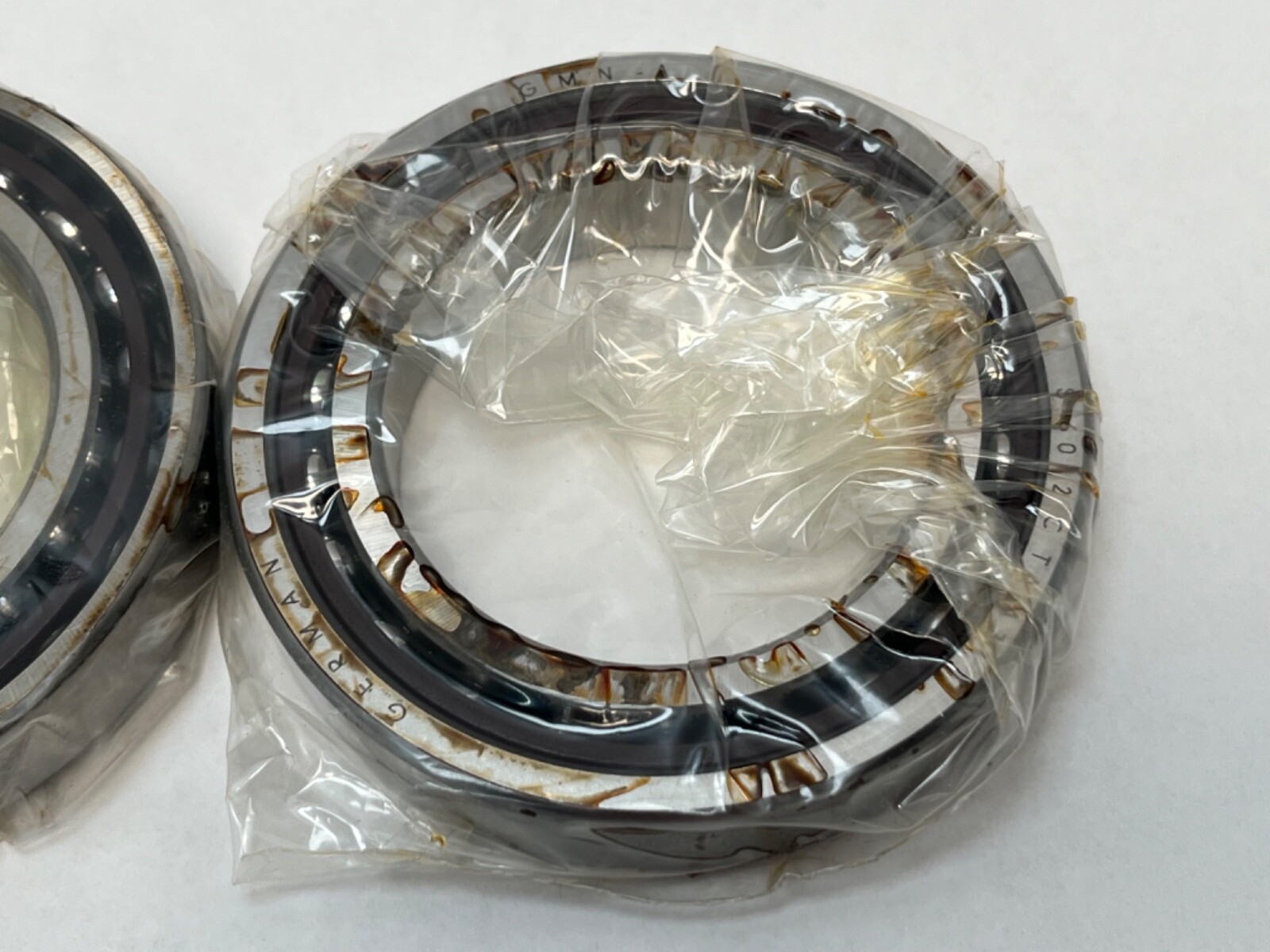

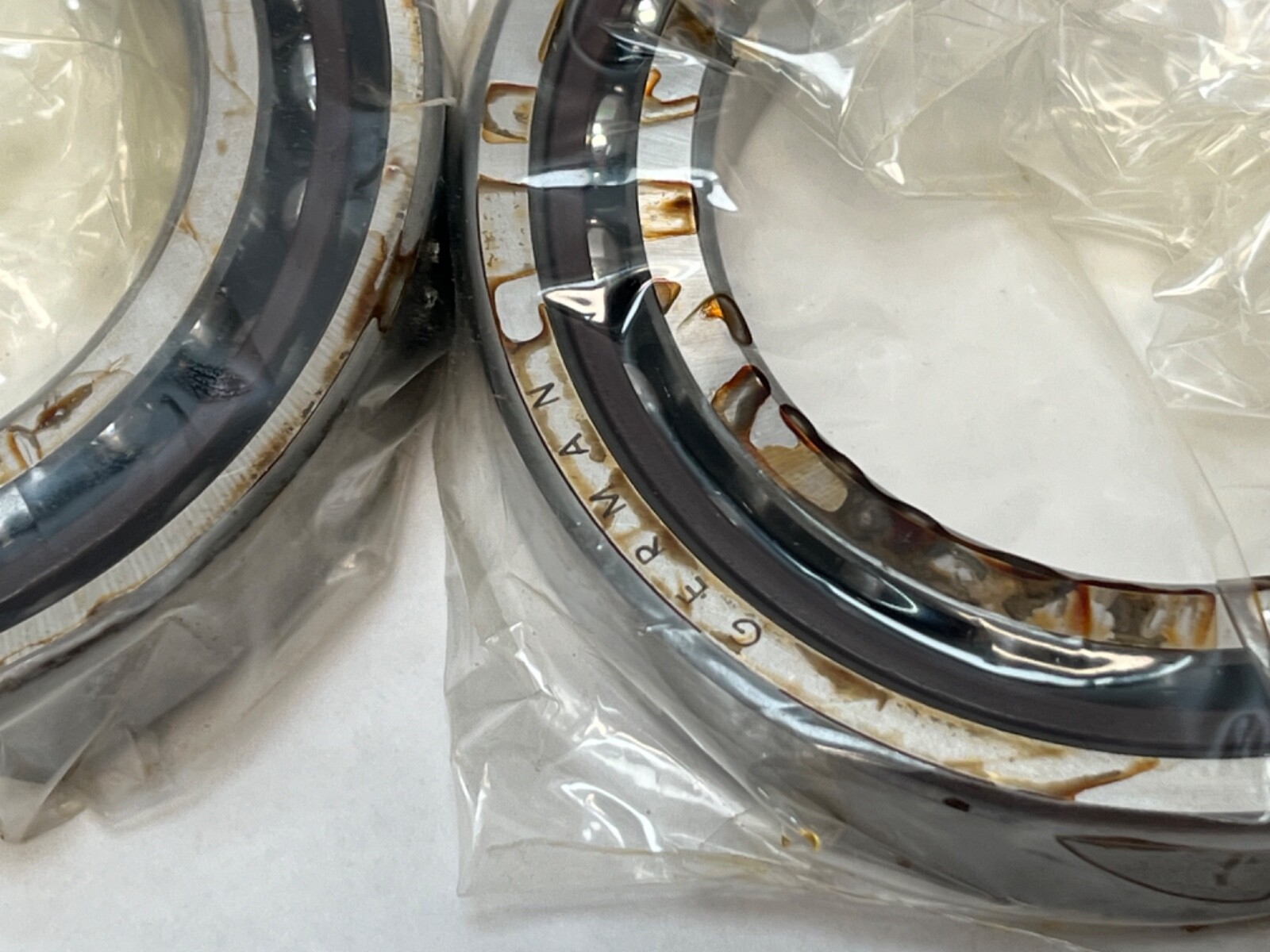

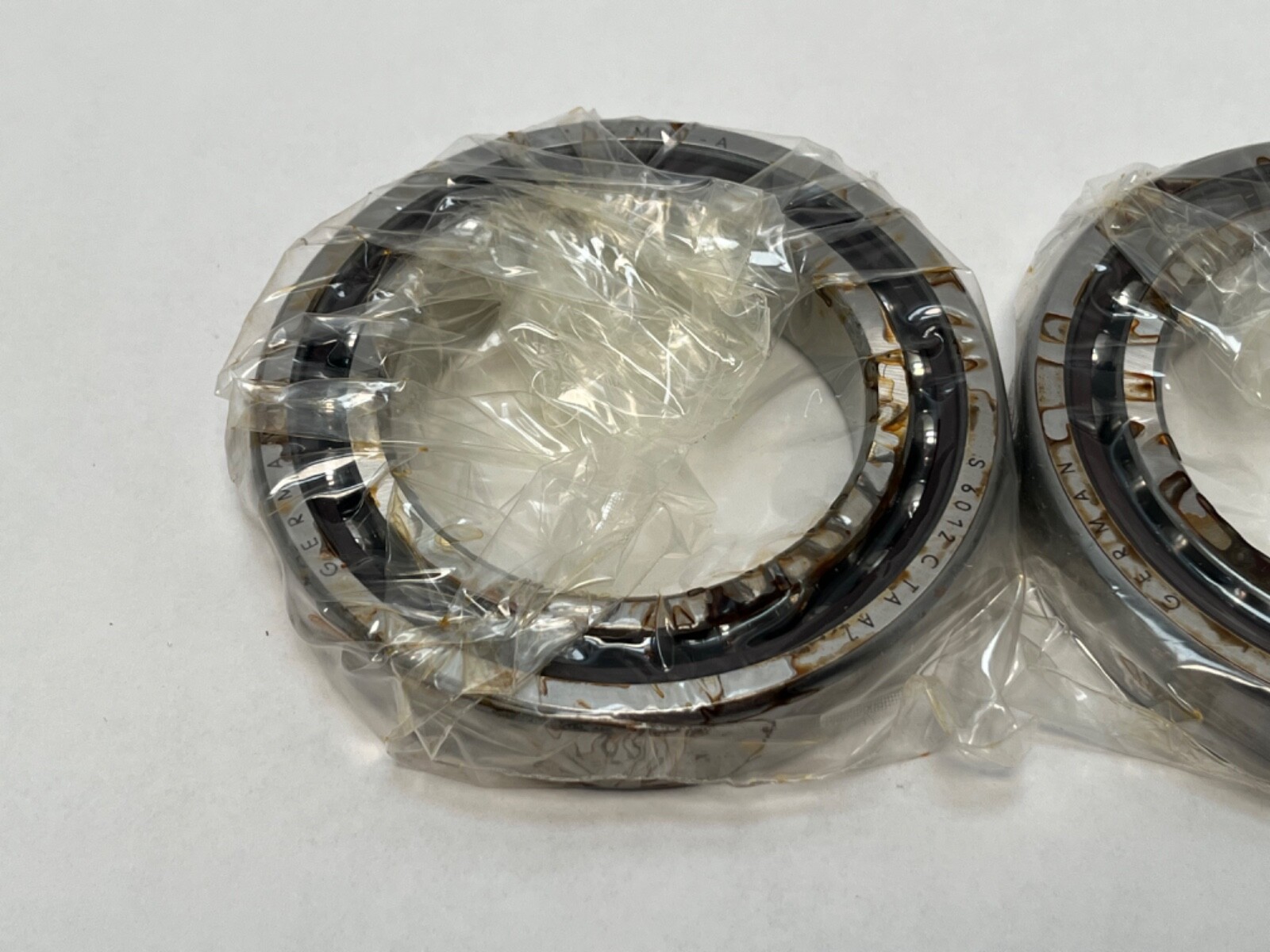

GMN S 6012 C TA A7 DUL super-precision angular contact spindle bearing, matched as a universal duplex pair. Bore Diameter: 60 mm. Outside Diameter: 95 mm. Overall Width: 18 mm per bearing. Contact Angle: 15°. Cage Material: Fabric-base phenolic, outer-ring guided. Precision Class: ABEC 7 / P4. Preload: Light (170 N). Rolling Elements: Ball, 22 x 9.525 mm steel. Ring Material: 100Cr6 (SAE 52100).
S — GMN S series angular contact spindle bearing, steel balls.
60 12 — ISO 70 series, bore code 12: 60 mm bore, 95 mm OD.
C — 15° contact angle.
TA — fabric-base phenolic cage, outer-ring guided.
A7 — ABEC 7 / ISO P4 tolerance class.
DUL — duplex set of two universally ground bearings, light preload.
Dynamic Load Rating: 34,000 N. Static Load Rating: 33,000 N. Fatigue Load Limit: 1,704 N. Limiting Speed: 16,500 rpm grease; 22,000 rpm oil. Preload: Light 170 N, axial rigidity 75 N/µm; medium 515 N and heavy 1,030 N are the GMN alternates. The 15° angle favours speed and radial stiffness in machine tool and grinding spindles. Closure Type: Open.
Chamfer rs min: 1.1 mm. Chamfer r1s min (open side): 1 mm. Shaft Abutment da min: 66.4 mm. Housing Abutment Da max: 89.5 mm. Housing Abutment Db max: 89.6 mm. Abutment Fillet ra max: 1 mm. Oil Jet Position dT: 74.9 mm. Pitch Circle Diameter: 77.5 mm. Item Weight: 0.415 kg (0.91 lb) per bearing.

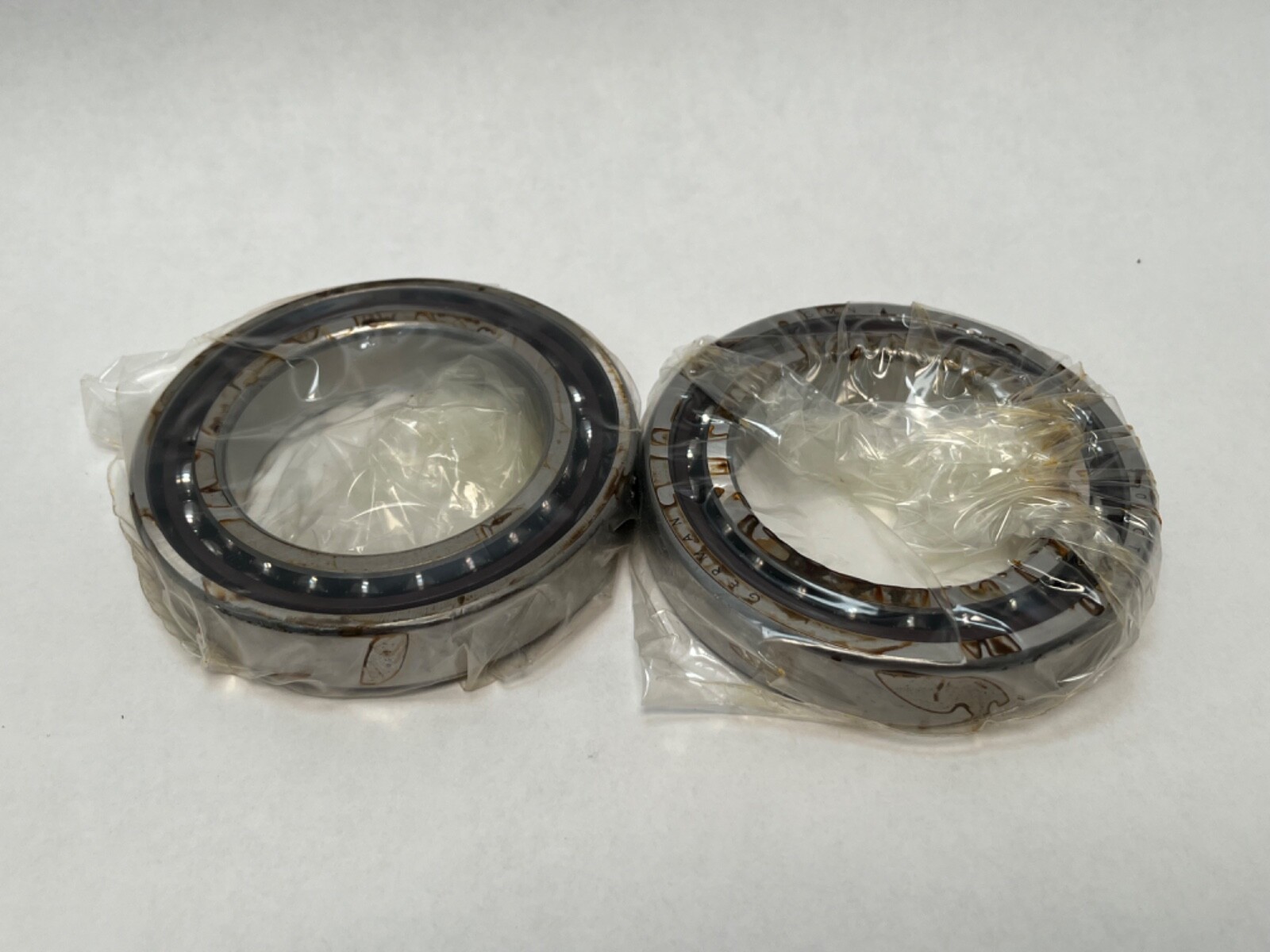

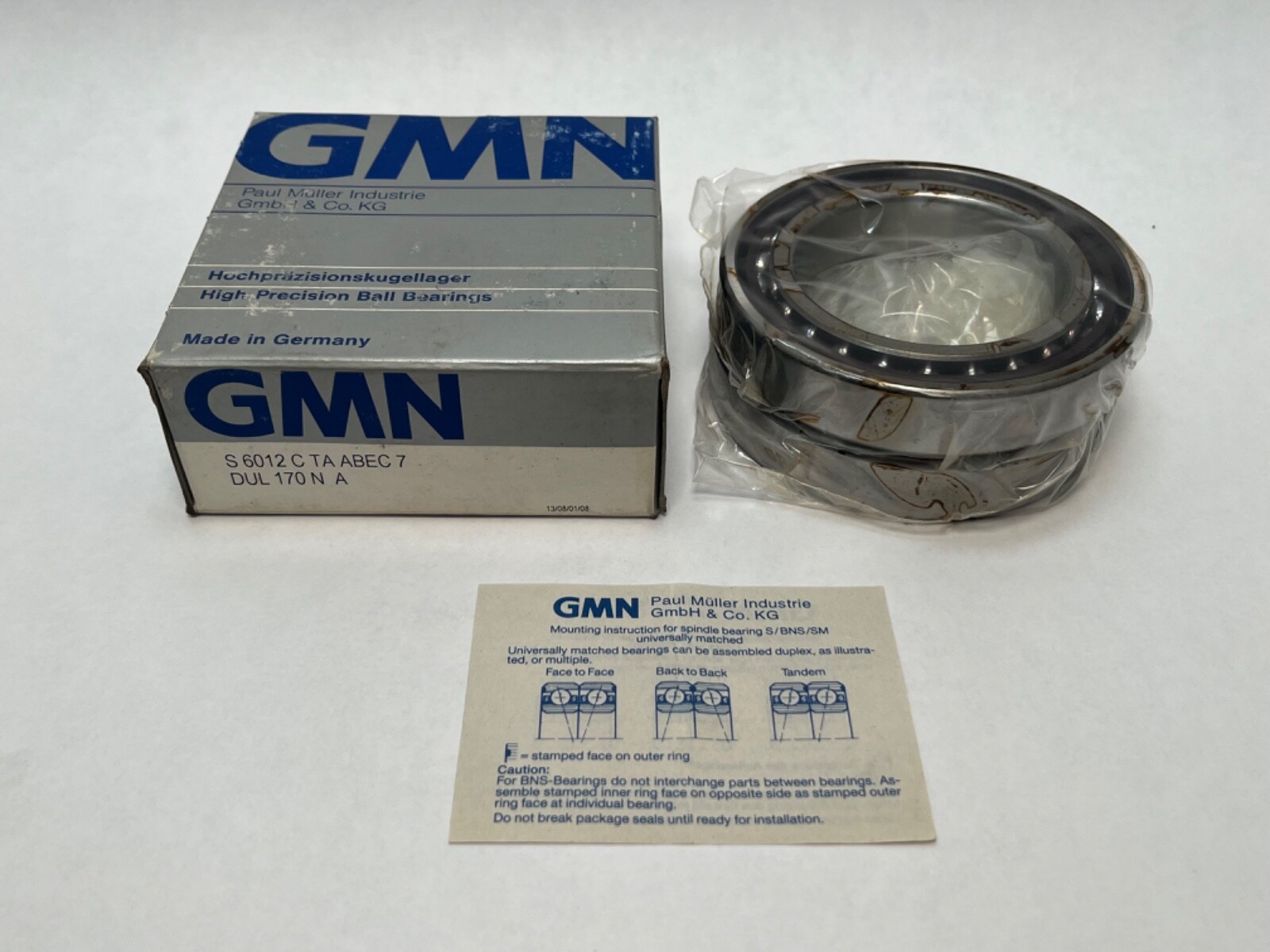

Unit Quantity: 2 Pcs. One factory duplex pair, universal: mounts DB, DF or DT. Condition: New old stock, open box; grease has dried.
Other makers’ 60 x 95 x 18 mm, 15°, universal light-preload pairs: Fafnir 2MM9112WI CR DUL, FAG B7012-C-T-P4S-DUL, SKF 7012 CD/P4ADGB, NSK 7012CTYNDULP4, RHP 7012CTDULP4. Barden 112HCDUL is the same size and angle with ceramic balls.
