Angular contact spindle bearing pair, 80 x 140 x 26 mm, 15° contact angle, ABEC 7 / P4, phenolic cage, light preload. Universally matched FAG B7216C set.
List Price
$214.14
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Super-Precision Angular Contact Bearing Matched Pair 80x140x26 mm 15° Light Preload ABEC 7/9$522.21
Super-Precision Angular Contact Ball Bearing – 80 mm ID, 140 mm OD, 26 mm Width, Open, Light Preload, ABEC 7$91.77
Super Precision Angular Contact Ball Bearing, 80 x 140 x 26 mm, 15° Contact Angle, Phenolic Cage, P4 ABEC 7, Light Preload, Universally Ground$97.73
Super Precision Angular Contact Ball Bearing – Straight Bore, 80 mm ID, 140 mm OD, 26 mm Width, Open, 15° Contact Angle, Light Preload, ABEC 7$234.89| MFR / Brand | FAG |
|---|---|
| MPN | B7216C.TPA.P4.DUL |
| Model | B7216C.TPA.P4.DUL / 216 H C DUL / 2MM216 WI DUL / 7216 CT R DUL P |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 80 mm |
| OD | 140 mm |
| Width | 26 mm |
| Material | Bearing Steel |
|---|---|
| Preload | Light |
| Series | 7200 |
| Rolling Elements | Ball |
| Total Width | 52 mm (pair) |
| Mpn Variants | B7216C.TPA.P4.DUL, B7216CTPAP4DUL, B-7216-C-TPA-P4-DUL, B7216C, 7216C |
| Precision Class | ABEC 7 / P4 |
| Min Temp | -30 °C |
| Dynamic Load Rating | 94,000 N |
| Static Load Rating | 55,000 N |
| Precision Rating | ABEC 7 / P4 |
| Max Temp | 100 °C |
| Item Weight | 1.40 kg (3.09 lb) per bearing |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal matched pair (DUL) |
| Cross Reference 1 | SKF 7216 CD/P4ADGA |
|---|---|
| Cross Reference 2 | RHP 7216CTRDULP4 |
| Cross Reference 3 | Fafnir 2MM216WI DUL |
| Cross Reference 4 | Barden 216HCDUL |

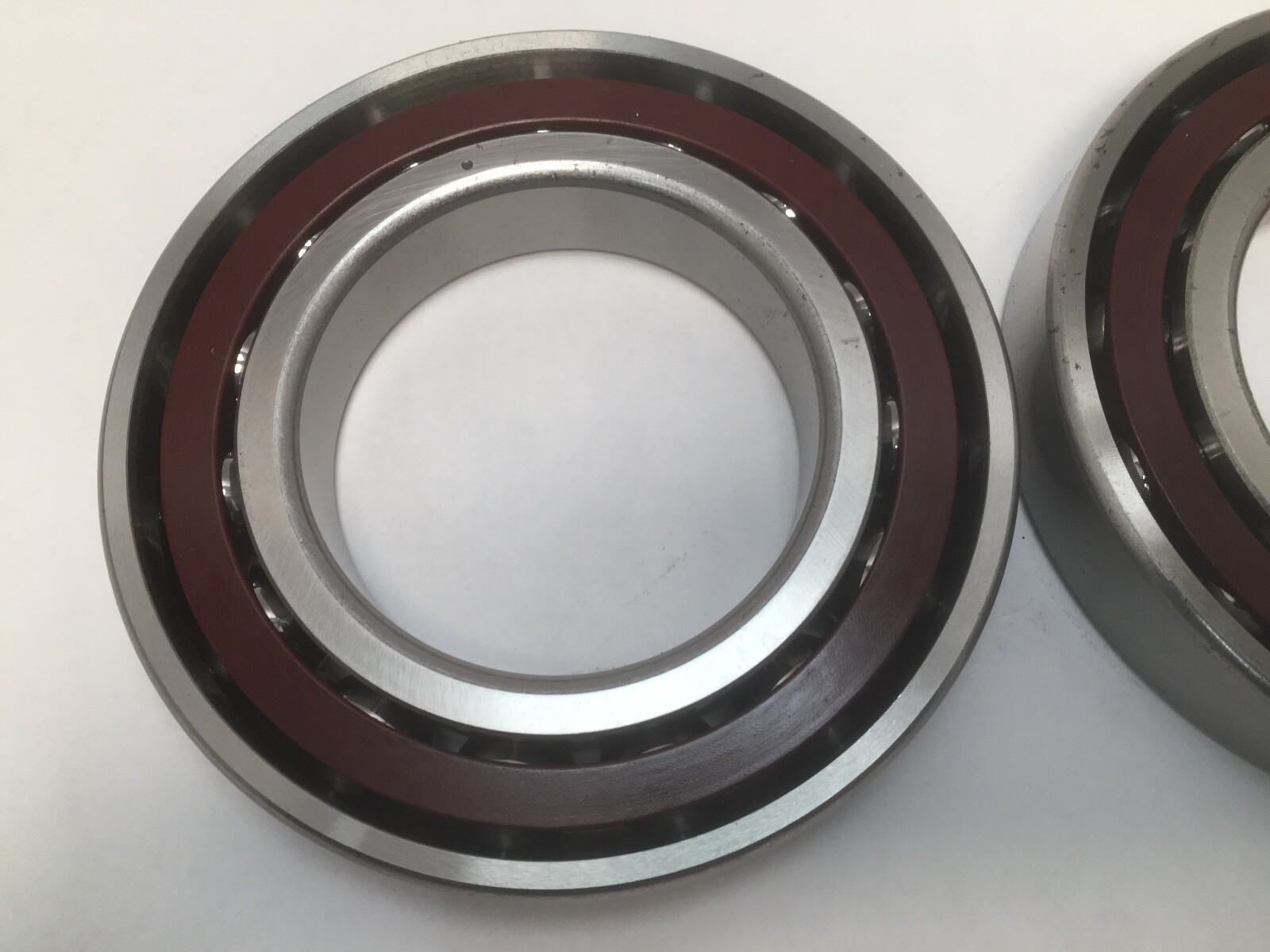

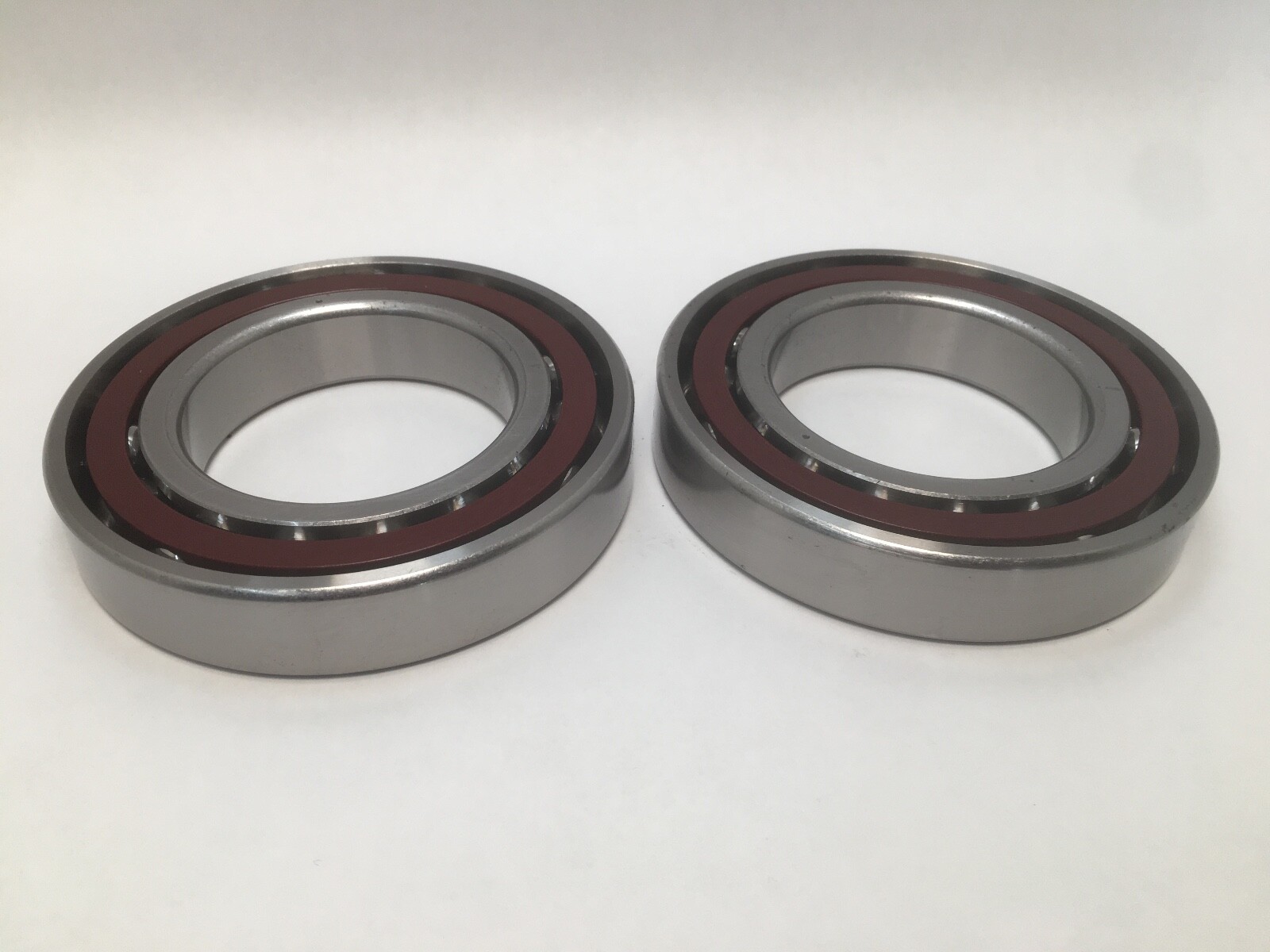

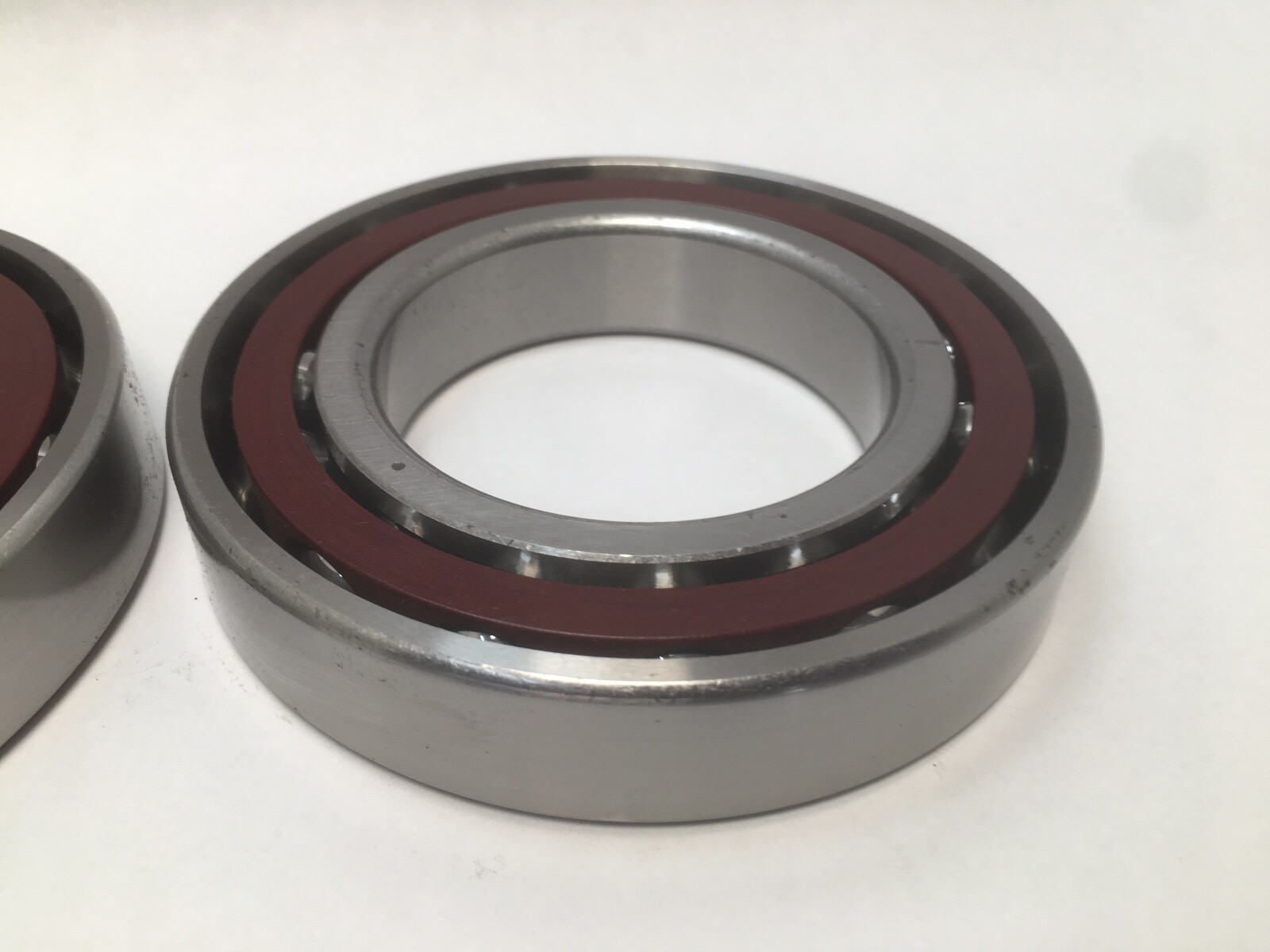

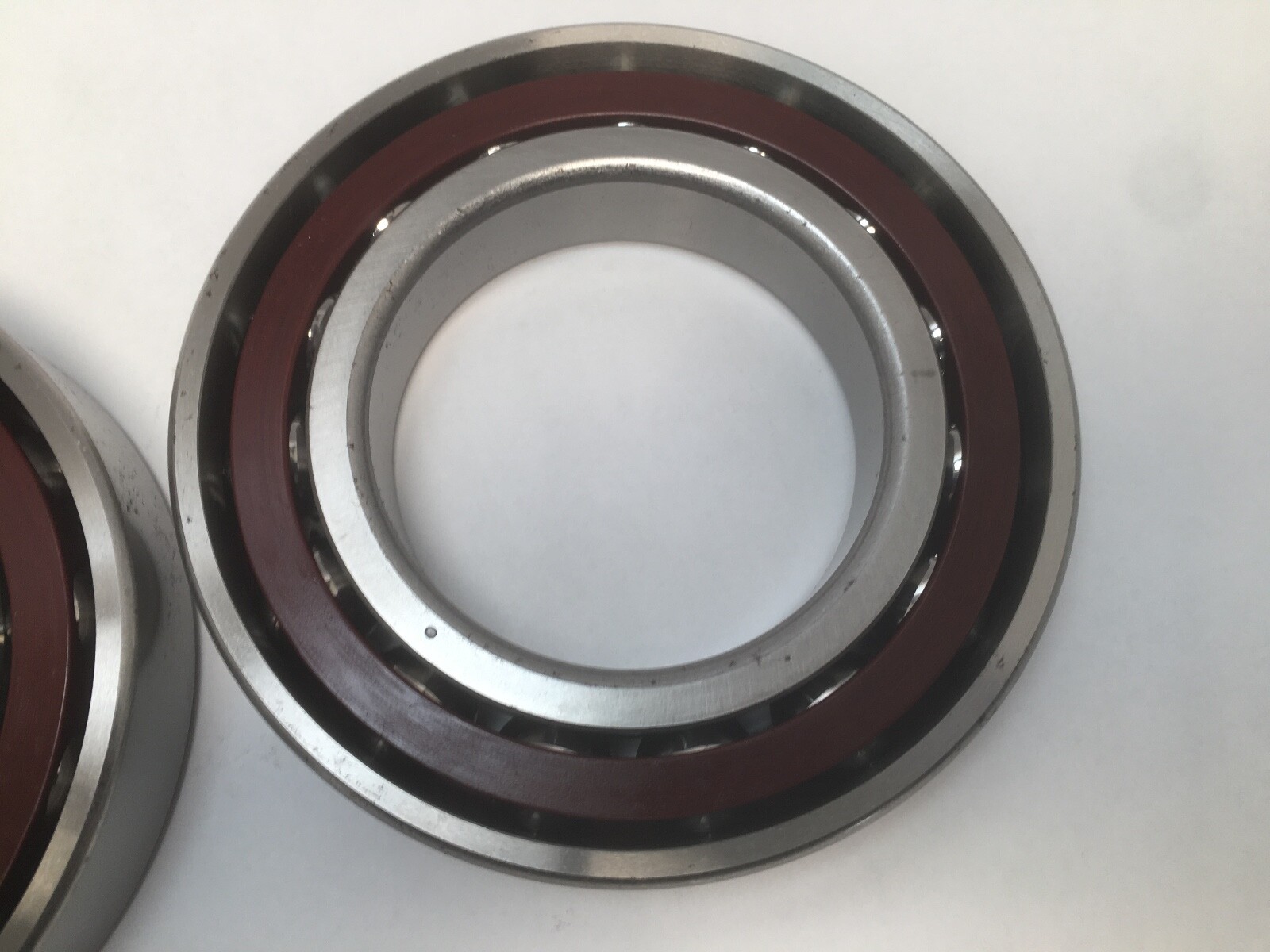

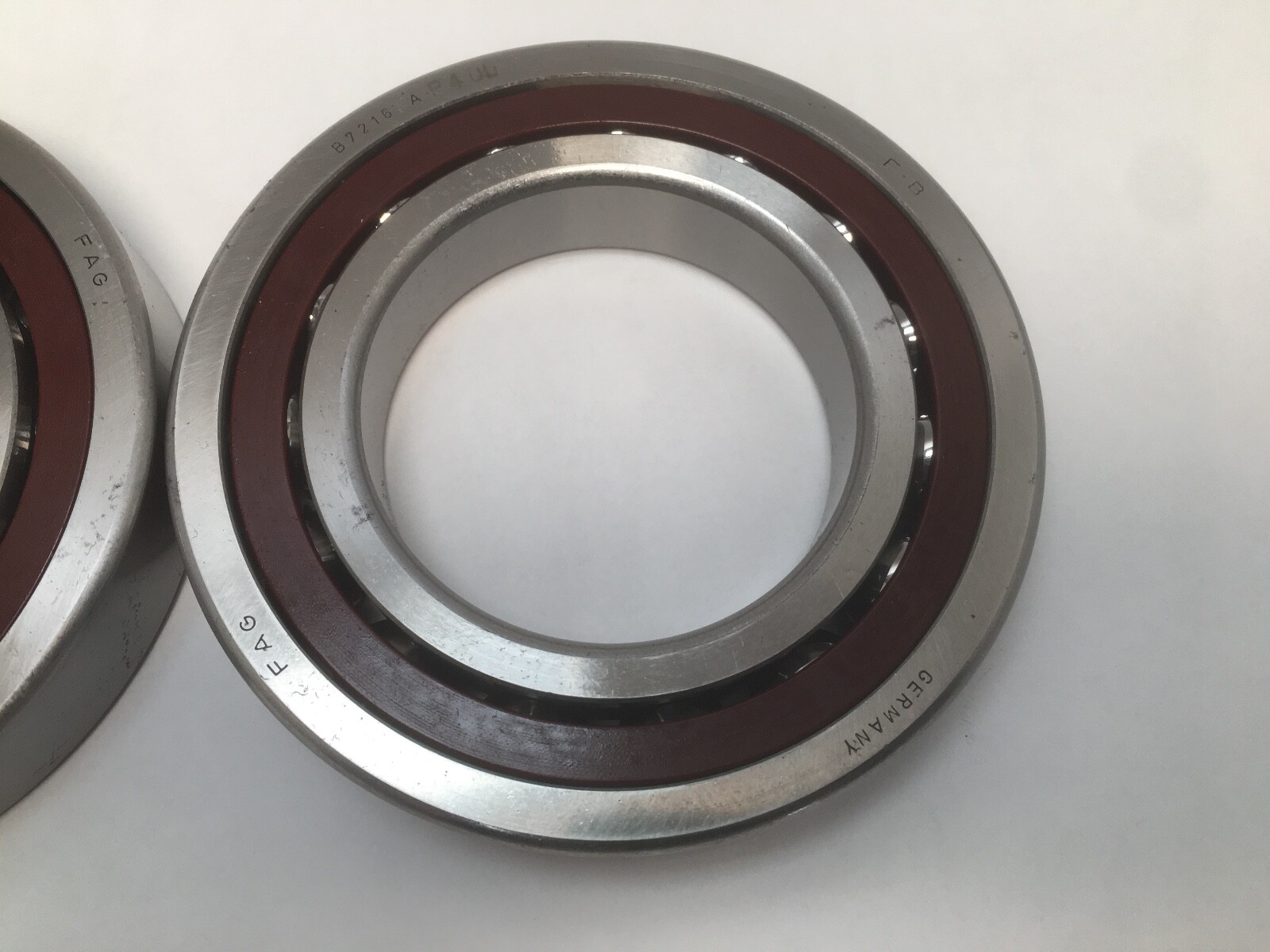

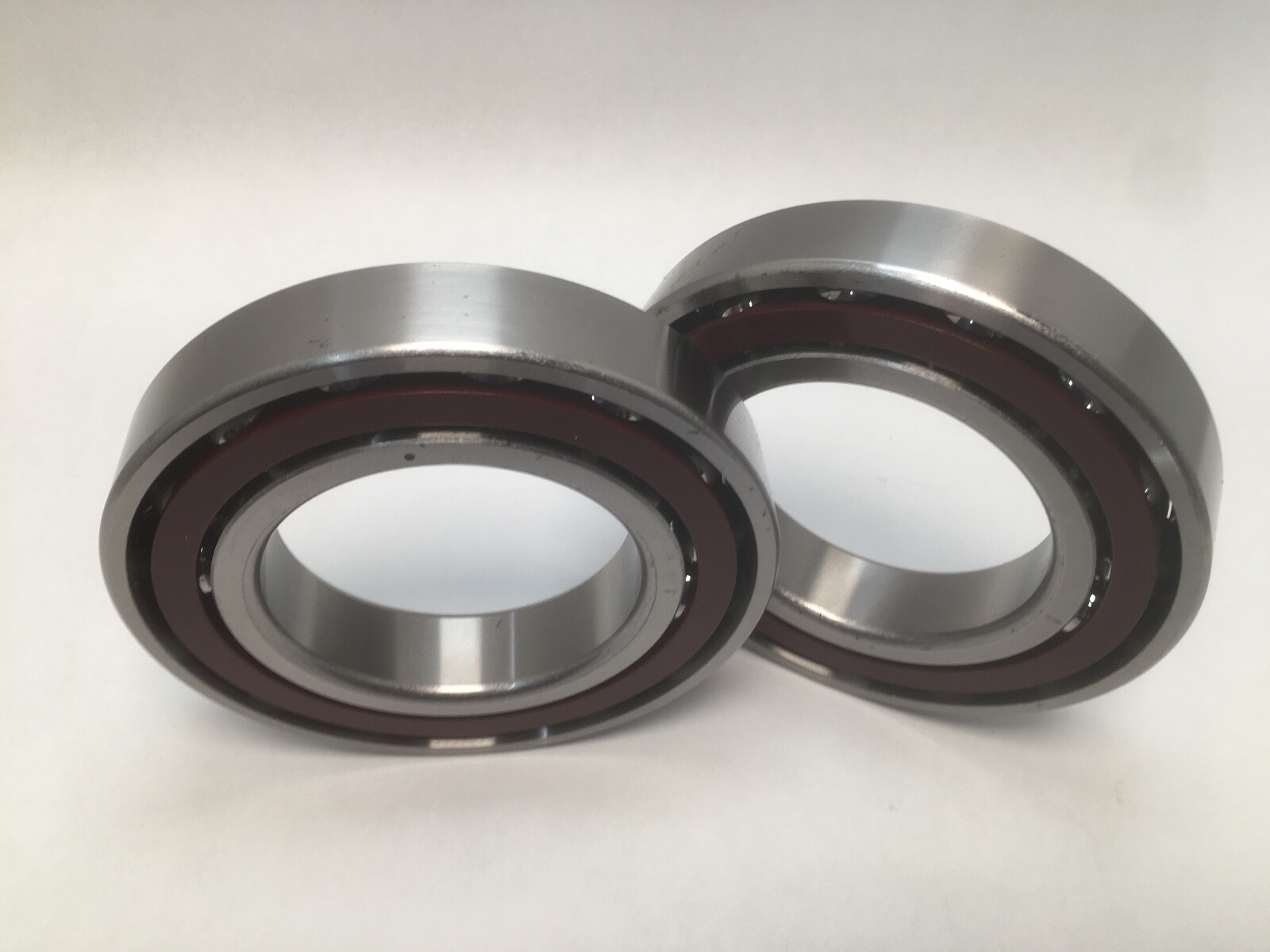

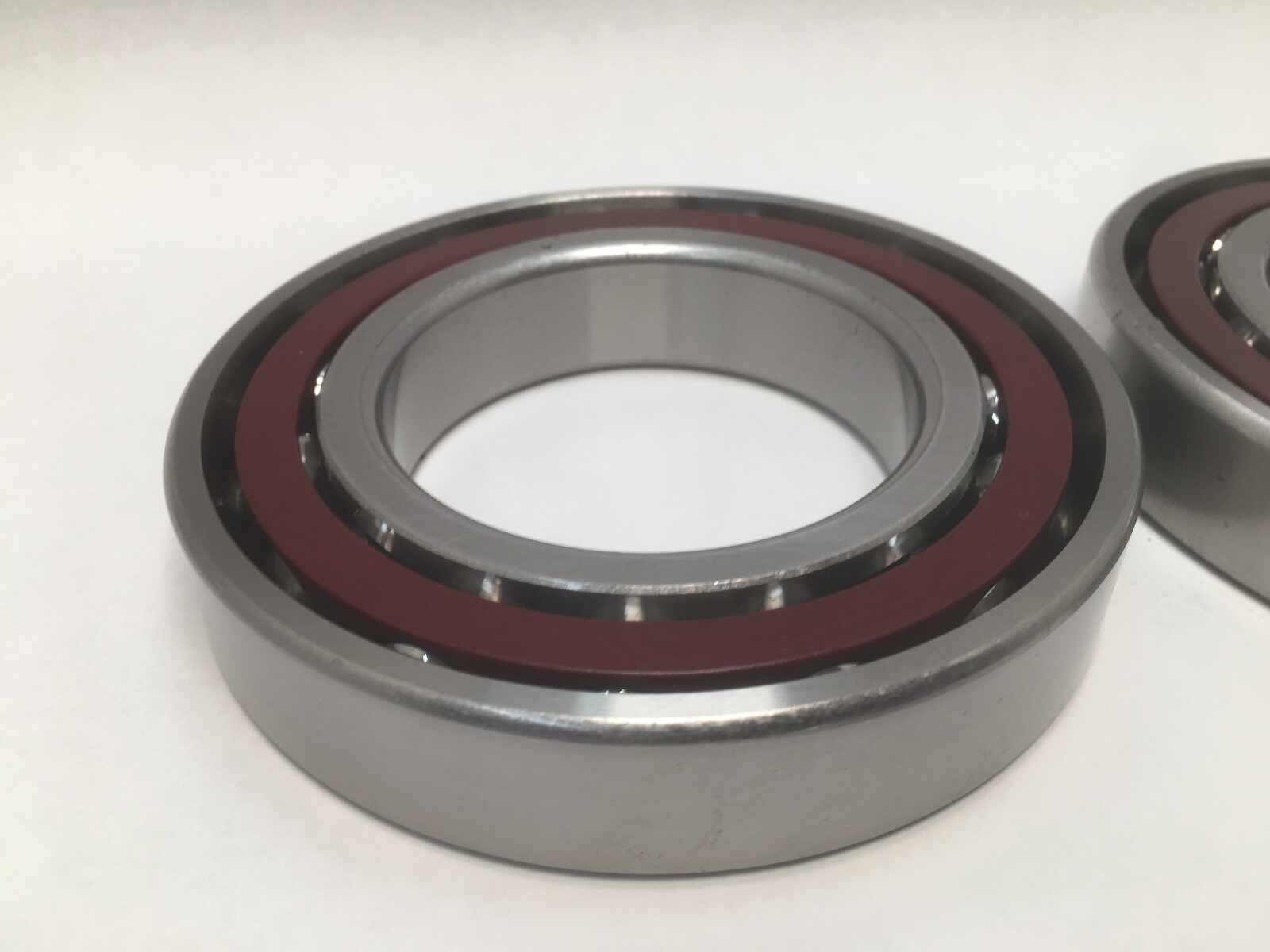

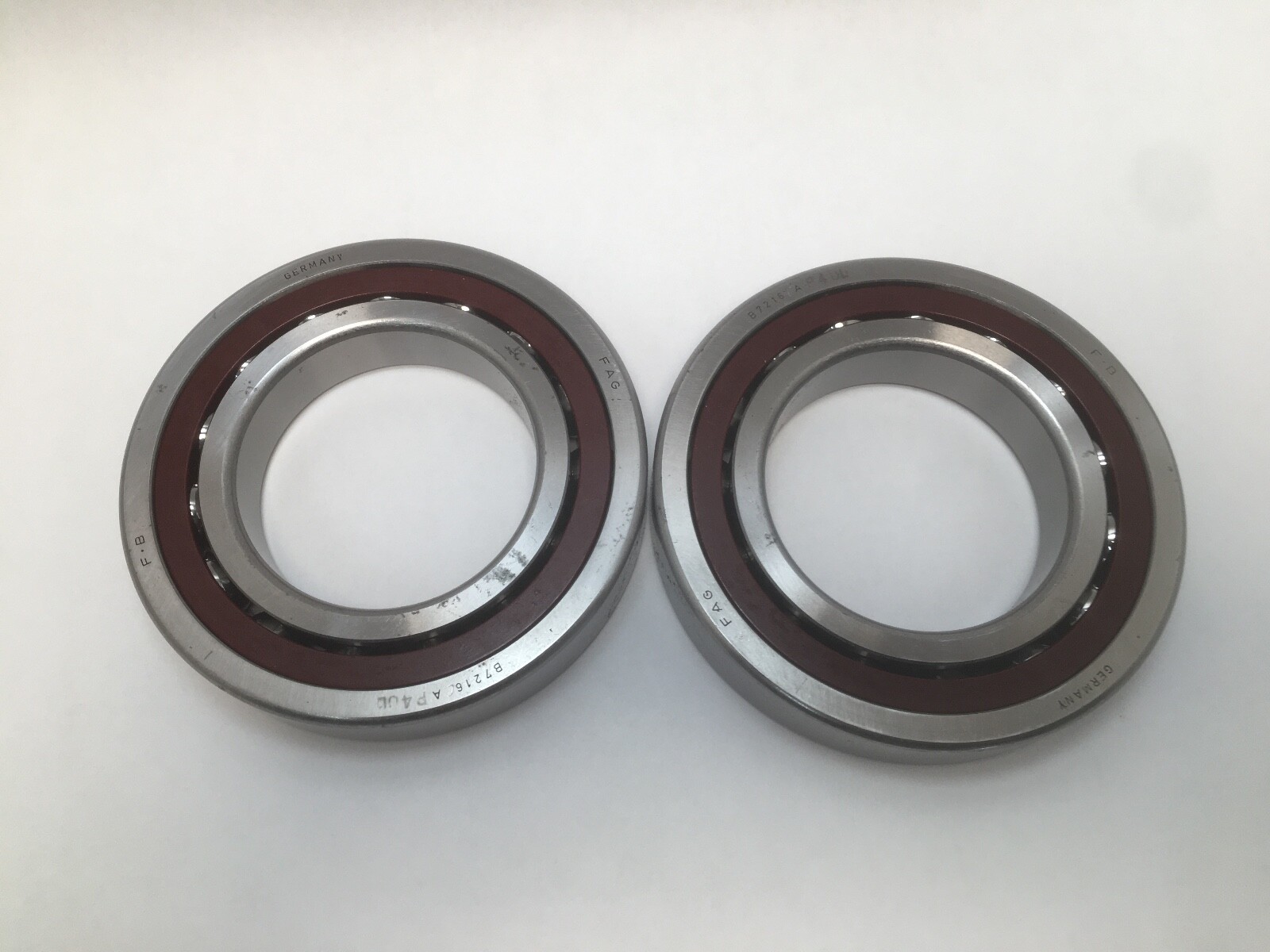

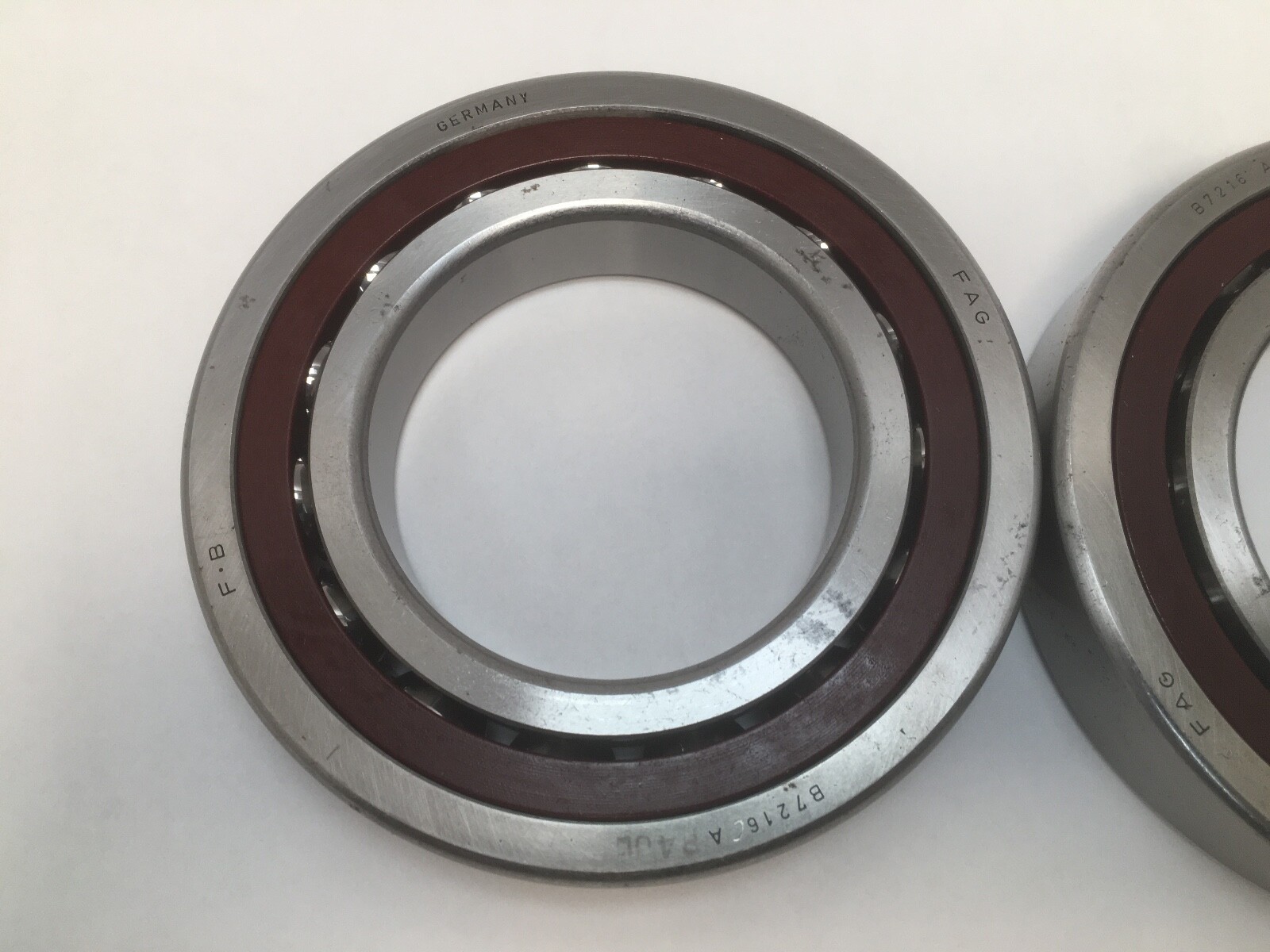

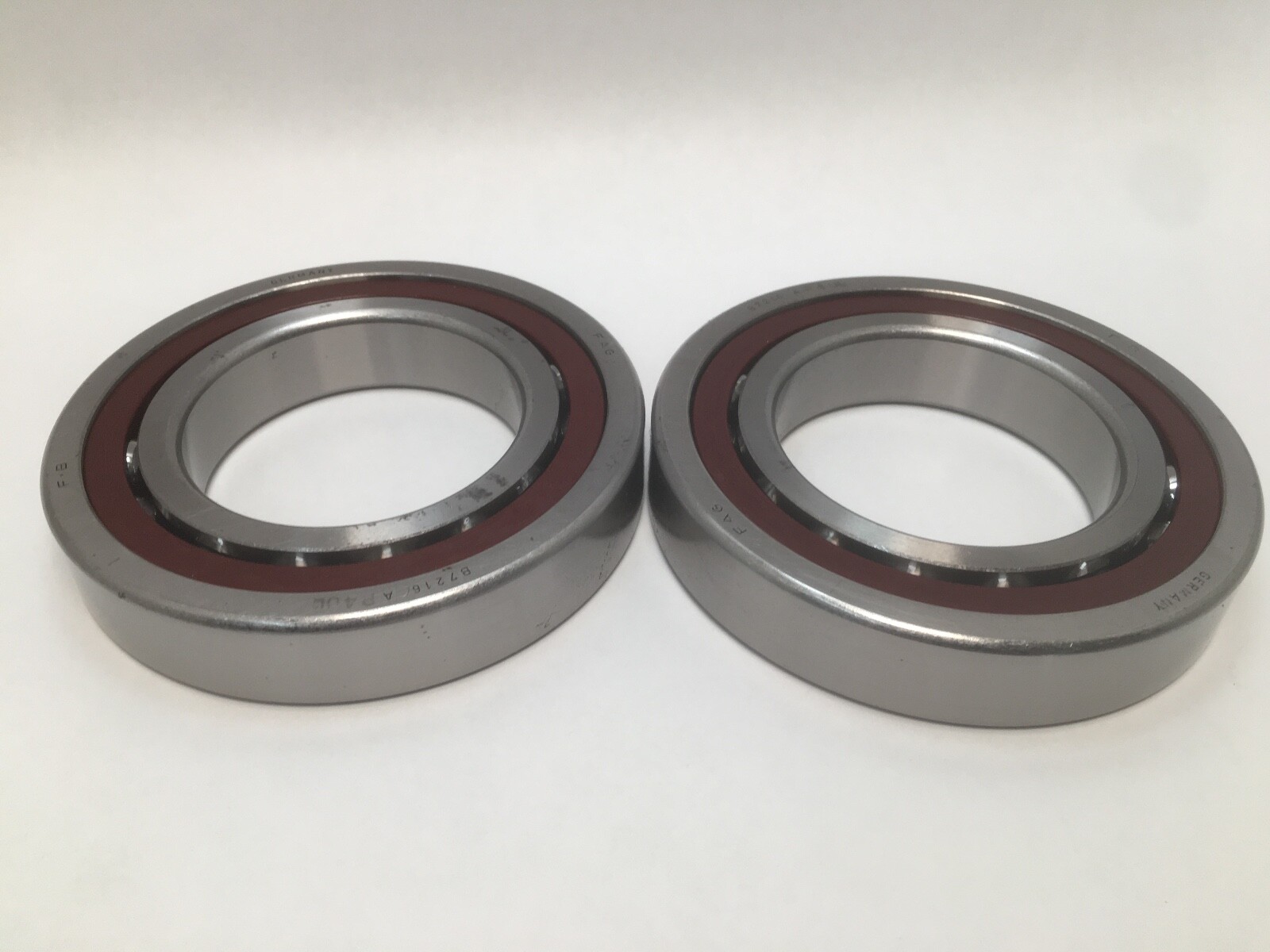

FAG B7216-C-TPA-P4-DUL is a matched pair of super-precision angular contact spindle bearings from the Schaeffler B72 series. Bore Diameter: 80 mm. Outside Diameter: 140 mm. Width: 26 mm per bearing. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Preload: Light.

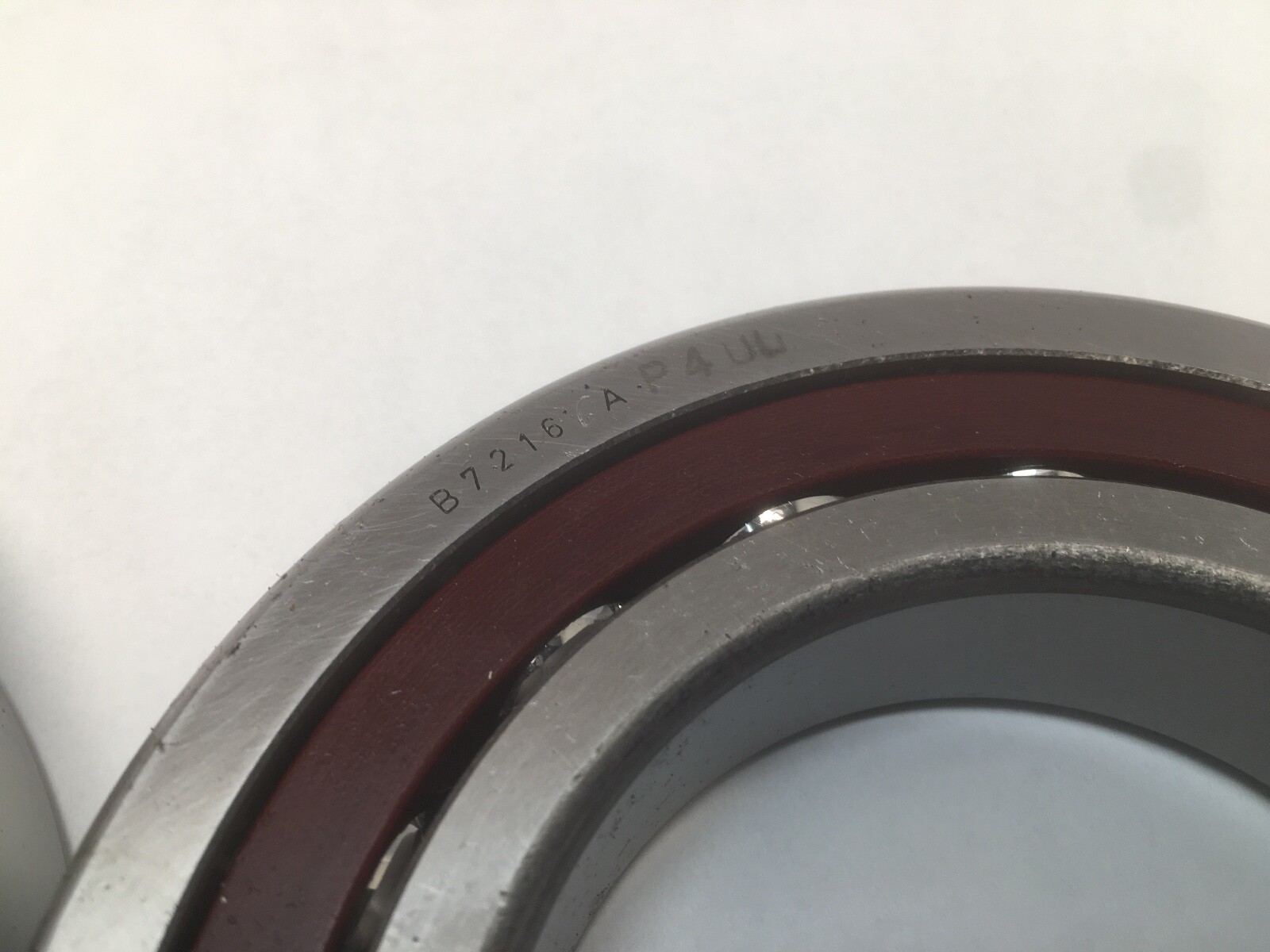

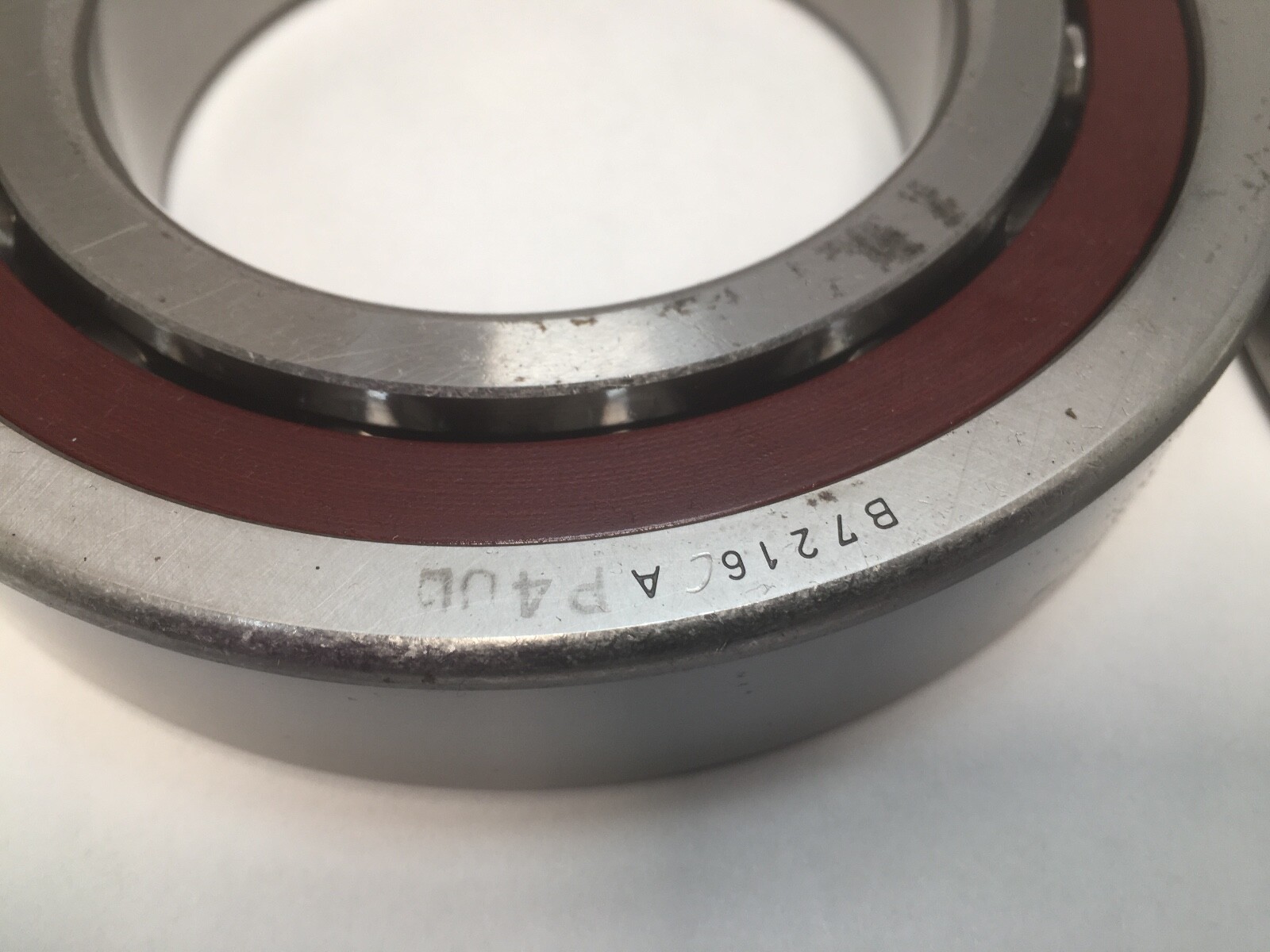

B7216 — FAG spindle bearing, ISO 7216 envelope, 80 x 140 x 26 mm.
C — 15° contact angle.
TPA — machined fabric-base laminated phenolic cage.
P4 — ISO tolerance class P4, equivalent to ABEC 7.
DUL — two universally matched bearings with light preload, mountable back-to-back, face-to-face or in tandem.
Dynamic Load Rating: 94,000 N per bearing. Static Load Rating: 55,000 N per bearing. Preload Force: Light, 549 N (Schaeffler FV L). Operating Temperature: -30 to 100 °C.
Shaft Shoulder Diameter: 91 mm. Housing Shoulder Diameter: 129 mm. Item Weight: 1.40 kg (3.09 lb) per bearing.

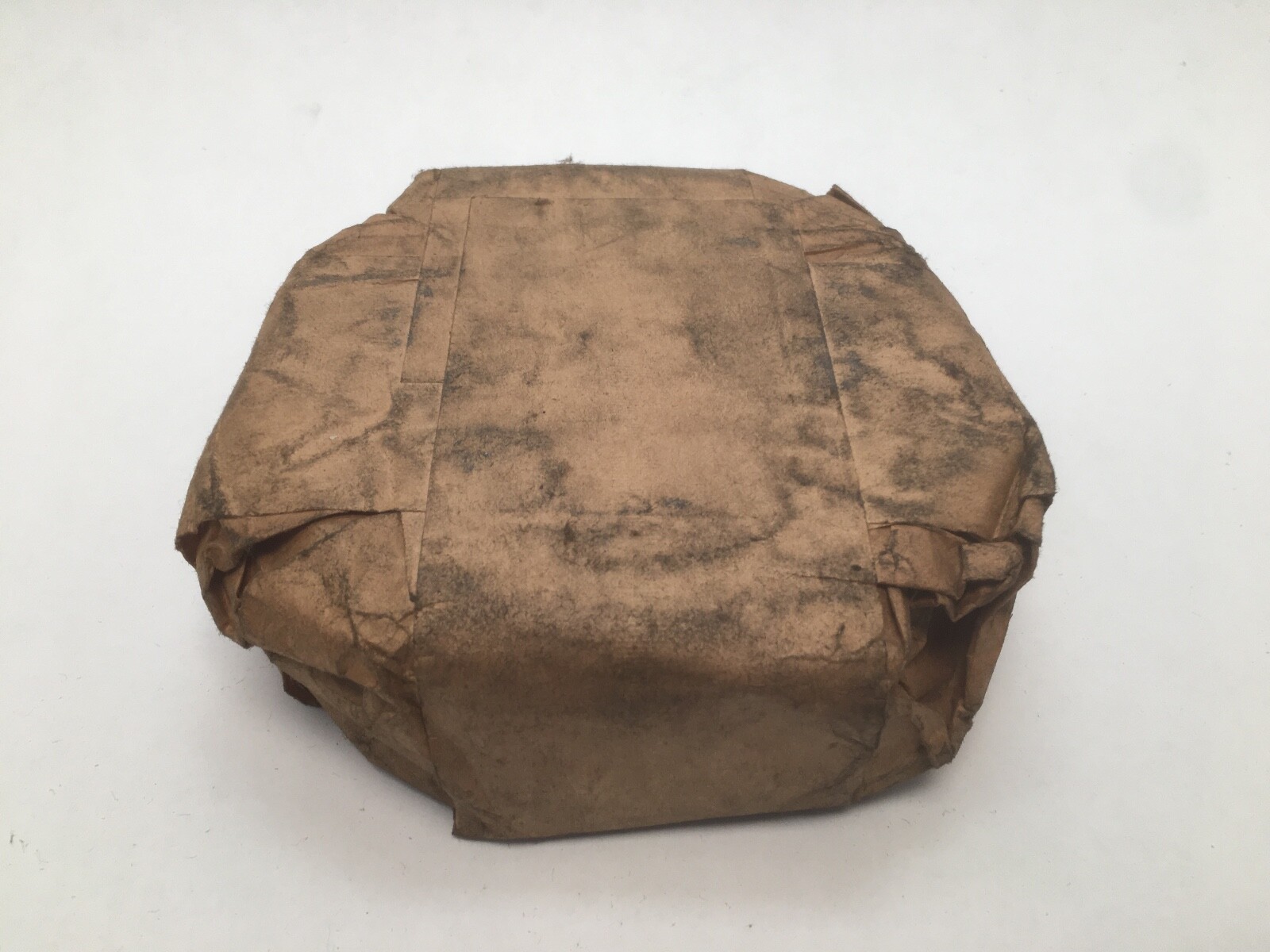

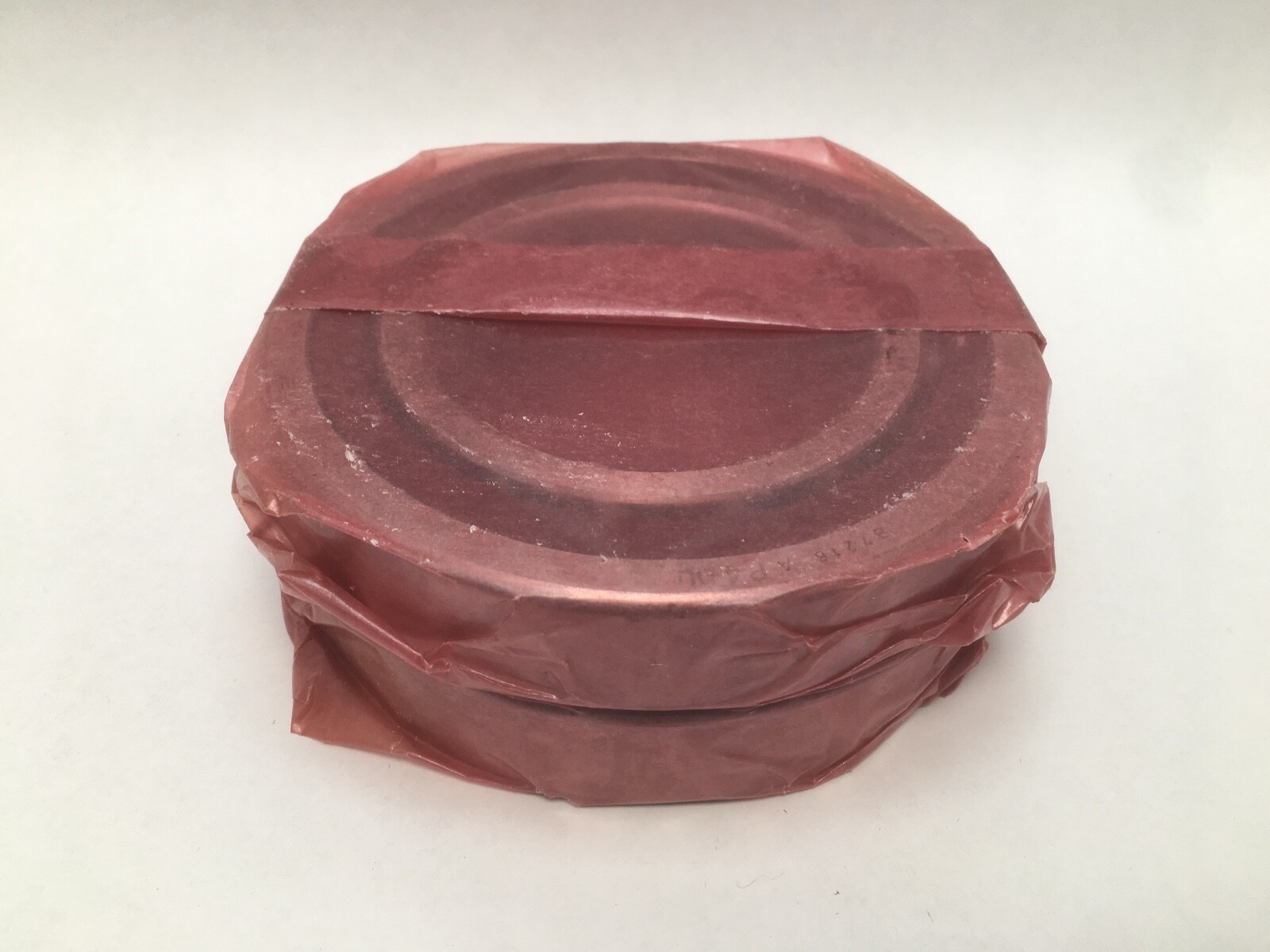

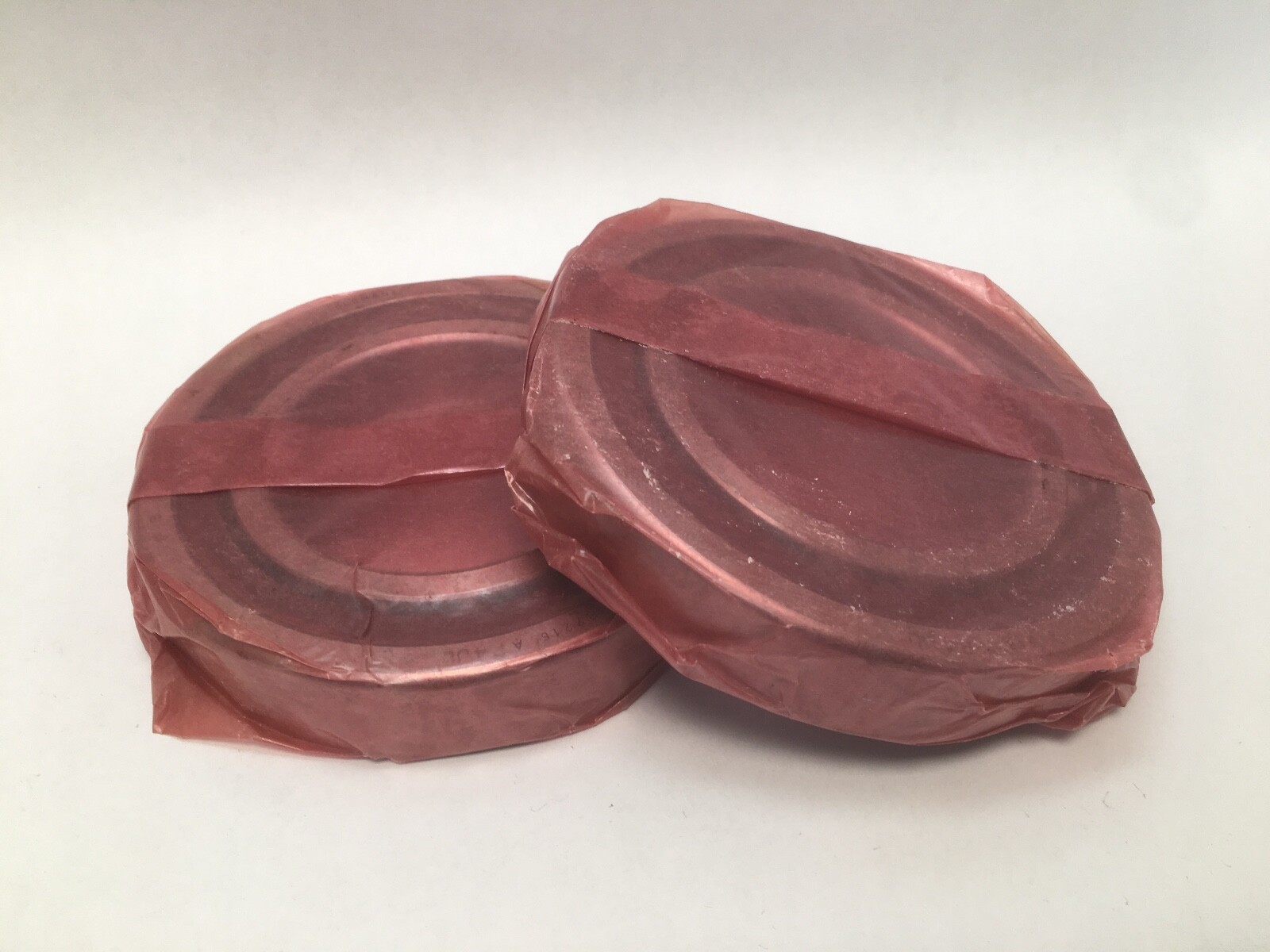

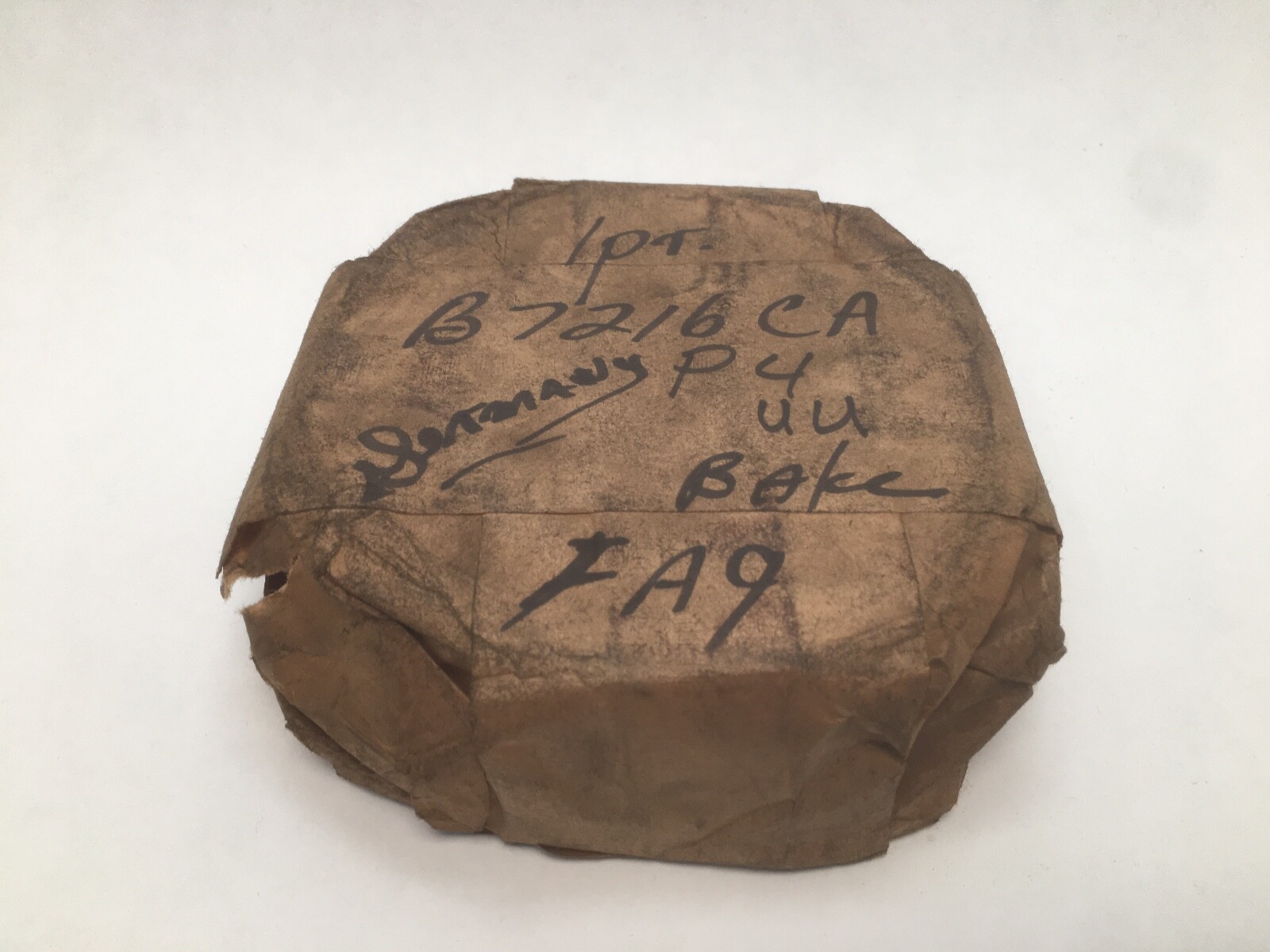

Unit Quantity: 2 Pcs. One universally ground matched pair. New old stock.
Same envelope, 15° angle and P4 class: SKF 7216 CD/P4ADGA, Fafnir 2MM216WI DUL, RHP 7216CTRDULP4, Barden 216HCDUL. Current Schaeffler equivalent: B7216-C-T-P4S-UL.
