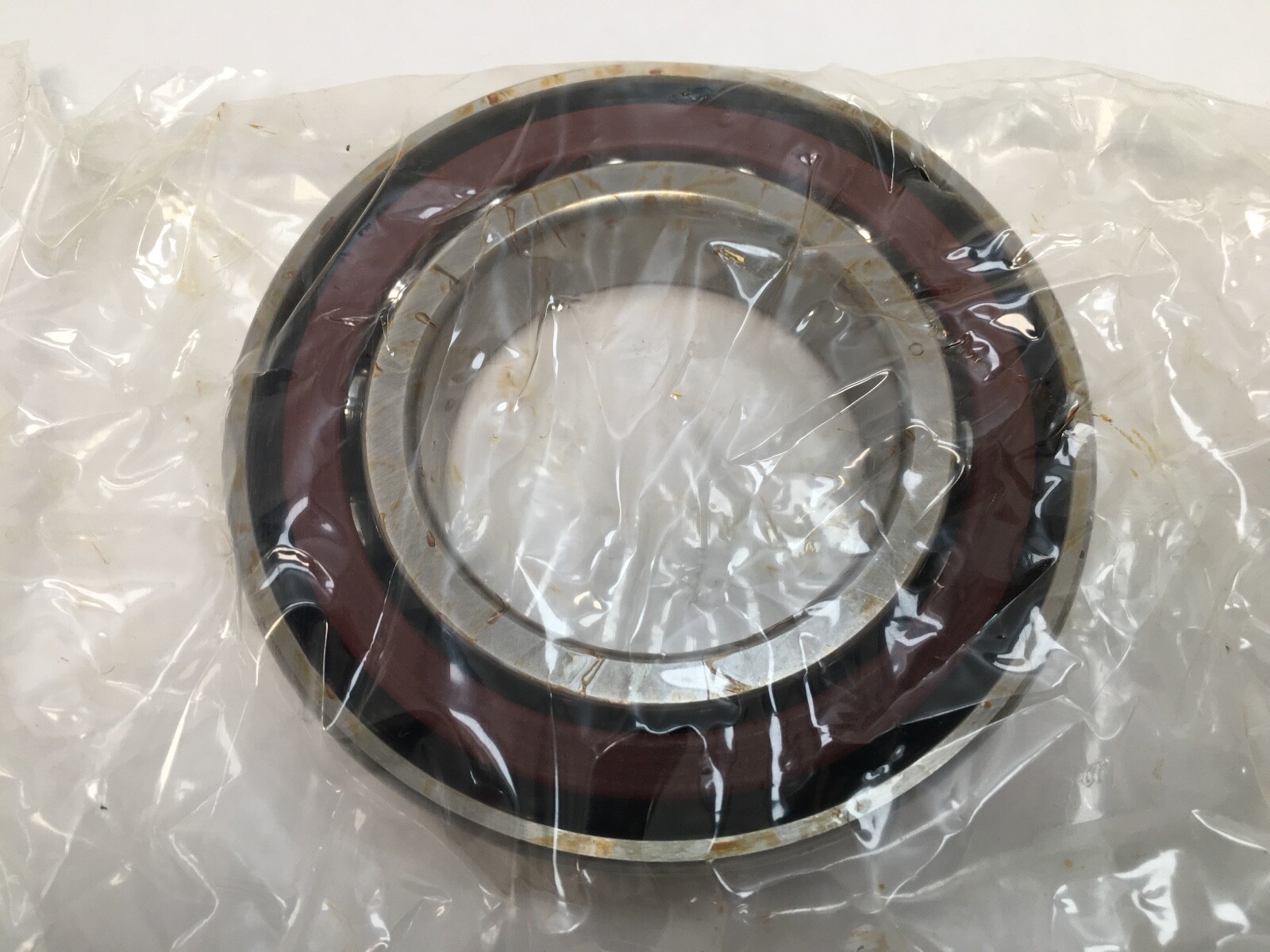

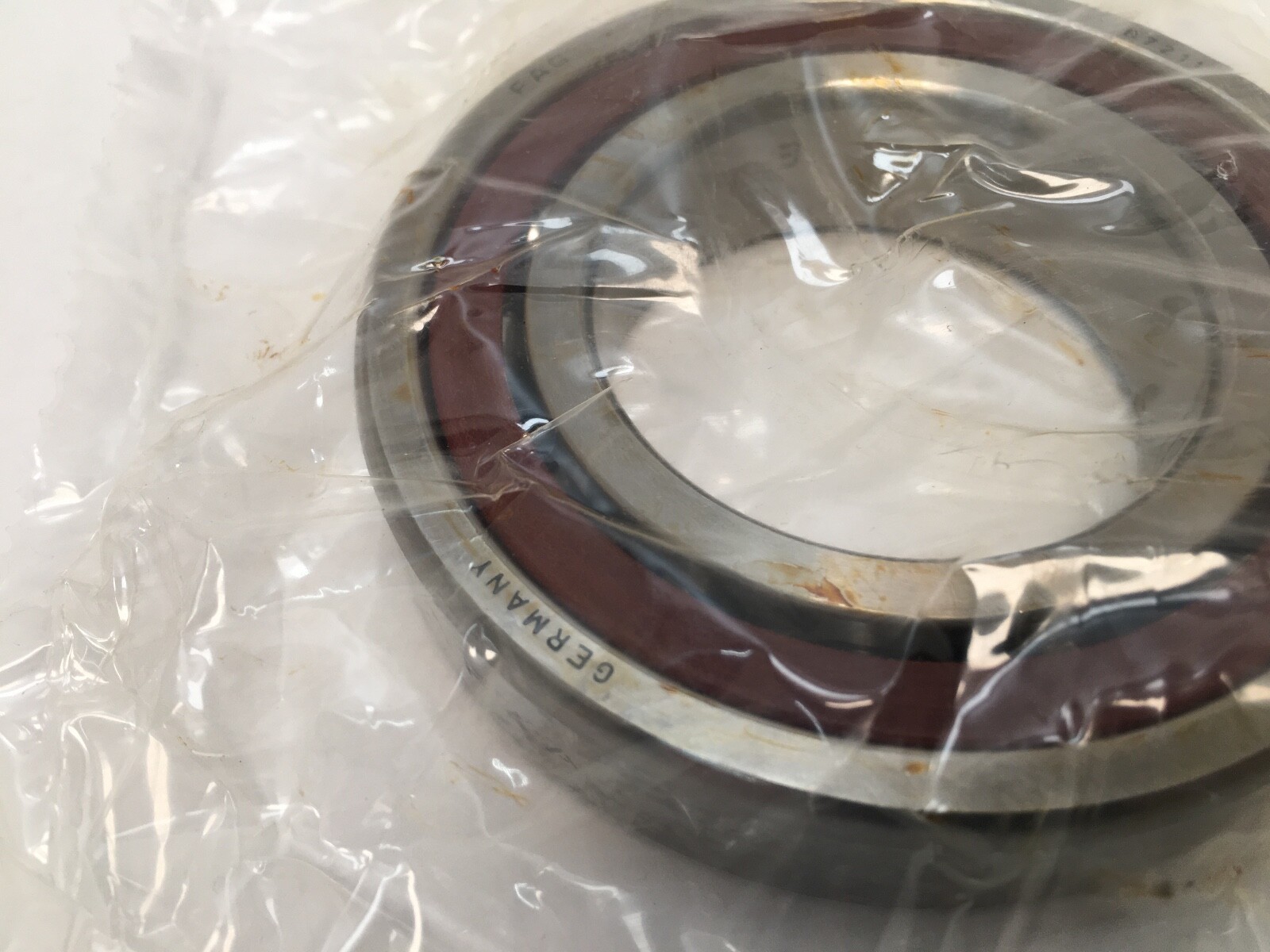

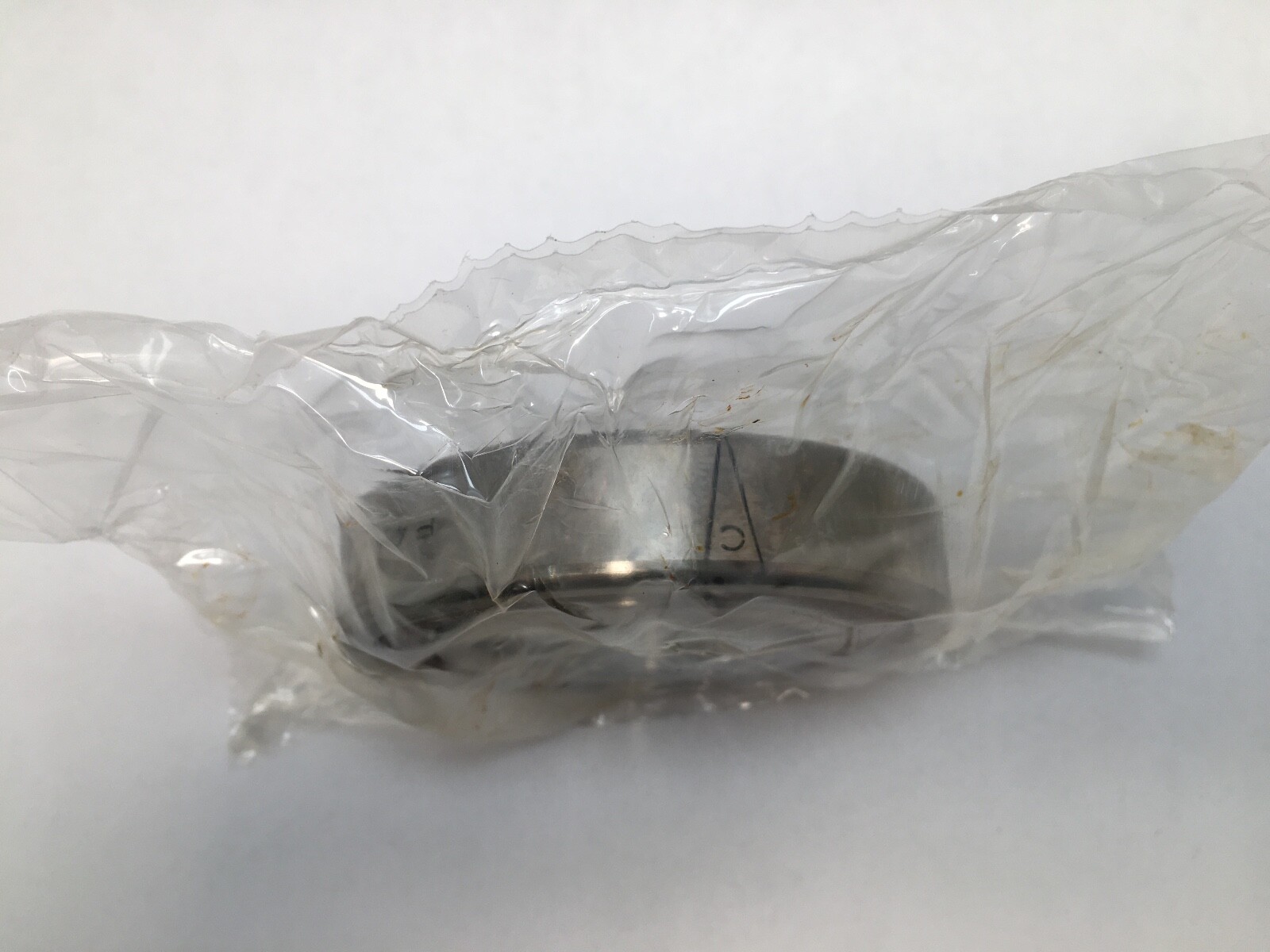

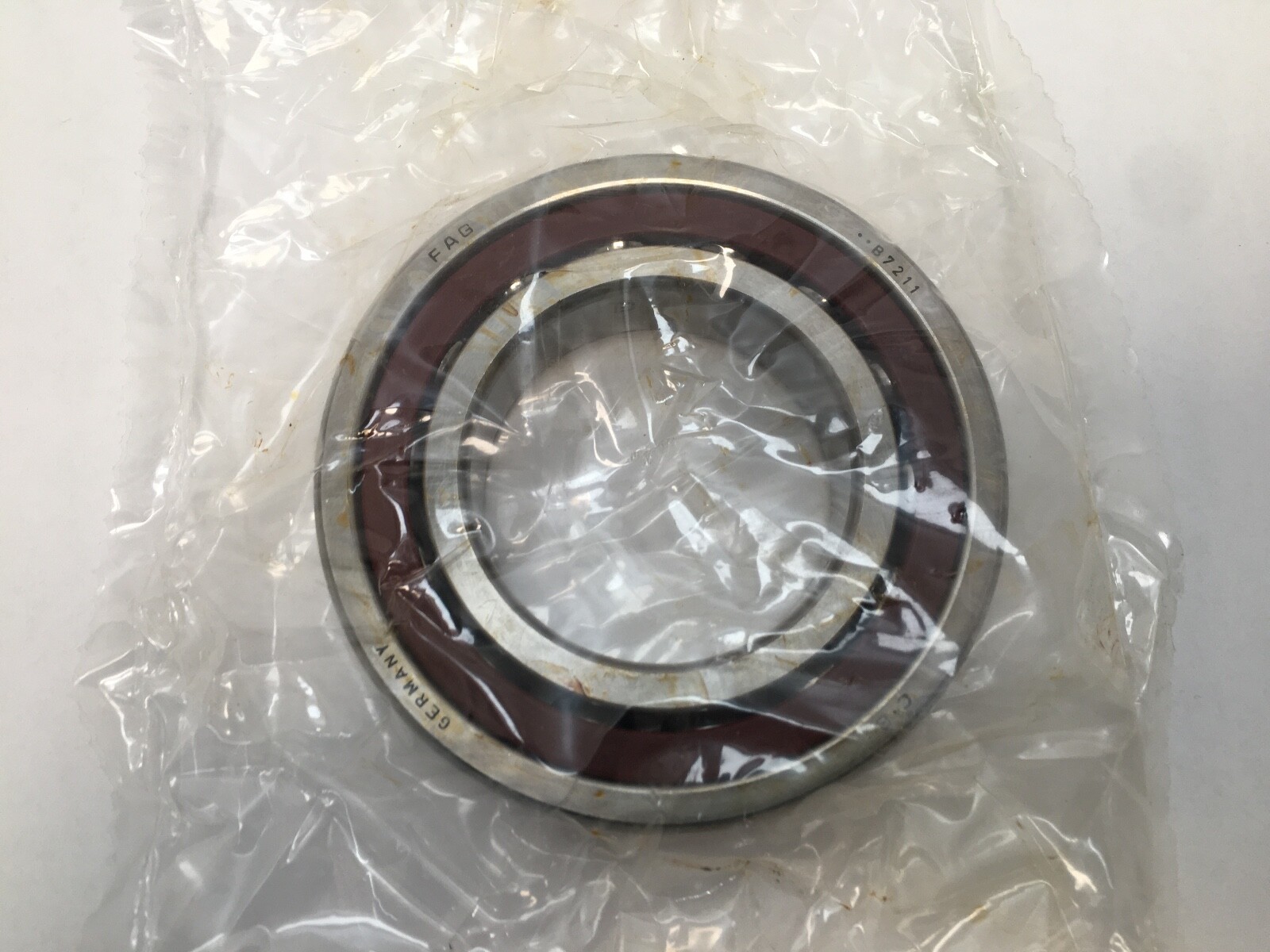

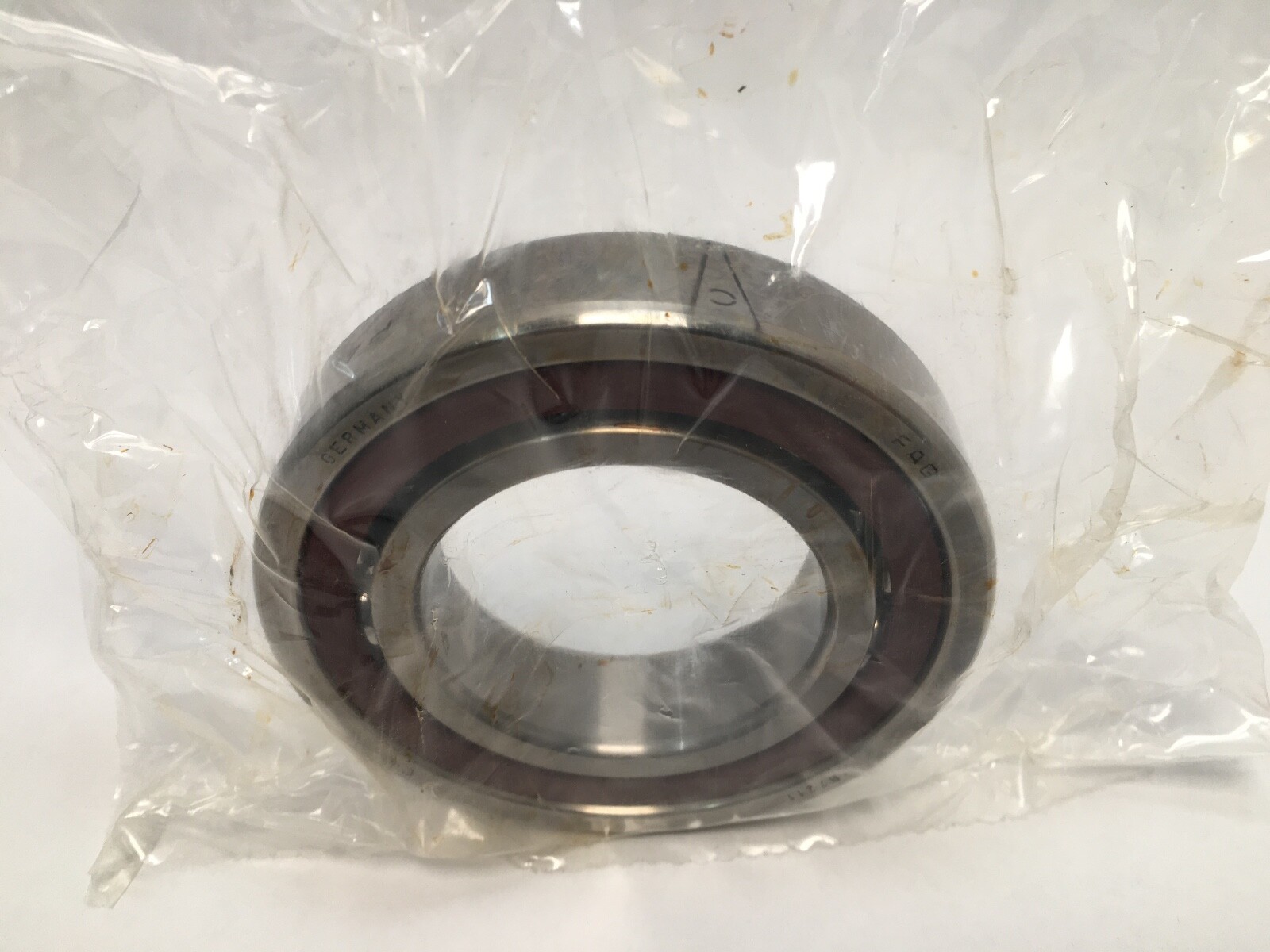

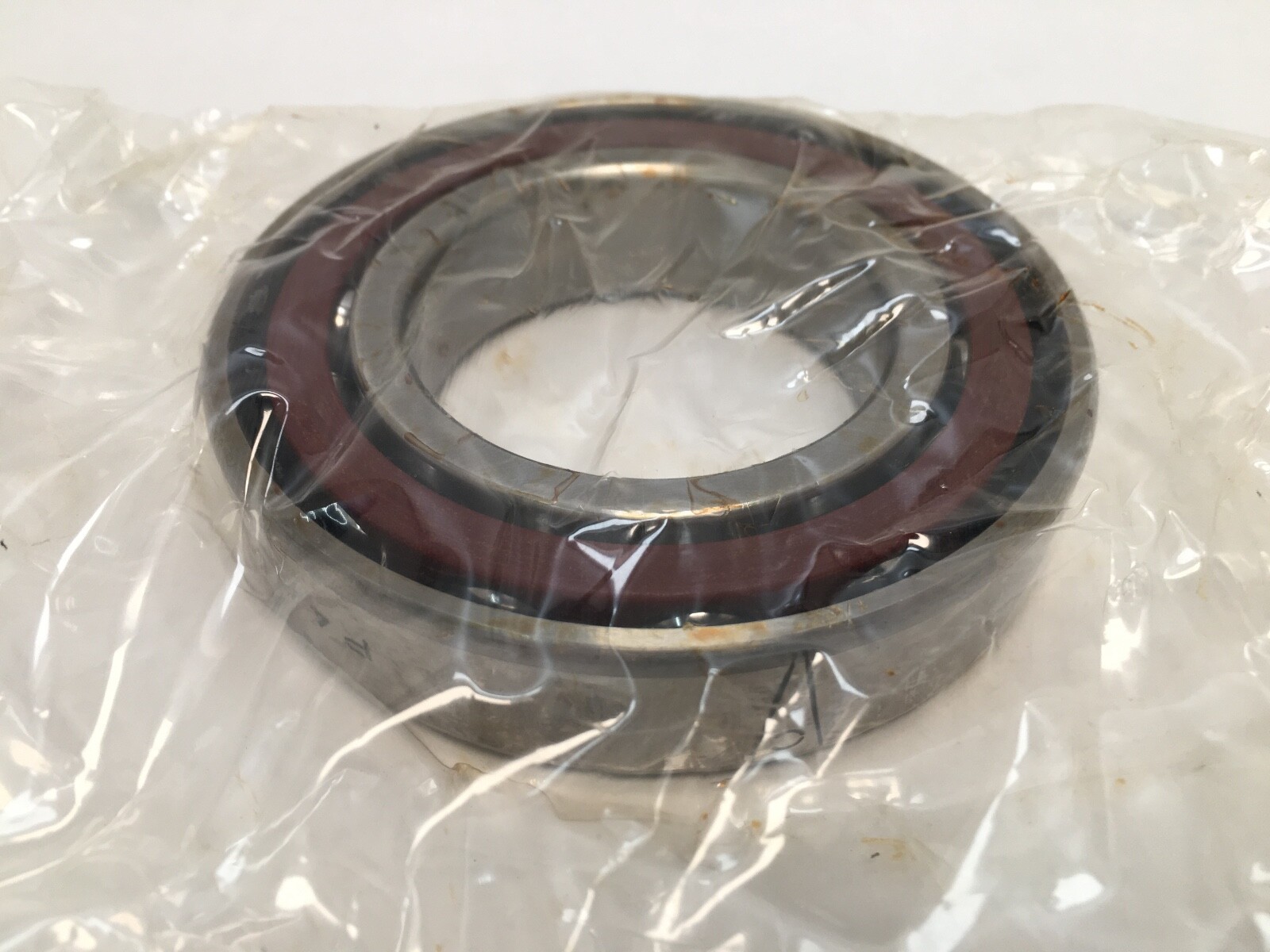

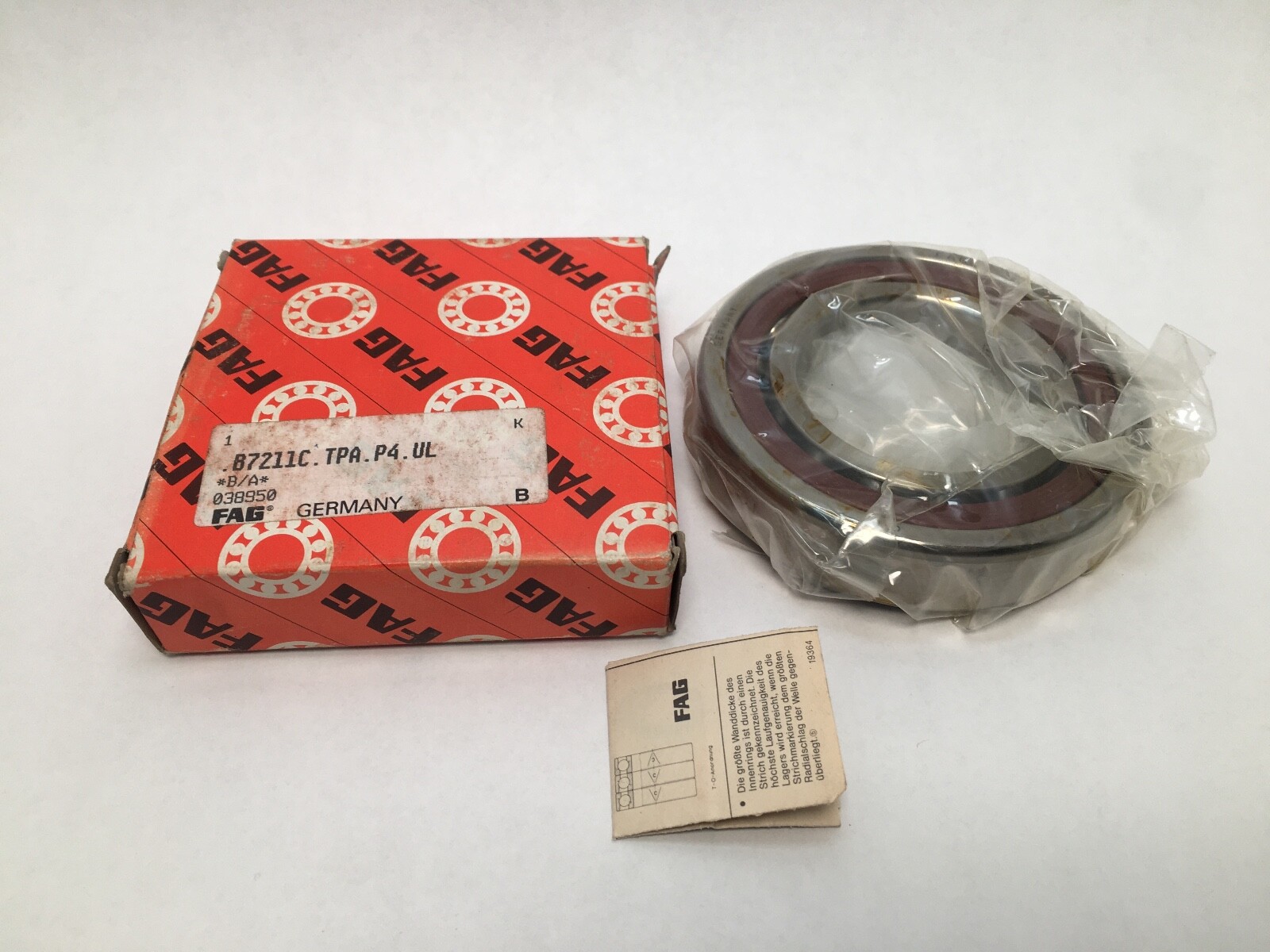

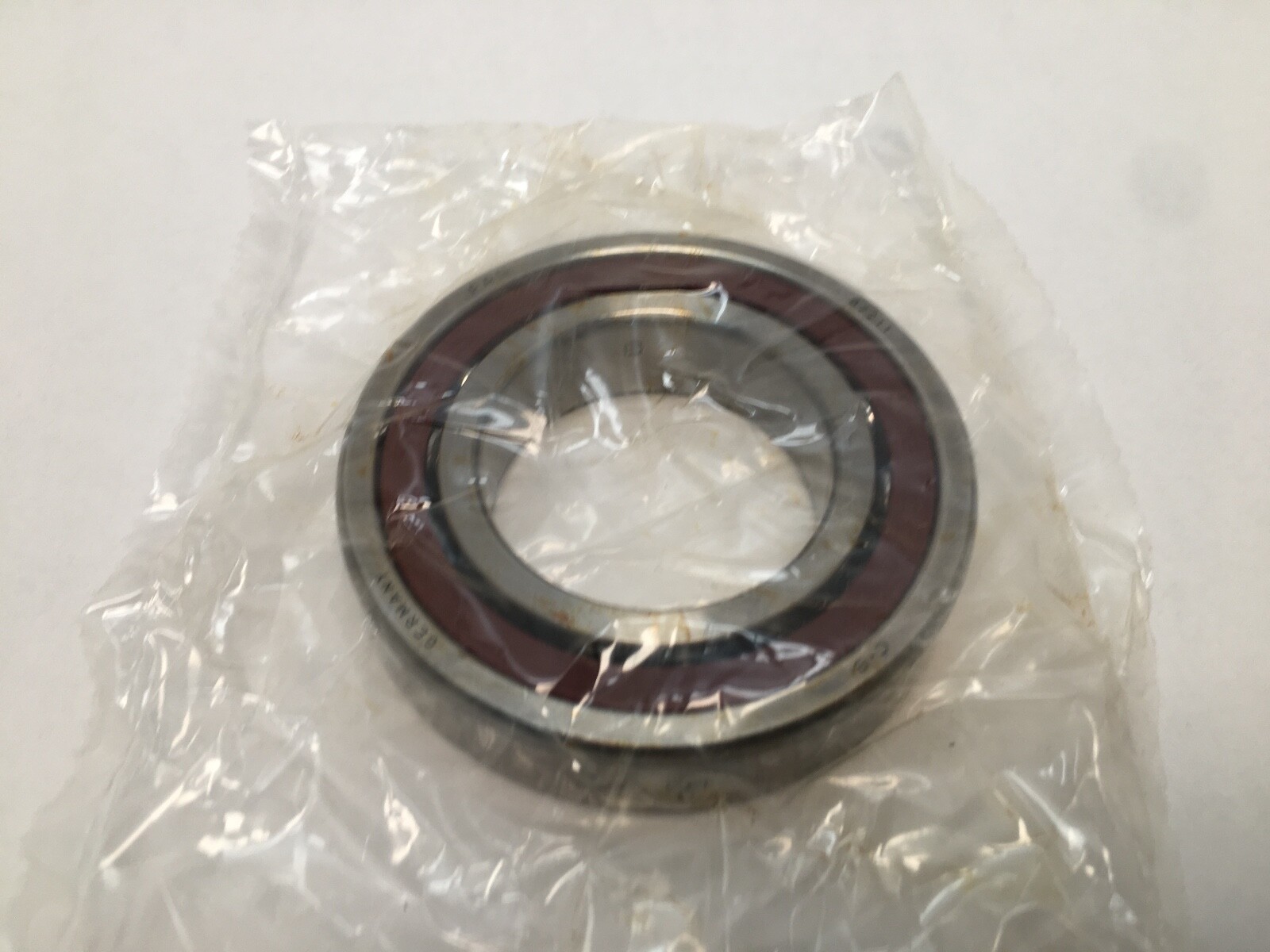

FAGB7211C.TPA.P4.ULAngular Contact Ball Bearing – 55 mm ID, 100 mm OD, 21 mm Width, Open, 15°, ABEC 7 / P4, Phenolic Cage

Product Description

What this part is:

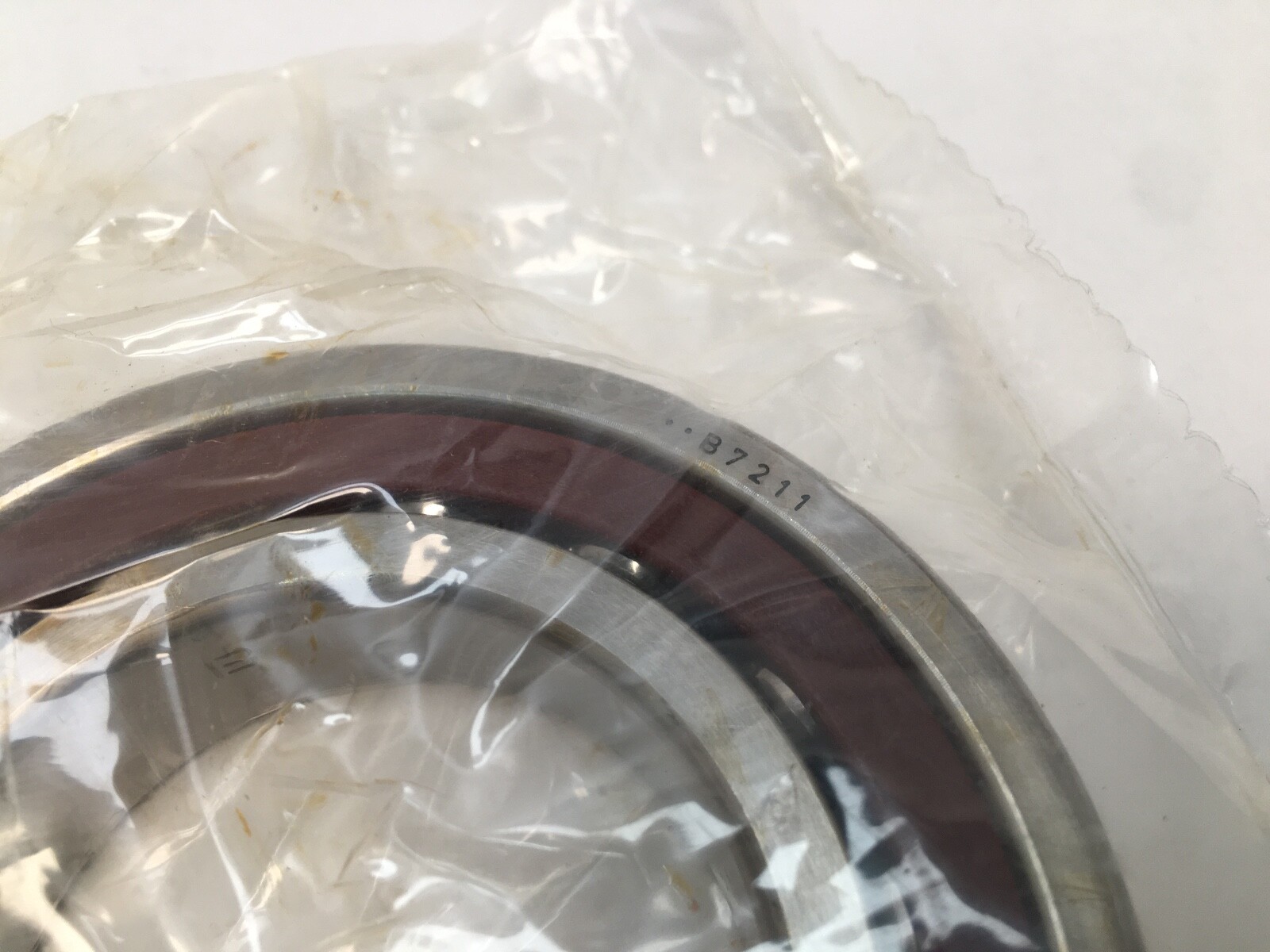

FAG B7211C.TPA.P4.UL is a super-precision spindle angular contact ball bearing, universally ground for matched sets. Bore Diameter: 55 mm. Outside Diameter: 100 mm. Overall Width: 21 mm. Contact Angle: 15°. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Bearing Material: Chrome steel. Item Weight: 0.61 kg (1.35 lb). Unit Quantity: 1 Pc.

Decoding the designation:

B72 — Schaeffler’s spindle bearing series in the 72 section, which carries more load than the 70 section on the same bore.

7211 — ISO size code. Bore 55 mm, outside diameter 100 mm, width 21 mm.

C — Contact angle 15°.

TPA — Fabric-base laminate phenolic cage, machined.

P4 — Precision Class: ABEC 7 / P4.

UL — Universally matchable. Faces are ground so any two or more bearings pair in back-to-back, face-to-face or tandem arrangement and reach the published preload without shims.

Specifications:

Dynamic Load Rating: 47,000 N. Static Load Rating: 26,500 N. Limiting Speed: 14,000 rpm grease; 22,000 rpm oil. Fatigue Load Limit, Radial: 2,800 N. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Cage Type: Machined. Lubricant: grease or oil. Operating Temperature Range: -30 °C to +100 °C. Series: B72. Base Number: B7211.

Dimensions and mounting:

Bore Diameter: 55 mm. Outside Diameter: 100 mm. Overall Width: 21 mm. Mounting Arrangement: Universal — back-to-back (O), face-to-face (X) or tandem. Preload per matched pair: light 258 N, medium 832 N, heavy 1,662 N. The bearing is preload-adjusted rather than clearance-set.

Compatibility and replacement:

Same envelope, same angle, same class: SKF 7211 CD/P4A, NSK 7211C, NTN 7211C, Timken Fafnir 2MM211WI, RHP 7211CT and Koyo 7211C.

Other forms of the number: B7211C.TPA.P4.UL, B7211CTPAP4UL, B7211-C-T-P4S-UL, B7211C.T.P4S.UL, B 7211 C TPA P4 UL, 7211CD, 7211CT, 7211CTY.

Frequently asked questions:

What is the contact angle of the FAG B7211C.TPA.P4.UL?

The contact angle is 15°, set by the C in the designation.

What are the load ratings and speed limits?

Dynamic Load Rating is 47,000 N and Static Load Rating is 26,500 N. Limiting Speed is 14,000 rpm on grease and 22,000 rpm on oil.

What does UL mean?

UL marks a universally matchable bearing. The faces are ground so any two or more bearings pair in back-to-back, face-to-face or tandem arrangement.
