FAGAngular Contact Spindle Bearing Pair – 30 mm ID, 62 mm OD, 16 mm Width, 25° Contact Angle, ABEC 7 / P4S, Phenolic Cage, Light Preload

Product Description

What this part is

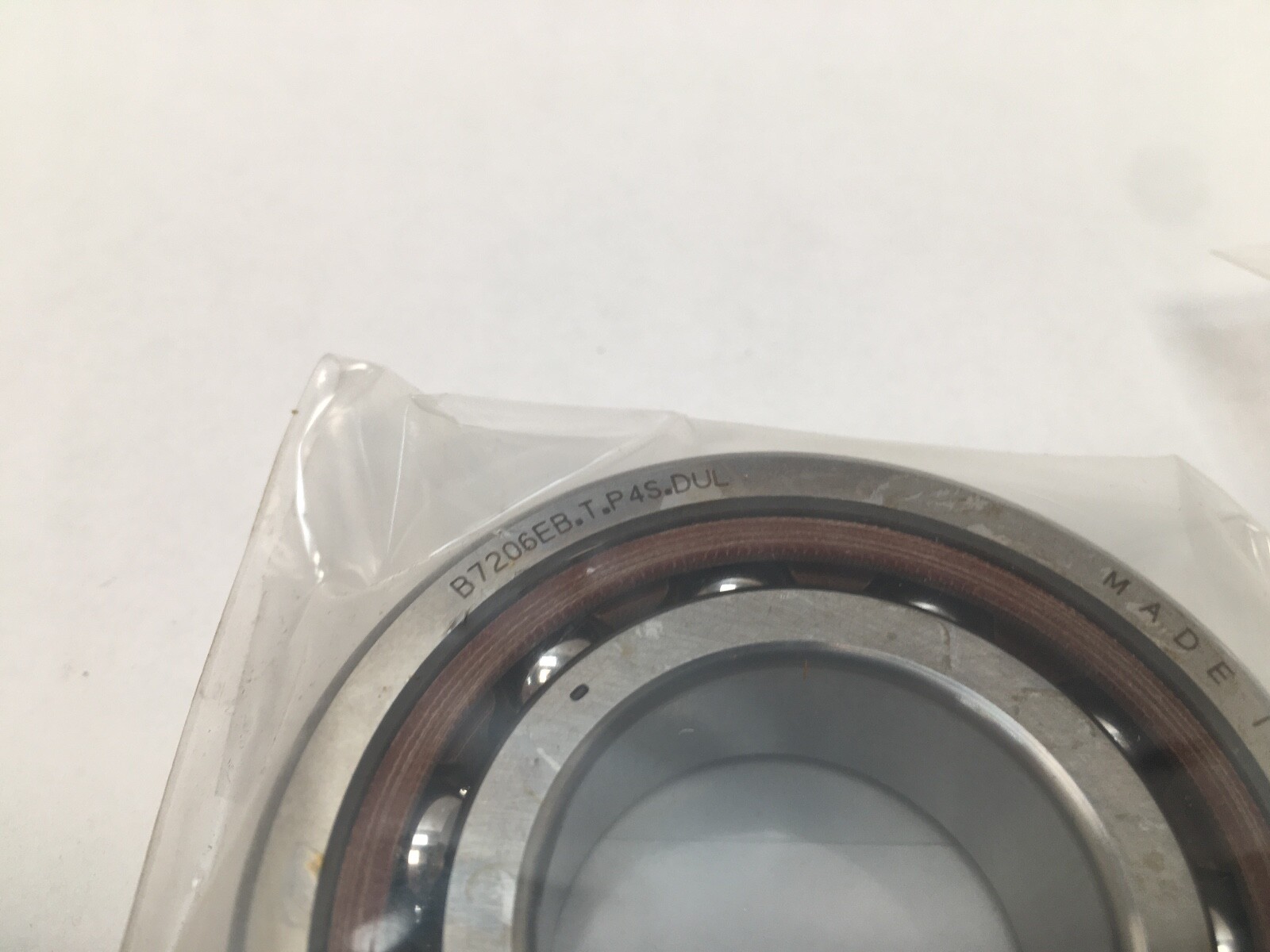

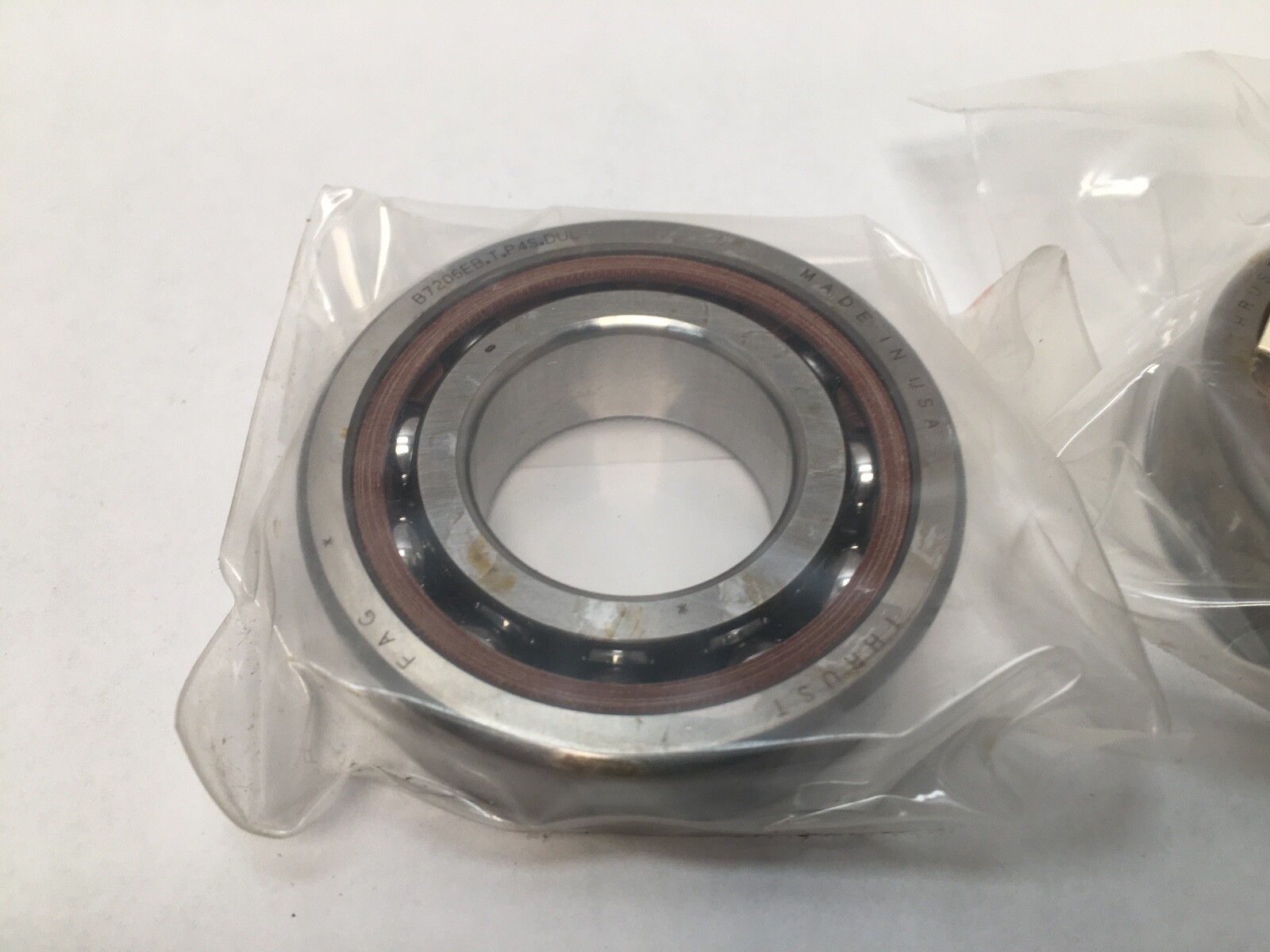

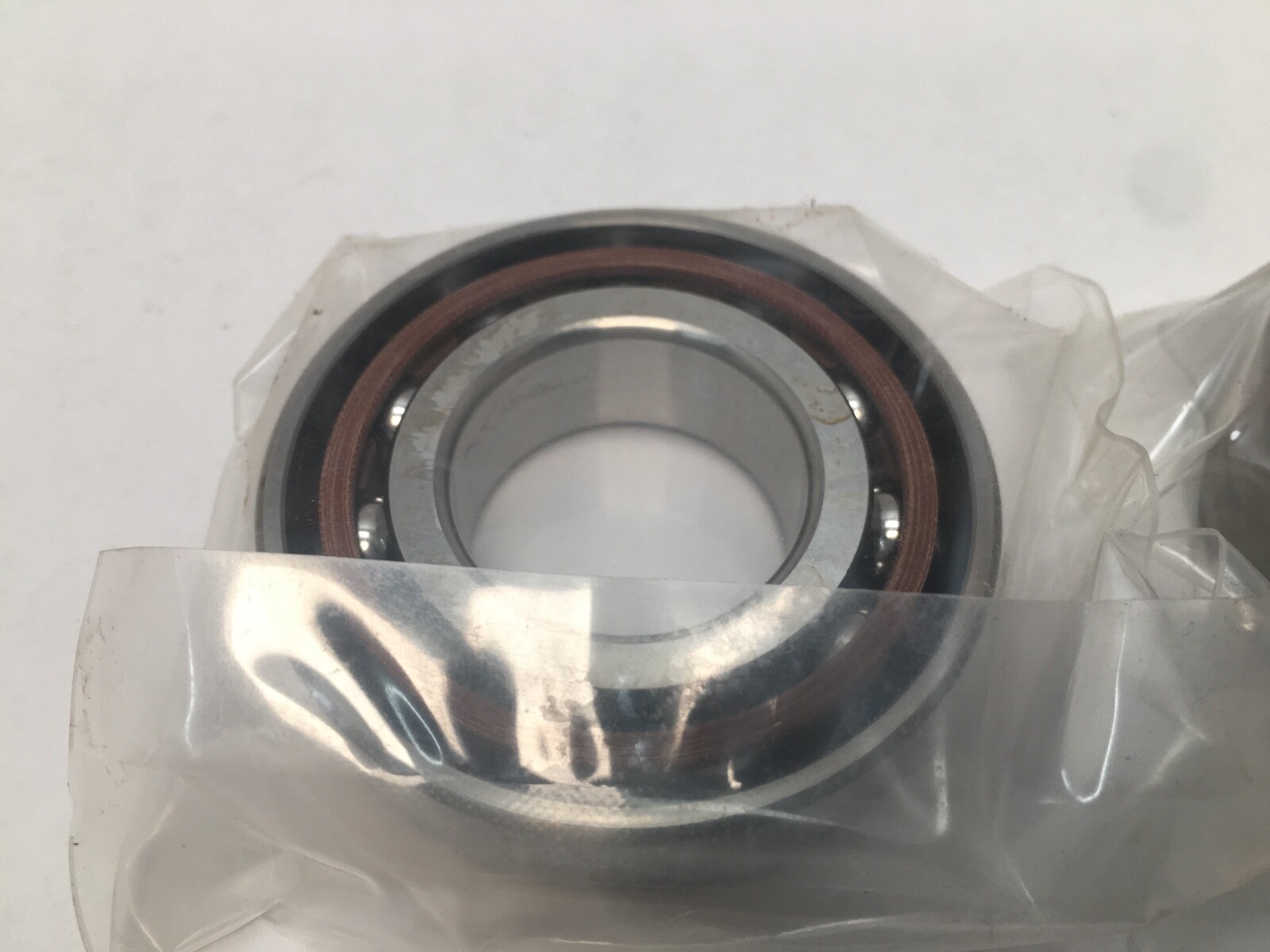

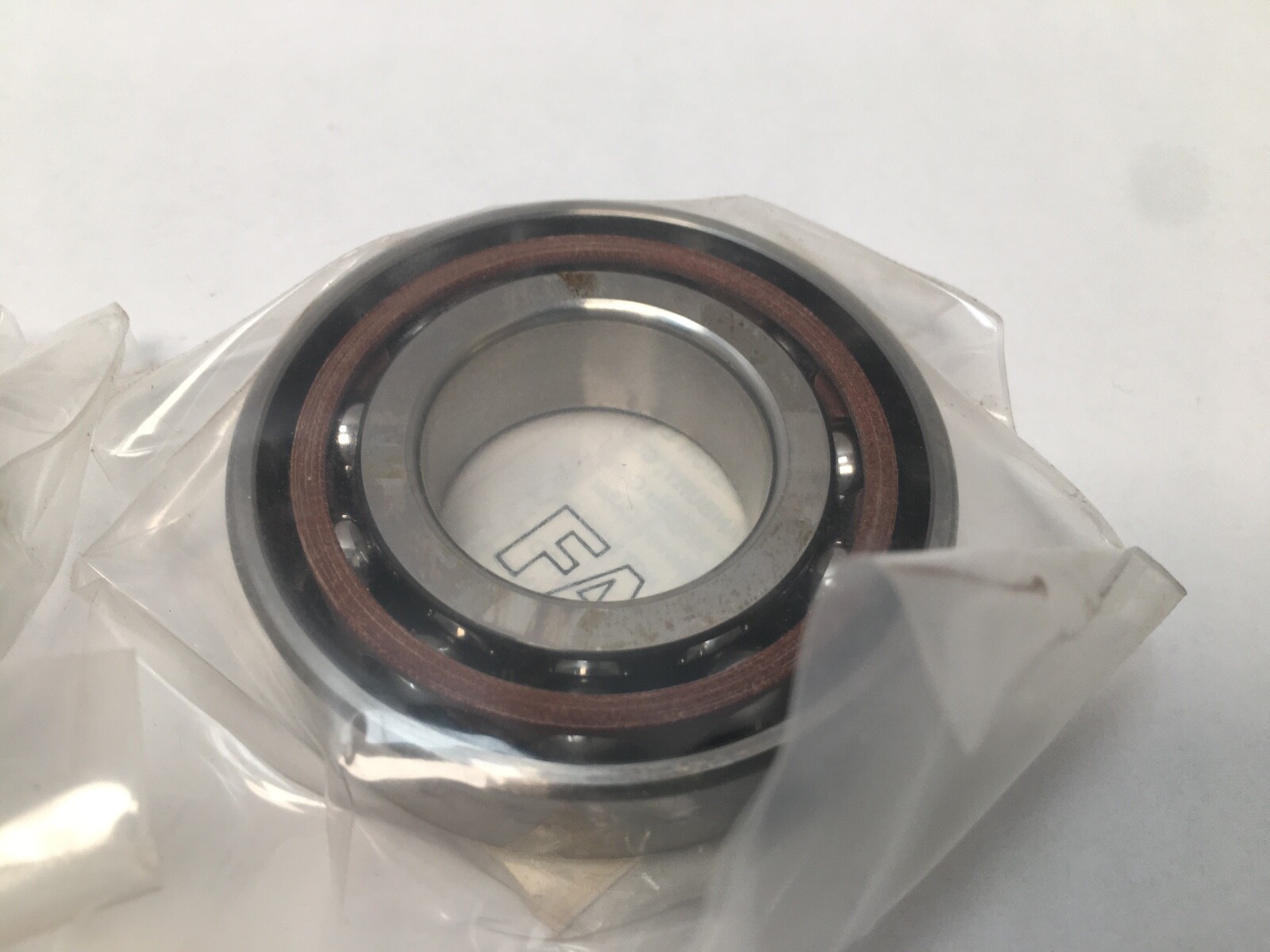

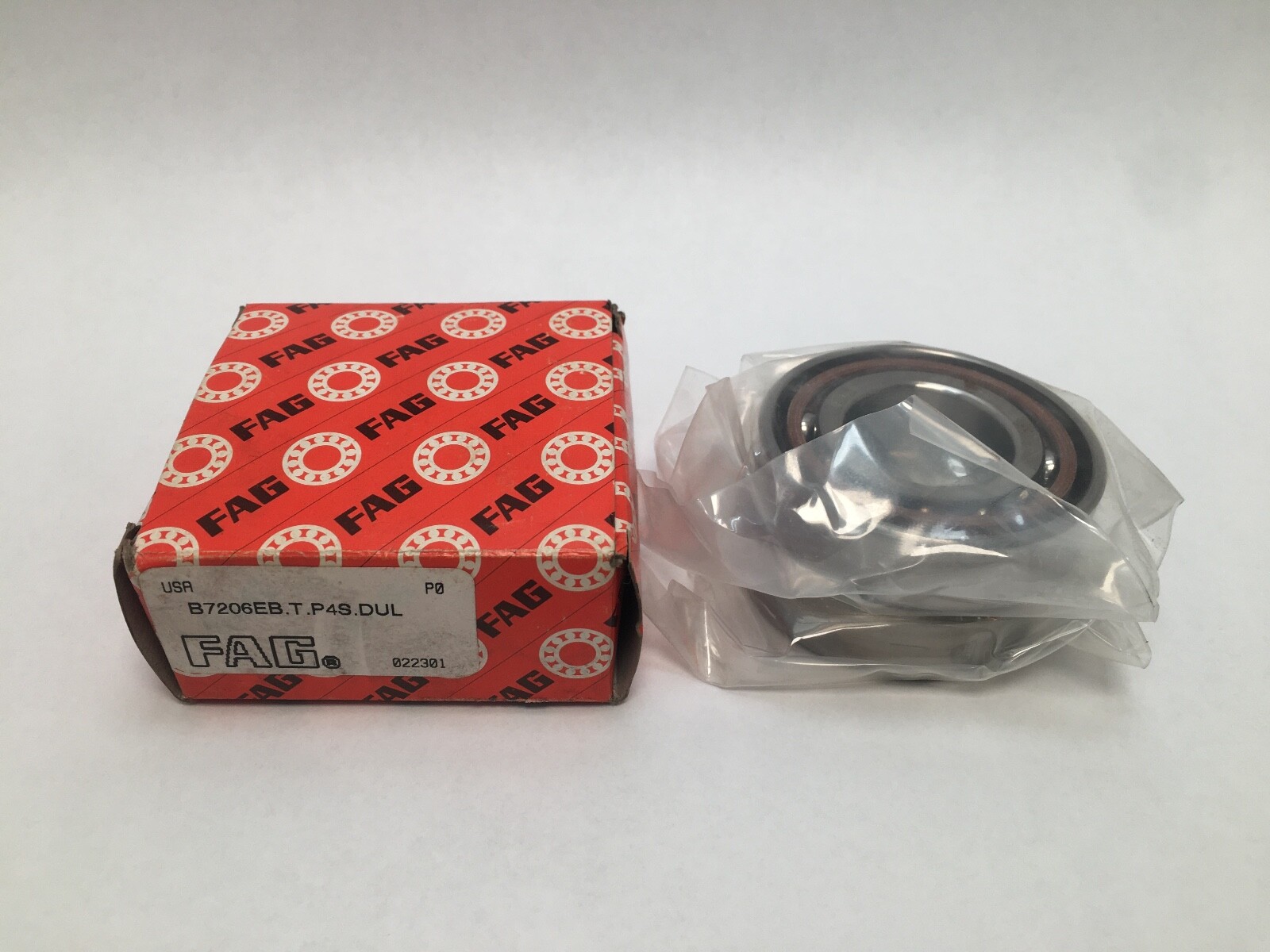

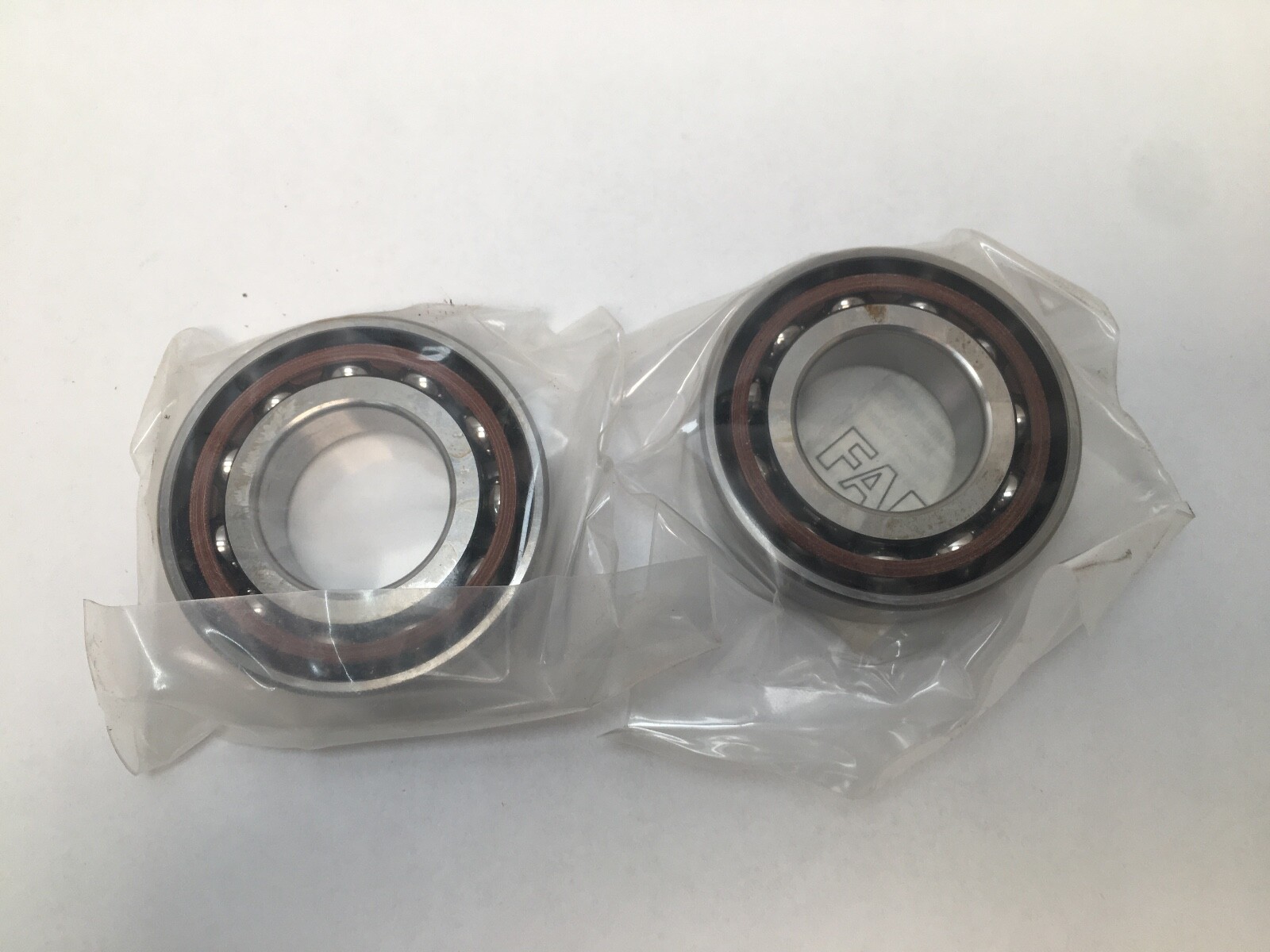

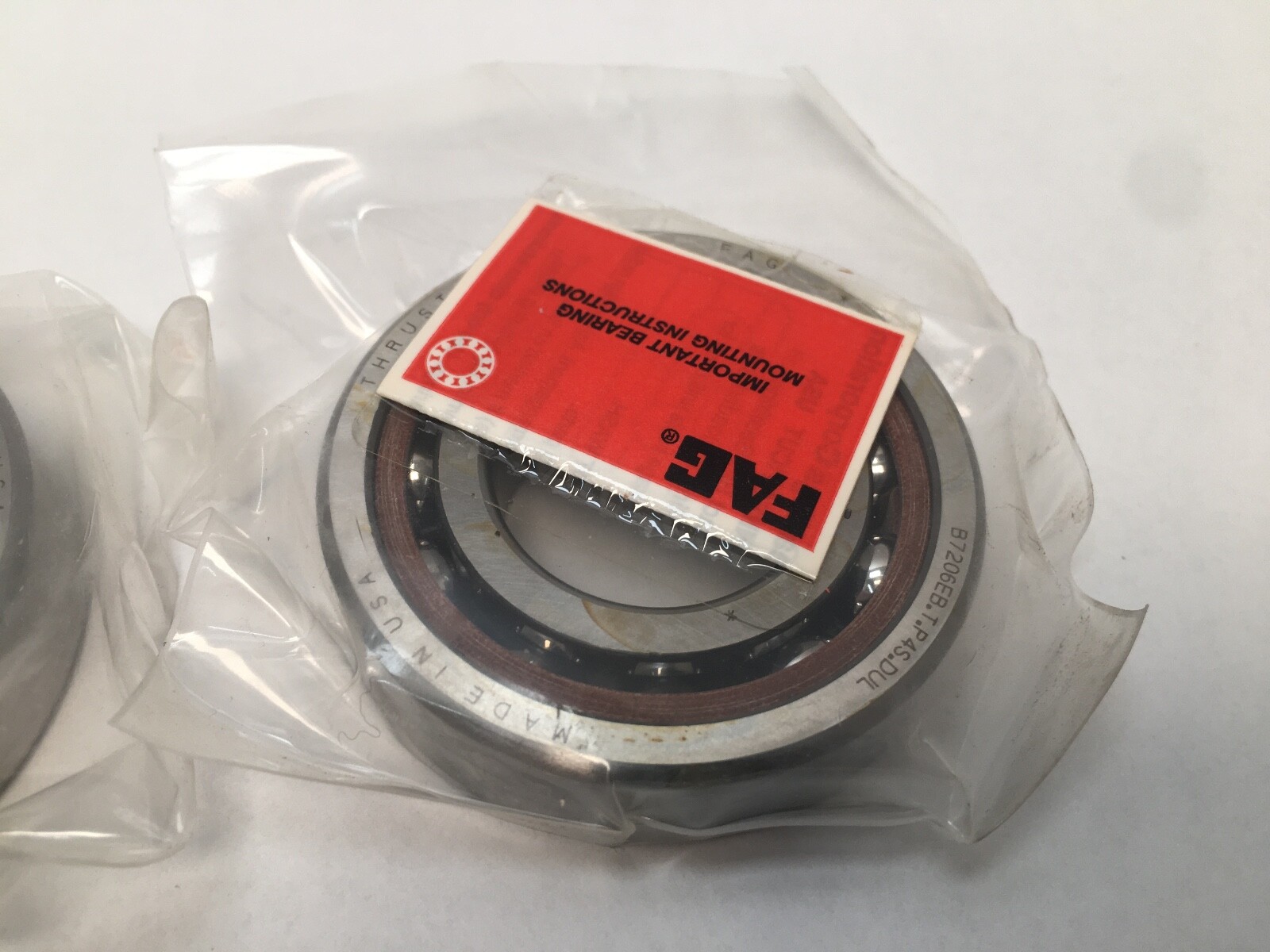

FAG B7206-E-B-T-P4S-DUL is a matched pair of super-precision angular contact spindle bearings from the Schaeffler B72 series. Bore Diameter: 30 mm. Outside Diameter: 62 mm. Width: 16 mm per bearing. Contact Angle: 25°. Precision Class: ABEC 7 / P4S. Cage Material: Phenolic. Preload: Light.

Decoding the designation

B7206 — FAG spindle bearing, ISO 7206 envelope, 30 x 62 x 16 mm.

E — 25° contact angle, higher axial capacity and axial stiffness than the 15° C execution.

T — machined phenolic (fabric-reinforced laminate) cage.

P4S — Schaeffler restricted-tolerance class: P4 dimensional accuracy with tighter running accuracy.

DUL — two universally matched bearings with light preload, mountable back-to-back, face-to-face or in tandem.

What these specs mean in practice

Dynamic Load Rating: 22,100 N per bearing. Static Load Rating: 9,900 N per bearing. Preload Force: Light, 177 N (Schaeffler FV L). Operating Temperature: -30 to 100 °C.

Mounting data

Shaft Shoulder Diameter: 37.5 mm. Housing Shoulder Diameter: 54.5 mm. Item Weight: 0.204 kg (0.45 lb) per bearing.

Quantity and configuration

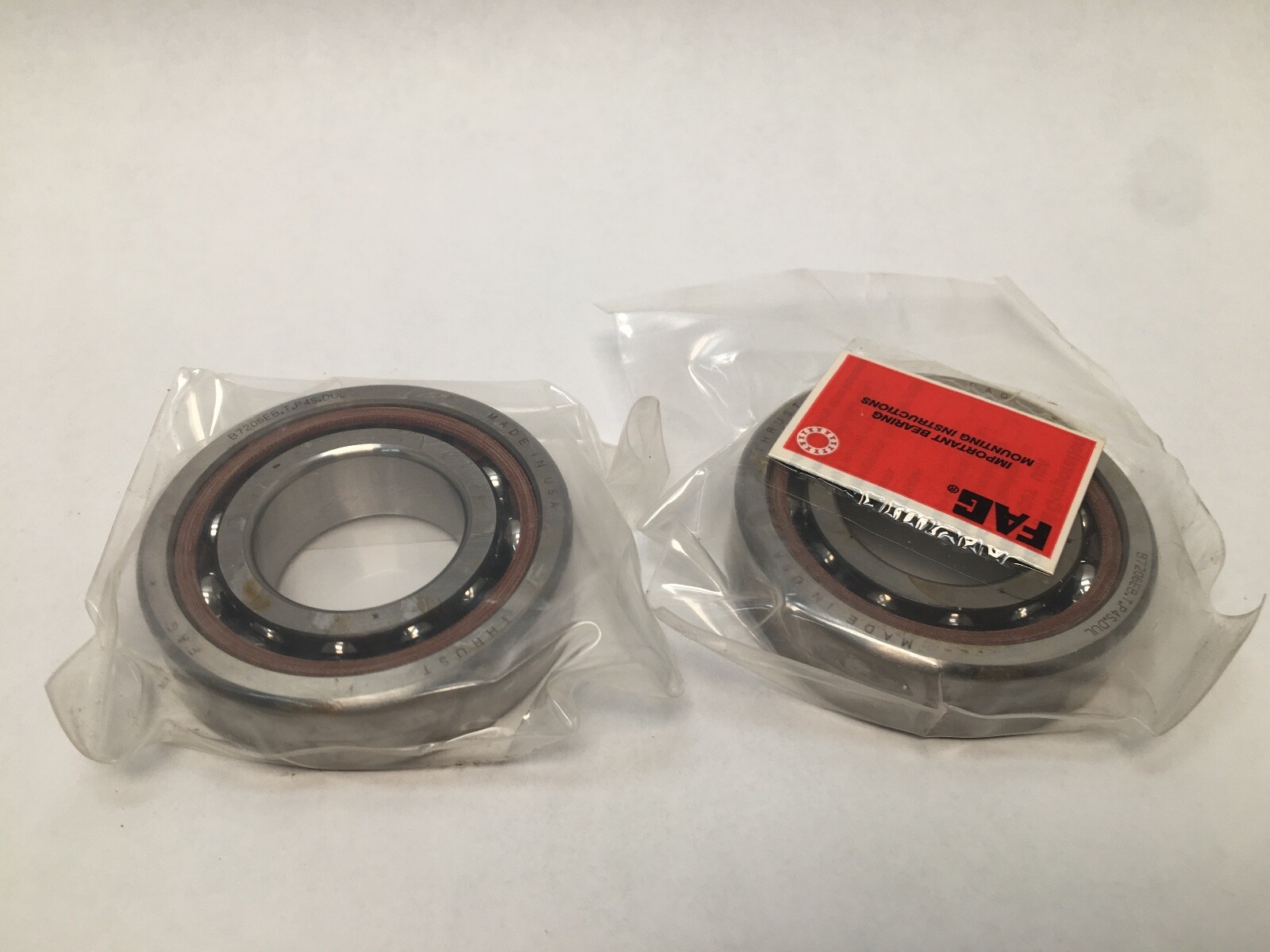

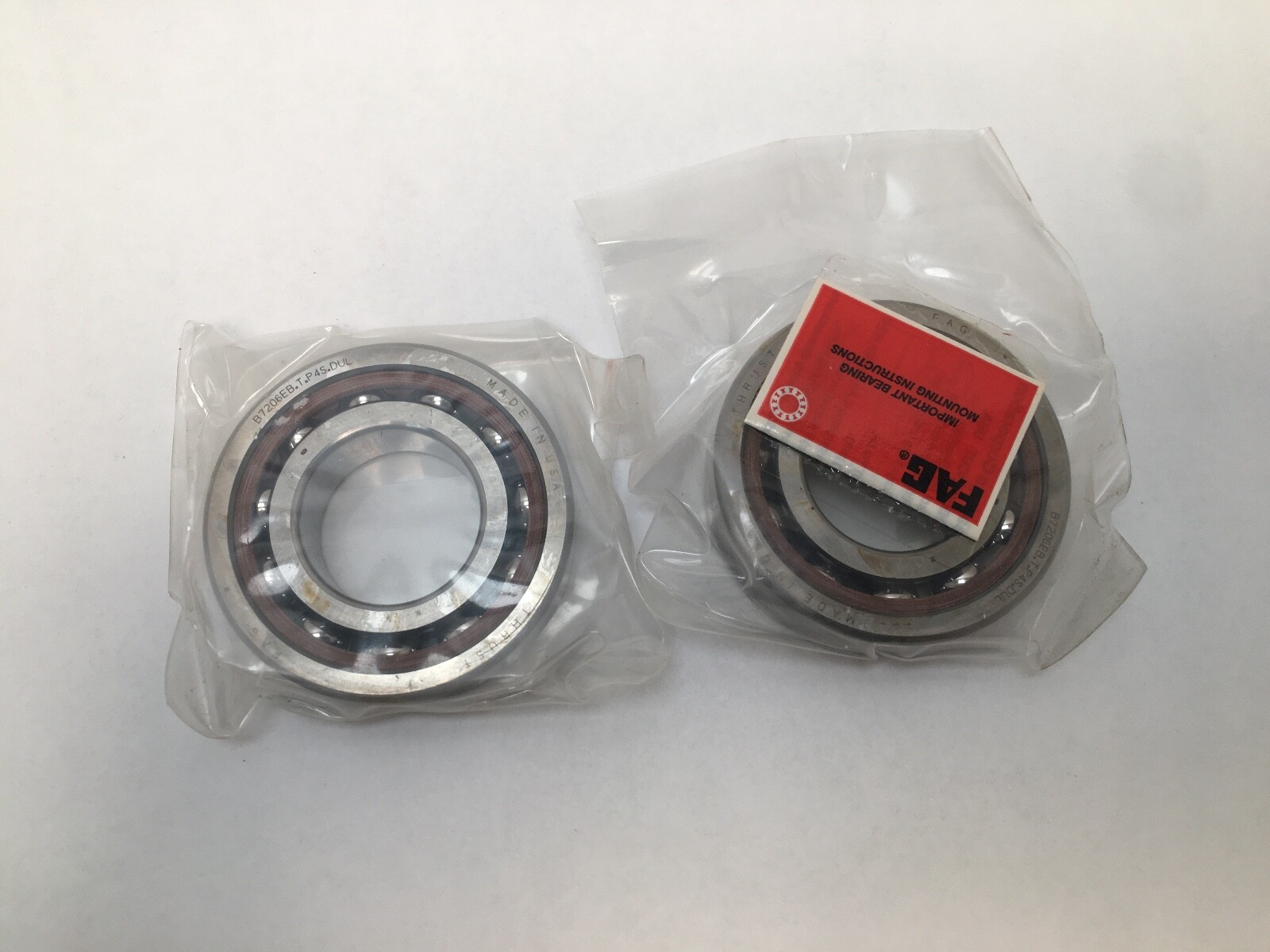

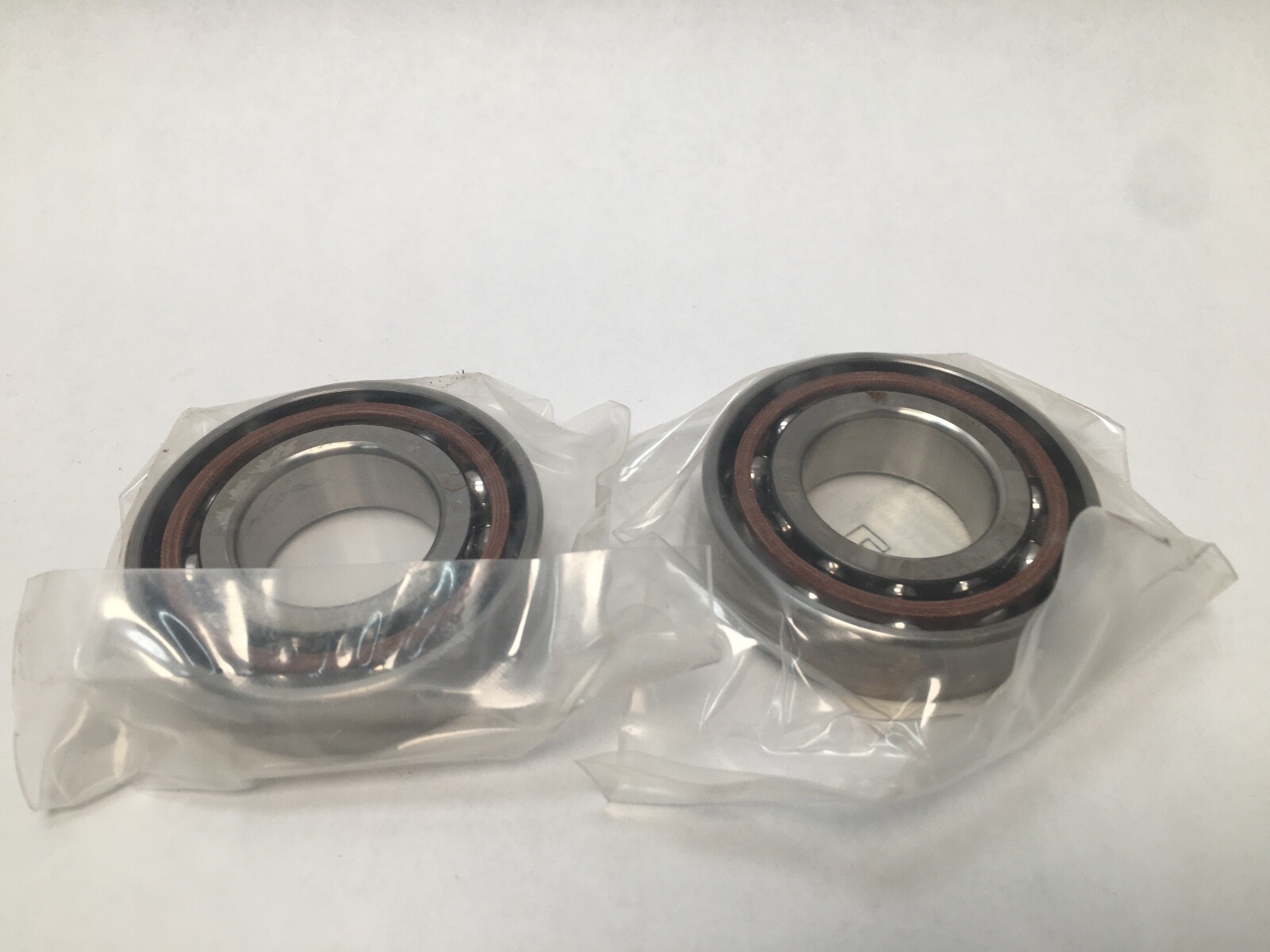

Unit Quantity: 2 Pcs. One universally ground matched pair.

Interchange guidance

Current Schaeffler number: B7206-E-T-P4S-UL. At 25° and P4 class: SKF 7206 ACD/P4ADGA, Fafnir 3MM206WI DUL and RHP 7206ETRDULP4.
