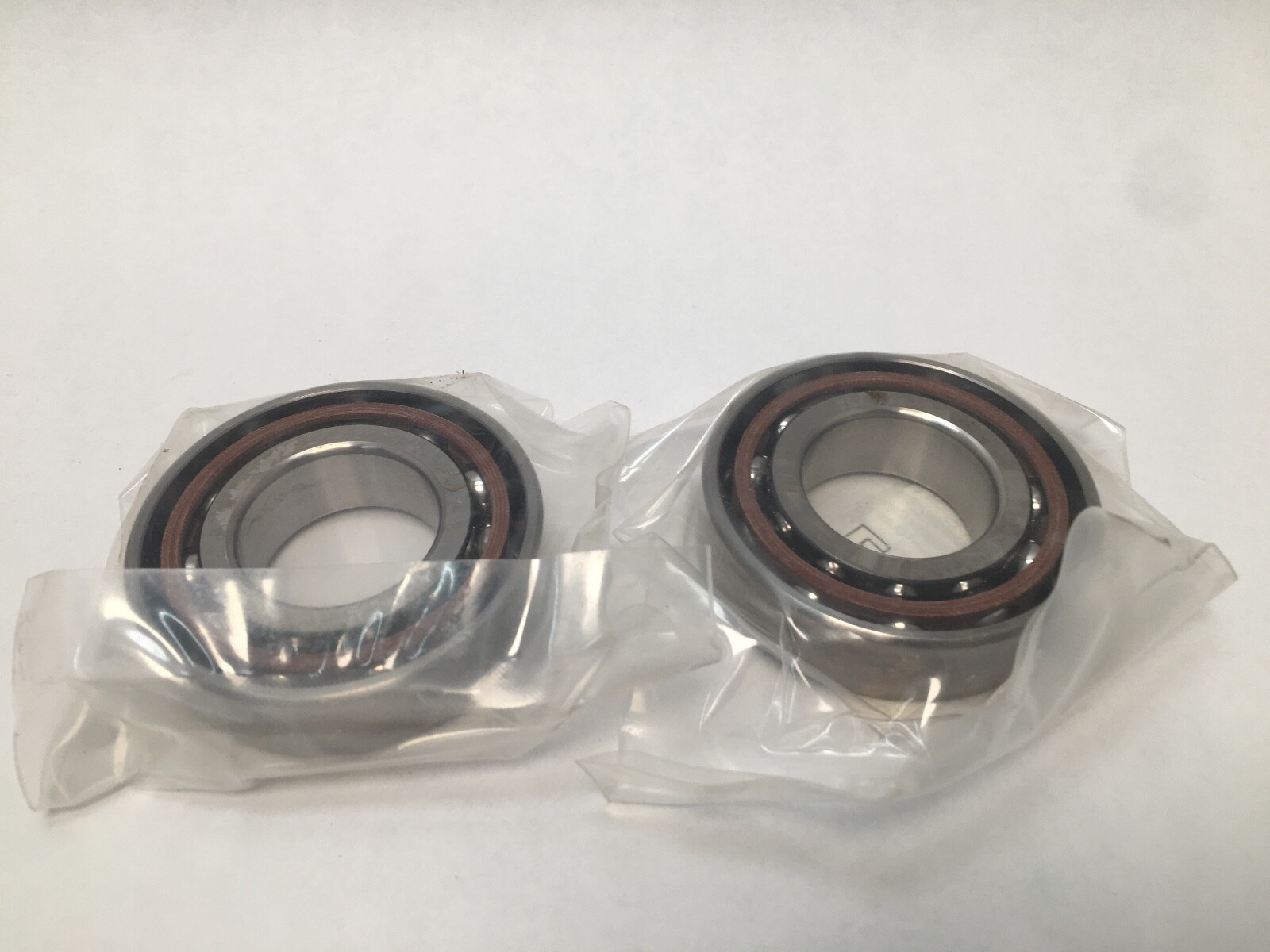

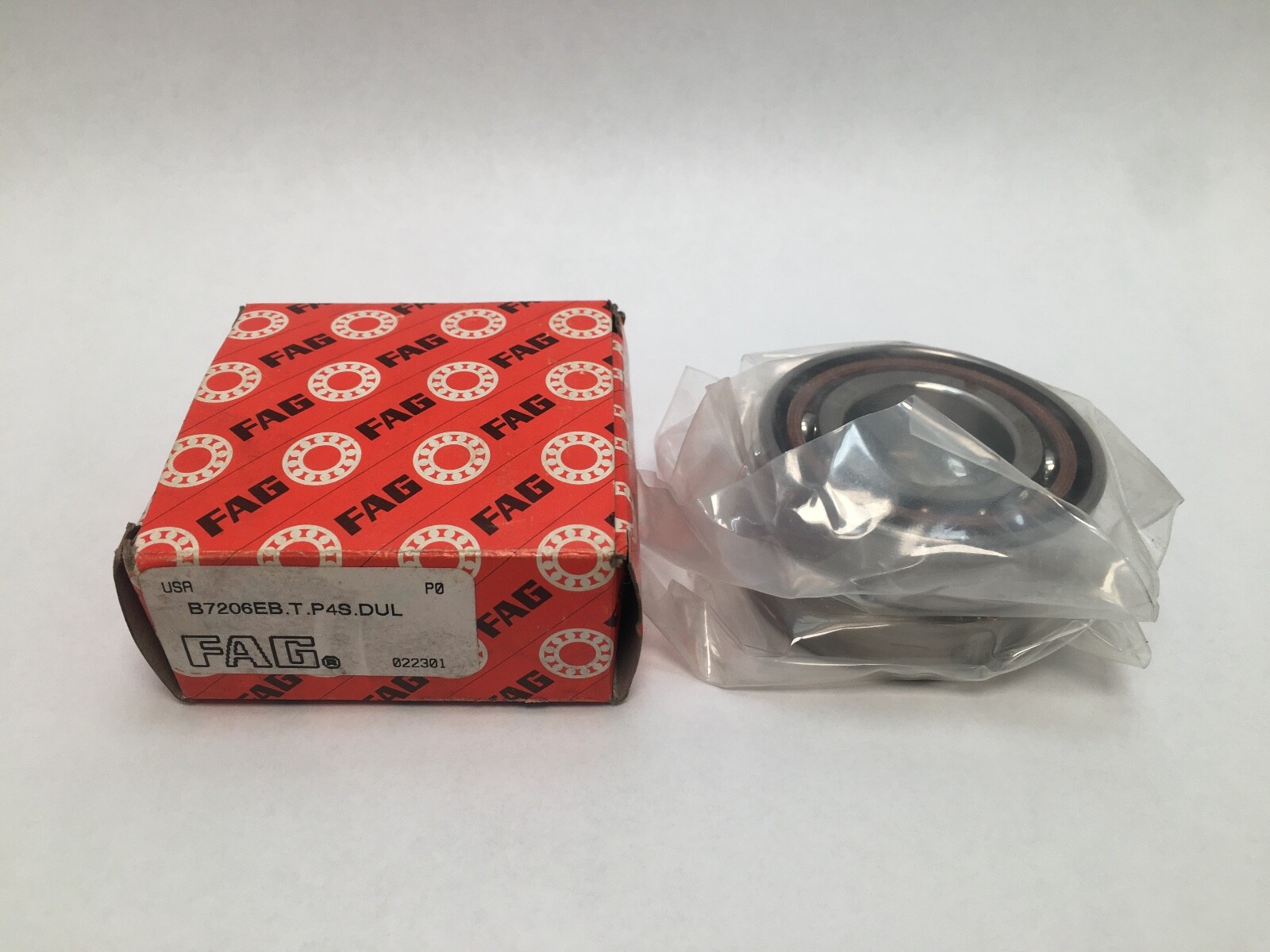

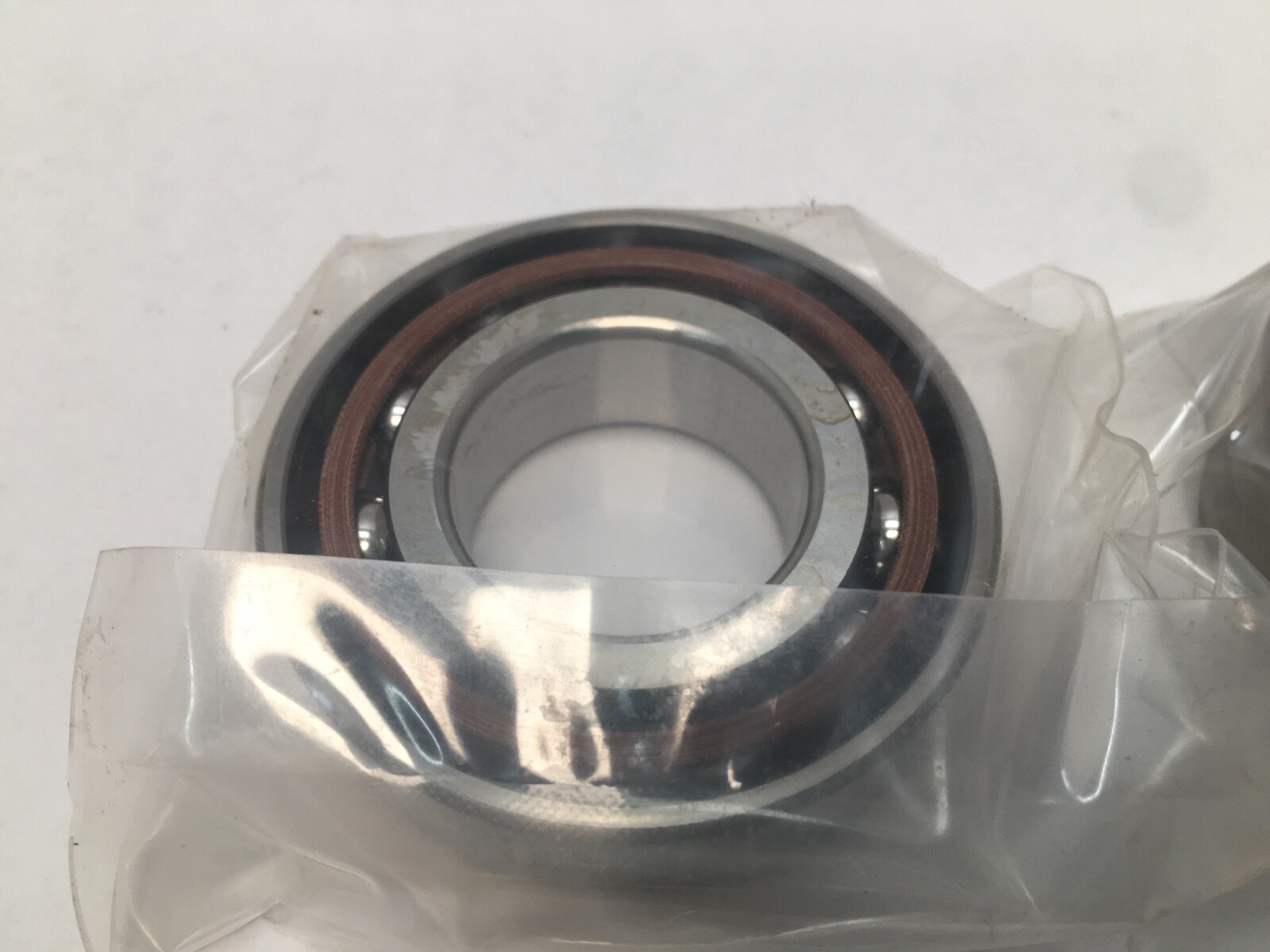

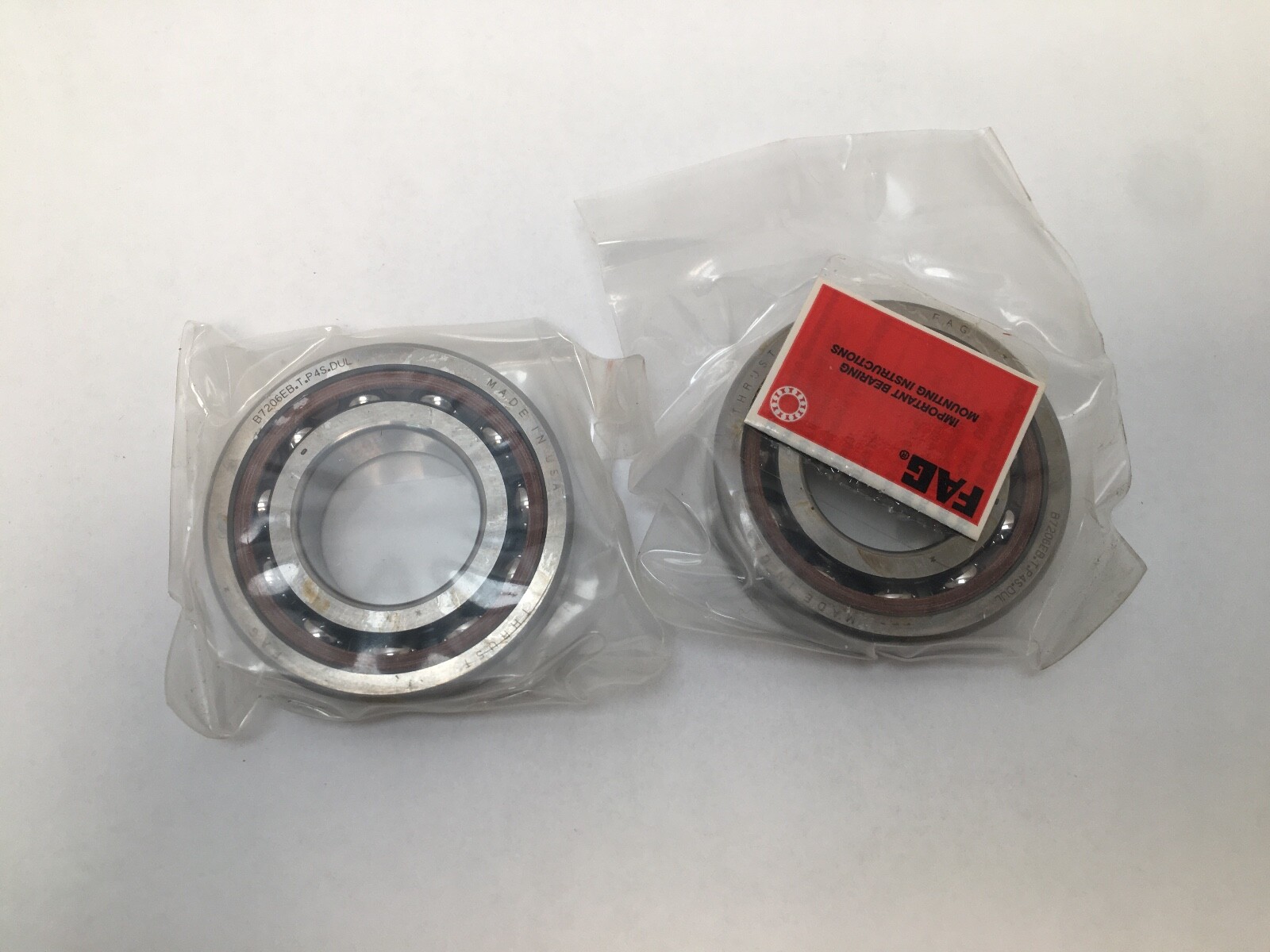

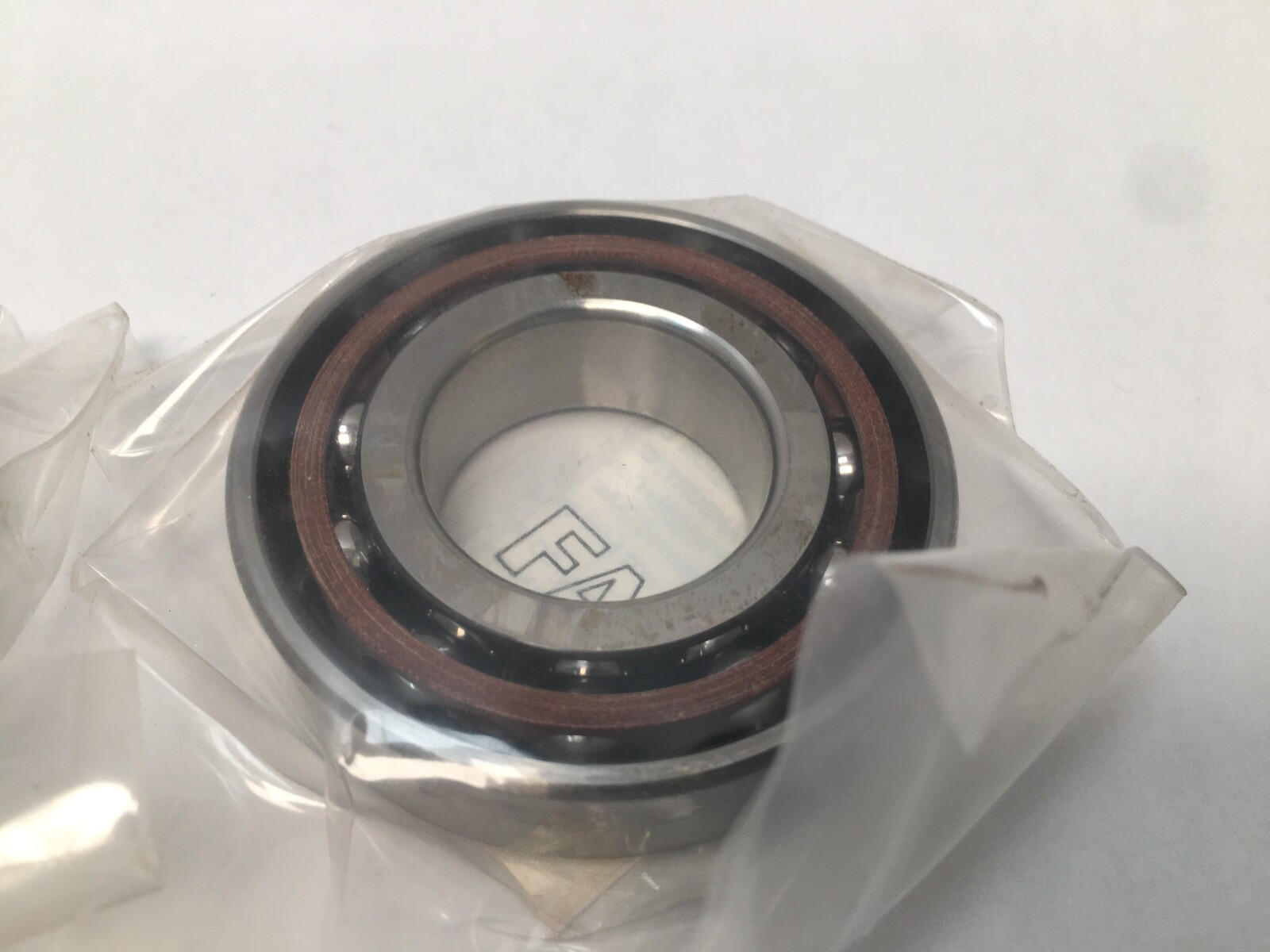

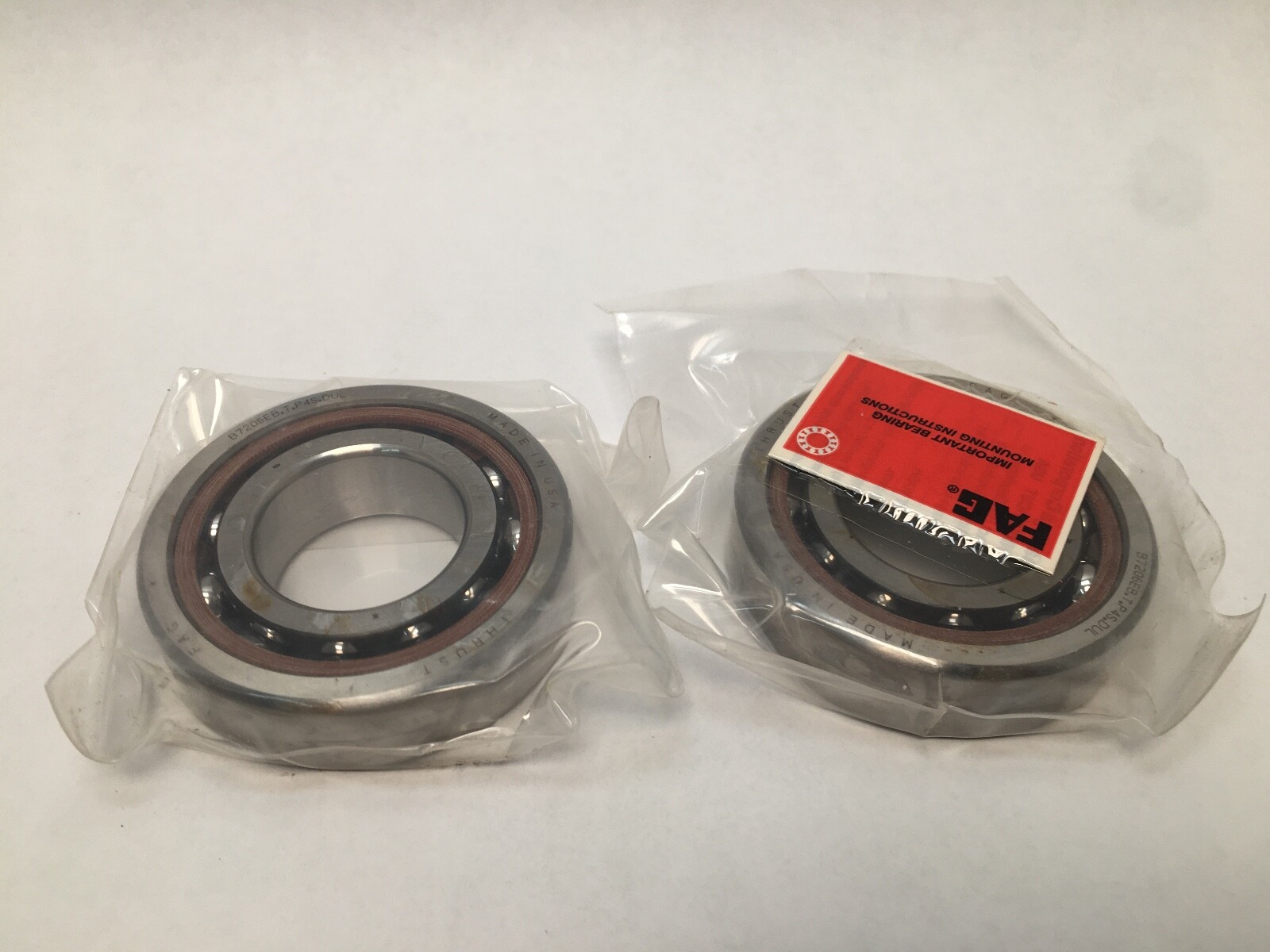

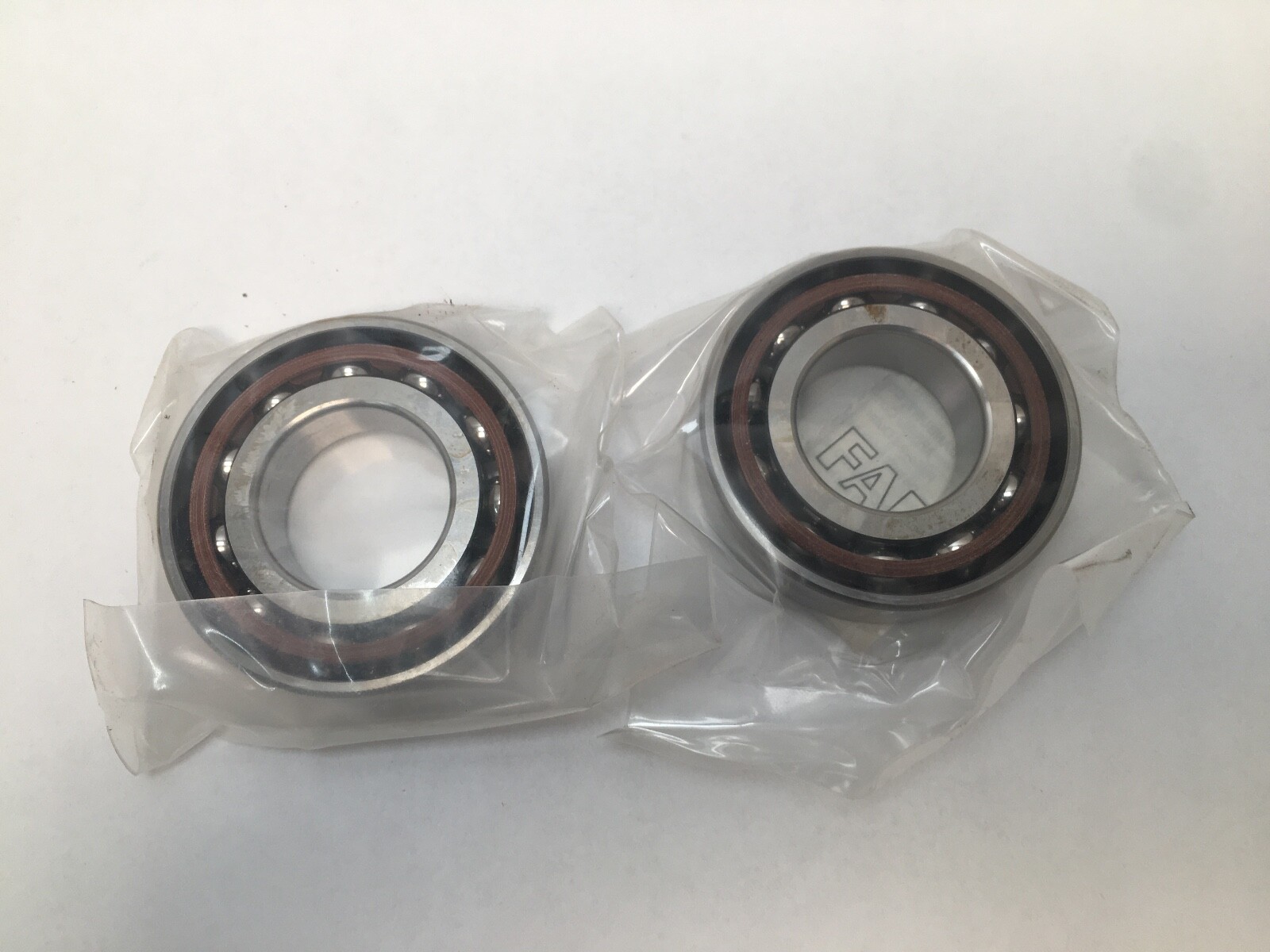

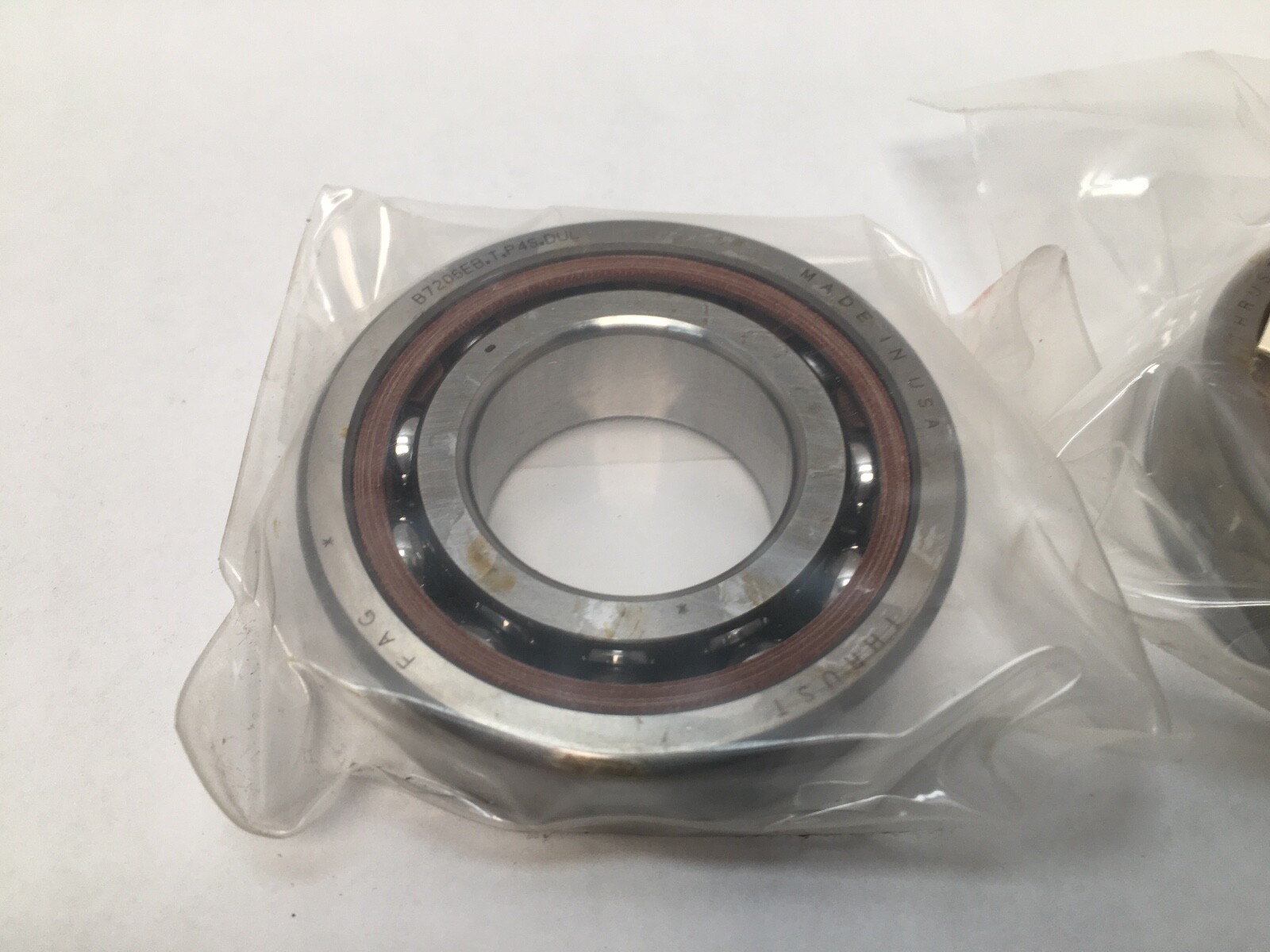

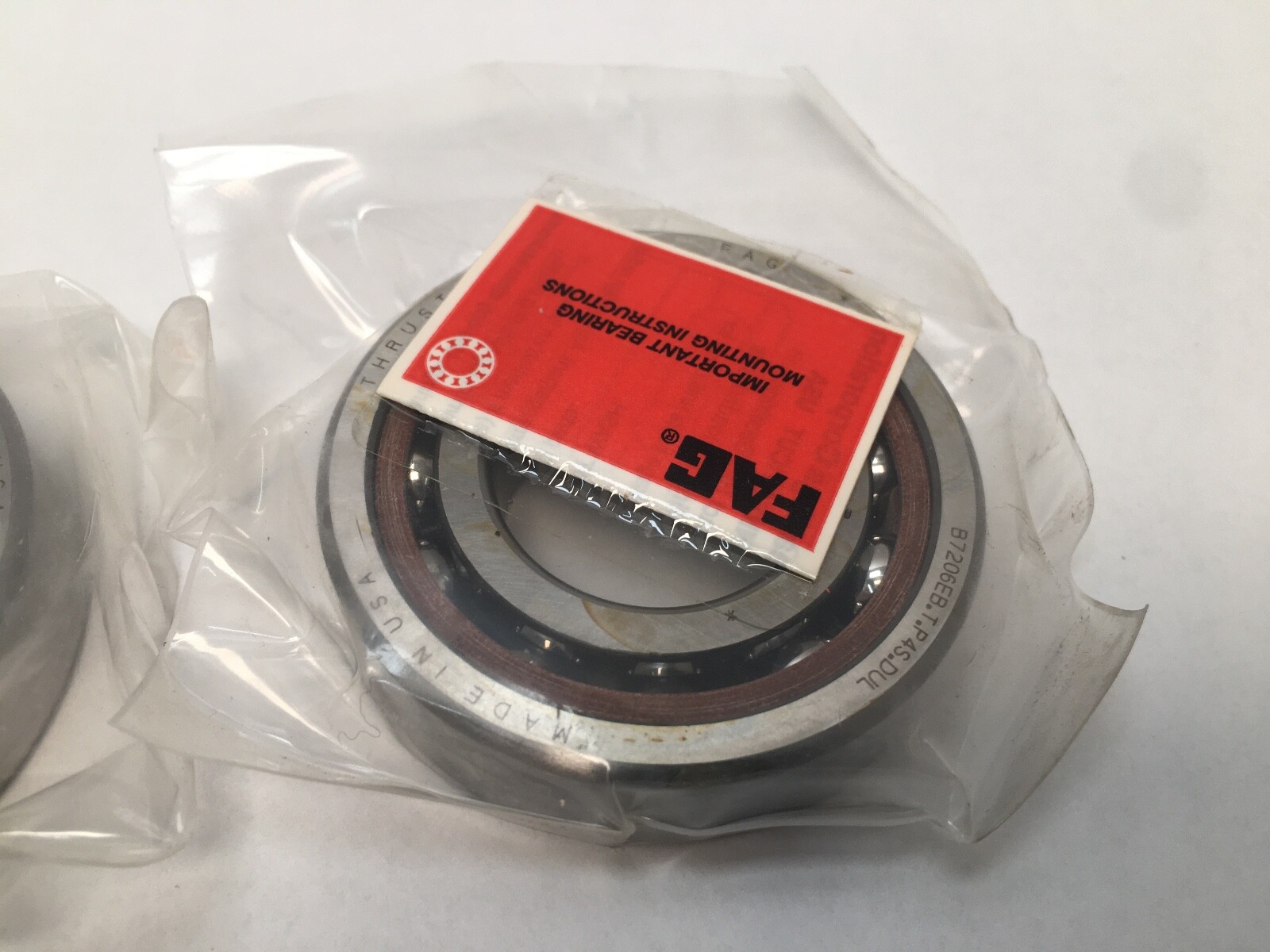

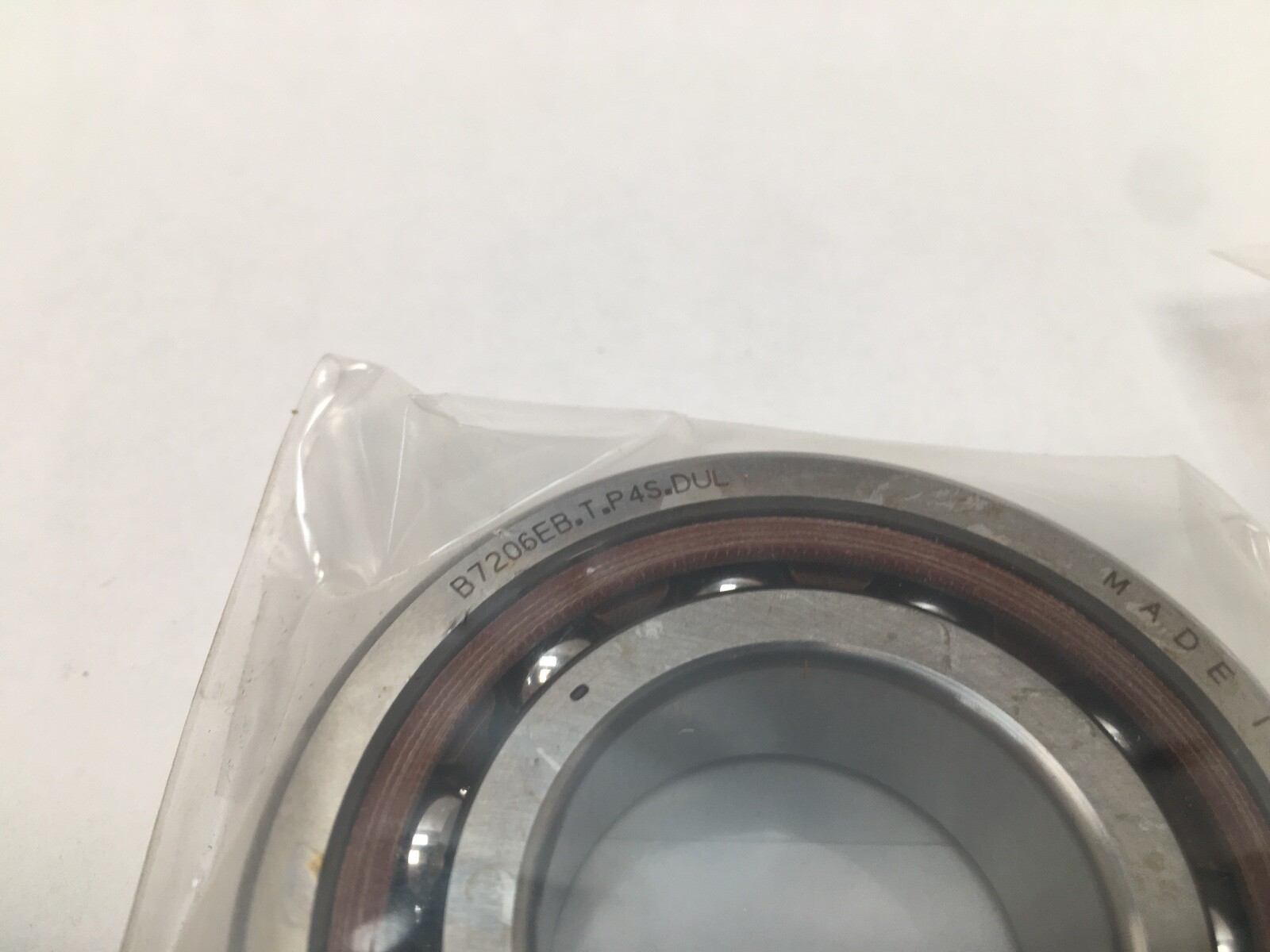

FAGB7206EB.T.P4S.DULAngular Contact Spindle Bearing Pair – 30 mm ID, 62 mm OD, 16 mm Width, 25° Contact Angle, ABEC 7 / P4S, Phenolic Cage, Light Preload

Condition: New

Availability:

2 in stock

Angular contact spindle bearing pair, 30 x 62 x 16 mm, 25° contact angle, ABEC 7 / P4S, phenolic cage, light preload. Universally matched FAG B7206E set.

Same day shipment

List Price

$142.99

2 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

2 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandFAG
MPNB7206EB.T.P4S.DUL
ModelB7206E B T P4S DUL / 3MM206WIDUL
Bearing TypeAngular Contact Ball Bearing, Open
ID30 mm
OD62 mm
Width16 mm

Technical Specifications

MaterialBearing Steel
SeriesB72
PreloadLight (177 N)
Total Width32 mm (pair)
Mpn VariantsB7206EBTP4SDUL, B7206EB.T.P4S.DUL, B-7206-EB-T-P4S-DUL, B7206E, 7206E
Precision ClassABEC 7 / P4S
Min Temp-30 °C
Dynamic Load Rating22,100 N
Static Load Rating9,900 N
Precision RatingABEC 7 / P4S
Rolling ElementsBall
Max Temp100 °C
Item Weight0.204 kg (0.45 lb) per bearing
Cage MaterialPhenolic
Number Of Rows1
Bore TypeStraight
Snap Ring IncludedNo
Harmonization Code8482.10.50
Contact Angle25°
Mounting ArrangementUniversal matched pair (DUL)
Closure TypeOpen

Cross-References

Cross Reference 1FAG B7206-E-T-P4S-UL - current Schaeffler number
Cross Reference 2SKF 7206 ACD/P4ADGA
Cross Reference 3Fafnir 3MM206WI DUL
Cross Reference 4RHP 7206ETRDULP4
Seller Part Number: B-AN3B1#YU0OIW

Product Description

What this part is:

FAG B7206EB.T.P4S.DUL, a universally matched pair of super-precision angular contact spindle bearings from the Schaeffler B72 series, 25° contact angle, light preload, open. Bore Diameter: 30 mm. Outside Diameter: 62 mm. Width: 16 mm per bearing. Unit Quantity: 2 Pcs, one matched pair.

Decoding the designation:

B7206 — FAG spindle bearing, ISO 7206 envelope, 30 x 62 x 16 mm.

E — Contact Angle: 25°, higher axial capacity and axial stiffness than the 15° C execution.

T — machined phenolic (fabric-reinforced laminate) cage.

P4S — Schaeffler restricted-tolerance class: P4 dimensional accuracy with tighter running accuracy.

DUL — two universally matched bearings with light preload, mountable back-to-back, face-to-face or in tandem.

Specifications:

Contact Angle: 25°. Bore Diameter: 30 mm. Outside Diameter: 62 mm. Width: 16 mm per bearing. Dynamic Load Rating: 22,100 N per bearing. Static Load Rating: 9,900 N per bearing. Precision Class: ABEC 7 / P4S. Cage Material: Phenolic. Preload: Light, 177 N (Schaeffler FV L). Operating Temperature: -30 to 100 °C. Item Weight: 0.204 kg (0.45 lb) per bearing. Rolling Elements: Ball. Number Of Rows: 1 per bearing. Bore Type: Straight. Closure Type: Open. Series: B72.

Dimensions and mounting:

Shaft Shoulder Diameter: 37.5 mm. Housing Shoulder Diameter: 54.5 mm. Mounting Arrangement: universal matched pair (DUL).

Compatibility and replacement:

Cross-references: FAG B7206-E-T-P4S-UL (current Schaeffler number); SKF 7206 ACD/P4ADGA; Fafnir 3MM206WI DUL; RHP 7206ETRDULP4. All at 25° and P4 class.

Frequently asked questions:

What are the dimensions of the FAG B7206EB.T.P4S.DUL?

Bore Diameter: 30 mm. Outside Diameter: 62 mm. Width: 16 mm per bearing.

What are the load ratings of the FAG B7206EB.T.P4S.DUL?

Dynamic Load Rating: 22,100 N per bearing. Static Load Rating: 9,900 N per bearing.

What do E, P4S and DUL mean in B7206EB.T.P4S.DUL?

E denotes a 25° contact angle, P4S denotes Schaeffler restricted-tolerance class P4S, and DUL denotes a universally matched pair with light preload.
