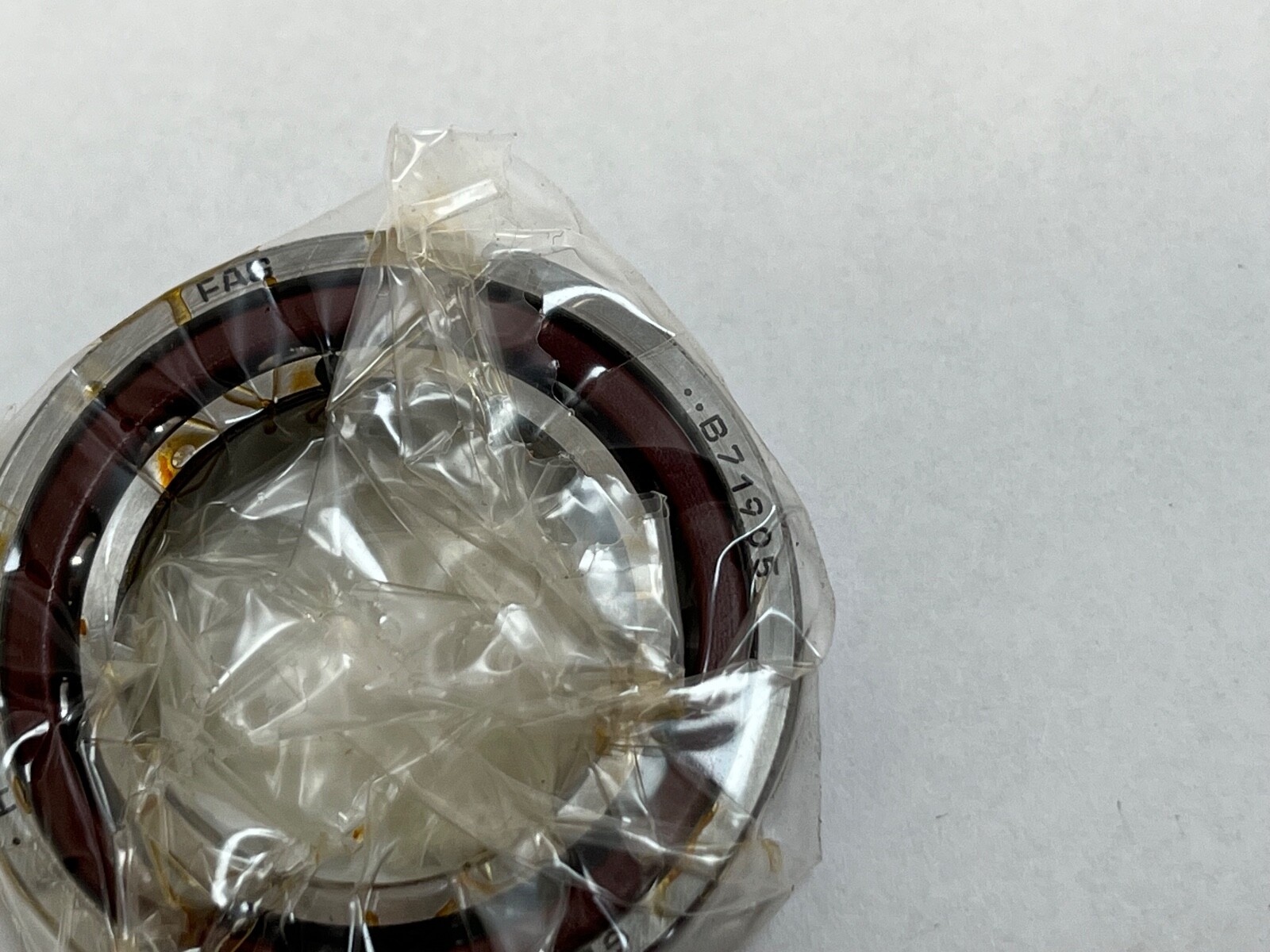

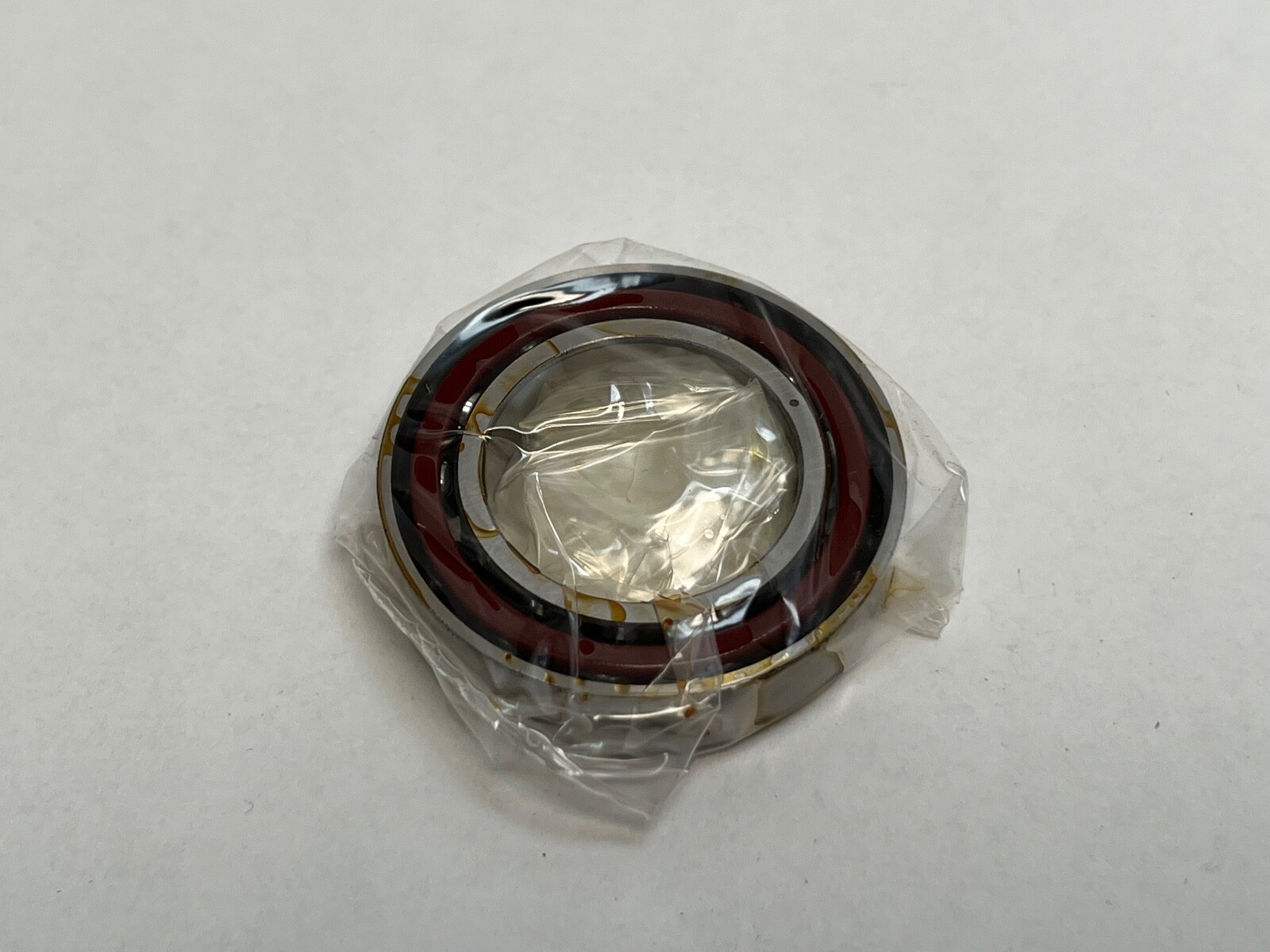

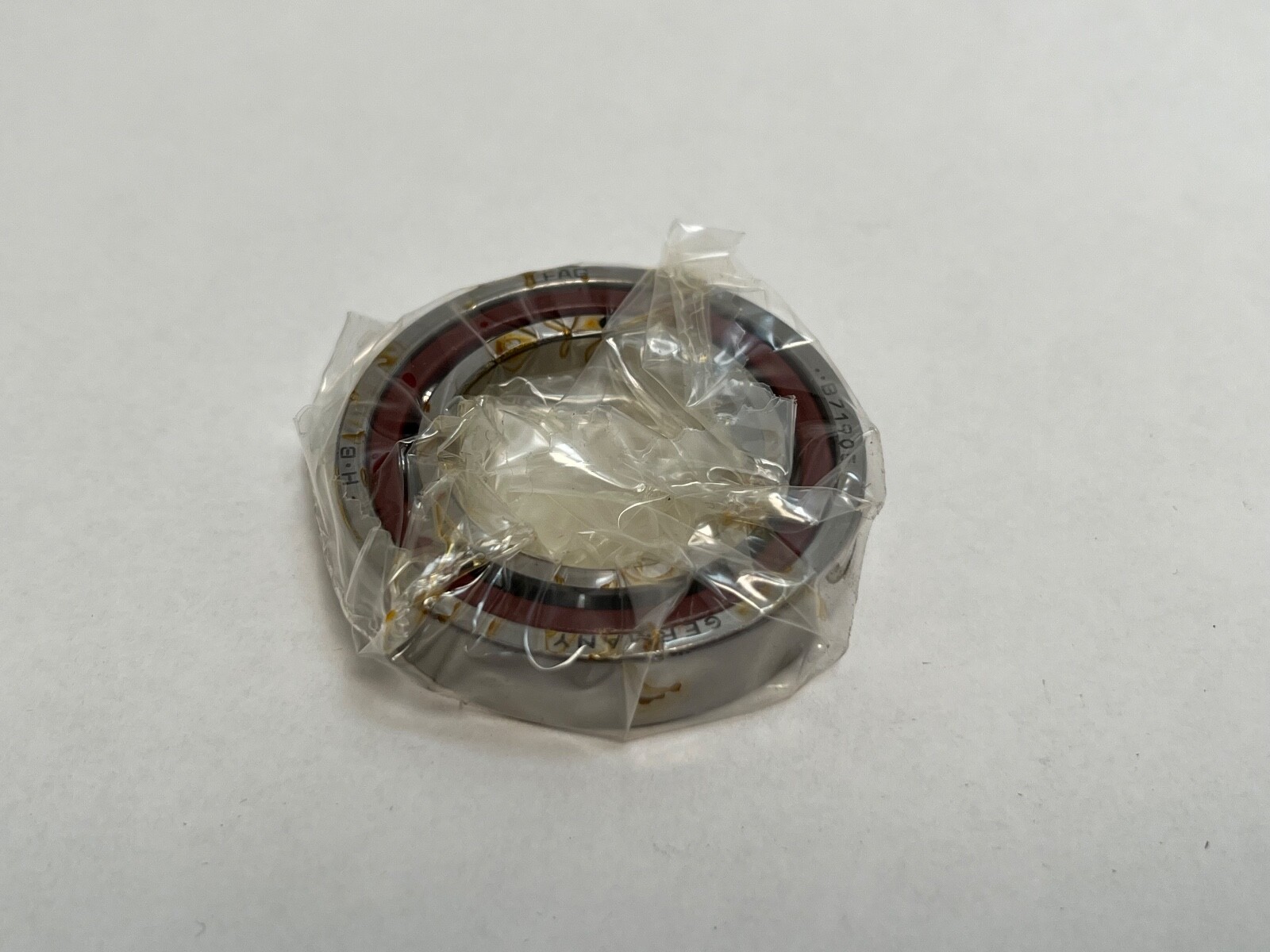

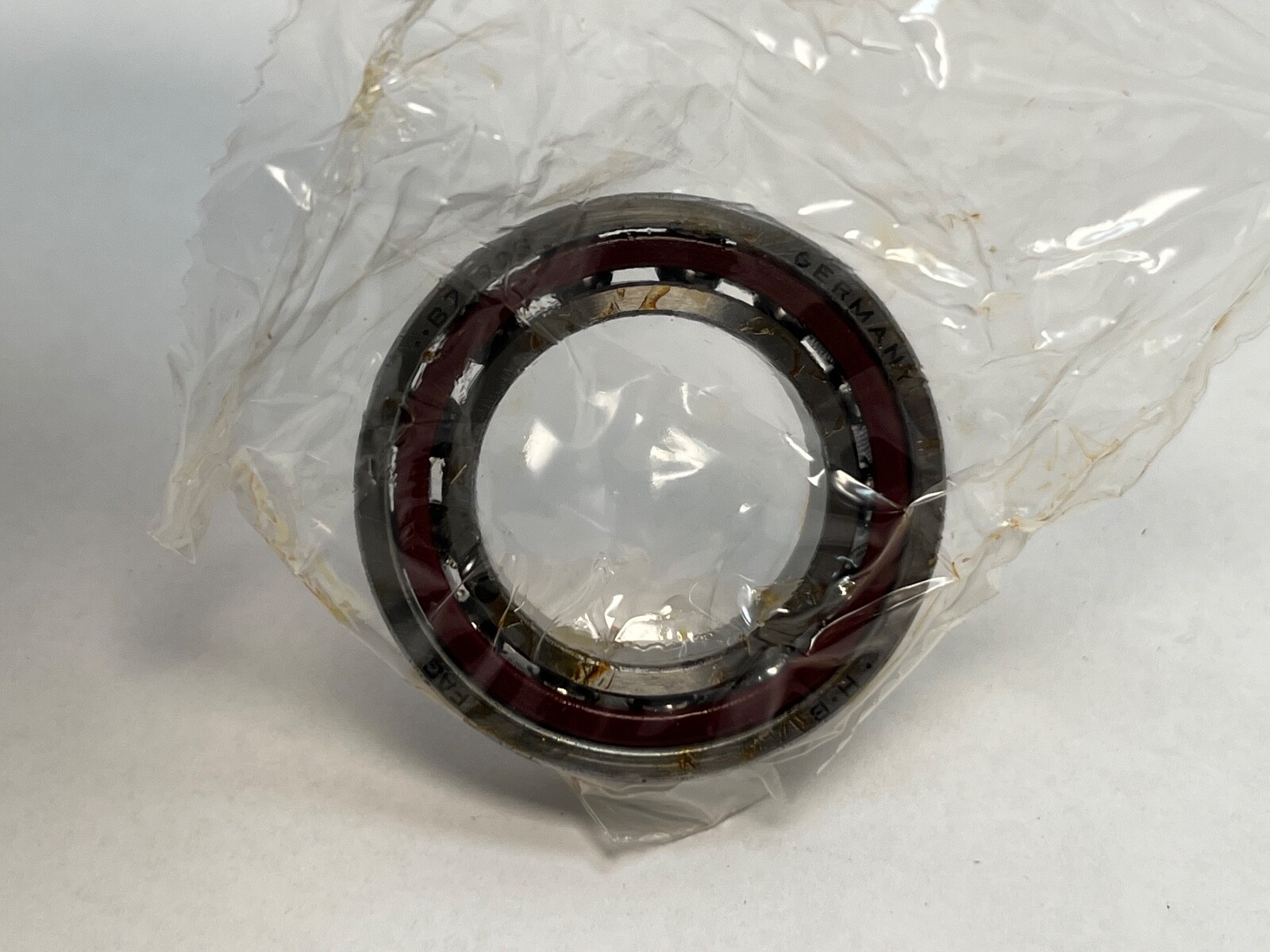

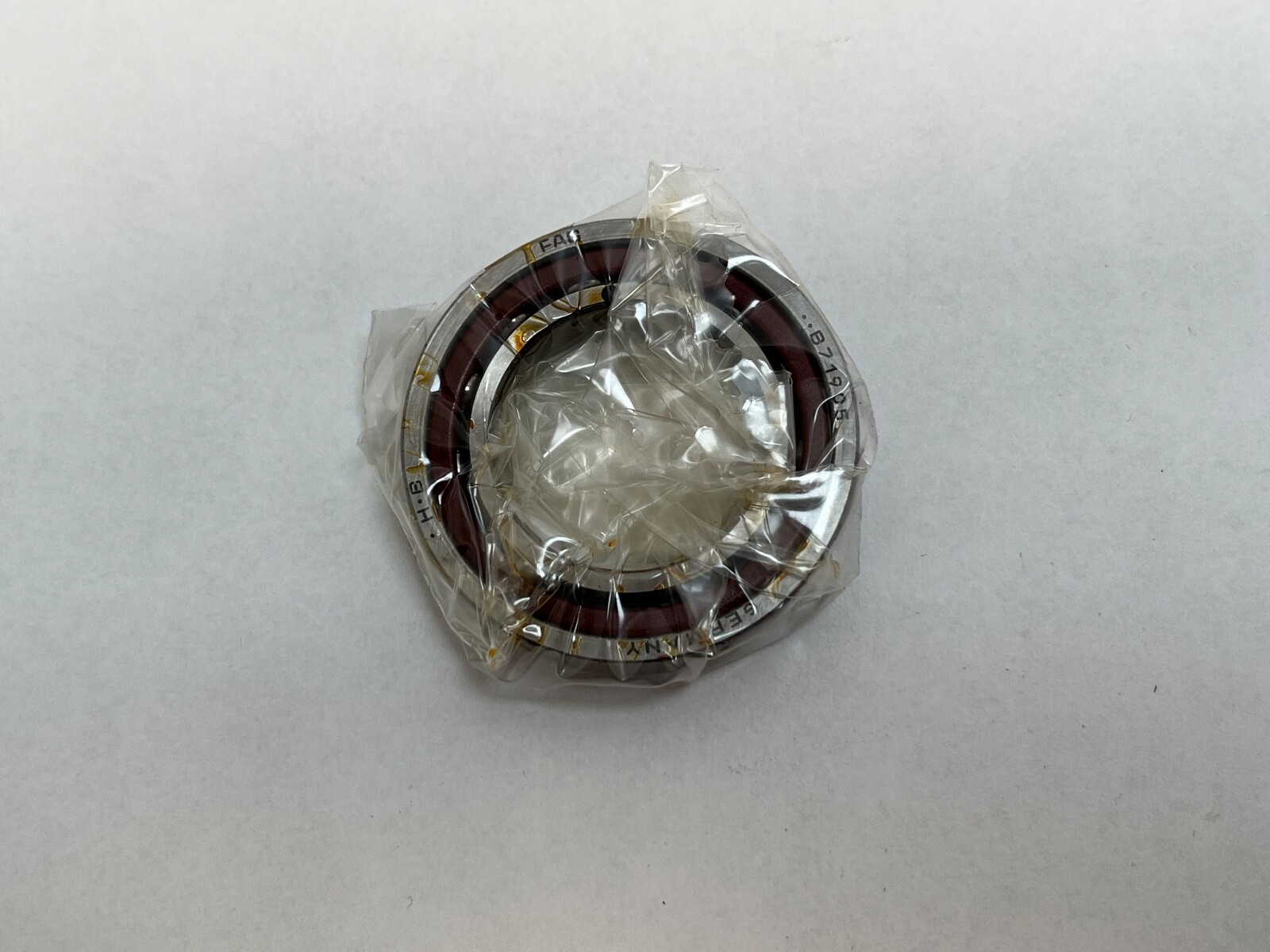

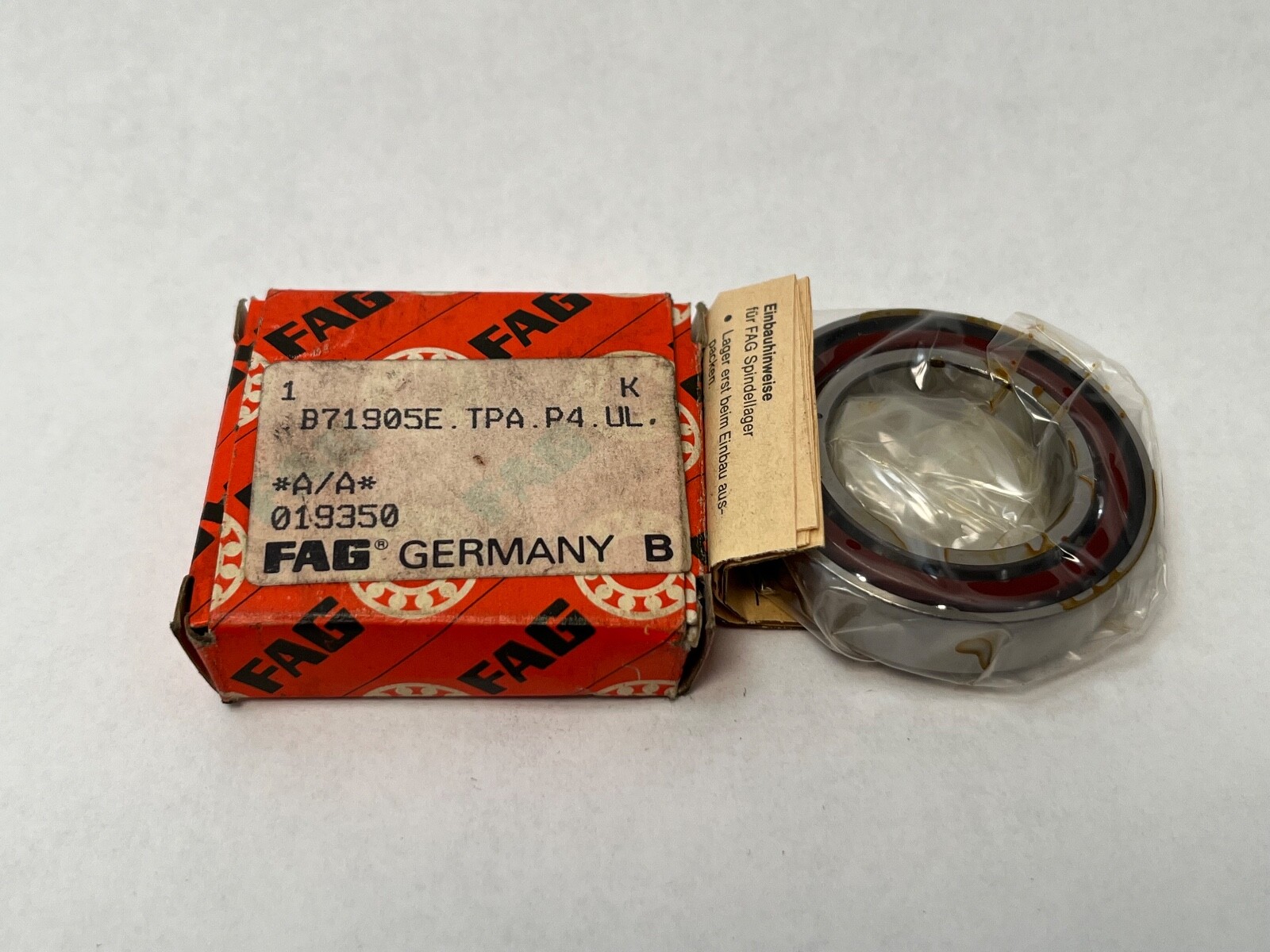

FAGB71905E.TPA.P4.ULAngular Contact Ball Bearing – 25 mm ID, 42 mm OD, 9 mm Width, Open, 25°, ABEC 7 / P4, Phenolic Cage

Condition: New

Availability:

4 in stock

Super-precision spindle angular contact ball bearing, 25 x 42 x 9 mm, 25° contact angle, phenolic cage, universally matchable for any arrangement.

List Price

$144.99

4 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

4 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandFAG
MPNB71905E.TPA.P4.UL
ModelB71905-E-T-P4S-UL
Bearing TypeAngular Contact Ball Bearing, Open
ID25 mm
OD42 mm
Width9 mm

Technical Specifications

MaterialChrome steel
SeriesB719
LubricantGrease or oil
PreloadUniversal; light 41 N, medium 191 N, heavy 432 N per pair
Base NumberB71905
Mpn VariantsB71905E.TPA.P4.UL; B71905ETPAP4UL; B71905-E-T-P4S-UL; B71905E.T.P4S.UL; B 71905 E TPA P4 UL; 71905; 7905
Precision ClassABEC 7 / P4
Min Temp-30 °C
Cage TypeMachined
Dynamic Load Rating7,600 N
Static Load Rating3,600 N
Precision RatingABEC 7 / P4
Rolling ElementsBall
Max Temp100 °C
Item Weight0.044 kg (0.10 lb)
Cage MaterialPhenolic
Limiting Speed32,000 rpm grease; 50,000 rpm oil
Number Of Rows1
Bore TypeStraight
Harmonization Code8482.10.50
Contact Angle25°
Mounting ArrangementUniversal — back-to-back, face-to-face or tandem
Bearing MaterialChrome steel
Part NumberB71905E.TPA.P4.UL
Closure TypeOpen

Cross-References

Cross Reference 1SKF 71905 ACD/P4A
Cross Reference 2NSK 71905A5
Cross Reference 3RHP 71905A5
Seller Part Number: B-AK1B3#HVBNQD

Product Description

What this part is:

FAG B71905E.TPA.P4.UL is a super-precision spindle angular contact ball bearing, universally matchable, supplied as a single bearing. Unit Quantity: 1 Pc. Bore Diameter: 25 mm. Outside Diameter: 42 mm. Overall Width: 9 mm. Contact Angle: 25°.

Decoding the designation:

B719 — Schaeffler’s spindle bearing series in the extra-light 719 section.

71905 — ISO size code. Bore 25 mm, outside diameter 42 mm, width 9 mm.

E — Contact angle 25°. On a B70 or B719 designation the E is an angle code, not the general FAG reinforced-design code.

TPA — Fabric-base laminate phenolic cage, machined.

P4 — Precision Class: ABEC 7 / P4.

UL — Universally matchable. Faces are ground so any two or more bearings pair in back-to-back, face-to-face or tandem arrangement.

Specifications:

Dynamic Load Rating: 7,600 N. Static Load Rating: 3,600 N. Limiting Speed: 32,000 rpm grease; 50,000 rpm oil. Fatigue Load Limit, radial: 380 N. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Cage Type: Machined. Lubricant: grease or oil. Operating Temperature: -30 °C to +100 °C. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Bearing Material: Chrome steel. Item Weight: 0.044 kg (0.10 lb). Series: B719. Base Number: B71905.

Dimensions and mounting:

Preload per matched pair: light 41 N, medium 191 N, heavy 432 N. Mounting Arrangement: Universal — back-to-back (O), face-to-face (X) or tandem.

Compatibility and replacement:

SKF 71905 ACD/P4A. NSK 71905A5. RHP 71905A5. MPN Variants: B71905E.TPA.P4.UL, B71905ETPAP4UL, B71905-E-T-P4S-UL, B71905E.T.P4S.UL, B 71905 E TPA P4 UL, 71905, 7905.

Frequently asked questions:

What size is the FAG B71905E.TPA.P4.UL?

25 mm bore, 42 mm outside diameter, 9 mm width.

What contact angle does the E in the designation give?

25°. On a B719 designation the E is the contact angle code.

What are the cage and precision class?

Machined fabric-base laminate phenolic cage (TPA) and precision class ABEC 7 / P4.
