Angular Contact Ball Bearing — 20 mm ID, 37 mm OD, 9 mm Width, 15° Contact Angle, P4, Phenolic Cage, Universal Light Preload$47.52
Angular Contact Ball Bearing - 20 mm ID, 37 mm OD, 9 mm Width, Open, 25° Contact Angle, Light Preload.$72.05
Angular Contact Ball Bearing Duplex Pair - 20 mm ID, 37 mm OD, 9 mm Width, Open, 15° Contact Angle, P4$95.00
Angular Contact Ball Bearing - Straight Bore, 20 mm ID, 37 mm OD, 9 mm Width, Open, 25° Contact Angle, Extra Light Preload.$113.92| MFR / Brand | FAG |
|---|---|
| MPN | B71904CTPAP4UL |
| Model | B 71904 C TPA P4 UL / 2MM9304WI CR SUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 20 mm |
| OD | 37 mm |
| Width | 9 mm |
| Material | Bearing Steel |
|---|---|
| Series | 71900 |
| Lubricant | Oil |
| Preload | Light |
| Min Temp | -30 °C |
| Cage Type | Phenolic |
| Dynamic Load Rating | 6.4 kN |
| Static Load Rating | 3.5 kN |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.08 lbs |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal |
| Limiting Speed | 38000 rpm |
| Cross Reference 1 | SKF 71904 CDGA/P4 |
|---|---|
| Cross Reference 2 | NSK 7904CTYNSULP4 |

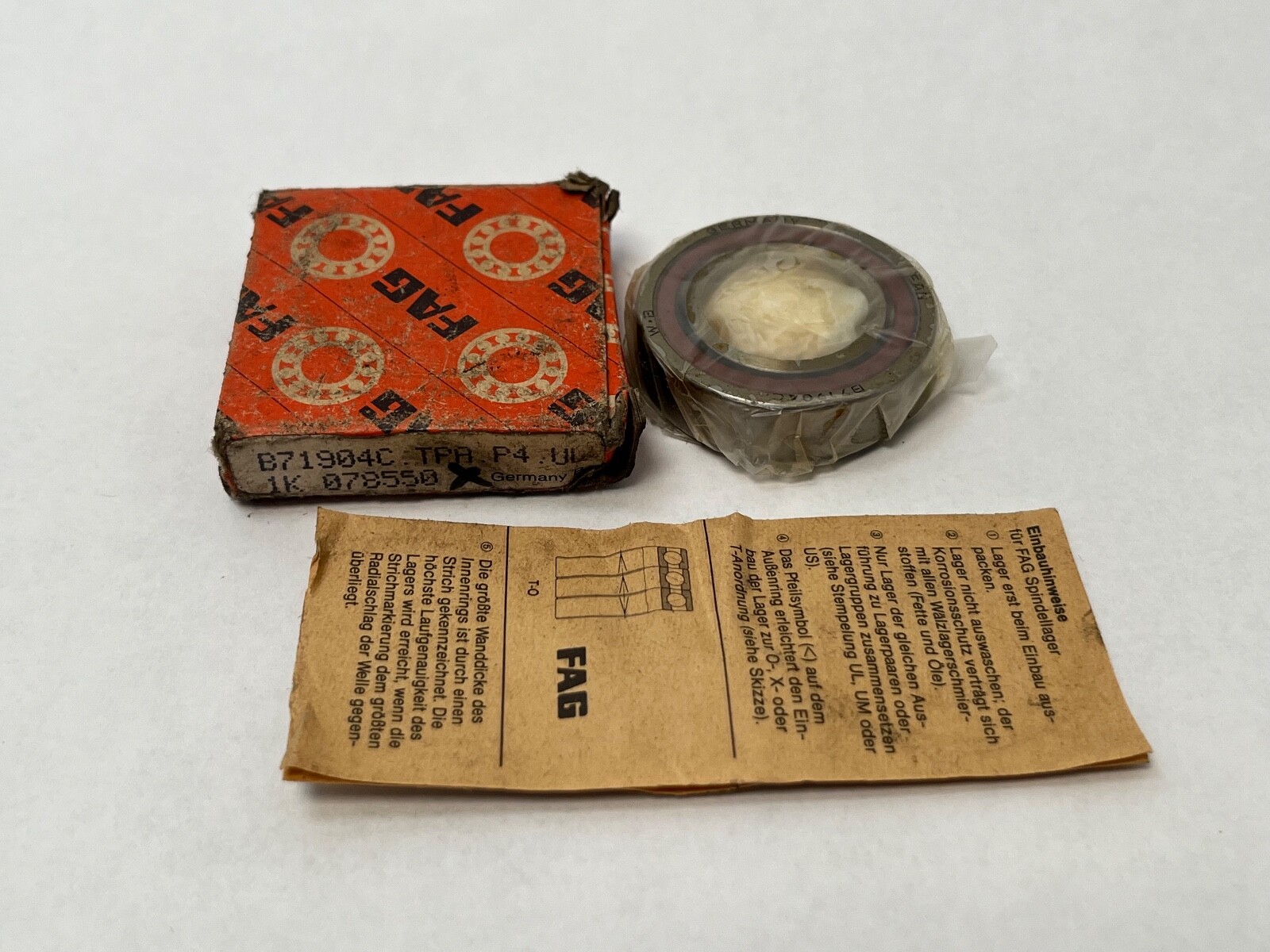

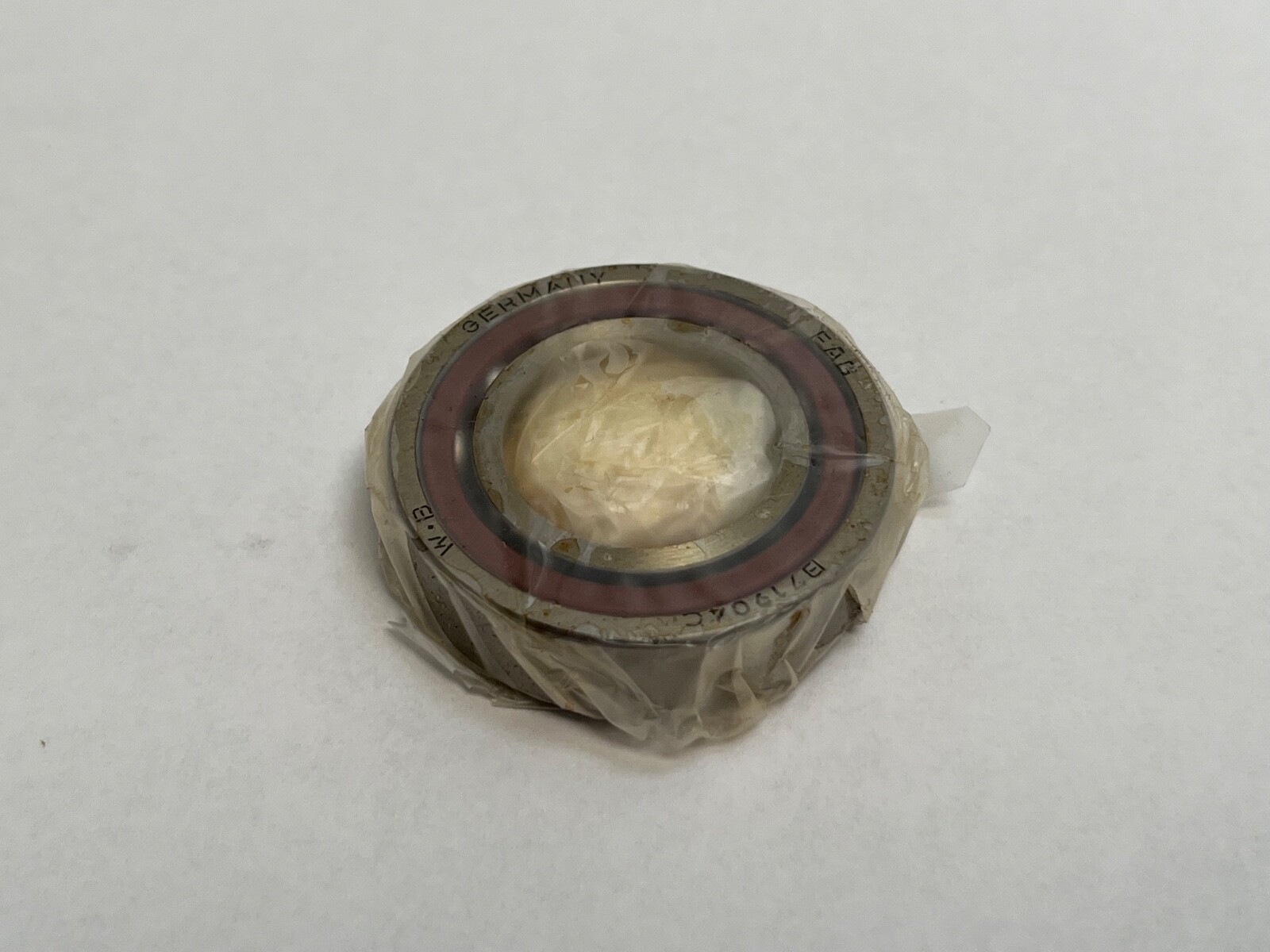

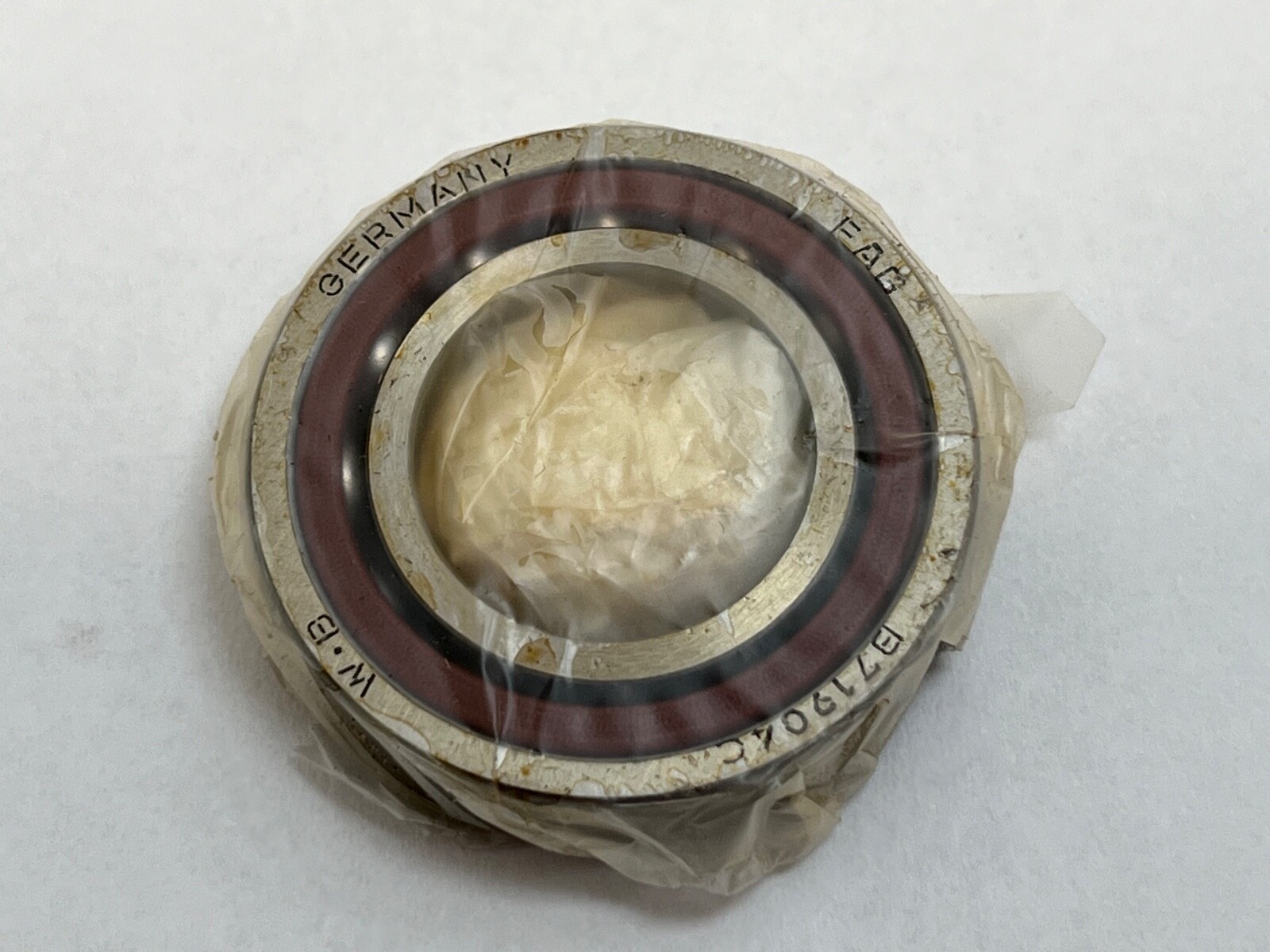

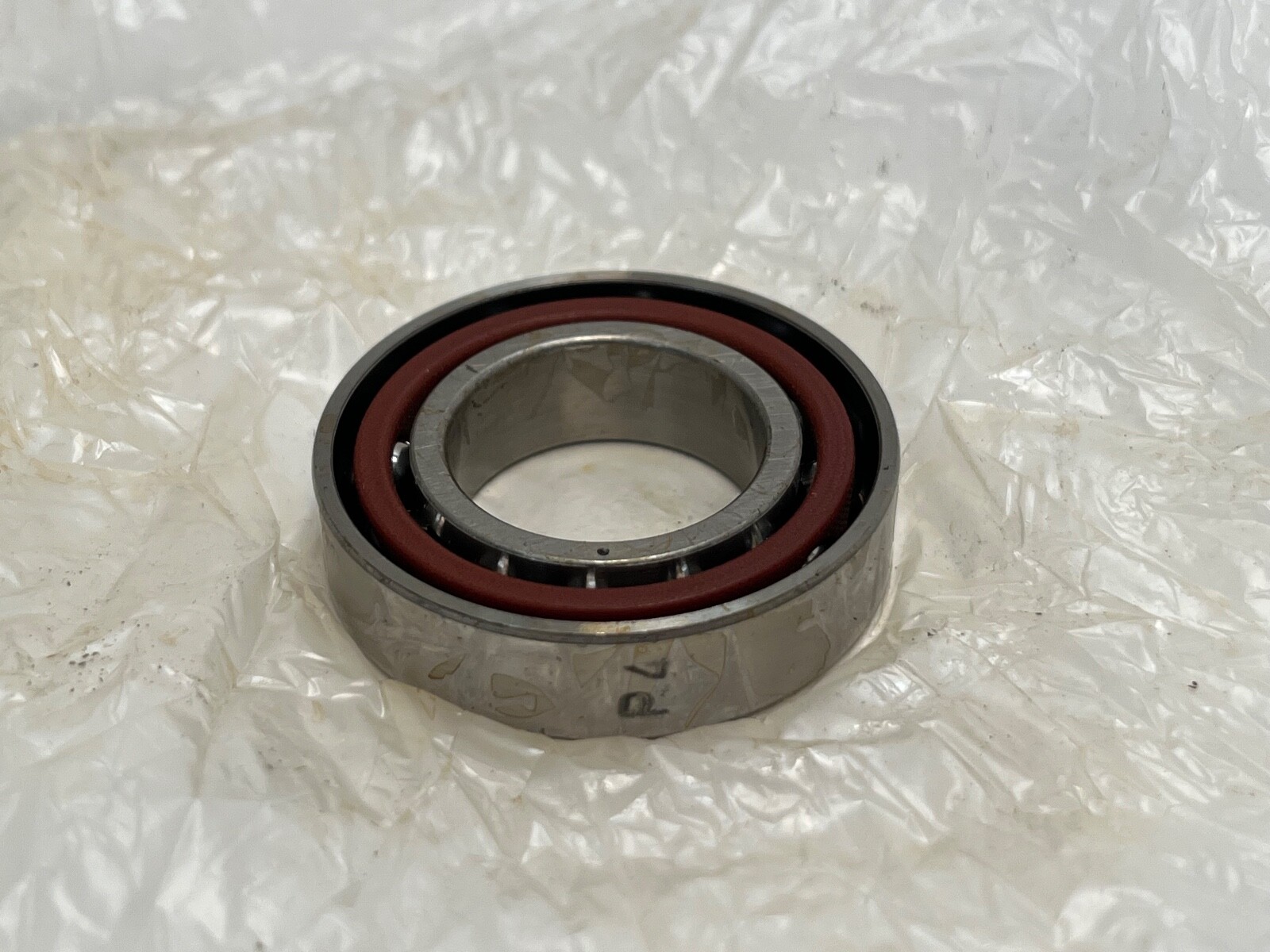

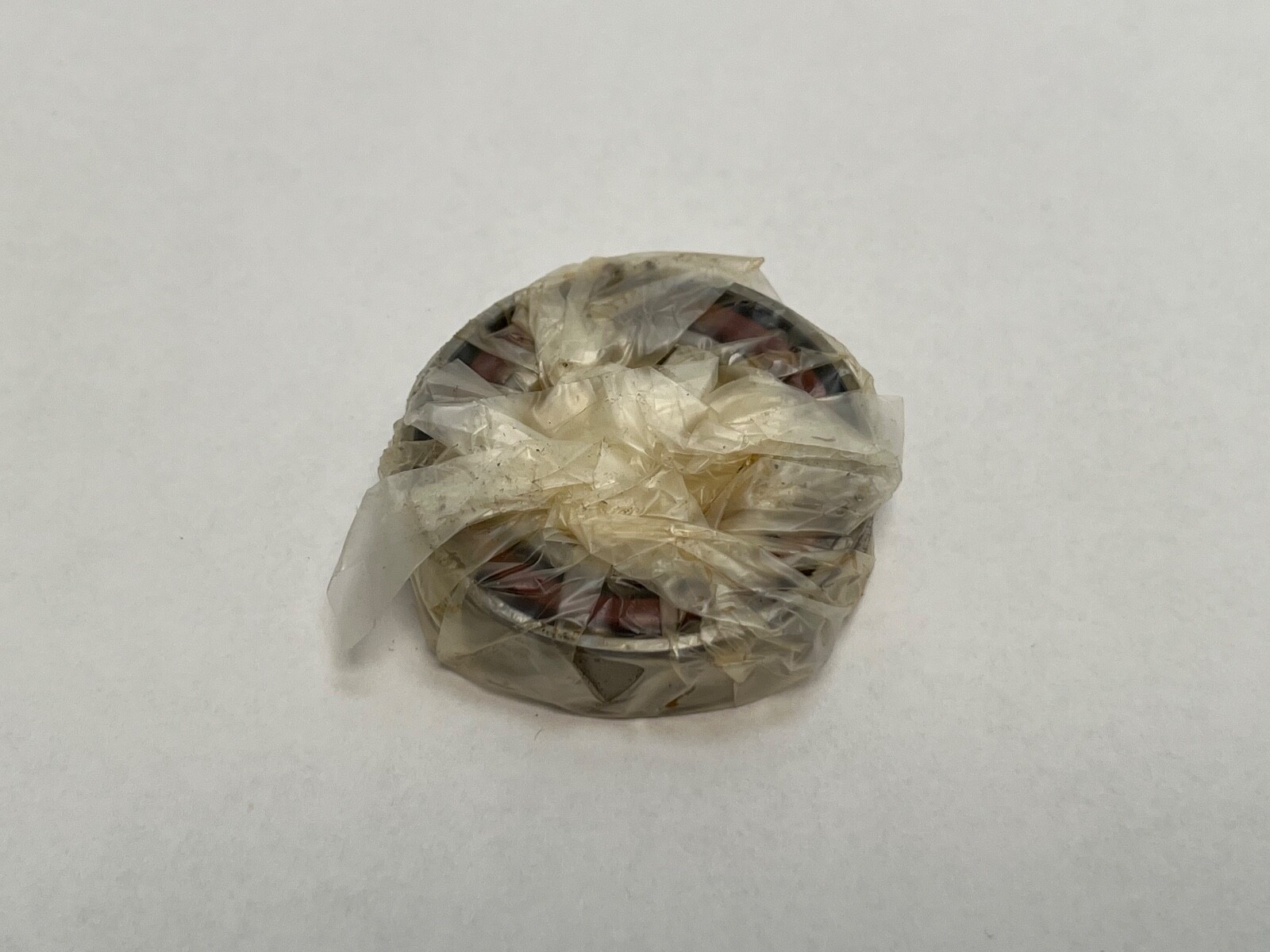

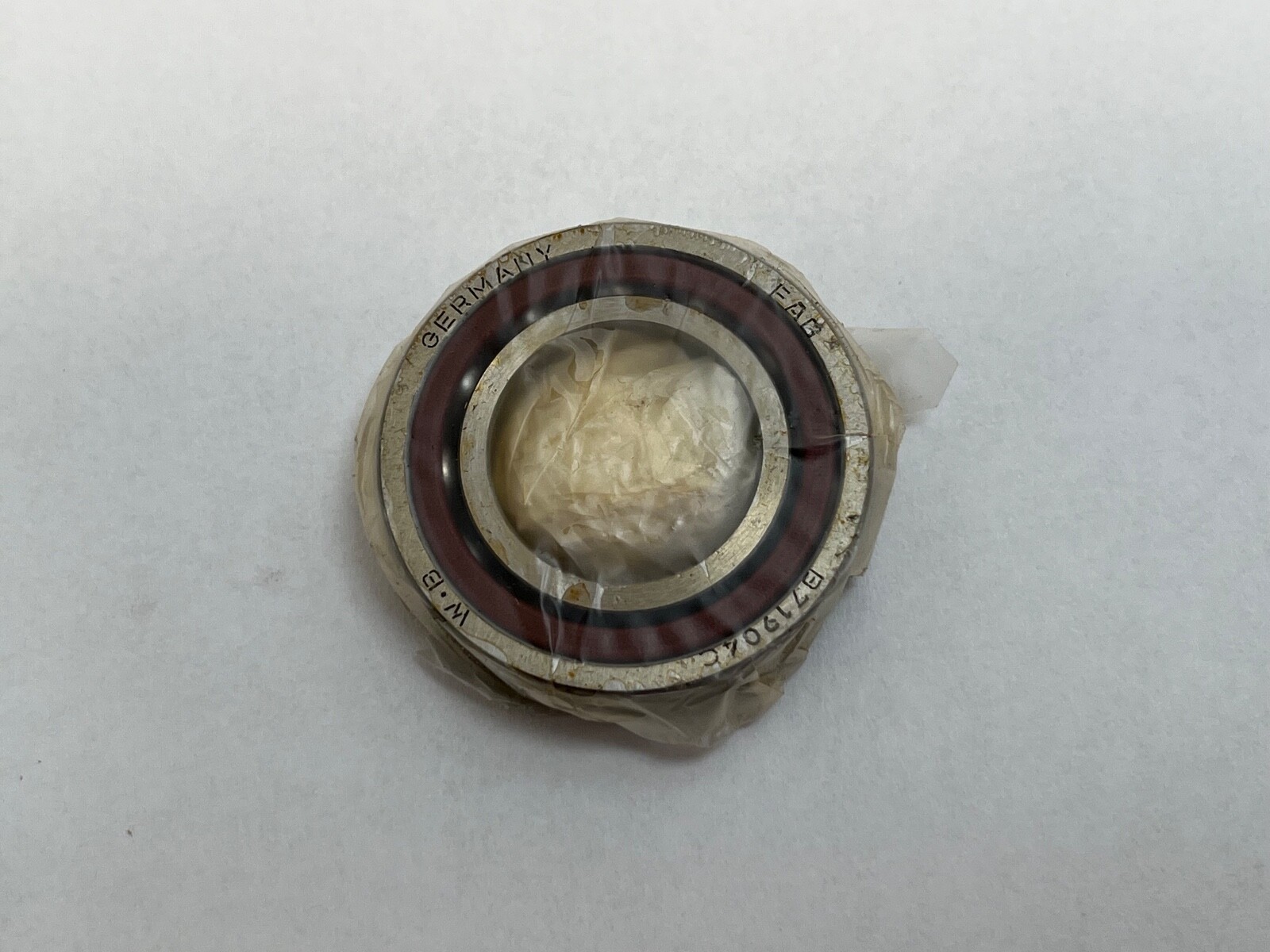

Introducing the FAG B71904C.TPA.P4.UL Angular Bearing – Precision-engineered for optimal performance and reliability. This small yet powerful ball bearing boasts dimensions of 20x37x9mm, ideal for a wide range of applications where durability and efficiency are paramount. Crafted with excellence in Germany, the FAG brand is synonymous with quality, making this Angular Contact Ball Bearing an essential component for various machinery and equipment. Its model number, B71904C.TPA.P4.UL, reflects its high standard of engineering, ensuring that it meets exacting industry specifications. Key Features: Type: Angular Contact Ball Bearing Brand: FAG – recognized for outstanding reliability and performance Model: B 71904 C TPA P4 UL Condition: Brand New Manufactured in Germany Whether you are in manufacturing, automotive, or any sector requiring precision bearings, the FAG B71904C.TPA.P4.UL is your solution for enhancing productivity and reducing maintenance costs. We offer competitive prices and combined shipping on all orders, with options for international shipping available. Fast and Efficient Shipping: Experience same-day shipping on all items, with next-day delivery options available at checkout. Contact us if you cannot find the parts you need; we are here to assist you in obtaining the right components at the best prices. Elevate your machinery’s performance with FAG quality today!
