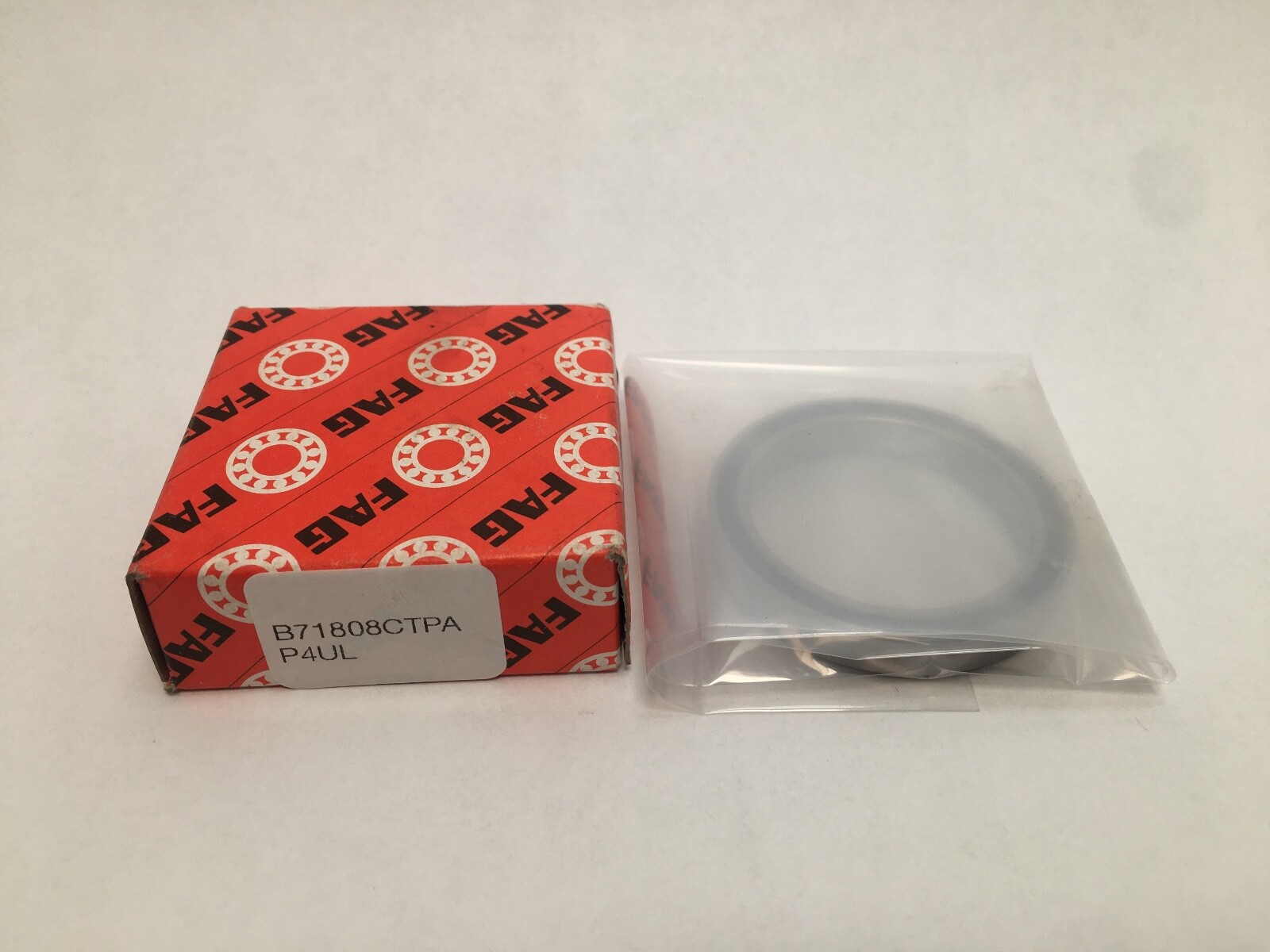

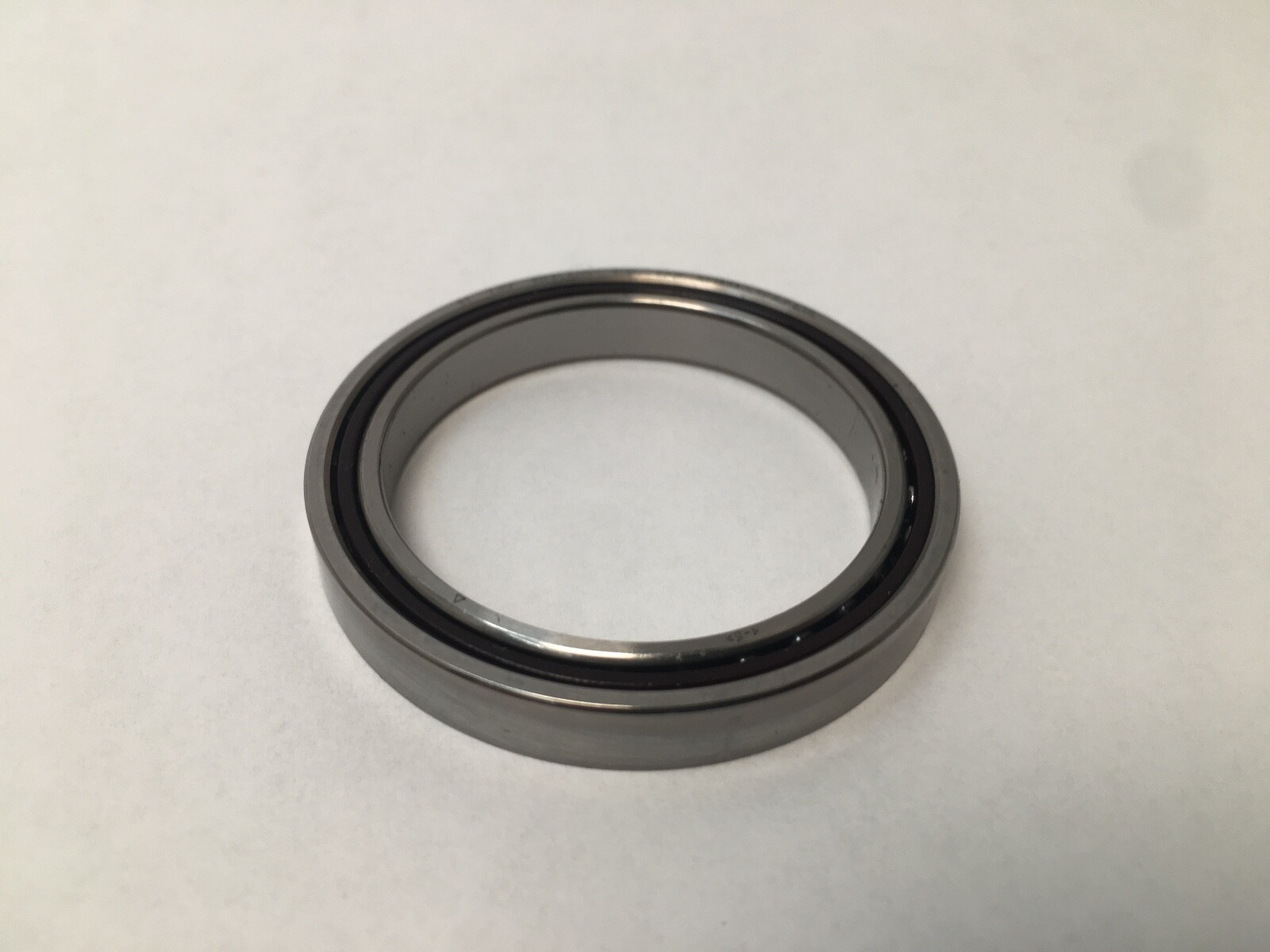

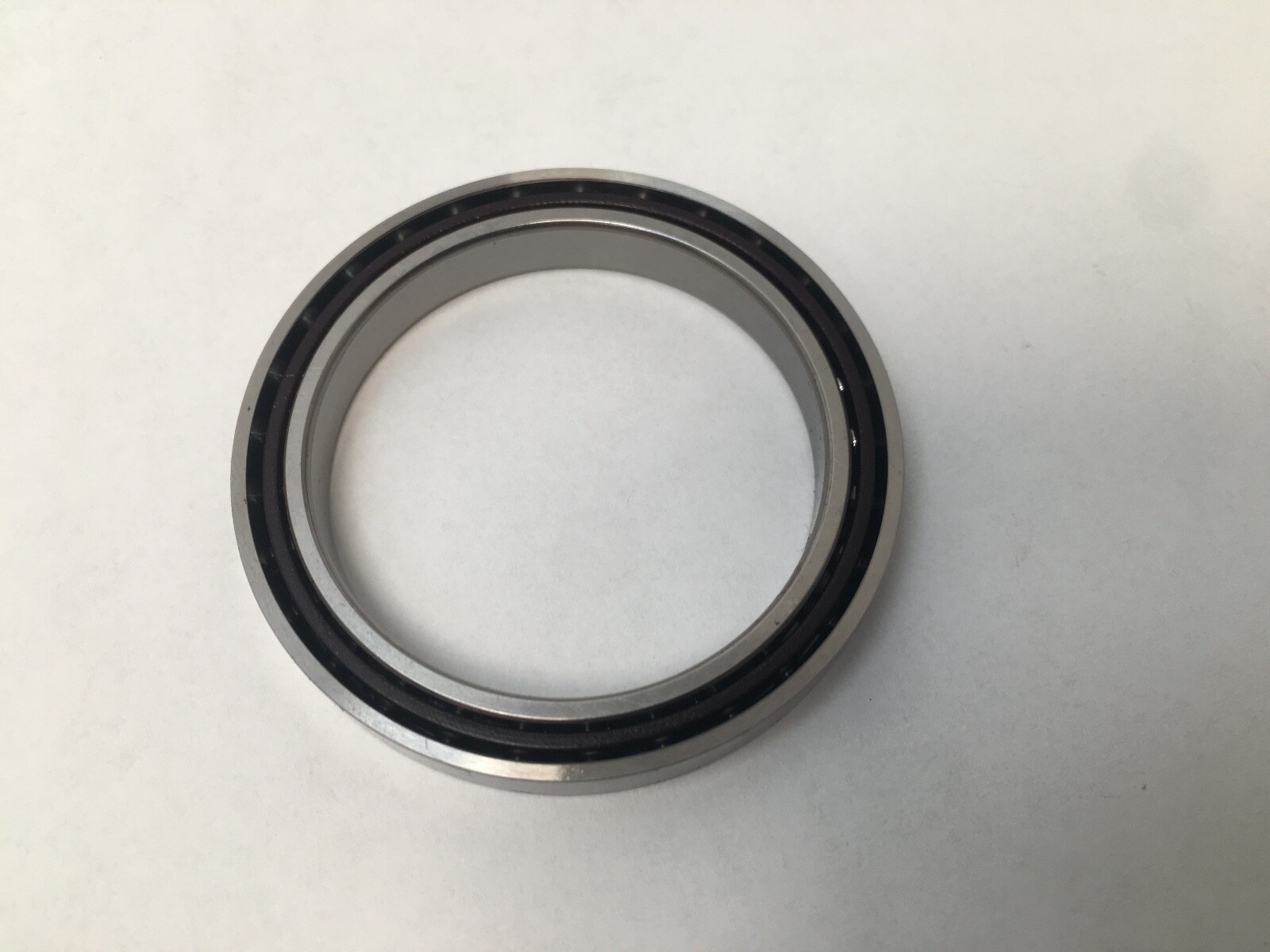

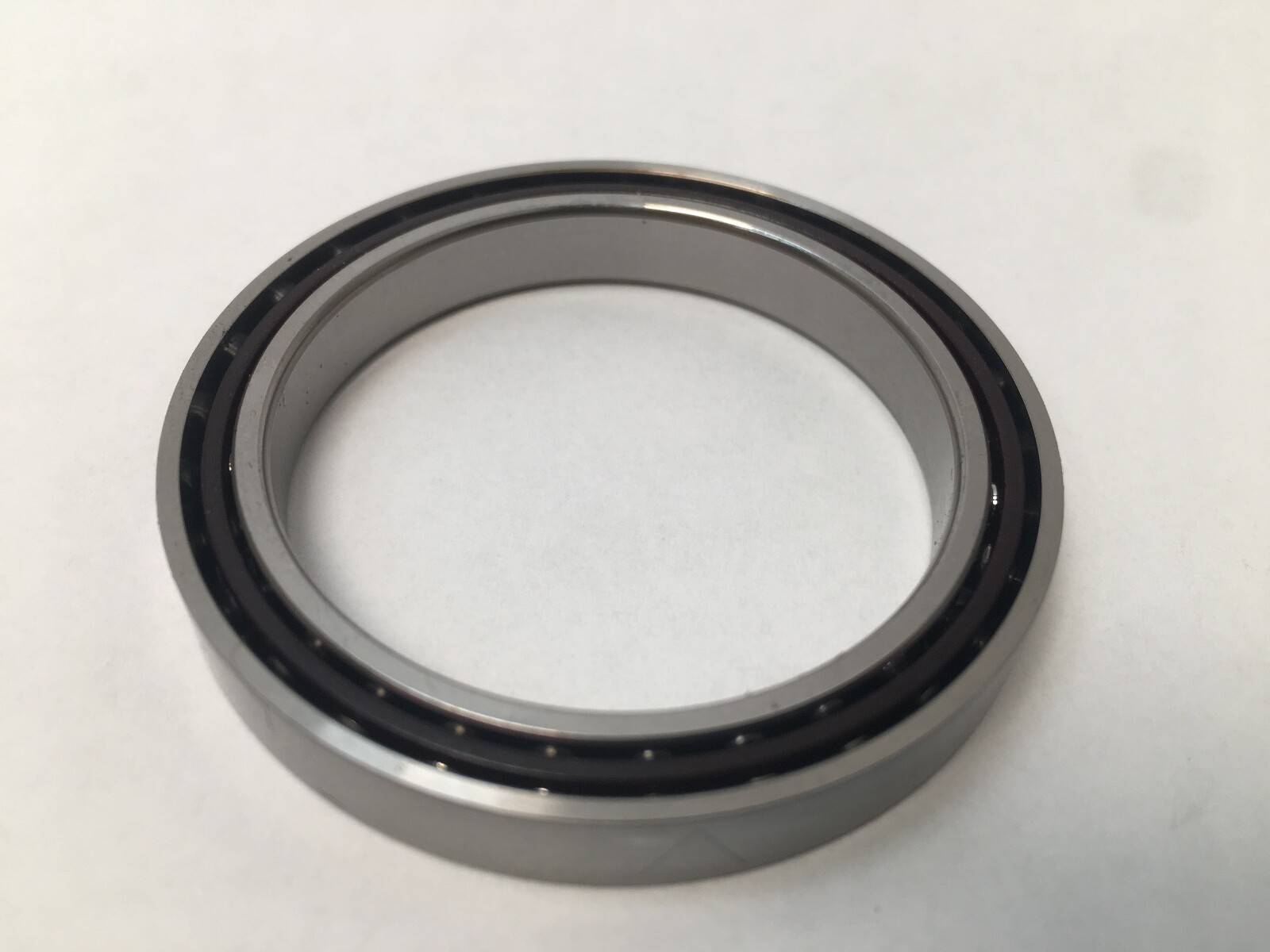

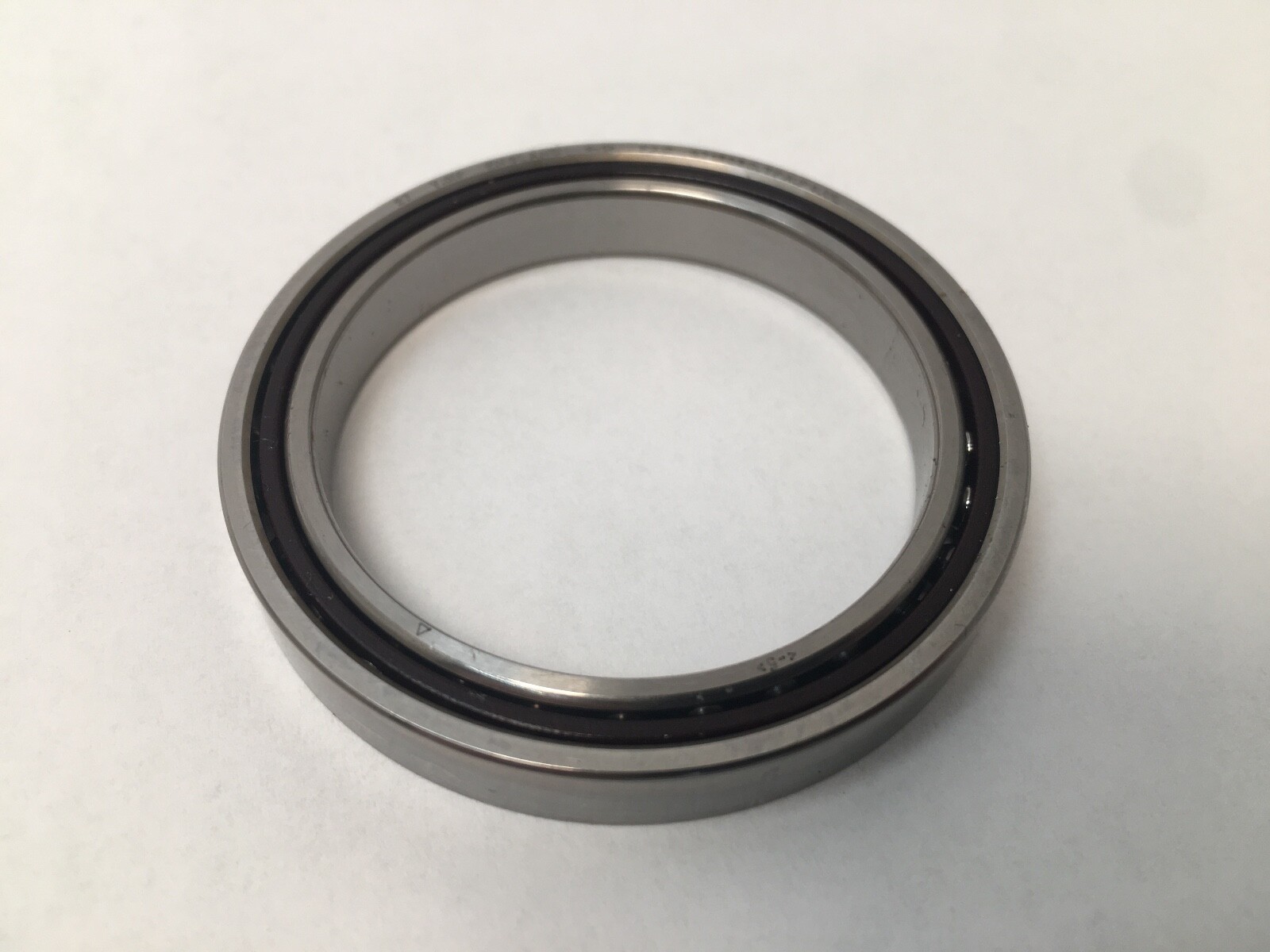

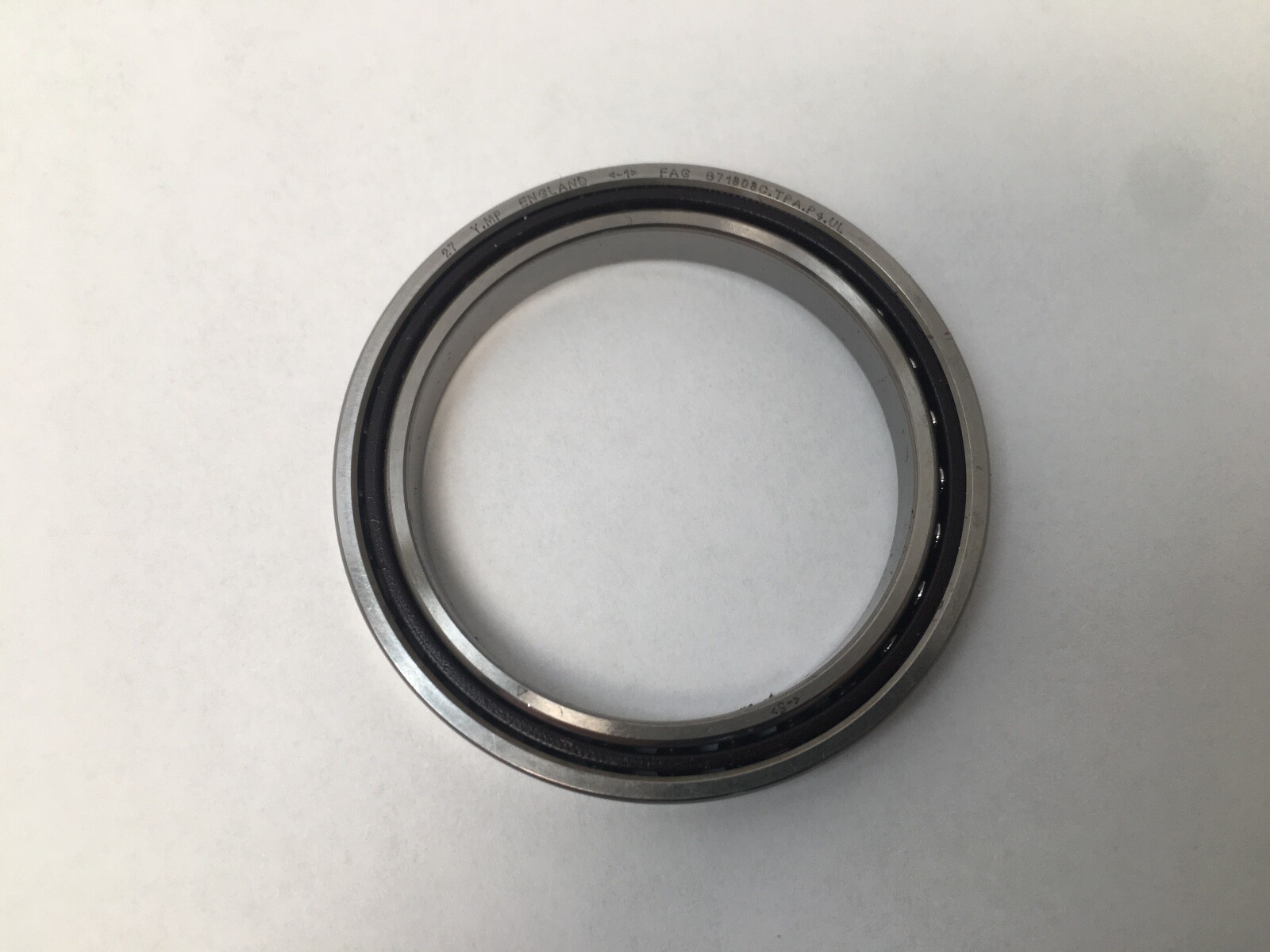

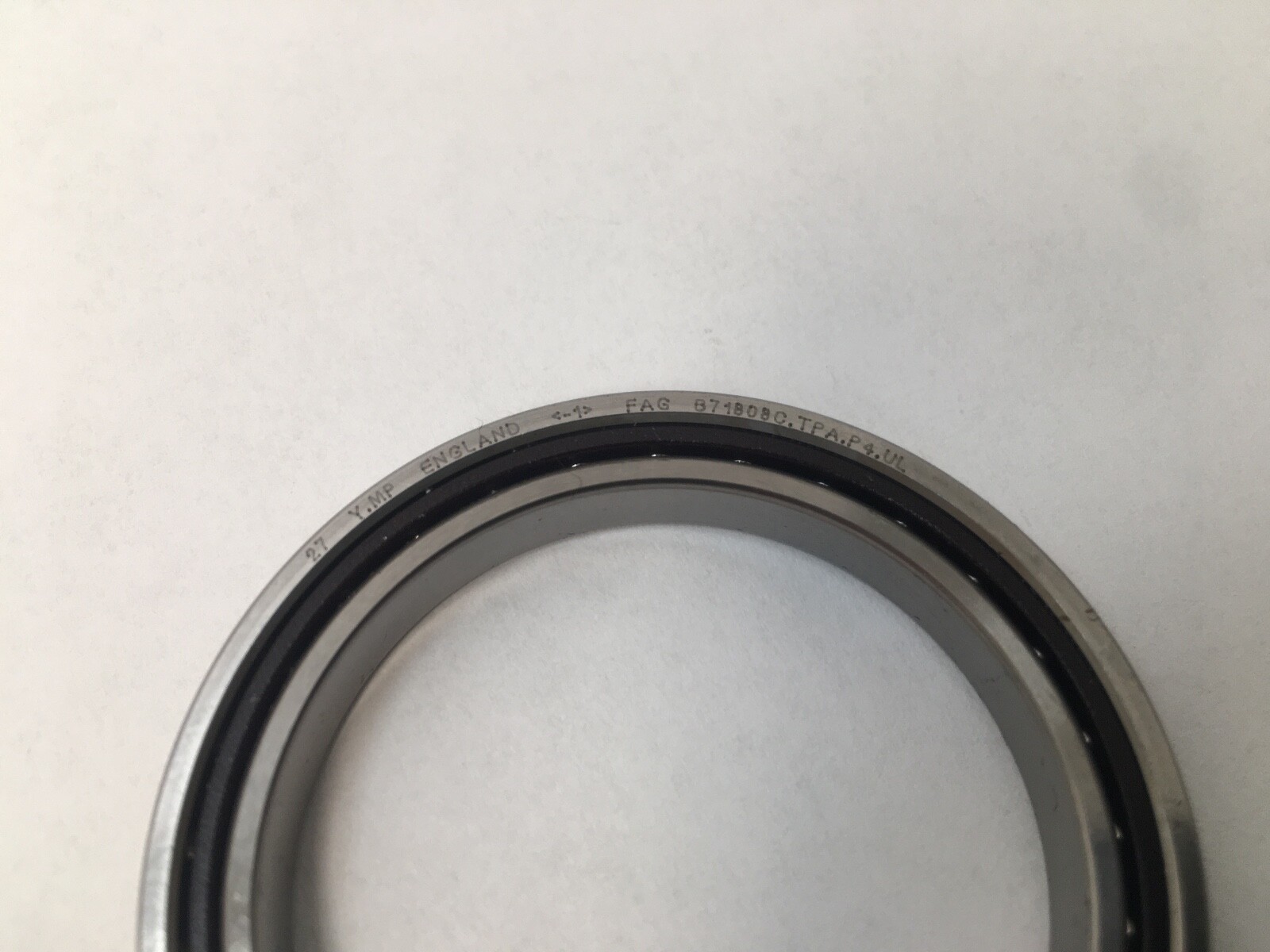

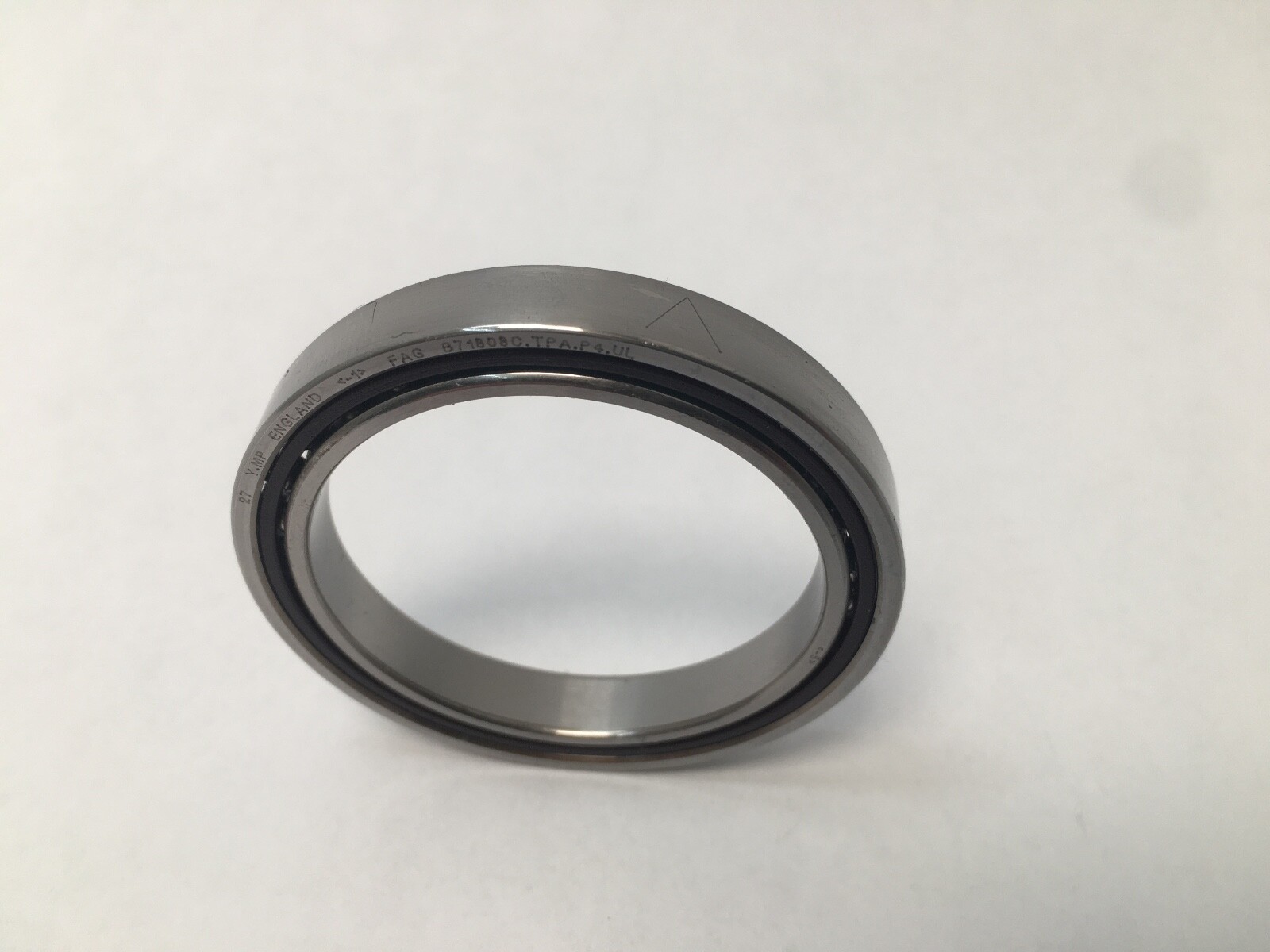

Super-precision angular contact spindle bearing, 40 x 52 x 7 mm, 15 degree contact angle, ABEC 7, phenolic laminate cage, universal light preload. 1 Pc.
List Price
$99.42
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B71808C.TPA.P4.UL |
| Model | B71808C TPA P4 UL / 71808ACDGA/P4 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 40 mm |
| OD | 52 mm |
| Width | 7 mm |
| Material | Bearing Steel |
|---|---|
| Series | 71800 |
| Base Number | 71808 |
| Industry Terms | spindle bearing; super precision angular contact; machine tool spindle bearing; thin section angular contact; 718 series precision bearing |
| Common Misspellings | B71808C TPA P4 UL; B71808 CTPA P4UL; FAG B7 1808 C; 71808-C-TPA-P4-UL; B71808CTPA.P4.UL |
| Bore Shaft Size | 40 mm (1.5748 in) |
| Mpn Variants | B71808C.TPA.P4.UL; B71808CTPAP4UL; B-71808-C-TPA-P4-UL; B71808C TPA P4 UL; B71808C.TPA.P4; 71808C |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 15° |
| Part Number | B71808C.TPA.P4.UL |
| Cross Reference 1 | SKF 71808 CD/P4 |
|---|
FAG B71808C.TPA.P4.UL super-precision angular contact ball bearing, single row, open, universally ground for light preload. Bore: 40 mm. Outside Diameter: 52 mm. Width: 7 mm. Contact Angle: 15°. Unit Quantity: 1 Pc.
B7 — Schaeffler super-precision spindle bearing series.
18 — the 718 dimension series, extra-thin section; 08 is the bore code for 40 mm.
C — FAG 15° contact angle.
TPA — fabric-base laminate cage, textile laminated phenolic, ball-guided.
P4 — precision class, ABEC 7.
UL — universally ground, light preload; a single bearing.
Bore Diameter: 40 mm (1.5748 in). Outside Diameter: 52 mm. Width: 7 mm. Contact Angle: 15°. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Rolling Elements: Ball. Cage Material: Phenolic laminate. Preload: Light. Precision Class: ABEC 7 / P4. Series: 71800 (718 dimension series). Base Number: 71808. Harmonization Code: 8482.10.50.68. Unit Quantity: 1 Pc.
Bore Diameter: 40 mm. Outside Diameter: 52 mm. Width: 7 mm. Universal grinding: any two of these bearings mount together in back-to-back, face-to-face or tandem arrangement at the specified light preload.
Cross-reference at 40 x 52 x 7 mm, 15°, P4: SKF 71808 CD/P4. Related: pre-matched pairs and 25° executions in this envelope. Part number variants: B71808CTPAP4UL, B-71808-C-TPA-P4-UL, B71808C TPA P4 UL, B71808C.TPA.P4, 71808C.
Bore Diameter: 40 mm. Outside Diameter: 52 mm. Width: 7 mm.
Contact Angle: 15°.
Universally ground bearing set for light preload; one bearing.
