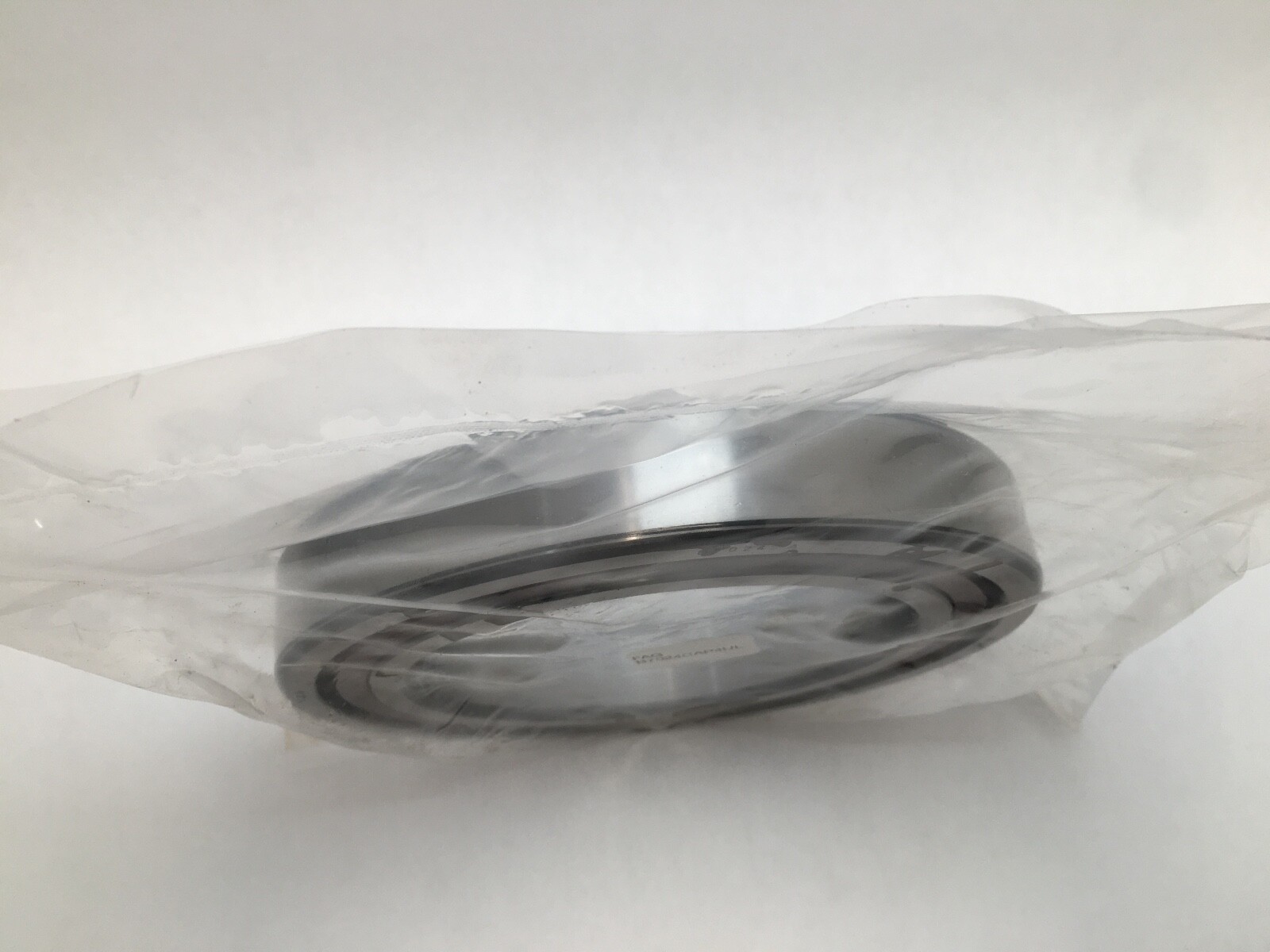

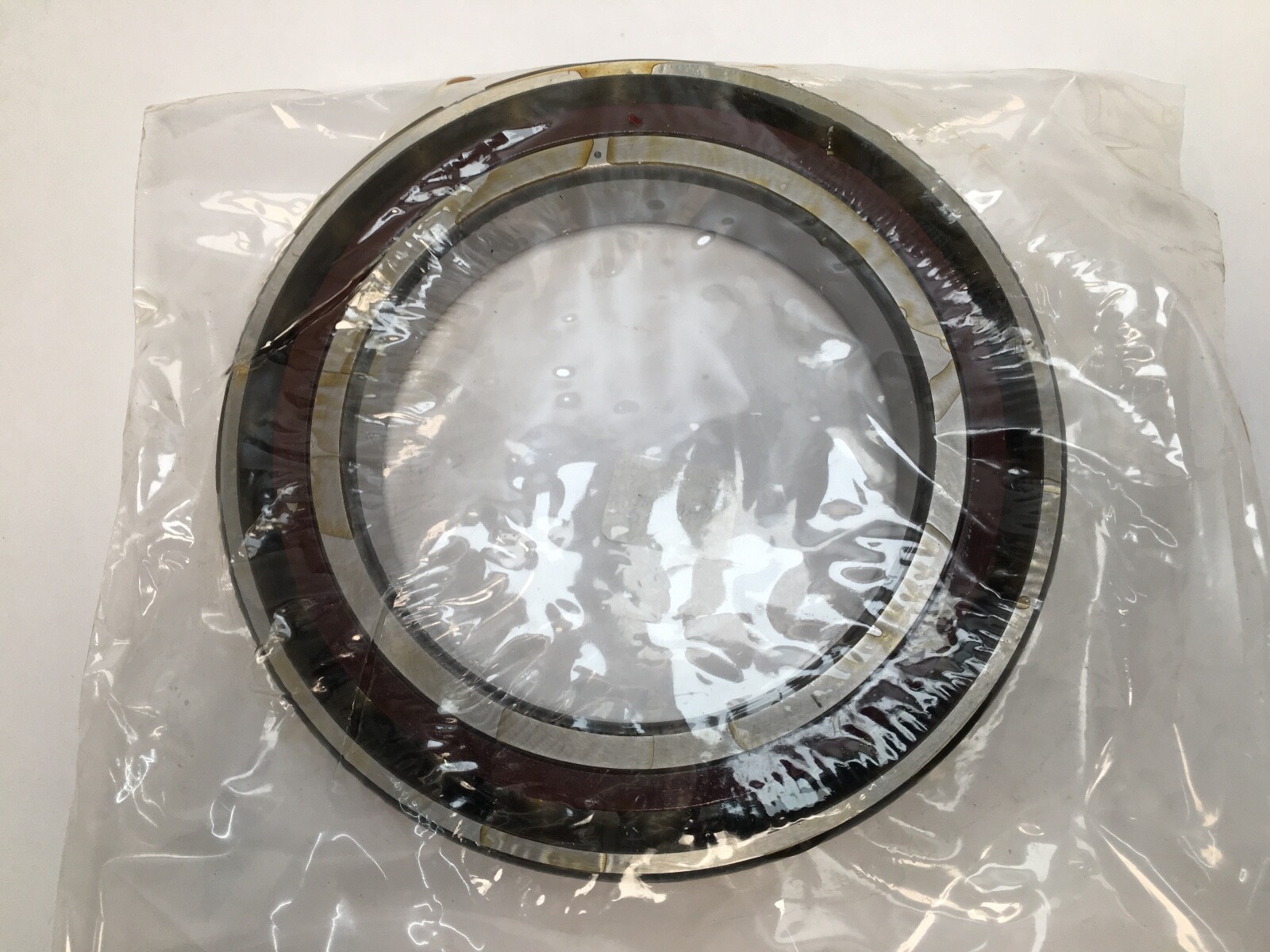

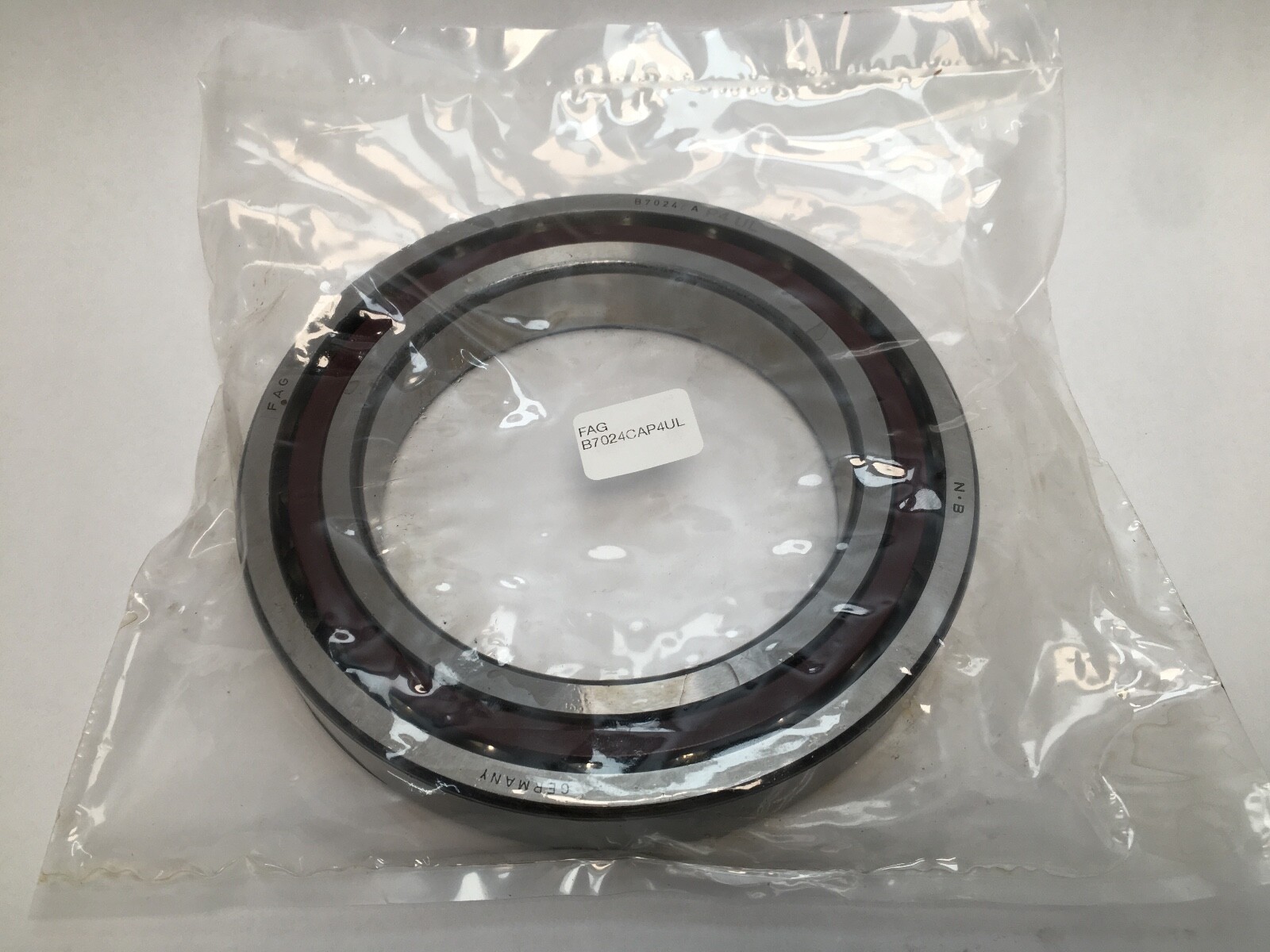

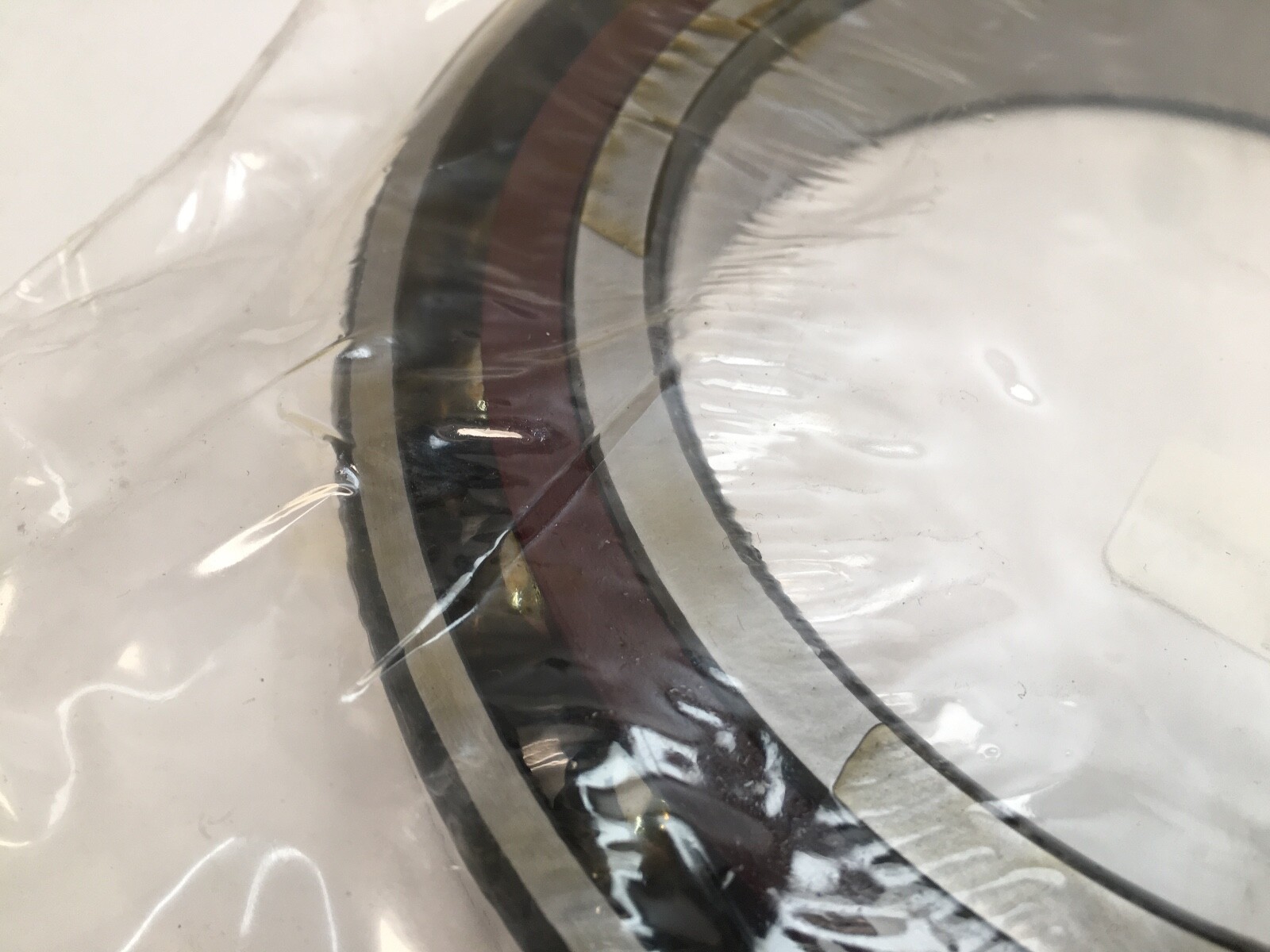

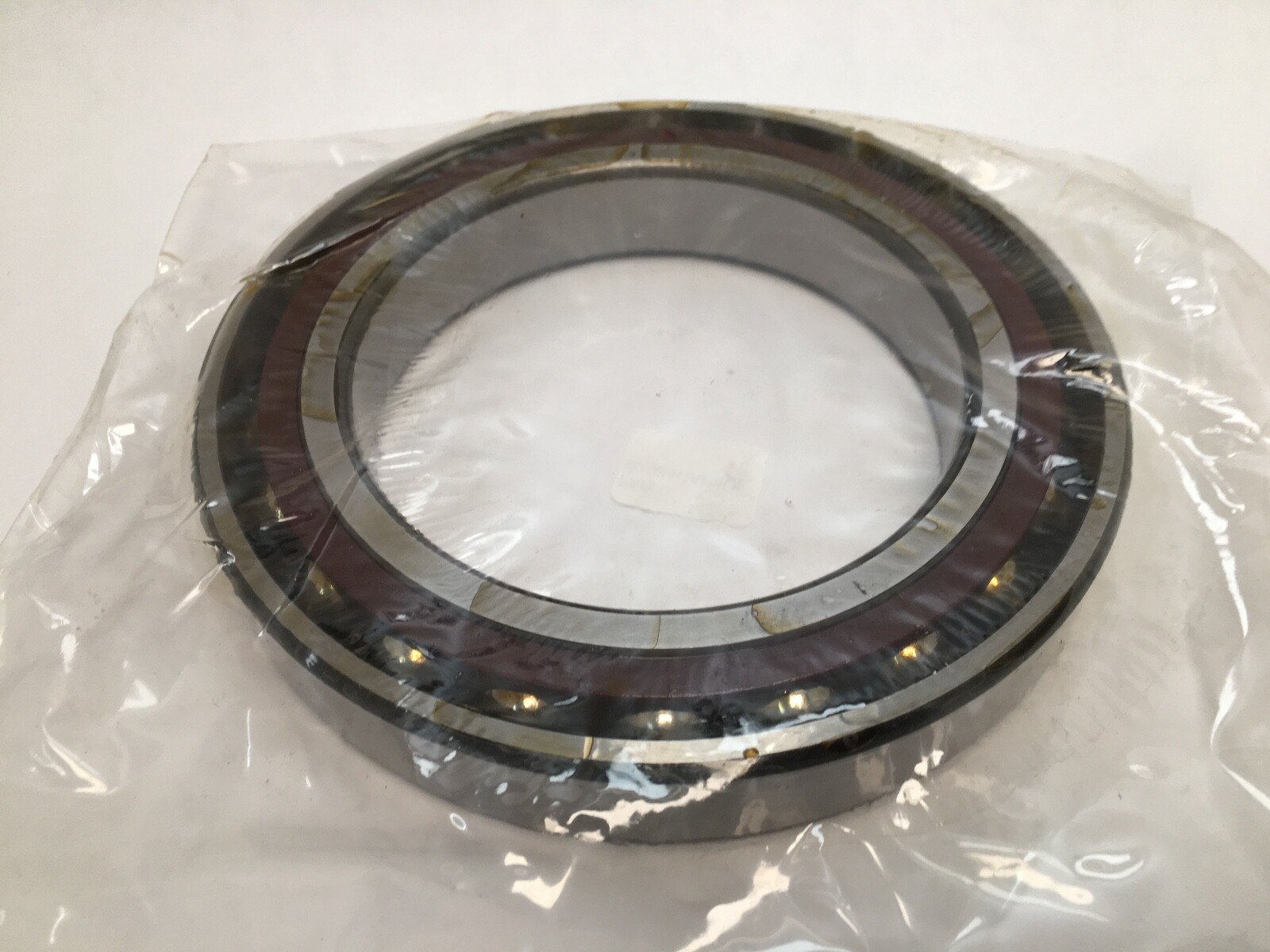

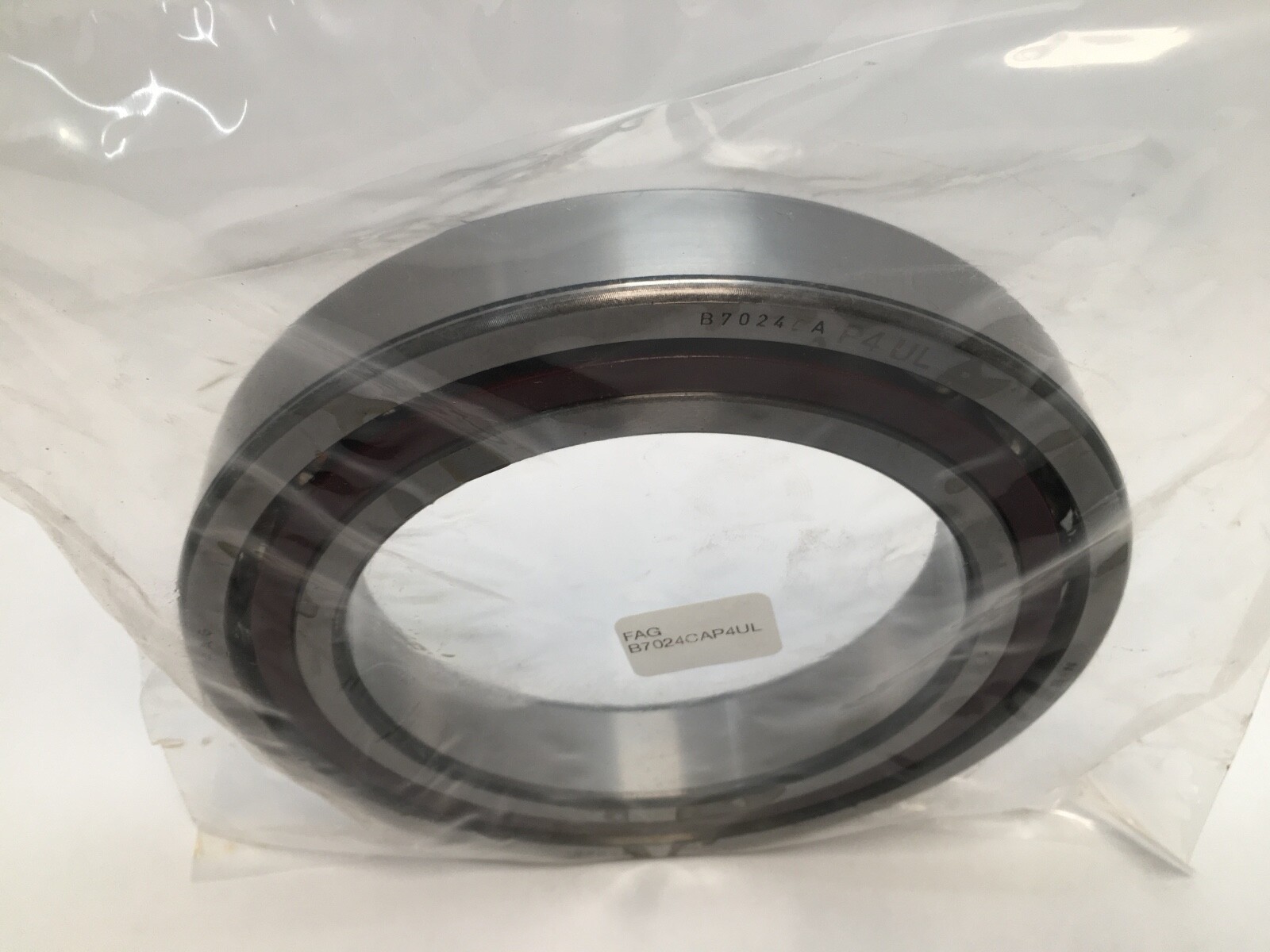

FAG B7024-C-T-P4S-UL angular contact spindle bearing, 120 x 180 x 28 mm, 15° contact angle, phenolic cage, P4S class, light preload, single bearing.
List Price
$580.84
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7024-C-T-P4S-UL |
| Model | B7024CA.P4.UL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 120 mm |
| OD | 180 mm |
| Width | 28 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Preload | Light (UL) |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Base Number | B7024-C |
| Industry Terms | spindle bearing, super precision angular contact, P4S bearing, ABEC 7 bearing, phenolic cage bearing, universally ground bearing, machine tool bearing, high speed spindle bearing |
| Common Misspellings | FAG B7042C, B7024Q, B7024-C-T-P45, B7024CT-P4S, Schaefler, Schaffler |
| Application Types | Machine tool spindles, grinding spindles, precision boring heads, high-speed rotary tables, precision gearboxes |
| Bore Shaft Size | 120 mm (4.724 in) |
| Mpn Variants | B7024-C-T-P4S-UL, B7024CTP4SUL, B7024C.T.P4S.UL, B7024CA.P4.UL, B7024CAP4UL, B7024-C-P4-UL, B7024C, B7024, B-7024-C-A-P4-UL, 7024CTP4, 2MM9124WICRDUL |
| Manufacturer Status | FAG is a Schaeffler Group brand; B70 spindle bearing series remains in current production |
| Compatible With Replaces | Machine tool main spindle and grinding spindle positions calling for a 120x180x28 mm 15 deg super precision angular contact bearing with light preload |
| Arrangement Configuration | Single bearing, universal (U) |
| Precision Class | ABEC 7 / P4S |
| Part Number | B7024-C-T-P4S-UL |
| Closure Type | Open |
| Cross Reference 1 | Fafnir 2MM9124WI-CR-DUL |
|---|---|
| Cross Reference 2 | SKF 7024 CD/P4A |
| Cross Reference 3 | NSK 7024C |
| Cross Reference 4 | NTN 7024C |
| Cross Reference 5 | FAG B7024-E-T-P4S-UL - 25 deg vs 15 deg |
| Cross Reference 6 | Fafnir 3MM9124WI - 25 deg vs 15 deg |
FAG B7024-C-T-P4S-UL is a super-precision single-row angular contact spindle bearing, 120 mm bore, 180 mm outside diameter, 28 mm width, 15° contact angle, phenolic cage, P4S class, open, universally ground for light preload. Supplied as a single bearing. Unit Quantity: 1 Pc.
B — FAG spindle bearing series, a higher-precision execution than a standard 70-series angular contact bearing.
7024 — ISO boundary dimensions, 120 x 180 x 28 mm.
C — 15° contact angle in FAG nomenclature.
T — phenolic (textile laminate) cage.
P4S — FAG super-precision tolerance class, ABEC 7 running accuracy with tighter bore and outside diameter control.
UL — universal grinding, light preload: any two bearings of this designation clamped together give the specified light preload.
Bore Diameter: 120 mm (4.724 in). Outside Diameter: 180 mm. Overall Width: 28 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4S. Rolling Elements: Ball. Number Of Rows: 1. Closure Type: Open. Bore Type: Straight. Cage Material: Phenolic. Preload: Light (UL). Arrangement: single bearing, universal (U). Series: B70 / 7024.
Envelope: 120 x 180 x 28 mm. Mounting arrangements of a universally ground bearing: back-to-back (DB), face-to-face (DF) or tandem (DT).

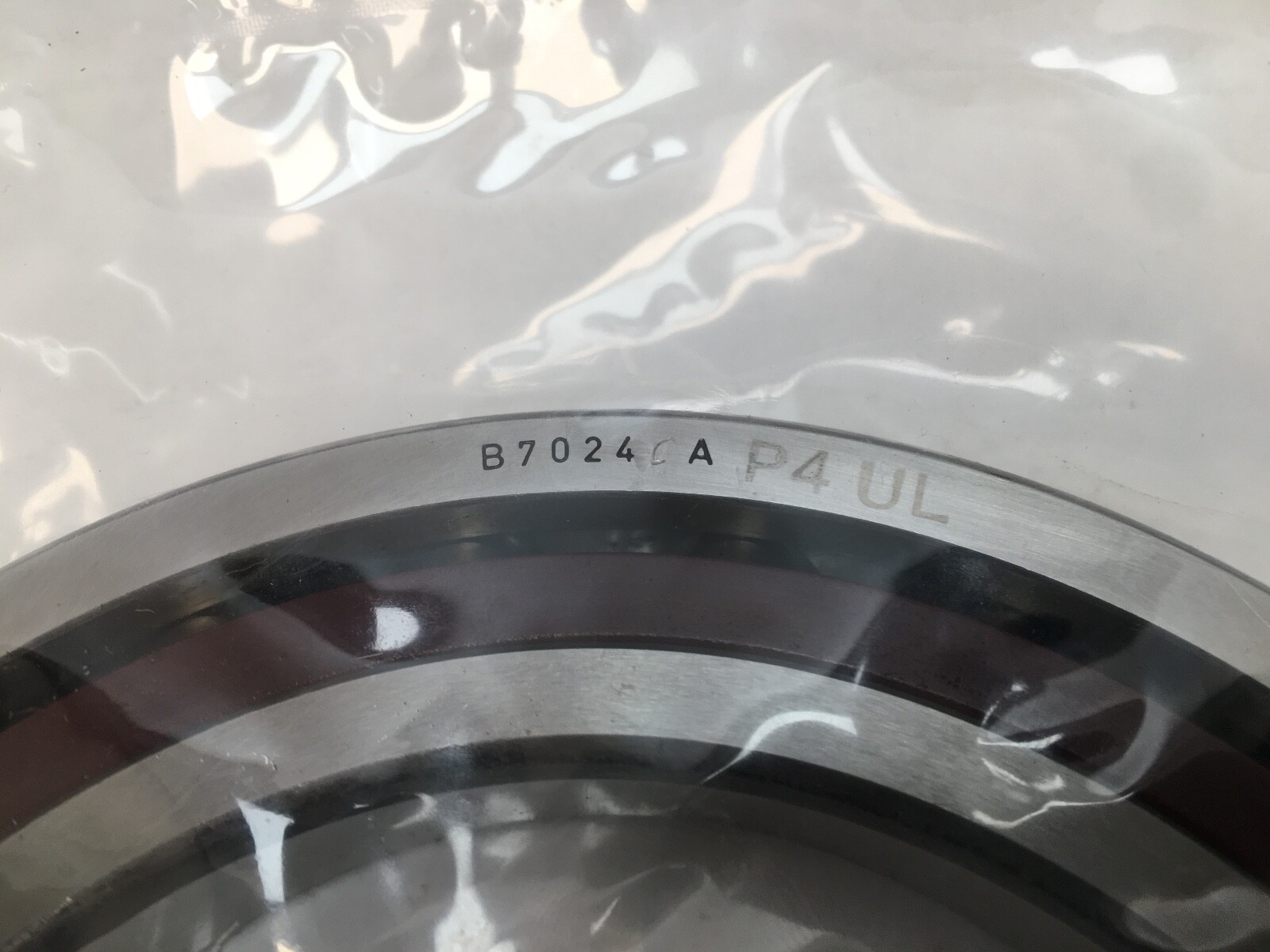

Cross-references at 15°: Fafnir 2MM9124WI-CR-DUL, SKF 7024 CD/P4A, NSK 7024C, NTN 7024C. Same 120 x 180 x 28 mm envelope at 25°: FAG B7024-E-T-P4S-UL and Fafnir 3MM9124WI. Source designation B7024CA.P4.UL is also written B7024CAP4UL.
Bore 120 mm, outside diameter 180 mm, width 28 mm.
C is a 15° contact angle, T is a phenolic (textile laminate) cage and P4S is FAG’s super-precision tolerance class.
Universal grinding with light preload, so two bearings of this designation clamped together give the specified light preload.
