Super precision angular contact ball bearing, 100 x 150 x 24 mm, 15° contact angle, phenolic cage, universal light preload, 9,000 rpm on grease.
List Price
$351.68
2 in stock
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | FAG |
|---|---|
| MPN | B7020CTPAP4UL |
| Model | B-7020-C-TPA-P4-UL / 7020C / 2MM9120 SUL / 120HDL / 7020 CT Y |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 100 mm |
| OD | 150 mm |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Condition | New |
| Lubricant | Oil |
| Preload | Light |
| Base Number | 7020 |
| Industry Terms | Spindle bearing, super precision bearing, machine tool bearing, high speed angular contact bearing |
| Bore Shaft Size | 100 mm |
| Mpn Variants | B7020CTPAP4UL, B-7020-C-TPA-P4-UL, B7020 C TPA P4 UL, B7020C.T.P4S.UL, 7020C, 120HDL, 7020 CT Y |
| Additional Attributes | Fatigue load limit Cur 5.4 kN; axial rigidity 104 N/µm light, 175 N/µm medium, 248 N/µm heavy; lift-off force 1,427 N light; shaft shoulder da 110 mm h12; outer ring shoulder Da 141 mm H12; ra max 1.5 mm; ra1 max 0.6 mm; r min 1.5 mm; pressure cone apex distance a 28.7 mm |
| Min Temp | -30 °C |
| Cage Type | Not specified |
| Dynamic Load Rating | 83 kN (Cr, radial) |
| Static Load Rating | 57 kN (C0r, radial) |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 100 °C |
| Item Weight | 1.24 kg (2.73 lb) |
| Cage Material | Phenolic (laminated fabric) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Internal Clearance | N/A - preloaded bearing |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15 ° (degrees of arc) |
| Mounting Arrangement | Universal - matchable in pairs or sets (back-to-back, face-to-face or tandem) |
| Part Number | B7020C.TPA.P4.UL |
| Cross Reference 1 | SKF 7020 CDGA/P4A |
|---|---|
| Cross Reference 2 | NSK 7020CTYNSULP4 |
| Cross Reference 3 | Fafnir 2MM9120WI |
| Cross Reference 4 | B7020E.T.P4S.UL (related size, same envelope, 25° contact angle) |

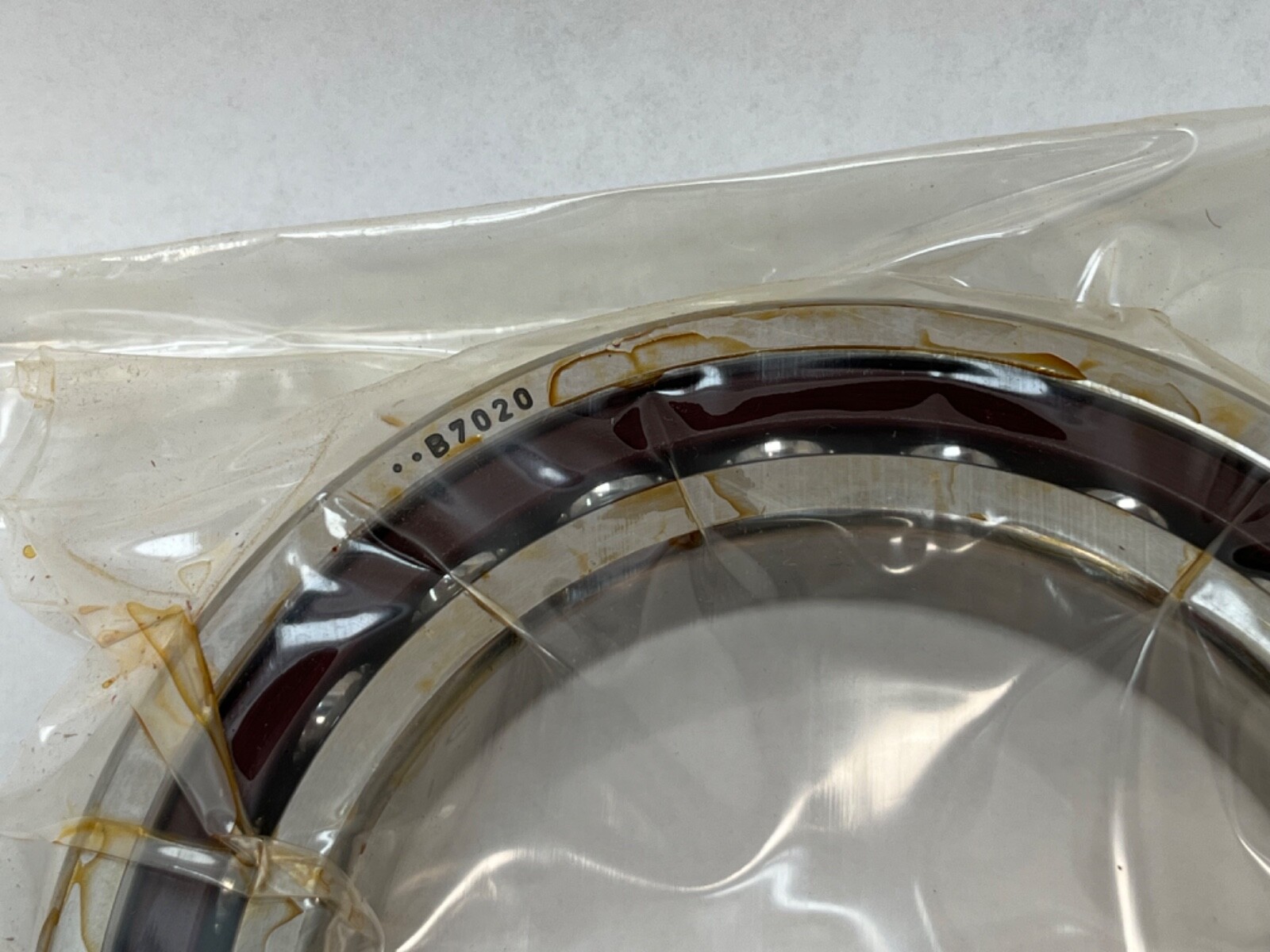

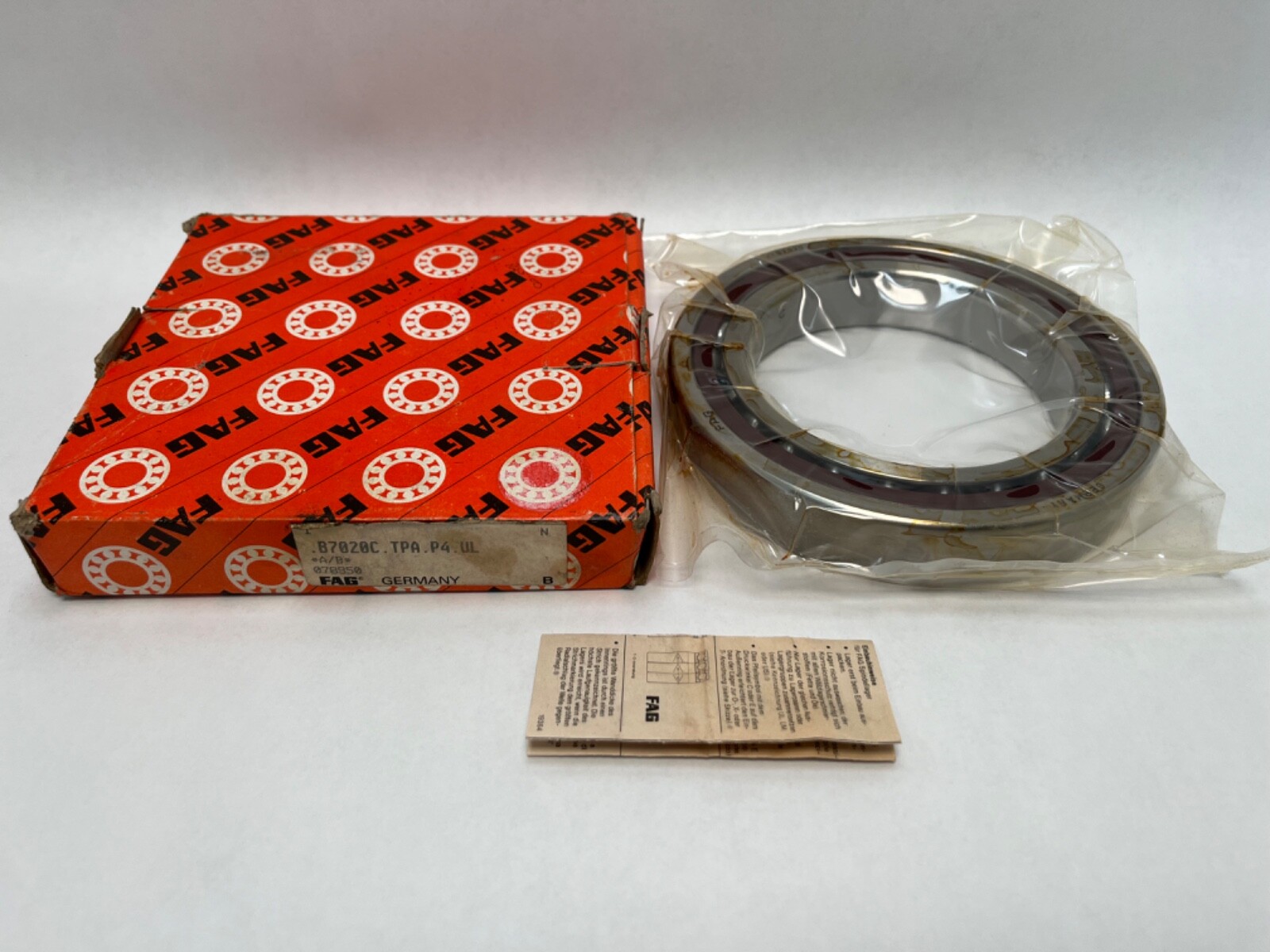

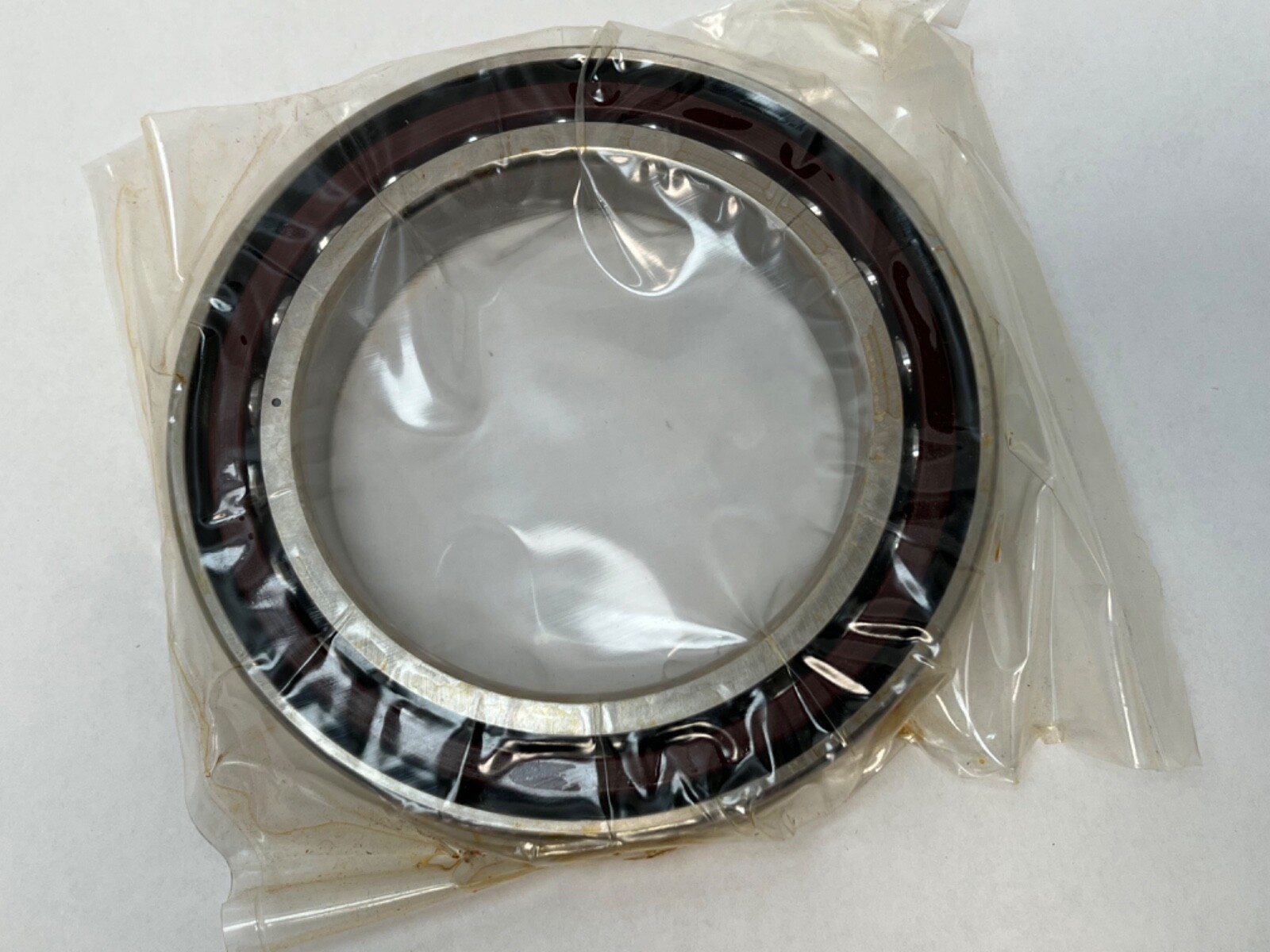

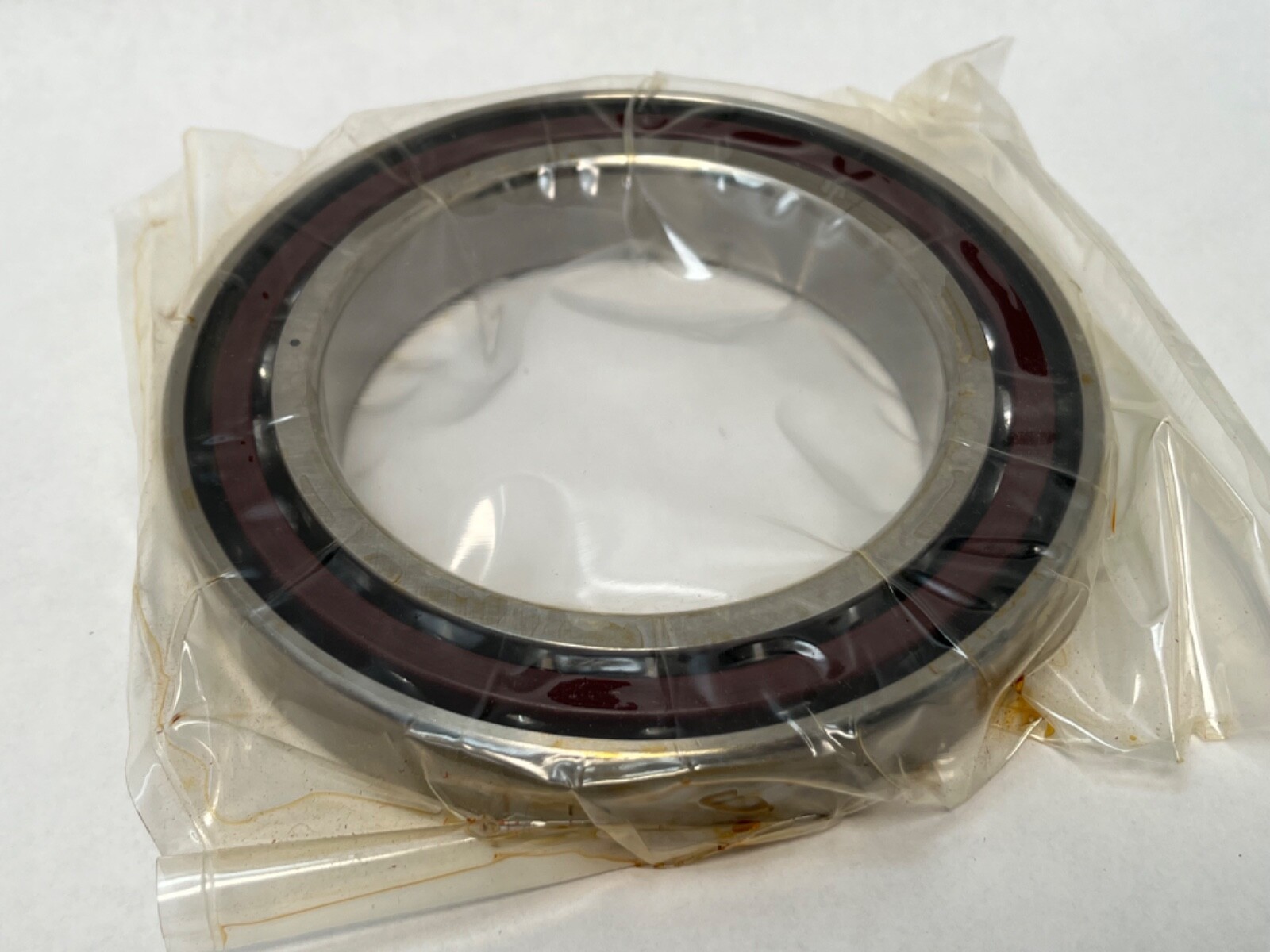

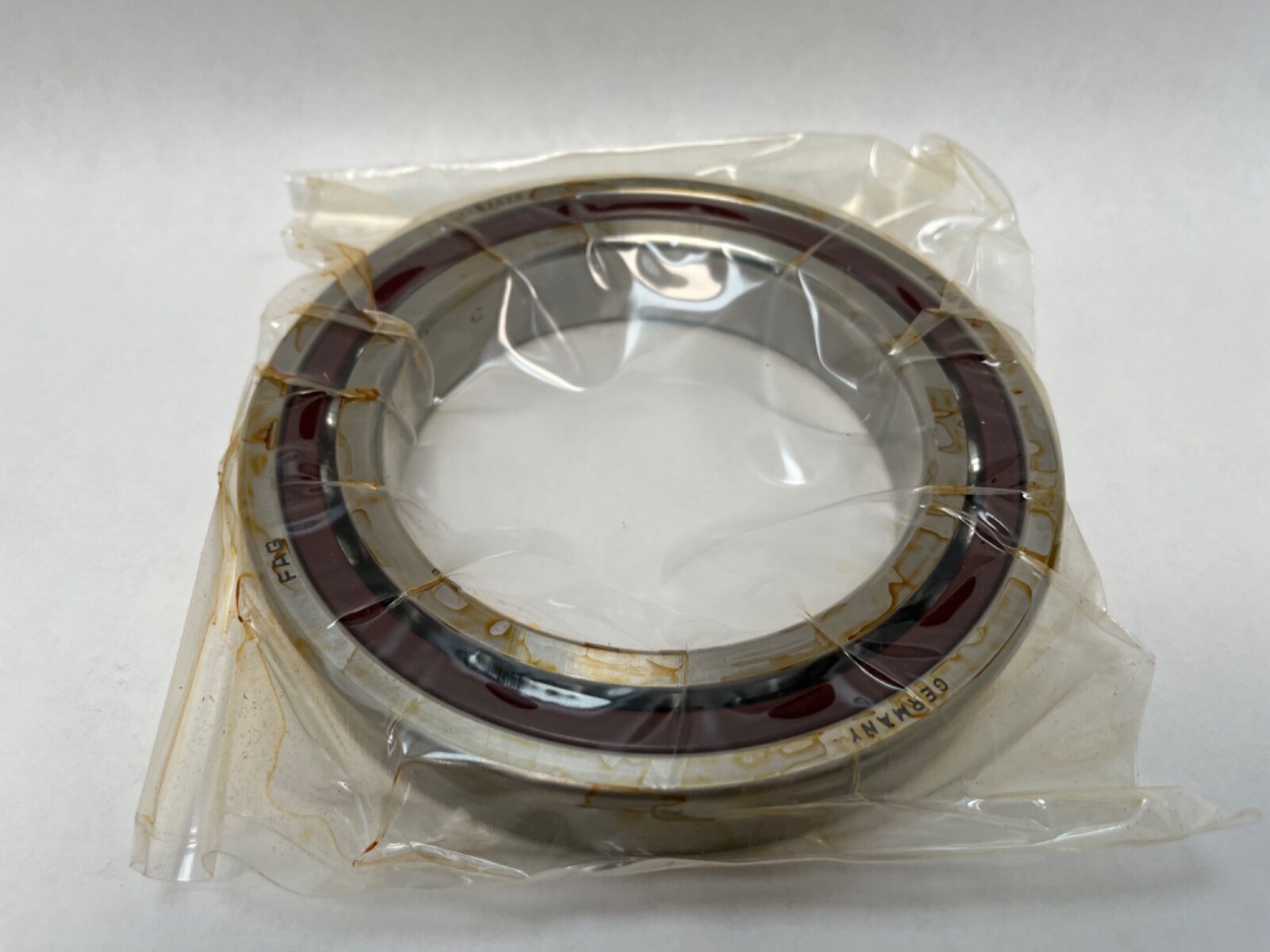

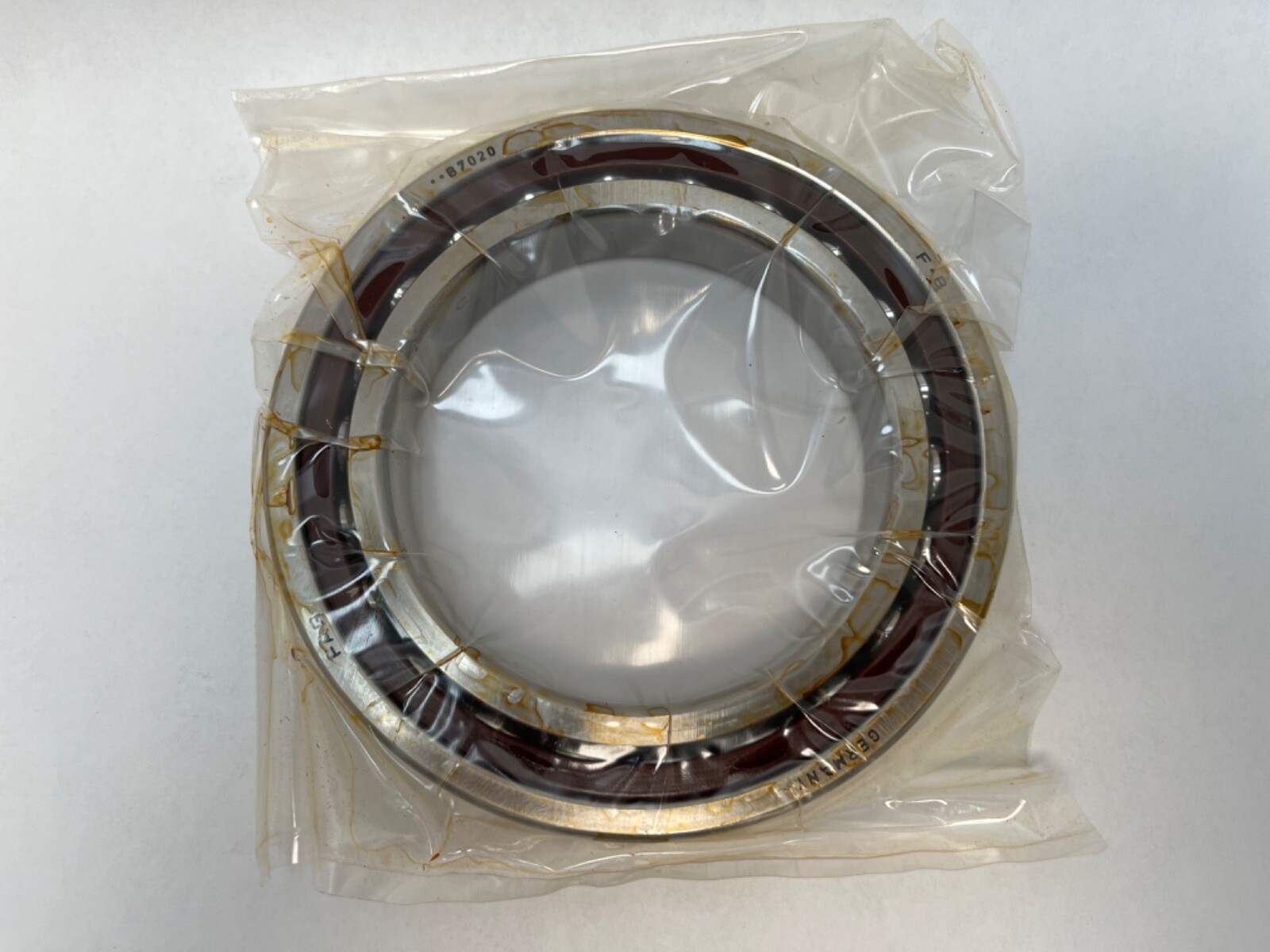

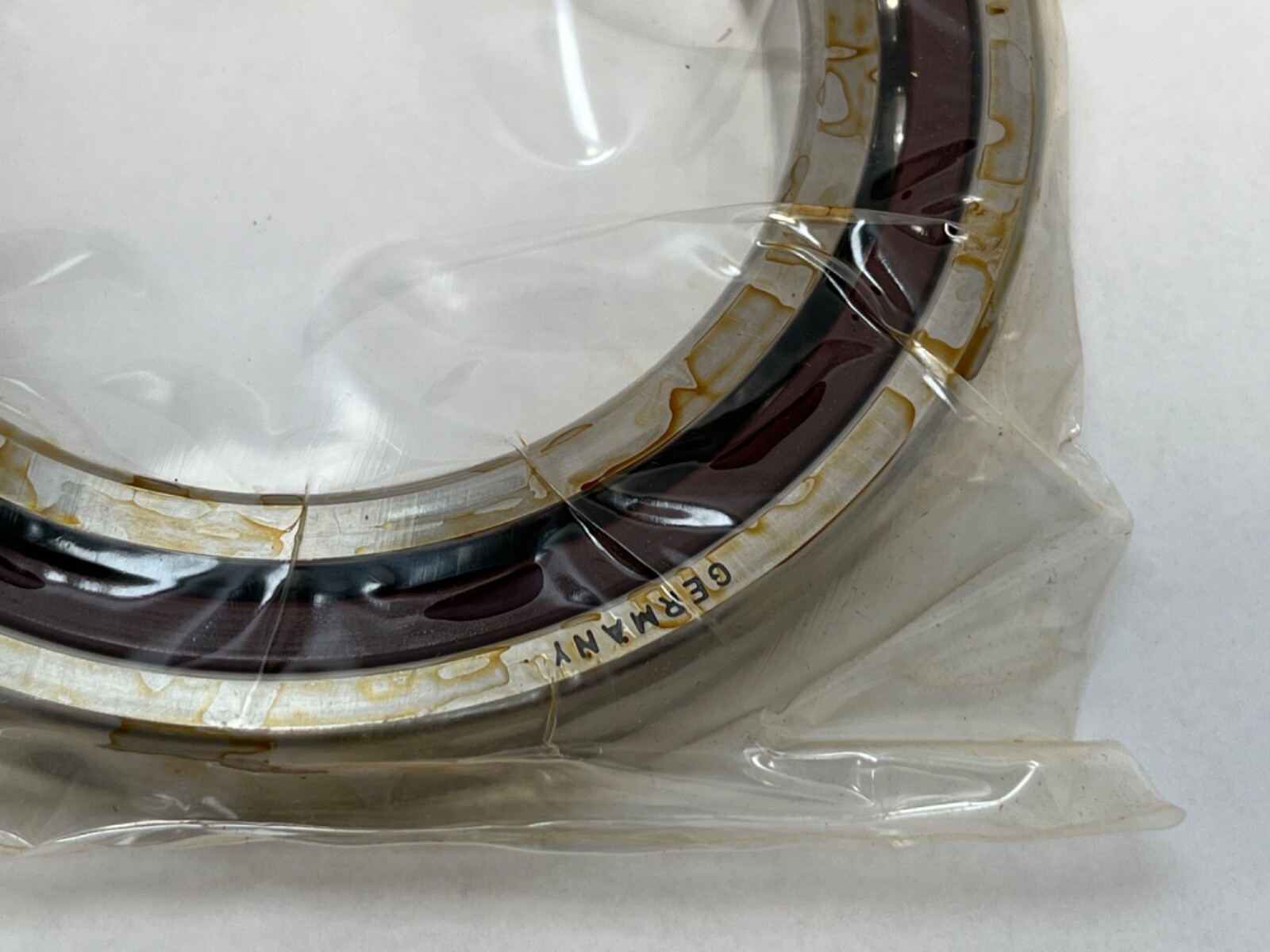

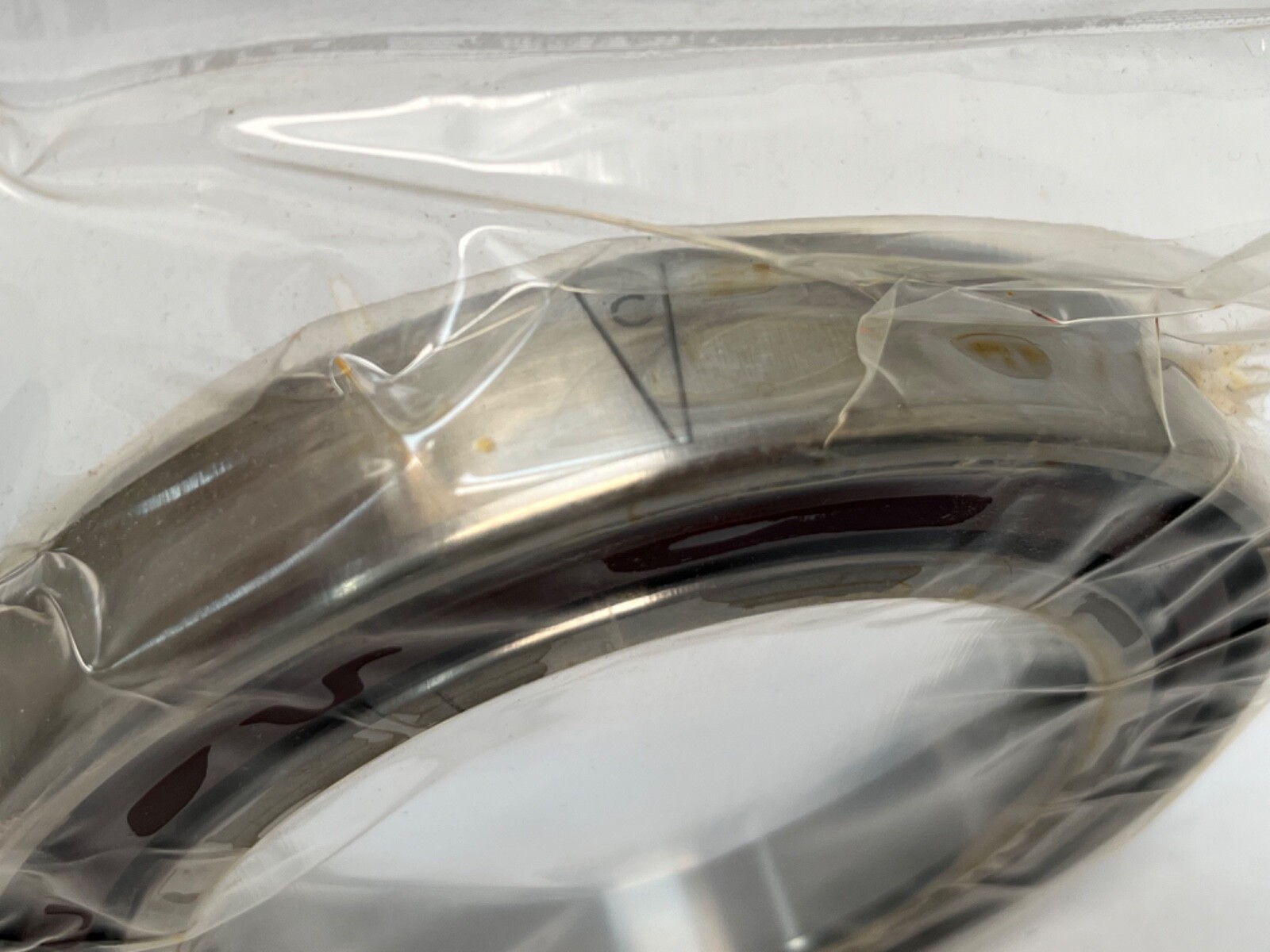

FAG B7020C.TPA.P4.UL super precision angular contact ball bearing, also called a spindle bearing. Series B70, B70..-C design. Bore: 100 mm. Outside diameter: 150 mm. Width: 24 mm. Single row, open, straight bore. Searchable forms: B7020C.TPA.P4.UL, B7020CTPAP4UL, B-7020-C-TPA-P4-UL, B7020 C TPA P4 UL, 7020C.

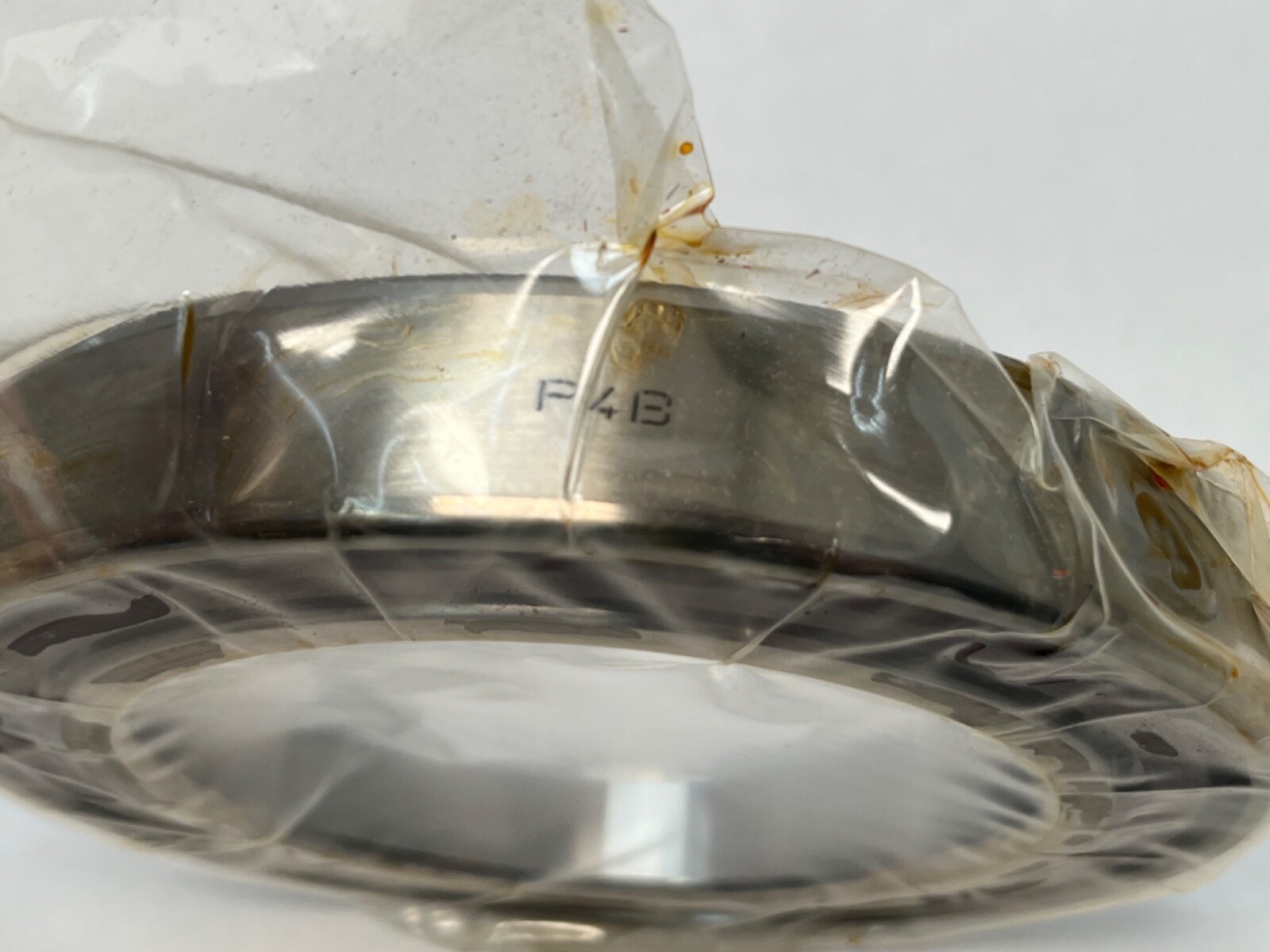

Contact Angle: 15°. Cage Material: laminated fabric phenolic. Precision Class: P4, ABEC 7. Preload: light. Arrangement: universal single bearing, adjusted for mounting in pairs or sets. Preload force in a light-preload pair: 464 N.
A 15° contact angle favours speed and radial stiffness and carries less thrust than a 25° bearing on the same envelope. Basic dynamic load rating, radial: 83 kN. Basic static load rating, radial: 57 kN. Fatigue load limit, radial: 5.4 kN. Limiting speed: 9,000 rpm on grease, 14,000 rpm on oil. Axial rigidity in light preload: 104 N/µm. A phenolic cage runs quietly at high speed and holds oil in its fabric structure.
One bearing. Universal design: two or more mount together back-to-back, face-to-face or in tandem, and a pair sets light preload without shims or measurement.
Diameter shaft shoulder: 110 mm. Shoulder diameter outer ring: 141 mm. Maximum recess radius: 1.5 mm on the shaft side, 0.6 mm on the housing side. Minimum chamfer dimension: 1.5 mm. Distance between the apexes of the pressure cones: 28.7 mm. Operating temperature range: -30 °C to 100 °C. Weight: 1.24 kg.
Current Schaeffler designation for this bearing: B7020C.T.P4S.UL. Equivalents at the same 15° contact angle and P4 class: SKF 7020 CDGA/P4A, NSK 7020CTYNSULP4, Fafnir 2MM9120WI. A B7020E on the same envelope carries a 25° contact angle and is a related size.
