Availability:
6 in stock

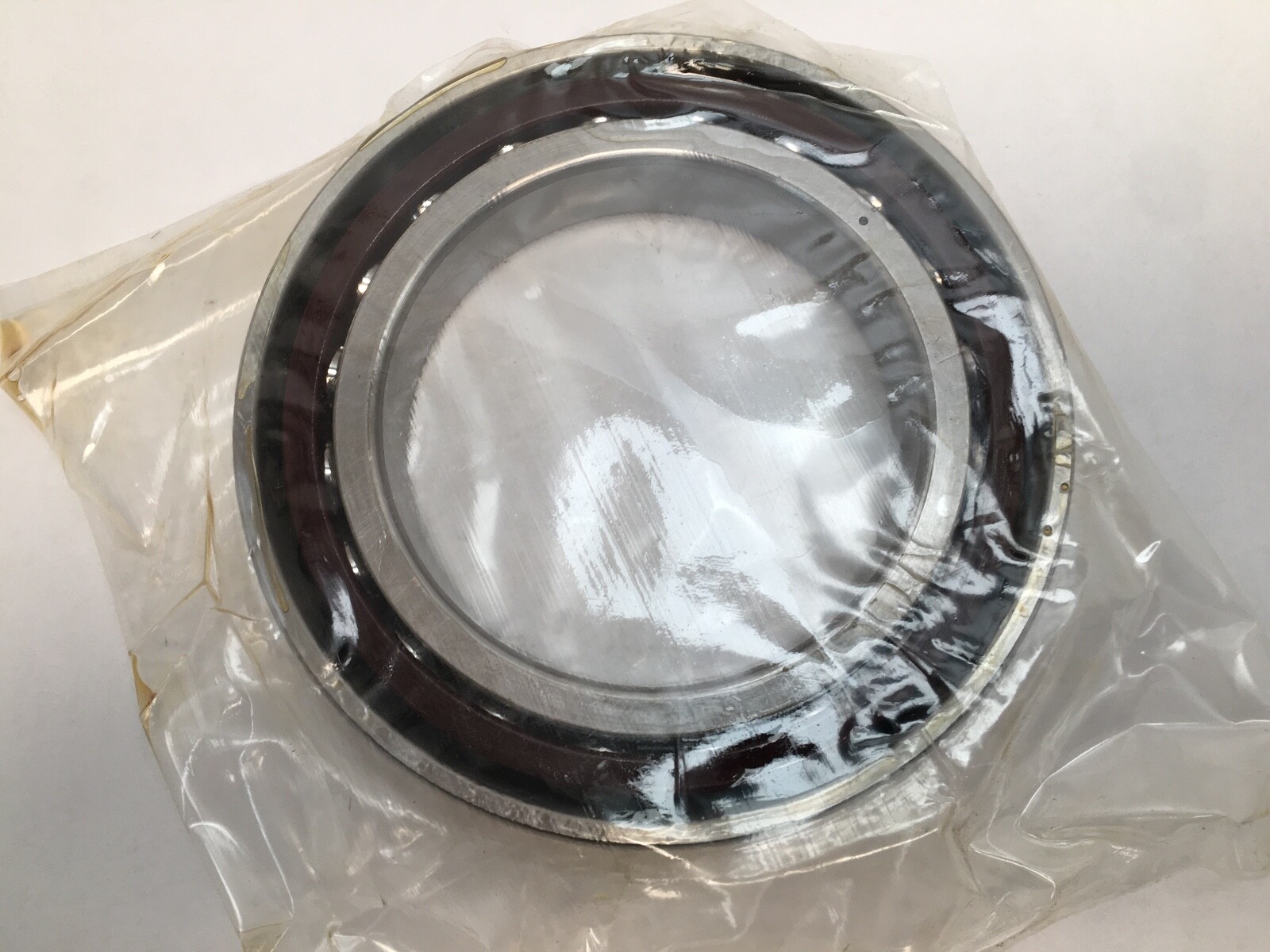

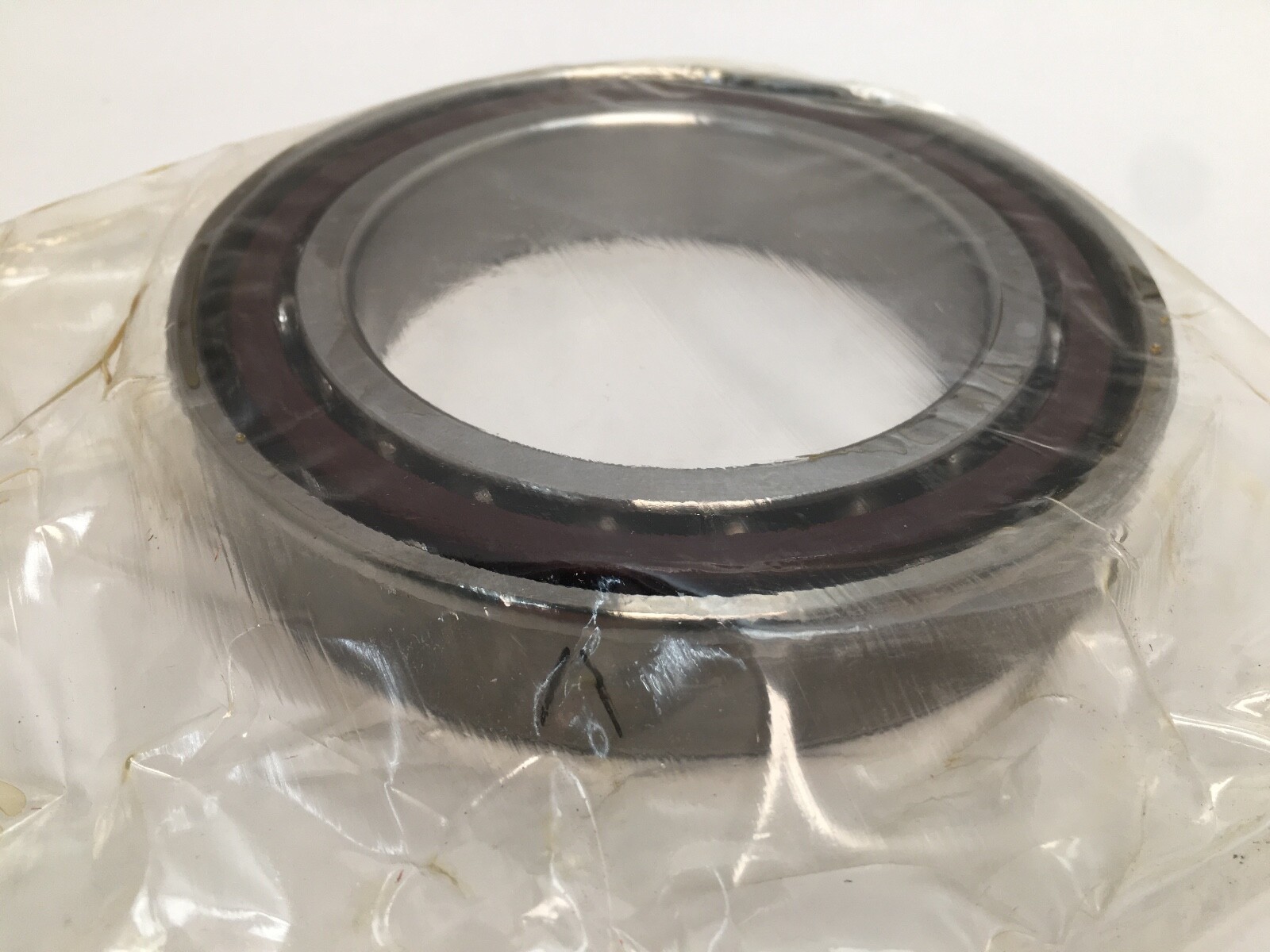

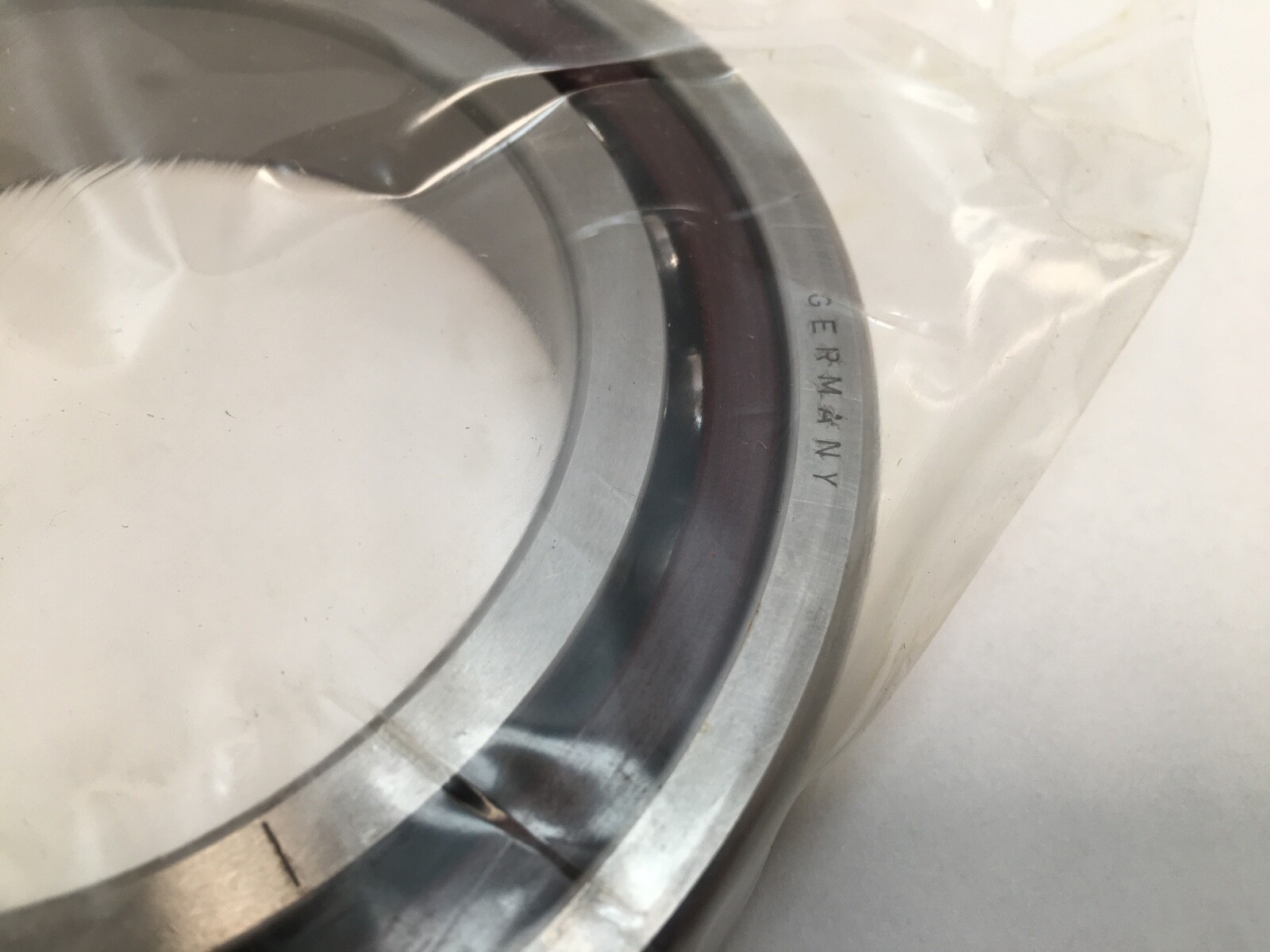

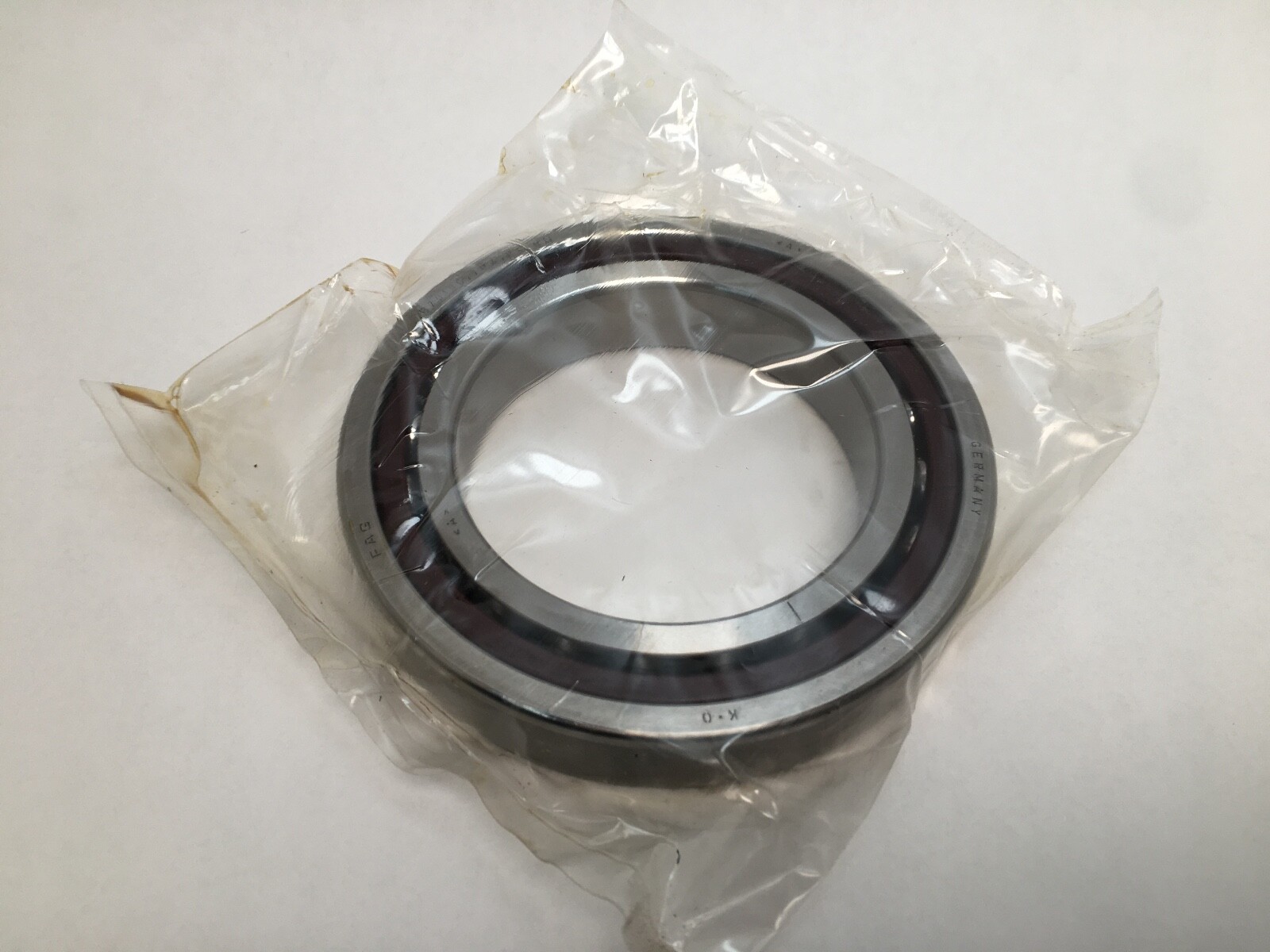

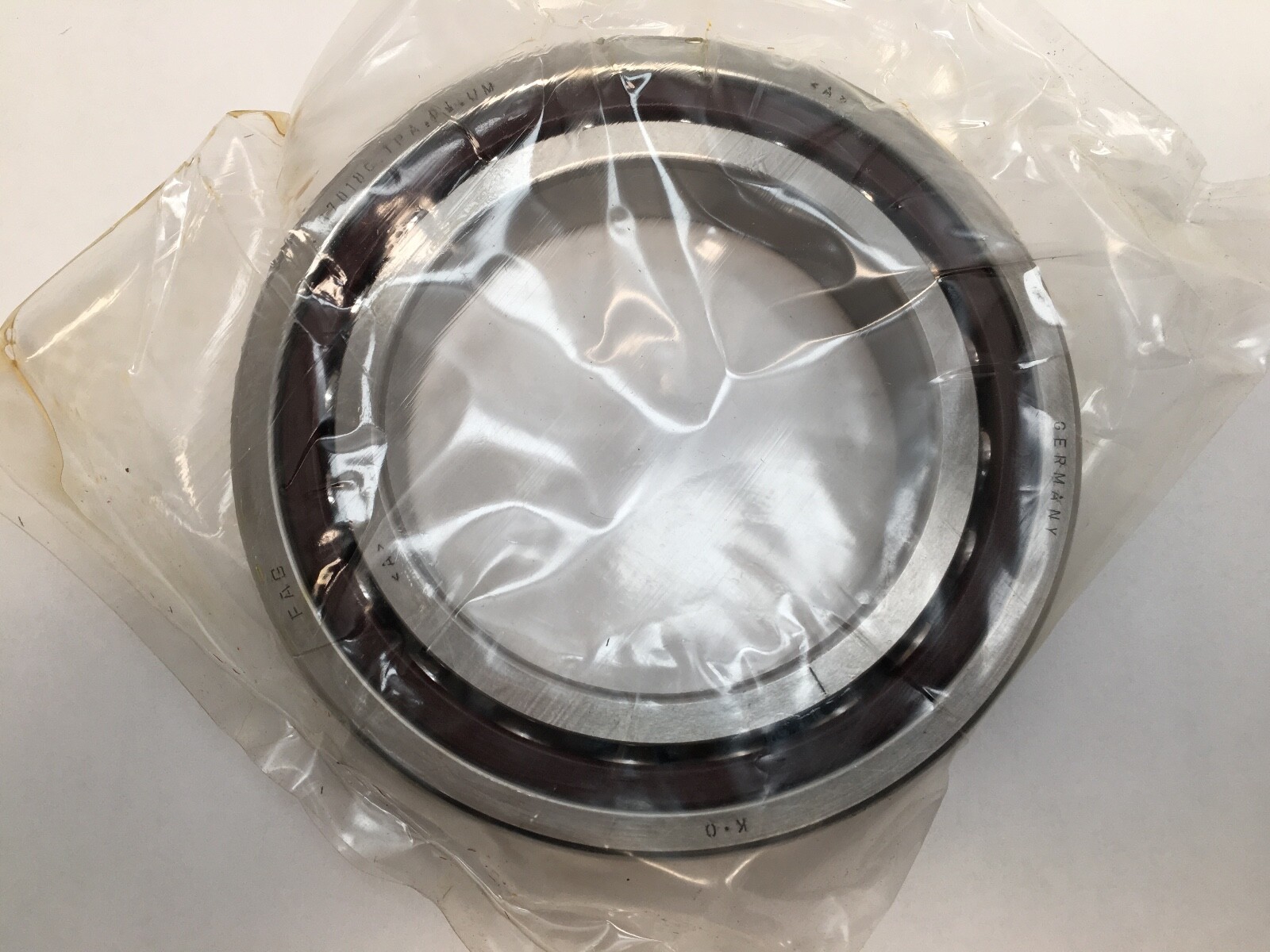

Angular contact spindle bearing, 90 x 140 x 24 mm, 15° contact angle, Medium preload 1,395 N. FAG B7018C.TPA.P4.UM, phenolic cage, ABEC 7 / P4, Cr 78,000 N.
List Price
$305.93
6 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7018CTPAP4UM |
| Model | B7018C.TPA.P4.UM / 7018C / 2MM9118 / 118HDM / 7018 CT Y |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 90 mm |
| OD | 140 mm |
| Width | 24 mm |
| Material | Chrome Steel |
|---|---|
| Series | B70 |
| Lubricant | grease or oil |
| Preload | Medium (1,395 N) |
| Industry Terms | super precision spindle bearing, angular contact ball bearing, machine tool spindle bearing, universal matched bearing |
| Mpn Variants | B7018C.TPA.P4.UM, B7018CTPAP4UM, B-7018-C-TPA-P4-UM, B7018-C-T-P4S-UM, B7018C |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Fatigue load limit 5,000 N; shaft shoulder 100 mm; housing shoulder 131 mm; pressure cone apex distance 27.4 mm |
| Min Temp | -30 °C |
| Dynamic Load Rating | 78,000 N |
| Static Load Rating | 51,000 N |
| Rolling Elements | Ball |
| Max Temp | 100 °C |
| Item Weight | 1.14 kg (2.51 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal (U) |
| Cross Reference 1 | SKF 7018 CD/P4A |
|---|---|
| Cross Reference 2 | NSK 7018C |
| Cross Reference 3 | Fafnir 2MM9118WI |
| Cross Reference 4 | Barden 118H |

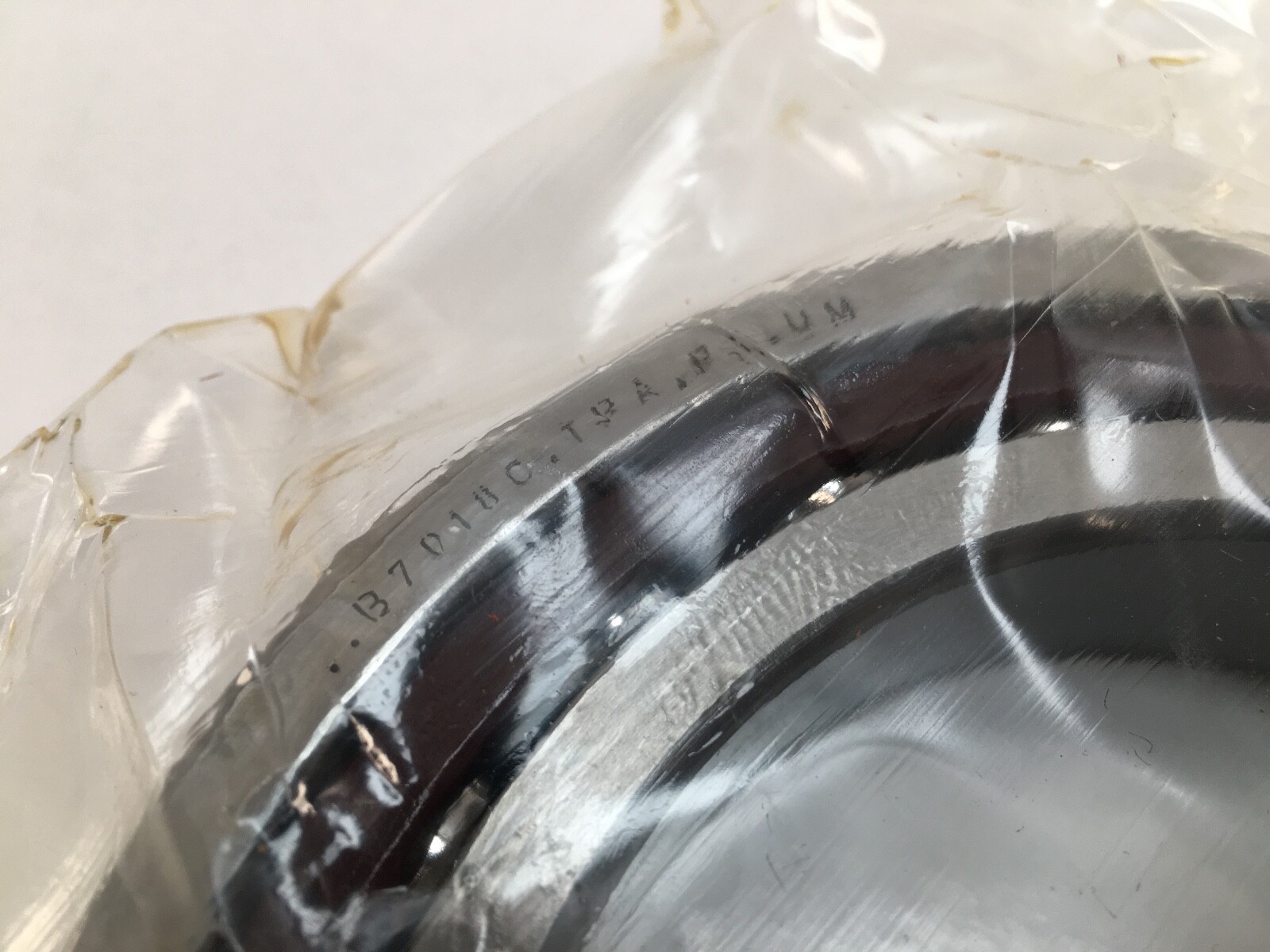

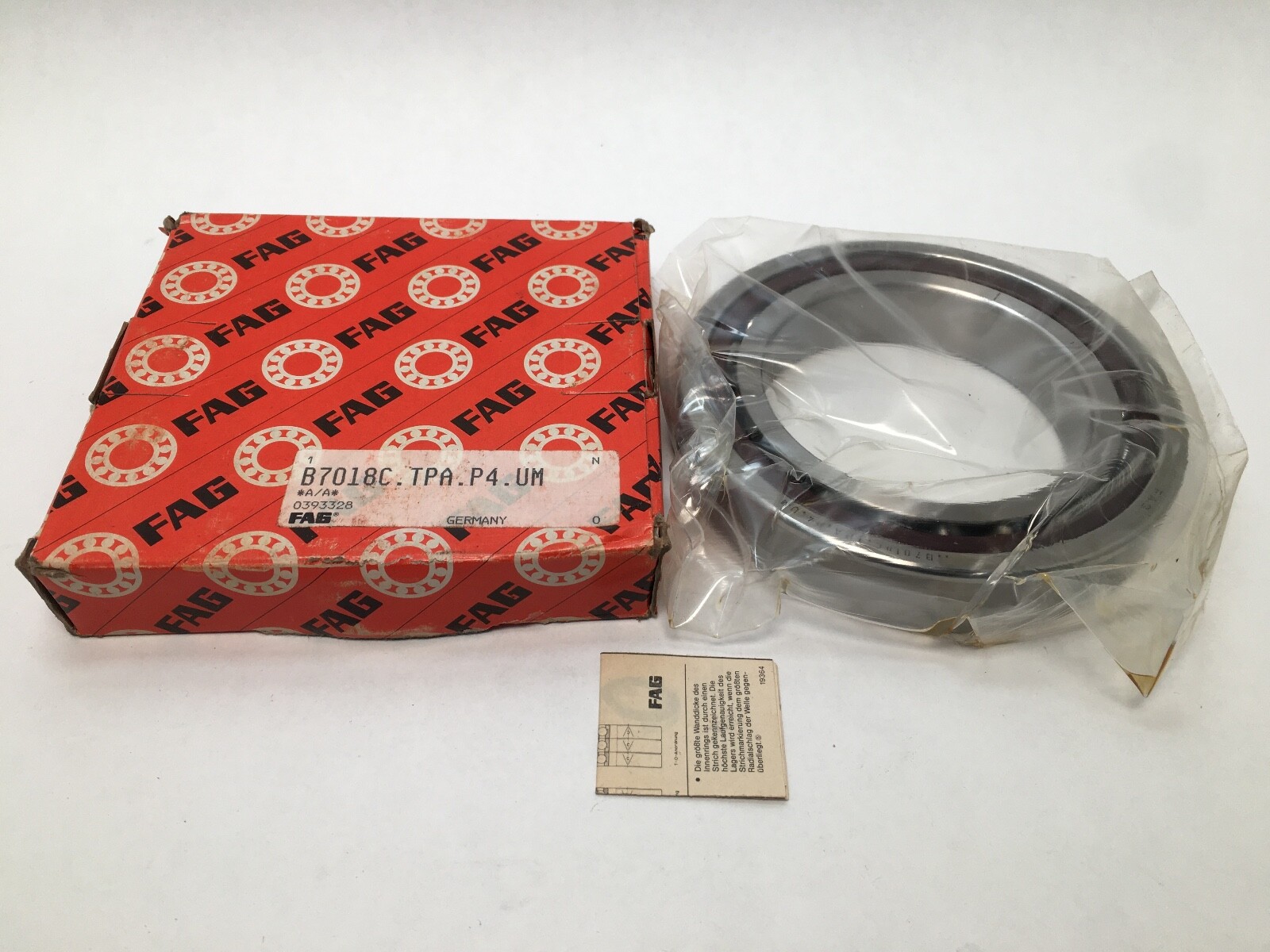

FAG B7018C.TPA.P4.UM super-precision spindle bearing (marking B-7018-C-TPA-P4-UM). Single-row angular contact ball bearing, universally ground, Medium preload. Bore Diameter: 90 mm. Outside Diameter: 140 mm. Width: 24 mm. Contact Angle: 15°. Preload: Medium (1,395 N).
B70 — FAG spindle bearing, ISO dimension series 10 (70xx).
18 — bore code, 18 x 5 = 90 mm.
C — 15° contact angle, for high speed with moderate axial rigidity.
TPA — laminated fabric (phenolic) cage. The current Schaeffler designation uses T.
P4 — ISO tolerance class P4, equivalent to ABEC 7.
U — universal design. The bearing can be paired back-to-back, face-to-face or in tandem with any other U bearing of the same size.
M — Medium preload.
Dynamic Load Rating: 78,000 N. Static Load Rating: 51,000 N. Fatigue Load Limit: 5,000 N. Cage Material: Phenolic. Precision Class: ABEC 7 / P4. Operating Temperature: -30 °C to 100 °C. Item Weight: 1.14 kg (2.51 lb). Lubricant: grease or oil.
Preload: Medium, 1,395 N for a universal pair in back-to-back or face-to-face arrangement. The same size is also built with Light (437 N) and Heavy (2,785 N) preload. Medium preload gives higher axial rigidity than Light at a lower speed limit.
Shaft shoulder diameter: 100 mm. Housing shoulder diameter: 131 mm. Distance between pressure cone apexes: 27.4 mm. Minimum chamfer dimension: 1.5 mm.
Unit Quantity: 1 Pc. Single universal bearing. Closure Type: Open. Number Of Rows: 1.
Same 90 x 140 x 24 mm envelope and 15° contact angle: SKF 7018 CD/P4A, NSK 7018C, Fafnir 2MM9118WI, Barden 118H. The current Schaeffler designation for this bearing is B7018-C-T-P4S.
