FAGB7013CTPAP4ULAngular Contact Ball Bearing – 65 mm ID, 100 mm OD, 18 mm Width, Open, 15°, ABEC 7 / P4, Phenolic Cage

Product Description

What this part is

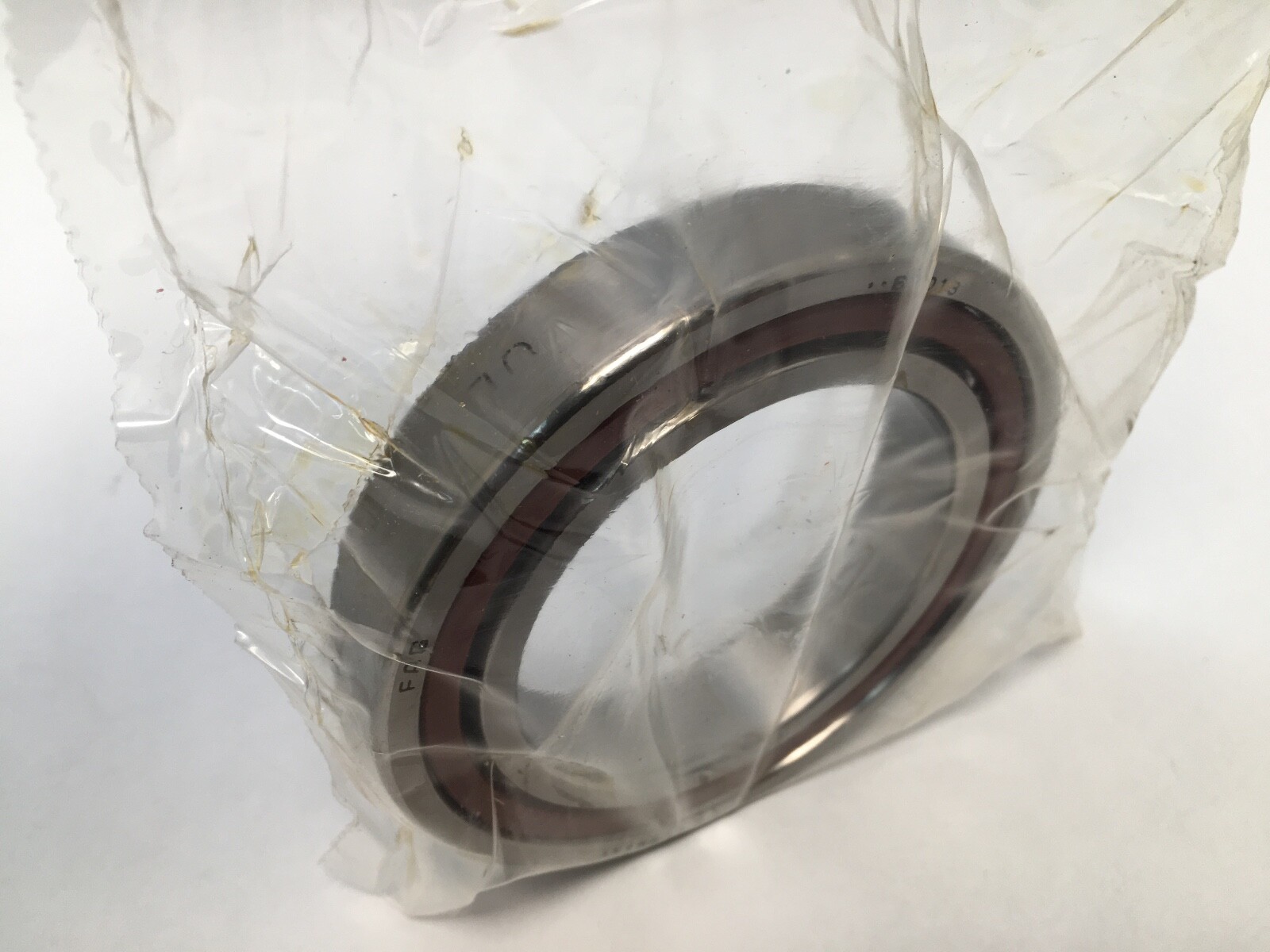

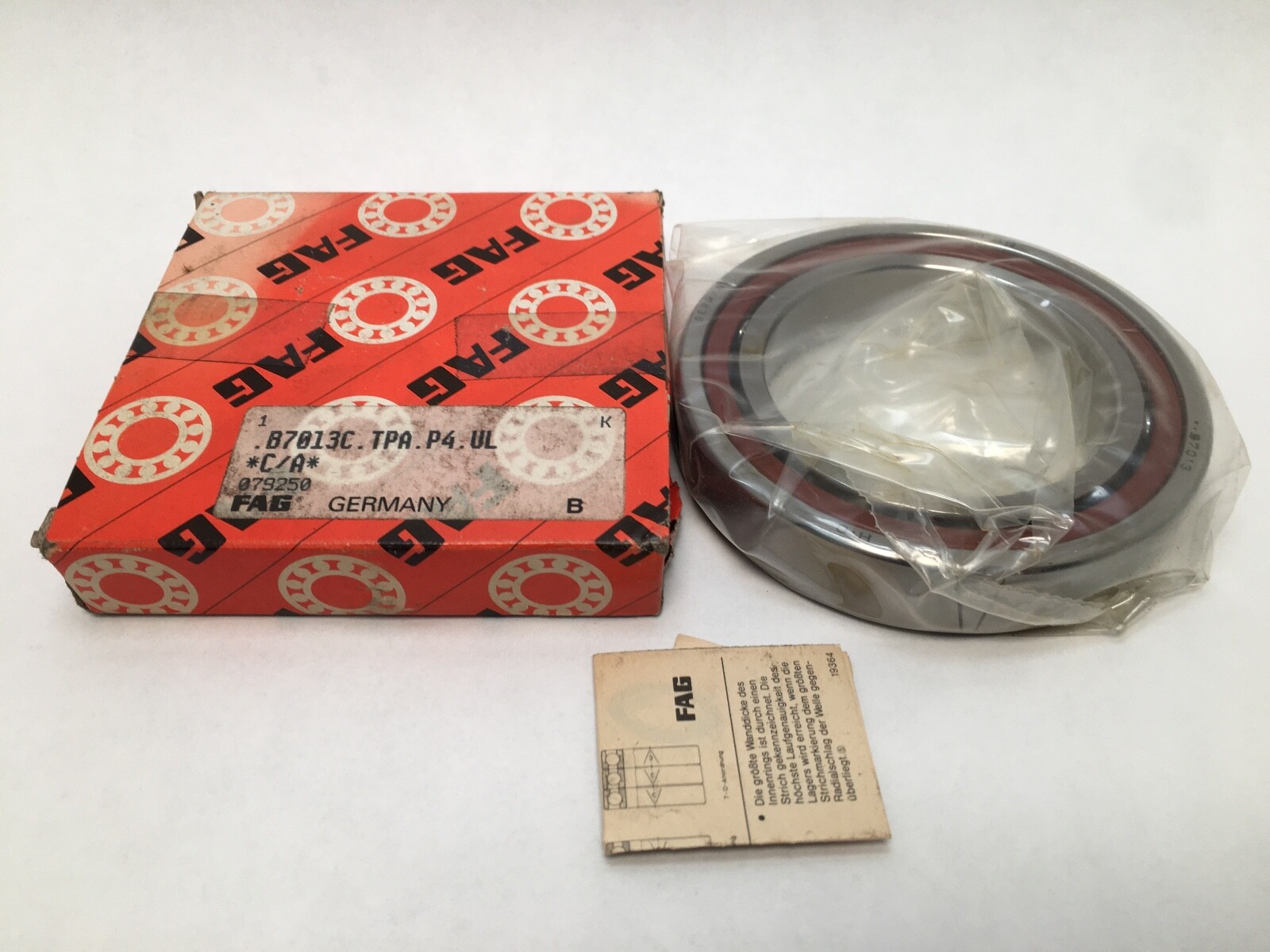

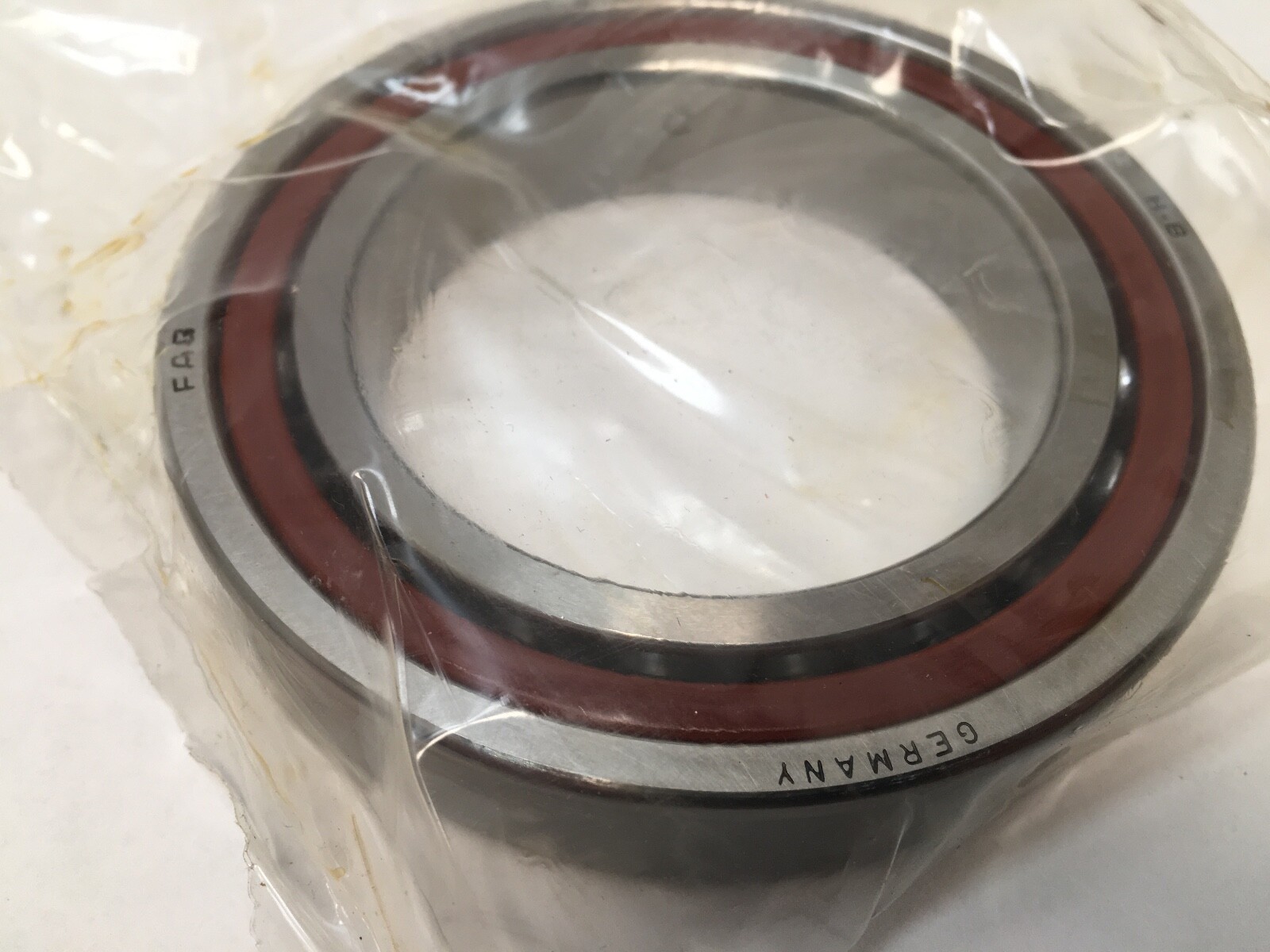

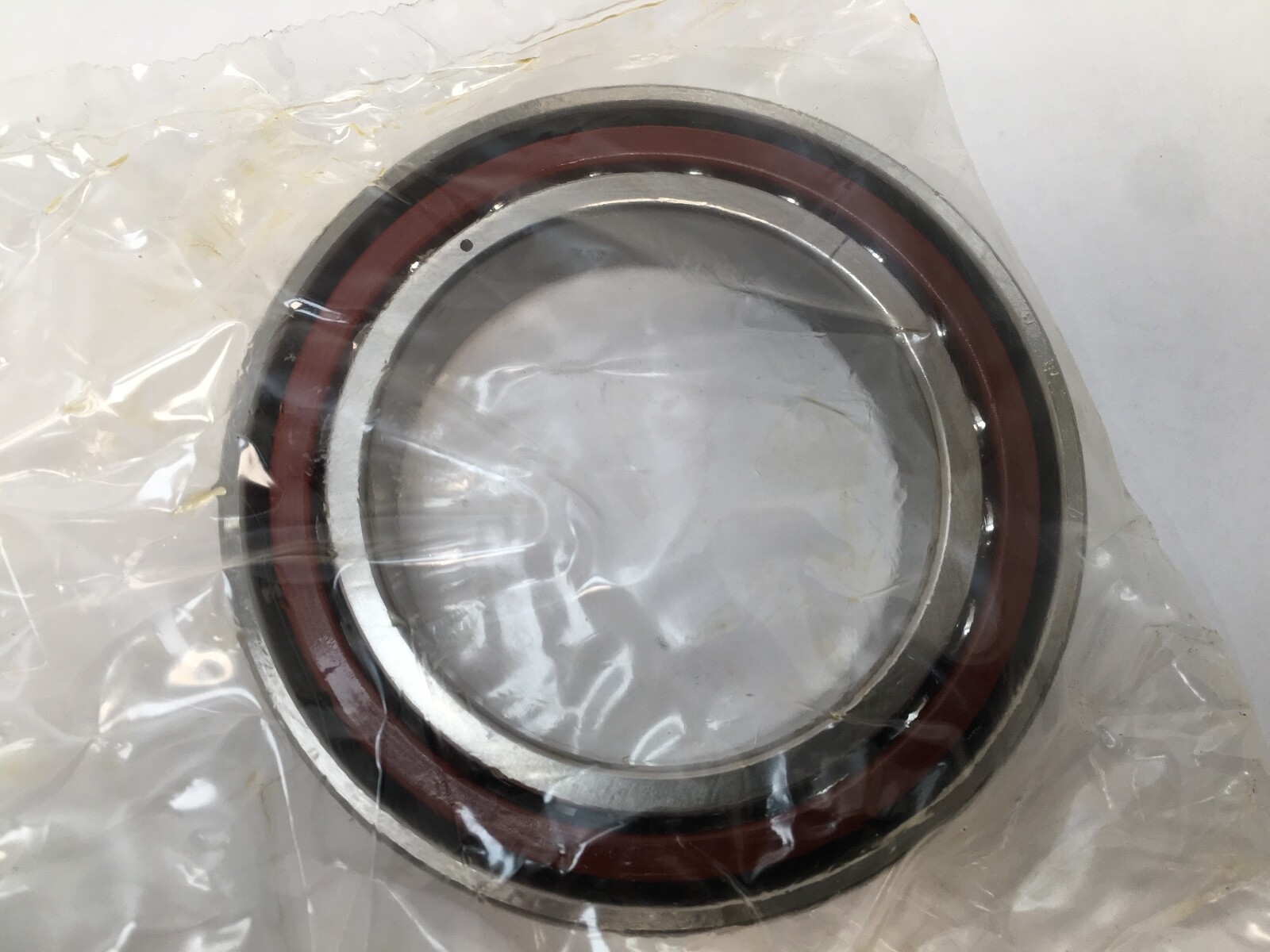

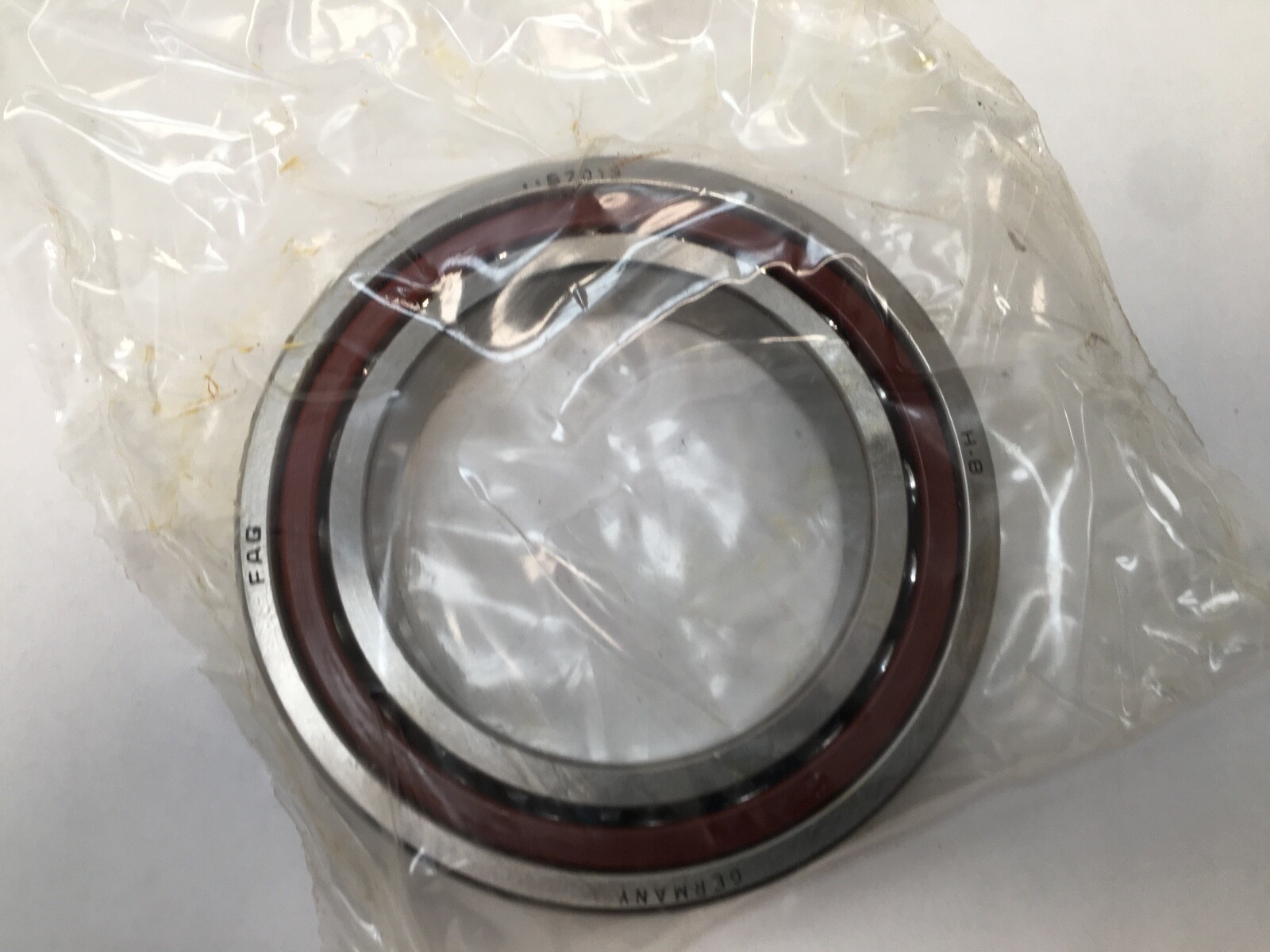

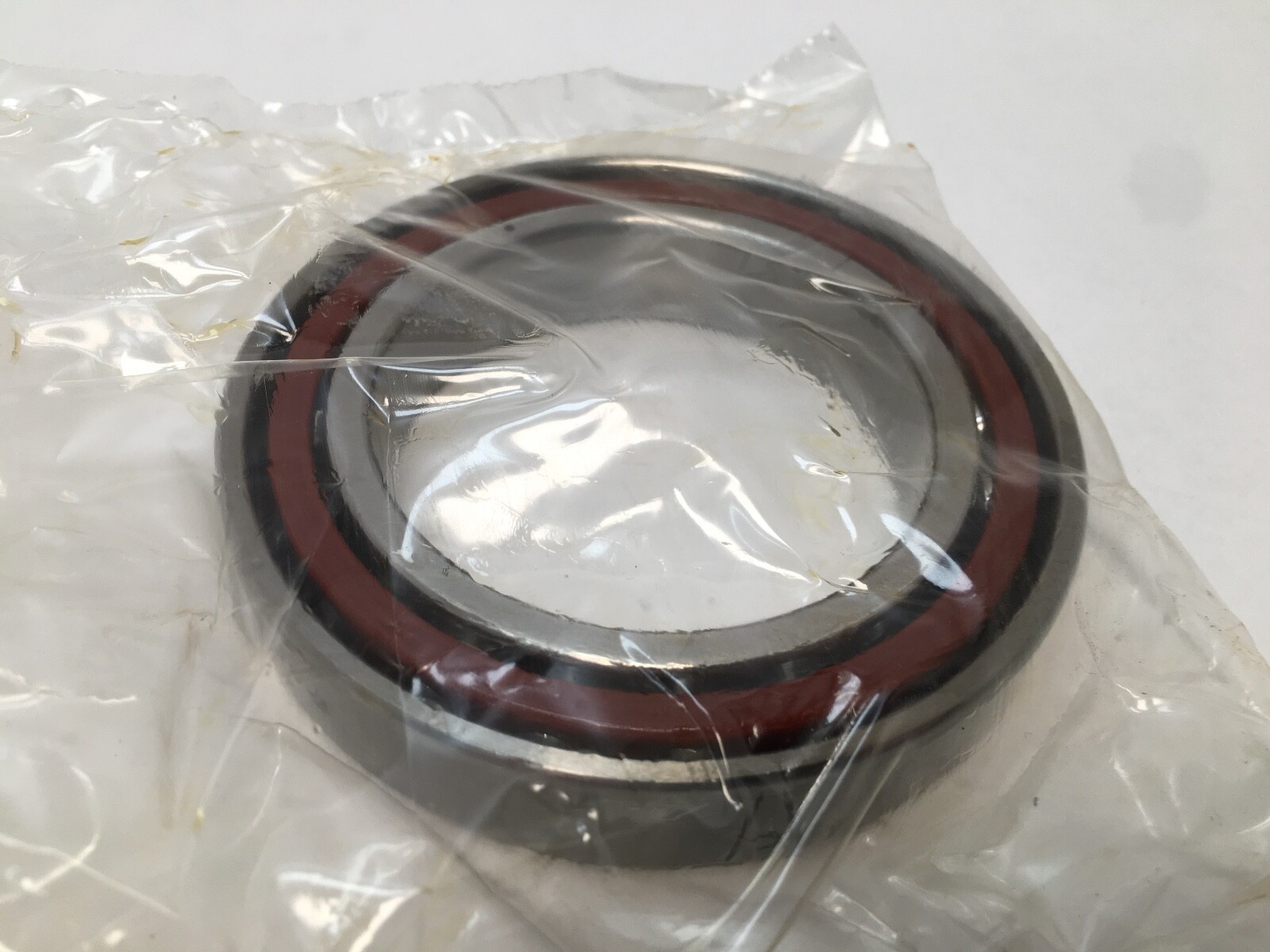

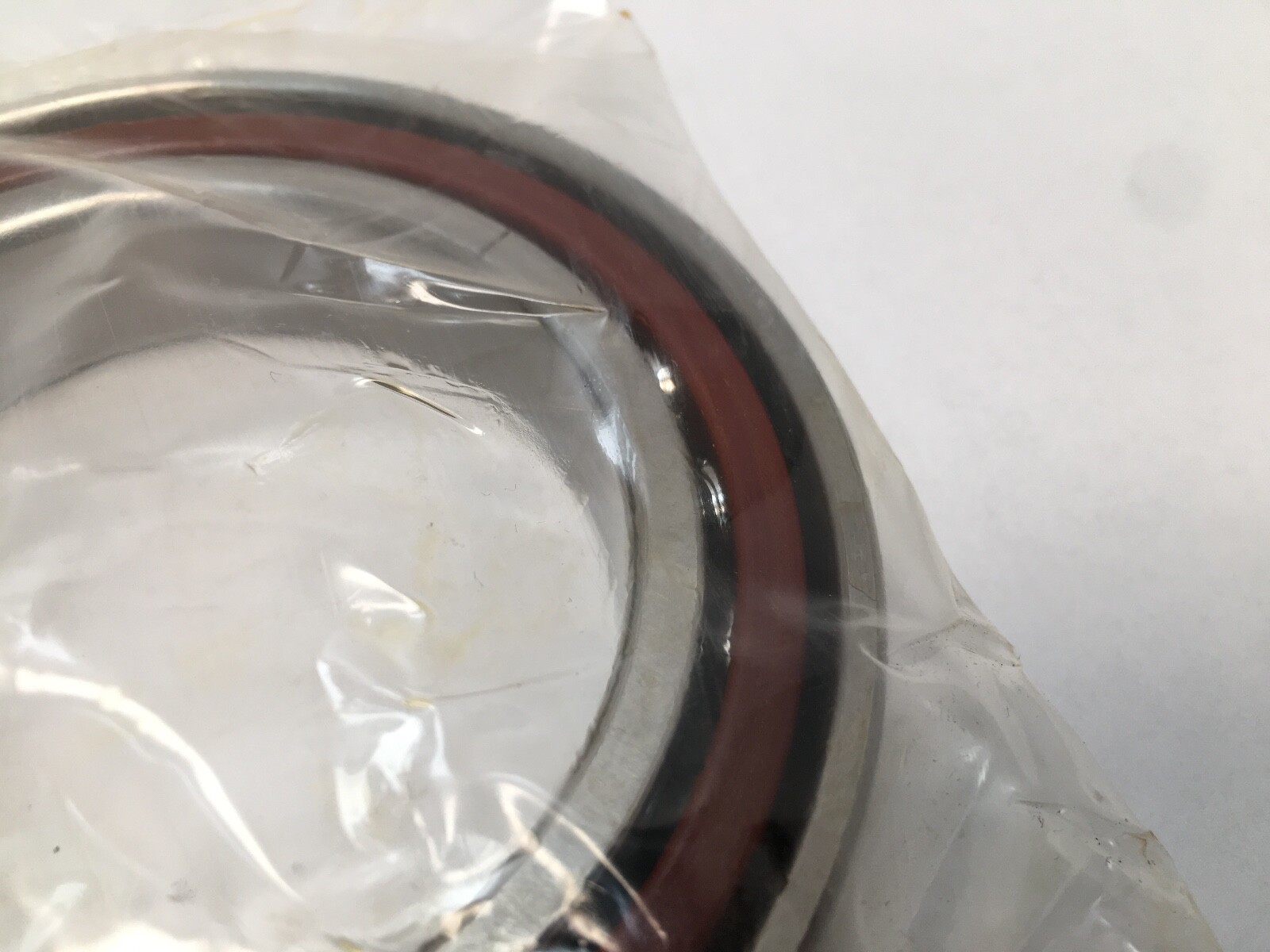

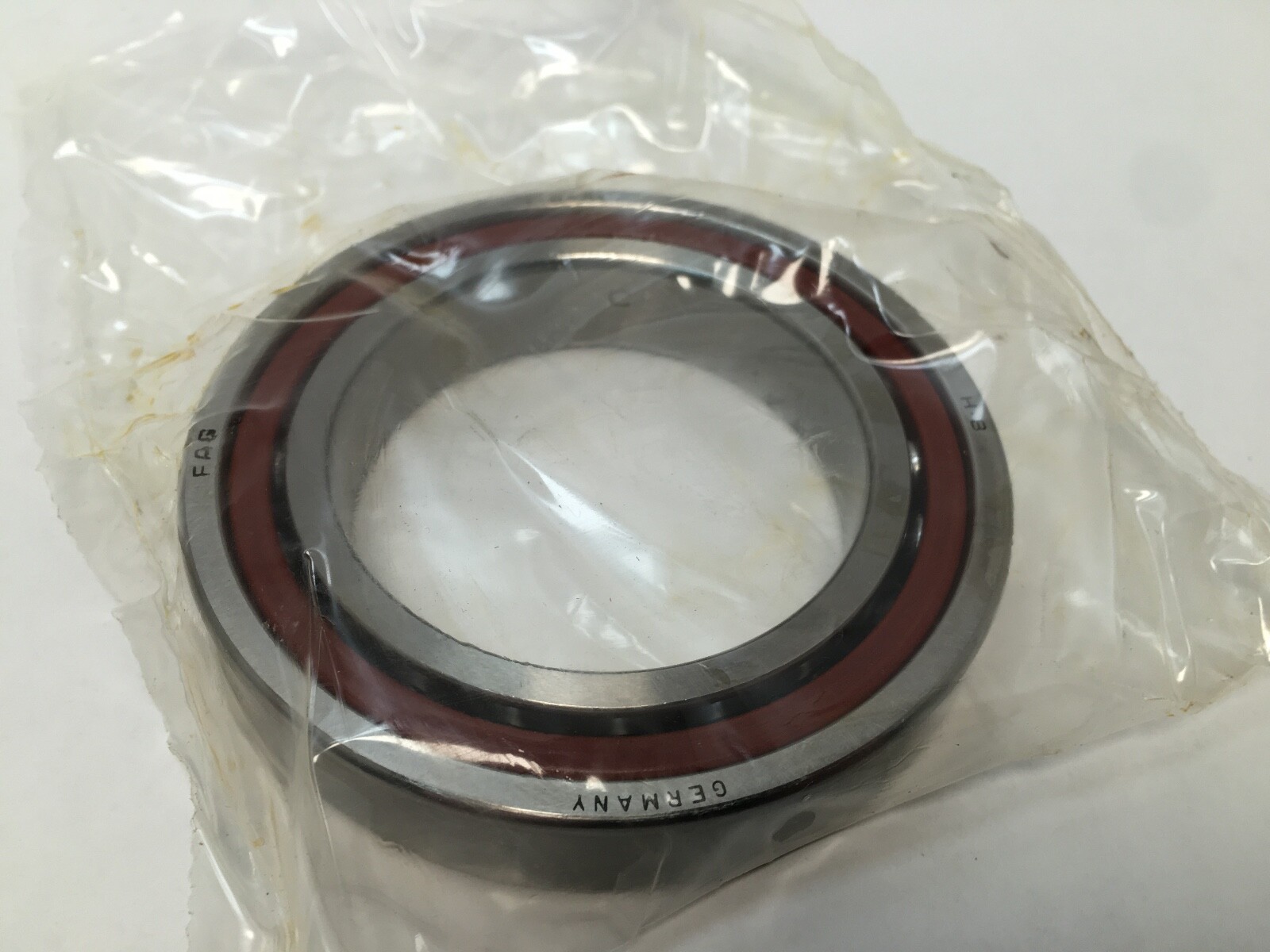

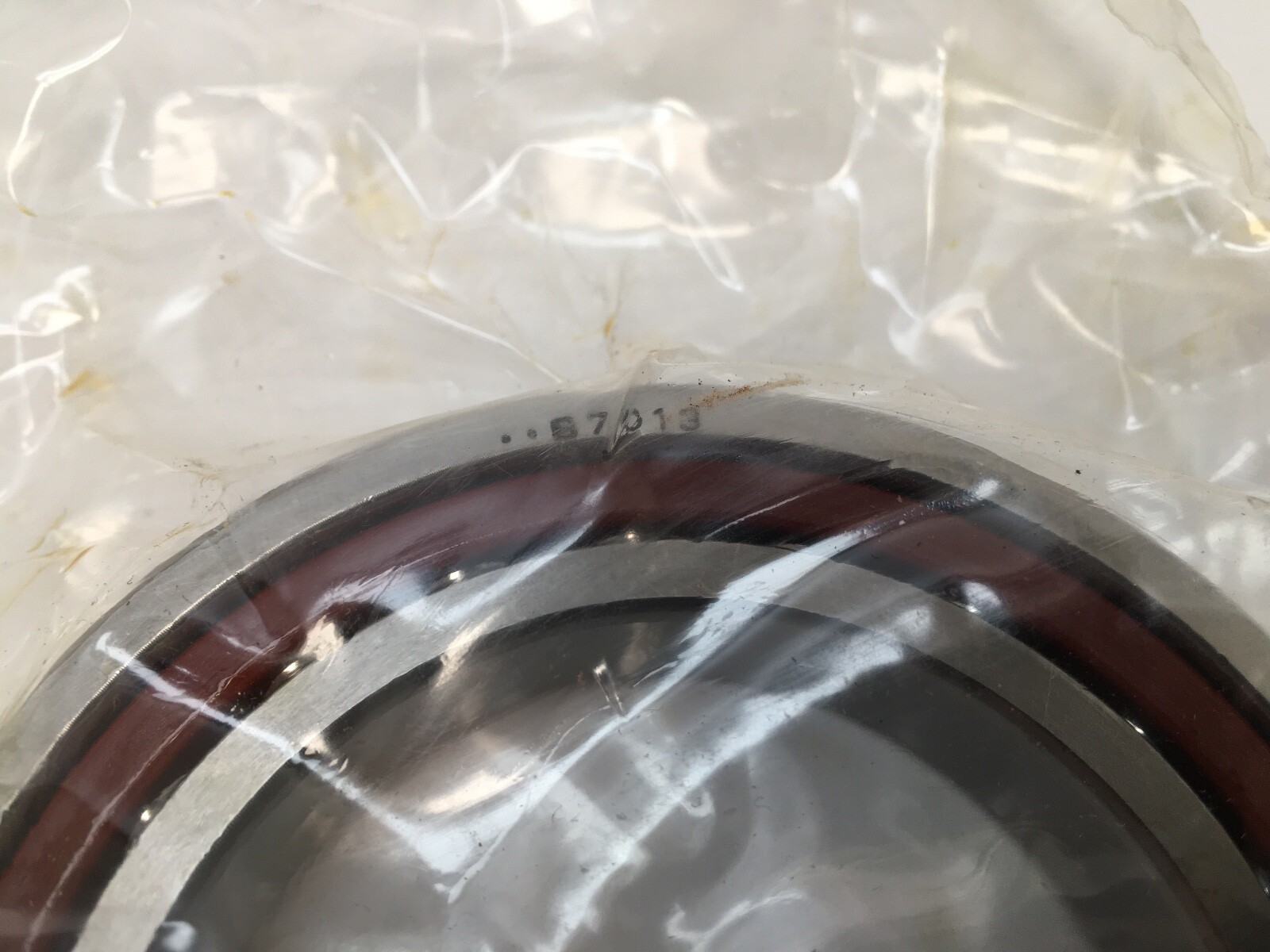

FAG B7013C.TPA.P4.UL is a super-precision spindle angular contact ball bearing. Bore Diameter: 65 mm. Outside Diameter: 100 mm. Overall Width: 18 mm. Contact Angle: 15°. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Bearing Material: Chrome steel. Item Weight: 0.42 kg (0.93 lb).

Decoding the designation

B70 — Schaeffler’s spindle bearing series, a light 70-section angular contact ball bearing built to super-precision tolerances for machine tool spindles.

7013 — ISO size code. Bore 65 mm, outside diameter 100 mm, width 18 mm.

C — Contact angle 15°. The shallow angle favours speed and radial stiffness.

TPA — Fabric-base laminate phenolic cage, machined. Phenolic runs light and damps well, which is what allows the high speed ratings.

P4 — Precision Class: ABEC 7 / P4.

UL — Universally matchable. Faces are ground so any two or more bearings pair in back-to-back, face-to-face or tandem arrangement and reach the published preload without shims.

What these specs mean in practice

Dynamic Load Rating: 41,500 N. Static Load Rating: 25,500 N. Limiting Speed: 14,000 rpm grease; 22,000 rpm oil. Fatigue load limit, radial: 2,700 N.

Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Cage Type: Machined. Lubricant: grease or oil. Operating temperature range: -30 °C to +100 °C.

A 15° contact angle carries more radial load and runs faster than a 25° execution of the same size; a 25° bearing carries more thrust and runs slower. Series: B70. Base Number: B7013.

Mounting data

Preload per matched pair: light 214 N, medium 704 N, heavy 1,417 N. The preload class is set by how many bearings are stacked and in which arrangement, so a universally matchable bearing reaches its figure by assembly rather than by a suffix.

Mounting Arrangement: Universal — back-to-back (O), face-to-face (X) or tandem. Internal Clearance: N/A; the bearing is preload-adjusted rather than clearance-set.

Quantity and configuration

Unit Quantity: 1 Pc. Single bearing, universally ground, ready to be matched with further pieces of the same designation.

Interchange guidance

Same-envelope, same-angle, same-class equivalents: SKF 7013 CD/P4A, NSK 7013C, NTN 7013C, Timken Fafnir 2MM9113WI, RHP 7013CT and Koyo 7013C. The Fafnir 2MM prefix is the 15° super-precision code, and the 9113WI number maps to ISO 7013.

Searchable forms of the number: B7013C.TPA.P4.UL, B7013CTPAP4UL, B7013-C-T-P4S-UL, B7013C.T.P4S.UL, B 7013 C TPA P4 UL.
