FAGB7006C.TPA.P4S.ULSpindle Angular Contact Ball Bearing – 30 mm ID, 55 mm OD, 13 mm Width, Open, 15° Contact Angle, Light Preload, Universal Ground

Product Description

What this part is:

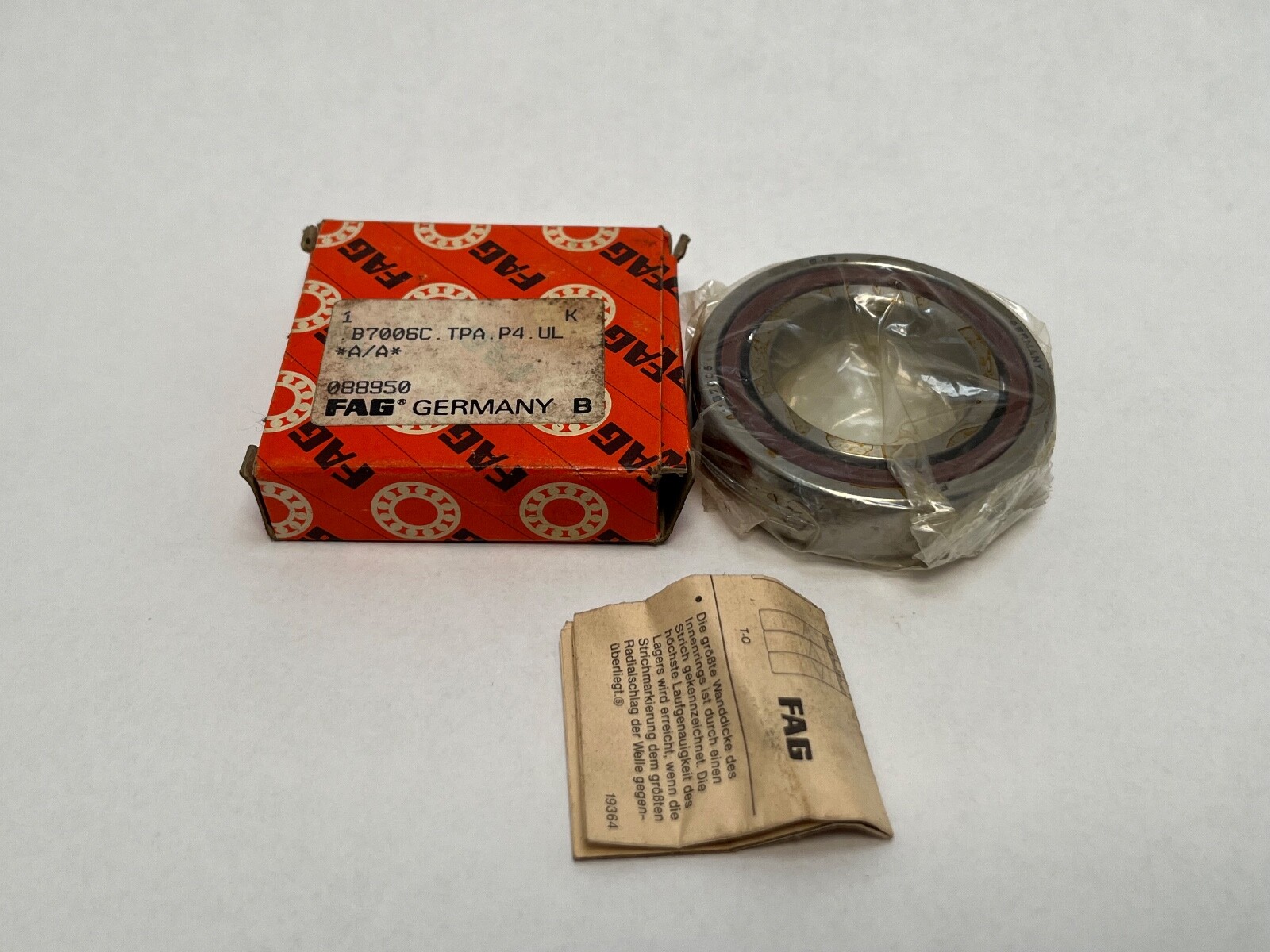

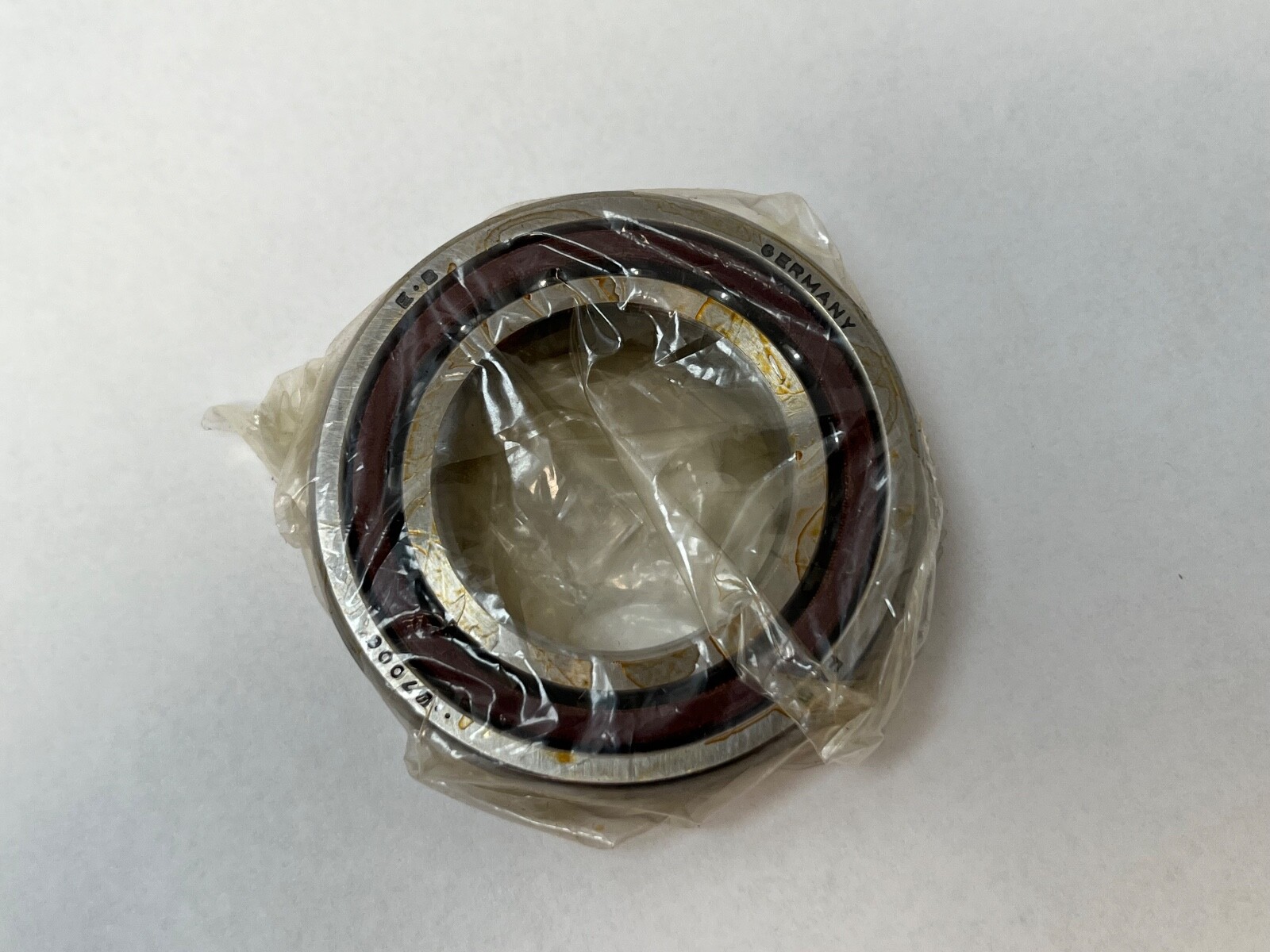

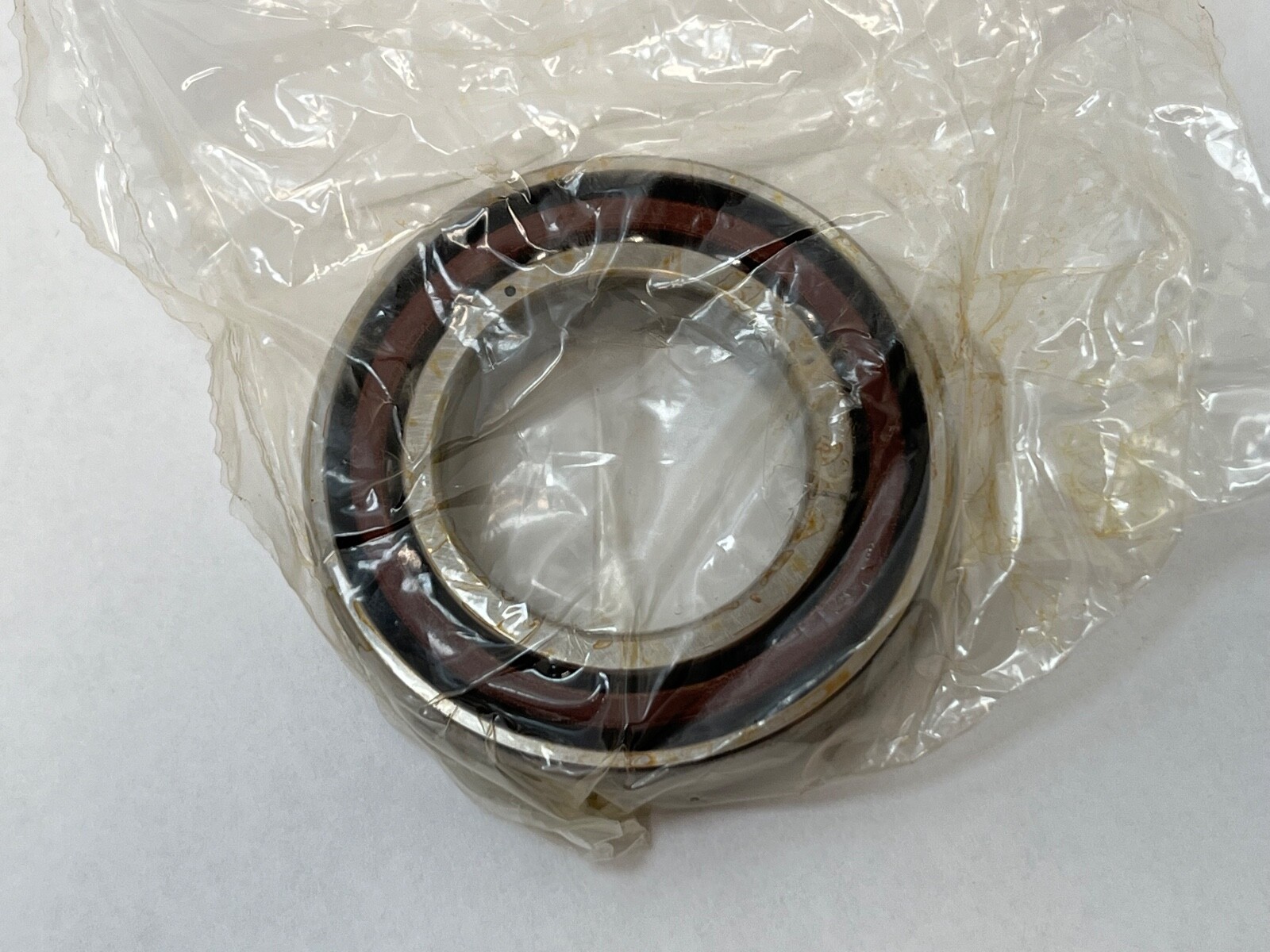

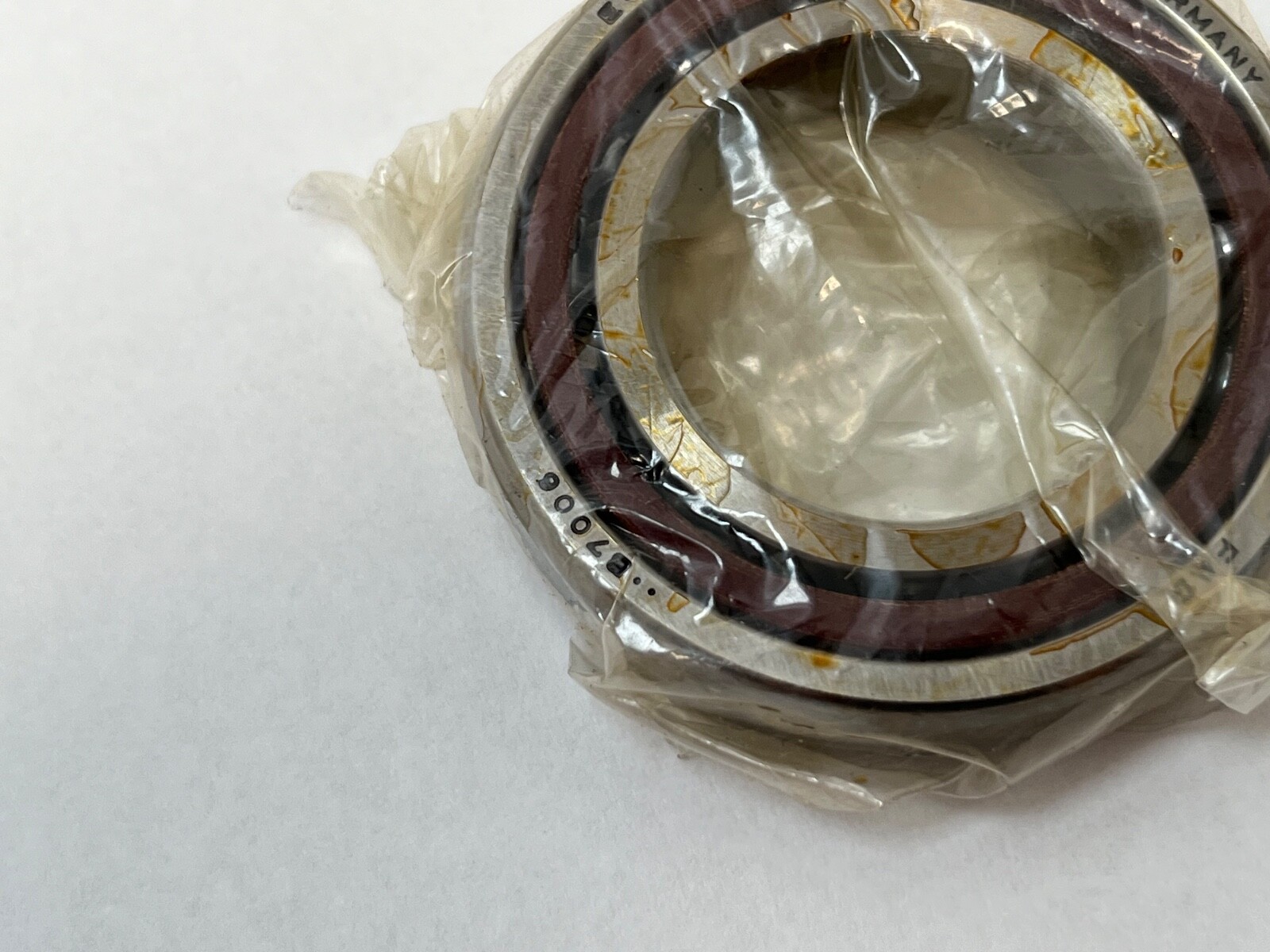

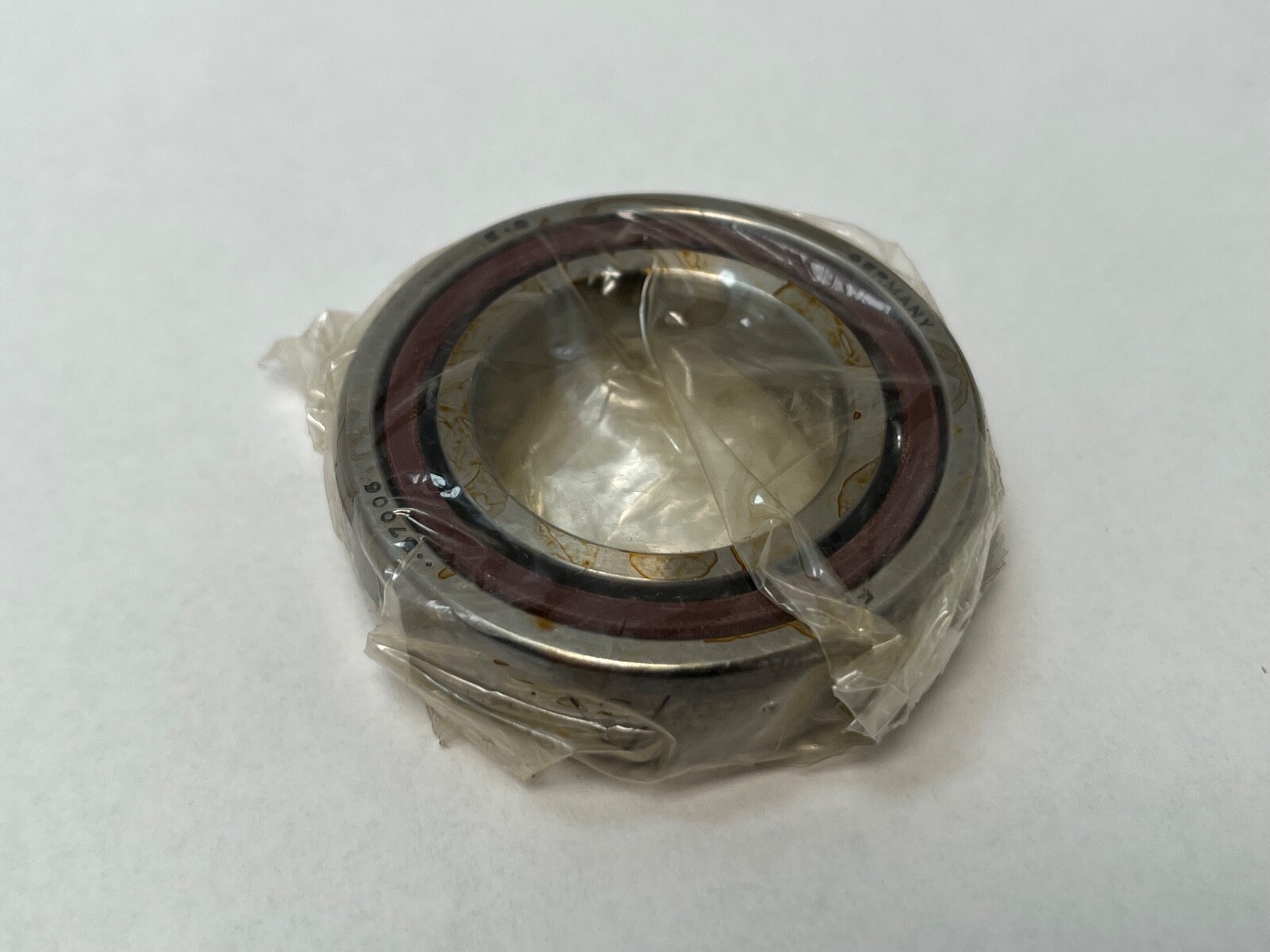

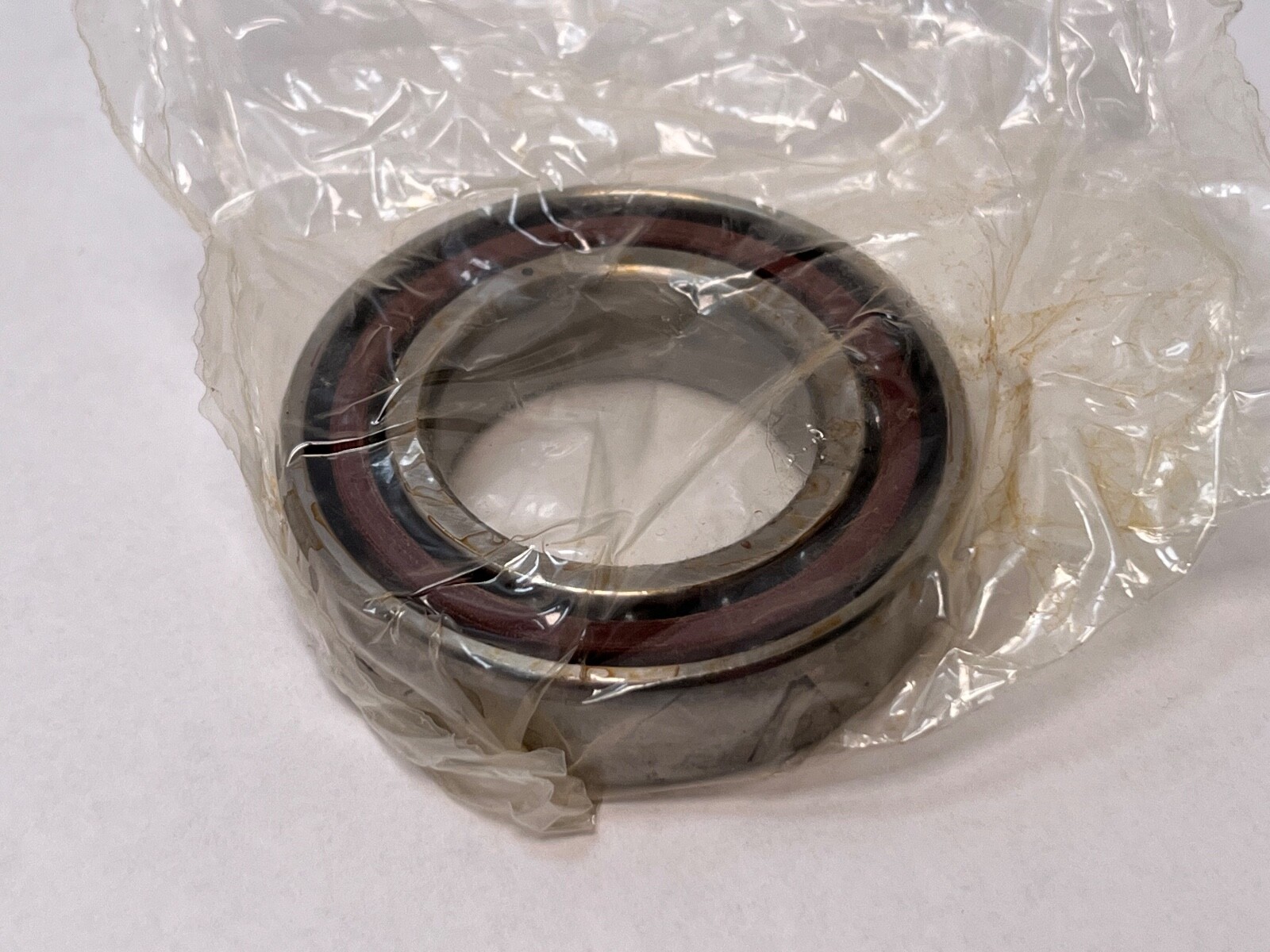

FAG B7006C.TPA.P4S.UL single-row angular contact spindle bearing, carton designation B7006 C TPA P4 K5 UL, 30 x 55 x 13 mm, open, 15° contact angle, light preload, universal grinding. Unit Quantity: 1 Pc.

Decoding the designation:

B70 — FAG spindle bearing range, ISO dimension series 10.

06 — bore code, 30 mm bore.

C — 15° contact angle.

TPA — fabric-base laminate phenolic cage, machined, outer-ring guided.

P4 — precision class equivalent to ABEC 7 and ISO Class 4.

UL — universal grinding, light preload.

Specifications:

Bore Diameter: 30 mm. Outside Diameter: 55 mm. Overall Width: 13 mm. Number Of Rows: 1. Rolling Elements: Ball, 20 balls of 4.762 mm diameter. Bore Type: Straight. Closure Type: Open. Bearing Material: Chrome steel rings and chrome steel balls. Series: B70, ISO dimension series 10. Contact Angle: 15°. Cage Material: Fabric-base laminate phenolic. Cage Type: Machined, outer-ring guided. Precision Class: P4 (ABEC 7, ISO Class 4). Preload: Light. Mounting Arrangement: Universal. Dynamic Load Rating: 14.4 kN (3,237 lbf). Static Load Rating: 6.7 kN (1,506 lbf). Fatigue Load Limit: 0.69 kN. Reference Speed: 43,000 rev/min. Limiting Speed: 28,000 rev/min. Operating Temperature Range: -30 °C to 100 °C. Item Weight: 0.113 kg (0.25 lb). Country of Origin: Germany.

Dimensions and mounting:

Universal grinding allows any two of these to be clamped back-to-back or face-to-face at the rated light preload with no custom spacer, and to share load in tandem. The machined phenolic cage is guided on the outer ring land.

Compatibility and replacement:

Cross-Reference 1: SKF 7006 CD/P4A, 15° super-precision. Cross-Reference 2: NSK 7006CTRSUL, 15° with phenolic cage. Cross-Reference 3: RHP 7006CTSULP4, 15° super-precision. Cross-Reference 4: Fafnir 2MM9106WI CR SUL, the carton designation on this part, 15°. The FAG B7006C.TPA.P4.UL is a separate part number in the same size. A B7006-E execution carries a 25° contact angle in this envelope and is a related size. Searchable designation forms: B7006C.TPA.P4S.UL, B7006CTPAP4K5UL, B-7006-C-TPA-P4-K5-UL, B7006 C TPA P4 K5 UL and 7006C.

Frequently asked questions:

What size is the FAG B7006C.TPA.P4S.UL?

Bore Diameter: 30 mm. Outside Diameter: 55 mm. Overall Width: 13 mm.

What contact angle and preload does it have?

Contact Angle: 15°. Preload: Light, universal grinding.

What are the load ratings and speed limits?

Dynamic Load Rating: 14.4 kN. Static Load Rating: 6.7 kN. Reference Speed: 43,000 rev/min. Limiting Speed: 28,000 rev/min.
