Availability:
1 in stock
Super precision spindle bearing, 30 x 55 x 13 mm, 15° contact angle, light preload universal design, phenolic cage, open both faces, ABEC 7/9.
List Price
$232.92
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7006C.T.P4S.UL |
| GTIN | 4026677526465 |
| Model | B7006C.T.P4S UL |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 30 mm |
| OD | 55 mm |
| Width | 13 mm |
| Base Number | B7006 |
|---|---|
| Industry Terms | spindle bearing; super precision angular contact bearing; machine tool spindle bearing; precision ball bearing; universal matched bearing; high speed spindle bearing |
| Common Misspellings | B7006CTP4S; B7006 C T P4S; B7006C T P4S; FAG B7006; Barden B7006; anglular contact bearing; angular contract bearing |
| Application Types | Machine tool spindles; grinding spindles; high-speed motor spindles; precision rotary tables; boring and milling heads |
| Bore Shaft Size | 30 mm (1.1811 in) |
| Mpn Variants | B7006C.T.P4S; B7006-C-T-P4S; B7006CTP4S; B7006C.T.P4S.UL; B7006CTP4SUL; B7006CTP4SUH; B7006C.T.P4S UH; B7006CTP4SDBH; B7006C.T.P4S DBH; B 7006 C T P4S; B7006 |
| Material | Chrome steel |
| Series | B70 super precision (ISO 70 dimension series) |
| Rolling Elements | Balls |
| Number Of Rows | 1 per bearing (2 rows across the pair) |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Part Number | B7006-C-T-P4S-UL |
| Cross Reference 6 | B7006-E-T-P4S-UL (related size, 25 degree contact angle) |
|---|---|
| Cross Reference 7 | HCB7006-C-T-P4S-UL (related size, hybrid ceramic balls) |

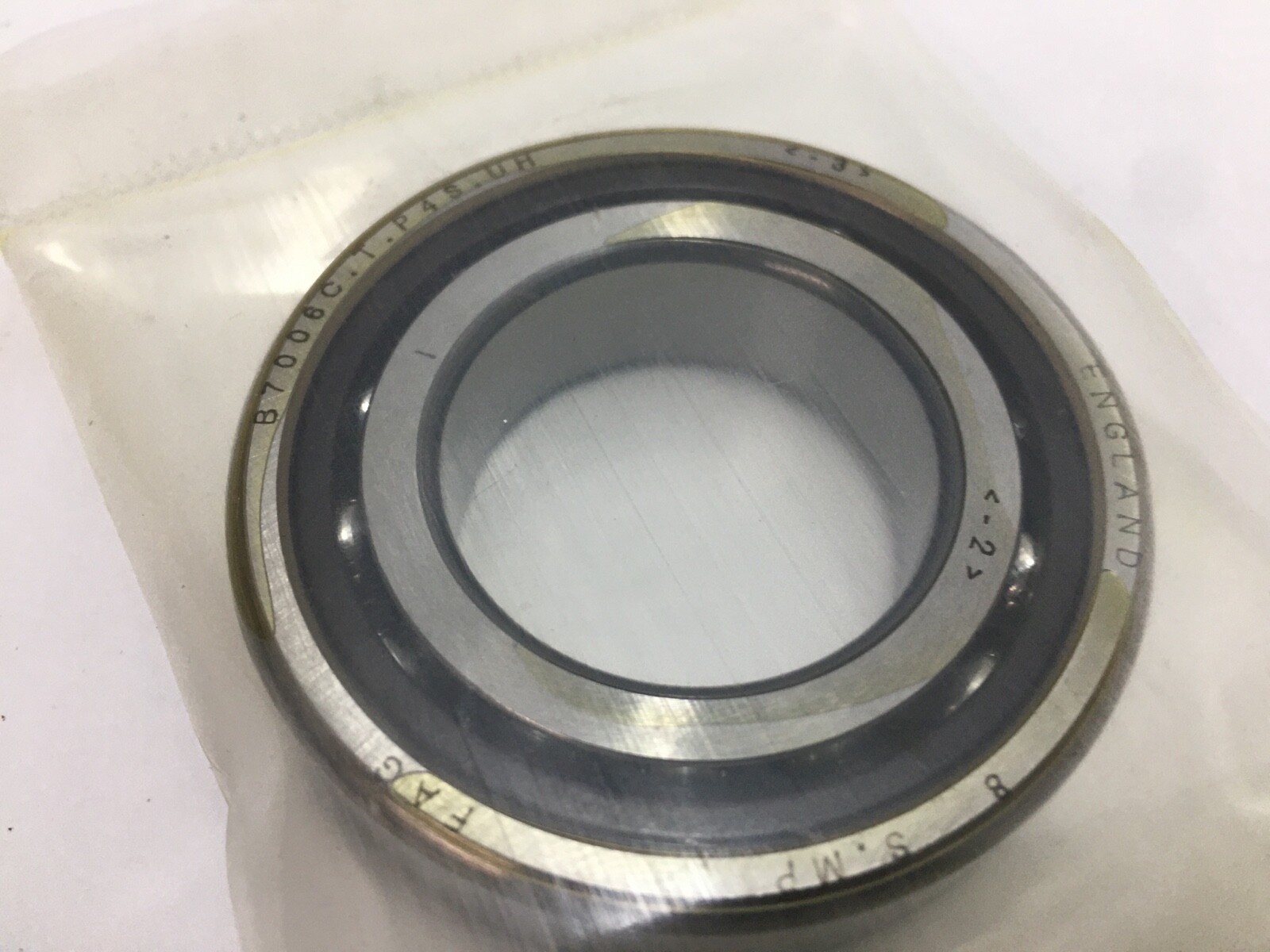

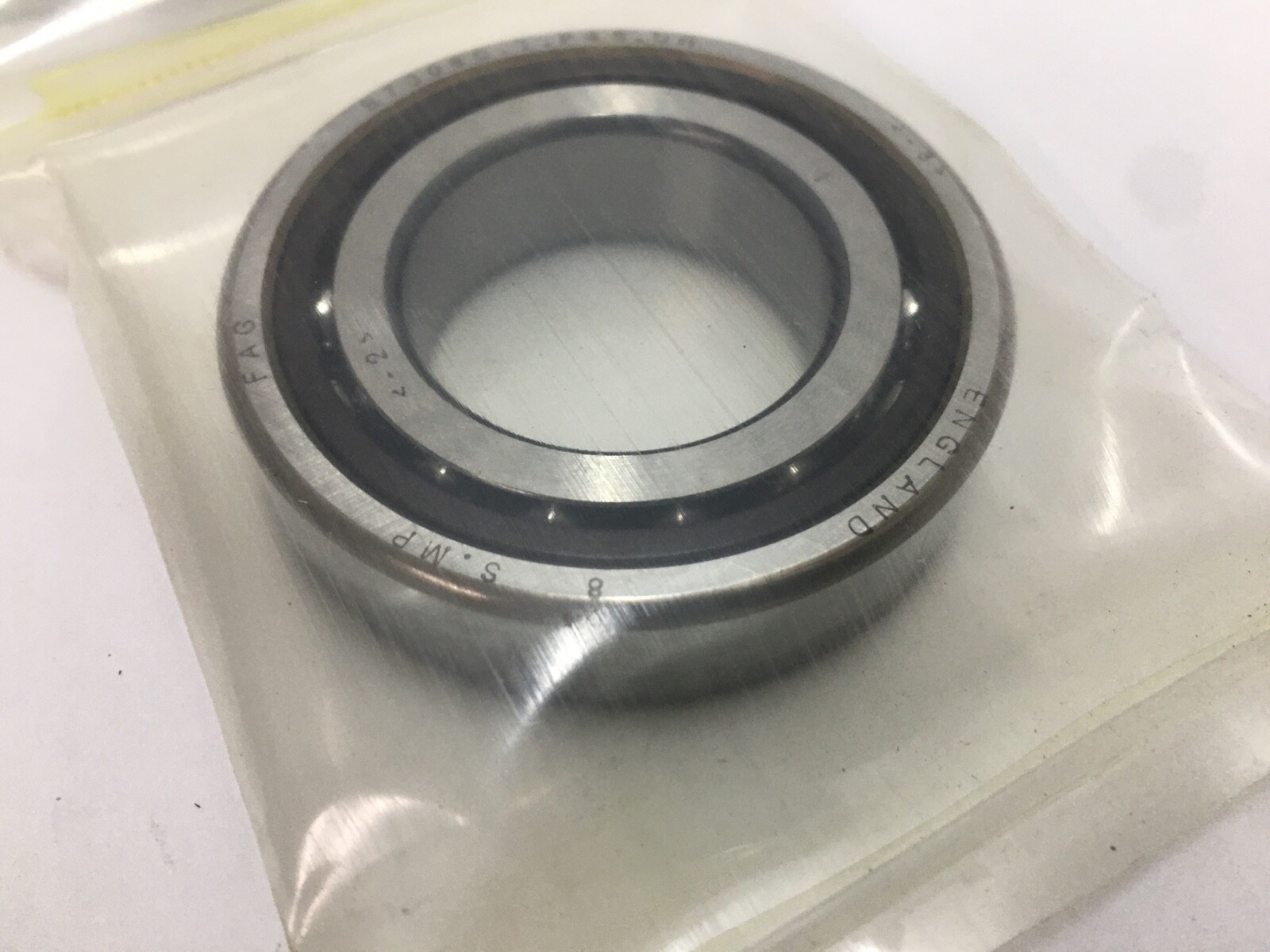

FAG B7006-C-T-P4S-UL super precision angular contact ball bearing, a machine tool spindle bearing in the B70 series, supplied as two pieces of the same universal designation forming one matched pair. Unit Quantity: 2 Pcs. Contact Angle: 15°. Cage: fabric-base laminate phenolic. Open on both faces.
B — Schaeffler super precision spindle bearing range.
7006 — ISO 70 dimension series at a 30 mm bore.
C — 15° contact angle on a B70 designation.
T — fabric-base laminate phenolic cage.
P4S — dimensional and running tolerance class: ABEC 7 on bore and outside diameter, ABEC 9 running accuracy.
UL — universal design at light preload.
Contact Angle: 15°. Precision Class: P4S. Preload: Light, set by the ground ring faces. Cage Material: fabric-base laminate phenolic. Rolling Elements: Balls. Bearing Material: through-hardened chrome steel rings and balls. Series: B70 super precision (ISO 70 dimension series). Closure Type: open both faces. Universal design: any two bearings of this designation form a matched set in back-to-back, face-to-face or tandem arrangement.
Bore Diameter: 30 mm (1.1811 in). Outside Diameter: 55 mm (2.1654 in). Width: 13 mm (0.5118 in). Bore Type: Straight.
SKF 7006 CD/P4A and NSK 7006C are same-envelope super precision bearings at 15°, each on its own preload scheme. B7006-C-T-P4S-UM is the medium preload version, B7006-E-T-P4S-UL carries a 25° contact angle and B7006-C-2RSD-T-P4S-UL is the sealed variant.
Bore Diameter: 30 mm. Outside Diameter: 55 mm. Width: 13 mm.
Contact Angle: 15°. Preload: Light (UL, universal design).

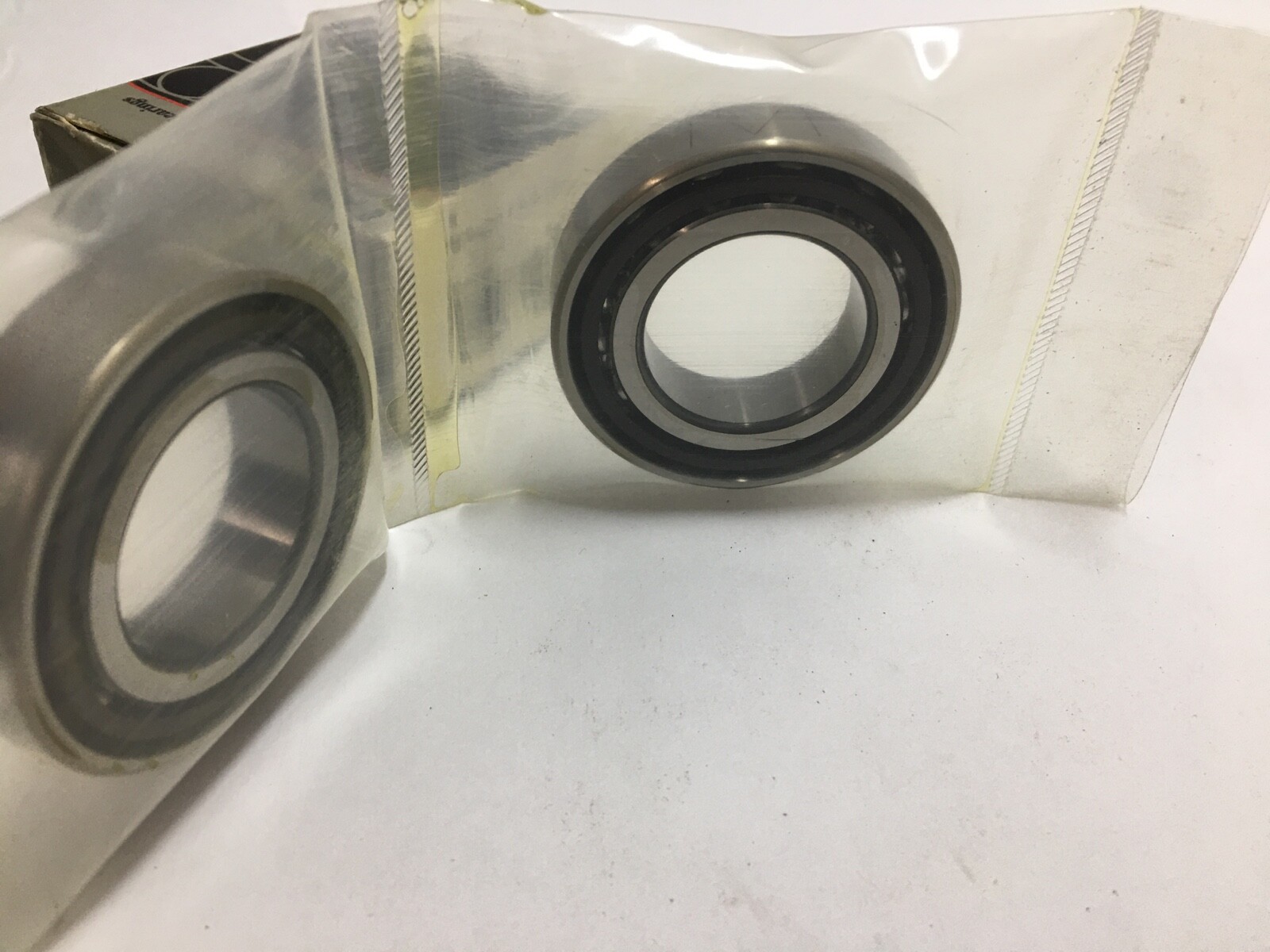

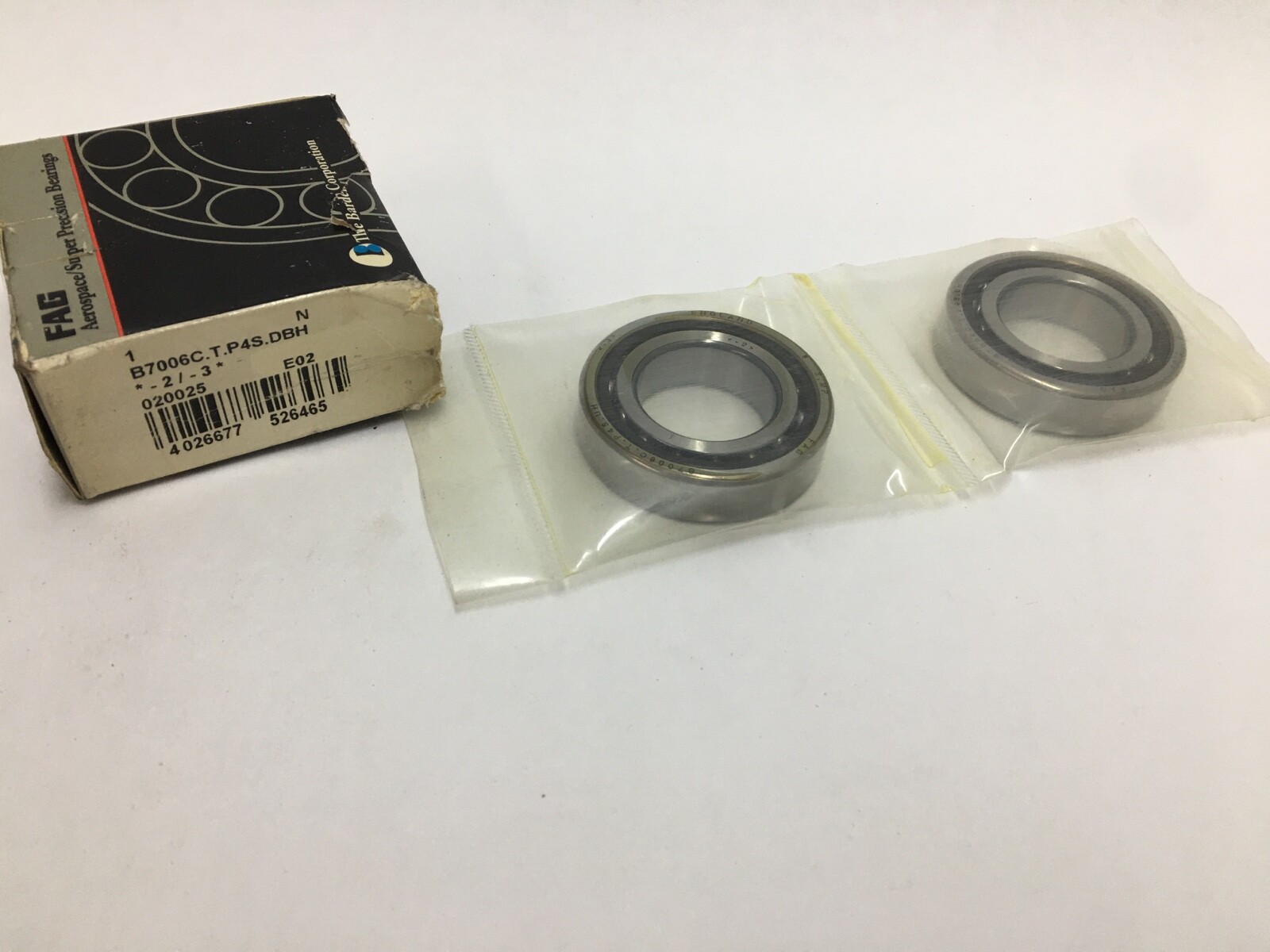

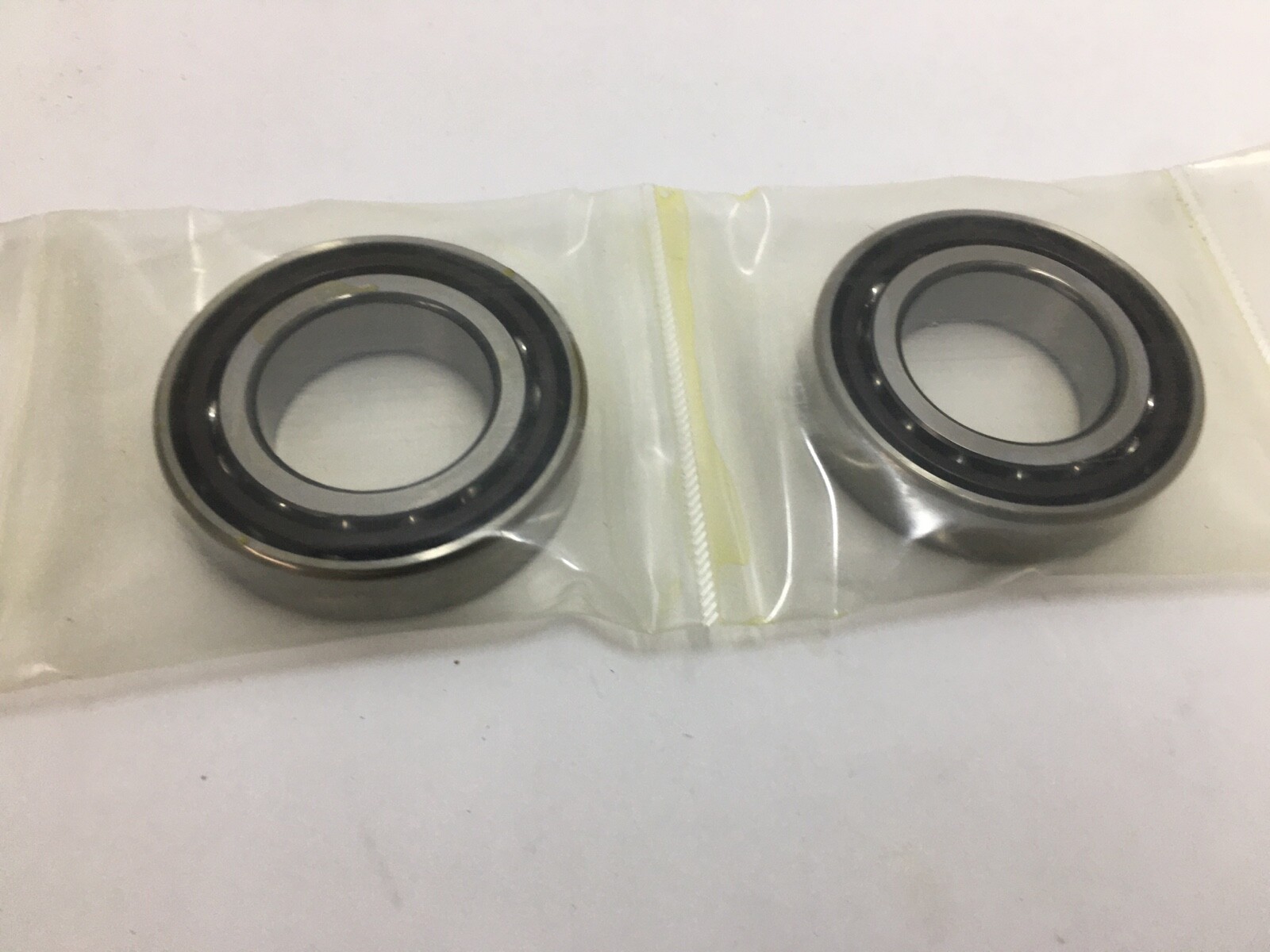

Unit Quantity: 2 Pcs, one matched pair of the same universal designation.
