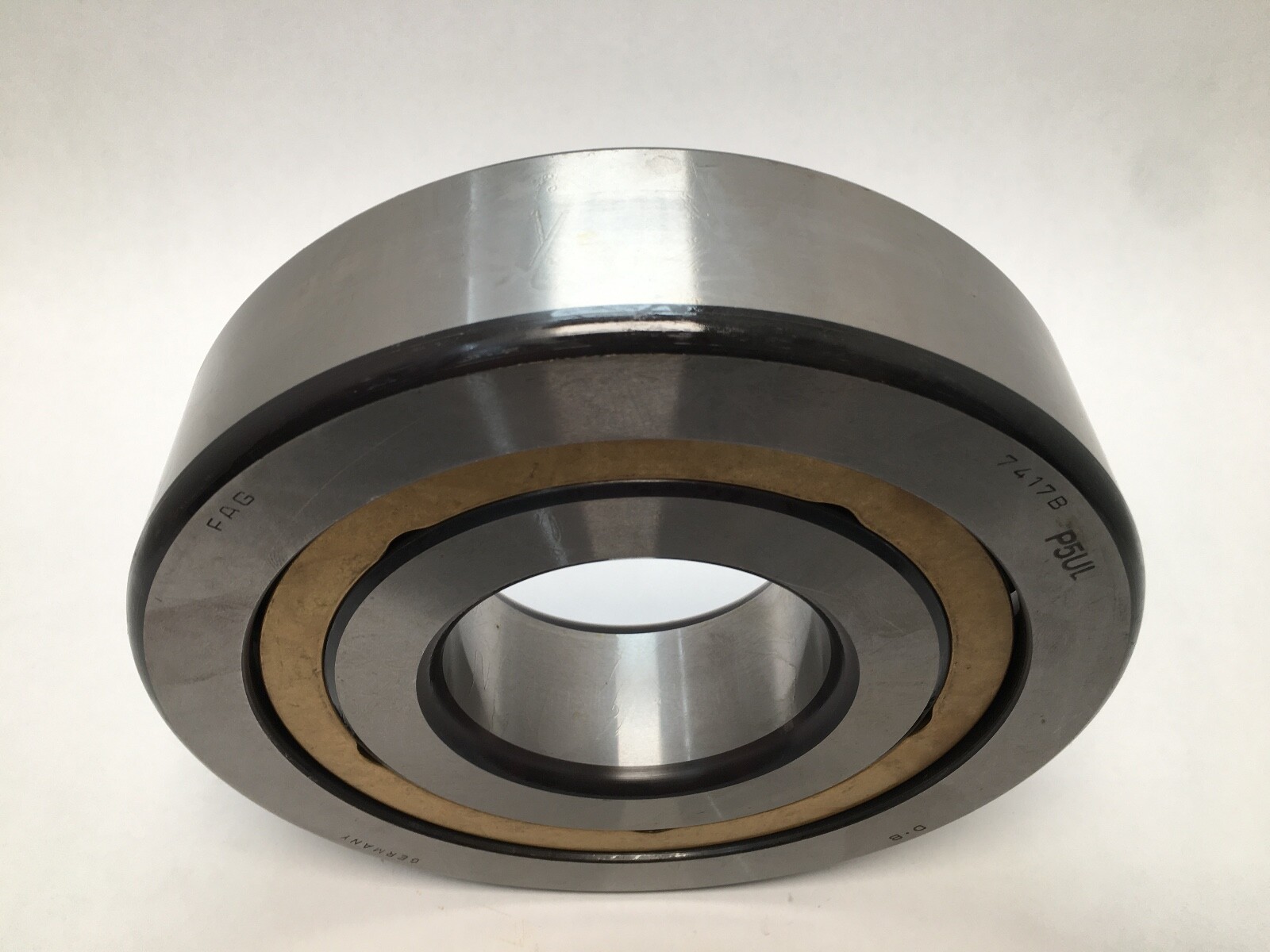

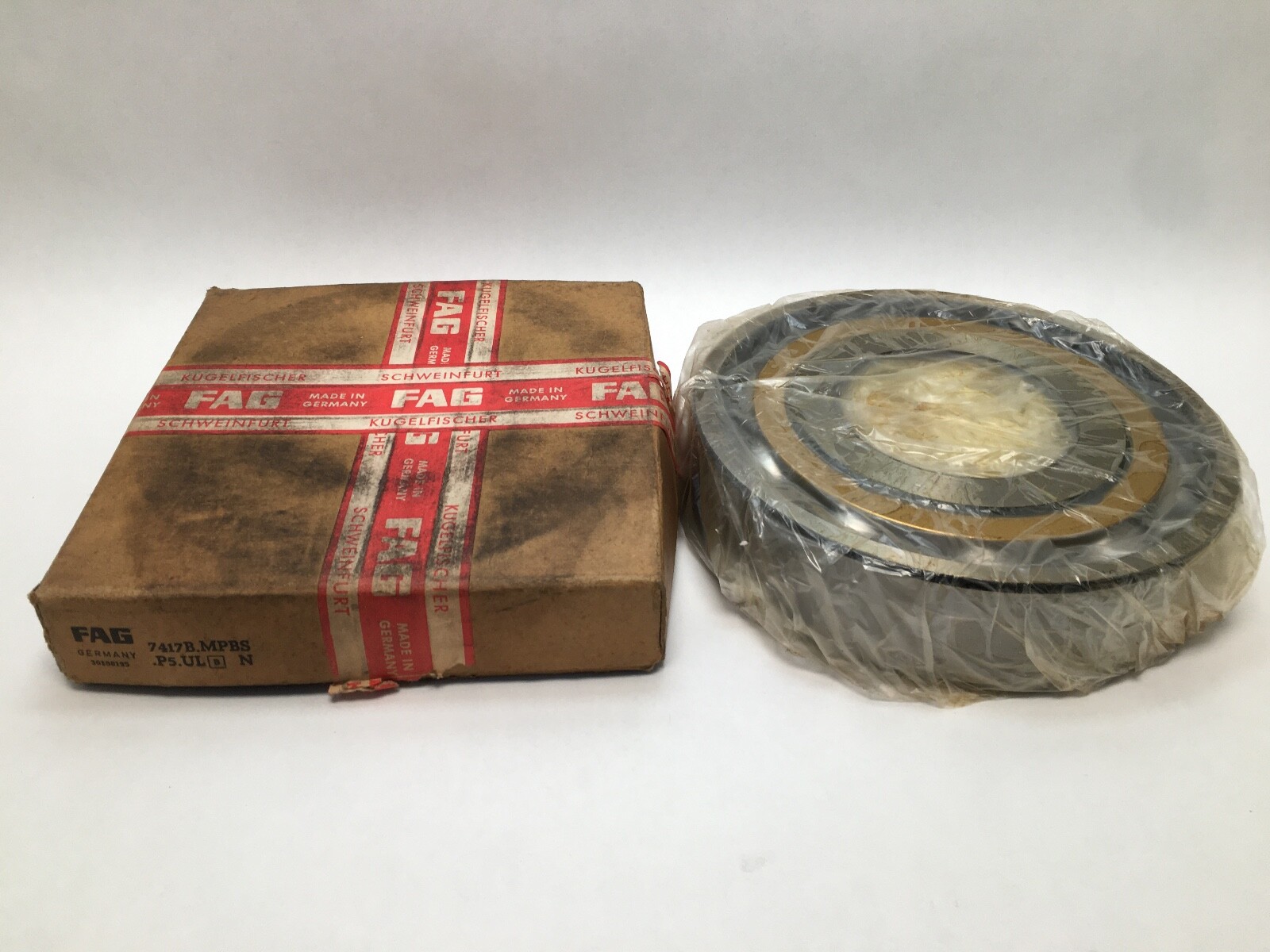

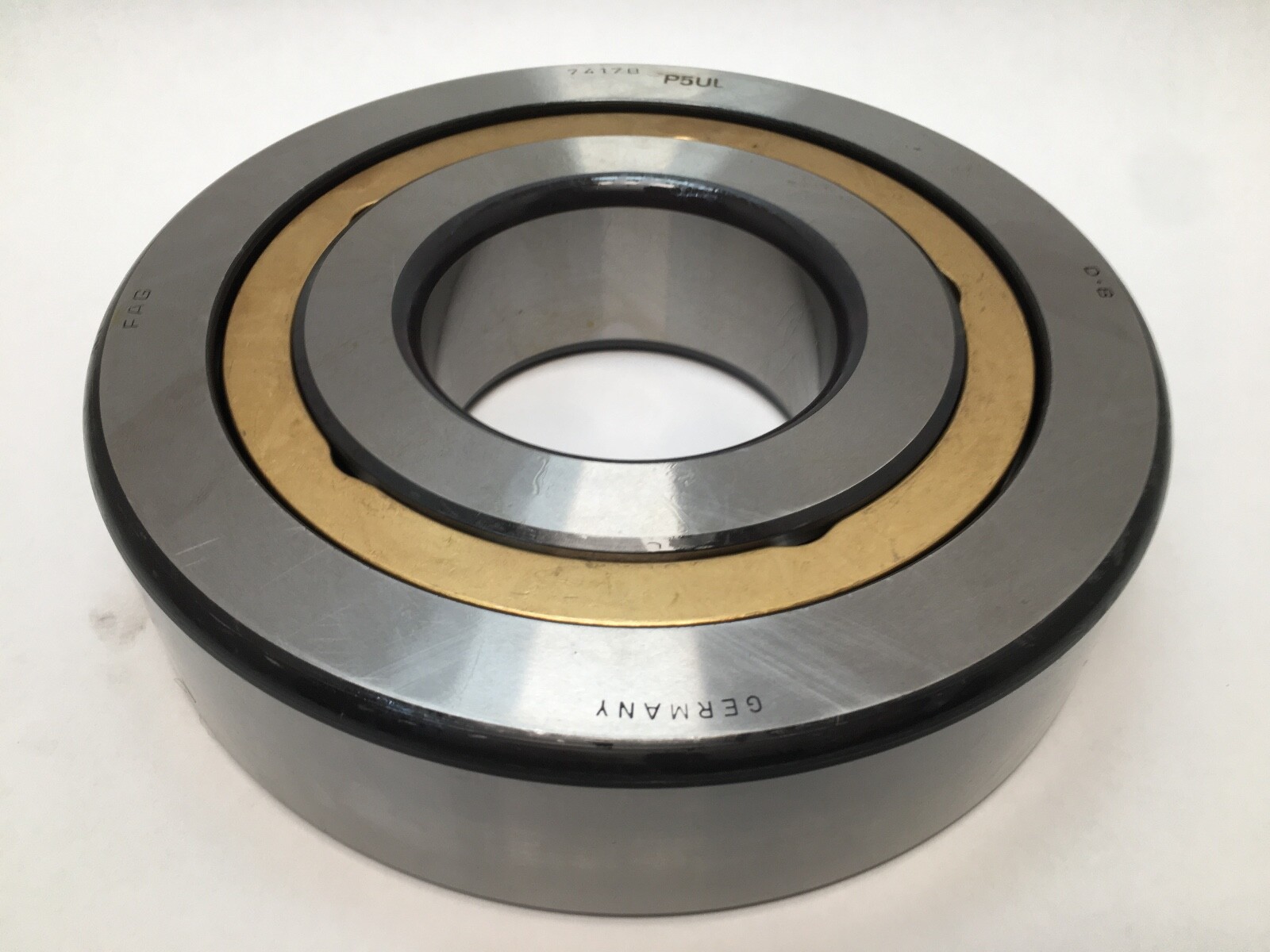

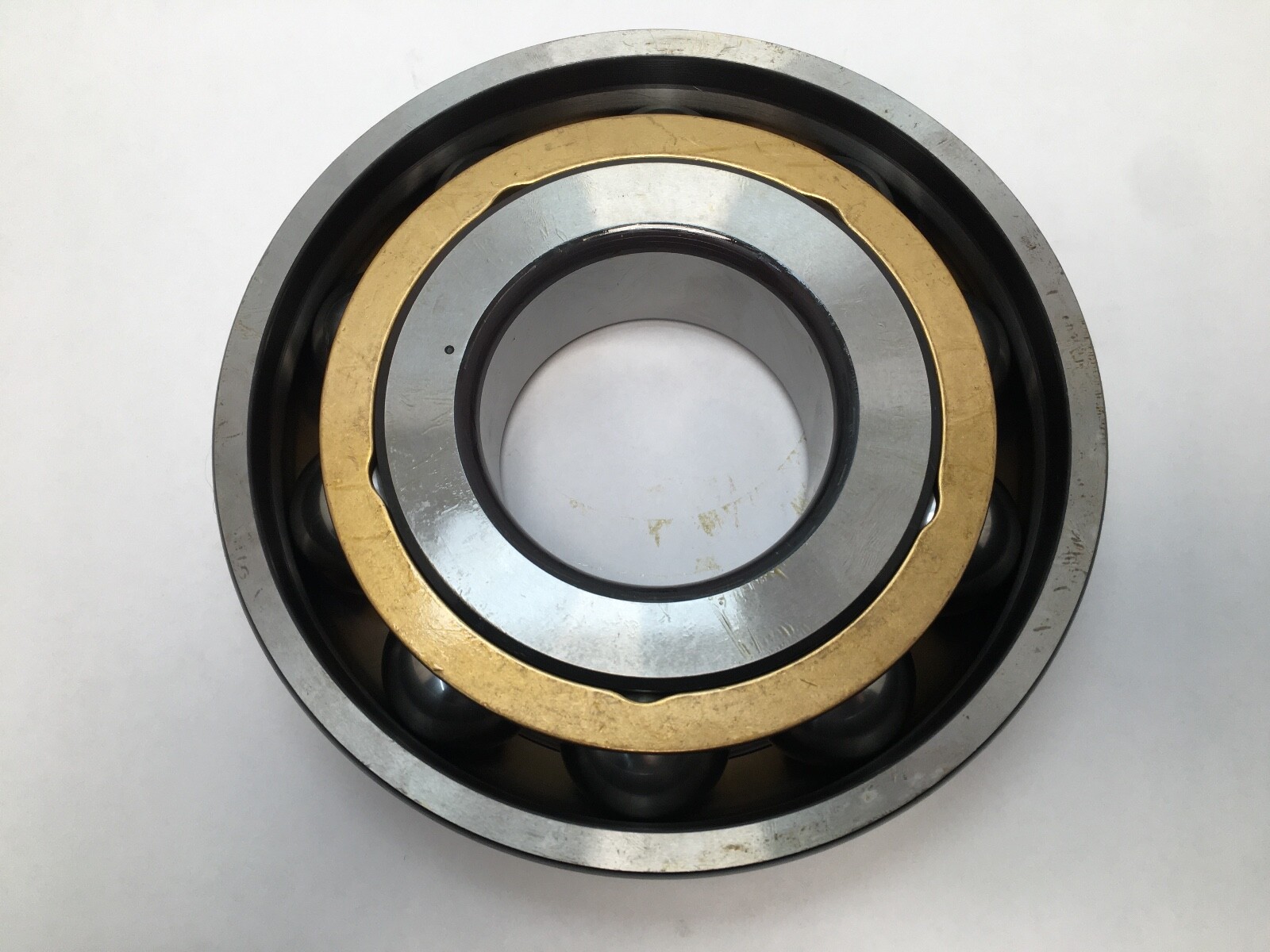

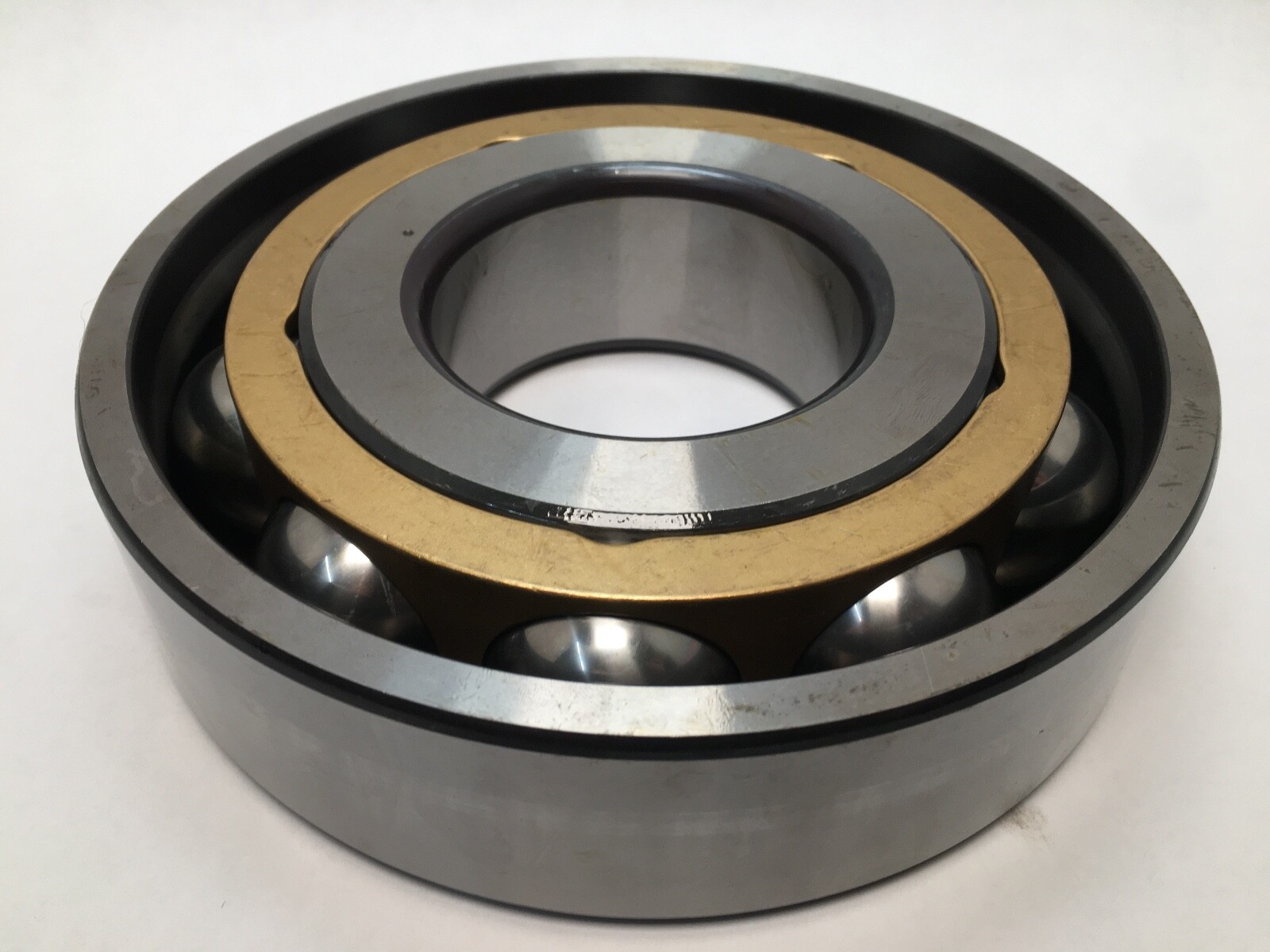

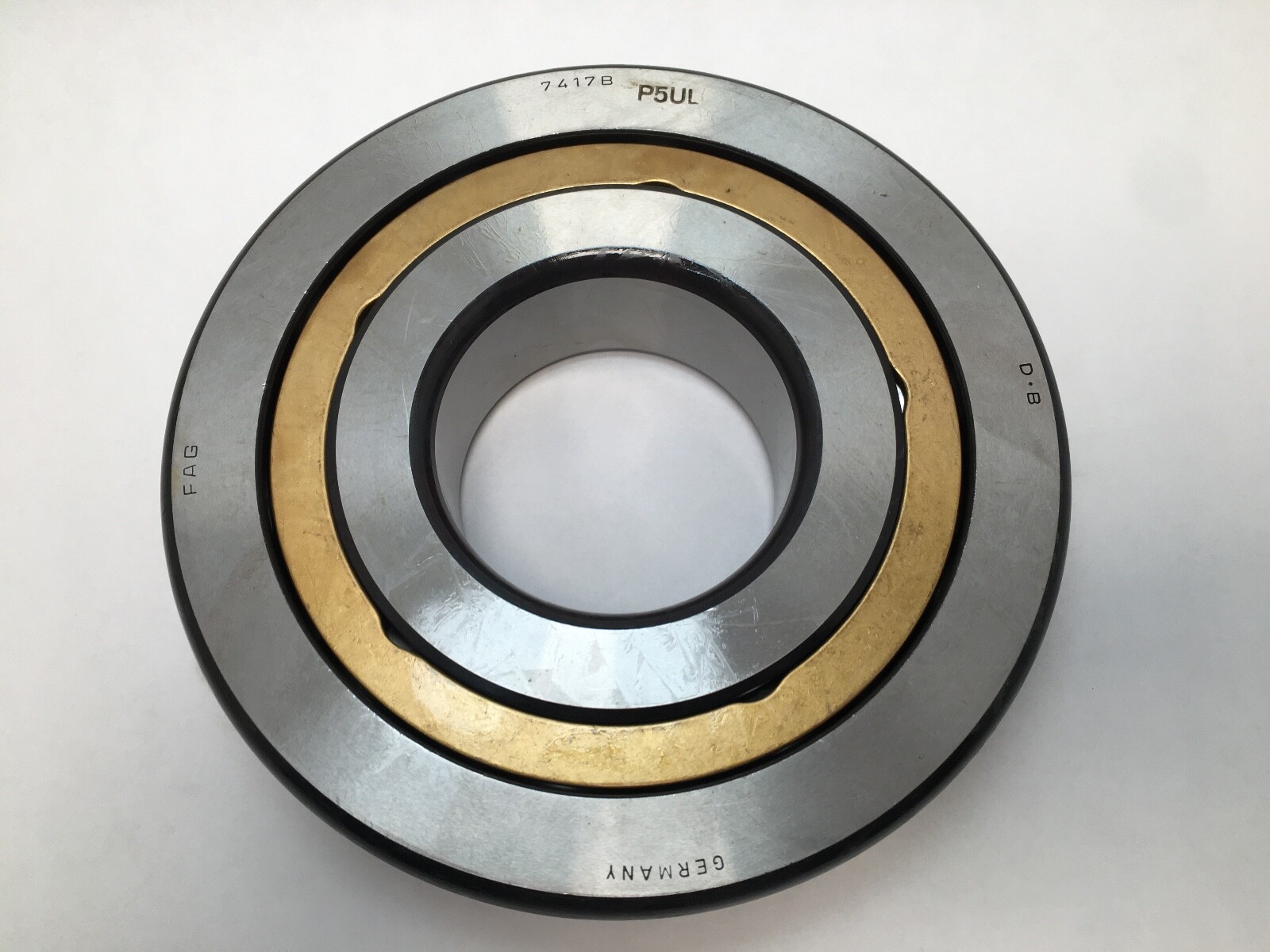

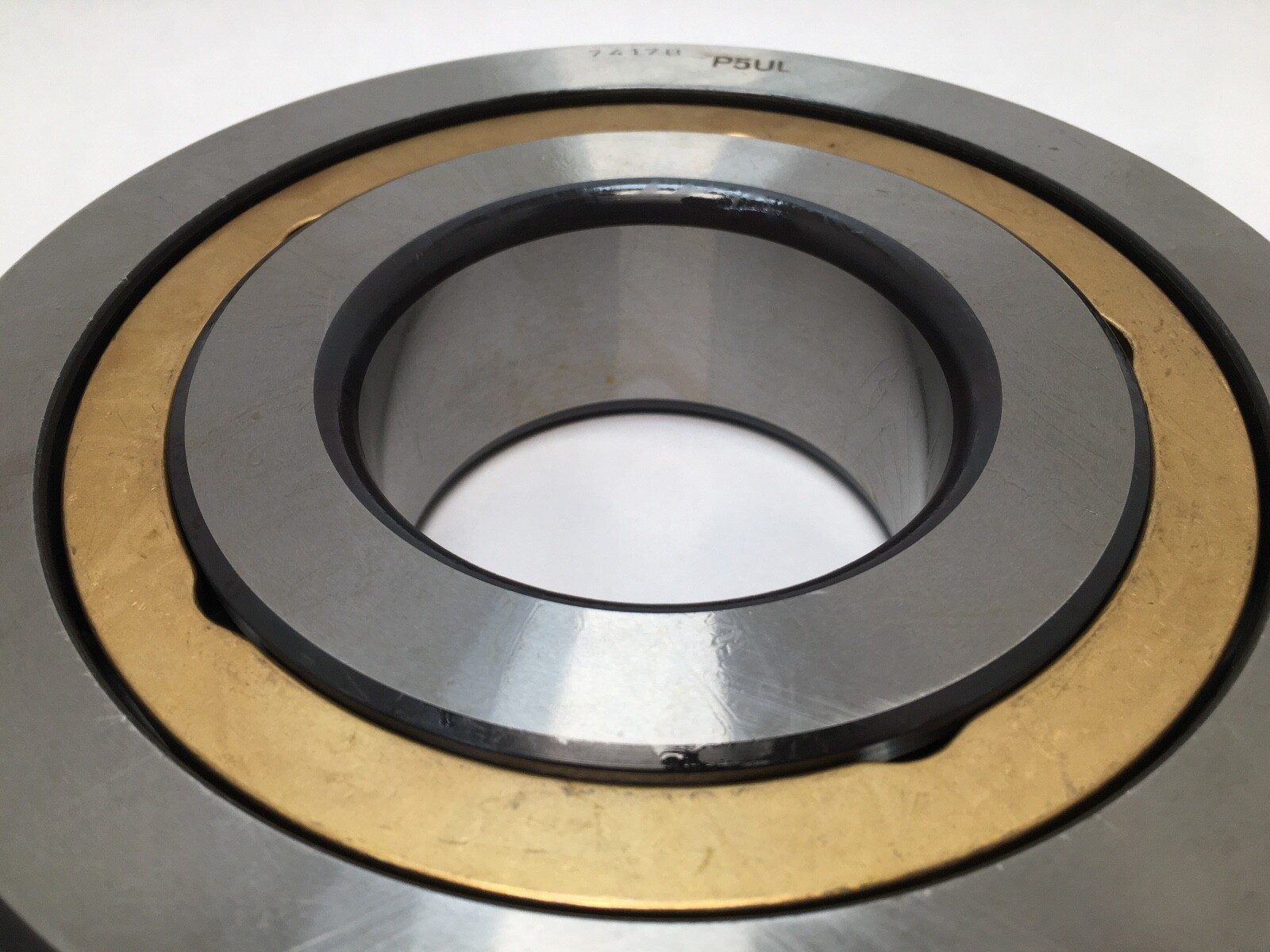

FAG 7417-B-MPBS-P5-UL angular contact ball bearing, 85 x 210 x 52 mm, 40° contact angle, P5 precision, universal matching with light preload, machined brass window cage.
List Price
$270.75
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 7417-B-MPBS-P5-UL |
| Model | 7417BMPBSP5UL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 85 mm |
| OD | 210 mm |
| Width | 52 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7400 |
| Lubricant | grease or oil |
| Preload | Light (UL) |
| Base Number | 7417 |
| Industry Terms | angular contact ball bearing, 40 degree angular contact, universal matched bearing, heavy series angular contact |
| Common Misspellings | 7417BMPBSP5UL, 7417-BMPBS-P5-UL, 7417B.MP.P5.UL, 7417BMP |
| Application Types | Pumps, compressors, gearboxes, machine tools, heavy combined radial and axial loads |
| Overall Width | 52 mm |
| Mpn Variants | 7417BMPBS.P5.UL, 7417-B-MPBS-P5-UL, 7417B, 7417BP5UL, 7417 B MP P5 UL |
| Arrangement Configuration | Universal matching (DB, DF or DT) |
| Precision Class | ABEC 5 / P5 |
| Additional Attributes | Rolling Elements: Ball; Cage Type: Machined brass, window type (MP); Series: 74 heavy angular contact |
| Rolling Elements | Ball |
| Cage Material | Machined brass |
| Number Of Rows | 1 |
| Bore Type | Cylindrical |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 40° |
FAG 7417-B-MPBS-P5-UL (7417BMPBS.P5.UL) is a single-row angular contact ball bearing in the heavy 74 series, ground for universal matching with light preload. Bearing type: Angular contact ball bearing. Bore Diameter: 85 mm. Outside Diameter: 210 mm. Overall Width: 52 mm. Number Of Rows: 1.

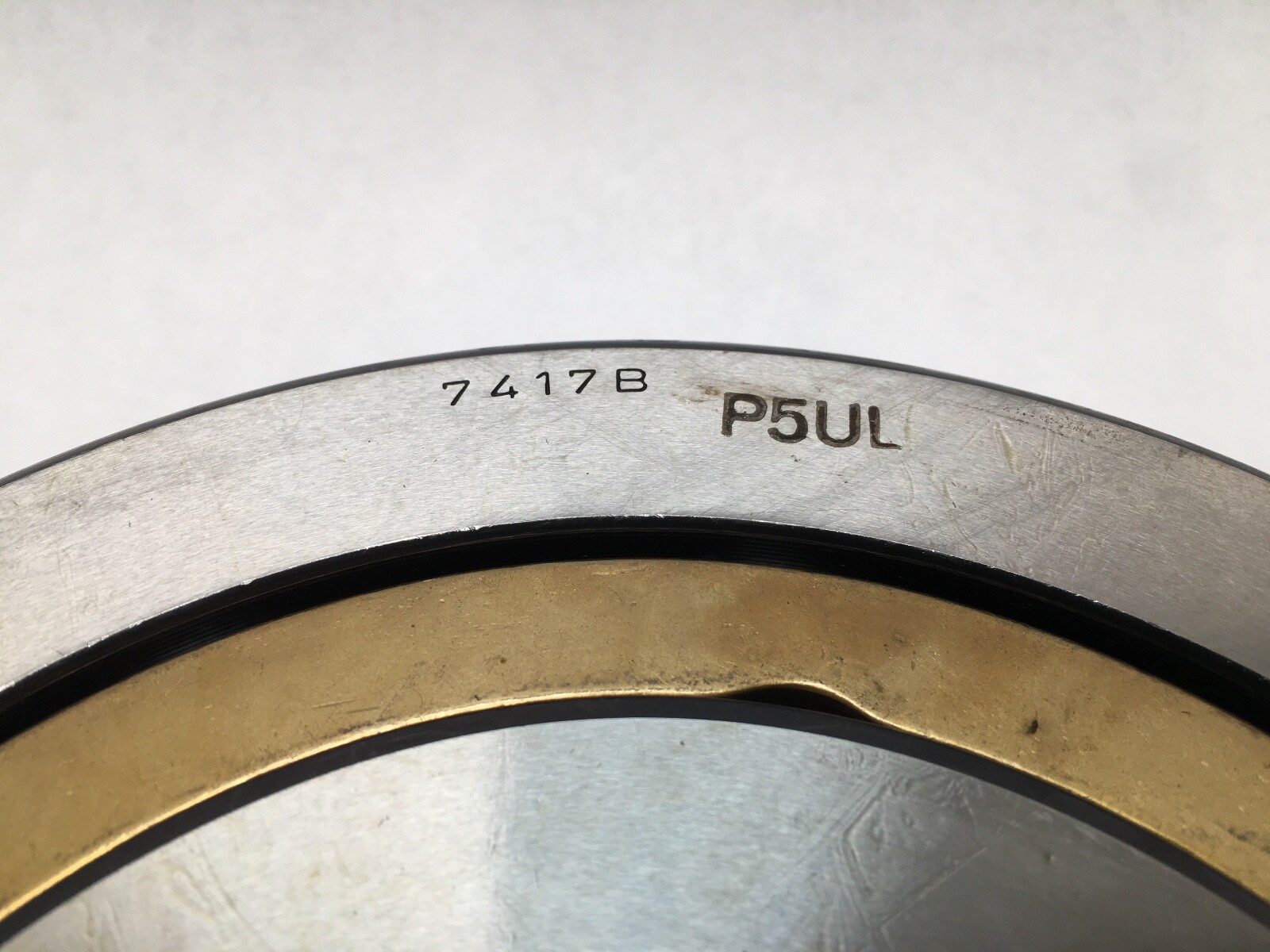

74 — single-row angular contact ball bearing, heavy dimension series 04.
17 — bore code, 17 x 5 = 85 mm.
B — 40° contact angle.

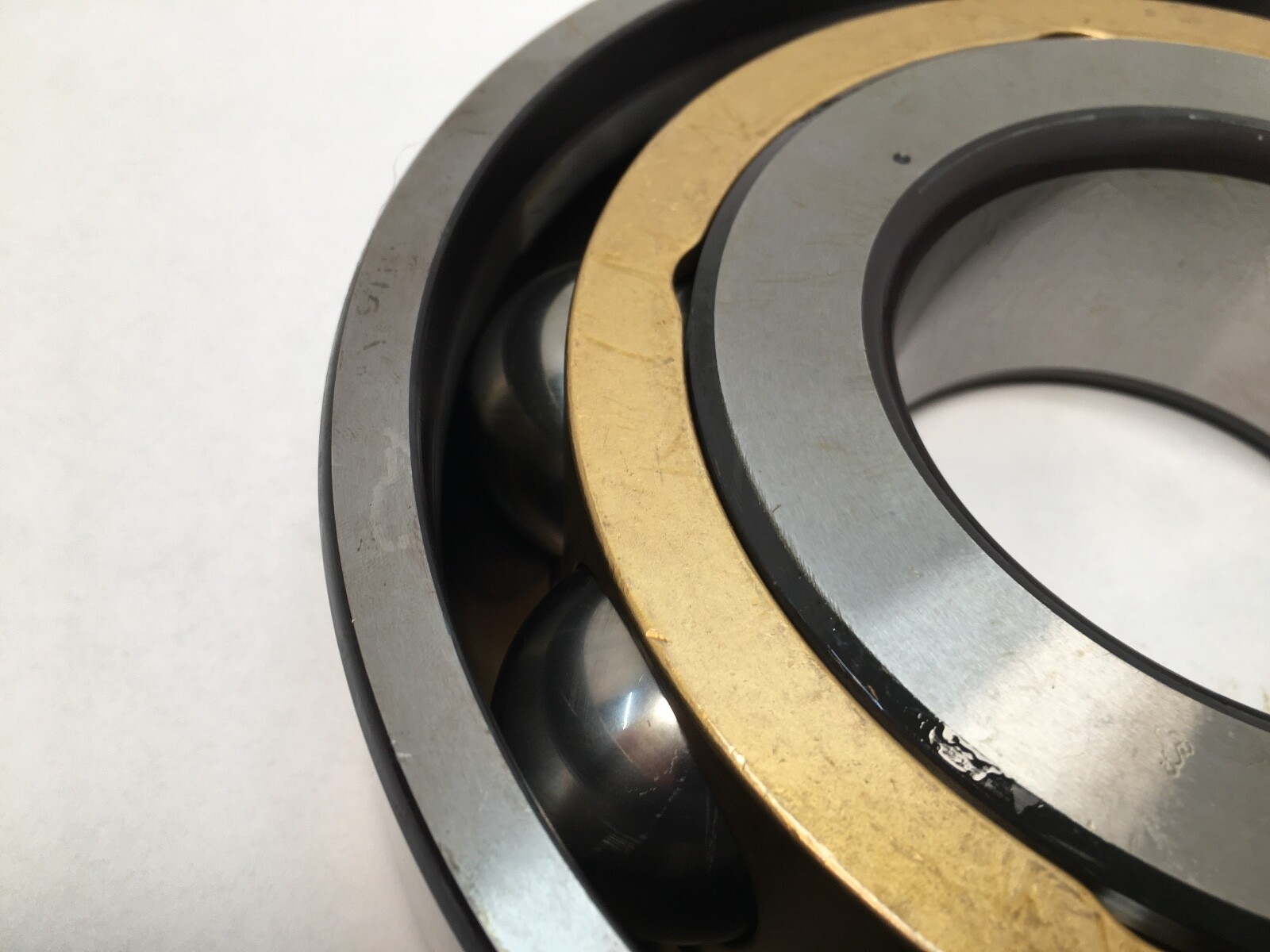

MP — machined brass window-type cage.
P5 — ISO tolerance class P5, equivalent to ABEC 5.
UL — universal design for mounting in any matched arrangement (back-to-back, face-to-face or tandem), light preload when paired.
Contact Angle: 40°. Precision Class: ABEC 5 / P5. Preload: Light (UL). Arrangement / Configuration: Universal matching, DB, DF or DT. Cage Material: Machined brass. Seal type: Open. Closure Type: Open. Lubricant: grease or oil. The 40° angle gives high axial capacity in one direction; two UL bearings paired in any arrangement set a light preload for rigid, play-free running. The heavy 74 section carries large combined loads on an 85 mm shaft.
MPN Variants: 7417BMPBS.P5.UL, 7417-B-MPBS-P5-UL, 7417B, 7417BP5UL, 7417 B MP P5 UL.
