Single-row angular contact ball bearing, 70 mm bore x 150 mm OD x 35 mm wide, 40 degree contact angle, open, universal design for zero-clearance matched sets.
List Price
$112.17
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 7314-B-XL-TVP-UO |
| GTIN | 4012801283700 |
| Model | 7314B-XL-TVP-UO |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 70 mm |
| OD | 150 mm |
| Width | 35 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Series | 7300 |
| Base Number | 7314 |
| Industry Terms | 40 degree angular contact bearing, single row angular contact ball bearing, universal matchable bearing, X-life bearing |
| Common Misspellings | FAG 7314BXLTVPU0, 7314 B XL TVP UO, FAG 7314-B-XL-TVPUO, 7314BXL TVP |
| Application Types | Machine tool spindles, gearboxes, pumps, vertical shaft assemblies, industrial fans |
| Bore Shaft Size | 70 mm (2.756 in) |
| Mpn Variants | 7314-B-XL-TVP-UO, 7314B-XL-TVP-UO, 7314BXLTVPUO, 7314-B-TVP-UO, 7314B, 7314 |
| Manufacturer Status | X-life active production designation |
| Cage Type | Window cage |
| Rolling Elements | Ball |
| Cage Material | Glass-fibre reinforced polyamide |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 40° |
| Bearing Material | High Carbon Chrome Steel |
| Part Number | 7314-B-XL-TVP-UO |
| Closure Type | Open |

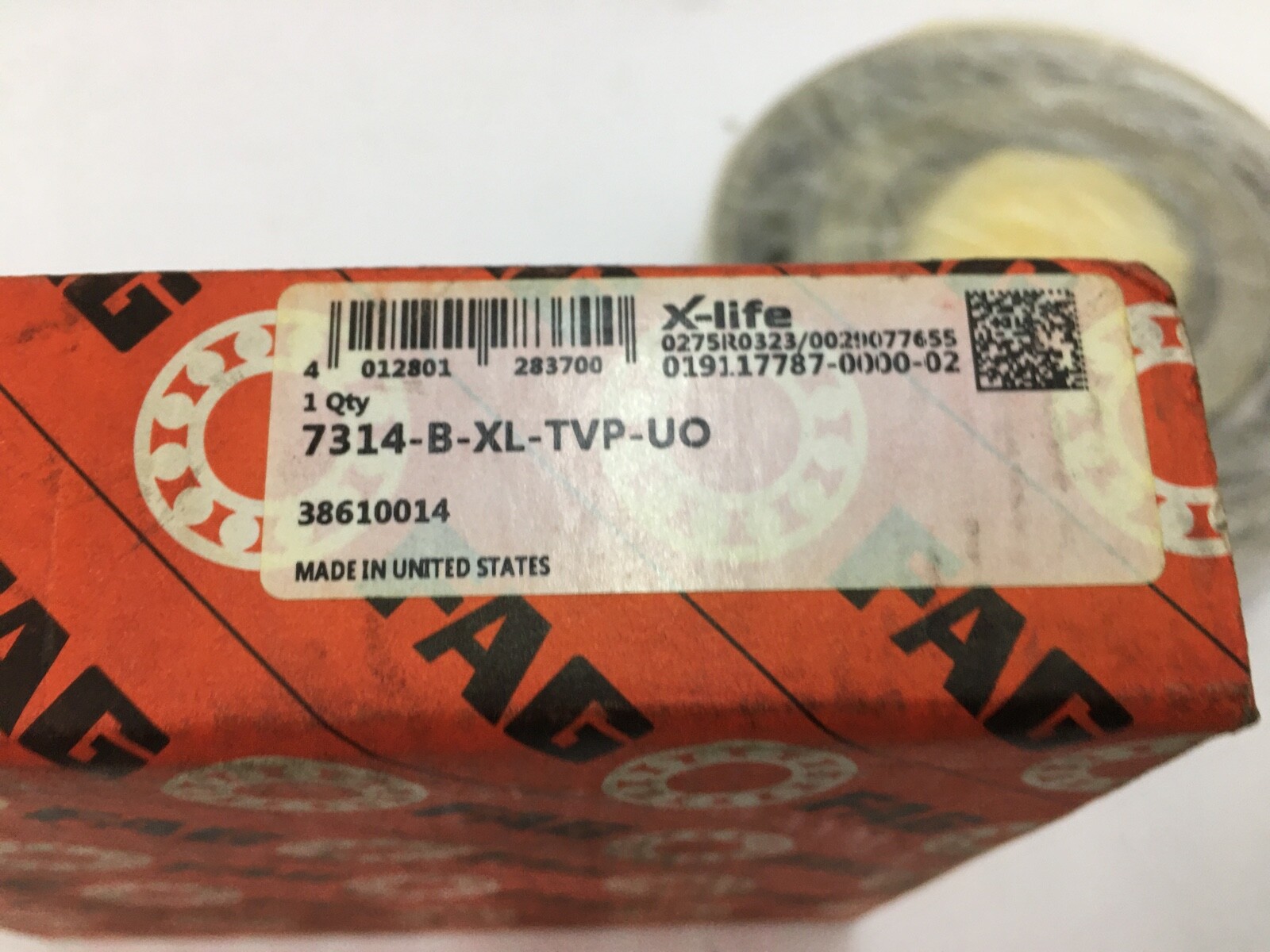

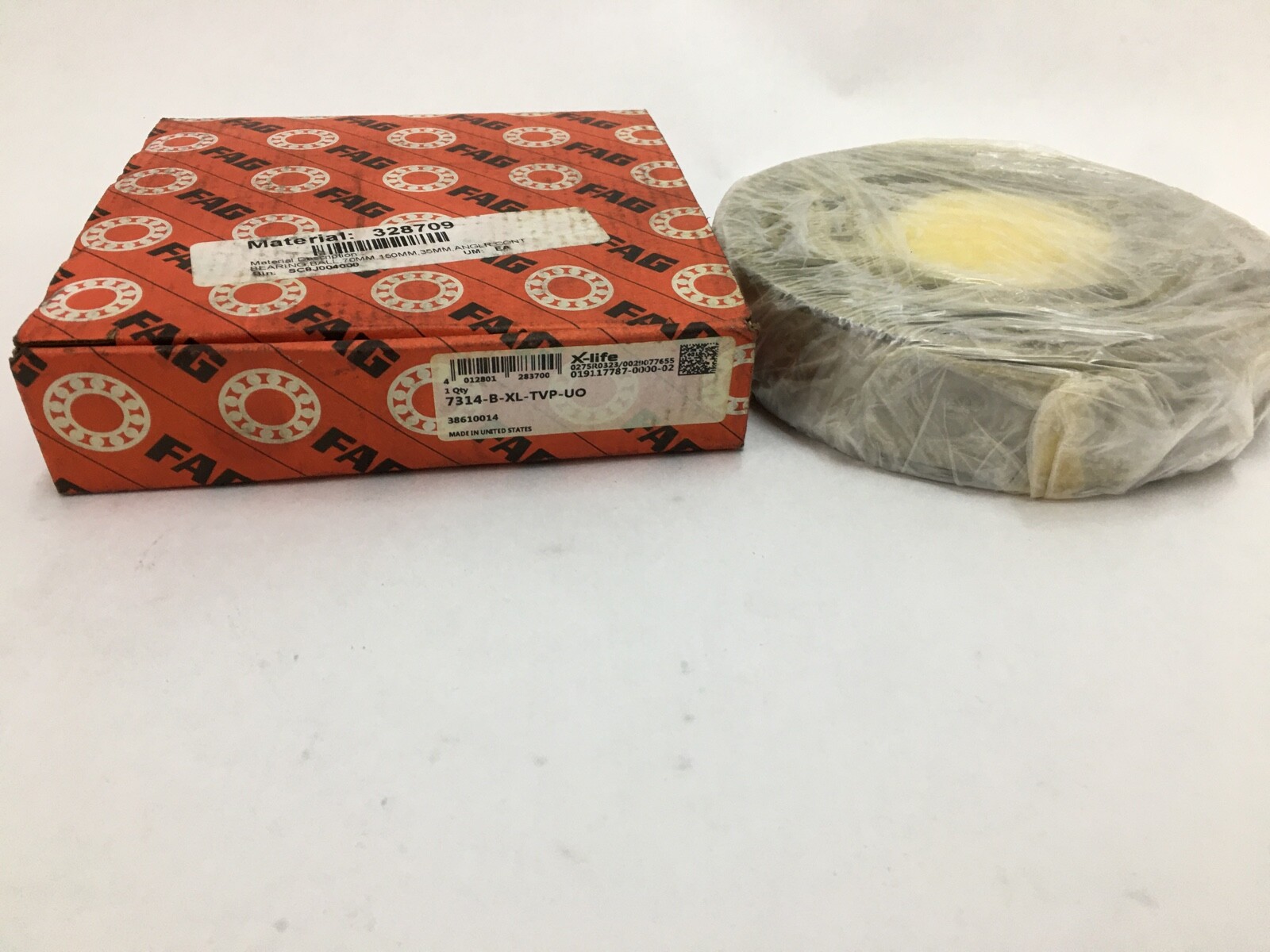

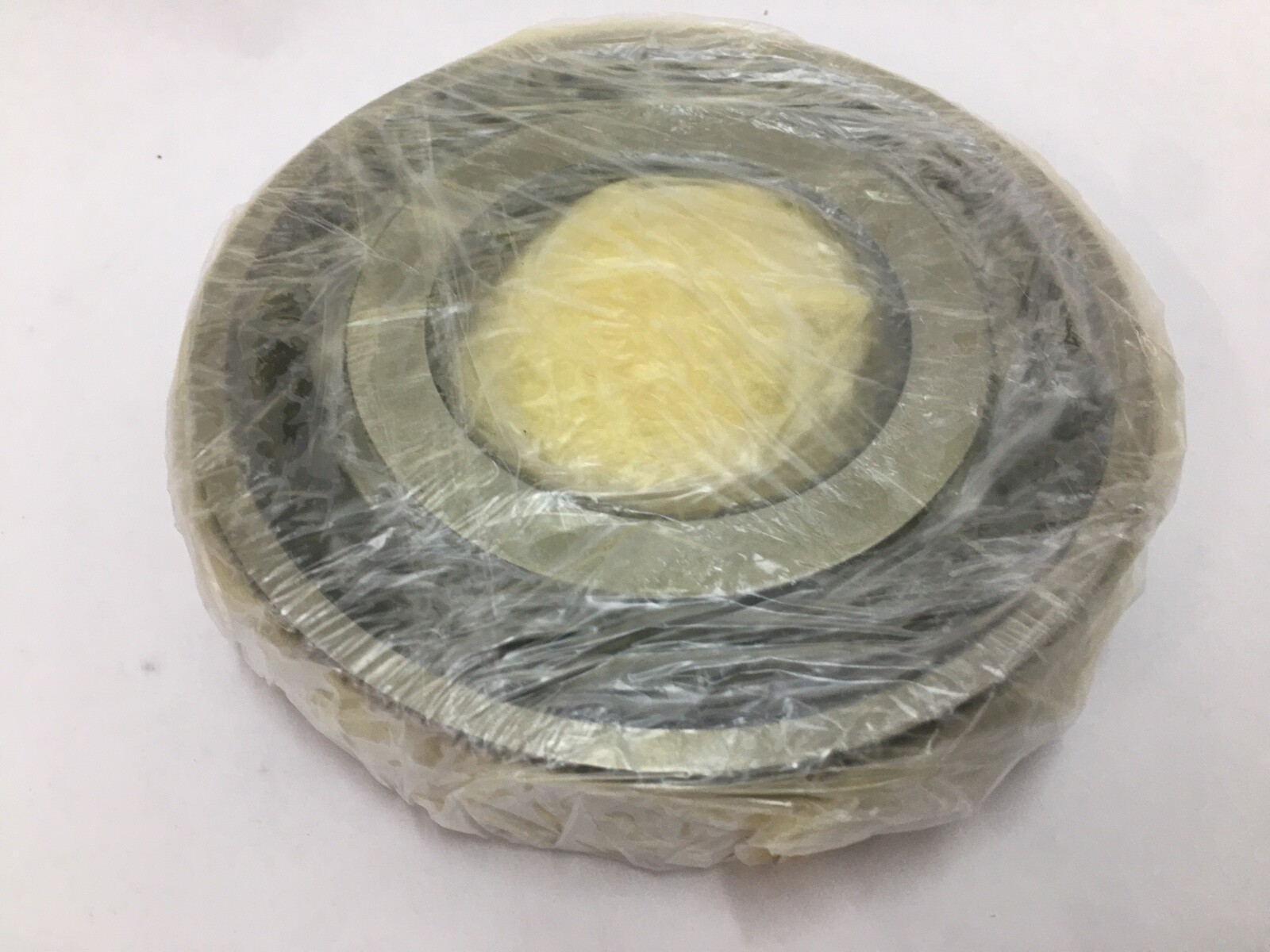

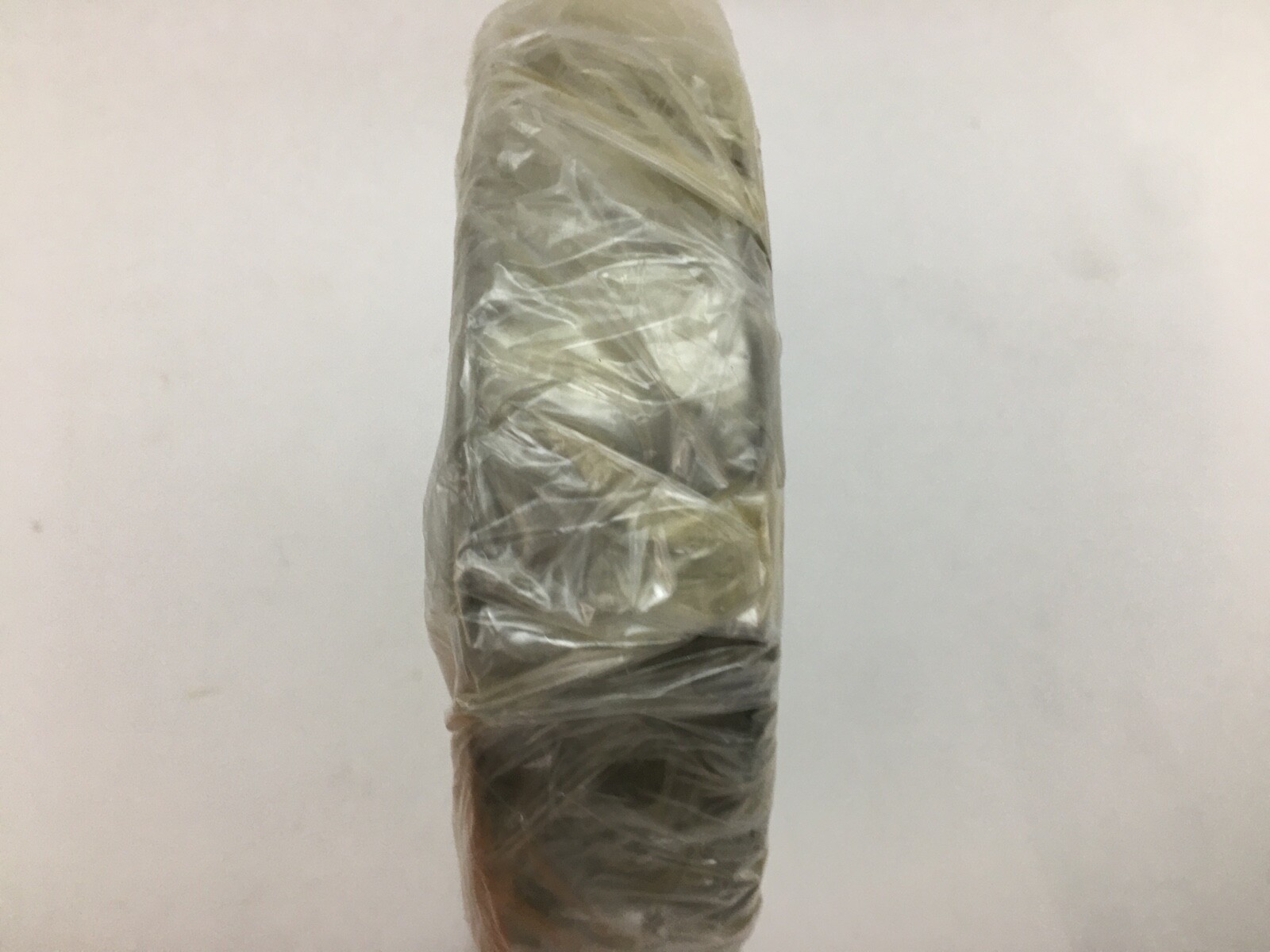

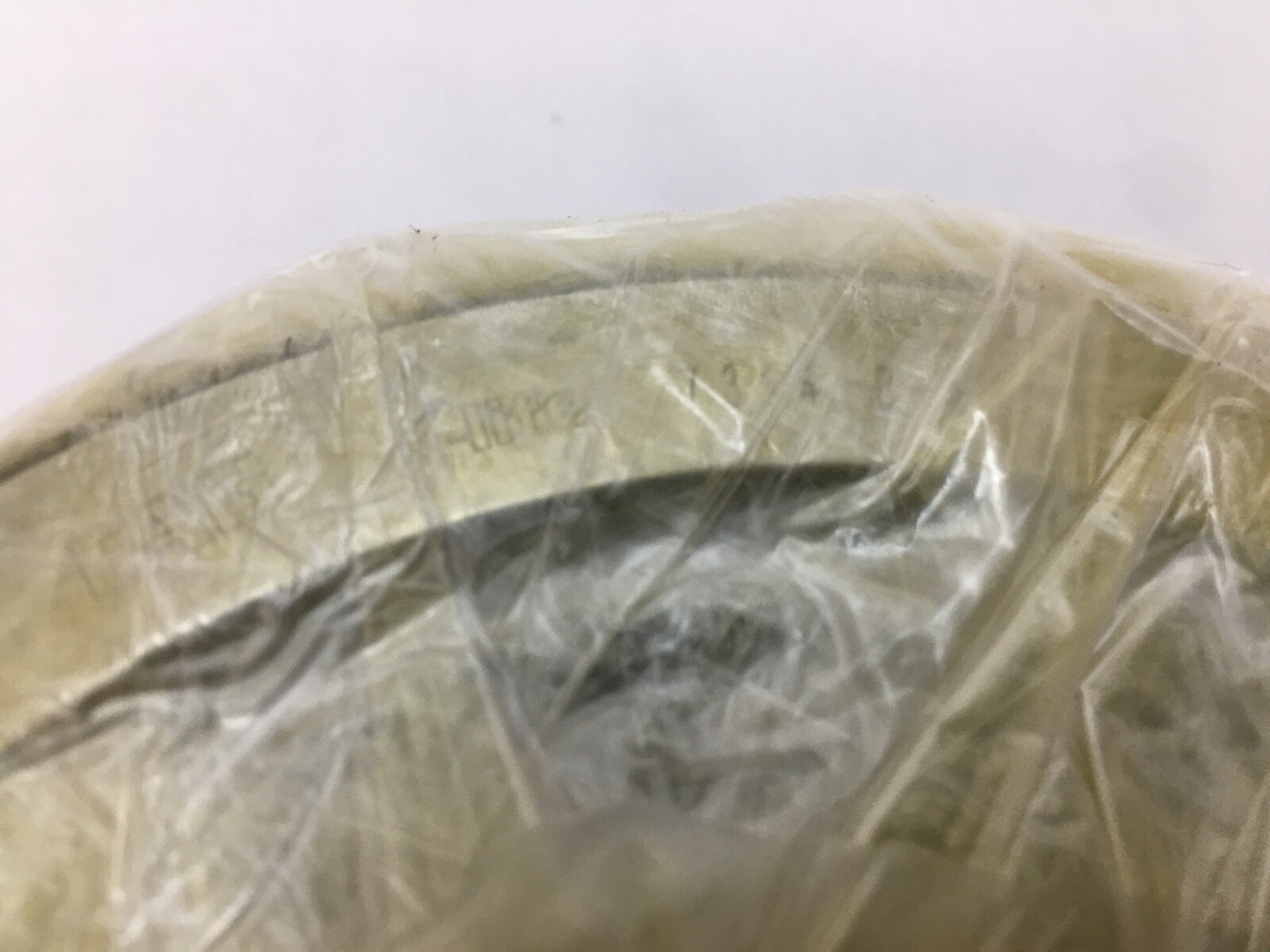

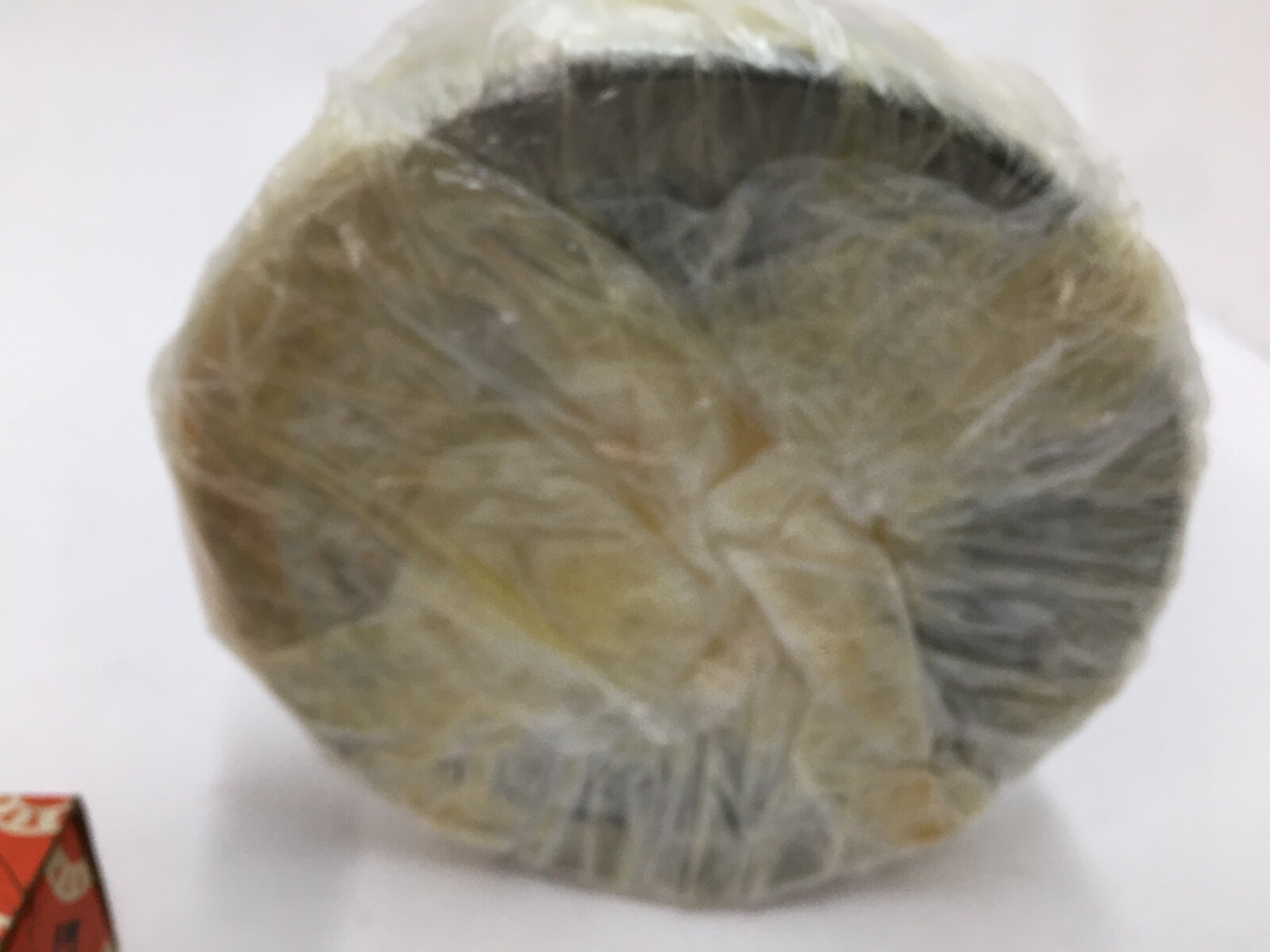

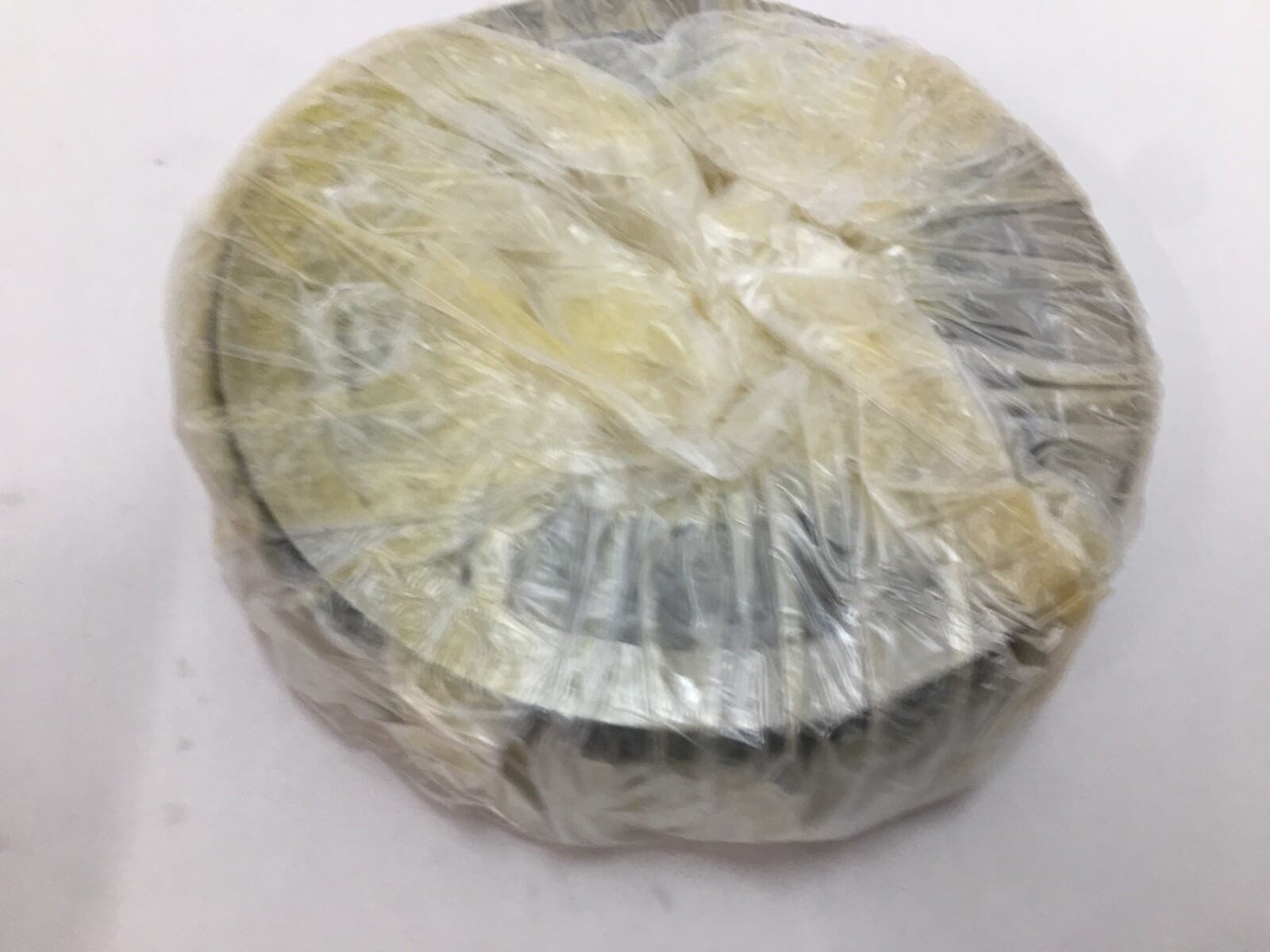

A FAG 7314-B-XL-TVP-UO single-row angular contact ball bearing. Bore 70 mm, outside diameter 150 mm, width 35 mm. Open on both faces, straight bore, one row of balls in a glass-fibre reinforced polyamide window cage. ISO 73 medium dimension series, 40° contact angle.
73 — ISO dimension series, medium.
14 — bore code, 70 mm bore.
B — 40° contact angle.
XL — X-life uprated execution.
TVP — glass-fibre reinforced polyamide cage.
UO — universal design: rings ground so that two bearings paired back-to-back or face-to-face come out at zero clearance and zero preload, and any number can be arranged in tandem.
Bore Diameter: 70 mm (2.756 in). Outside Diameter: 150 mm. Width: 35 mm. Contact Angle: 40°. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Seal Type: Open. Cage Material: Glass-fibre reinforced polyamide. Bearing Material: High Carbon Chrome Steel. Series: 7300 / ISO 73. Unit Quantity: 1 Pc.
Single-row angular contact bearings take axial load in one direction. The 40° angle is the high-thrust end of the angular contact range. The UO grinding allows a second UO bearing of the same designation to pair with this one at zero clearance without shims or spacer grinding.
MPN variants: 7314-B-XL-TVP-UO, 7314B-XL-TVP-UO, 7314BXLTVPUO, 7314-B-TVP-UO, 7314B, 7314. Related: 7314-B-XL-MP, the brass-cage execution of the same bearing. Parts numbered 7314 without the B, or in a C or E execution, carry a different contact angle.
40°, from the B in the designation.
Universal design, ground so that paired bearings reach zero clearance and zero preload.
70 mm bore, 150 mm outside diameter, 35 mm width.
